Model Whirlpool CE3510PRW ELECTRIC RANGE – Common Parts & Diagrams
05 - CONTROL PANEL (CE3520SRx)

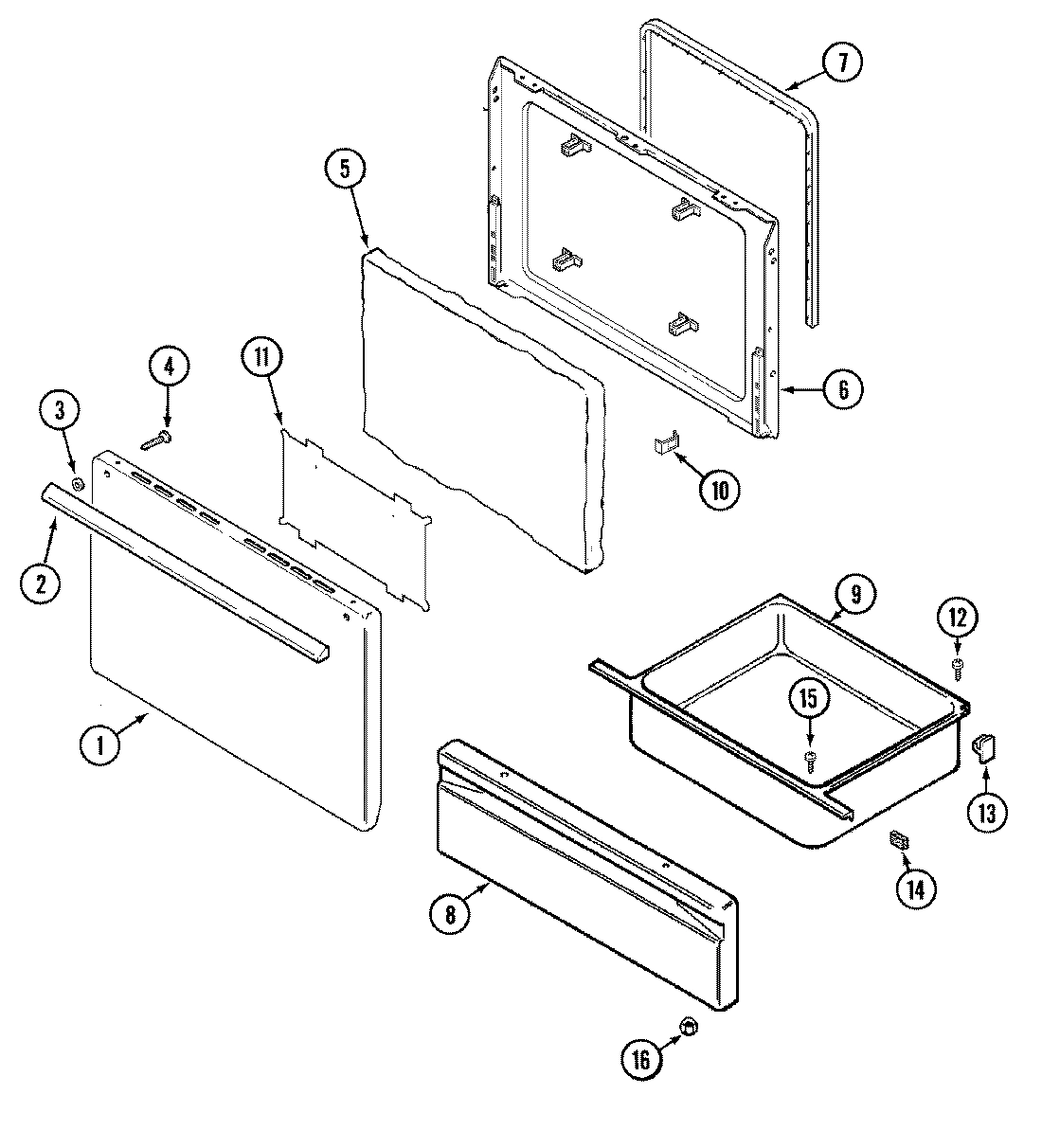

06 - DOOR/DRAWER (CE3510PRx)

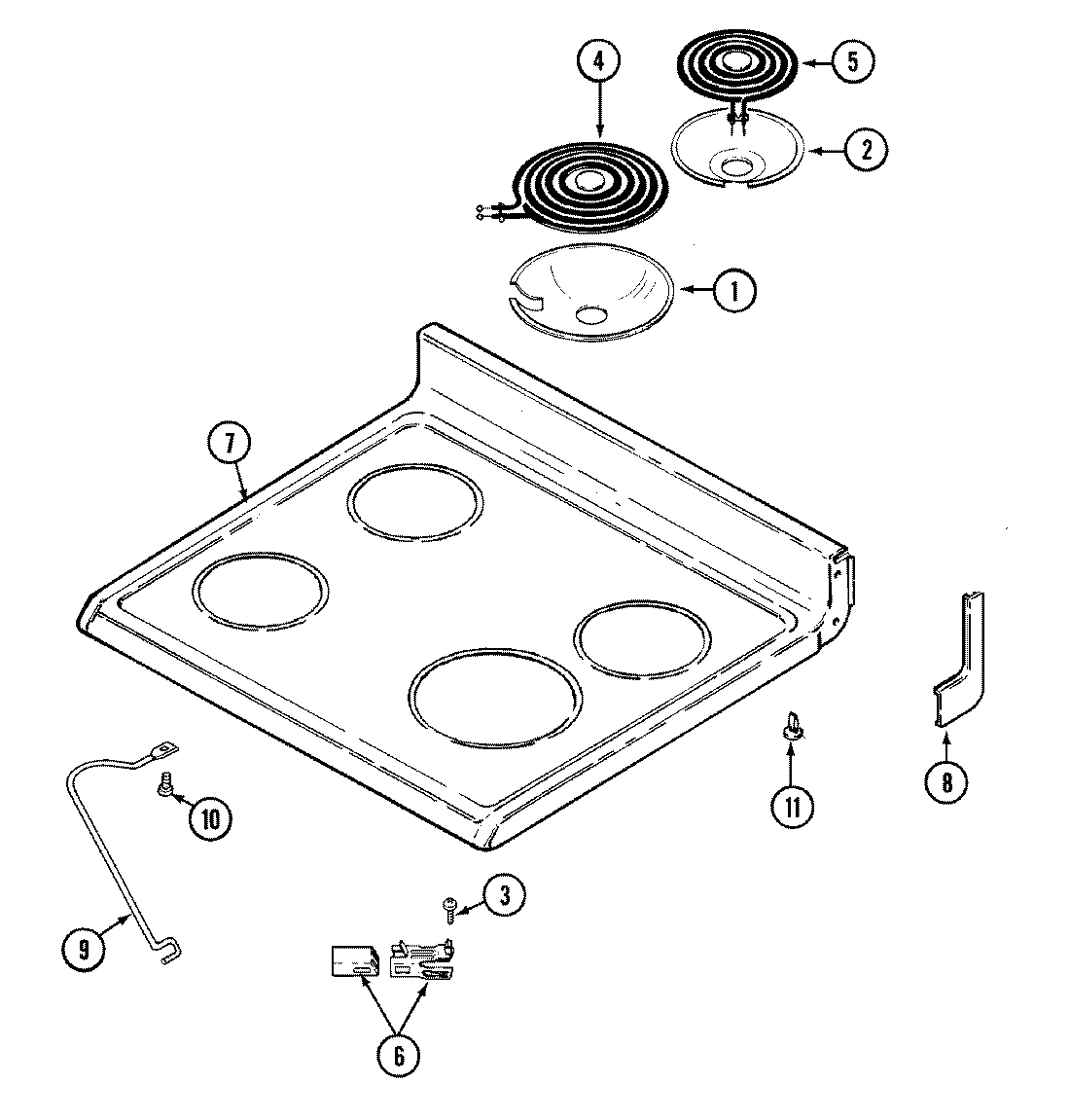

12 - TOP ASSEMBLY (CE3510PRx)
02 - BODY (CE3510PRx)
09 - OVEN/BASE (CE3500PPx)

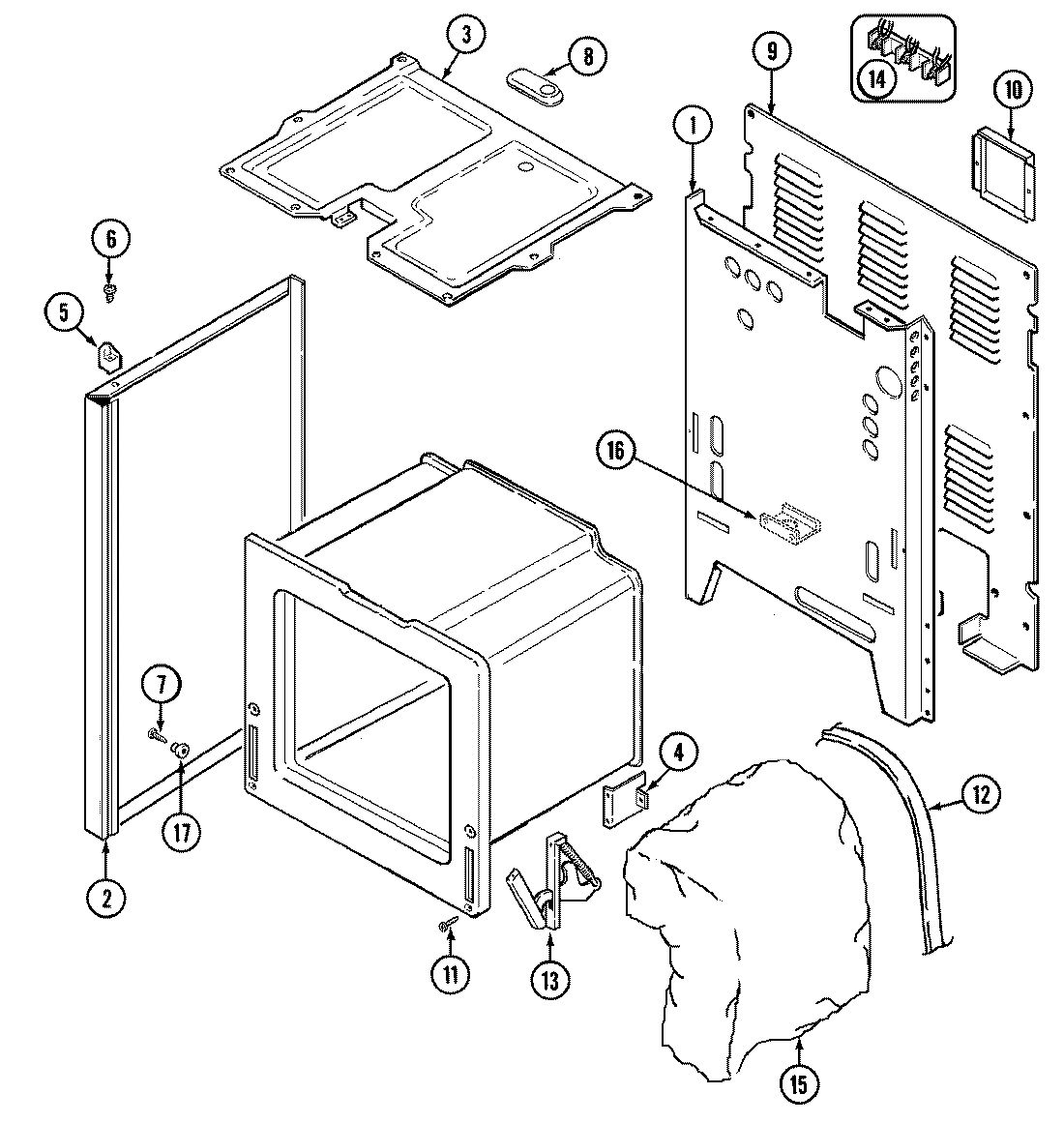

03 - BODY (CE3520SRx)

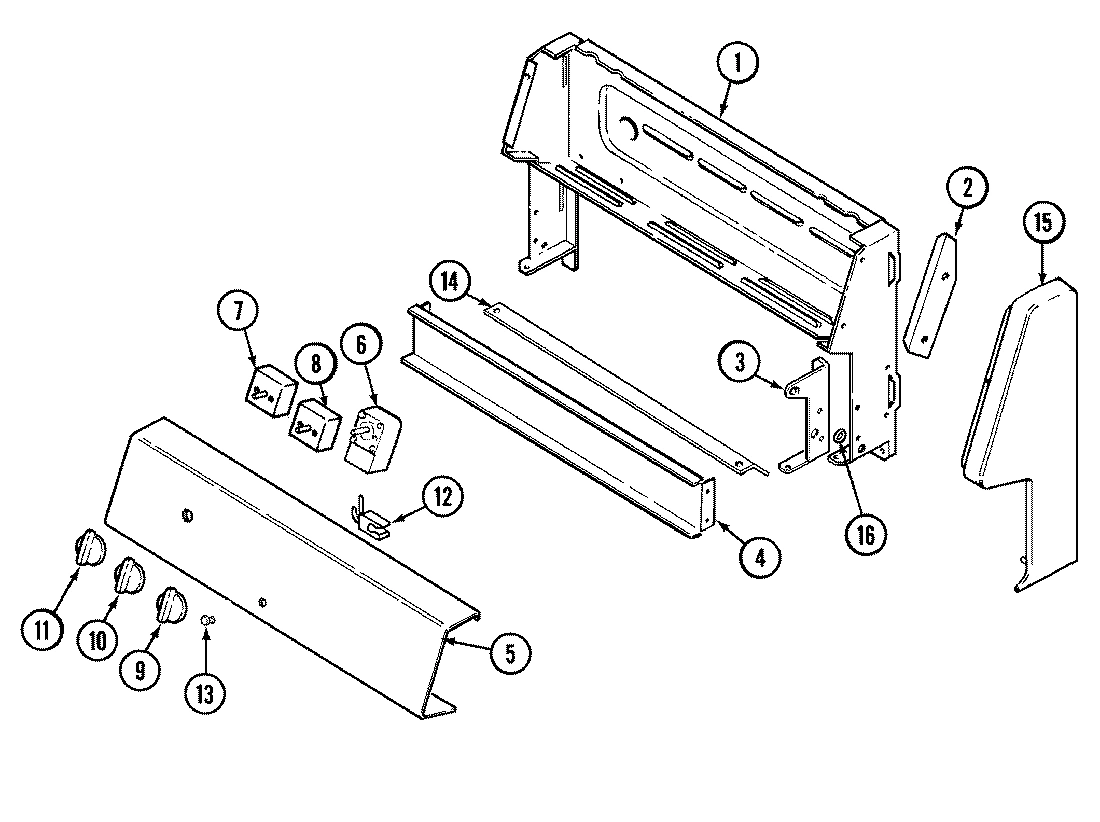

04 - CONTROL PANEL (CE3510PRx)
01 - BODY (CE3500PPx)

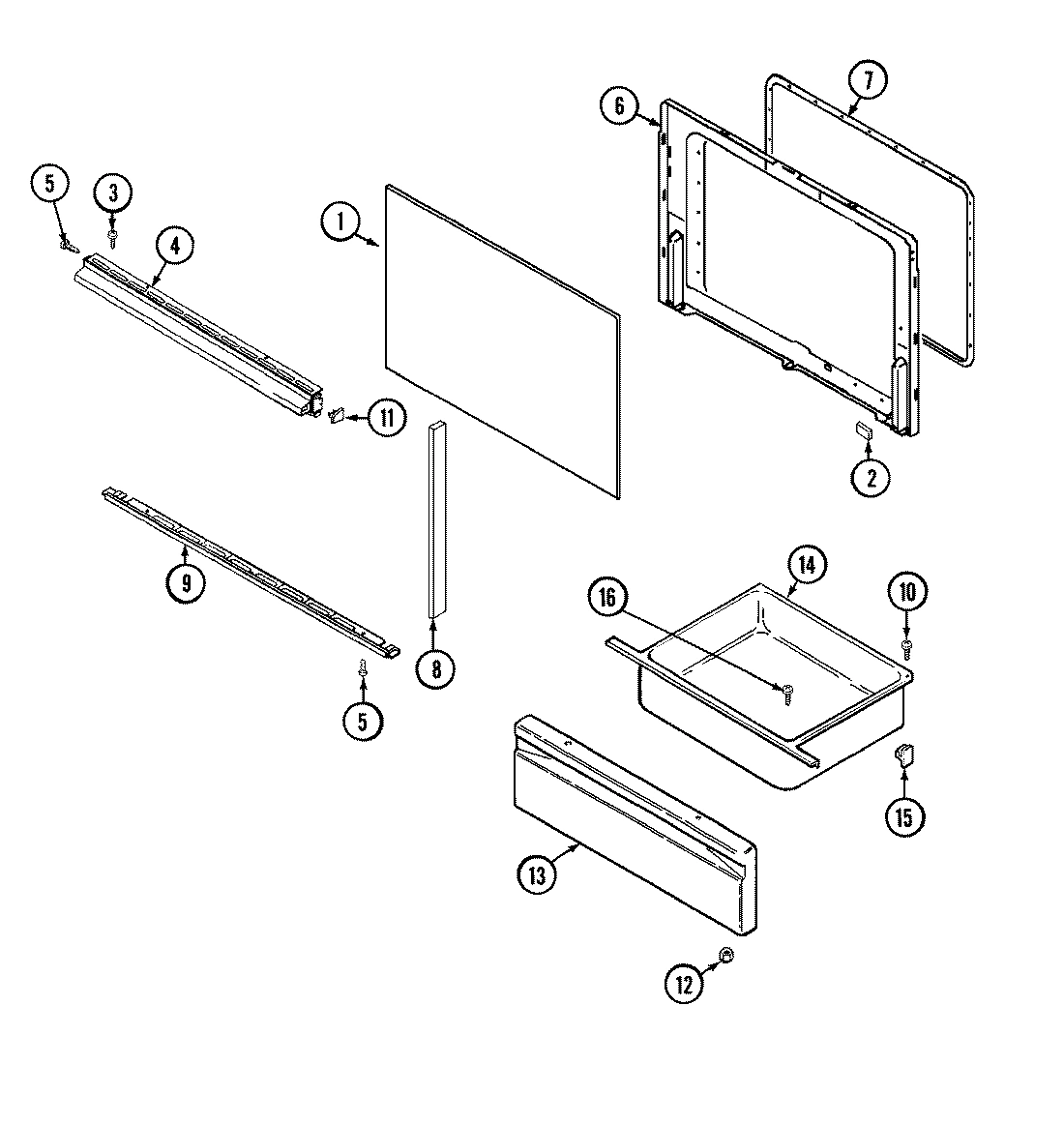

08 - DOOR/DRAWER (CE3520SRx SERIES 45)
10 - OVEN/BASE (CE3510PRx)

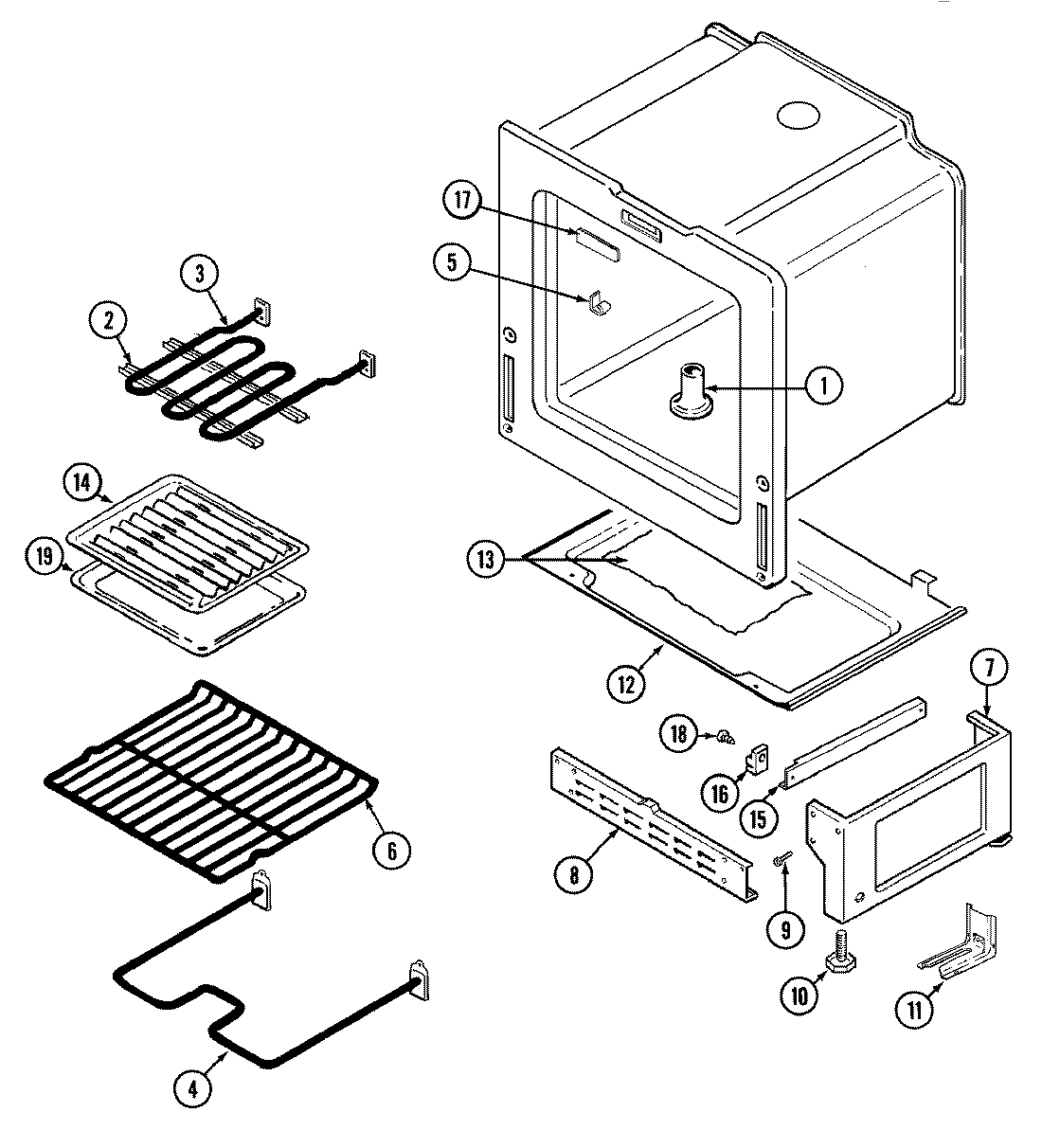

11 - OVEN/BASE (CE3520SRx)

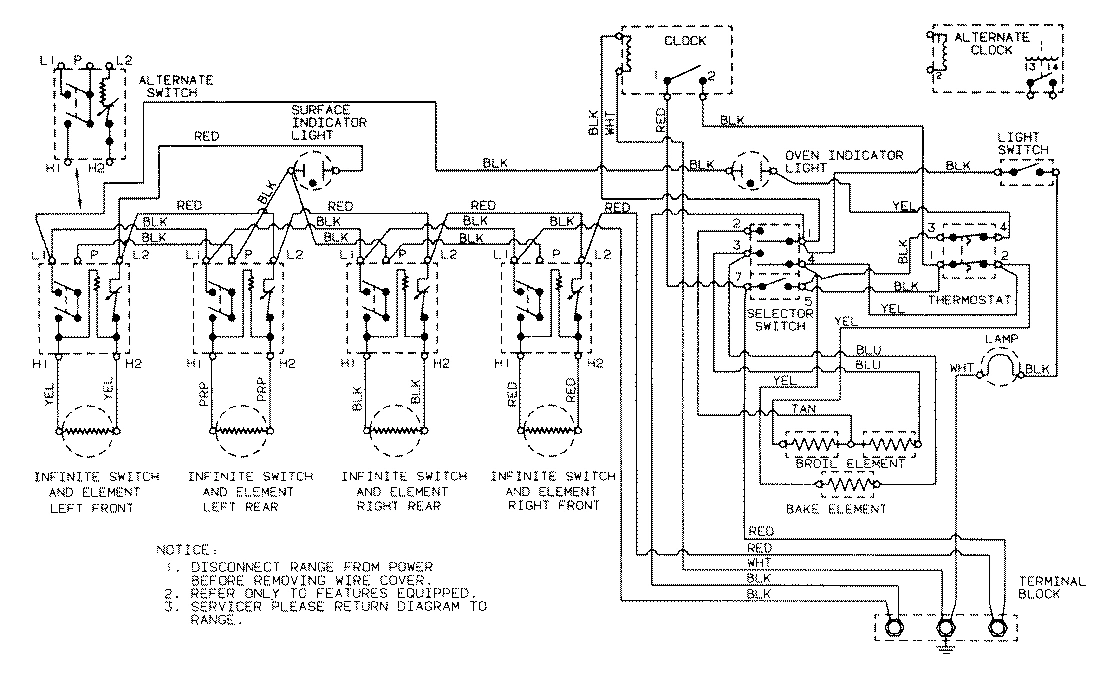

13 - WIRING INFORMATION

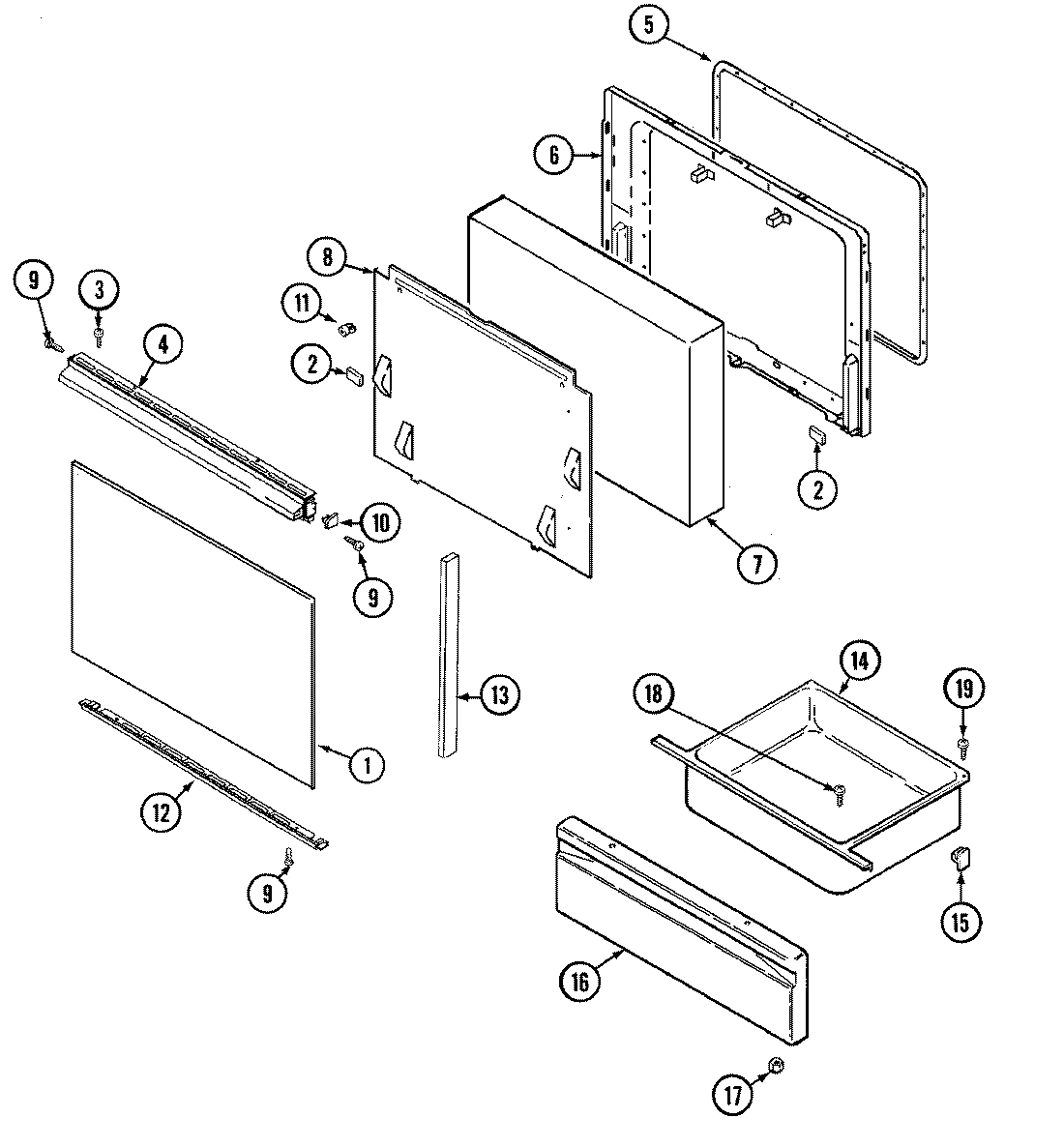

07 - DOOR/DRAWER (CE3520SRx SERIES 01)
Common parts from model Whirlpool CE3510PRW ELECTRIC RANGE
1
PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability
1
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
TUBE, VENT WPL 8026P02060 Contact Us For Availability
1
HOUSING, BACKGUARD WPL 4001F08951 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
2
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
2
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
3
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
BOX, BURNER WPL 4011F21919 Contact Us For Availability
3
BOX, BURNER WPL 74001132 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
5
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
PANEL, CONTROL WPL 2601F39609 Contact Us For Availability
6
THERMOSTAT WPL 7404P08160 Contact Us For Availability
6
LINING, DOOR WPL 2402W20119 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
RACK WPL 7801P04060 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
LINING, DOOR WPL 74002396 Contact Us For Availability
6
LINING, DOOR WPL 74003240 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07981 Contact Us For Availability
7
PEDESTAL (SIDES) WPL 4020W01180 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
7
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
7
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
8
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21845 Contact Us For Availability
9
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7735P03160 Contact Us For Availability
9
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
9
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
10
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
10
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
10
KNOB SELECTOR WPL 7739P03760 Contact Us For Availability
10
END CAP (RT) WPL 7744P07560 Contact Us For Availability
10
END CAP (LT) WPL 7744P07660 Contact Us For Availability
11
BAFFLE, DOOR WPL 3601F25051 Contact Us For Availability
11
GLIDE WPL 8016P01360 Contact Us For Availability
11
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
11
KNOB, SWITCH WPL 7737P03060 Contact Us For Availability
11
END CAP, HANDLE (RT-BLK) WPL 74002539 Contact Us For Availability
11
END CAP, HANDLE (LT-BLK) WPL 74002540 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
12
SCREW WPL 7101P29160 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
12
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
13
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
13
KIT, HINGE W/SCREWS WPL 12400042 Contact Us For Availability
13
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
13
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
14
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
14
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
15
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
15
SCREW WPL 7101P11560 Contact Us For Availability
15
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
15
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
15
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
15
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
15
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
16
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
16
NUT, SPEED WPL 7103P04460 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
NUT WPL 7103P08260 Contact Us For Availability
16
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
16
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
17
NUT, LOCK WPL 7103P08560 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
18
SCREW WPL 7101P33460 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
HARNESS, LOOSE WIRE WPL 5125A31660 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D11960 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001468 Contact Us For Availability
× ![]()
