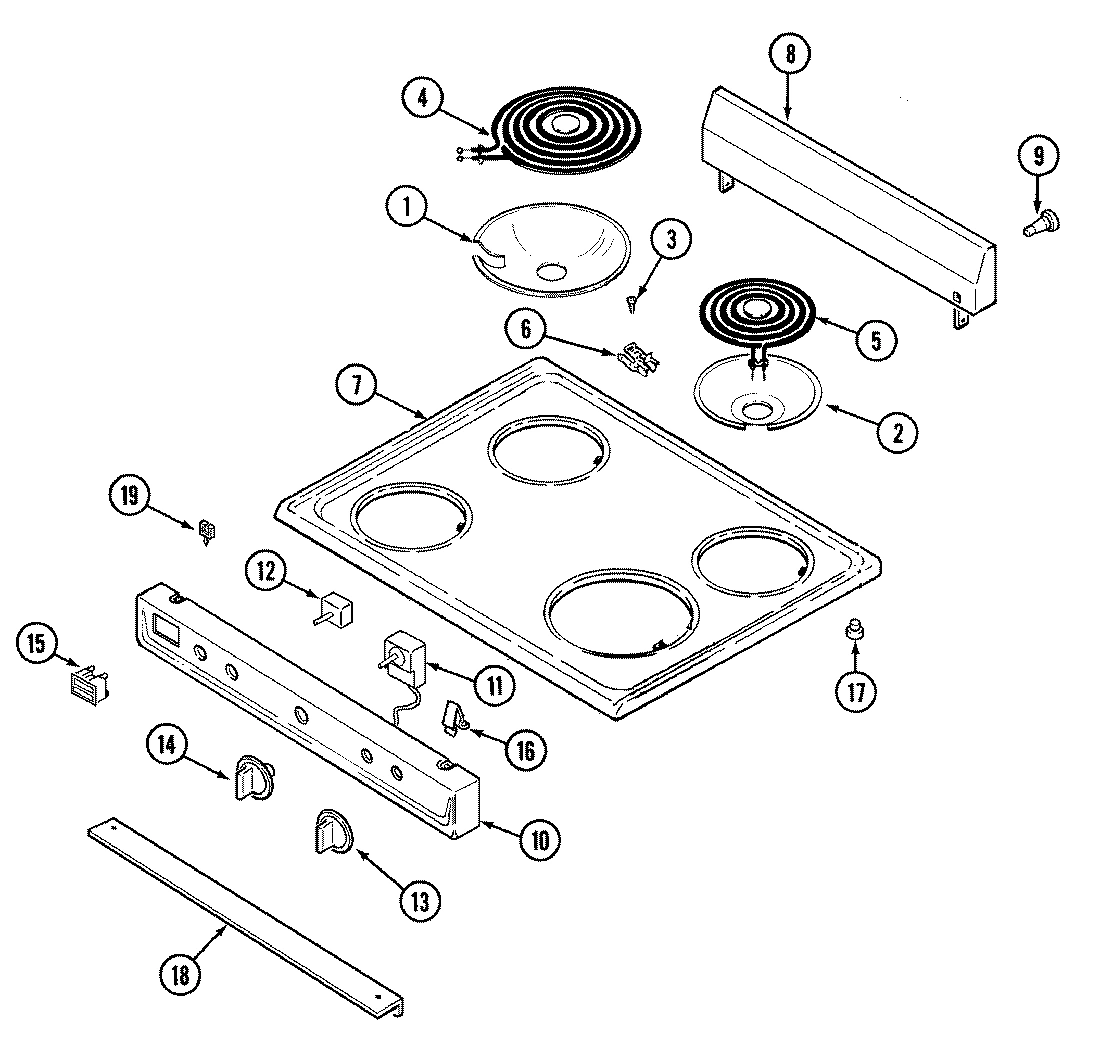

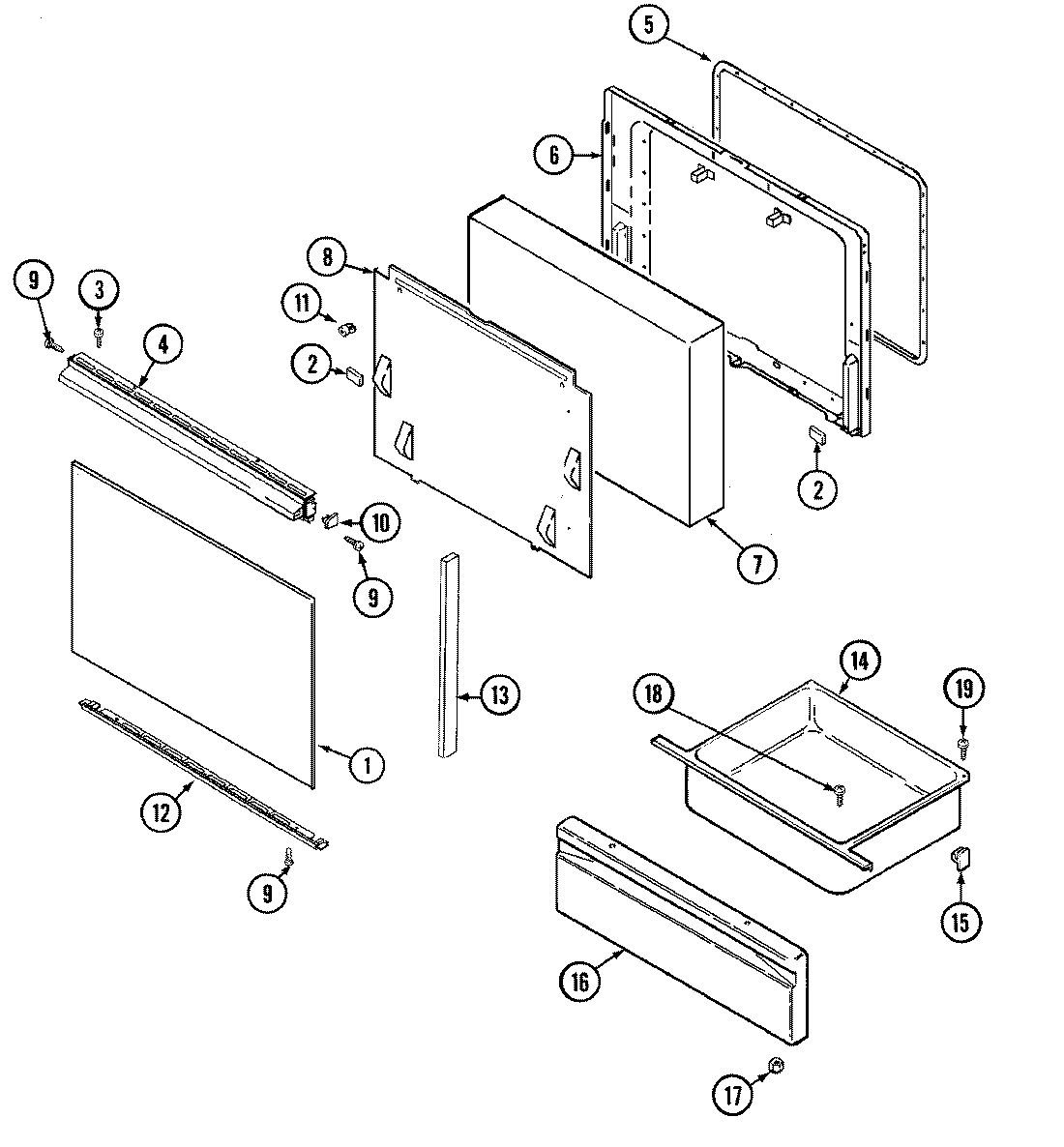

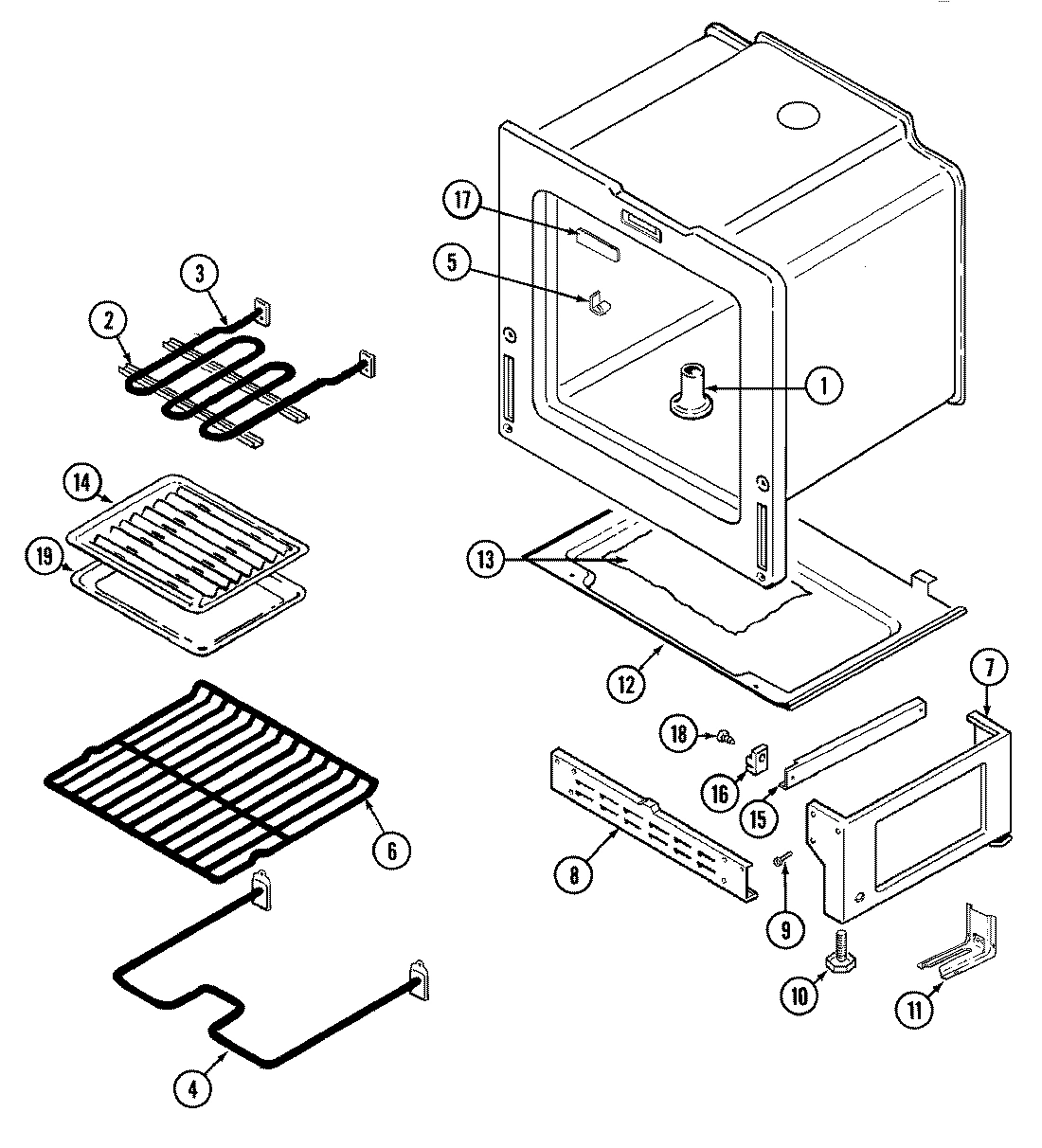

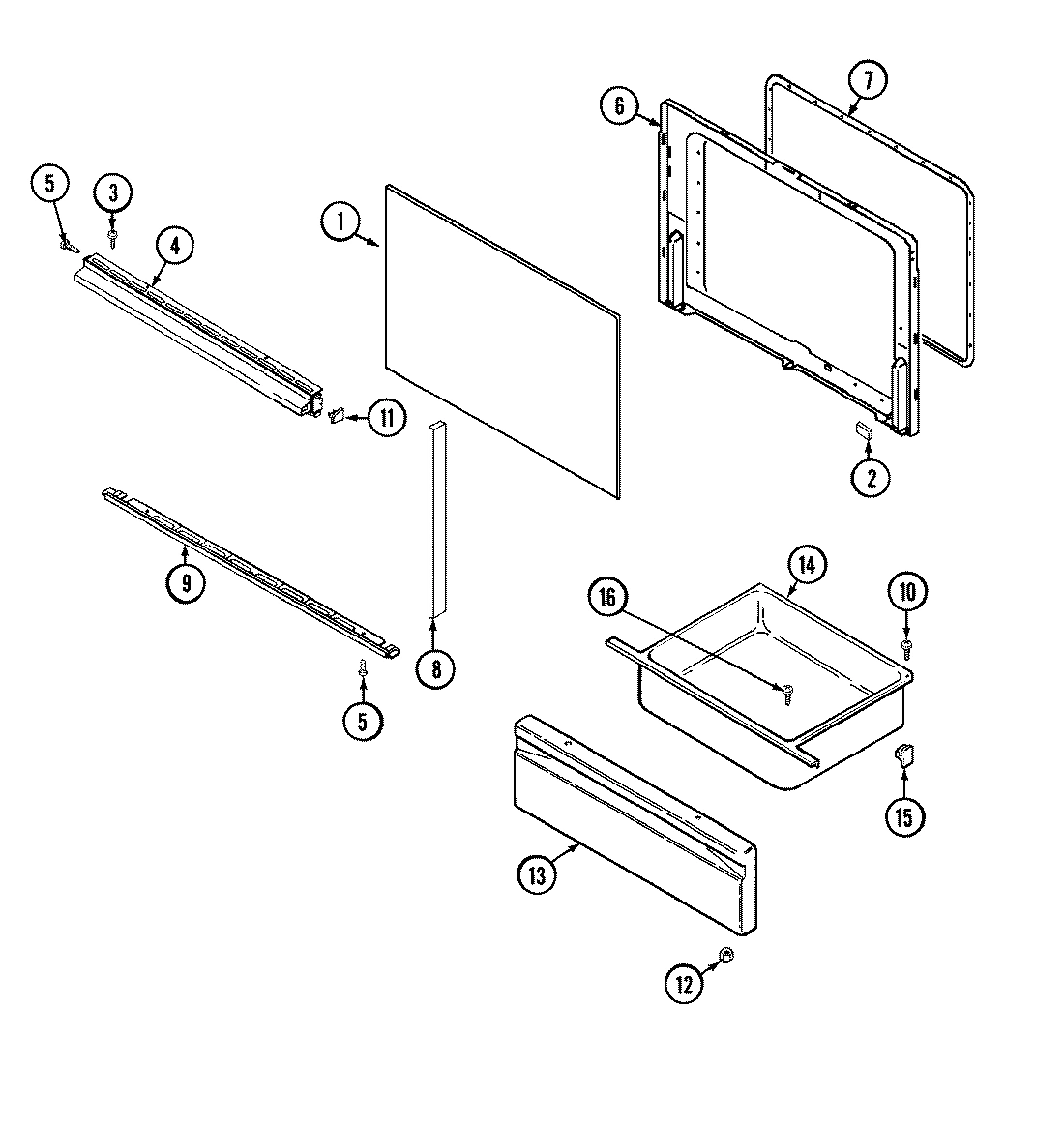

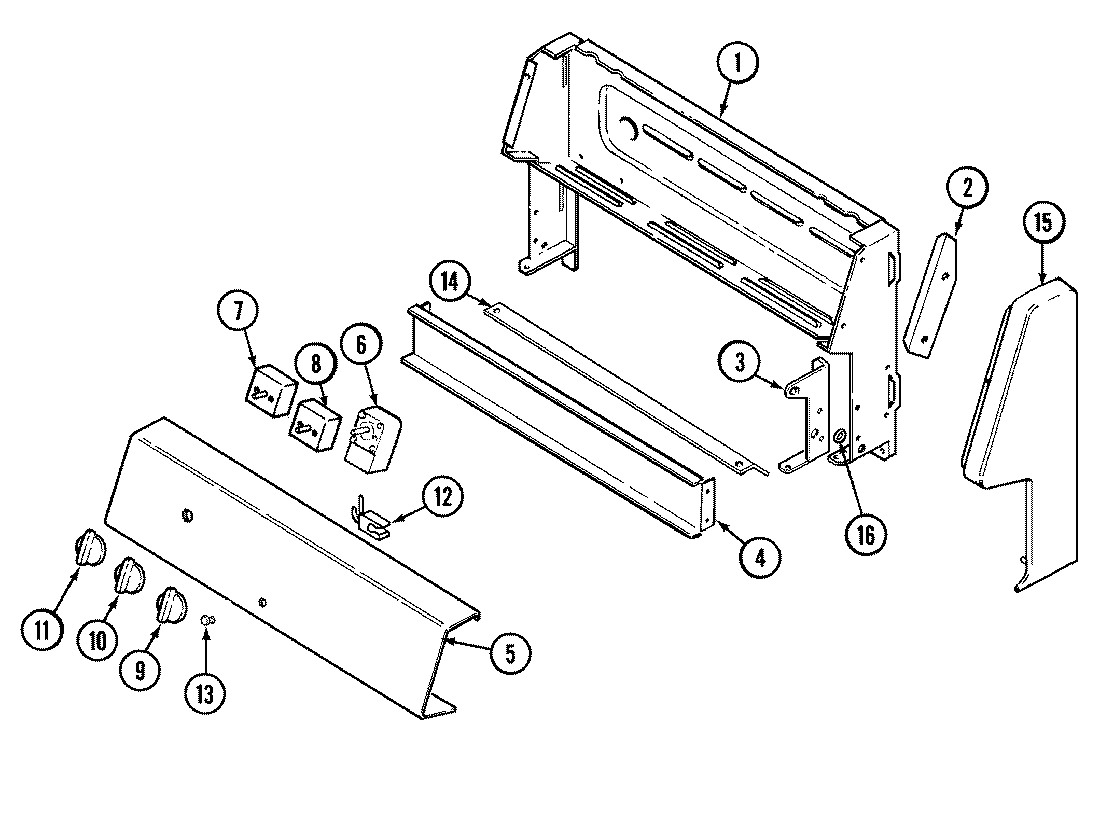

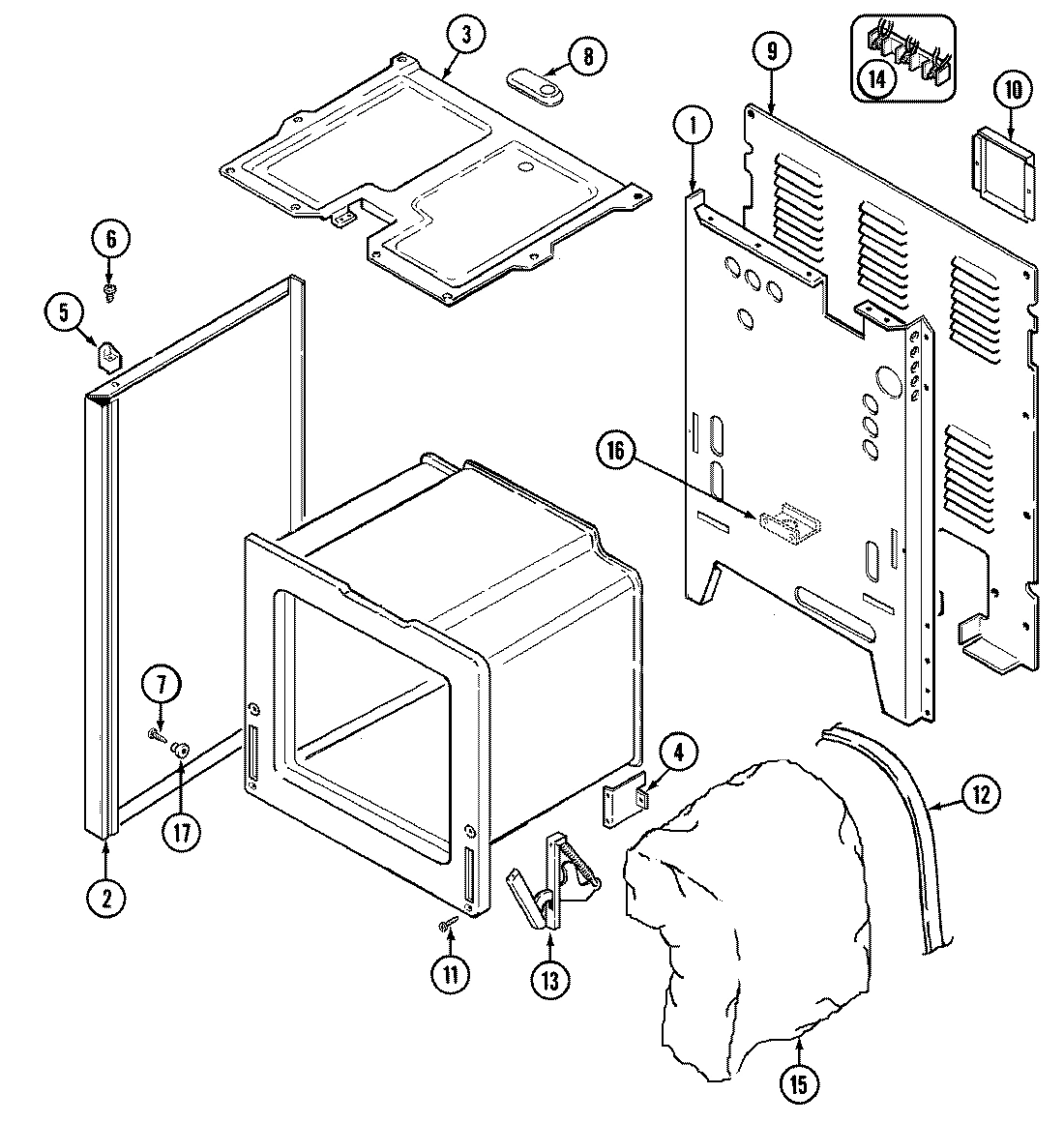

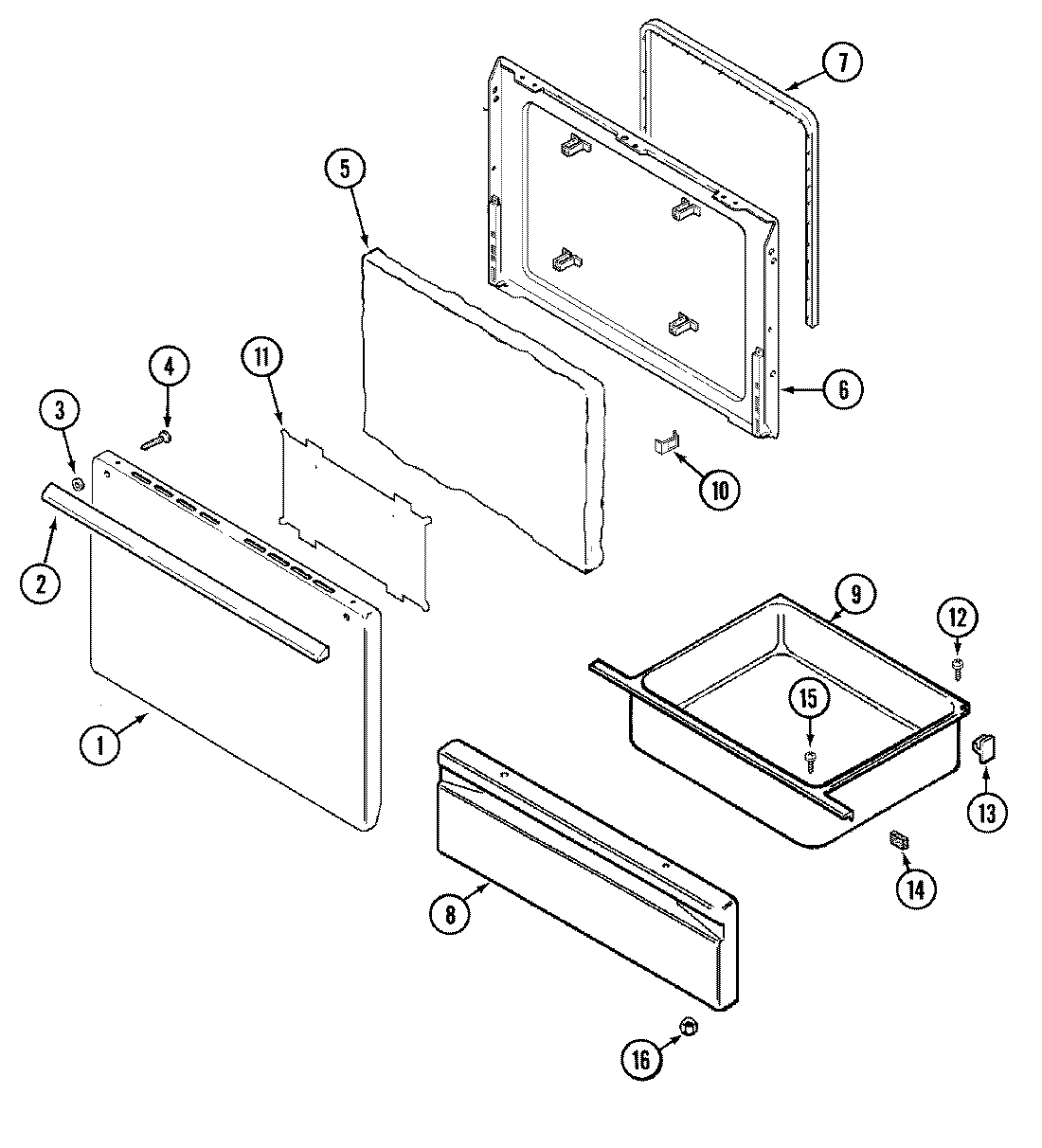

Model Whirlpool CE3500PPA ELECTRIC RANGE – Common Parts &amp; Diagrams

1

GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability

1

TUBE, VENT WPL 8026P02060 Contact Us For Availability

1

BACK, MAIN WPL 4002F18980 Contact Us For Availability

1

HOUSING, BACKGUARD WPL 4001F08951 Contact Us For Availability

1

PANEL, DOOR (ALM) WPL 2401F09674 Contact Us For Availability

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability

2

WP2411F013-70 Whirlpool Door Handle Backorder WPL WP2411F013-70 $84.86

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.20

2

PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability

2

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

2

SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability

2

SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability

2

SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability

2

HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability

2

BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability

2

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

3

WPY04000059 Whirlpool Bake Element Backorder WPL WPY04000059 $98.31

3

BOX, BURNER WPL 4011F21919 Contact Us For Availability

3

BOX, BURNER WPL 74001132 Contact Us For Availability

3

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

3

BOX, BURNER WPL 4011F20819 Contact Us For Availability

3

SCREW WPL 7118P01360 Contact Us For Availability

3

HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability

3

HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability

3

SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability

3

ELEMENT, BROIL WPL Y04000057 Contact Us For Availability

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

4

WP74003019 Whirlpool Oven Bake Element In Stock WPL WP74003019 $32.35

4

WPY04000035 Whirlpool Surface Element In Stock WPL WPY04000035 $62.90

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability

4

BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability

4

HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability

4

HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability

5

WPY04000036 Whirlpool Surface Element Backorder WPL WPY04000036 $57.46

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

INSULATION, DOOR WPL 4804F01160 Contact Us For Availability

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

6

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $8.93

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

6

LINING, DOOR WPL 2402W20119 Contact Us For Availability

6

RACK WPL 7801P04060 Contact Us For Availability

6

THERMOSTAT WPL 7404P08160 Contact Us For Availability

6

LINING, DOOR WPL 74003240 Contact Us For Availability

6

LINING, DOOR WPL 74002396 Contact Us For Availability

7

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

7

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

7

PEDESTAL (SIDES) WPL 4020W01180 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003003 Contact Us For Availability

7

PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003016 Contact Us For Availability

7

TOP, MAIN (ALM) WPL 2002W07484 Contact Us For Availability

8

WP7403P255-60 Whirlpool Selector Switch Backorder WPL WP7403P255-60 $76.91

8

COVER VENT WPL 4005F35045 Contact Us For Availability

8

BAFFLE, DOOR WPL 3601F21845 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability

8

PANEL, DRAWER (ALM) WPL 2416F03864 Contact Us For Availability

8

PANEL, DRAWER (ALM) WPL 74003522 Contact Us For Availability

8

PANEL, BACKGUARD (ALM) WPL 2601F36074 Contact Us For Availability

8

NAMEPLATE WPL 7719P06060 Contact Us For Availability

8

END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability

8

END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability

9

COVER, MAIN WIRE WPL 4005F38751 Contact Us For Availability

9

SCREW WPL 7101P29060 Contact Us For Availability

9

DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability

9

LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability

9

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

9

SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability

9

TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability

9

TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

END CAP (RT) WPL 7744P07560 Contact Us For Availability

END CAP (LT) WPL 7744P07660 Contact Us For Availability

LEG, LEVELING WPL 7101P30660 Contact Us For Availability

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

PANEL, CNTL. WPL 2614F03009 Contact Us For Availability

PANEL, CONTROL (BLK) WPL 74003401 Contact Us For Availability

SCREW, HINGE WPL 7101P01760 Contact Us For Availability

NUT, NYLON WPL 7103P04560 Contact Us For Availability

BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability

SCREW, BRACKET WPL 7101P28960 Contact Us For Availability

BAFFLE, DOOR WPL 3601F25051 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

THERMOSTAT WPL 74003267 Contact Us For Availability

THERMOSTAT WPL 7404P08560 Contact Us For Availability

END CAP, HANDLE (RT-BLK) WPL 74002539 Contact Us For Availability

END CAP, HANDLE (LT-BLK) WPL 74002540 Contact Us For Availability

STRAP, RETAINER WPL 4820F00159 Contact Us For Availability

TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability

NUT, LOCK WPL 7103P08560 Contact Us For Availability

RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

SCREW WPL 7101P29160 Contact Us For Availability

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $84.42

KNOB, THERMOSTAT WPL WP74003280 No Longer Available

KIT, HINGE W/SCREWS WPL 12400042 Contact Us For Availability

END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability

KNOB, THERMOSTAT WPL 7735P03360 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability

SEAL, RUBBER WPL 7208P01160 Contact Us For Availability

KNOB, SWITCH WPL 7737P03060 Contact Us For Availability

DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

INSULATION, BACK WPL 4804F01760 Contact Us For Availability

INSULATION, WRAP WPL 4804F01860 Contact Us For Availability

RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability

SCREW WPL 7101P11560 Contact Us For Availability

LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

SUPPORT, DRAWER WPL 74002312 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

NUT, SPEED WPL 7103P04460 Contact Us For Availability

SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability

CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability

17

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

17

COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability

17

SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability

18

SCREW WPL 7101P33460 Contact Us For Availability

18

SUPPORT UPPER FRONT PANEL WPL 3807F41980 Contact Us For Availability

19

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

19

CLIP WPL 7112P02960 Contact Us For Availability

GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability

HARNESS, LOOSE WIRE WPL 5125A31660 Contact Us For Availability

HARNESS, CONTROL PANEL WPL 5170D11960 Contact Us For Availability

HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability

MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability

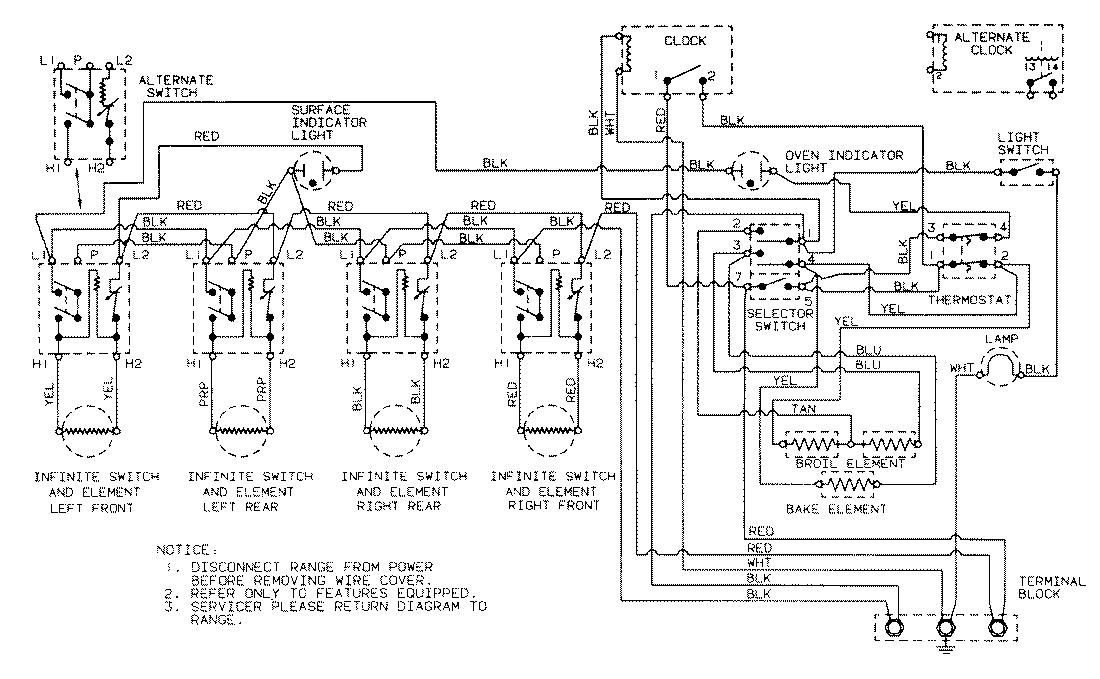

WIRING INFORMATION WPL 15001148 Contact Us For Availability

HARNESS, CONTROL PANEL WPL 5170D13060 Contact Us For Availability

HARNESS, COOKTOP WPL 5175D05360 Contact Us For Availability
