Model Whirlpool CE2950XSW2 COMMERCIAL ELECTRIC DRYER – Common Parts & Diagrams

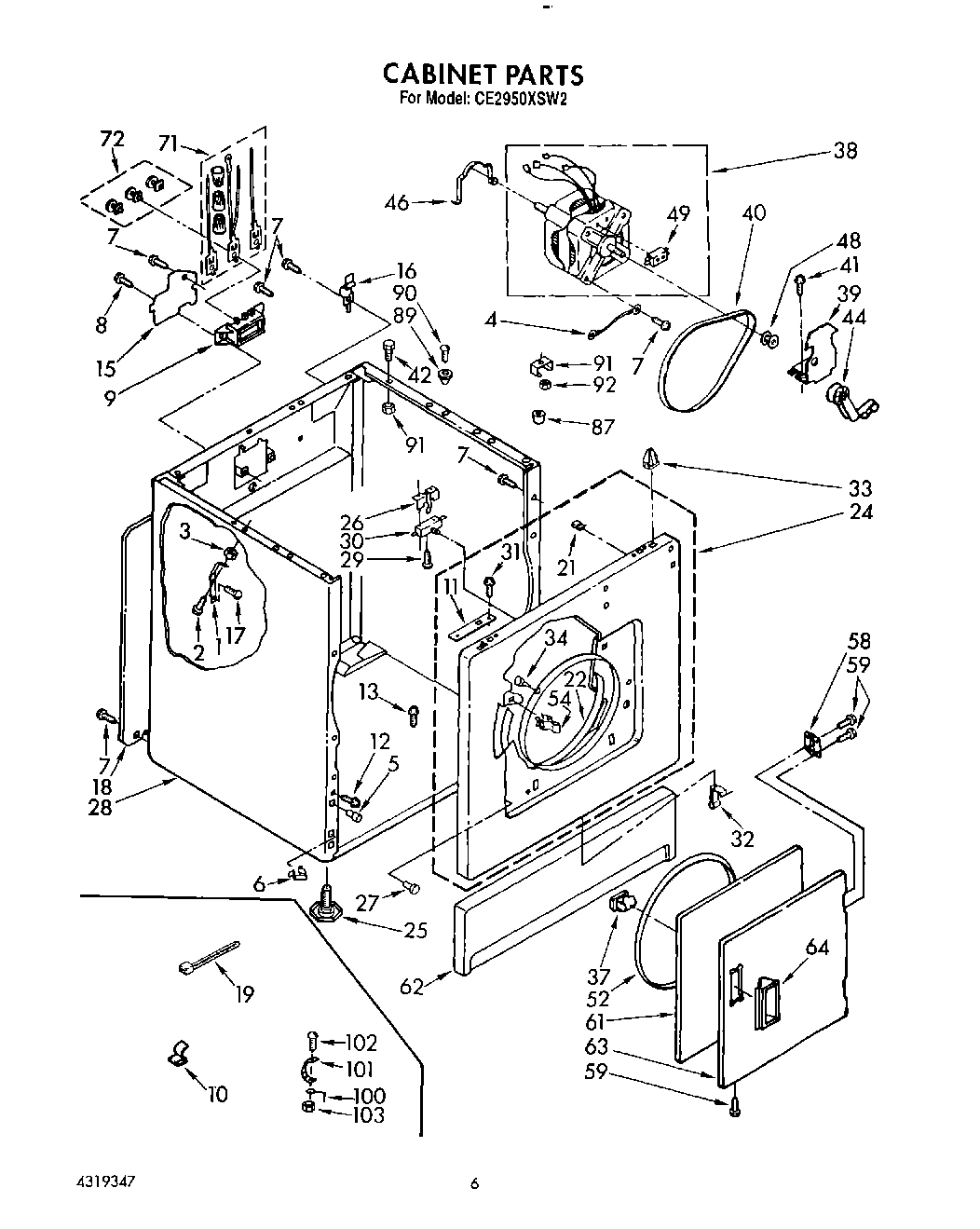

04 - CABINET

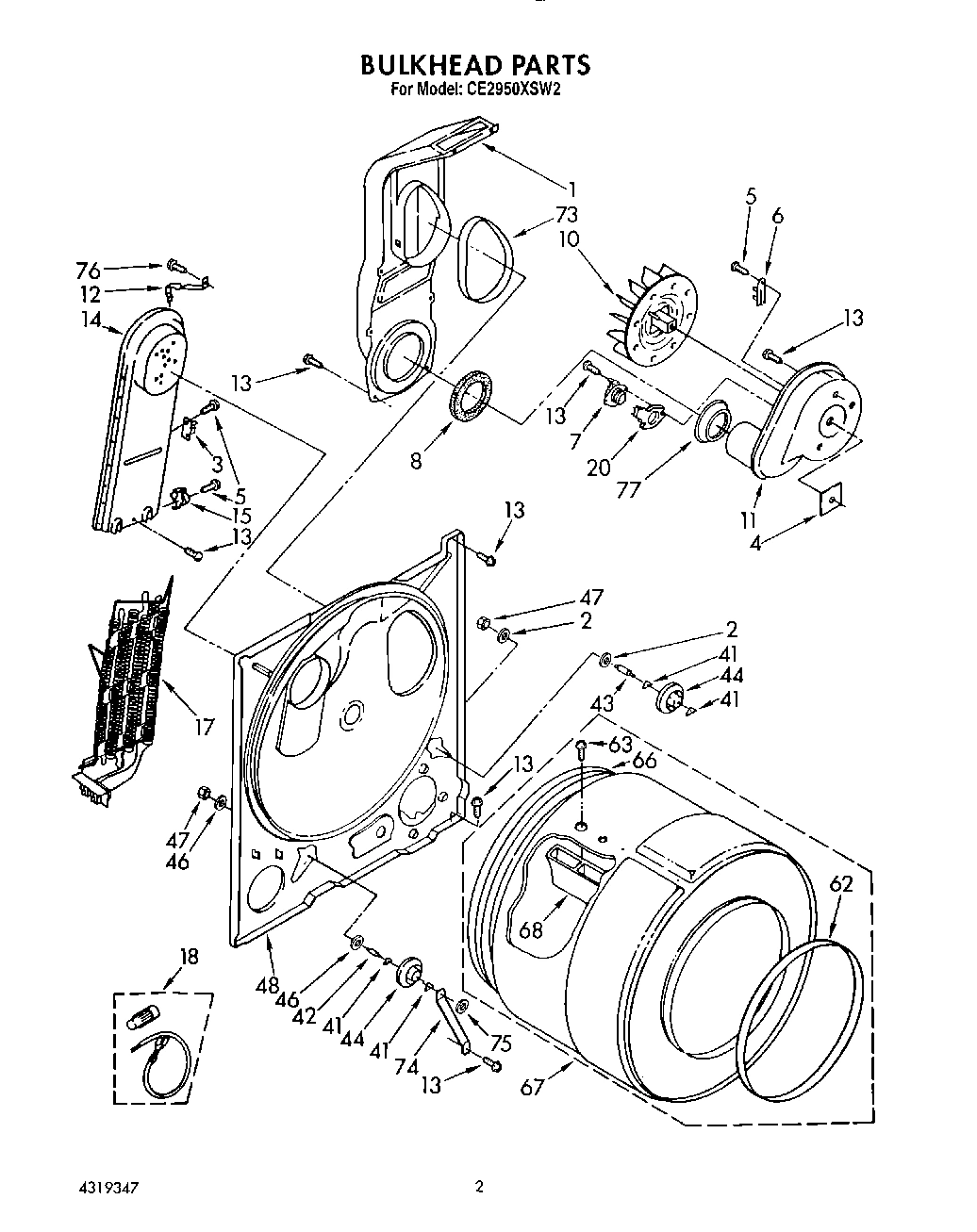

02 - BULKHEAD, LIT/OPTIONAL
03 - TOP AND CONSOLE
05 - WIRING HARNESS
Common parts from model Whirlpool CE2950XSW2 COMMERCIAL ELECTRIC DRYER
PAI WPL 799344 Contact Us For Availability
New Avocado WPL 261888 Contact Us For Availability
New Avocado (Uncut) WPL 261889 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT3391884 WPL LIT3391884 Contact Us For Availability
WPL LIT348772 WPL LIT348772 Contact Us For Availability
WPL LIT4319347 WPL LIT4319347 Contact Us For Availability
WPL LIT692257 WPL LIT692257 Contact Us For Availability
1
Harness, Timer WPL 696193 Contact Us For Availability
2
Washer, Support WPL 339492 Contact Us For Availability
2
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
2
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
2
Connector WPL 717252 Contact Us For Availability
3
Button (4) WPL 3348587 Contact Us For Availability
3
Harness, Wiring (Upper) WPL 696194 Contact Us For Availability
4
Seal, Blower WPL 3392123 Contact Us For Availability
4
Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability
6
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
6
+Harness, Wiring (Lower) WPL 4319348 Contact Us For Availability
7
Plug, Terminal (6 Way) Uses Terminal 94614) WPL 352457 Contact Us For Availability
8
End Cap (L.H.) WPL 3347710 Contact Us For Availability
9
Panel, Control WPL 3387362 Contact Us For Availability
11
Housing, Blower WPL 4319317 Contact Us For Availability
11
Bracket, Control WPL 4319335 Contact Us For Availability
14
Box, Heater WPL 685457 Contact Us For Availability
14
Panel, Rear WPL 4319339 Contact Us For Availability
15
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
16
Top (White) WPL 3390464 Contact Us For Availability
16
Top (Almond) WPL 3390465 Contact Us For Availability
20
Heater, Thermostat WPL 61894 Contact Us For Availability
20
Lights, Indicator (240 Volts) WPL 3388650 Contact Us For Availability
23
Guide, Drawer WPL 3352295 Contact Us For Availability
26
Case, Meter (Almond) WPL 3419346 Contact Us For Availability
26
Case, Meter (White) WPL 4319336 Contact Us For Availability
27
Bolt, 5/16-24 x 1 WPL 4319338 Contact Us For Availability
28
Washer, 5/16 WPL 4319337 Contact Us For Availability
30
Screw WPL 64211 Contact Us For Availability
33
Door, Service (Almond) WPL 4319341 Contact Us For Availability
34
NUT, PUSH IN WPL 689559 Contact Us For Availability
36
Wire, Ground WPL 690853 Contact Us For Availability
37
Wire, Ground WPL 340025 Contact Us For Availability
44
Screw & Washer WPL 358409 Contact Us For Availability
46
Washer, Support (2) WPL 4319307 Contact Us For Availability
47
Plug, Lock Hole WPL 387371 Contact Us For Availability
48
Bulkhead WPL 4319303 Contact Us For Availability
62
Panel, Toe (Almond) WPL 4319343 Contact Us For Availability
63
Door, Front (White) WPL 4319327 Contact Us For Availability
63
Door, Front (Almond) WPL 4319333 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 4319324 Contact Us For Availability
64
Handle, Door (Almond) WPL 4319334 Contact Us For Availability
74
Bracket, Support Shaft WPL 4319310 Contact Us For Availability
87
Wedge, Cone WPL 356674 Contact Us For Availability
89
Locator, Top WPL 356837 Contact Us For Availability
100
Wi WPL 685449 Contact Us For Availability
101
WPL 22965 WPL 22965 Contact Us For Availability
102
WPL 132848 WPL 132848 Contact Us For Availability
× ![]()
