Model Whirlpool CDG6500W GAS DRYER – Common Parts & Diagrams

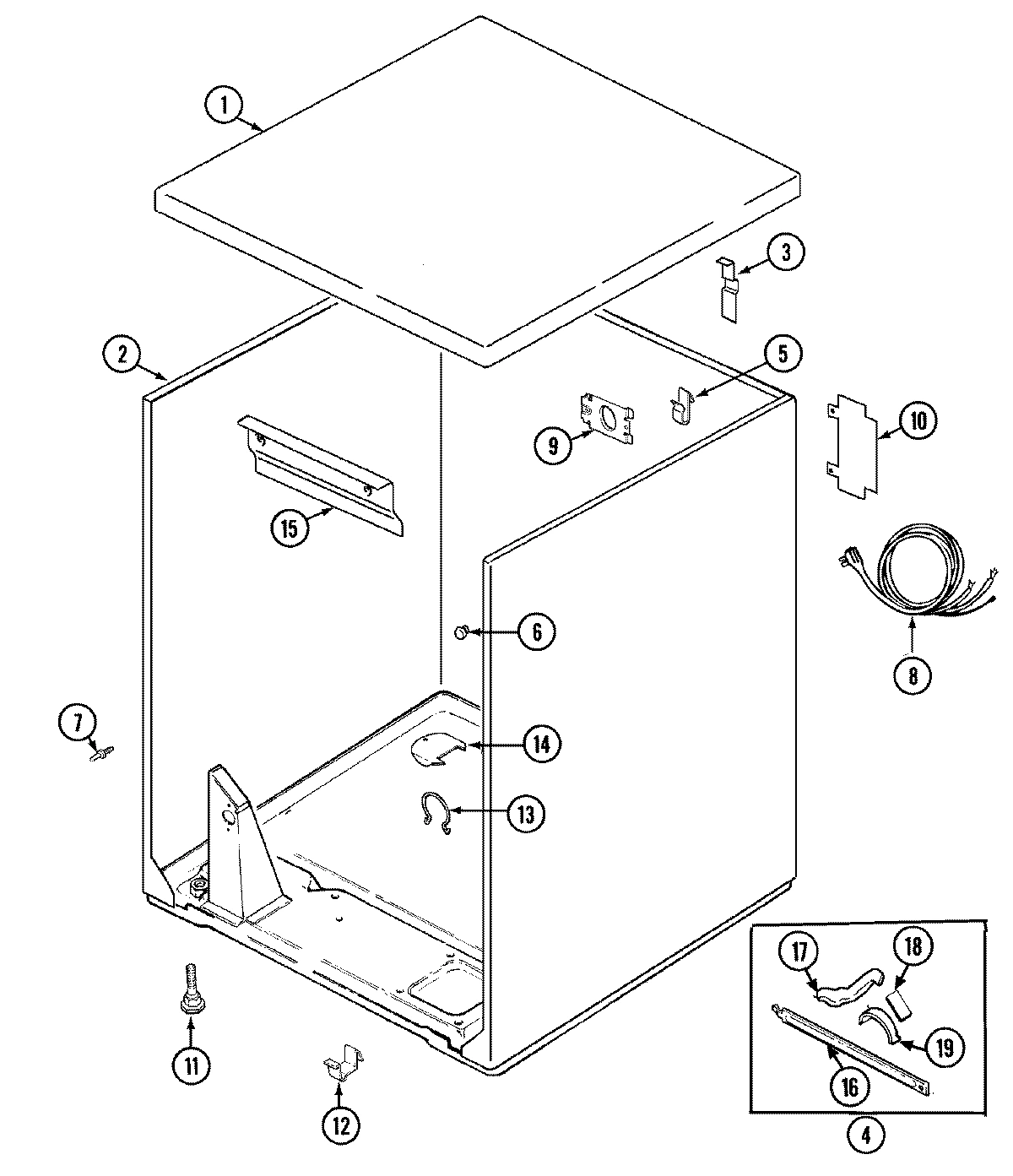

01 - CABINET
06 - SUPPLEMENTAL INFORMATION

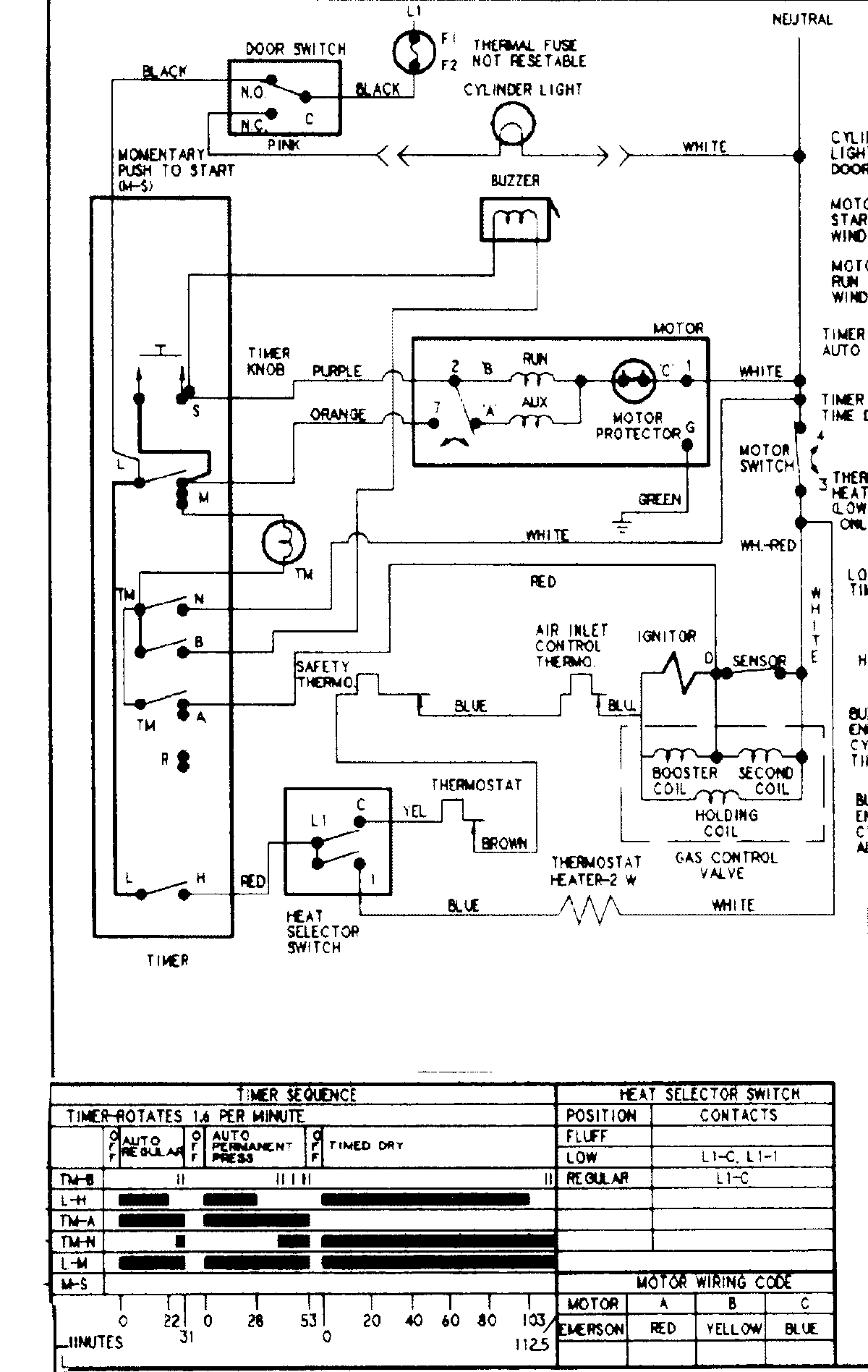

08 - WIRING INFORMATION

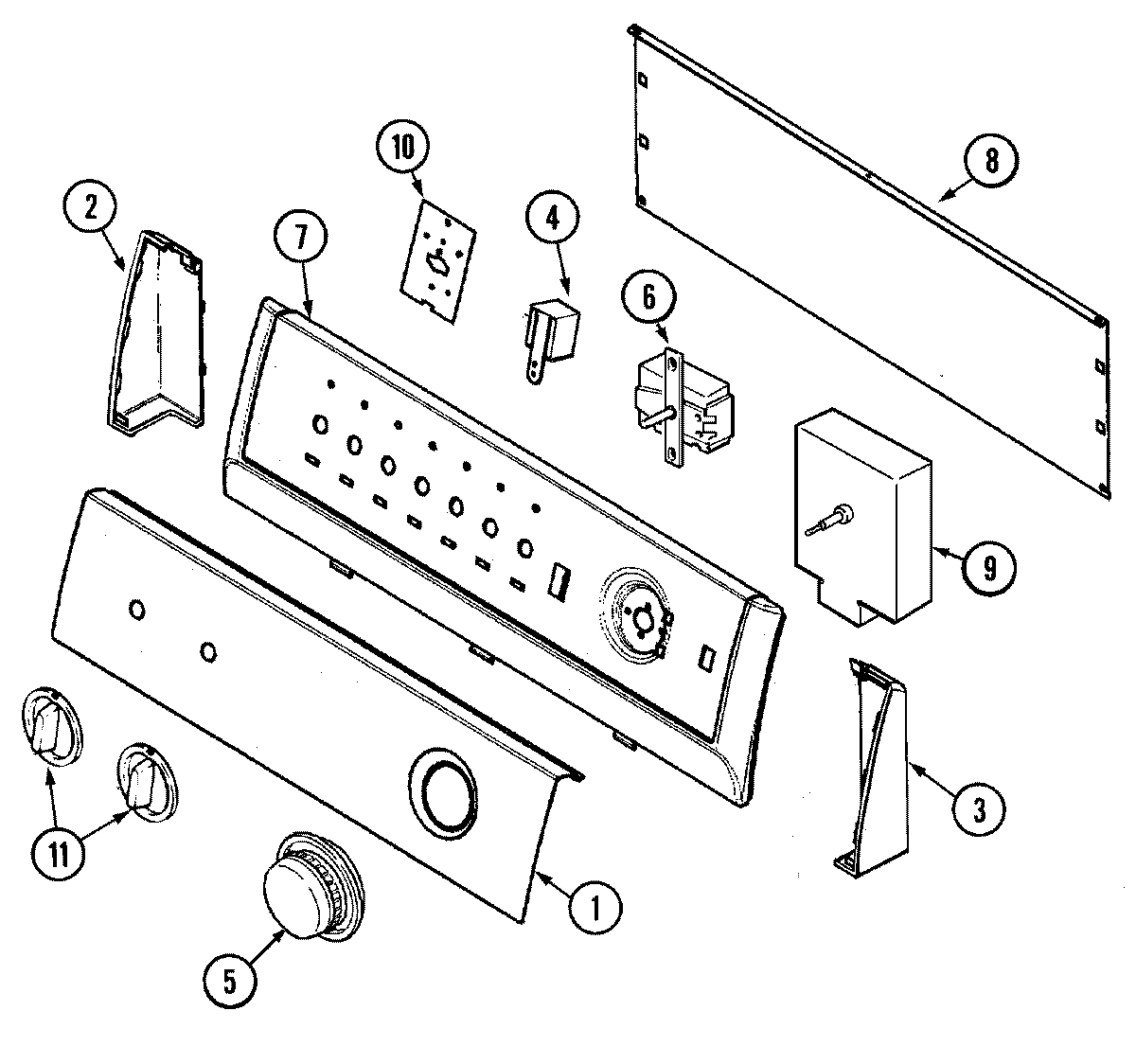

02 - CONTROL PANEL

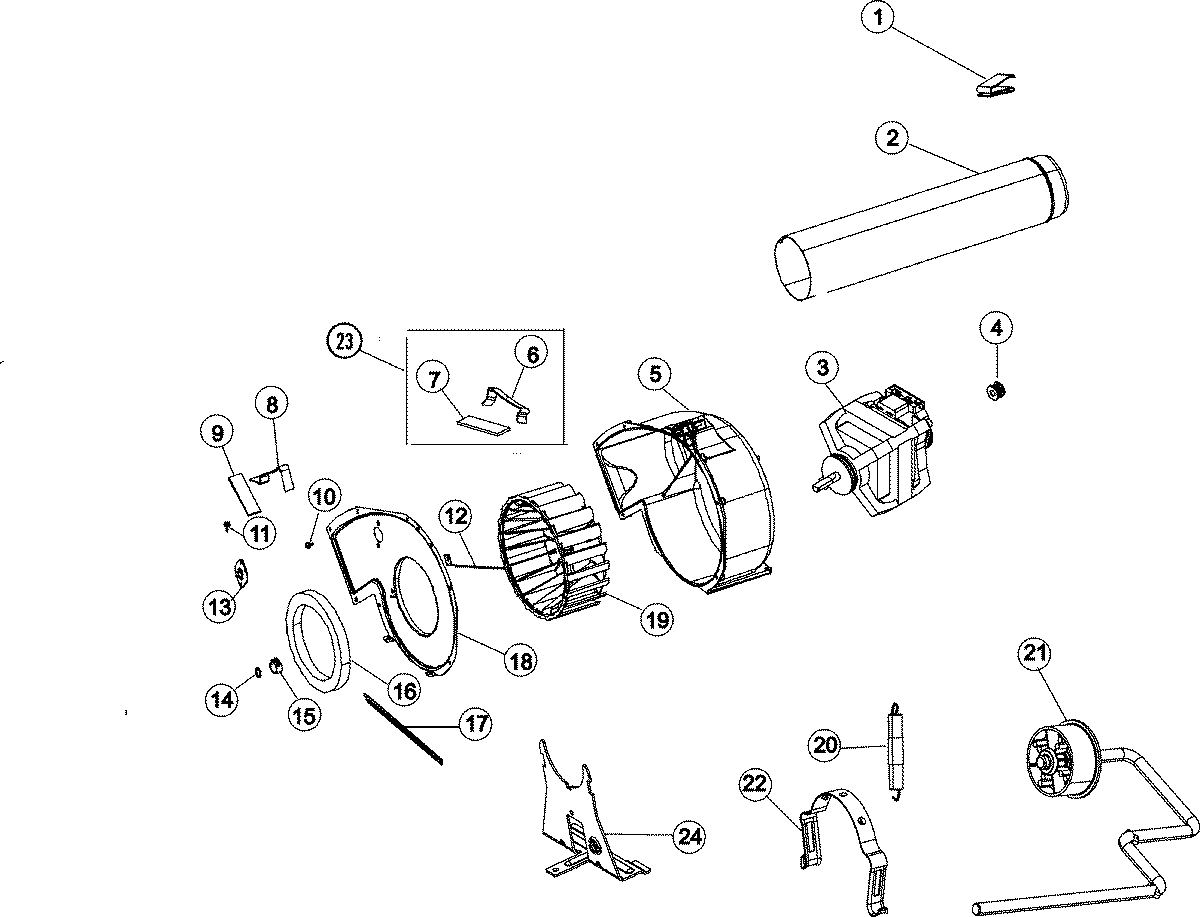

05 - MOTOR & DRIVE

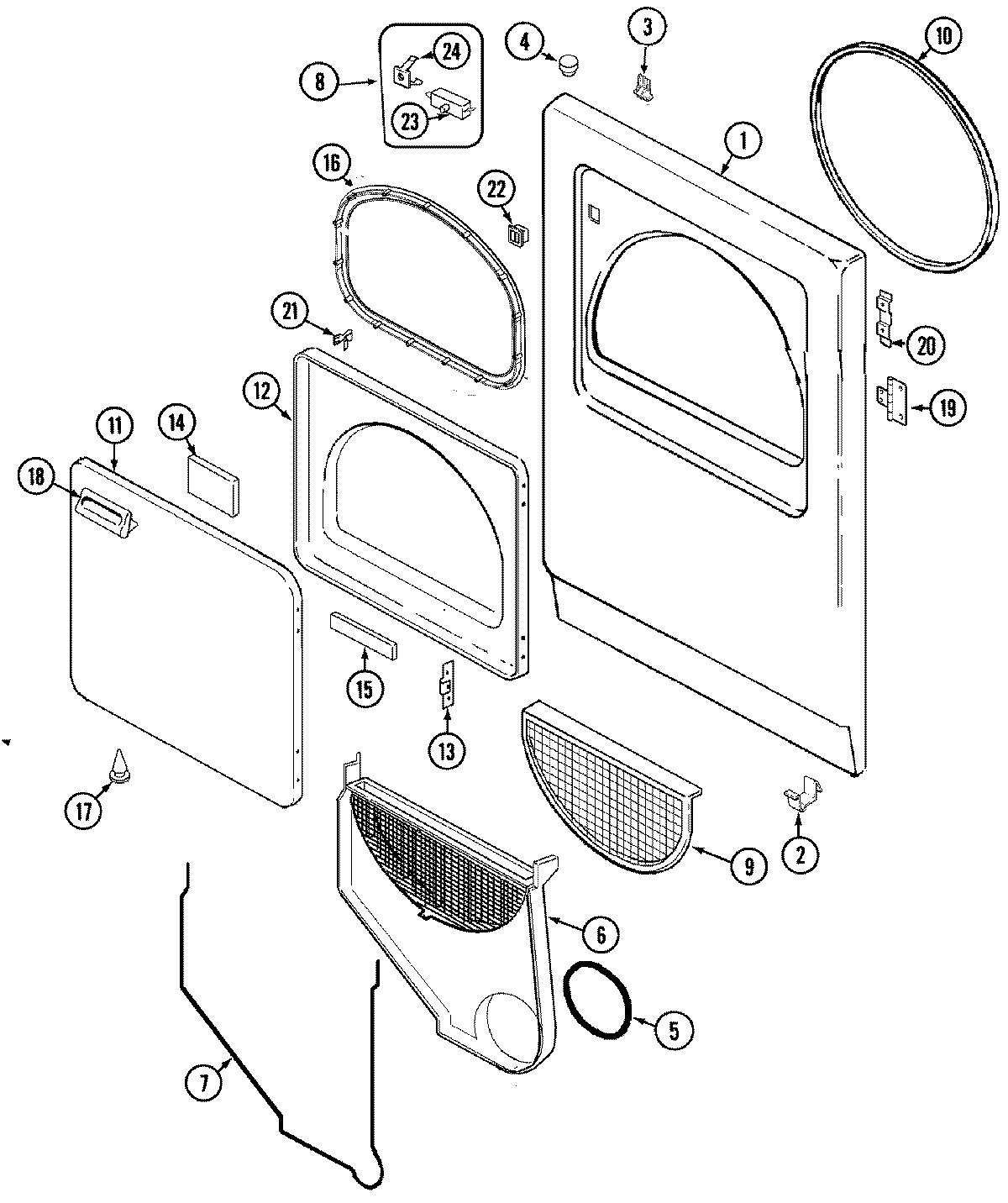

03 - DOOR

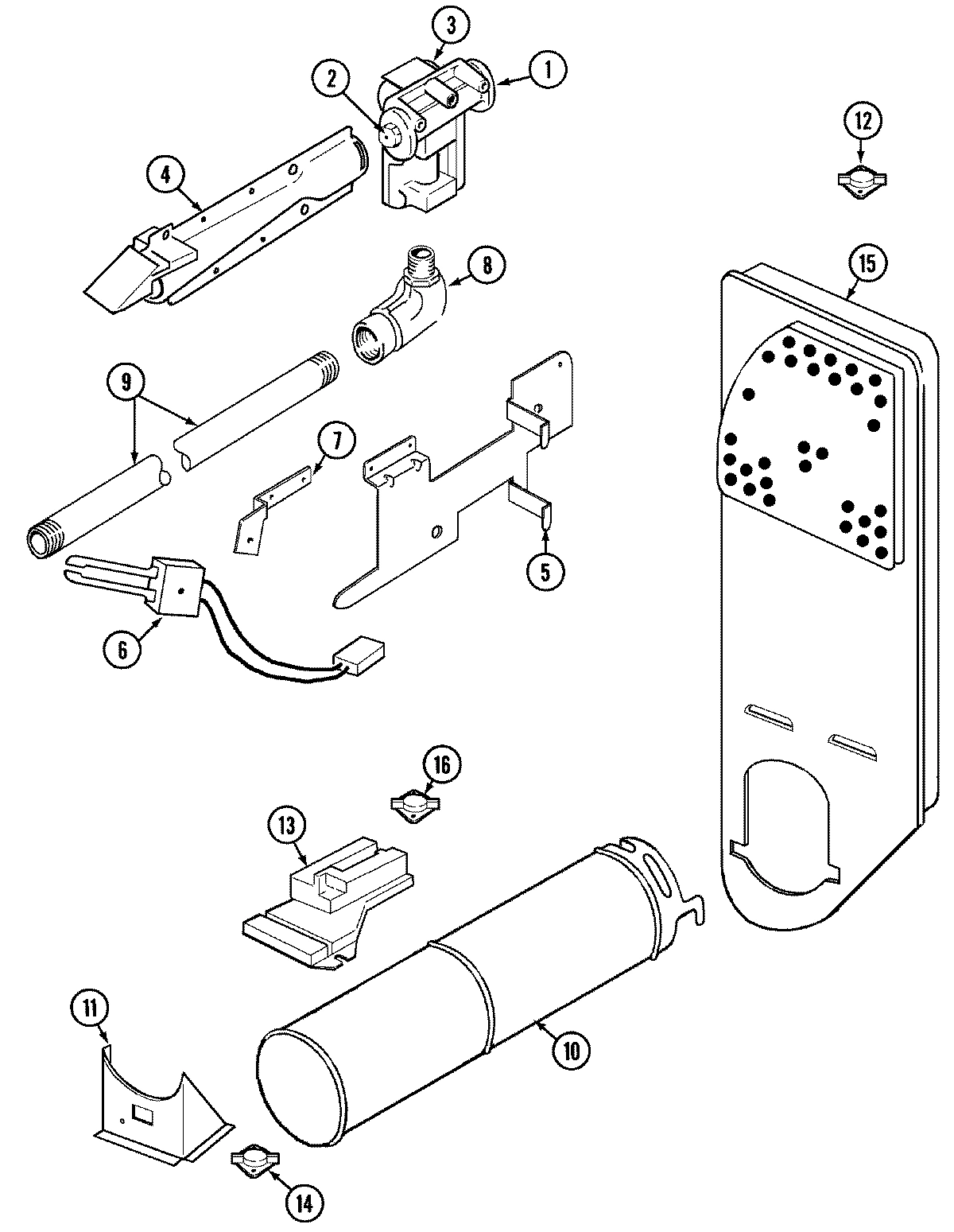

04 - GAS CARRYING

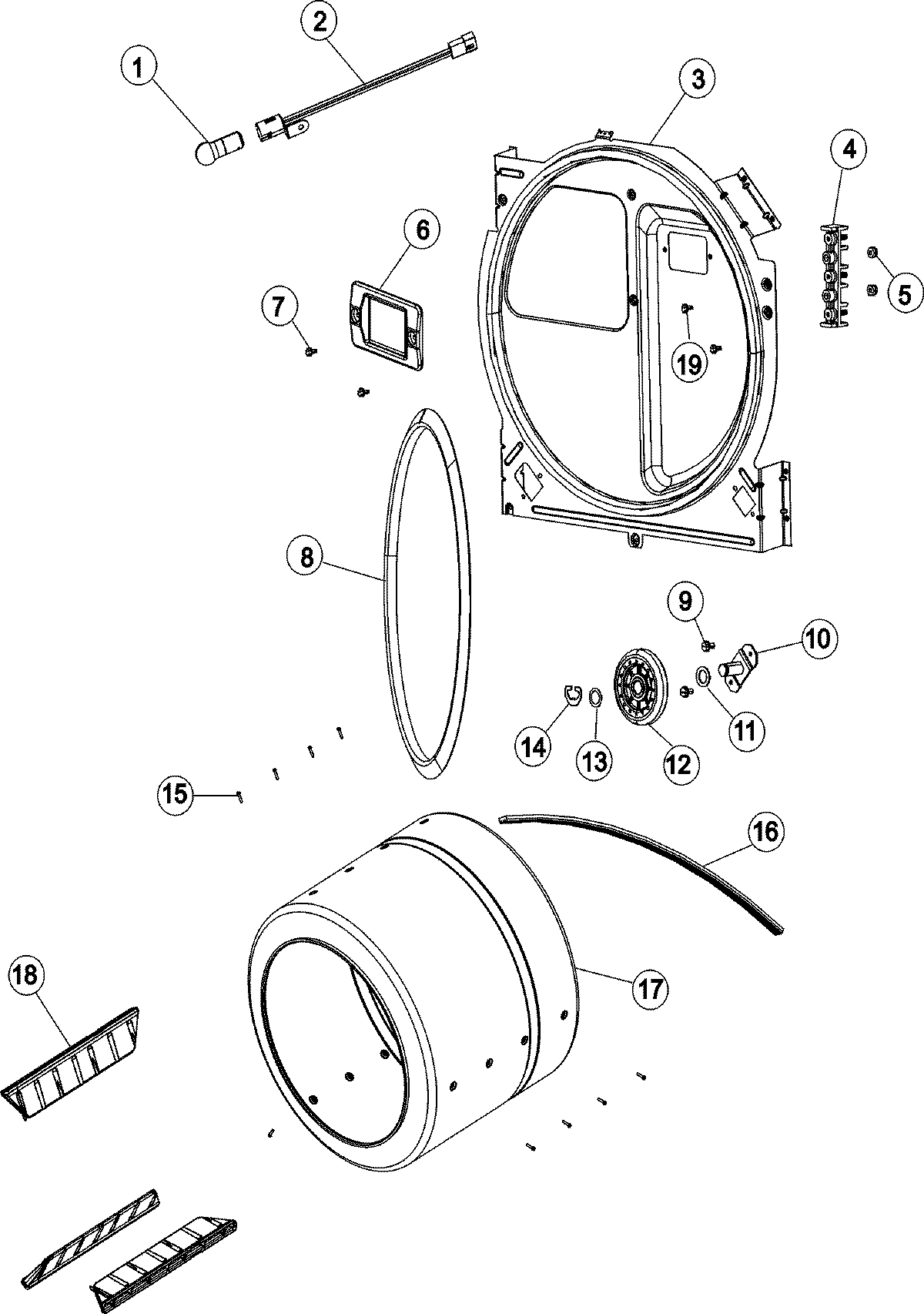

07 - TUMBLER
Common parts from model Whirlpool CDG6500W GAS DRYER
1
PANEL, CONTROL (WHT) WPL 31001735 Contact Us For Availability
1
CLIP, VENT PIPE GROUND WPL 31001572 Contact Us For Availability
1
PANEL, FRONT (WHT) WPL 530726 Contact Us For Availability
1
TAIL PIECE WPL 31001368 Contact Us For Availability
1
VALVE, GAS (WITH ORIFICE) WPL 31001485 Contact Us For Availability
1
UNION NUT WPL 606846 Contact Us For Availability
1
BULB, CYLINDER LIGHT WPL 31001575 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
ENDCAP, PANEL (LT-WHT) WPL 21001546 Contact Us For Availability
2
DUCT, EXHAUST WPL 530134 Contact Us For Availability
2
BURNER ORIFICE WPL 633570 Contact Us For Availability
2
RECEPTACLE ASM, CLYINDER LIGHT WPL 31001579 Contact Us For Availability
3
LOCK, TOP WPL 31001526 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
ENDCAP, PANEL (RT-WHT) WPL 21001547 Contact Us For Availability
3
BULKHEAD WITH SEAL WPL 31001581 Contact Us For Availability
4
BUMPER, CABINET WPL 332653 Contact Us For Availability
4
BUZZER WPL 31001397 Contact Us For Availability
4
BURNER & SPREADER ASSM WPL 31001708 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
KNOB/SKIRT, TIMER (WHT) WPL 31001388 Contact Us For Availability
5
HOUSING, BLOWER WPL 531801 Contact Us For Availability
5
SEAL, BLOWER/COLLECTOR DUCT WPL 31001541 Contact Us For Availability
5
MTG BRACKET WPL 530140 Contact Us For Availability
6
SWITCH, SELECTOR WPL 31001449 Contact Us For Availability
6
SWITCH, TEMPERATURE WPL 534394 Contact Us For Availability
6
SCREW WPL 257744 Contact Us For Availability
6
LENS, CYLINDER LIGHT WPL 31001585 Contact Us For Availability
7
POST, LOCATING WPL 21001829 Contact Us For Availability
7
FRAME (WHT), CONTROL PANEL WPL 21001552 Contact Us For Availability
7
SEAL WPL 530204 Contact Us For Availability
7
BRACKET WPL 530686 Contact Us For Availability
7
SCREW, 6-32 HEX WASHER HEAD WPL 31001580 Contact Us For Availability
8
CORD, POWER WPL 31001547 Contact Us For Availability
8
SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability
8
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
9
TIMER WPL 531810 Contact Us For Availability
9
FILTER, LINT WPL 530918 Contact Us For Availability
9
MAIN GAS LINE ASSY. WPL 31001367 Contact Us For Availability
9
SCREW WPL 257101 Contact Us For Availability
10
SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability
10
HOUSING, HEATER WPL 531884 Contact Us For Availability
10
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
11
LEG, LEVELING WPL 635834 Contact Us For Availability
11
KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability
11
SCREW WPL 257890 Contact Us For Availability
11
SCREW, 8-18X3/8 TYAB BUT WPL 257752 Contact Us For Availability
11
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
11
SCREW WPL 253092 Contact Us For Availability
11
SUPPORT, HEATER HOUSING WPL 532363 Contact Us For Availability
11
SPACER, ROLLER WPL 31001583 Contact Us For Availability
12
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
12
PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability
12
SCREW WPL 250168 Contact Us For Availability
12
ROLLER (REAR) WPL 31001096 Contact Us For Availability
13
THERMOSTAT, CONTROL WPL 31001088 Contact Us For Availability
13
CLIP, HINGE WPL 530119 Contact Us For Availability
13
SCREW WPL 252134 Contact Us For Availability
13
SENSOR WPL 635013 Contact Us For Availability
13
WASHER WPL 257814 Contact Us For Availability
14
SCREW WPL 257733 Contact Us For Availability
14
SHIELD, WIRING WPL 531921 Contact Us For Availability
14
RING, RETAINING WPL 257855 Contact Us For Availability
14
DOOR PAD WPL 531490 Contact Us For Availability
14
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
14
RING, RETAINING WPL 257854 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
15
DOOR PAD WPL 531491 Contact Us For Availability
15
SCREW WPL 257741 Contact Us For Availability
15
INLET AIR DUCT ASSY WPL 531706 Contact Us For Availability
15
SCREW WPL 257759 Contact Us For Availability
16
THRMST-FIX WPL 531096 Contact Us For Availability
17
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
17
PLUG BUTTON WPL 257889 Contact Us For Availability
17
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
18
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
18
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability
18
BAFFLE, WHITE WPL 531249 Contact Us For Availability
19
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
19
HINGE, DRYER DOOR WPL 531492 Contact Us For Availability
20
SPRING, IDLER WPL 31001465 Contact Us For Availability
20
TWIN NUT WPL 530121 Contact Us For Availability
21
IDLER ARM ASSEMBLY WPL 31001710 Contact Us For Availability
21
STRIKE, DOOR WPL 532364 Contact Us For Availability
22
CLAMP, MOTOR WPL 530214 Contact Us For Availability
22
CATCH, DOOR WPL 530187 Contact Us For Availability
23
SWITCH, DOOR WPL 31001732 Contact Us For Availability
23
SWITCH, DOOR WPL 530148 Contact Us For Availability
24
BRACKET, MOTOR WPL 31001570 Contact Us For Availability
24
CLIP, SWITCH WPL 31001733 Contact Us For Availability
NI
CONVERSION KIT (LP-NAT) WPL 12001031 Contact Us For Availability
NI
MANUAL, SRVC DRYER-NO REFUND WPL 16008334 Contact Us For Availability
NI
HARNESS, WIRE WPL 31001491 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 534526 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003459 Contact Us For Availability
NI
LEAD ASSEMBLY (GROUND) WPL 21001978 Contact Us For Availability
NI
LEAD ASSEMBLY (HEAT) WPL 31001740 Contact Us For Availability
NI
LEAD ASSEMBLY (BUZZER) WPL 31001741 Contact Us For Availability
NI
CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability
× ![]()
