Model Whirlpool CDG6000A GAS DRYER – Common Parts & Diagrams

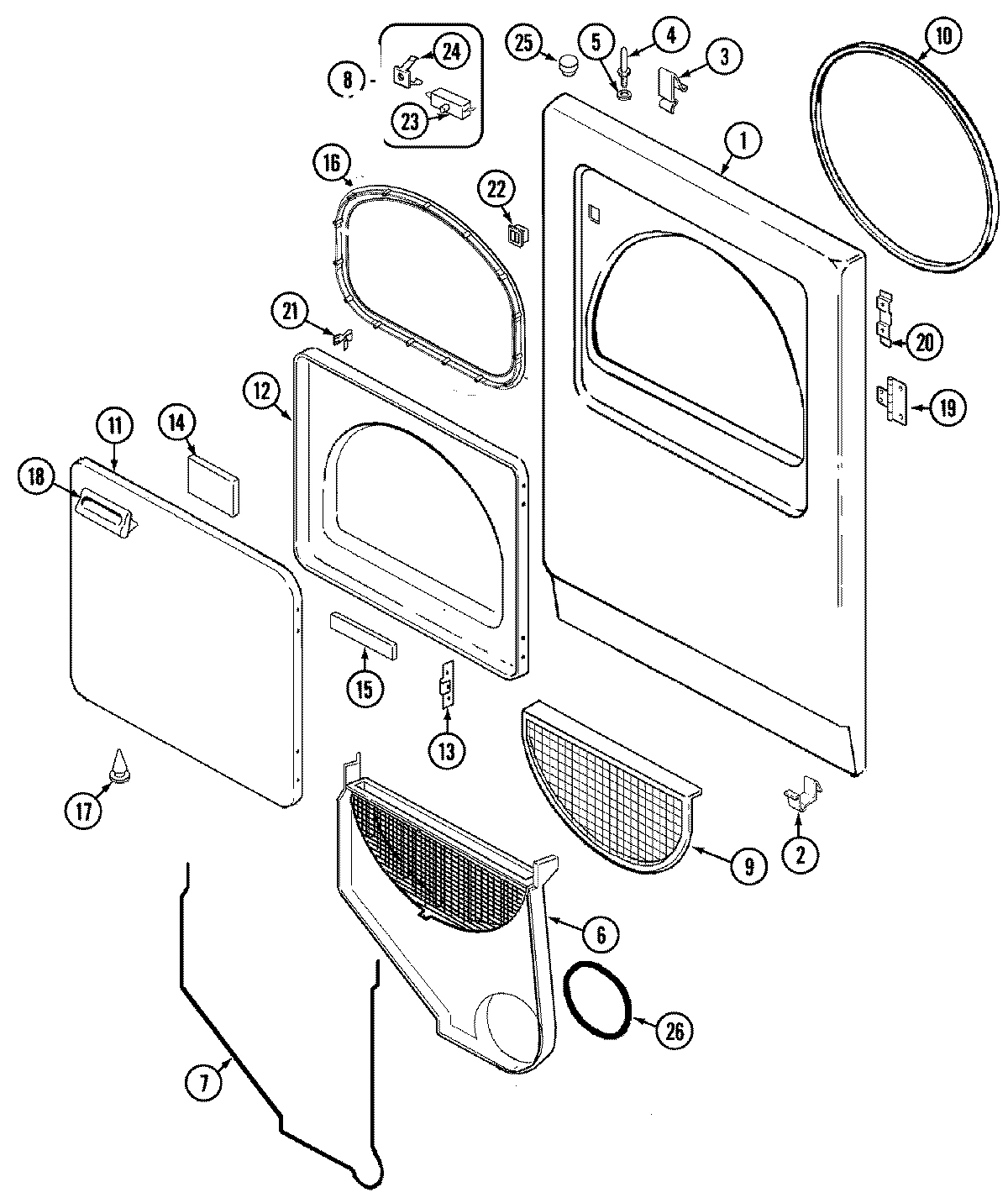

03 - DOOR

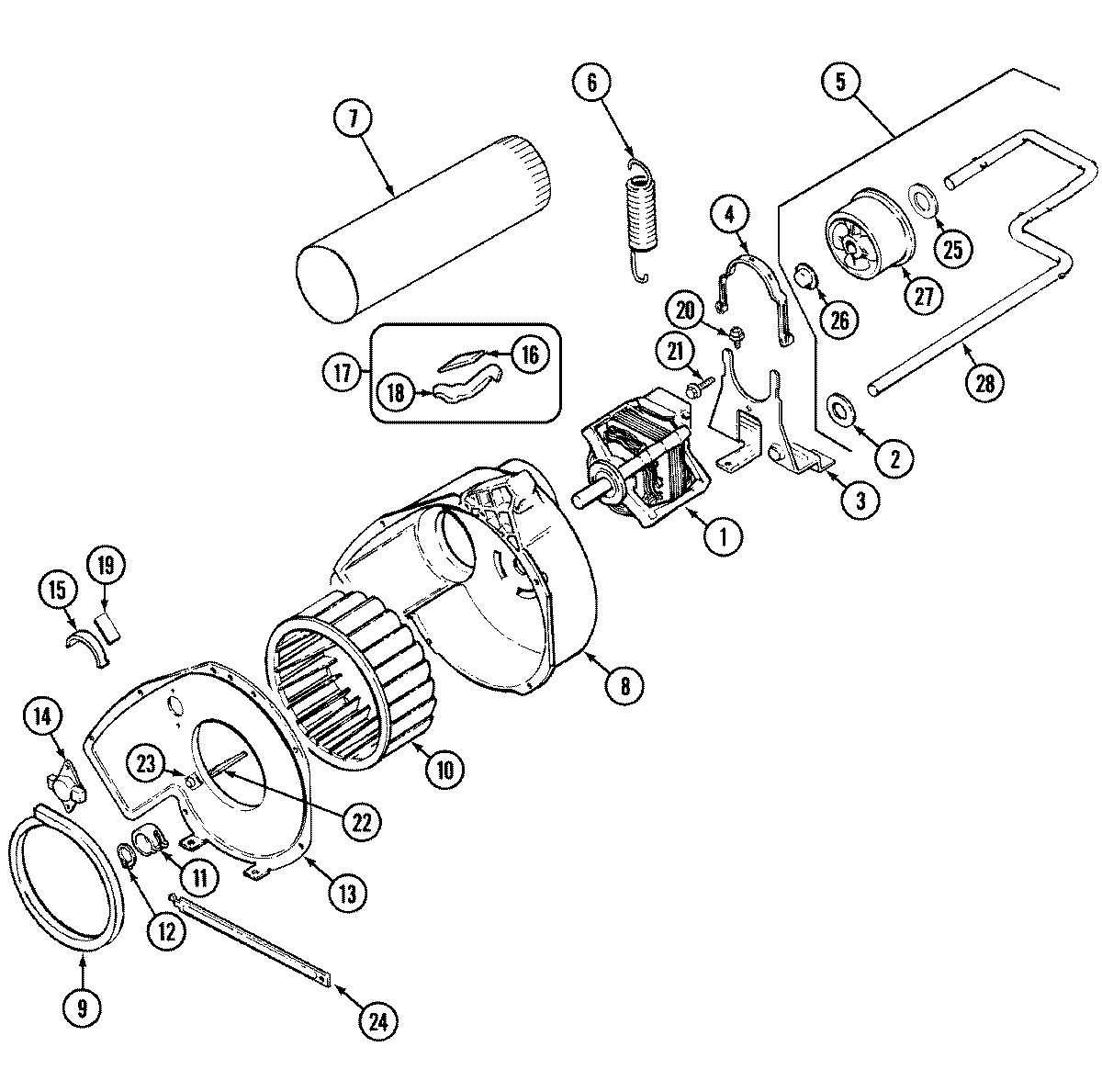

05 - MOTOR & DRIVE

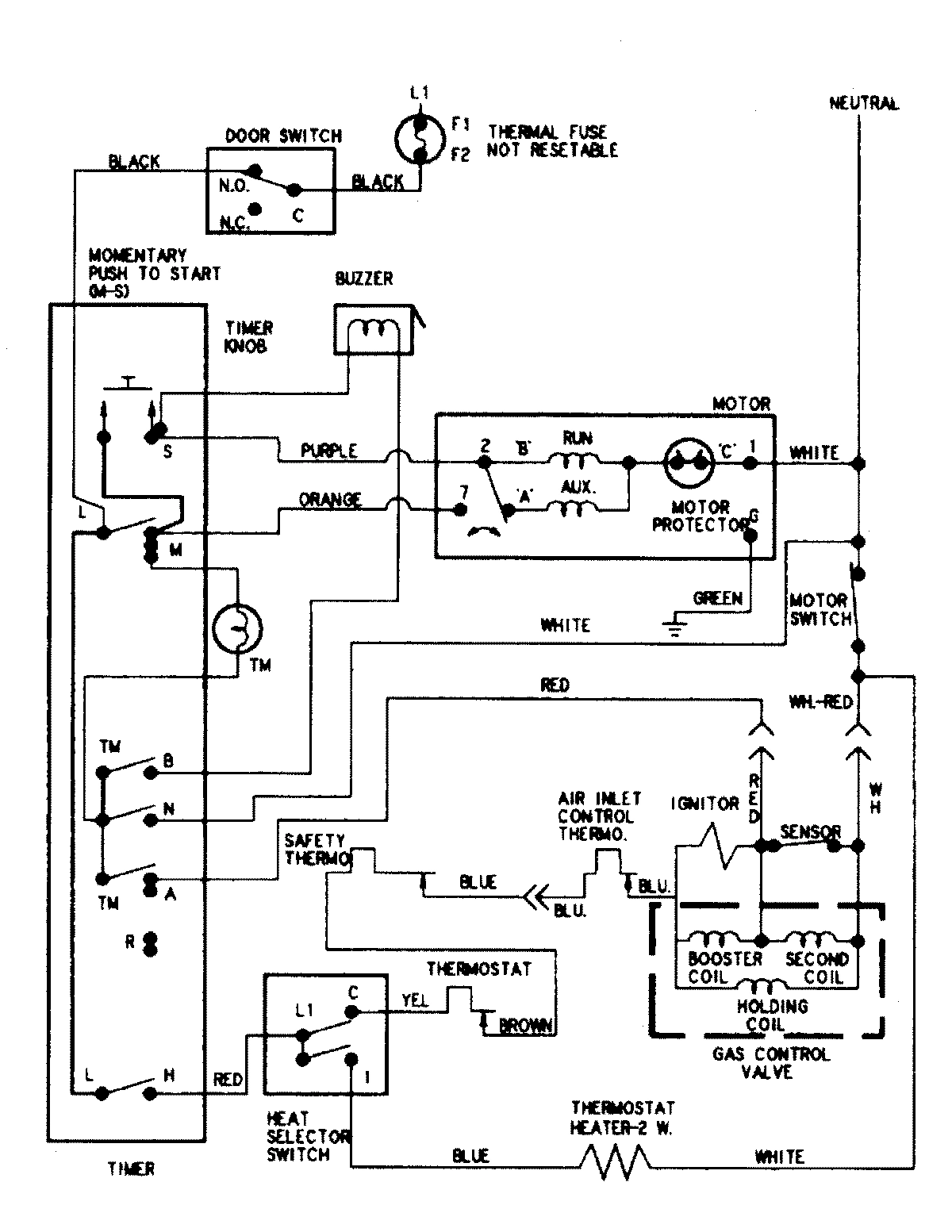

07 - WIRING INFORMATION

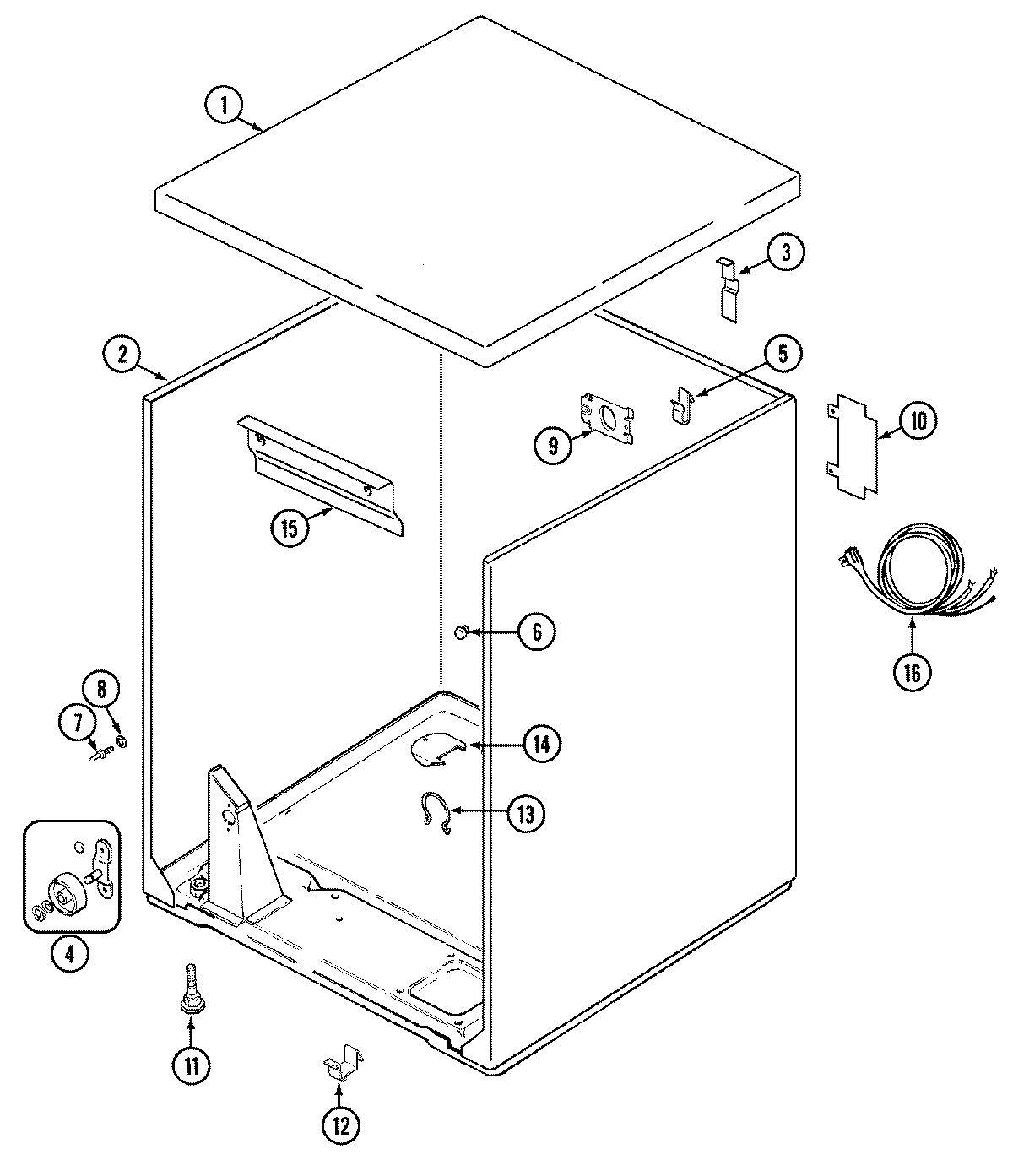

01 - CABINET

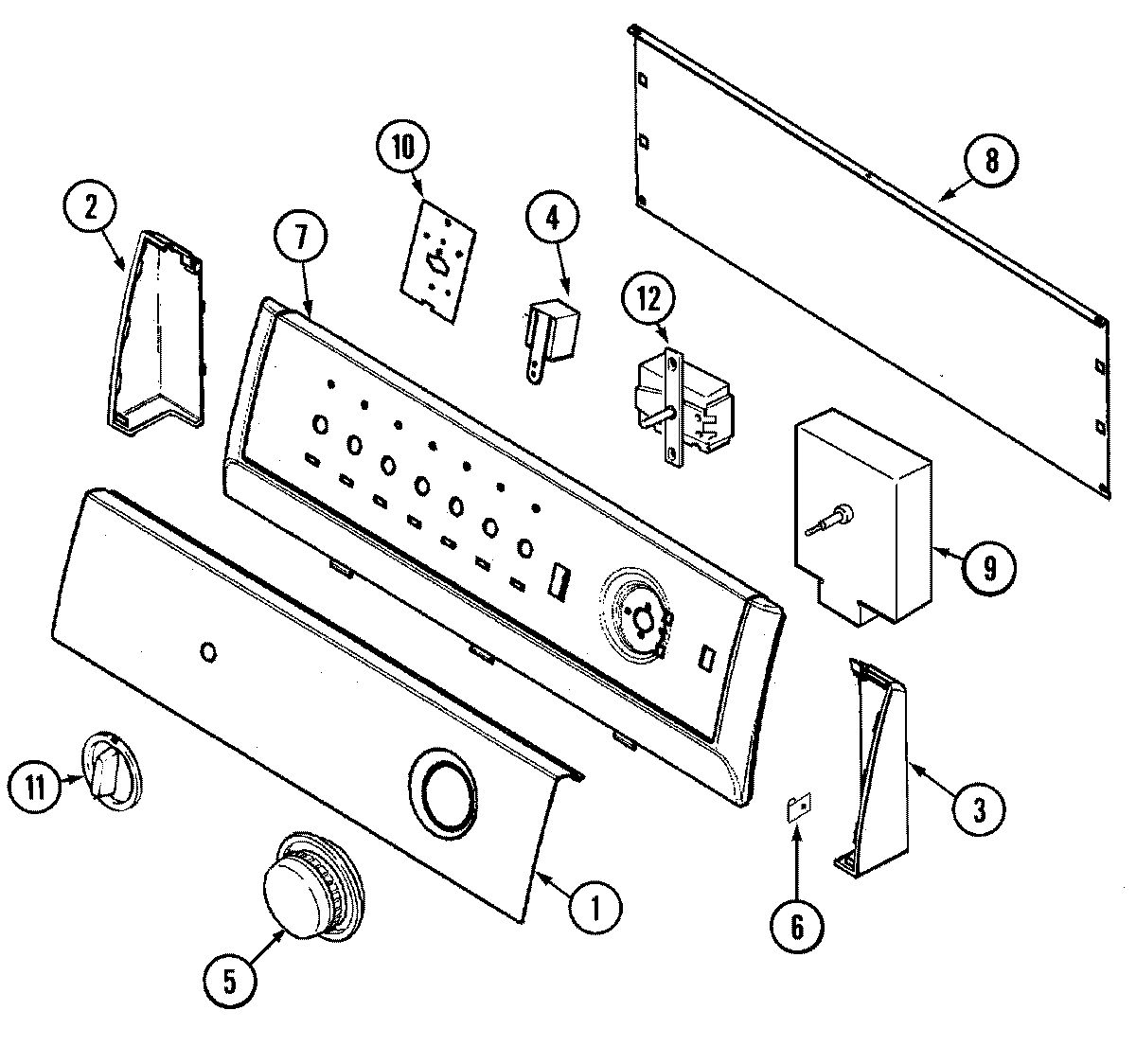

02 - CONTROL PANEL

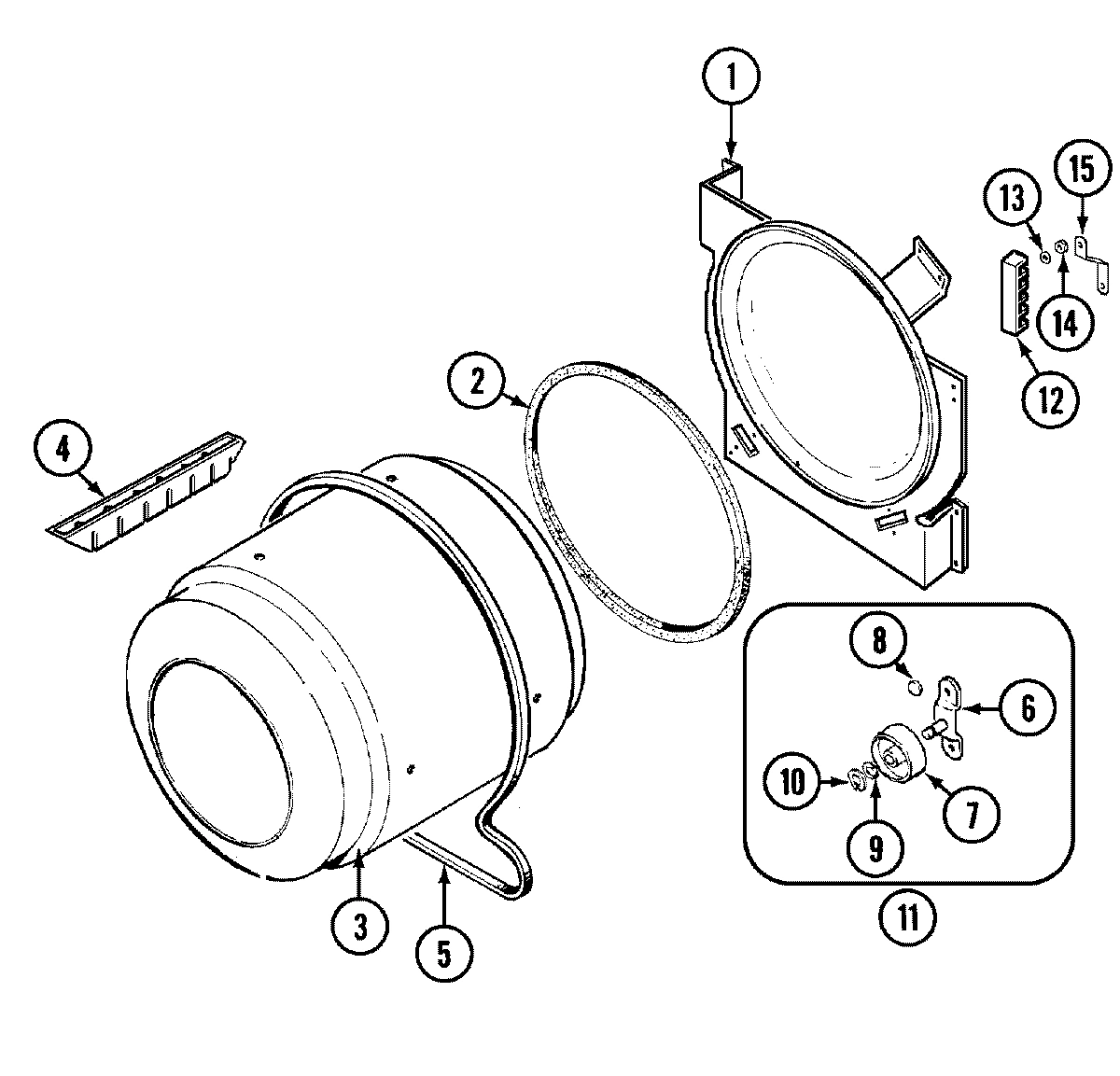

06 - TUMBLER

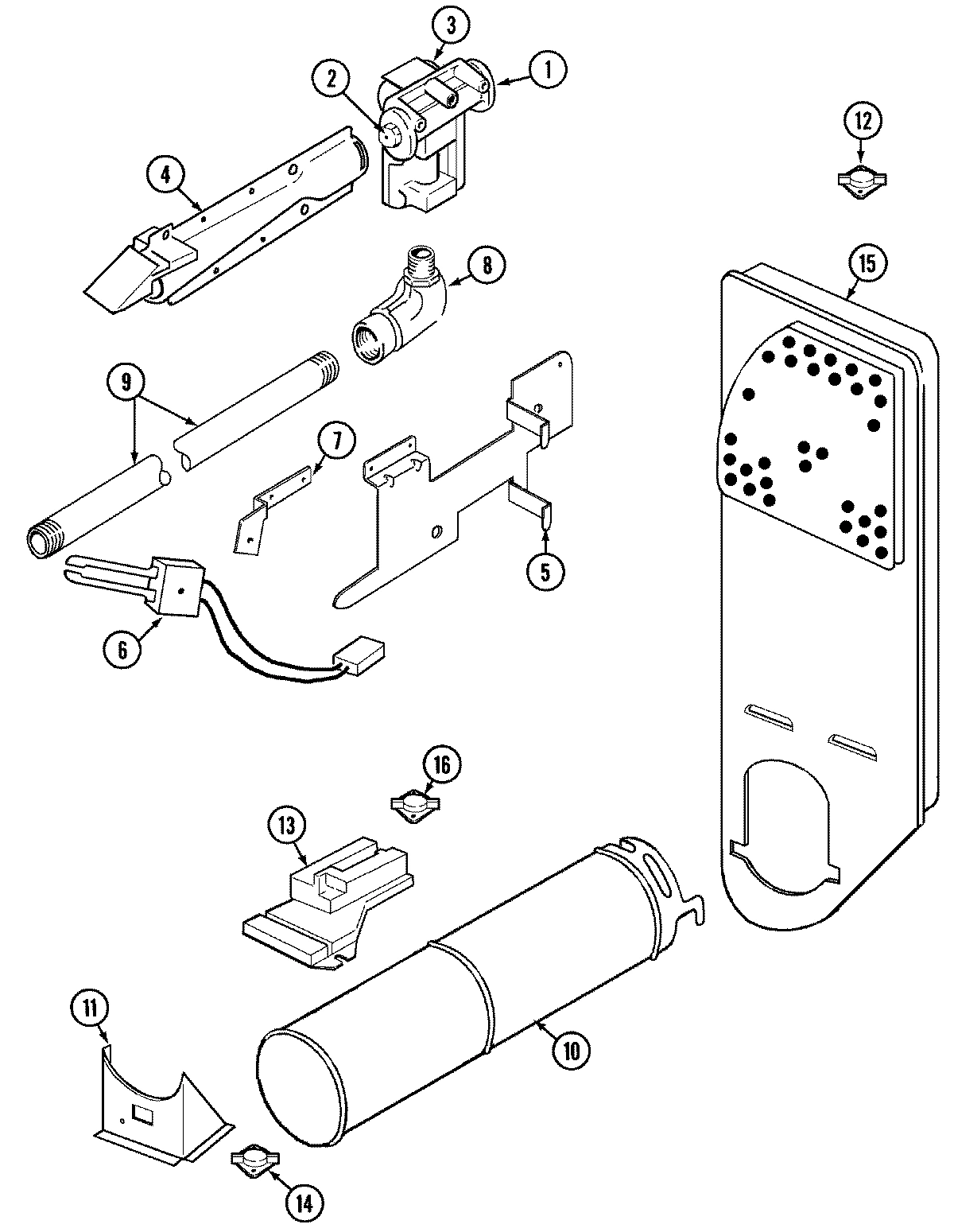

04 - GAS CARRYING
Common parts from model Whirlpool CDG6000A GAS DRYER
1
PULLEY, DRYER MOTOR (60HZ) WPL 530932 Contact Us For Availability
1
TOP, CABINET (ALM) WPL 31001424 Contact Us For Availability
1
PANEL, CONTROL WPL 31001392 Contact Us For Availability
1
SCREW WPL 257733 Contact Us For Availability
1
DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability
1
TAIL PIECE WPL 31001368 Contact Us For Availability
1
VALVE, GAS (WITH ORIFICE) WPL 31001485 Contact Us For Availability
1
UNION NUT WPL 606846 Contact Us For Availability
2
SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability
2
CABINET & BASE ASSY. (ALM) WPL 53255924 Contact Us For Availability
2
END CAP (ALM LT) WPL 21001557 Contact Us For Availability
2
BURNER ORIFICE WPL 633570 Contact Us For Availability
3
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
3
SCREW WPL 257732 Contact Us For Availability
3
PAD, HINGE WPL 354128 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
END CAP (ALM RT) WPL 21001564 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
3
SECONDARY COIL WPL 636614 Contact Us For Availability
3
DUAL COIL WPL 636615 Contact Us For Availability
4
CLAMP, MOTOR WPL 530214 Contact Us For Availability
4
BUZZER ASSY. WPL 531639 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
4
BURNER ASM WPL 636682 Contact Us For Availability
5
IDLER ASSY. WPL 532287 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
KNOB AND SKIRT ASSY. (ALM) WPL 31001393 Contact Us For Availability
5
MTG BRACKET WPL 530140 Contact Us For Availability
6
BUMPER, CABINET WPL 332653 Contact Us For Availability
6
SPRING, IDLER WPL 532209 Contact Us For Availability
6
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
6
SCREW WPL 257101 Contact Us For Availability
6
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
6
SCREW WPL 257744 Contact Us For Availability
6
IGNITER WPL 530689 Contact Us For Availability
7
PIN, LOCATOR WPL 530643 Contact Us For Availability
7
SEAL WPL 530204 Contact Us For Availability
7
DUCT, EXHAUST WPL 530134 Contact Us For Availability
7
FRAME (ALM) WPL 21001560 Contact Us For Availability
7
ROLLER (REAR) WPL 31001096 Contact Us For Availability
7
BRACKET WPL 530686 Contact Us For Availability
8
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
8
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
8
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
8
HOUSING, BLOWER WPL 531801 Contact Us For Availability
8
SCREW, SEMS WPL 253457 Contact Us For Availability
8
SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability
8
SPACER WPL 257813 Contact Us For Availability
9
FILTER, LINT WPL 530918 Contact Us For Availability
9
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
9
TIMER WPL 531810 Contact Us For Availability
9
WASHER WPL 257814 Contact Us For Availability
9
MAIN GAS LINE ASSY WPL 532362 Contact Us For Availability
10
SCREW WPL 257857 Contact Us For Availability
10
COVER, TERMINAL WPL 530284 Contact Us For Availability
10
SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability
10
PAD, SHIELD WPL 31001193 Contact Us For Availability
10
SPACER, CONTROL SHIELD WPL 532504 Contact Us For Availability
10
RING, RETAINING WPL 257854 Contact Us For Availability
10
HOUSING, HEATER WPL 531884 Contact Us For Availability
11
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
11
PANEL, OUTER DOOR (ALM) WPL 53015424 Contact Us For Availability
11
CLAMP WPL 257823 Contact Us For Availability
11
SCREW WPL 253092 Contact Us For Availability
11
ROLLER WPL LA1008 Contact Us For Availability
11
LEG, LEVELING WPL 635519 Contact Us For Availability
11
KNOB, SELECTOR (ALM) WPL 21001556 Contact Us For Availability
11
SUPPORT, HEATER HOUSING WPL 532363 Contact Us For Availability
12
PANEL, INNER DOOR (ALM) WPL 53091224 Contact Us For Availability
12
RING, RETAINING WPL 257855 Contact Us For Availability
12
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
12
SWITCH, TEMPERATURE WPL 31001348 Contact Us For Availability
13
CLIP, HINGE WPL 530119 Contact Us For Availability
13
SCREW WPL 257435 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
13
SCREW WPL 252134 Contact Us For Availability
13
CLIP, WIRING WPL 257027 Contact Us For Availability
13
SENSOR WPL 635013 Contact Us For Availability
14
DOOR PAD WPL 531490 Contact Us For Availability
14
THERMOSTAT, CONTROL WPL 31001088 Contact Us For Availability
14
SHIELD, WIRING WPL 531921 Contact Us For Availability
14
SCREW WPL 250168 Contact Us For Availability
14
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
15
DOOR PAD WPL 531491 Contact Us For Availability
15
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
15
SCREW WPL 257741 Contact Us For Availability
15
INLET AIR DUCT ASSY WPL 531706 Contact Us For Availability
16
DOOR SEAL WPL 530648 Contact Us For Availability
16
RH GLD CUSHION WPL 530724 Contact Us For Availability
16
CORD, POWER WPL 636259 Contact Us For Availability
16
THRMST-FIX WPL 531096 Contact Us For Availability
17
PLUG BUTTON WPL 257889 Contact Us For Availability
18
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
18
HANDLE, DOOR (ALM) WPL 31001115 Contact Us For Availability
18
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
19
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
19
HINGE, DRYER DOOR WPL 531492 Contact Us For Availability
19
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
20
TWIN NUT WPL 530121 Contact Us For Availability
20
SCREW WPL 257963 Contact Us For Availability
21
STRIKE, DOOR WPL 532364 Contact Us For Availability
21
SCREW WPL 257674 Contact Us For Availability
22
CATCH, DOOR WPL 530187 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
23
SWITCH, DOOR WPL 530147 Contact Us For Availability
24
CLIP, SWITCH WPL 635990 Contact Us For Availability
24
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
25
WASHER WPL 257815 Contact Us For Availability
26
PUSHNUT WPL 257957 Contact Us For Availability
27
PULLEY, IDLER WPL 531628 Contact Us For Availability
28
ARM, IDLER WPL 532250 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002636 Contact Us For Availability
NI
MANUAL, LAUNDERING TIPS WPL 21001419 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 31001418 Contact Us For Availability
NI
MANUAL, USE & CARE (SPAN) WPL 31001460 Contact Us For Availability
NI
CONVERSION KIT (LP-NAT) WPL 12001031 Contact Us For Availability
NI
CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability
× ![]()
