Model Whirlpool CDE22B6VC ELECTRIC DRYER – Common Parts & Diagrams

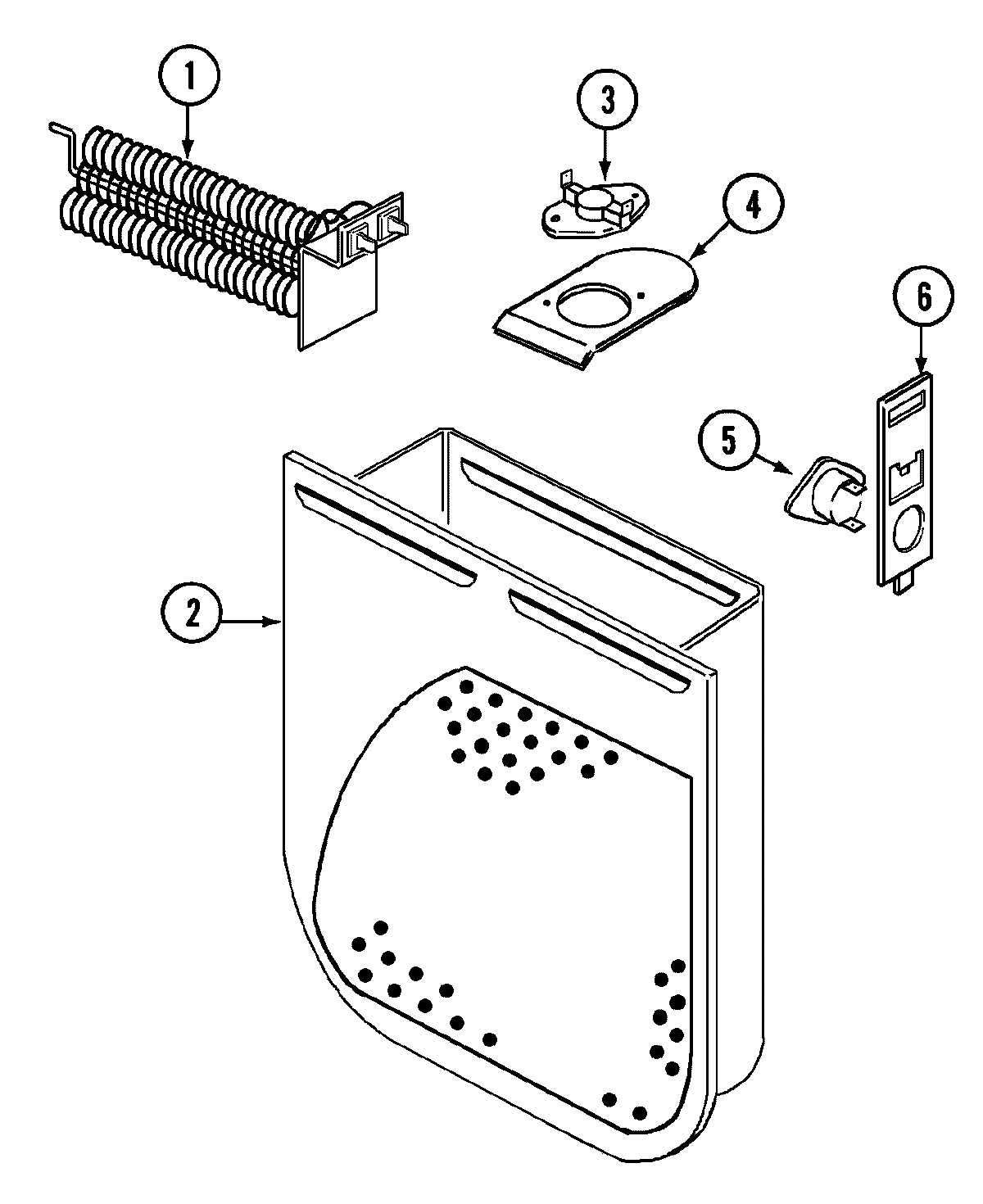

03 - HEATER

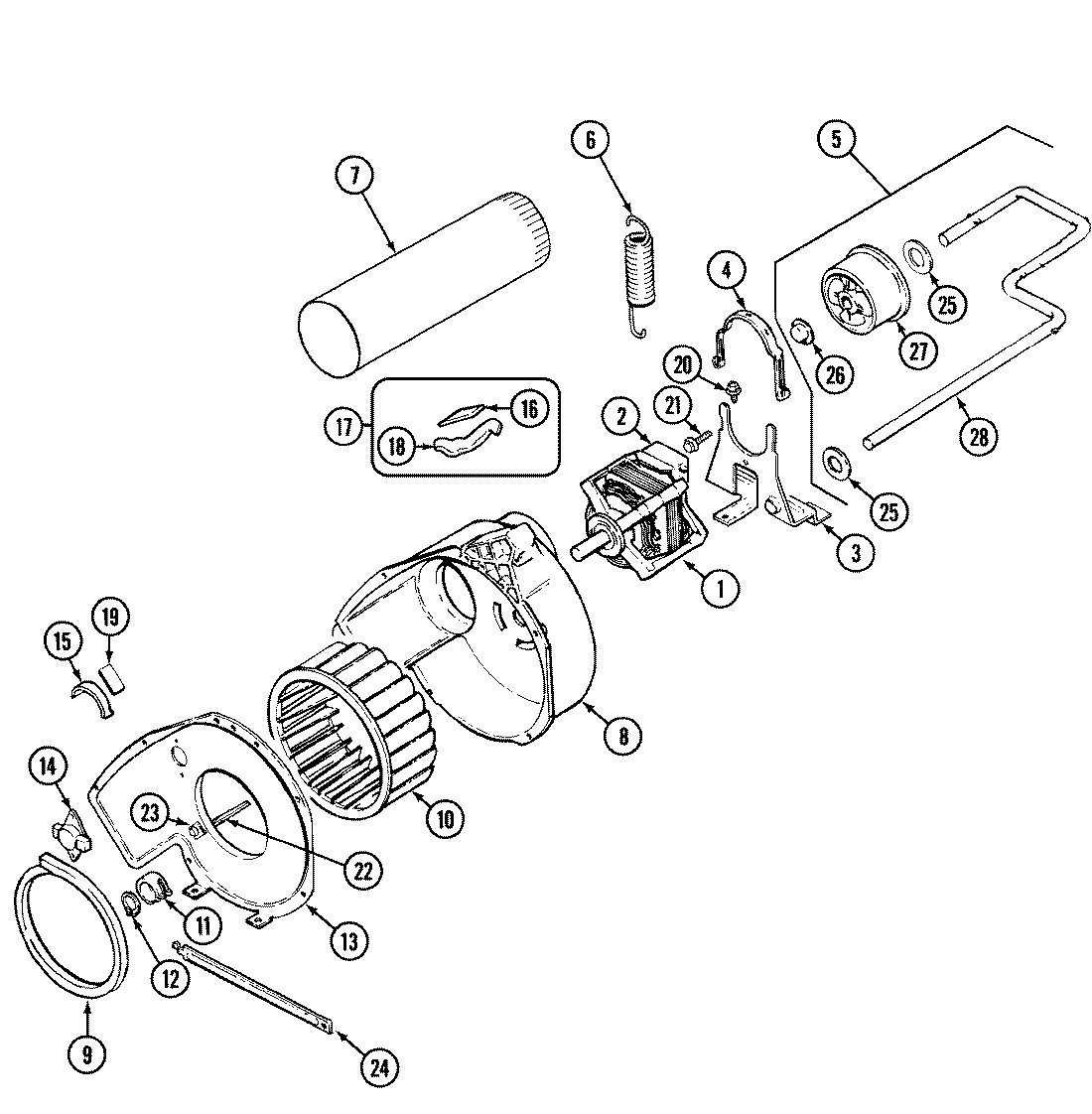

04 - MOTOR & DRIVE

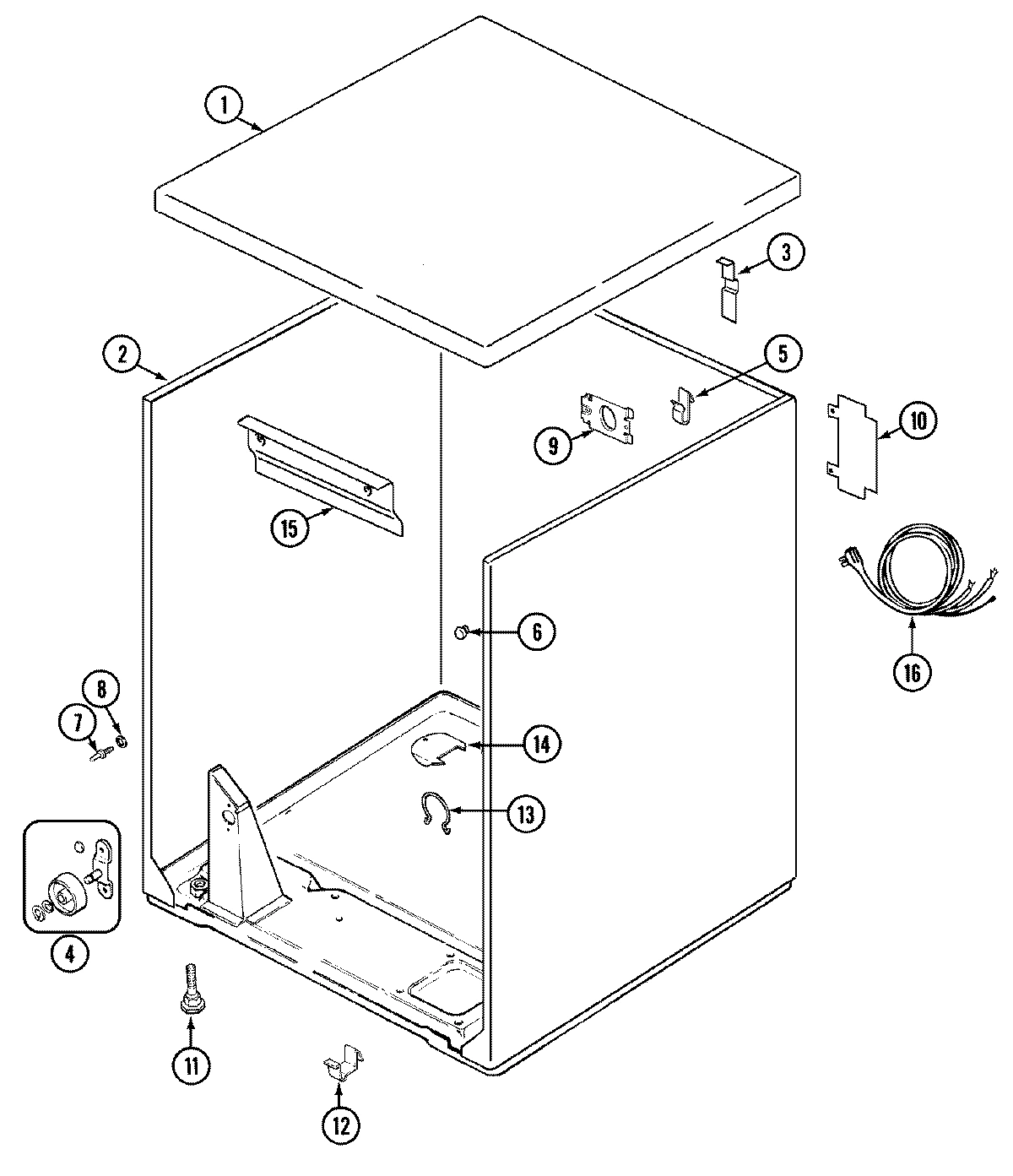

01 - CABINET

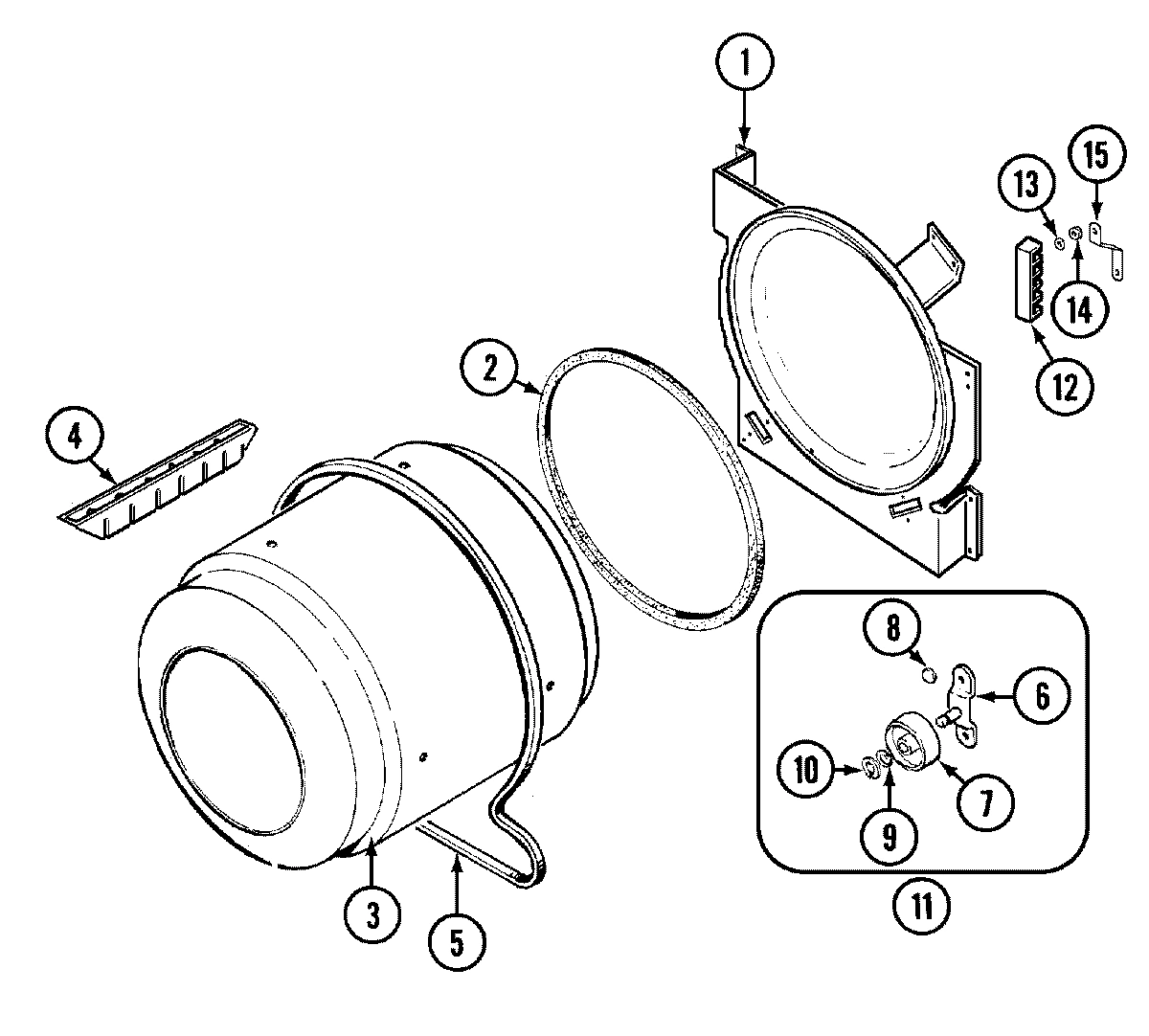

05 - TUMBLER

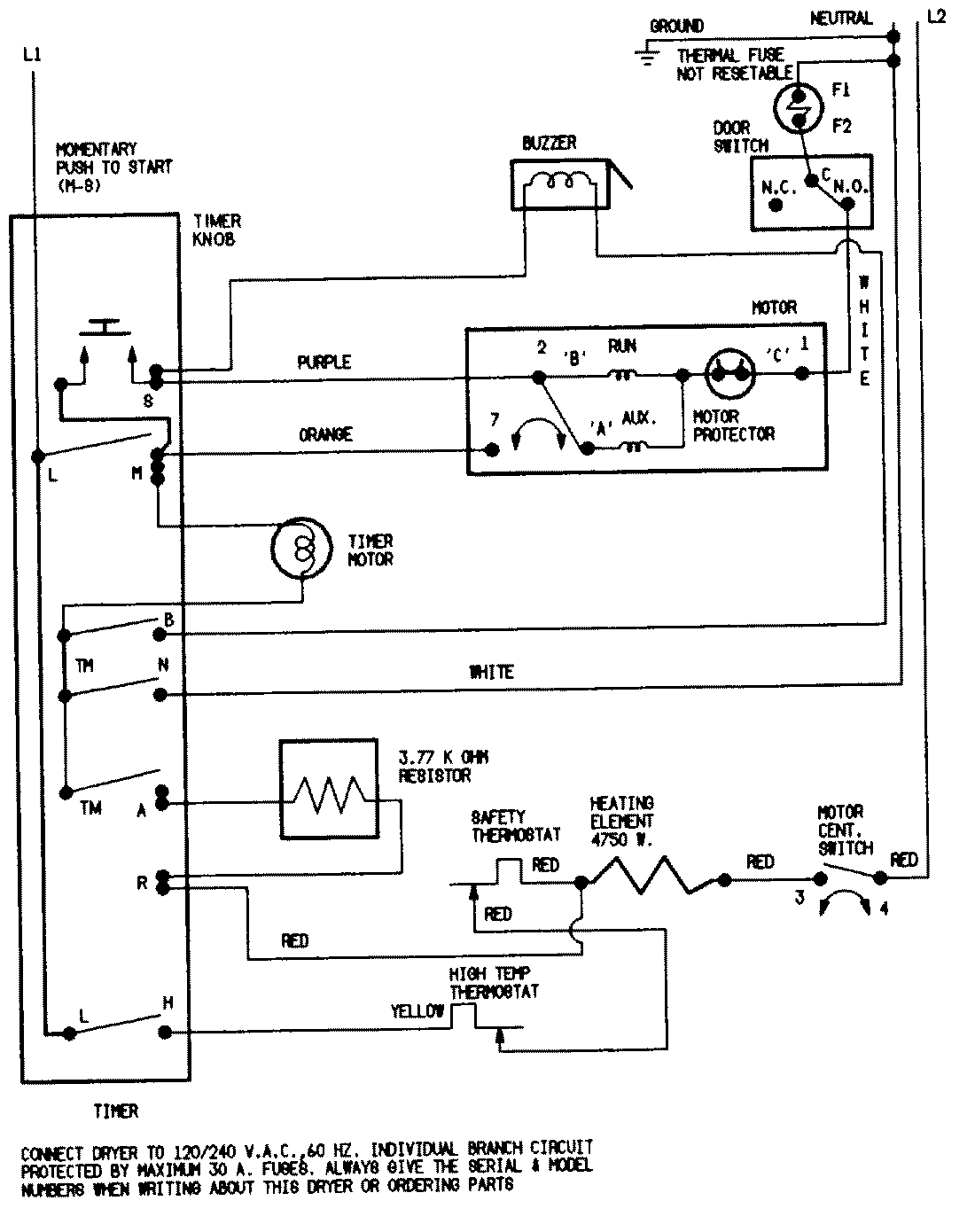

06 - WIRING INFORMATION

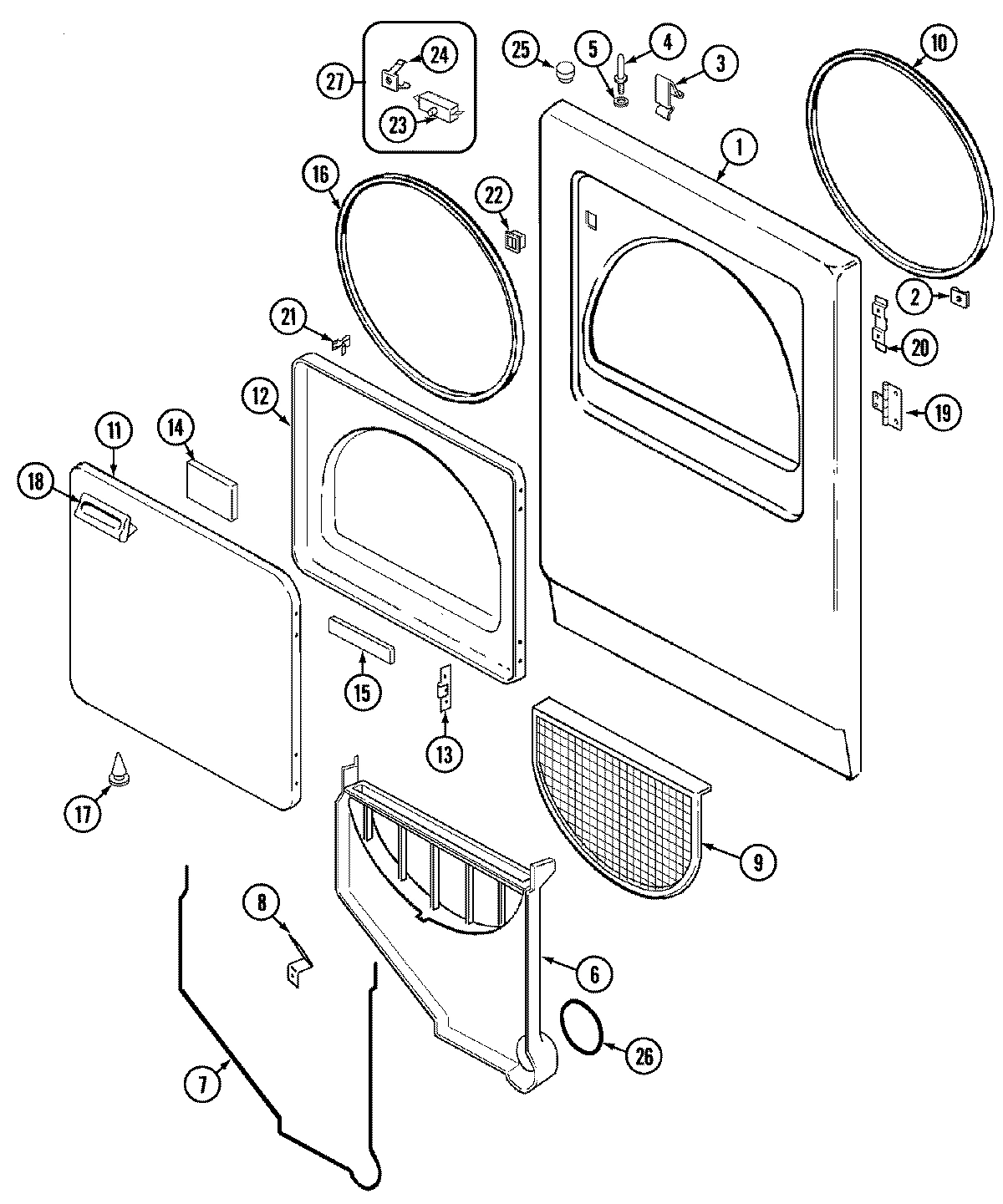

02 - DOOR
Common parts from model Whirlpool CDE22B6VC ELECTRIC DRYER
1
TOP, CABINET WPL 532435 Contact Us For Availability
1
SCREW WPL 257733 Contact Us For Availability
1
DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability
1
PANEL, FRONT (WHT) WPL 530726 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
2
SWITCH, MOTOR WPL 530693 Contact Us For Availability
2
CABINET & BASE ASM (WHT) WPL 532559 Contact Us For Availability
2
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
2
CLIP, U-TYPE WPL 257817 Contact Us For Availability
2
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
3
SCREW WPL 257732 Contact Us For Availability
3
SCREW WPL 253092 Contact Us For Availability
3
PAD, TOP HINGE WPL 330930 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
3
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
CLAMP, MOTOR WPL 530214 Contact Us For Availability
4
PIN, LOCATOR WPL 530643 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
5
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
5
IDLER ASSY. WPL 532287 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
5
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
6
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
6
SPRING, IDLER WPL 532209 Contact Us For Availability
6
SCREW WPL 257101 Contact Us For Availability
6
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
6
COLLECTOR DUCT WPL 531299 Contact Us For Availability
7
DUCT, EXHAUST WPL 530134 Contact Us For Availability
7
ROLLER (REAR) WPL 31001096 Contact Us For Availability
7
SEAL WPL 530204 Contact Us For Availability
8
HOUSING, BLOWER WPL 531801 Contact Us For Availability
8
SPACER WPL 257813 Contact Us For Availability
8
CLIP WPL 530123 Contact Us For Availability
9
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
9
SUPPORT, POWER CORD WPL 530135 Contact Us For Availability
9
WASHER WPL 257814 Contact Us For Availability
9
FILTER, LINT WPL 530918 Contact Us For Availability
10
SCREW WPL 257857 Contact Us For Availability
10
COVER, TERMINAL WPL 530284 Contact Us For Availability
10
RING, RETAINING WPL 257854 Contact Us For Availability
10
SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability
11
CLAMP WPL 257823 Contact Us For Availability
11
ROLLER WPL LA1008 Contact Us For Availability
11
LEG, LEVELING WPL 635519 Contact Us For Availability
11
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
11
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
12
RING, RETAINING WPL 257855 Contact Us For Availability
12
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
12
SCREW WPL 257952 Contact Us For Availability
12
BLOCK, TERMINAL WPL 531518 Contact Us For Availability
12
PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability
13
SCREW WPL 257435 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
13
CLIP, WIRING WPL 257027 Contact Us For Availability
13
WASHER, FLAT WPL 253122 Contact Us For Availability
13
CLIP, HINGE WPL 530119 Contact Us For Availability
14
SCREW WPL 252134 Contact Us For Availability
14
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
14
SHIELD, WIRING WPL 531921 Contact Us For Availability
14
NUT (No.10-32) WPL 250027 Contact Us For Availability
14
NUT (No.10-24) WPL 257808 Contact Us For Availability
14
DOOR PAD WPL 531490 Contact Us For Availability
15
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
15
SCREW, SEMS WPL 253457 Contact Us For Availability
15
SHIELD, HEAT WPL 530133 Contact Us For Availability
15
STRAP, GROUND WPL 530965 Contact Us For Availability
15
DOOR PAD WPL 531491 Contact Us For Availability
16
RH GLD CUSHION WPL 530724 Contact Us For Availability
16
CORD, POWER WPL 31001019 Contact Us For Availability
16
STRAIN RELIEF WPL 532513 Contact Us For Availability
16
DOOR SEAL WPL 530648 Contact Us For Availability
17
PLUG BUTTON WPL 257889 Contact Us For Availability
18
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
18
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability
19
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
19
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
19
HINGE, DRYER DOOR WPL 531492 Contact Us For Availability
20
SCREW WPL 257963 Contact Us For Availability
20
TWIN NUT WPL 530121 Contact Us For Availability
21
SCREW WPL 257674 Contact Us For Availability
21
STRIKE, DOOR WPL 532364 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
22
CATCH, DOOR WPL 530187 Contact Us For Availability
23
SWITCH, DOOR WPL 530148 Contact Us For Availability
24
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
24
CLIP, SWITCH WPL 635990 Contact Us For Availability
25
WASHER WPL 257815 Contact Us For Availability
25
BUMPER, CABINET WPL 332653 Contact Us For Availability
26
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
26
PUSHNUT WPL 257957 Contact Us For Availability
27
PULLEY, IDLER WPL 531628 Contact Us For Availability
27
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
28
ARM, IDLER WPL 532250 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001202 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002558 Contact Us For Availability
× ![]()
