Model Maytag C31000PATP GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - DOOR/DRAWER

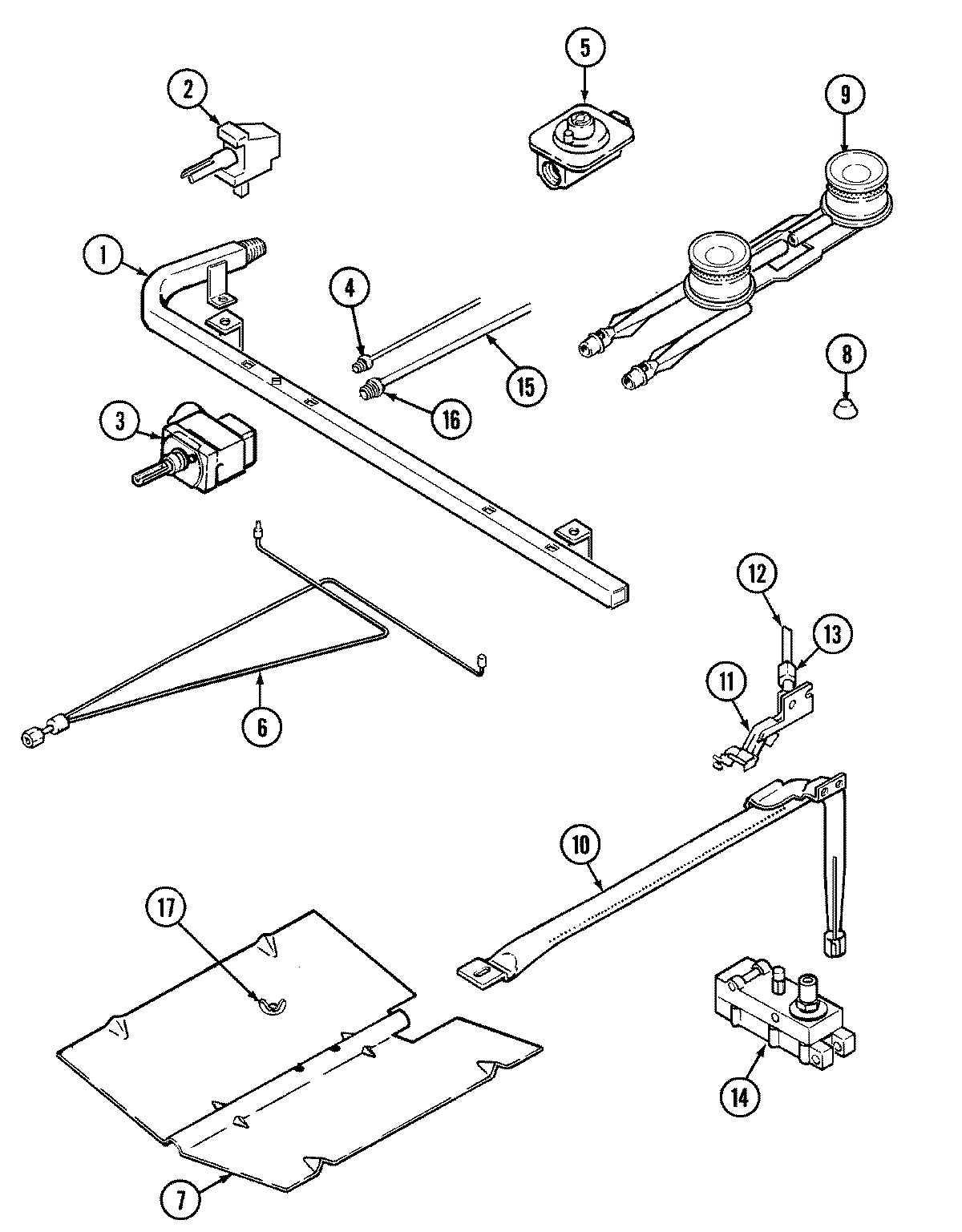

03 - GAS CONTROLS

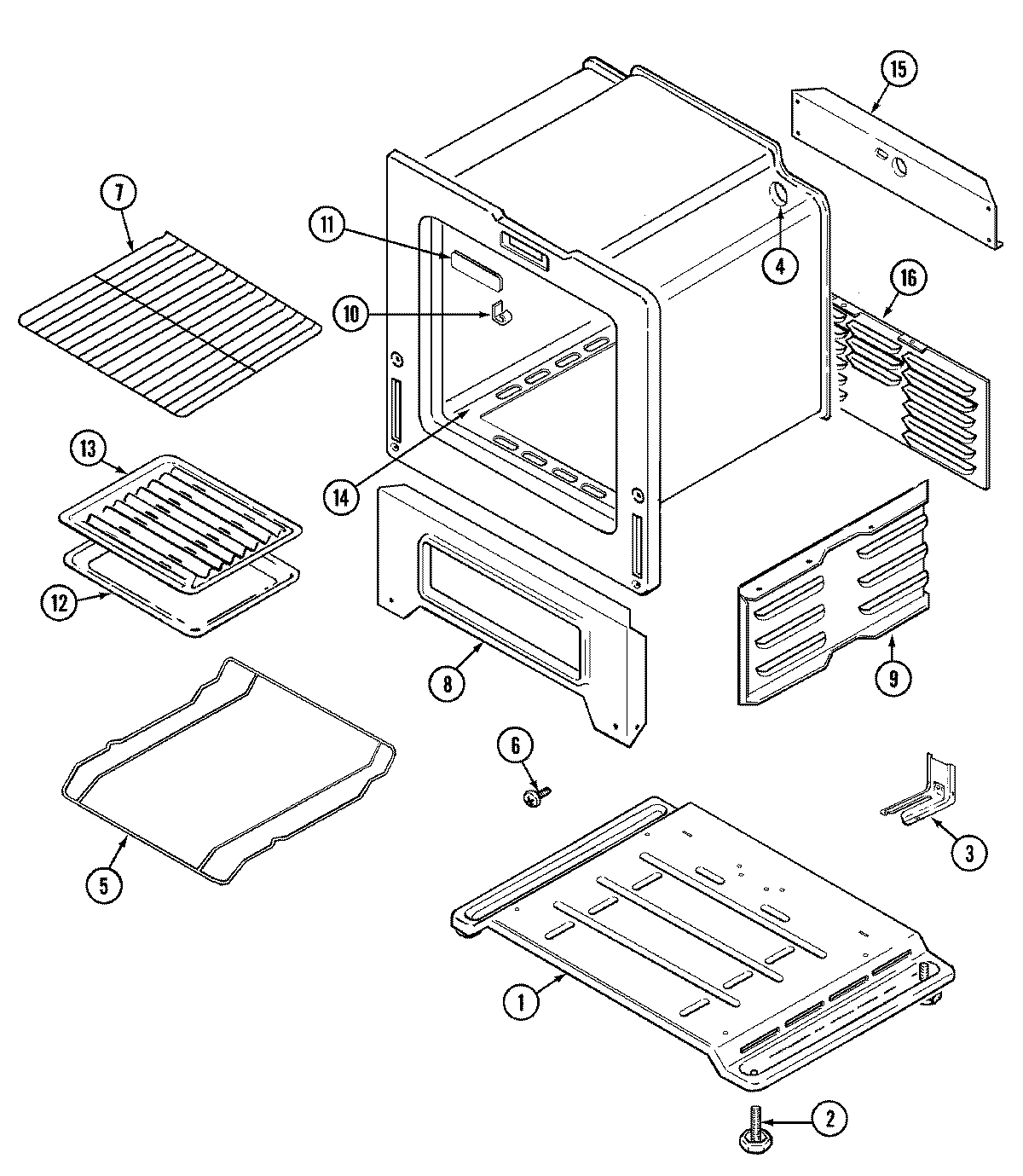

04 - OVEN/BASE

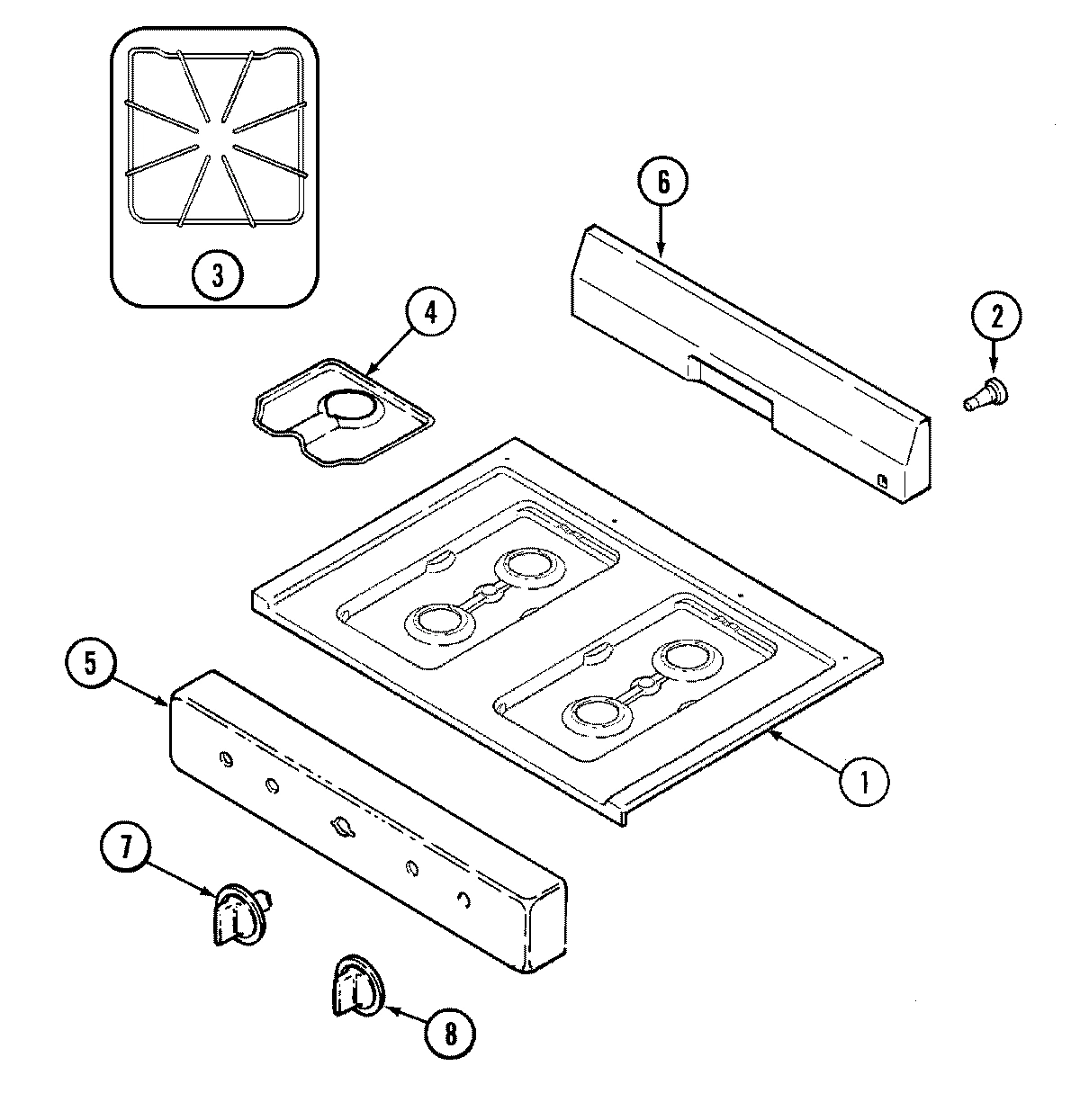

05 - TOP ASSEMBLY
Common parts from model Maytag C31000PATP GAS RANGE
1
MAY 74005048 MAY 74005048 Contact Us For Availability
1
MAY 74002424 MAY 74002424 Contact Us For Availability
1
MAY 74005215 MAY 74005215 Contact Us For Availability
1
MAY 74005045 MAY 74005045 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) MAY 8010P069-60 Contact Us For Availability
2
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
2
MAY 74002673 MAY 74002673 Contact Us For Availability
3
MAY 8010P084-60 MAY 8010P084-60 Contact Us For Availability
3
MAY 7101P010-60 MAY 7101P010-60 Contact Us For Availability
3
MAY 74002425 MAY 74002425 Contact Us For Availability
3
MAY 74002311 MAY 74002311 Contact Us For Availability
4
MAY 1555222 MAY 1555222 Contact Us For Availability
4
MAY 74002380 MAY 74002380 Contact Us For Availability
4
MAY 5401A433-60 MAY 5401A433-60 Contact Us For Availability
5
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
5
MAY 74001820 MAY 74001820 Contact Us For Availability
5
MAY 7510P001-60 MAY 7510P001-60 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
5
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
5
MAY 74002494 MAY 74002494 Contact Us For Availability
6
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
6
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
6
MAY 7103P128-60 MAY 7103P128-60 Contact Us For Availability
6
MAY 74002660 MAY 74002660 Contact Us For Availability
6
MAY 74002354 MAY 74002354 Contact Us For Availability
7
MAY 74002366 MAY 74002366 Contact Us For Availability
7
MAY 74003240 MAY 74003240 Contact Us For Availability
7
MAY 74002393 MAY 74002393 Contact Us For Availability
8
MAY 74002367 MAY 74002367 Contact Us For Availability
8
MAY 4804F050-60 MAY 4804F050-60 Contact Us For Availability
8
MAY 74002435 MAY 74002435 Contact Us For Availability
8
MAY 74003007 MAY 74003007 Contact Us For Availability
9
MAY 74010148 MAY 74010148 Contact Us For Availability
9
MAY 74003332 MAY 74003332 Contact Us For Availability
9
MAY 74010149 MAY 74010149 Contact Us For Availability
9
MAY 74001449 MAY 74001449 Contact Us For Availability
9
MAY 74005046 MAY 74005046 Contact Us For Availability
9
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
10
MAY 74002369 MAY 74002369 Contact Us For Availability
11
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
11
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
11
MAY 74002397 MAY 74002397 Contact Us For Availability
11
MAY 74007553 MAY 74007553 Contact Us For Availability
11
MAY 7432P068-60 MAY 7432P068-60 Contact Us For Availability
11
PLUG, LOCK SLOT MAY 74003406 Contact Us For Availability
12
MAY 74002370 MAY 74002370 Contact Us For Availability
12
MAY 74002634 MAY 74002634 Contact Us For Availability
12
MAY 74001814 MAY 74001814 Contact Us For Availability
12
MAY 3414F108-44 MAY 3414F108-44 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 74002398 MAY 74002398 Contact Us For Availability
13
MAY 1555261K MAY 1555261K Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
MAY 74002672 MAY 74002672 Contact Us For Availability
14
MAY 74002376 MAY 74002376 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
15
MAY 74001062 MAY 74001062 Contact Us For Availability
15
MAY 74002378 MAY 74002378 Contact Us For Availability
16
MAY 1555251 MAY 1555251 Contact Us For Availability
16
MAY 74002379 MAY 74002379 Contact Us For Availability
17
NUT, WING MAY 7103P030-60 Contact Us For Availability
NI
MAY 74004367 MAY 74004367 Contact Us For Availability
× ![]()
