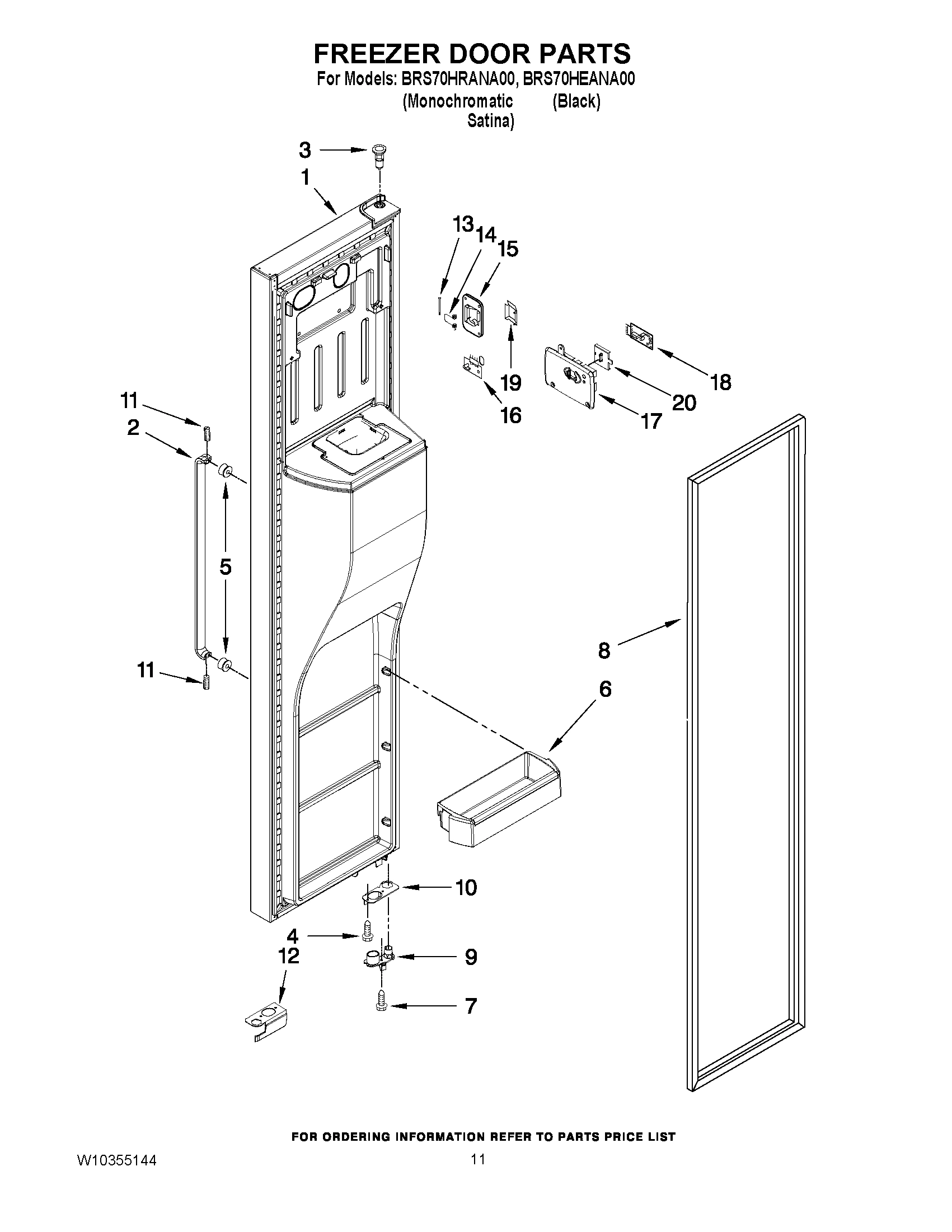

Model Whirlpool BRS70HEANA00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10277958 Whirlpool Refrigerator Fitting In Stock WPL WPW10277958 $30.62

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10276197 Whirlpool Refrigerator Grille Backorder WPL WPW10276197 $43.94

2

COVER ASSY WPL W10260977 Contact Us For Availability

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11708426 Whirlpool Condenser Assembly In Stock WPL W11708426 $103.17

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

WPW10238092 Whirlpool Refrigerator Water Tube In Stock WPL WPW10238092 $57.45

3

WPW10261025 Whirlpool Glass Shelf Backorder WPL WPW10261025 $121.11

4

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $32.54

4

WPW10296855 Whirlpool Refrigerator Door Bin In Stock WPL WPW10296855 $35.49

4

Washer WPL 2258220 Contact Us For Availability

5

W10260378 Whirlpool Refrigerator Air Duct Backorder WPL W10260378 $51.48

5

WPW10205978 Whirlpool Motor Backorder WPL WPW10205978 $35.32

5

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $144.80

5

WPW10258562 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10258562 $119.58

5

WPW10261028 Whirlpool Glass Shelf Backorder WPL WPW10261028 $119.90

6

W11106313 Whirlpool Refrigerator Freezer Bin Backorder WPL W11106313 $71.06

6

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

6

WPW10256775 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10256775 $47.95

6

WPW10296857 Whirlpool Refrigerator Cantilever In Stock WPL WPW10296857 $48.66

6

COVER, CRUSHER WPL W10178232 Contact Us For Availability

7

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

7

W11236850 Whirlpool Refrigerator Pan Trim Backorder WPL W11236850 $33.42

7

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

7

COVER WPL W10251088 Contact Us For Availability

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $26.54

8

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $146.07

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W11607100 Whirlpool Refrigerator Thimble Cam In Stock WPL W11607100 $4.90

9

W11683241 Whirlpool Module In Stock WPL W11683241 $128.84

9

THERMISTOR In Stock WPL W11724692 $11.93

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

9

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $8.67

9

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $8.80

9

WPW10257206 Whirlpool Refrigerator Door Cam In Stock WPL WPW10257206 $9.17

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 WPL W10251081 Contact Us For Availability

9

TRIM RING WPL W10254306 Contact Us For Availability

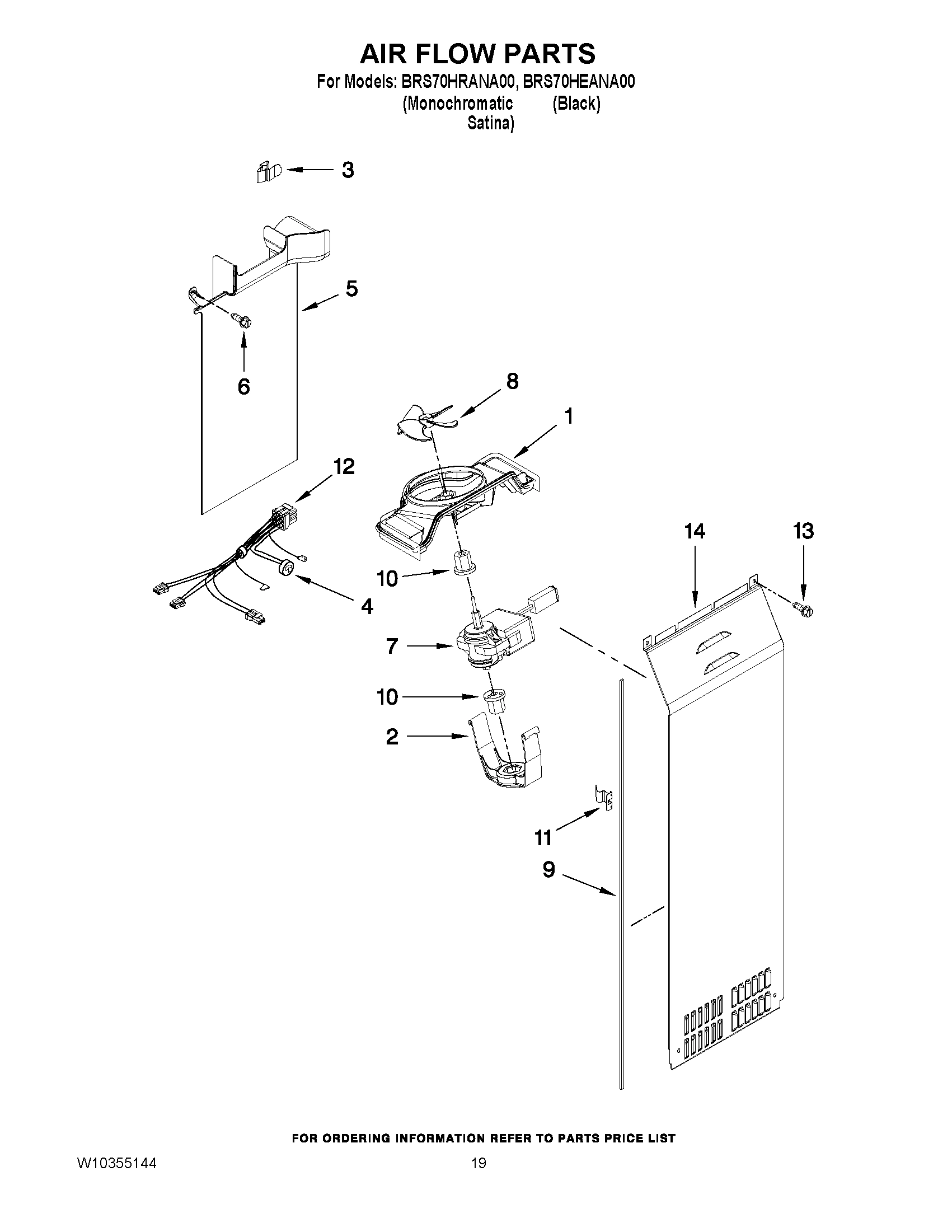

W10156707 Whirlpool Refrigerator Air Tower Backorder WPL W10156707 $37.28

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W11123943 Whirlpool Refrigerator Switch In Stock WPL W11123943 $14.15

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $25.49

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $51.17

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

FILL TUBE ASSY. WPL W10347034 Contact Us For Availability

W10425253 Whirlpool Refrigerator Cover Backorder WPL W10425253 $32.24

WPW10223328 Whirlpool Refrigerator Tube Backorder WPL WPW10223328 $53.03

WPW10238100 Whirlpool Water Inlet Valve In Stock WPL WPW10238100 $70.68

AIR FILTER WPL W10349302 Contact Us For Availability

12

W10901052 Whirlpool Refrigerator Door Hinge Backorder WPL W10901052 $27.89

12

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $8.55

12

AIR FILTER COVER WPL W10321024 Contact Us For Availability

W10276194 Whirlpool Refrigerator Drip Tray Backorder WPL W10276194 $40.50

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $25.91

W11568758 Whirlpool Top Hinge Backorder WPL W11568758 $8.55

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WPW10329943 Whirlpool Housing Backorder WPL WPW10329943 $29.90

W10239739 Whirlpool Refrigerator Evaporator C Backorder WPL W10239739 $120.22

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10335220 Whirlpool Refrigerator Cantilever Backorder WPL WPW10335220 $51.26

WPW10425252 Whirlpool Refrigerator Cover In Stock WPL WPW10425252 $32.23

W10249941 Whirlpool Refrigerator Door Hinge Backorder WPL W10249941 $37.20

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $33.16

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $26.85

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2321258 Whirlpool Refrigerator Bimetallic D Backorder WPL WP2321258 $35.59

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W10257216 Whirlpool Refrigerator Wire Cover Backorder WPL W10257216 $12.08

W10859809 Whirlpool Refrigerator Evaporator C Backorder WPL W10859809 $116.57

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

W10251080 Whirlpool Refrigerator Bracket Backorder WPL W10251080 $45.07

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10453428 Whirlpool Refrigerator Fan Scroll Backorder WPL WPW10453428 $121.82

COVER, RECEIVER WPL W10258510 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

W10242384 Whirlpool Refrigerator Wire Harness Backorder WPL W10242384 $51.55

W11028224 Whirlpool Refrigerator Support Backorder WPL W11028224 $6.28

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

W10837626 Whirlpool Refrigerator Support Backorder WPL W10837626 $27.63

W11652042 Whirlpool Bin Latch Backorder WPL W11652042 $8.20

WPW10251469 Whirlpool Refrigerator Evaporator Backorder WPL WPW10251469 $68.91

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $30.34

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.77

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

HEAT SHIELD WPL W10348669 Contact Us For Availability

21

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

21

WPW10258544 Whirlpool Refrigerator Shaft In Stock WPL WPW10258544 $13.71

22

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

23

W11573761 Whirlpool Mounting Bracket In Stock WPL W11573761 $21.41

23

SUPPORT PLATE, COMPRESSOR WPL W10277704 Contact Us For Availability

24

W10876191 Whirlpool Refrigerator Door Cam In Stock WPL W10876191 $10.69

24

W10876198 Whirlpool Refrigerator Door Cam In Stock WPL W10876198 $5.09

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

25

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

25

UNIT COVER, BOTTOM WPL W10284726 Contact Us For Availability

26

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

28

W10247979 Whirlpool Refrigerator Fitting Backorder WPL W10247979 $28.64

28

WPW10287594 Whirlpool Refrigerator Front Cove Backorder WPL WPW10287594 $109.68

30

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

31

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $50.80

32

W11409190 Whirlpool Refrigerator Drain Tube In Stock WPL W11409190 $24.06

35

W11676780 Whirlpool Refrigerator Wire Harness Backorder WPL W11676780 $28.04

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
