Model Whirlpool AWM593L WASHER – Common Parts & Diagrams
01 - 34526 TRANSMISSION ASSY
02 - AGITATOR & DRIVE BELL

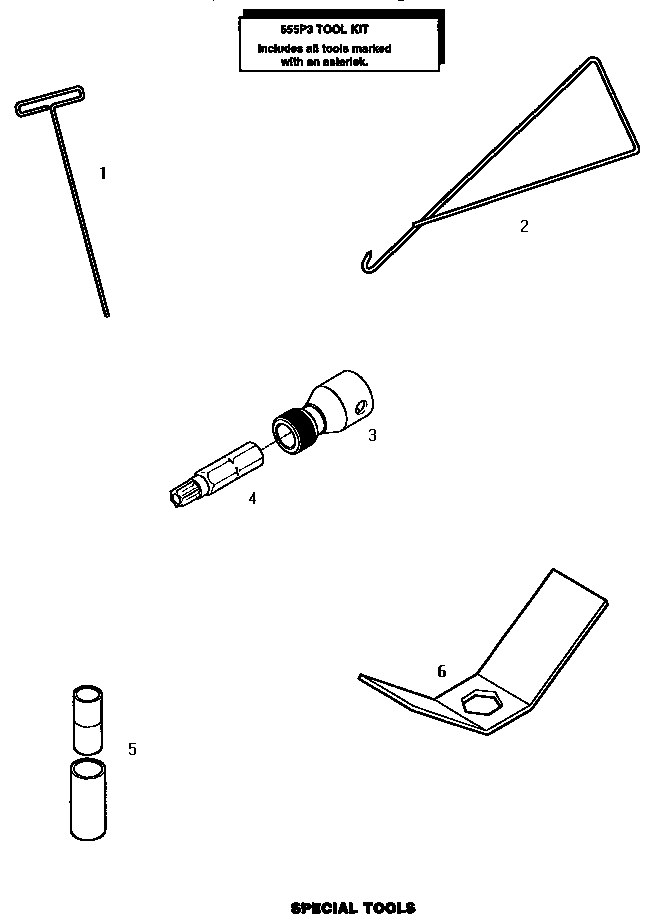

16 - SPECIAL TOOLS

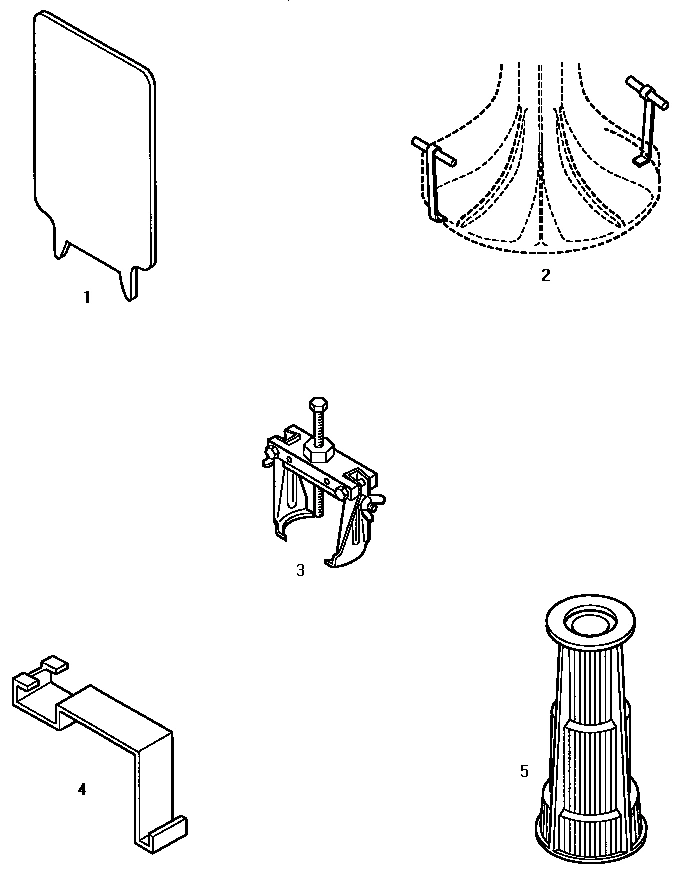

17 - SPECIAL TOOLS (CONTINUED)

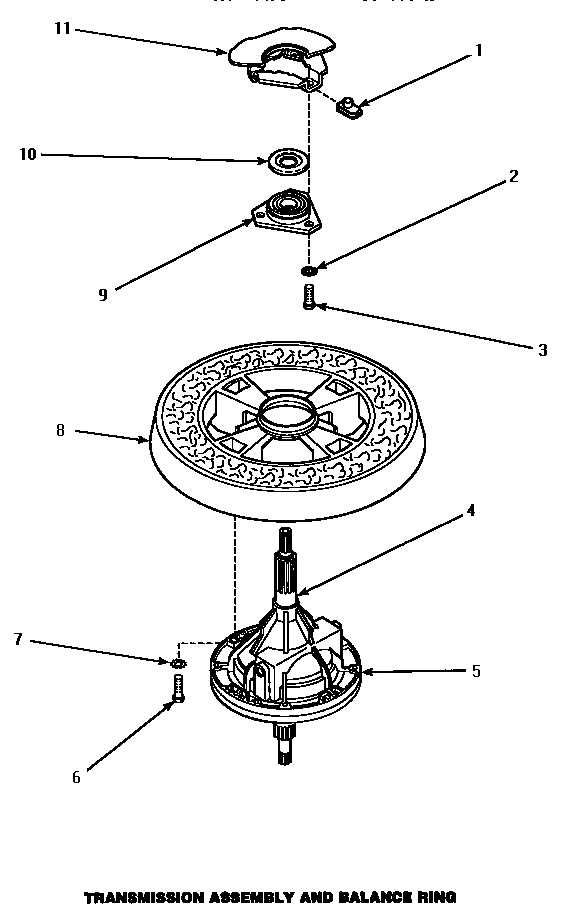

18 - TRANSMISSION ASSY & BALANCE RING

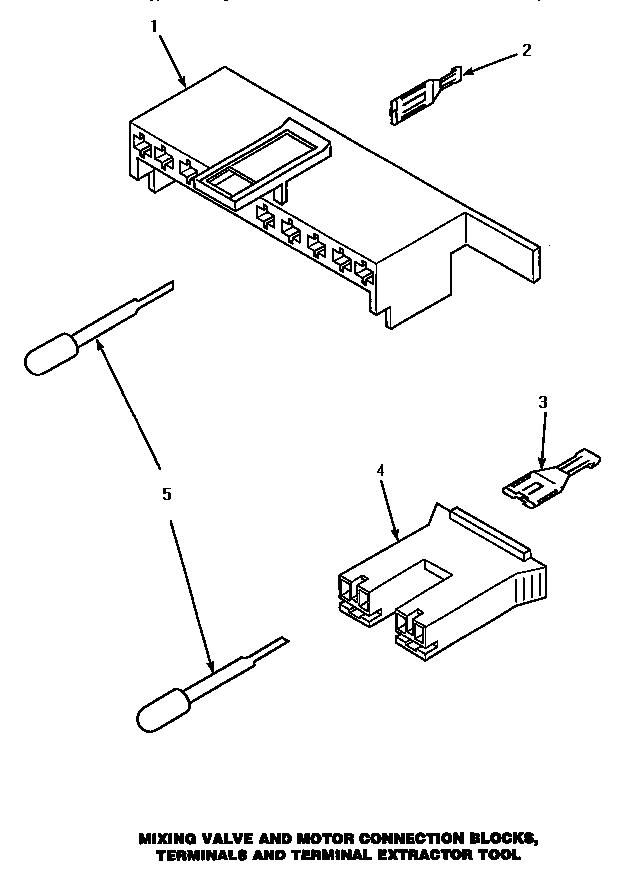

11 - MIXING VALVE, MOTOR CONN BLOCKS & TERM

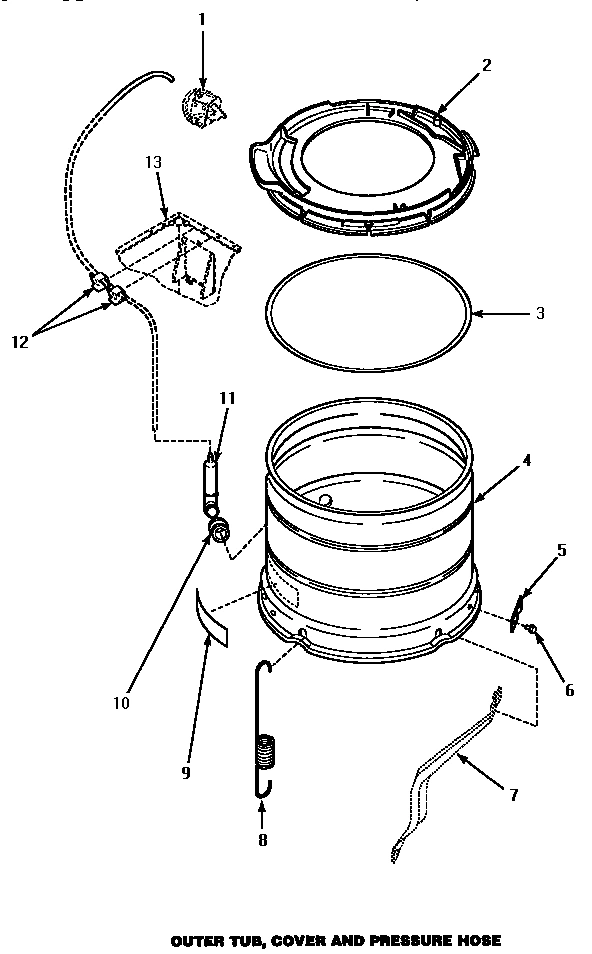

13 - OUTER TUB, COVER & PRESSURE HOSE

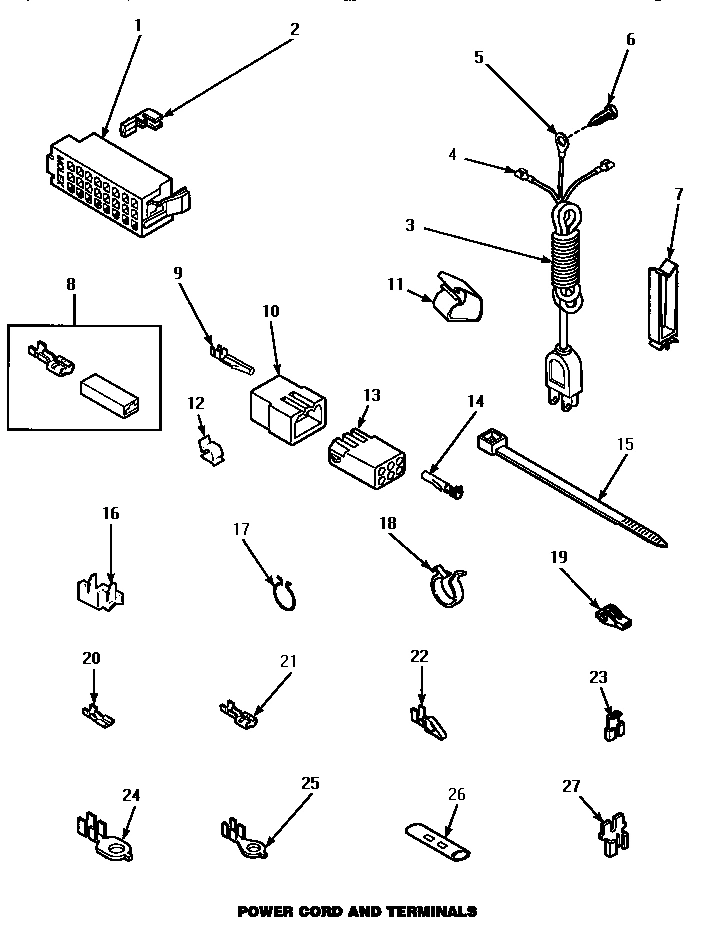

15 - POWER CORD & TERMINALS

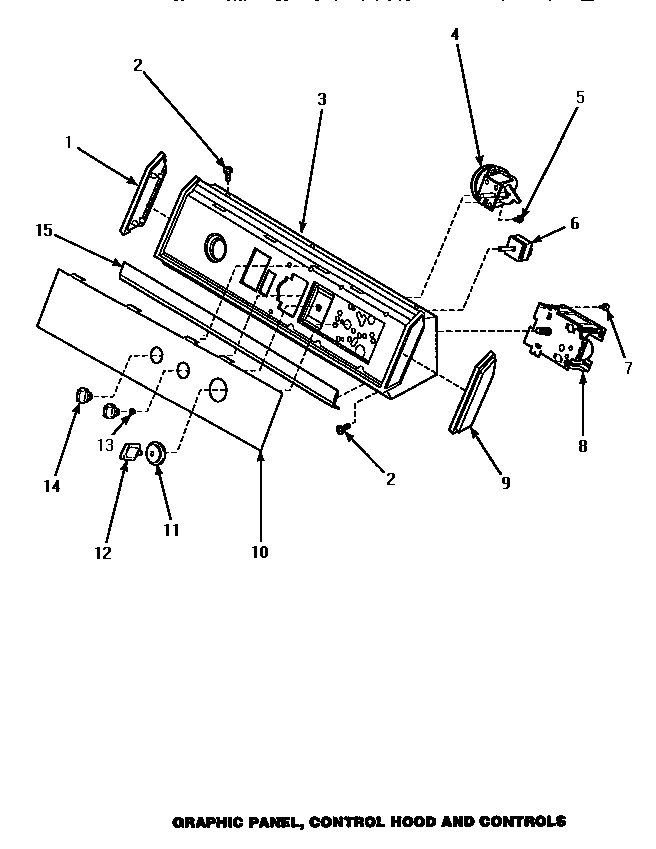

08 - GRAPHIC PANEL, CONTROL HOOD & CONTROLS

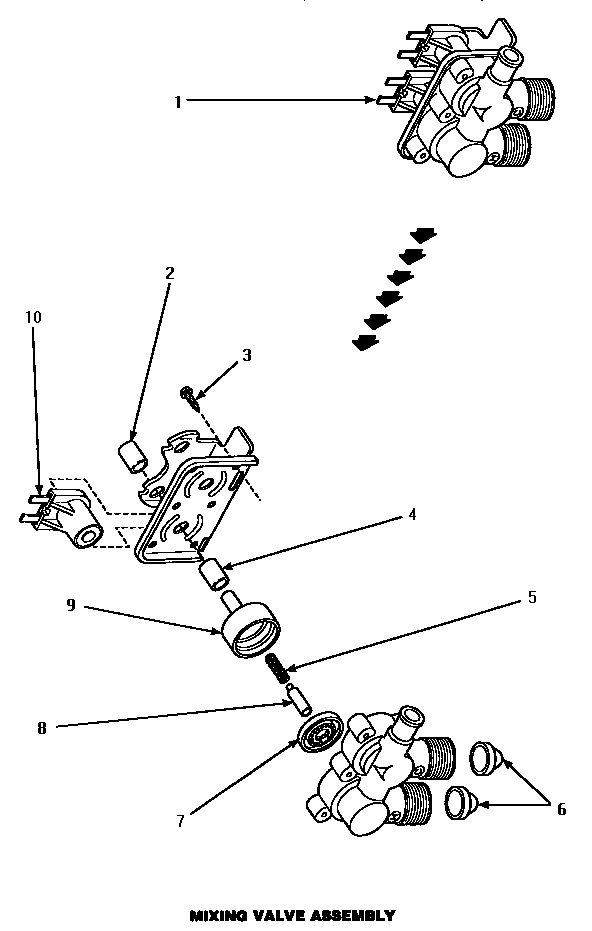

10 - MIXING VALVE ASSY

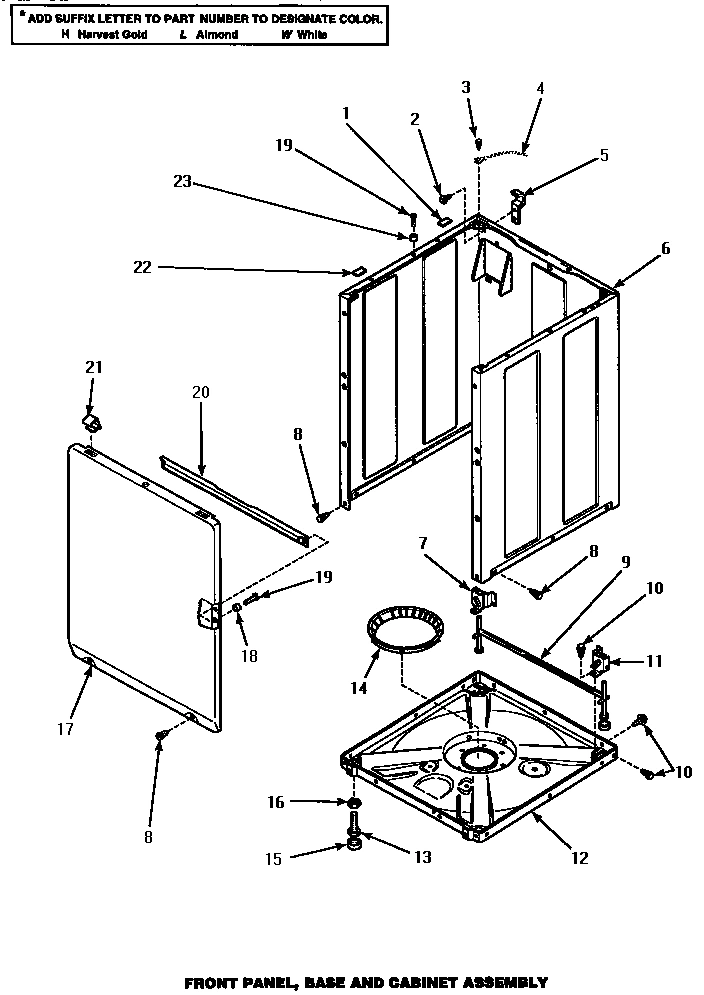

07 - FRONT PANEL, BASE & CABINET ASSY

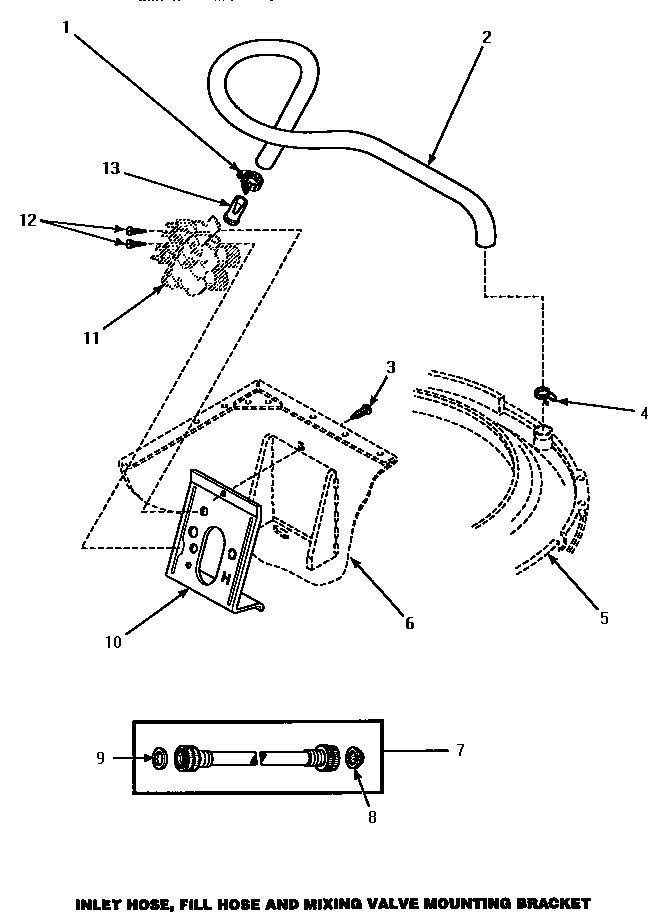

09 - INLET/FILL HOSE & MIXING VLV MTG BRKT

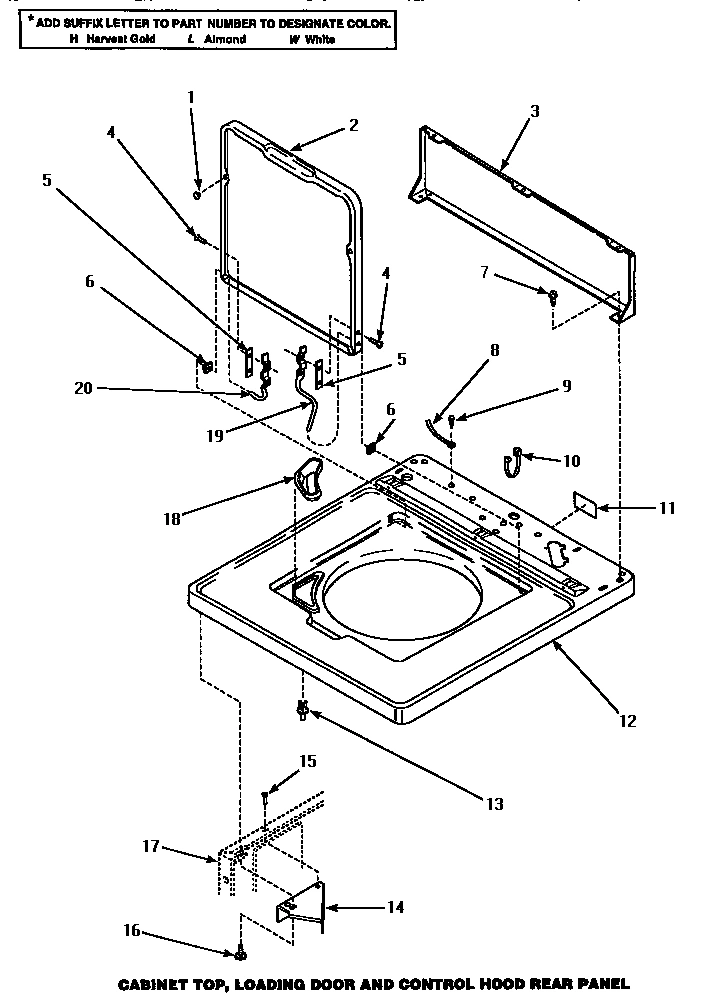

04 - CAB TOP/LOADING DR & CTRL HOOD REAR PAN

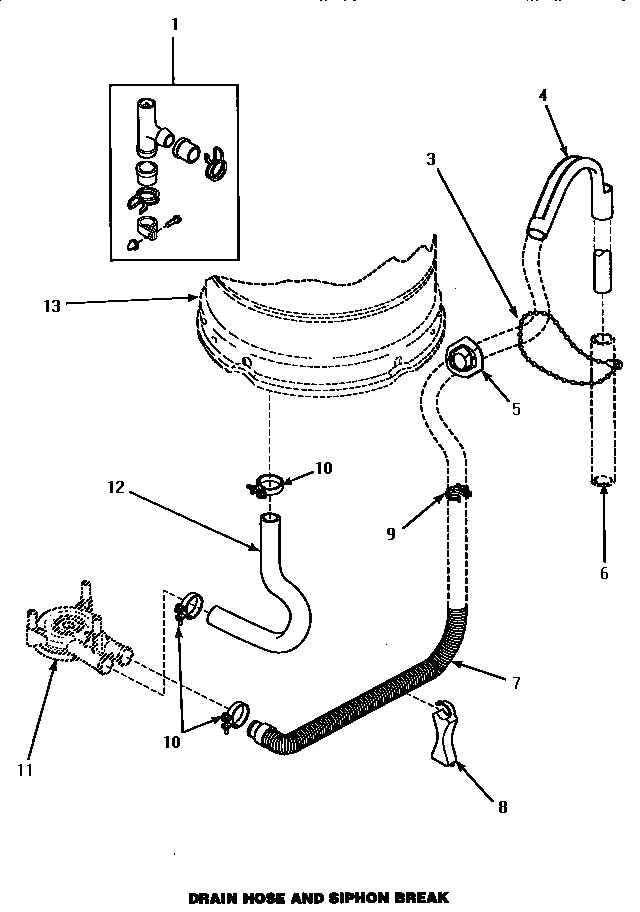

06 - DRAIN HOSE & SIPHON BREAK

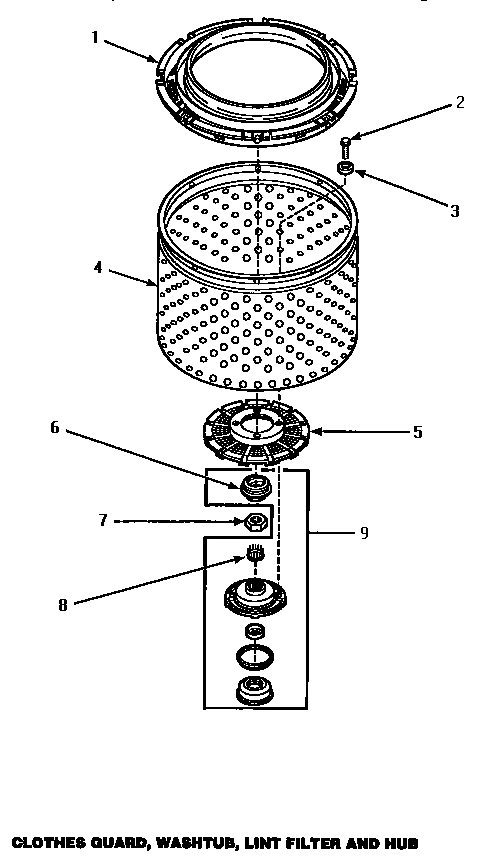

05 - CLOTHES GUARD/WASHTUB/LINT FILTER & HUB

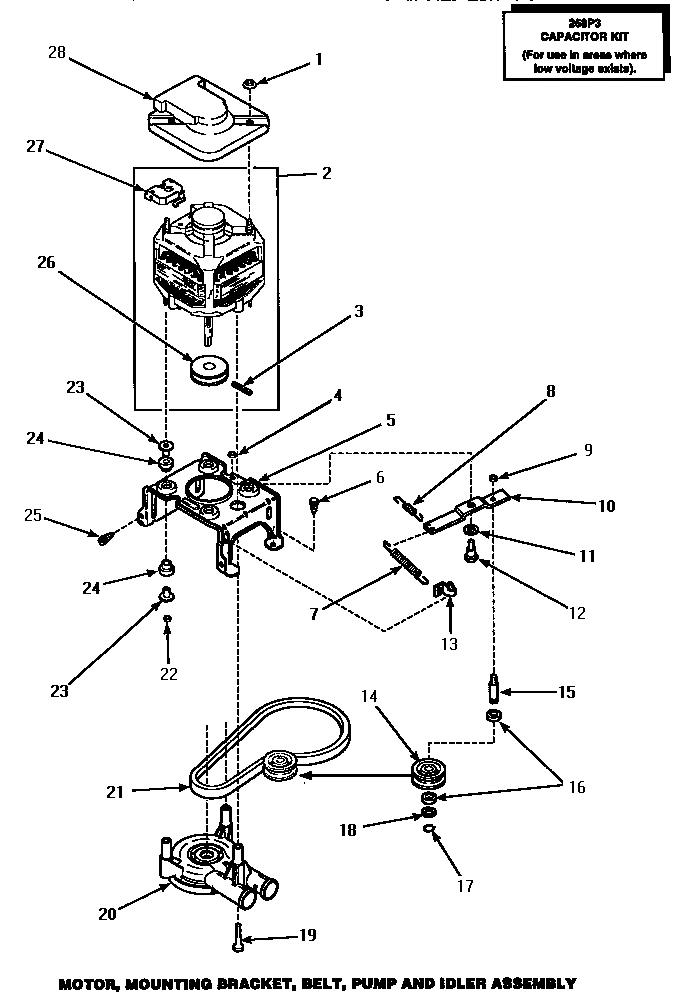

12 - MOTOR, MTG BRKT, BELT, PUMP & IDLER ASSY

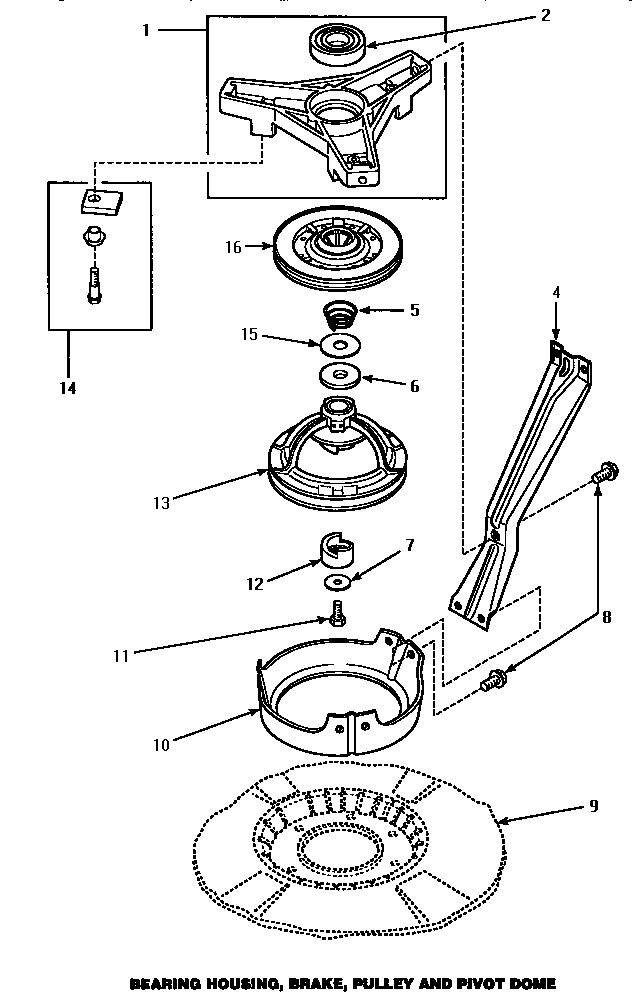

03 - BRG HSG/BRAKE/PULLEY & PIVOT DOME

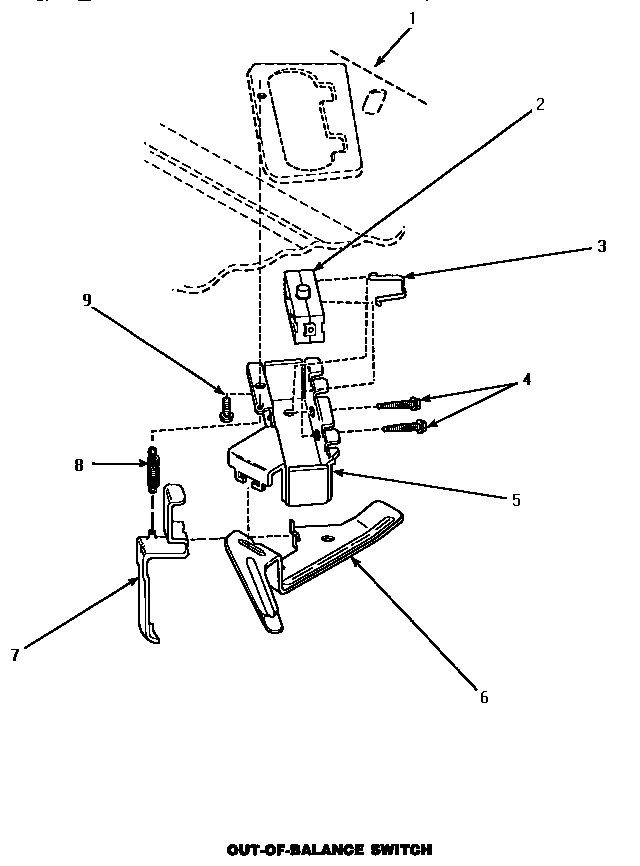

14 - OUT-OF-BALANCE SWITCH
Common parts from model Whirlpool AWM593L WASHER
OUTER TUB COVER AND GASKET TOOL IS FOR REMOVA WPL NOTE Contact Us For Availability
1
SHAFT, OUTPUT WPL Y36570 Contact Us For Availability
1
ASSY,DISPENSER-FABRIC WPL 33510 Contact Us For Availability
1
SEE NOTE CABINET TOP WPL Y00000000 Contact Us For Availability
1
WRENCH, T - ALLEN WPL 291P4 Contact Us For Availability
1
TOOL,LID SWITCH INSTAL WPL 272P4 Contact Us For Availability
1
NUT,RETAINER 5/16-18 WPL 27222 Contact Us For Availability
1
10 CIRCUIT PLUG WPL 34677 Contact Us For Availability
1
HOUSING,R.H.-24 POSITI WPL 32746 Contact Us For Availability
1
HOUSING,LH -24 POSITION WPL 34123 Contact Us For Availability
1
CAP,END-L.H.-CHROME WPL 31249 Contact Us For Availability
1
PAD, BUMPER .25 WPL 36226 Contact Us For Availability
1
BUMPER WPL 21685 Contact Us For Availability
1
GUARD, CLOTHES WPL 35035 Contact Us For Availability
1
PALNUT WPL 35139 Contact Us For Availability
1
ASSY,BEARING HOUSING-L WPL 35746 Contact Us For Availability
2
WASHER,3628ID X 1.00 X .056 WPL 35092 Contact Us For Availability
2
AGITATOR WPL 33514 Contact Us For Availability
2
HOOK, SPRING WPL 289P4 Contact Us For Availability
2
AGITATOR HOOKS WPL 254P4P Contact Us For Availability
2
LOCKWASHER,5/16INTSHKP WPL 04366 Contact Us For Availability
2
TERMINAL,FEMALE-MOLEX- WPL Y00188 Contact Us For Availability
2
OUTER TUB COVER ASSEMBLY WPL 36025 Contact Us For Availability
2
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
2
SLEEVE,LONG WPL 24128 Contact Us For Availability
2
SCREW, No.10B X 1/4 TAP IN HX WPL 34499 Contact Us For Availability
2
HOSE,MIX VALVE TO TUB WPL 35874 Contact Us For Availability
2
LID,W/INSTRUCTIONS WPL 33541HP Contact Us For Availability
2
LID,W/INSTRUCTIONS WPL 33541LP Contact Us For Availability
2
LID,W/INSTRUCTIONS WPL 33541WP Contact Us For Availability
2
MOTOR ASSEMBLIES WPL 34571 Contact Us For Availability
2
SWITCH WPL 33445 Contact Us For Availability
3
ASSY,TRANSMISSION CASE WPL 33223 Contact Us For Availability
3
SHOULDER SCREW WPL 34288 Contact Us For Availability
3
TORX BIT HOLDER WPL 24161 Contact Us For Availability
3
BELL TOOL WPL 253P4 Contact Us For Availability
3
SCREW WPL 01355 Contact Us For Availability
3
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
3
GASKET,TUB COVER SMALL WPL 32857 Contact Us For Availability
3
POWER CORD ALL WPL Y34458 Contact Us For Availability
3
ASSY,HOOD & MOUNTING B WPL 31811 Contact Us For Availability
3
SCREW WPL 25817C Contact Us For Availability
3
PANEL, BACK HOOD (USE 37782) WPL 34903 Contact Us For Availability
3
STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability
3
GASKET WPL 28094 Contact Us For Availability
3
PIN,ROLL WPL 23750 Contact Us For Availability
3
CLIP,HOLDER-SWITCH WPL 33433 Contact Us For Availability
4
PINION,AGITATOR WPL 27003 Contact Us For Availability
4
O-RING WPL 36472 Contact Us For Availability
4
T25 TAMPER RESISTANT BIT WPL 282P4 Contact Us For Availability
4
TUB COVER GASKET TOOL WPL 273P4 Contact Us For Availability
4
NEVER-SEEZE 1 OZ TUBE WPL 27604P Contact Us For Availability
4
PLUG WPL 34675 Contact Us For Availability
4
PLUG WPL 34676 Contact Us For Availability
4
ASSY, OUTER TUB WPL 34438P Contact Us For Availability
4
NUT WPL 03673 Contact Us For Availability
4
PRESSURE SWITCH WPL 36045 Contact Us For Availability
4
SLEEVE,SHORT WPL 24129 Contact Us For Availability
4
HOSE CLAMP WPL 29210 Contact Us For Availability
4
SLEEVE, DRAIN HOSE WPL 33615 Contact Us For Availability
4
WASHTUB STAINLESS STEEL ALL WPL 33501P Contact Us For Availability
4
LEG,SUPPORT WPL 34471 Contact Us For Availability
4
SCREW WPL 36510 Contact Us For Availability
5
GEAR,REDUCTION WPL 29161 Contact Us For Availability
5
TRANSMISSION ASSEMBLY WPL Y34526 Contact Us For Availability
5
DRIVE BELL AND SEAL KIT WPL 34504P Contact Us For Availability
5
INSTALLER,SPRING WPL 242P4 Contact Us For Availability
5
SEAL TOOL WPL 274P4 Contact Us For Availability
5
TERMINAL EXTRACTOR TOOL WPL 283P4 Contact Us For Availability
5
PLATE,LEG .063 WPL 27926 Contact Us For Availability
5
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
5
SPRING WPL 23224E Contact Us For Availability
5
HINGE,HOLD-DOWN LUG WPL Y27103 Contact Us For Availability
5
GASKET,HINGE WPL 34338 Contact Us For Availability
5
RELIEF, STRAIN WPL 32219 Contact Us For Availability
5
LINT FILTER WPL 32998 Contact Us For Availability
5
BRACKET,MOTOR MOUNT WPL 34890 Contact Us For Availability
5
SPRING,CONICAL WPL 33435 Contact Us For Availability
5
SWITCH HOLDER WPL 34679P Contact Us For Availability
6
WASHER WPL 29260 Contact Us For Availability
6
HEX WRENCH WPL 237P4 Contact Us For Availability
6
CAP SCREW WPL 27200 Contact Us For Availability
6
SWITCH, TEMP WPL 32189 Contact Us For Availability
6
KIT,SERVICE CABINET WPL 34475HP Contact Us For Availability
6
CABINET WPL 34475LP Contact Us For Availability
6
CABINET WPL 34475WP Contact Us For Availability
6
BUSHING WPL 33446 Contact Us For Availability
6
HUB AND TRANSMISSION TUBE SEAL WPL 34184 Contact Us For Availability
6
WASHER WPL 27015 Contact Us For Availability
6
ARM,ACTUATOR WPL 33441 Contact Us For Availability
7
SCREW,1/4-20 X 3/8 WPL 29273 Contact Us For Availability
7
WASHER WPL 26509 Contact Us For Availability
7
LOCKWASHER,1/4 EXT SHK WPL 02431 Contact Us For Availability
7
CLIP, HARNESS WPL 36274 Contact Us For Availability
7
DIAPHRAGM WPL 24134 Contact Us For Availability
7
BRACKET,SLL-LEFT WPL 36037 Contact Us For Availability
7
LOCKNUT WPL Y29220 Contact Us For Availability
7
LEVER,UNBALANCED LOAD WPL 33442 Contact Us For Availability
8
SPLINED INSERT WPL WP40008301 No Longer Available
8
OIL,CW TRANSMISSION F- WPL 27243P Contact Us For Availability
8
ASSY,BALANCE RING-COMPL WPL 34731 Contact Us For Availability
8
SCREW WPL 35369 Contact Us For Availability
8
SPRING,LEG-LARGE TUB WPL 35948 Contact Us For Availability
8
TERMINAL,INSULATED WPL 00234 Contact Us For Availability
8
TIMER, 4 CYCLE WPL 32039 Contact Us For Availability
8
ARMATURE WPL 24132 Contact Us For Availability
8
SUPPORT,HOSE WPL 35487 Contact Us For Availability
8
SPRING,IDLER LEVER HEL WPL 30620 Contact Us For Availability
8
SPRING WPL 33443 Contact Us For Availability
9
ASSY,GEAR & STUD WPL 26577 Contact Us For Availability
9
STICKER WPL 500049 Contact Us For Availability
9
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
9
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
9
CAP,END-R.H.-CHROME WPL 31248 Contact Us For Availability
9
GUIDE,ARMATURE WPL 24130 Contact Us For Availability
9
ASSY,LEG & STABILIER WPL 34443 Contact Us For Availability
9
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
9
CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability
9
HUB & SEAL KIT WPL 495P3 Contact Us For Availability
10
SCREW,1/4-20 SPECIAL WPL 27030 Contact Us For Availability
10
FLINGER WPL 27187 Contact Us For Availability
10
GROMMET WPL 29175 Contact Us For Availability
10
PLUG,9 CIRCUIT WPL 23033 Contact Us For Availability
10
PLUG,6 CIRCUIT WPL 23041 Contact Us For Availability
10
PLUG,1 CIRCUIT WPL 26302 Contact Us For Availability
10
PANEL, GRAPHICS WPL 35233 Contact Us For Availability
10
SOLENOID,MIXING VALVE WPL 33930A Contact Us For Availability
10
SCREW,1/4-14 X 3/8 HX HD WPL 35148 Contact Us For Availability
10
MIXING VALVE MOUNTING BRACKET WPL 34972 Contact Us For Availability
10
STRAIN RELIEF WPL 21903 Contact Us For Availability
10
IDLER LEVER WPL 31054 Contact Us For Availability
10
DOME,PIVOT WPL 34470 Contact Us For Availability
11
LOCKWASHER,1/4 INTSHKP WPL 21456 Contact Us For Availability
11
PRESSURE BULB WPL 30907 Contact Us For Availability
11
CLIP,HARNESS HOLDER WPL 35521 Contact Us For Availability
11
ASSY,TIMER SKIRT-BLACK WPL 33817 Contact Us For Availability
11
BRACKET,SLL-RIGHT WPL 36036 Contact Us For Availability
11
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
11
WASHER WPL 81392 Contact Us For Availability
11
SCREW WPL 27220 Contact Us For Availability
12
CLIP,CABLE WPL 21036 Contact Us For Availability
12
KNOB,TIMER-WASHER-BLAC WPL 33897 Contact Us For Availability
12
SCREW,8-18 X 3/8 TAPPI WPL 56392 Contact Us For Availability
12
ASSY NUT/LEG BASE WPL 34434P Contact Us For Availability
12
ASSY,TOP-DOMESTIC W/BLEACH WPL 34902HP Contact Us For Availability
12
ASSY,TOP-AMANA WPL 34902LP Contact Us For Availability
12
ASSY,TOP-AMANA WPL 34902WP Contact Us For Availability
12
HOSE,TUB TO PUMP-DDP WPL 35753 Contact Us For Availability
12
SHOULDER BOLT WPL 27229 Contact Us For Availability
12
HELIX WPL 27018 Contact Us For Availability
13
PINION,DRIVE WPL Y29160 Contact Us For Availability
13
RECEPTACLE,9 CIRCUIT WPL 26163 Contact Us For Availability
13
RECEPTACLE,MOLEX WPL 26301 Contact Us For Availability
13
RECEPTACLE,6 CIRCUIT WPL 26708 Contact Us For Availability
13
NUT WPL 57584 Contact Us For Availability
13
PREVENTOR, BACKFLOW WPL 34500 Contact Us For Availability
13
BARREL,SUPPORT WPL 56534 Contact Us For Availability
13
CLIP,SPRING WPL 28849 Contact Us For Availability
13
ASSY,PULLEY-SPIN & AGITATE WPL 34921 Contact Us For Availability
14
SHAFT,INPUT WPL 34853 Contact Us For Availability
14
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
14
ASSY,KNOB-ROTARY-BLACK WPL 33610 Contact Us For Availability
14
SNUBBER PAD & ISOLATOR WPL 36108 Contact Us For Availability
14
BRACKET,DIRECTOR-MODULE WPL 36034 Contact Us For Availability
14
WHEEL,IDLER WPL 28800 Contact Us For Availability
14
BRAKE PAD KIT WPL 548P3 Contact Us For Availability
15
WIRE TIE WPL 36466 Contact Us For Availability
15
TRIM WPL 33123R Contact Us For Availability
15
RUBBER FOOT WPL 34318 Contact Us For Availability
15
SCREW,8-18X3/8 PHIL FLT HD WPL 36035 Contact Us For Availability
15
SHAFT,IDLER WPL 28802 Contact Us For Availability
15
WASHER WPL 35535 Contact Us For Availability
16
SCREW,1/4-20X7/8 SERRA WPL 32814 Contact Us For Availability
16
GROUND CLIP WPL Y00161 Contact Us For Availability
16
WASHER,FELT WPL Y29443 Contact Us For Availability
16
BRAKE WPL 31961P Contact Us For Availability
17
PIN,DOWEL WPL 27172 Contact Us For Availability
17
CLIP,WIRE WPL 51291 Contact Us For Availability
17
ASSY,FRONT PANEL WPL 34656HP Contact Us For Availability
17
ASSY,FRONT PANEL WPL 34656LP Contact Us For Availability
17
ASSY,FRONT PANEL WPL 34656WP Contact Us For Availability
18
TRANSMISSION COVER WPL 34854 Contact Us For Availability
18
CLIP,WIRE WPL 61510 Contact Us For Availability
18
LOCATOR,PANEL WPL 28102 Contact Us For Availability
18
DISPENSER,BLEACH WPL 34776 Contact Us For Availability
19
SLIDE WPL 26493 Contact Us For Availability
19
INSULATOR,BLUE WPL 70210 Contact Us For Availability
19
HINGE, LID R WPL 36437 Contact Us For Availability
19
SCREW WPL Y34565 Contact Us For Availability
20
RACK WPL Y31526 Contact Us For Availability
20
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
20
BRACE, FRT PNL WPL Y35097 Contact Us For Availability
20
HINGE, LID LEFT WPL 36438 Contact Us For Availability
20
PUMP ASSEMBLY WPL 35742P Contact Us For Availability
21
RING,RETAINING WPL 27197 Contact Us For Availability
21
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
21
CLIP,HOLD-DOWN FRONT PANEL WPL 35865 Contact Us For Availability
22
TERMINAL,CRIMP-SINGLE WPL 00220 Contact Us For Availability
22
PAD, BUMPER WPL Y56128 Contact Us For Availability
23
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
23
LOCATER, PANEL WPL 56079 Contact Us For Availability
23
POST,MOUNT-MOTOR WPL 34791 Contact Us For Availability
24
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
24
MOUNT,MOTOR WPL 34788 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
26
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
26
PULLEY,MOTOR WPL 27171 Contact Us For Availability
27
DOUBLE CONNECTOR WPL 29673 Contact Us For Availability
27
SWITCH, MOTOR WPL 35632 Contact Us For Availability
28
MOTOR SHIELD WPL 34754 Contact Us For Availability
NI
LOCTITE WPL 28434P Contact Us For Availability
NI
KIT, TOOL WPL 555P3 Contact Us For Availability
NI
DRAIN HOSE EXTENSION KIT WPL 406P3 Contact Us For Availability
NI
KIT,CAPACITOR WPL 258P3 Contact Us For Availability
× ![]()
Login and Registration Form
