Model Maytag AMV1150VAS6 MICROWAVE, HOOD – Common Parts & Diagrams

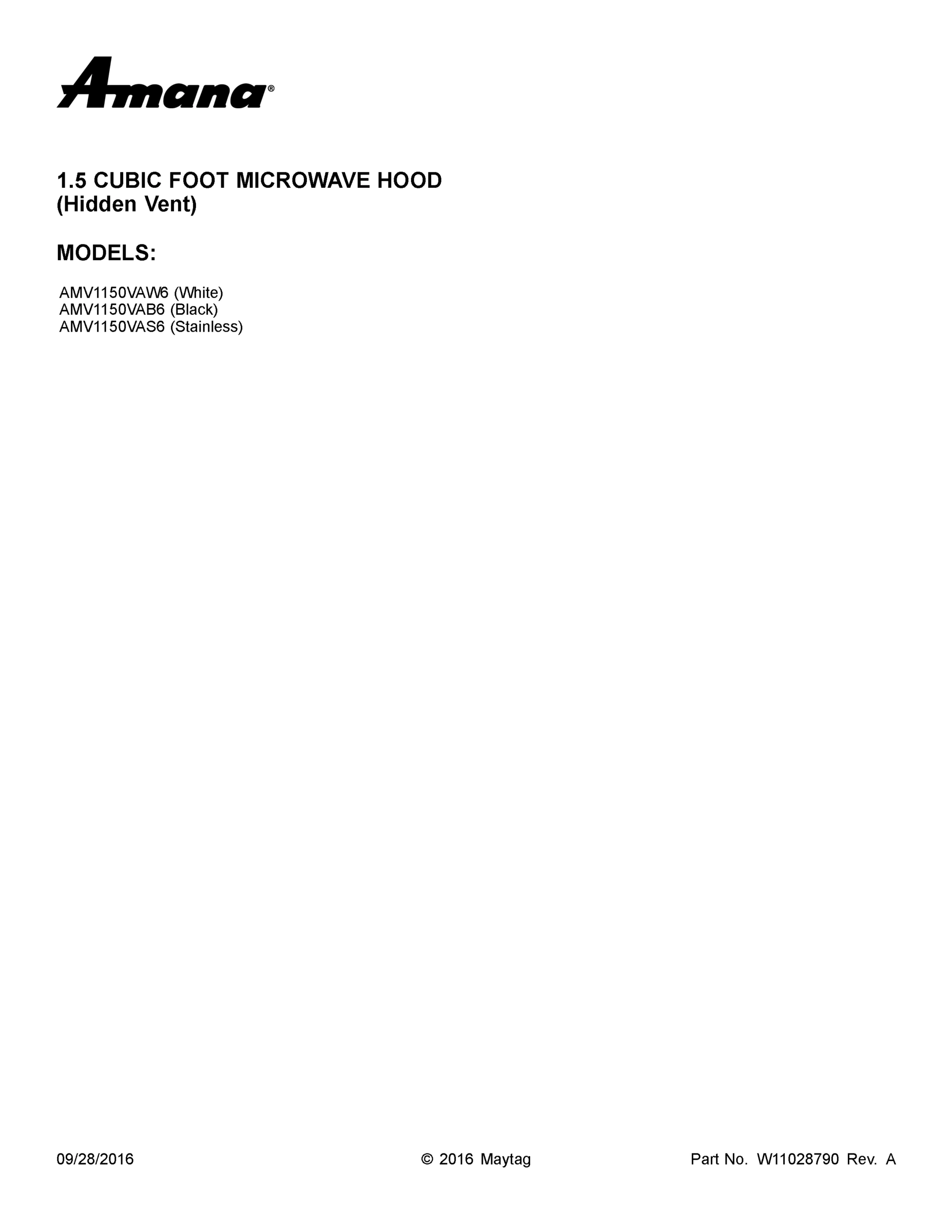

01 - COVER SHEET

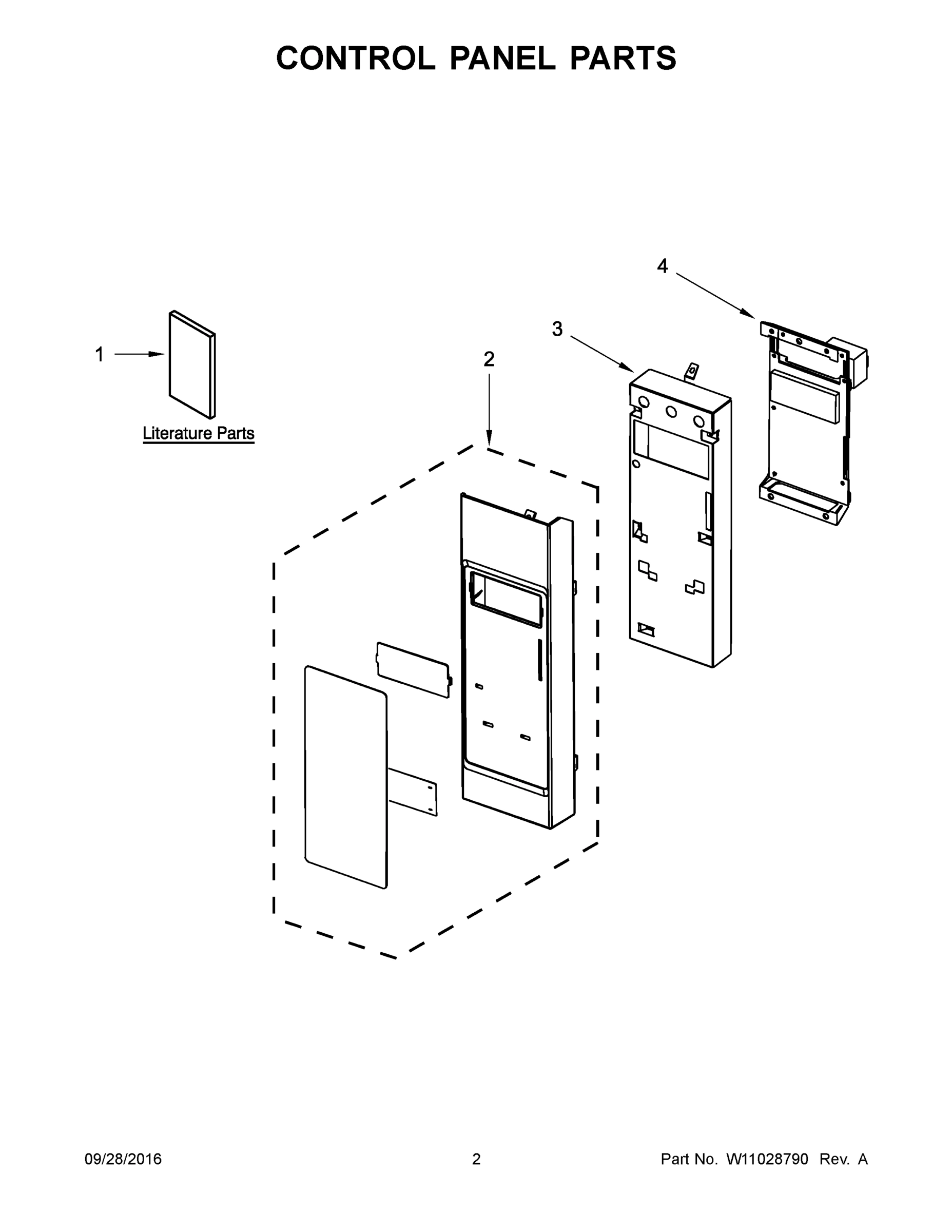

02 - CONTROL PANEL PARTS

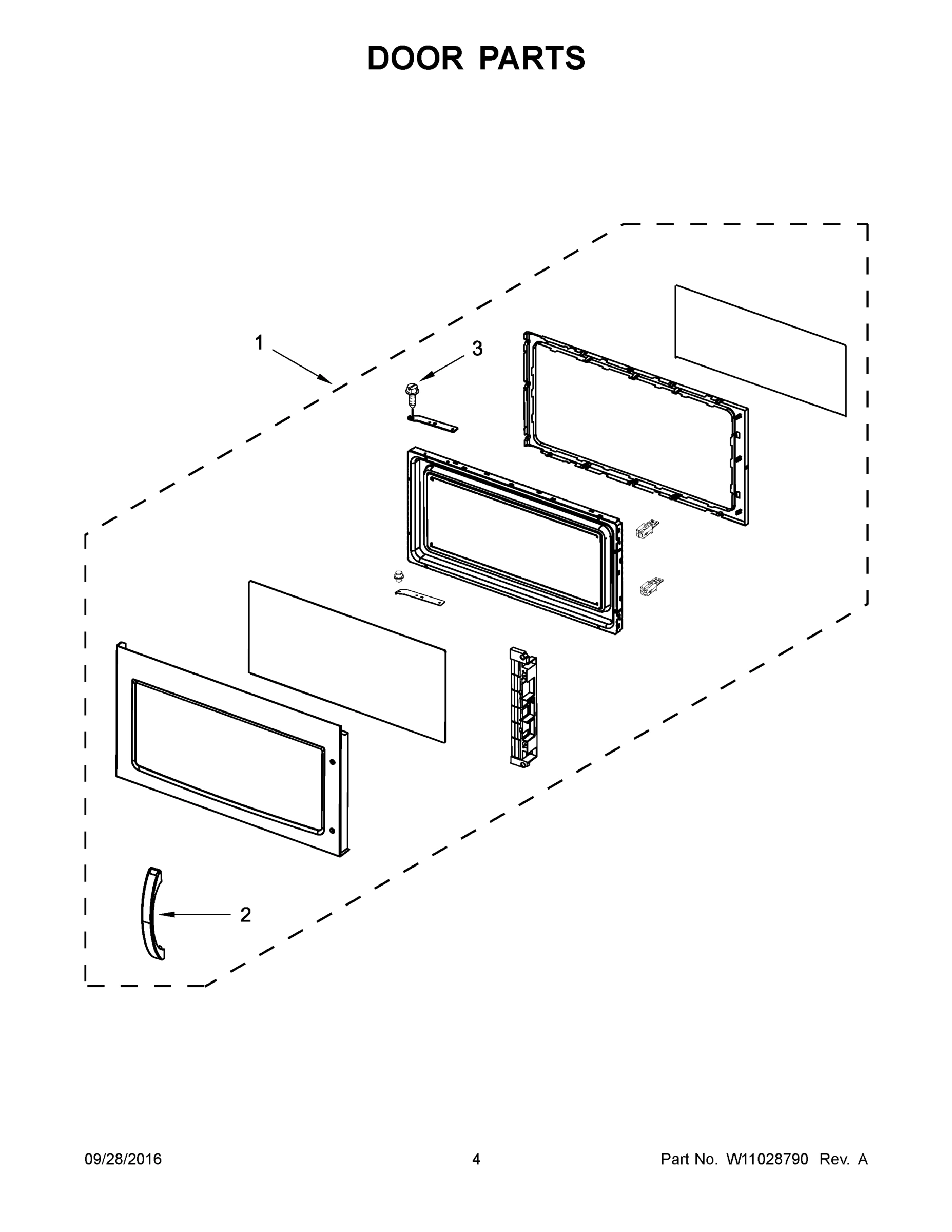

03 - DOOR PARTS

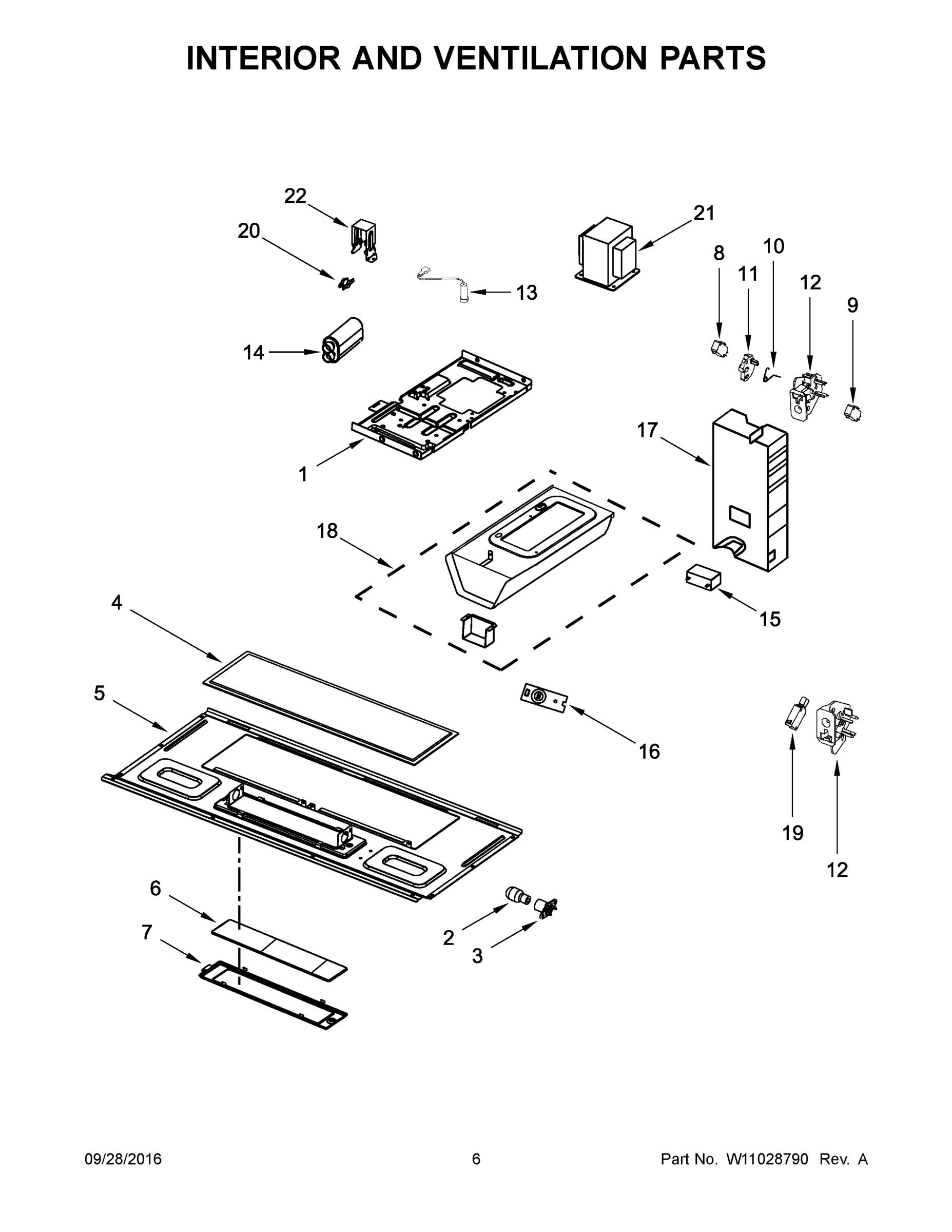

04 - INTERIOR AND VENTILATION PARTS

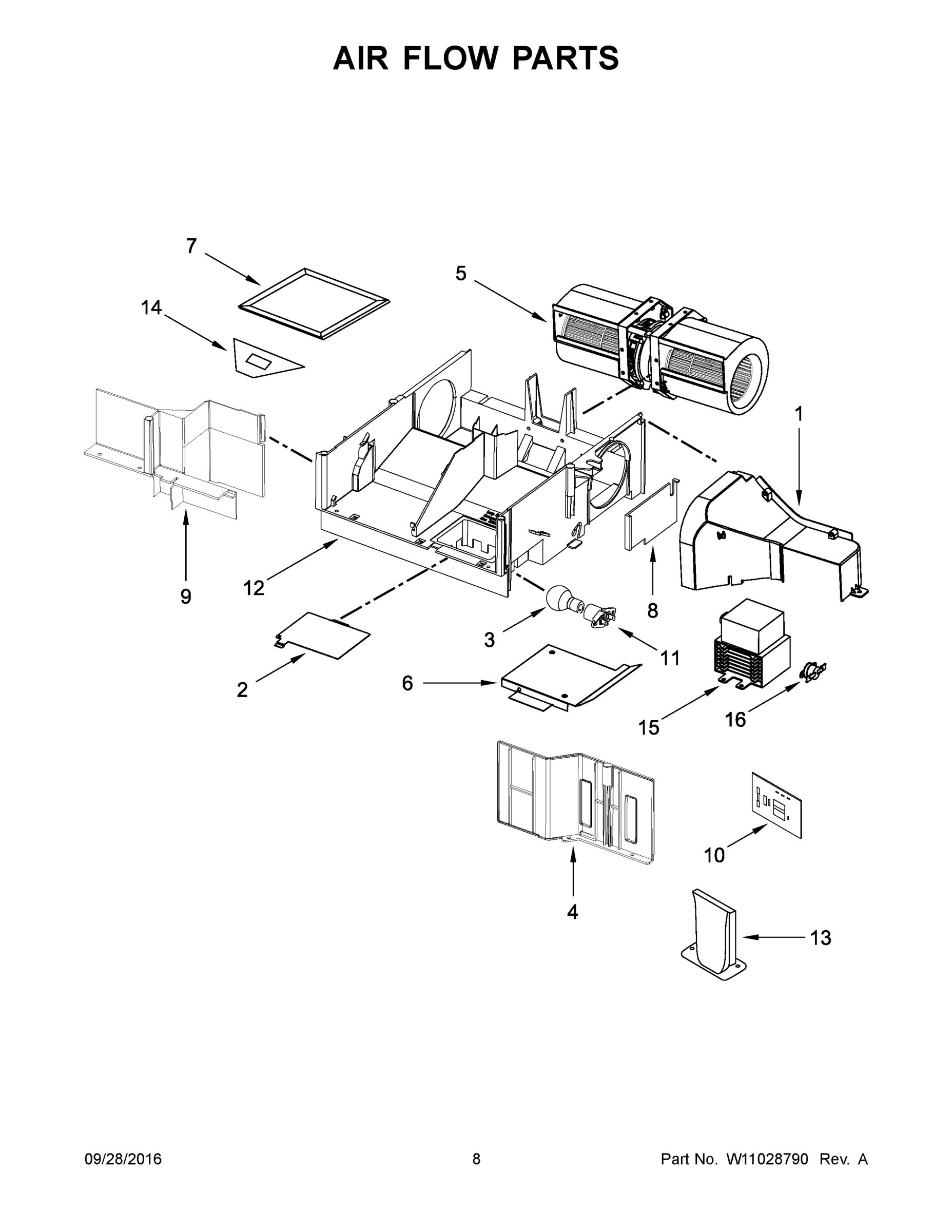

05 - AIR FLOW PARTS

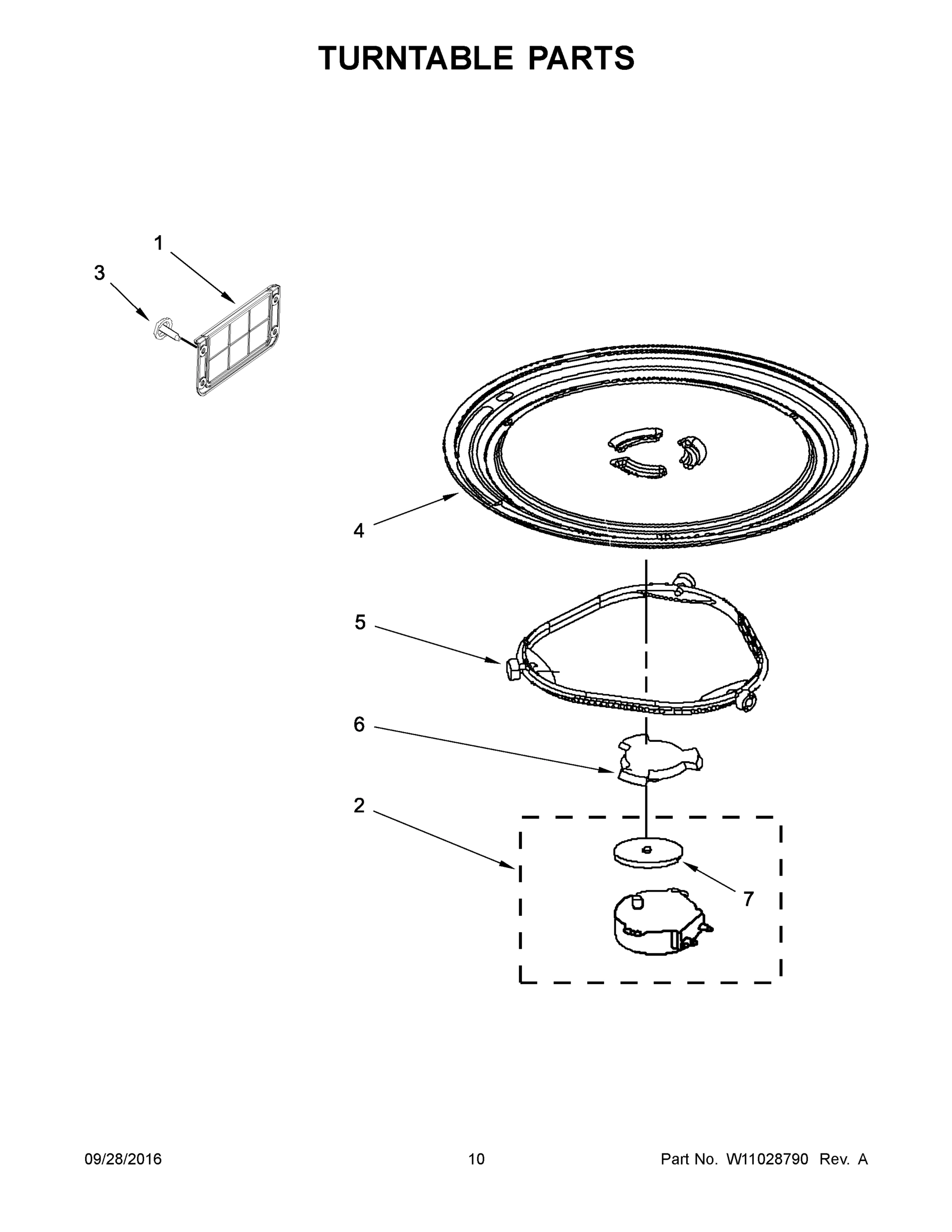

06 - TURNTABLE PARTS

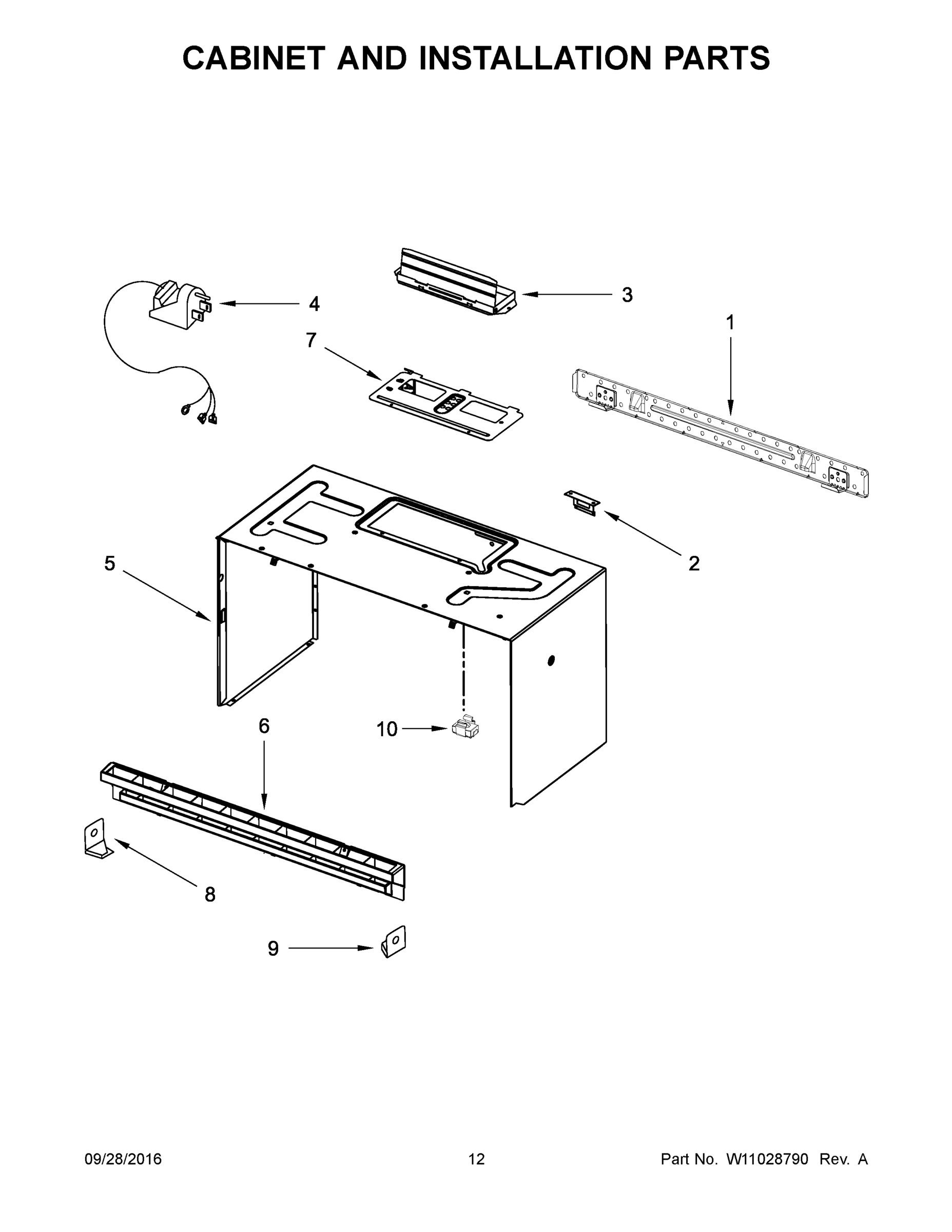

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag AMV1150VAS6 MICROWAVE, HOOD
1
MAY W10823831 MAY W10823831 Contact Us For Availability
1
MAY W10111666 MAY W10111666 Contact Us For Availability
1
MAY W10269456 MAY W10269456 Contact Us For Availability
1
MAY 8206340 MAY 8206340 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10313272 Contact Us For Availability
1
MAY W10440498 MAY W10440498 Contact Us For Availability
1A
USE & CARE GUIDE MAY W10327331 Contact Us For Availability
1A
MAY W10111667 MAY W10111667 Contact Us For Availability
1B
MAY W10835580 MAY W10835580 Contact Us For Availability
1B

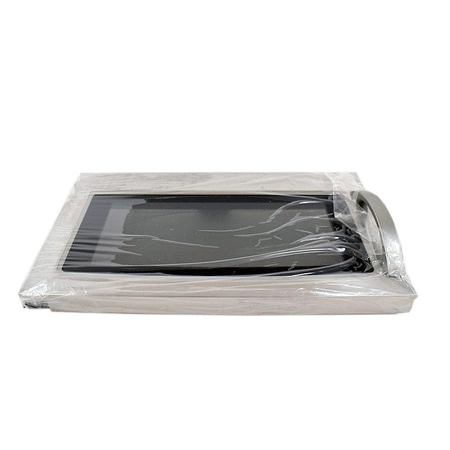

MAY W10333874 MAY W10333874 Contact Us For Availability
1C
MAY W10791657 MAY W10791657 Contact Us For Availability
2
MAY W10894602 MAY W10894602 Contact Us For Availability
2
HANDLE (WHITE) MAY W10445116 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
MAY 8206382 MAY 8206382 Contact Us For Availability
2
MAY W10642989 MAY W10642989 Contact Us For Availability
2
MAY 8206385 MAY 8206385 Contact Us For Availability
2A
MAY W10894603 MAY W10894603 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10445120 Contact Us For Availability
2B
MAY W10838459 MAY W10838459 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY 8206404 Contact Us For Availability
3
MAY W10447235 MAY W10447235 Contact Us For Availability
3
MAY W10138802 MAY W10138802 Contact Us For Availability
3
MAY W10210871 MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RIVETS MAY W10138801 Contact Us For Availability
3
MAY W10748710 MAY W10748710 Contact Us For Availability
4

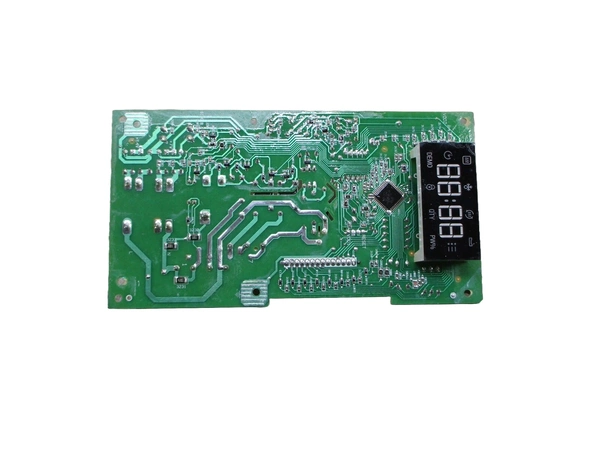

MAY W10831086 MAY W10831086 Contact Us For Availability
4
MAY W10208631 MAY W10208631 Contact Us For Availability
4
SHIELD, FINGER MAY W10342991 Contact Us For Availability
4
MAY W10337247 MAY W10337247 Contact Us For Availability
4
MAY W10654511 MAY W10654511 Contact Us For Availability
5
MAY W10245196 MAY W10245196 Contact Us For Availability
5
MAY W10836180 MAY W10836180 Contact Us For Availability
5
MAY W10654906 MAY W10654906 Contact Us For Availability
5
MAY W10838183 MAY W10838183 Contact Us For Availability
5A
MAY W10837530 MAY W10837530 Contact Us For Availability
6
MAY W10210875 MAY W10210875 Contact Us For Availability
6
GUIDE, AIR MAY W10138797 Contact Us For Availability
6
MAY W10337248 MAY W10337248 Contact Us For Availability
6
MAY W10269471 MAY W10269471 Contact Us For Availability
6A
MAY W10259625 MAY W10259625 Contact Us For Availability
7
MAY W10210873 MAY W10210873 Contact Us For Availability
7
MAY 8206230 MAY 8206230 Contact Us For Availability
7
MAY 8184109 MAY 8184109 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
8
MAY W10700156 MAY W10700156 Contact Us For Availability
8
HOLDER, VENT LEFT SIDE (BLACK) MAY W10703285 Contact Us For Availability
8A
HOLDER, VENT LEFT SIDE (STAINLESS) MAY W10703284 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
MAY W10771885 MAY W10771885 Contact Us For Availability
9
HOLDER, VENT RIGHT SIDE (BLACK) MAY W10703283 Contact Us For Availability
9A
HOLDER, VENT RIGHT SIDE (STAINLESS) MAY W10703282 Contact Us For Availability
10
MAY W10156812 MAY W10156812 Contact Us For Availability
10
FILTER, NOISE MAY W10422269 Contact Us For Availability
10
MAY W10596040 MAY W10596040 Contact Us For Availability
11
MAY W10156811 MAY W10156811 Contact Us For Availability
11
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
12
MAY 8206419 MAY 8206419 Contact Us For Availability
12
MAY W10771886 MAY W10771886 Contact Us For Availability
12A
MAY W10156813 MAY W10156813 Contact Us For Availability
13
MAY W10492276 MAY W10492276 Contact Us For Availability
13
MAY W10770968 MAY W10770968 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10138798 Contact Us For Availability
14
MAY W10810142 MAY W10810142 Contact Us For Availability
15
MAY W10605896 MAY W10605896 Contact Us For Availability
15
MAY W10693025 MAY W10693025 Contact Us For Availability
16
THERMISTOR MAY W10163422 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
17
MAY W10771884 MAY W10771884 Contact Us For Availability
18
MAY W10476124 MAY W10476124 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
20
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
21
MAY W10754523 MAY W10754523 Contact Us For Availability
22
MAY W10532063 MAY W10532063 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, NTC SENSOR FLAT MAY W10470168 Contact Us For Availability
NI
MAY W10498567 MAY W10498567 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND T MAY W10540465 Contact Us For Availability
NI
MISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY MAY W10563144 Contact Us For Availability
NI
MAY W10821385 MAY W10821385 Contact Us For Availability
NI
MAY W10872453 MAY W10872453 Contact Us For Availability
× ![]()
