Model Maytag AGR6603SFW0 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

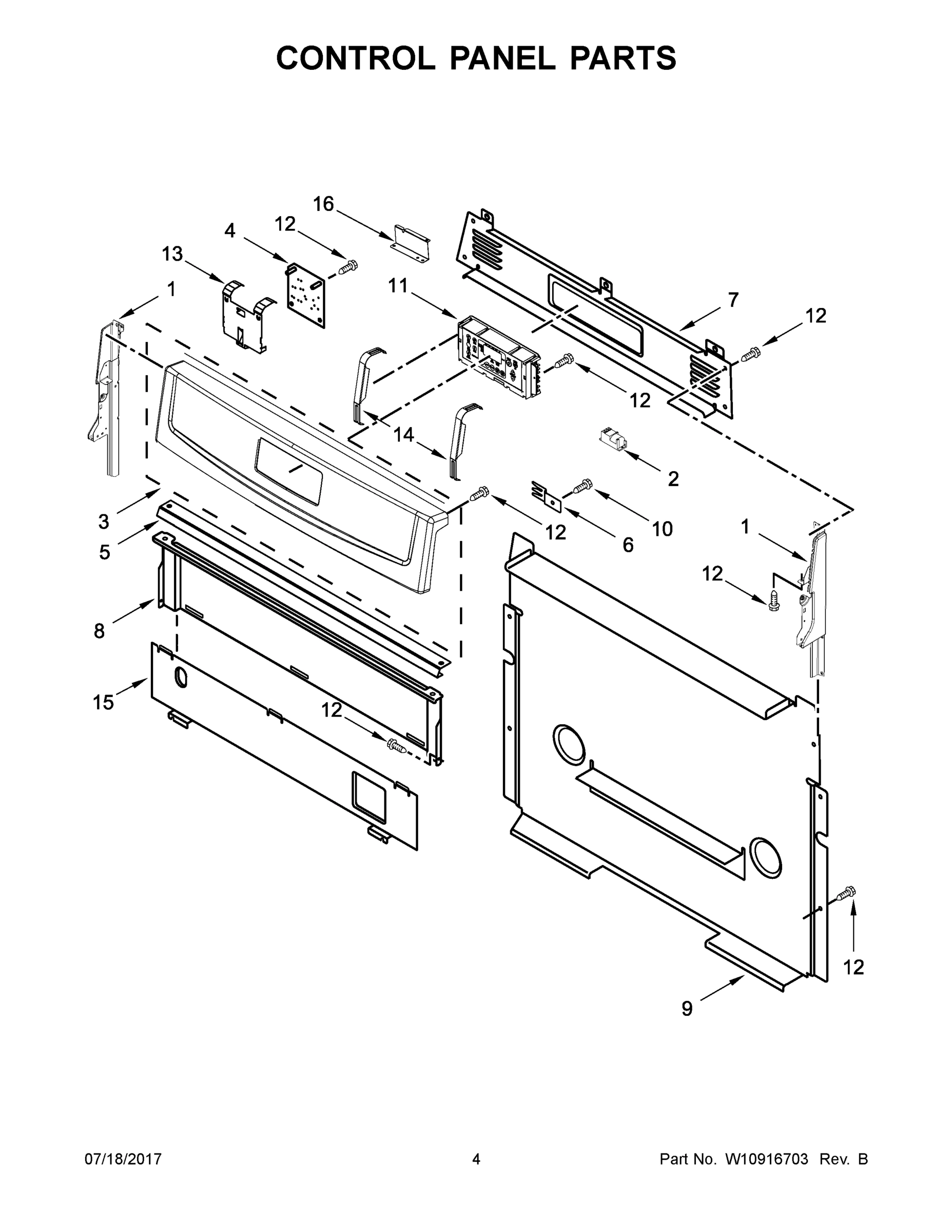

03 - CONTROL PANEL PARTS

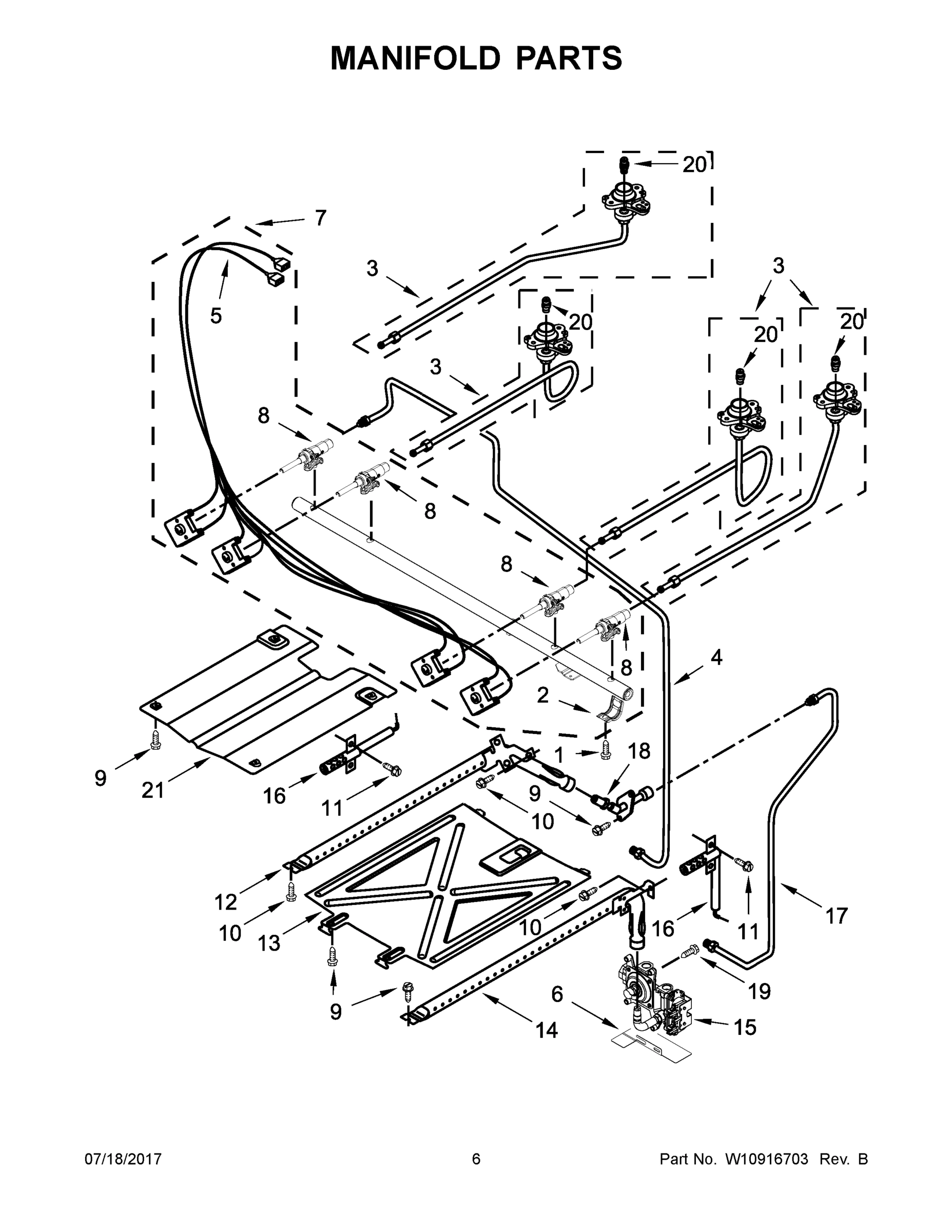

04 - MANIFOLD PARTS

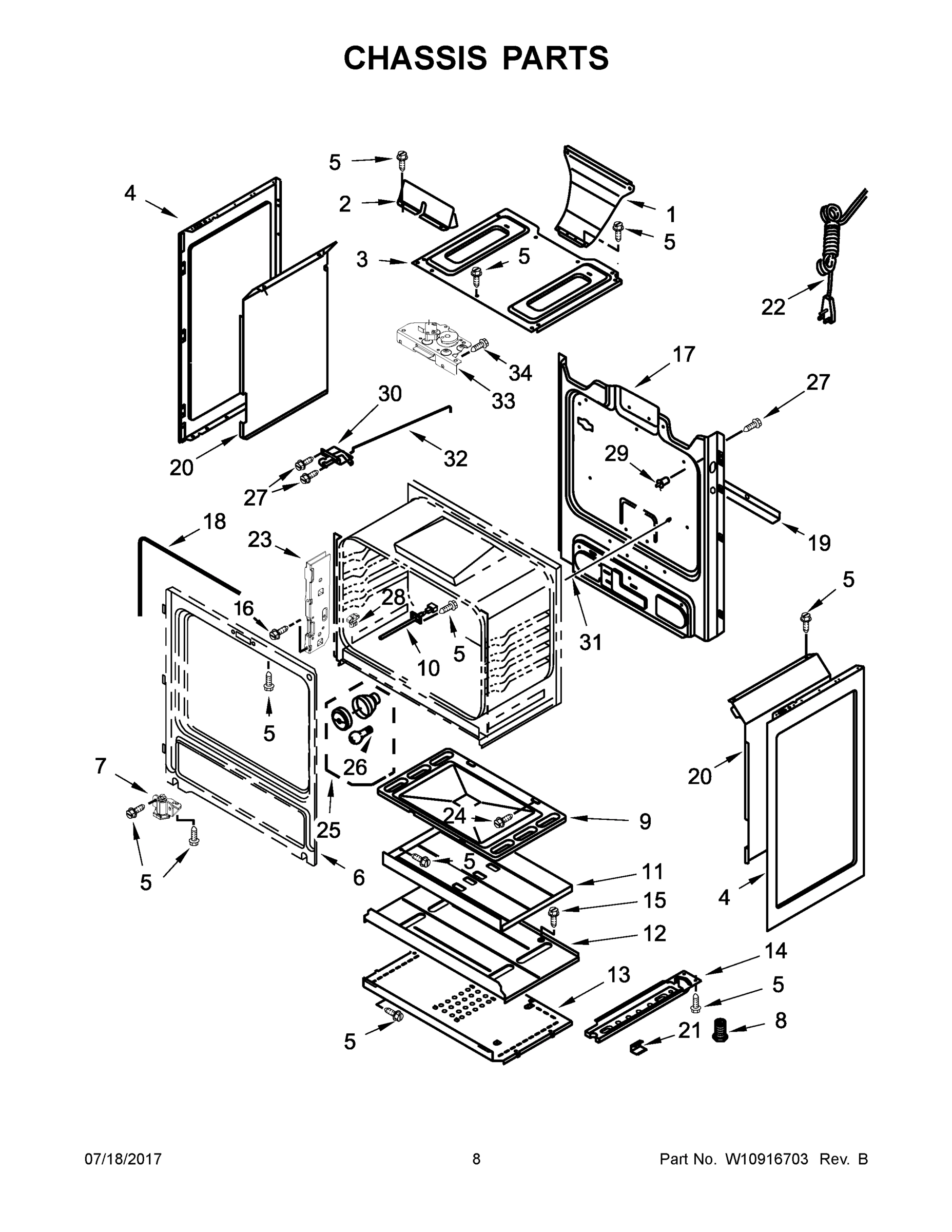

05 - CHASSIS PARTS

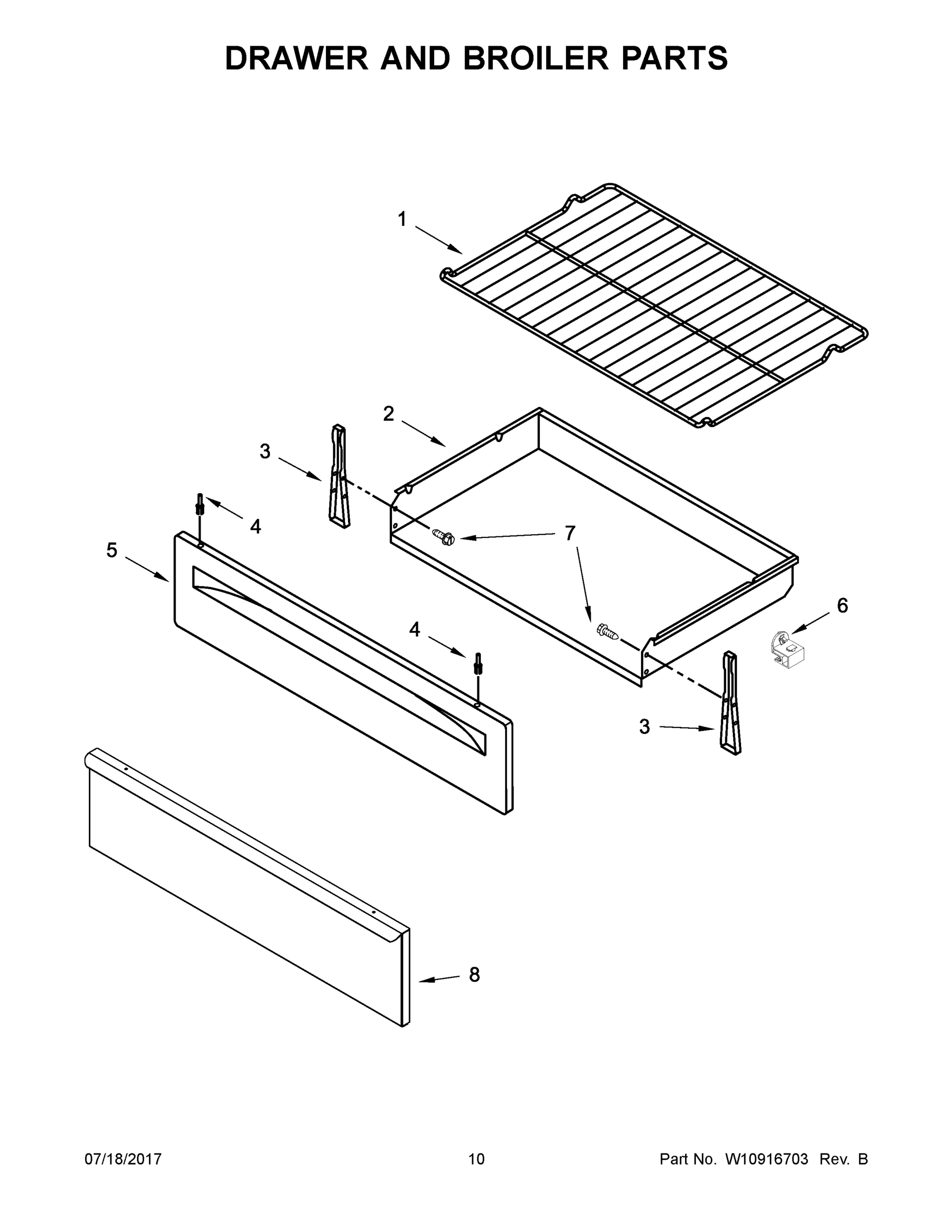

06 - DRAWER AND BROILER PARTS

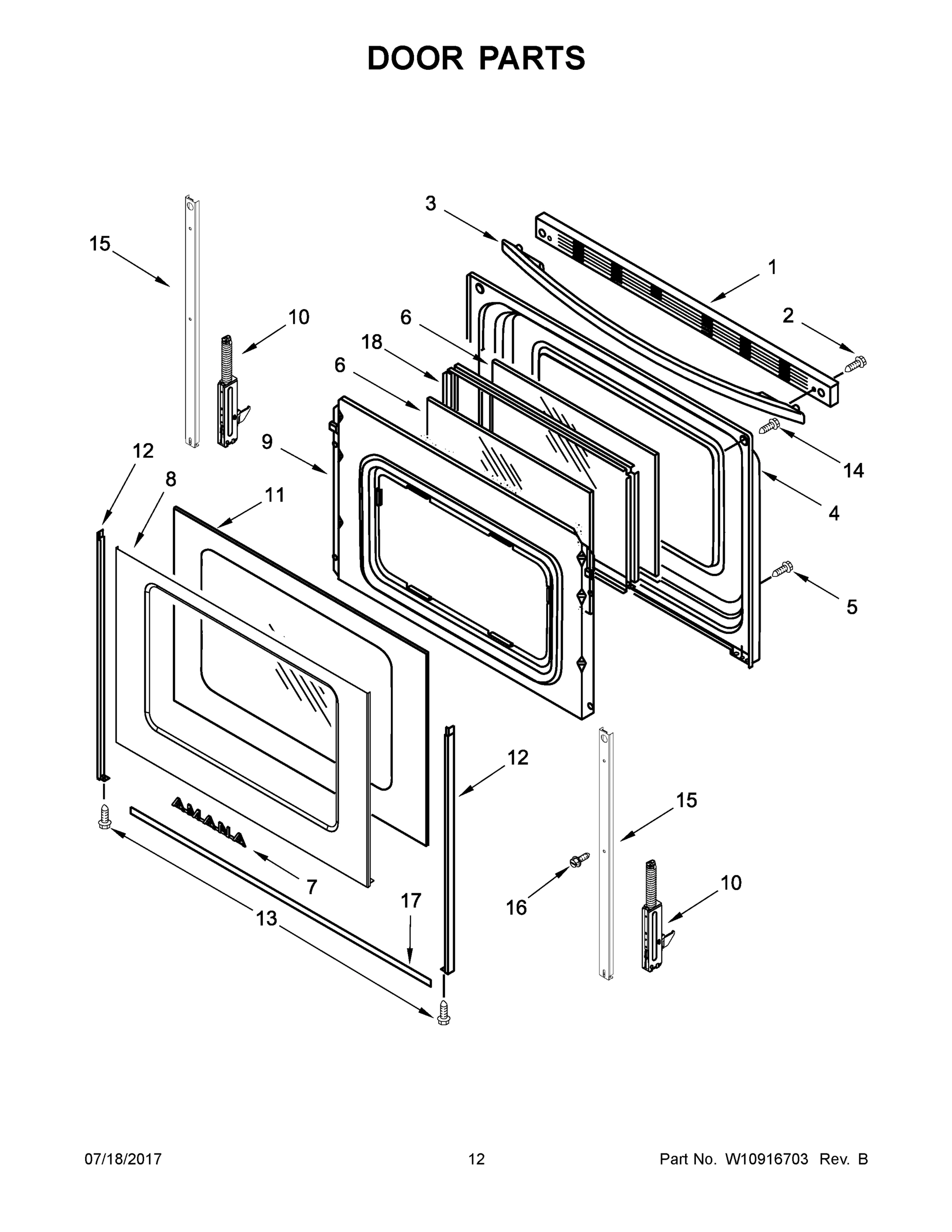

07 - DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR6603SFW0 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10545337 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
1
SCREW, VALVE MAY W10295997 Contact Us For Availability
1
BOX, FLUE MAY W10153186 Contact Us For Availability
1
RACK, OVEN MAY W10268578 Contact Us For Availability
1
TRIM, TOP VENT (BLACK) MAY W10310922 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10866294 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
1A
TRIM, TOP VENT (WHITE) MAY W10310920 Contact Us For Availability
1B
SHEET, TECH MAY W10873899 Contact Us For Availability
1B
ENDCAP (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
1C
DIAGRAM, WIRING MAY W10873901 Contact Us For Availability
1C
ENDCAP (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
SET, BURNER CAP (BLACK) MAY W10225167 Contact Us For Availability
2
MODULE, SPARK MAY W10110488 Contact Us For Availability
2
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
2
SHIELD, FLUE MAY 8272747 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
2
SCREW MAY W10200660 Contact Us For Availability
3
ASSEMBLY, BURNER (12K) (LEFT FRONT) MAY W10515452 Contact Us For Availability
3
PANEL, CONSOLE (BLACK) MAY W10834160 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (12K) (LEFT FRONT) MAY W10474154 Contact Us For Availability
3
BOX-BURNER, GAS SEALED MAY 8273036 Contact Us For Availability
3
BRACKET, MOUNTING (FOR BLACK & WHITE MODELS) MAY W10462911 Contact Us For Availability
3
HANDLE, DOOR (BLACK) MAY W10323589 Contact Us For Availability
3A
ASSEMBLY, BURNER (9.5K) (RIGHT FRONT AND LEFT MAY W10515454 Contact Us For Availability
3A
PANEL, CONSOLE (WHITE) MAY W10834159 Contact Us For Availability
3A
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR) MAY W10473929 Contact Us For Availability
3A
BRACKET, MOUNTING (FOR STAINLESS MODEL ONLY) MAY W10462909 Contact Us For Availability
3A
HANDLE, DOOR (WHITE) MAY W10323588 Contact Us For Availability
3B
BURNER, AUXILIARY (6K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
3B
PANEL, CONSOLE (STAINLESS) MAY W10833199 Contact Us For Availability
3B
ASSEMBLY, ORIFICE HOLDER (9.5K) (RIGHT FRONT) MAY W10474169 Contact Us For Availability
3B
HANDLE, DOOR (STAINLESS) MAY W10144883 Contact Us For Availability
3C
ASSEMBLY, ORIFICE HOLDER (6K) (RIGHT REAR) MAY W10474163 Contact Us For Availability
4
COOKTOP (BLACK) MAY 8272253 Contact Us For Availability
4
MODULE, SPARK DSI MAY W10920631 Contact Us For Availability
4
TUBING (MANIFOLD TO REGULATOR) MAY W10215439 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
RIVET, PUSH (BLACK) MAY 3196813 Contact Us For Availability
4
LINER, DOOR MAY 9761344 Contact Us For Availability
4A
COOKTOP (WHITE) MAY 8272251 Contact Us For Availability
4A
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
4A
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
5
PANEL, MANIFOLD (BLACK) MAY 8523855 Contact Us For Availability
5
BRACKET, CONSOLE MOUNTING MAY W10516123 Contact Us For Availability
5
SCREW MAY 3196178 Contact Us For Availability
5
HARNESS, SWITCH MAY W10812380 Contact Us For Availability
5
PANEL, DRAWER FRONT (BLACK) MAY 8053338 Contact Us For Availability
5
SCREW MAY W10031790 Contact Us For Availability
5A
PANEL, MANIFOLD (WHITE) MAY 8523854 Contact Us For Availability
5A
PANEL, DRAWER FRONT (WHITE) MAY 8053336 Contact Us For Availability
6
KNOB, CONTROL (BLACK) MAY W10844795 Contact Us For Availability
6
BRACKET, REAR COOKTOP MAY 8523412 Contact Us For Availability
6
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
6
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
6
GLASS, INNER MAY W11044424 Contact Us For Availability
6A
KNOB, CONTROL (WHITE) MAY W10844794 Contact Us For Availability
6B
KNOB, CONTROL (STAINLESS) MAY W10844796 Contact Us For Availability
7
KIT, GRATE (BLACK) MAY W10682667 Contact Us For Availability
7
COVER, UPPER MAY W10198745 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10812381 Contact Us For Availability
7
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
7
BADGE (BLACK) MAY W10846751 Contact Us For Availability
7A
BADGE (STAINLESS) MAY W10846752 Contact Us For Availability
7B
BADGE (WHITE) MAY W10849465 Contact Us For Availability
8
SCREW MAY 3400701 Contact Us For Availability
8
SHIELD, HEAT MAY W10192841 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT, RIGHT FRONT & LEFT RE MAY W10279614 Contact Us For Availability
8
FOOT, LEVELING MAY W10058460 Contact Us For Availability
8
PANEL, DRAWER FRONT (STAINLESS) MAY W10330069 Contact Us For Availability
8
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10890951 Contact Us For Availability
8A
VALVE, GAS (RIGHT REAR) MAY W10247744 Contact Us For Availability
9
SCREW MAY 3196557 Contact Us For Availability
9
COVER, BACK MAY W10184370 Contact Us For Availability
9
SCREW MAY 3196176 Contact Us For Availability
9
BOTTOM, OVEN MAY 3195097 Contact Us For Availability
9
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
10
BRACKET, MANIFOLD MAY 8523249 Contact Us For Availability
10
SCREW MAY 3196265 Contact Us For Availability
10
SENSOR MAY W10586204 Contact Us For Availability
10
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
10A
HINGE, ACTIVE (WITH SPRING) MAY W10299224 Contact Us For Availability
11
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
11
CONTROL, RANGE (BLACK) MAY W10845611 Contact Us For Availability
11
SCREW MAY 3196385 Contact Us For Availability
11
BAFFLE, BURNER OVEN MAY 8053967 Contact Us For Availability
11
GLASS, OUTER DOOR (BLACK) MAY W10886896 Contact Us For Availability
11A
CONTROL, RANGE (WHITE) MAY W10837804 Contact Us For Availability
11A
GLASS, OUTER DOOR (WHITE) MAY W10851723 Contact Us For Availability
12
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
12
BURNER, BROILER MAY 8054078 Contact Us For Availability
12
SHIELD, HEAT MAY 8053969 Contact Us For Availability
12
TRIM, DOOR SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
12A
TRIM, DOOR SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
12B
TRIM, DOOR SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
12C
TRIM, DOOR SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
13
ELECTRODE MAY W10515459 Contact Us For Availability
13
BRACKET, DSI MAY W10516463 Contact Us For Availability
13
SPREADER, FLAME (OVEN) MAY W10184491 Contact Us For Availability
13
SHIELD, LOWER MAY 8053968 Contact Us For Availability
13
SCREW MAY W10327235 Contact Us For Availability
14
SCREW MAY 8273062 Contact Us For Availability
14
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
14
BURNER, BAKE MAY 9758078 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
14
SCREW MAY 3196165 Contact Us For Availability
14A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
SHIELD, HEAT MAY 8053505 Contact Us For Availability
15
REGULATOR MAY W10602001 Contact Us For Availability
15
SCREW MAY W10362924 Contact Us For Availability
15
STRAP, DOOR MAY W10544179 Contact Us For Availability
16
BRACKET, IGNITOR MAY W10797001 Contact Us For Availability
16
IGNITOR (ELECTRODE, BROIL) MAY W10333842 Contact Us For Availability
16
SCREW MAY W10031780 Contact Us For Availability
16A
IGNITOR (ELECTRODE, BAKE) MAY 9758079 Contact Us For Availability
17
TUBE, BROILER SUPPLY MAY W10420040 Contact Us For Availability
17
BACK, MAIN MAY W10416100 Contact Us For Availability
17
TRIM, BOTTOM (BLACK) MAY 8523177 Contact Us For Availability
17A
TRIM, BOTTOM (WHITE) MAY 8523175 Contact Us For Availability
18
FITTING, BROILER MAY W10592836 Contact Us For Availability
18
SEAL, DOOR MAY W10658354 Contact Us For Availability
18
FRAME, GLASS MAY W10316950 Contact Us For Availability
19
SCREW MAY 3400016 Contact Us For Availability
19
BRACE, MAIN BACK MAY W10435470 Contact Us For Availability
20
ORIFICE (9.5K) (RIGHT FRONT AND LEFT REAR) MAY W10170508 Contact Us For Availability
20
RETAINER, INSULATION (LEFT) MAY 9761449 Contact Us For Availability
20A
ORIFICE (12K) (LEFT FRONT) MAY W10178934 Contact Us For Availability
20A
RETAINER, INSULATION (RIGHT) MAY 9761448 Contact Us For Availability
20B
ORIFICE, NATURAL (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
21
SPREADER, FLAME (BROILER) MAY W10137062 Contact Us For Availability
21
CLIP, PANEL MAY W10137382 Contact Us For Availability
22
CORD, POWER MAY W10624590 Contact Us For Availability
23
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
24
SCREW MAY W10379120 Contact Us For Availability
25
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
26
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
27
SCREW MAY 3196560 Contact Us For Availability
28
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
29
SWITCH, DOOR MAY W10627802 Contact Us For Availability
30
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
31
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
32
ROD, PUSH LATCH MAY W10078370 Contact Us For Availability
33
ASSEMBLY, DOOR LATCH (REAR) MAY W10107820 Contact Us For Availability
34
SCREW MAY 3196169 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, GAS WIRING MAY W10334923 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10809927 Contact Us For Availability
NI
HARNESS, MAIN MAY W10842520 Contact Us For Availability
NI
SPUDS, LP GAS MAY W10170531 Contact Us For Availability
NI
KIT, LP BAKE AND BROIL MAY W10566537 Contact Us For Availability
NI
INSULATION, WRAP MAY 8524099 Contact Us For Availability
NI
INSULATION, BACK MAY W10180437 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
