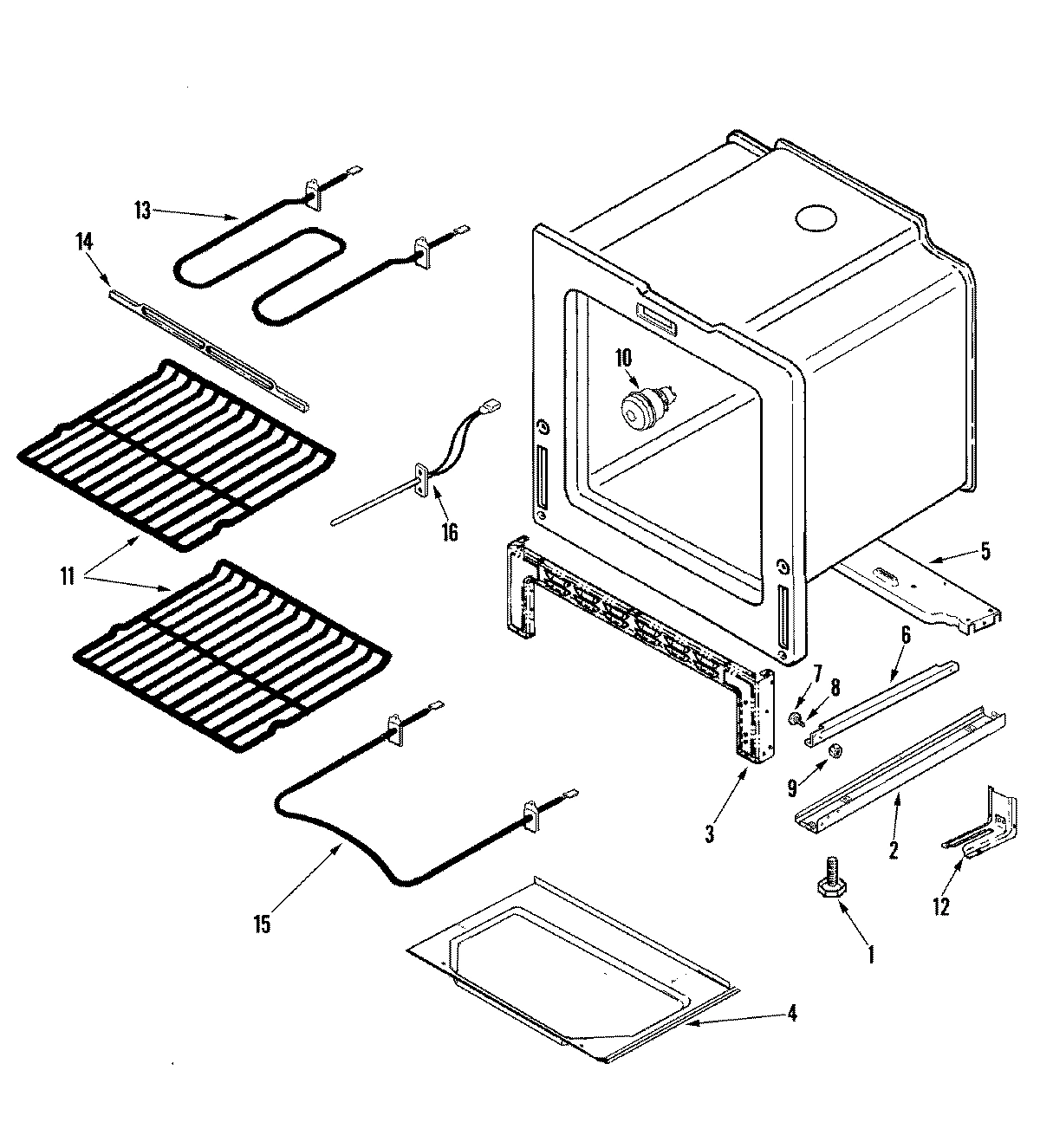

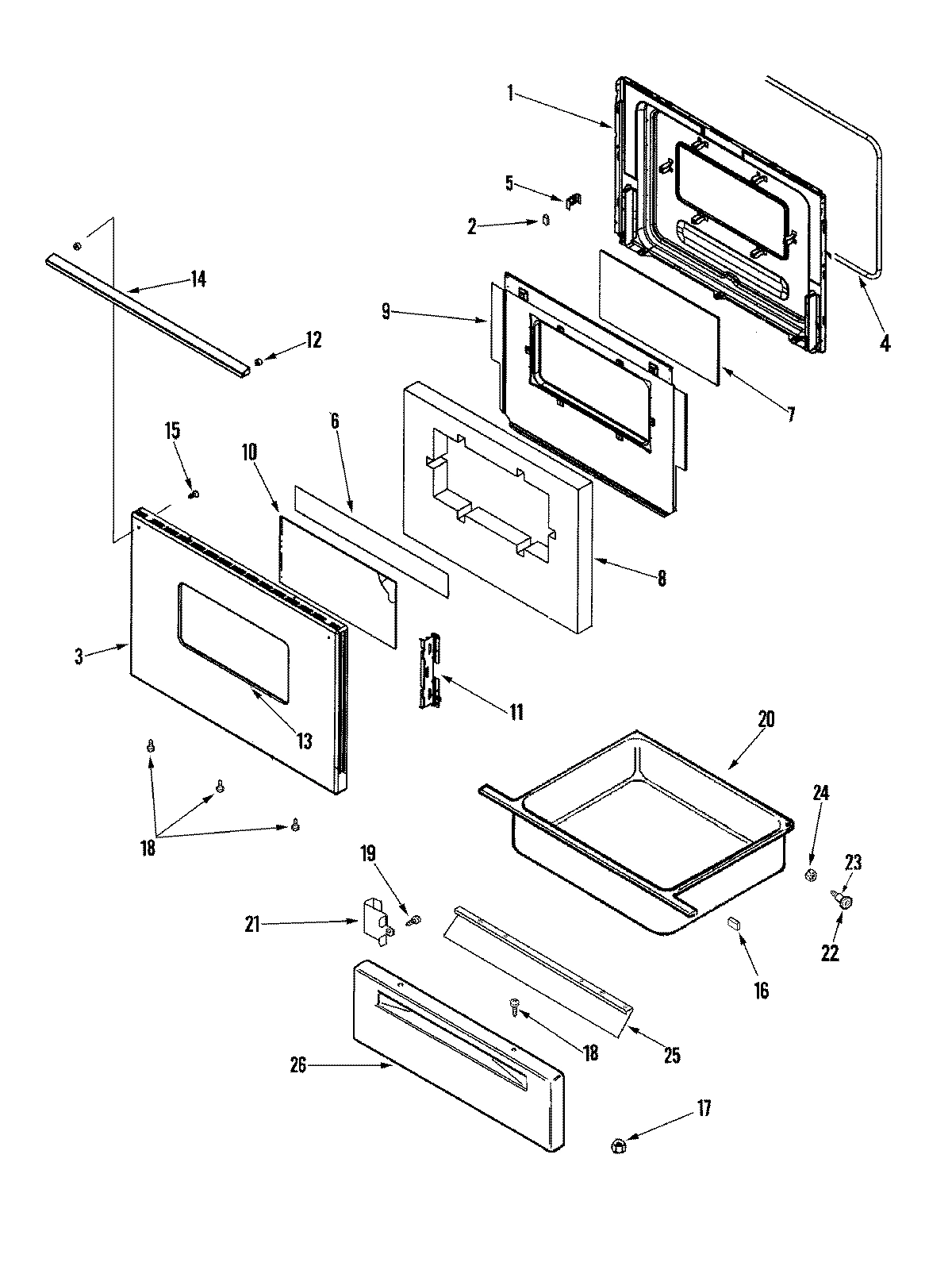

Model Maytag AES1350BAW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

MAY 74009280 MAY 74009280 Contact Us For Availability

1

MAY 8113P504-60 MAY 8113P504-60 Contact Us For Availability

1

MAY 8113P549-60 MAY 8113P549-60 Contact Us For Availability

1

MAY 8113P770-60 MAY 8113P770-60 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $40.61

2

WP74004224 Whirlpool Tape Backorder WPL WP74004224 $3.82

2

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $24.38

2

MAY 74010889 MAY 74010889 Contact Us For Availability

3

WP7403P239-60 Whirlpool Oven Switch In Stock WPL WP7403P239-60 $20.40

3

MAY 74011025 MAY 74011025 Contact Us For Availability

3

PEDESTAL, FRONT MAY 74010882 Contact Us For Availability

3

MAY 74010890 MAY 74010890 Contact Us For Availability

4

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $6.71

4

WP74011140 Whirlpool Oven Hinge Backorder WPL WP74011140 $78.10

4

MAY 7201P043-60 MAY 7201P043-60 Contact Us For Availability

4

RETAINER, INSULATION (BOTTOM) MAY 74006522 Contact Us For Availability

4

HARNESS, COIL TOP (RT) MAY 74010891 Contact Us For Availability

5

WP74004153 Whirlpool Indicator Light In Stock WPL WP74004153 $3.70

5

CLIP, DOOR MAY 7112P034-60 Contact Us For Availability

5

SUPPORT, VALVE REGULATOR MAY 74007129 Contact Us For Availability

5

HARNESS, COIL TOP (LT) MAY 74010892 Contact Us For Availability

6

WP7730P011-60 Whirlpool Indicator Lens Backorder WPL WP7730P011-60 $2.85

6

TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability

6

RUNNER, DRAWER MAY 74003565 Contact Us For Availability

6

HARNESS, COIL TOP/ELEMENTS MAY 74010893 Contact Us For Availability

7

SUPPORT, MANIFOLD PANEL MAY 74004785 Contact Us For Availability

7

MAY 74009281 MAY 74009281 Contact Us For Availability

7

MAY K71FILLW MAY K71FILLW Contact Us For Availability

8

MAY UXA1100AAW MAY UXA1100AAW Contact Us For Availability

8

CAP, END (WHT-RT) MAY 74004821 Contact Us For Availability

8

CAP, END (WHT-LT) MAY 74004822 Contact Us For Availability

8

MAY 74001842 MAY 74001842 Contact Us For Availability

9

2002M200-81 Whirlpool Cooktop Backorder WPL 2002M200-81 $604.52

9

BAFFLE, OVEN DOOR MAY 74009528 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

MAY 74010689 MAY 74010689 Contact Us For Availability

MAY 74001072 MAY 74001072 Contact Us For Availability

LAMP ASSEMBLY MAY 74010885 Contact Us For Availability

11

WPW10282492 Whirlpool Oven Rack In Stock WPL WPW10282492 $39.71

11

SHIELD, CONTROL MAY 74010846 Contact Us For Availability

11

MAY 74003048 MAY 74003048 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $13.62

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

WP74005058 Whirlpool Spacer Assembly In Stock WPL WP74005058 $3.70

WPW10345410 Whirlpool Surface Element Backorder WPL WPW10345410 $79.28

13

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $60.38

13

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $63.78

13

MAY 7201P017-60 MAY 7201P017-60 Contact Us For Availability

14

MAY 74007088 MAY 74007088 Contact Us For Availability

14

SUPPORT, BROIL ELEMENT MAY 74003386 Contact Us For Availability

15

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

15

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $69.76

15

SCREW (6ABX.25-ZN) MAY 74003357 Contact Us For Availability

16

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

16

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.21

16

TUBE, VENT (UPR) MAY 74005759 Contact Us For Availability

17

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $9.59

18

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $30.20

18

WP7103P027-60 Whirlpool Nut In Stock WPL WP7103P027-60 $2.51

18

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.64

19

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $30.85

19

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

20

MAY 74006046 MAY 74006046 Contact Us For Availability

20

DRAWER, STORAGE MAY 74008333 Contact Us For Availability

21

MAY 74010894 MAY 74010894 Contact Us For Availability

21

MAY 74010896 MAY 74010896 Contact Us For Availability

22

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

23

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

24

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

25

LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability

26

PANEL, DRAWER (WHT) MAY 74003407 Contact Us For Availability

NI

MAY 15003704 MAY 15003704 Contact Us For Availability
