Model Maytag AER5822VCW0 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

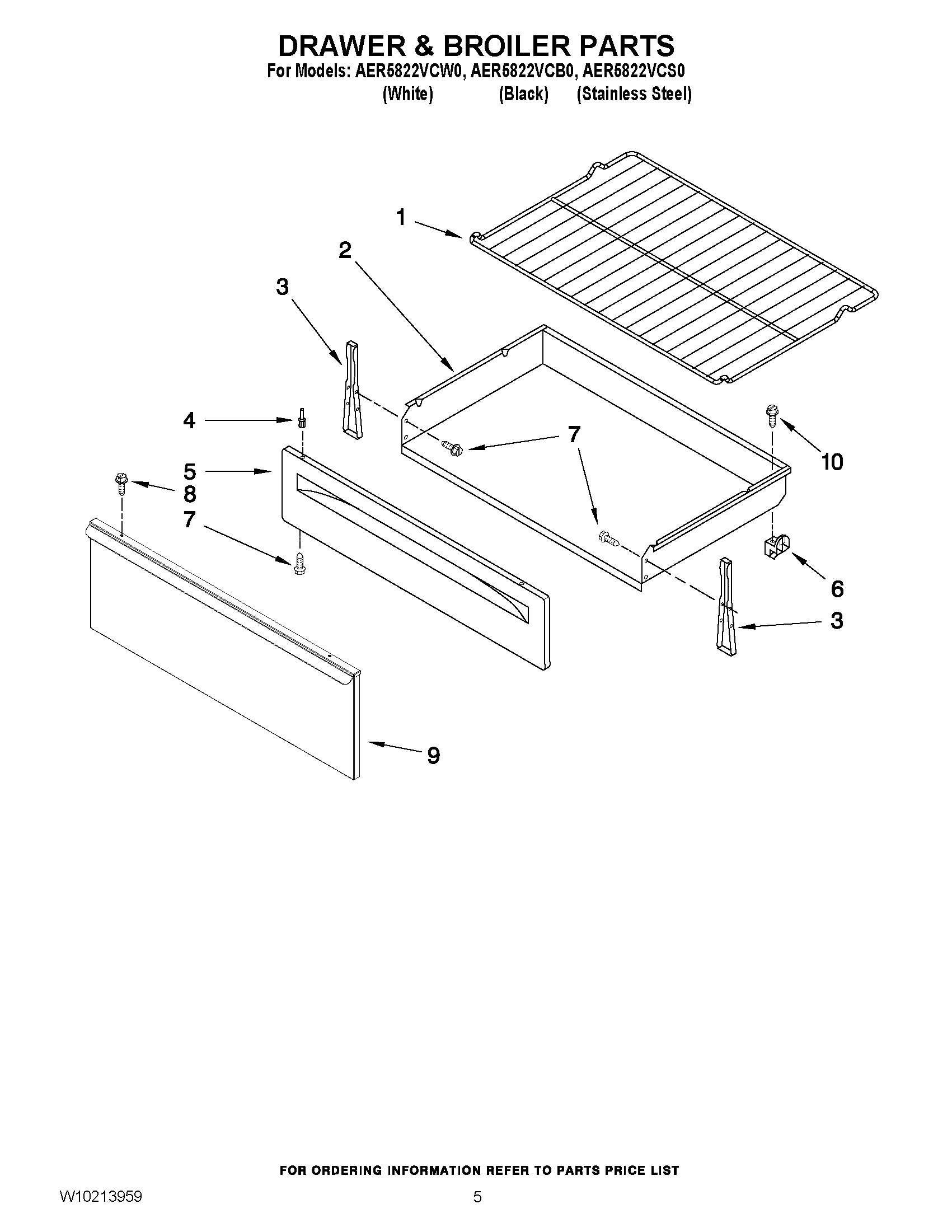

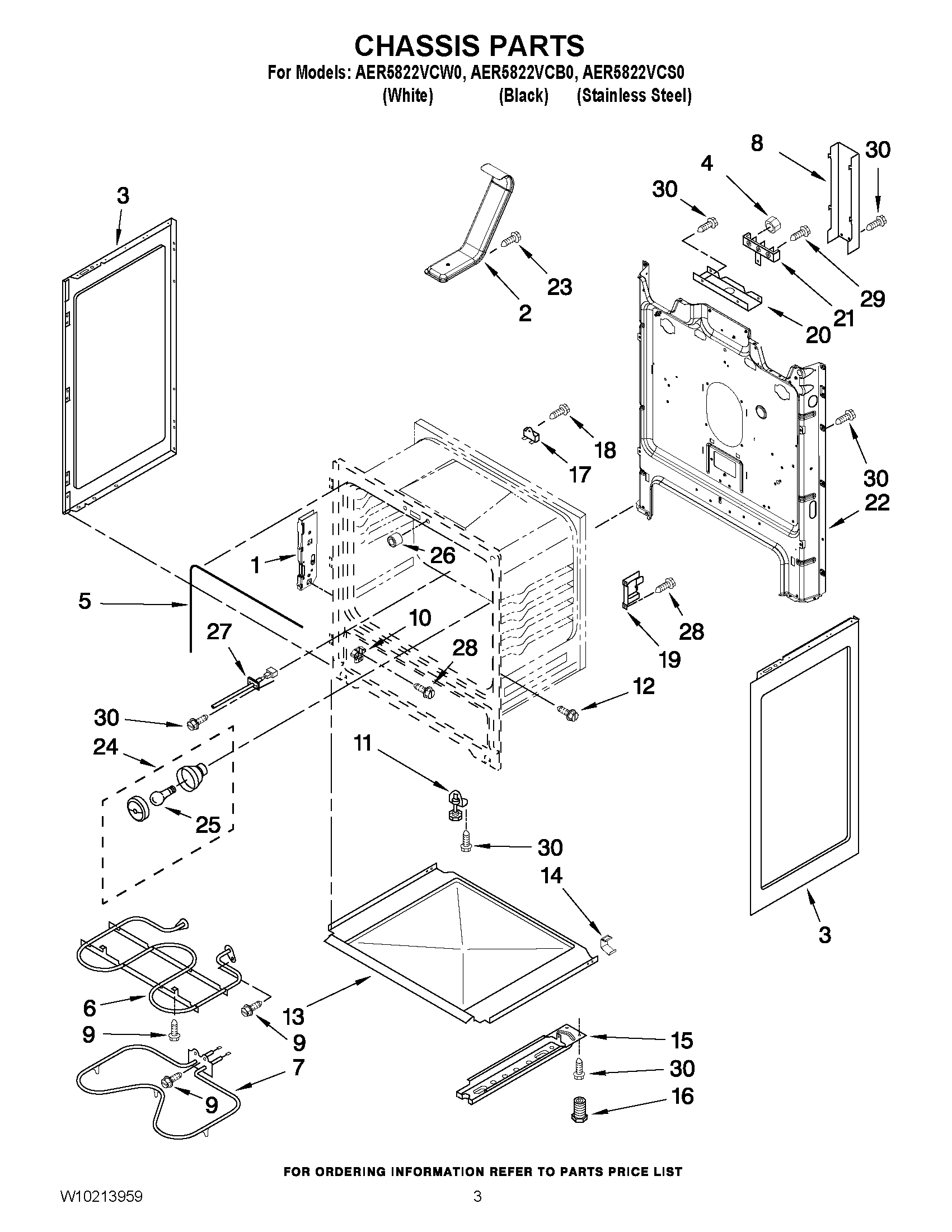

03 - CHASSIS PARTS
04 - DRAWER & BROILER PARTS

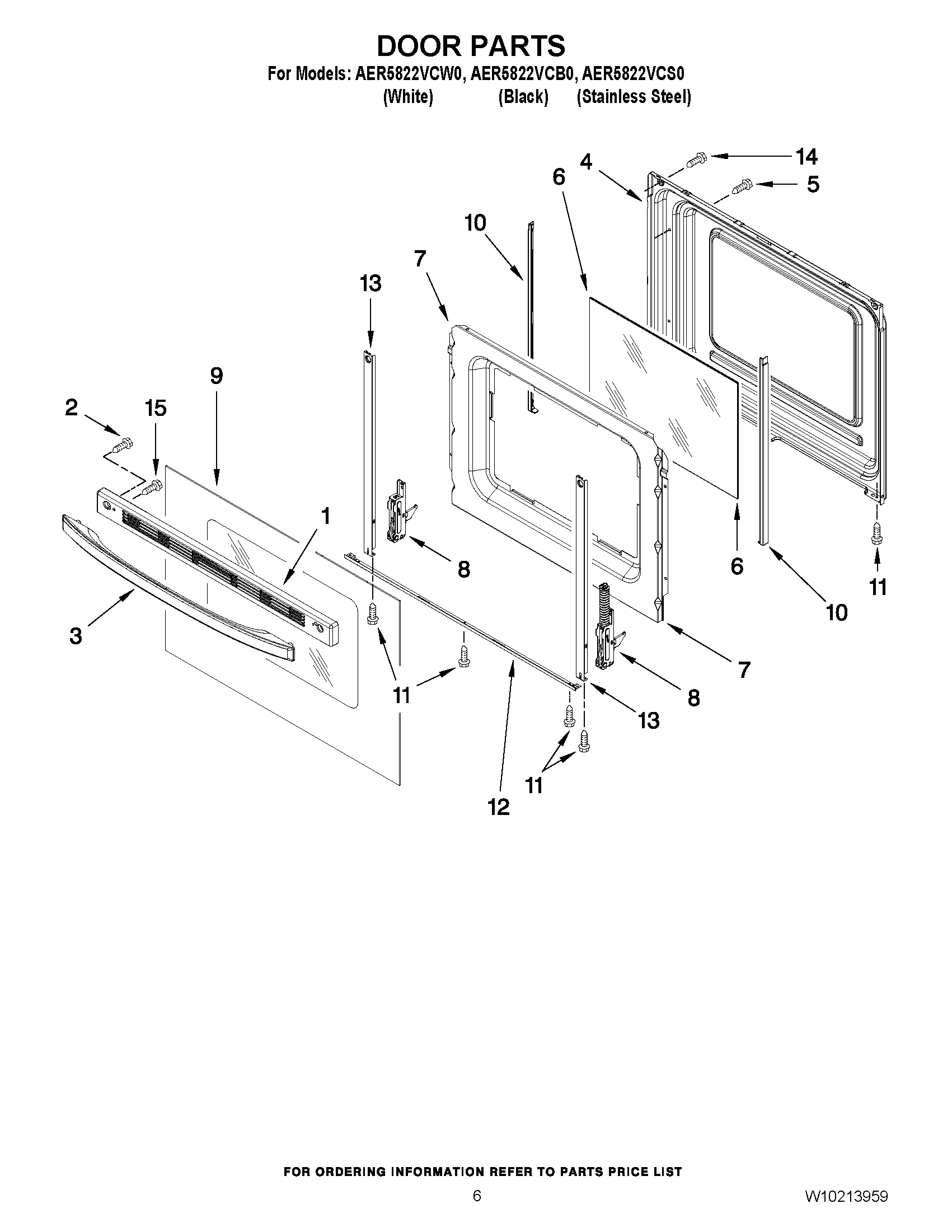

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AER5822VCW0 ELECTRIC RANGE
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
Instructions Installations MAY W10196159 Contact Us For Availability
1
Owners Manual MAY W10196162 Contact Us For Availability
1
MAY W10198630 MAY W10198630 Contact Us For Availability
1
MAY W10198631 MAY W10198631 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
RECEIVER, HINGE-DOOR MAY W10289077 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
VENT, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
VENT, TOP (BLACK) MAY W10310922 Contact Us For Availability
2
MAY W10162042 MAY W10162042 Contact Us For Availability
2
MAY 3196200 MAY 3196200 Contact Us For Availability
2
Flue MAY W10134285 Contact Us For Availability
2
MAY W10296838 MAY W10296838 Contact Us For Availability
2
MAY W10200660 MAY W10200660 Contact Us For Availability
3
Screw MAY 3196170 Contact Us For Availability
3
MAY W10170030 MAY W10170030 Contact Us For Availability
3
MAY W10170031 MAY W10170031 Contact Us For Availability
3
Panel, Console (Stainles Steel) MAY W10170032 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
BRACKET, DRAWER MAY W10174396 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
3
Handle, Door (Stainless Steel) MAY W10144890 Contact Us For Availability
4
MAY W10172293 MAY W10172293 Contact Us For Availability
4
MAY W10172294 MAY W10172294 Contact Us For Availability
4
Switch, Infinite (LR/RF (Silver)) MAY 3148951 Contact Us For Availability
4
Switch, Infinite (LF/RR (Orange)) MAY 3148954 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
Element, Surface (LF/RR - 2500 W) MAY 8273992 Contact Us For Availability
5
Element, Surface (LR/RF - 1200 W) MAY 8273994 Contact Us For Availability
5
MAY 3400882 MAY 3400882 Contact Us For Availability
5
Seal, Oven Door MAY W10129032 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
6
Window, Inner MAY 9758162 Contact Us For Availability
7
MAY 3195060 MAY 3195060 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10119705 Contact Us For Availability
7
KNOB, INFINITE (BLACK) MAY W10119706 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
Screw MAY 3196168 Contact Us For Availability
7
MAY 9761501 MAY 9761501 Contact Us For Availability
8
PAN, RADIANT ELEM. MAY W10170526 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
COVER, BOX MAY W10326122 Contact Us For Availability
8
SCREW(STLS. MODEL) MAY 489355 Contact Us For Availability
8
HINGE, DOOR (ACTIVE (FOR WHITE & BLACK MODELS MAY W10299225 Contact Us For Availability
8
HINGE, DOOR ((FOR STAINLESS MODEL ONLY)) MAY W10299226 Contact Us For Availability
8
HINGE, DOOR (PASSIVE (ALL MODELS)) MAY W10299227 Contact Us For Availability
9
MAY 3196166 MAY 3196166 Contact Us For Availability
9
PANEL(STLS. MODEL) MAY W10282465 Contact Us For Availability
9
Glass, Outer (White) MAY W10118454 Contact Us For Availability
9
Glass, Outer (Black) MAY W10118455 Contact Us For Availability
9
GLASS, OUTER (STAINLESS (INCLUDES SS PANEL)) MAY W10144884 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
Glide, Drawer Frnt MAY W10114344 Contact Us For Availability
10
MAY 3196165 MAY 3196165 Contact Us For Availability
10
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
10
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
10
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
10
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
11
Clip MAY 8273564 Contact Us For Availability
11
FOOT, FRONT MAY W10341186 Contact Us For Availability
11
MAY 3196160 MAY 3196160 Contact Us For Availability
12
MAY W10363661 MAY W10363661 Contact Us For Availability
12
MAY W10363662 MAY W10363662 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
Trim, Lower (White) MAY 8523175 Contact Us For Availability
12
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
13
Tray, Insulation MAY 8054068 Contact Us For Availability
13
STRAP, DOOR MAY W10113759 Contact Us For Availability
14
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
MAY W10031780 MAY W10031780 Contact Us For Availability
15
MAY W10182322 MAY W10182322 Contact Us For Availability
15
RAIL, BASE MAY 9760314 Contact Us For Availability
15
MAY W10178143 MAY W10178143 Contact Us For Availability
16
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
16
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
17
CIRCUIT BREAKER (WHITE) MAY 9757601 Contact Us For Availability
17
CIRCUIT BREAKER (BLACK) MAY 9757602 Contact Us For Availability
17
Thermal, Fuse MAY 3196548 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
19
SUPPORT, OVEN MAY W10355173 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY 8203546 MAY 8203546 Contact Us For Availability
22
MAY 8274034 MAY 8274034 Contact Us For Availability
24
MAY 3196701 MAY 3196701 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
Spacer, Door MAY 9758701 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY 3196169 MAY 3196169 Contact Us For Availability
29
MAY 3400016 MAY 3400016 Contact Us For Availability
30
MAY 3196178 MAY 3196178 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
MAY 8272611 MAY 8272611 Contact Us For Availability
NI
MAY 8273263 MAY 8273263 Contact Us For Availability
NI
INSULATION, VENT MAY W10333344 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Clip, Wire Ground MAY 313660 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
Screw (Grnd Wire / Back) MAY 3196174 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAN - BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8212473 MAY 8212473 Contact Us For Availability
NI
MAY 8523279 MAY 8523279 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Sensor) MAY W10174459 Contact Us For Availability
NI
POWER CORD MAY W10244925 Contact Us For Availability
NI
MAY W10251765 MAY W10251765 Contact Us For Availability
NI
MAY W10261085 MAY W10261085 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10273585 Contact Us For Availability
× ![]()
