Model Whirlpool AER5511ACB ELECTRIC RANGE – Common Parts &amp; Diagrams

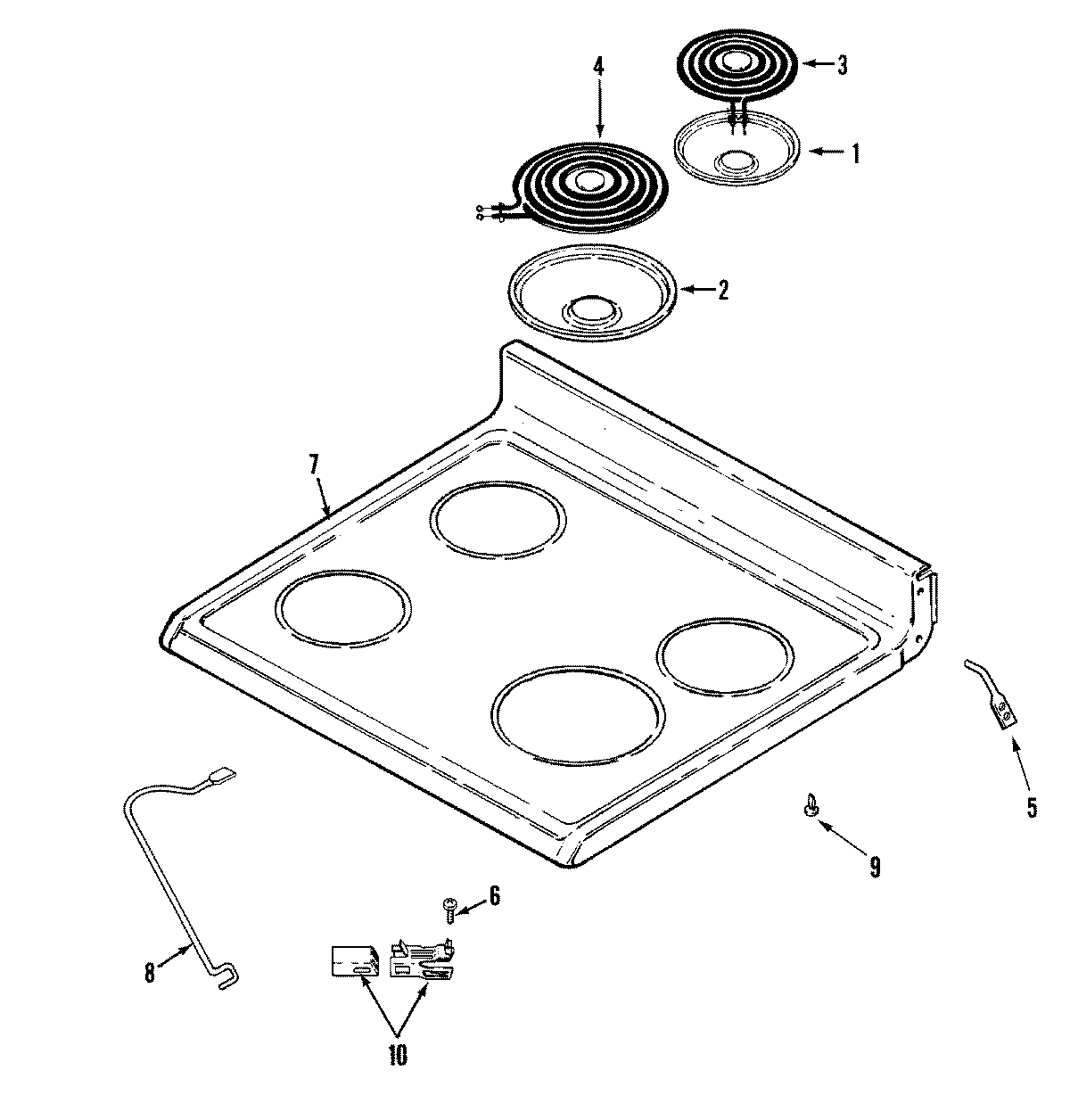

1

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $9.25

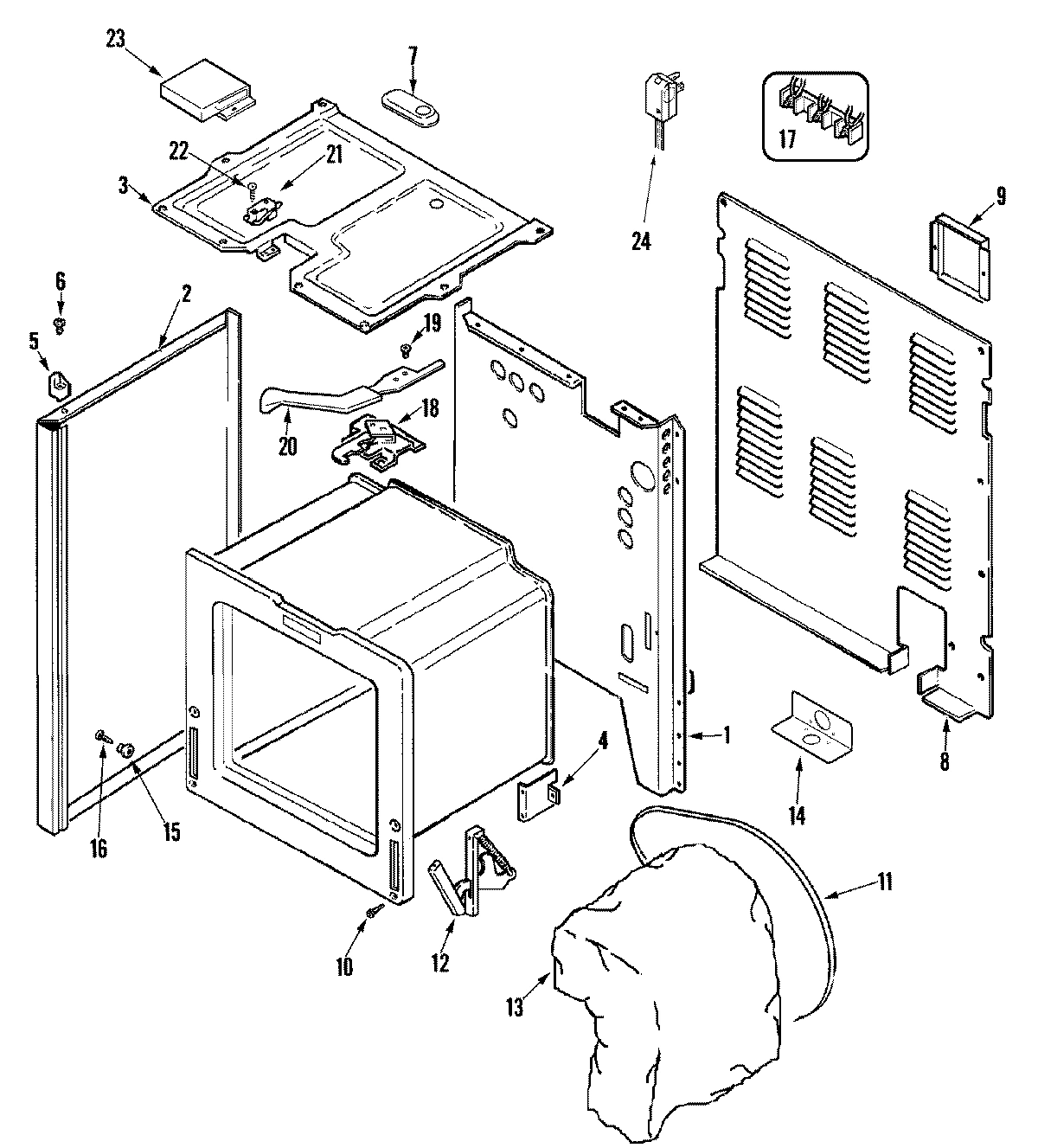

1

HARNESS, TOP WPL 74010305 Contact Us For Availability

1

BACK, MAIN (ELEC) WPL 74009677 Contact Us For Availability

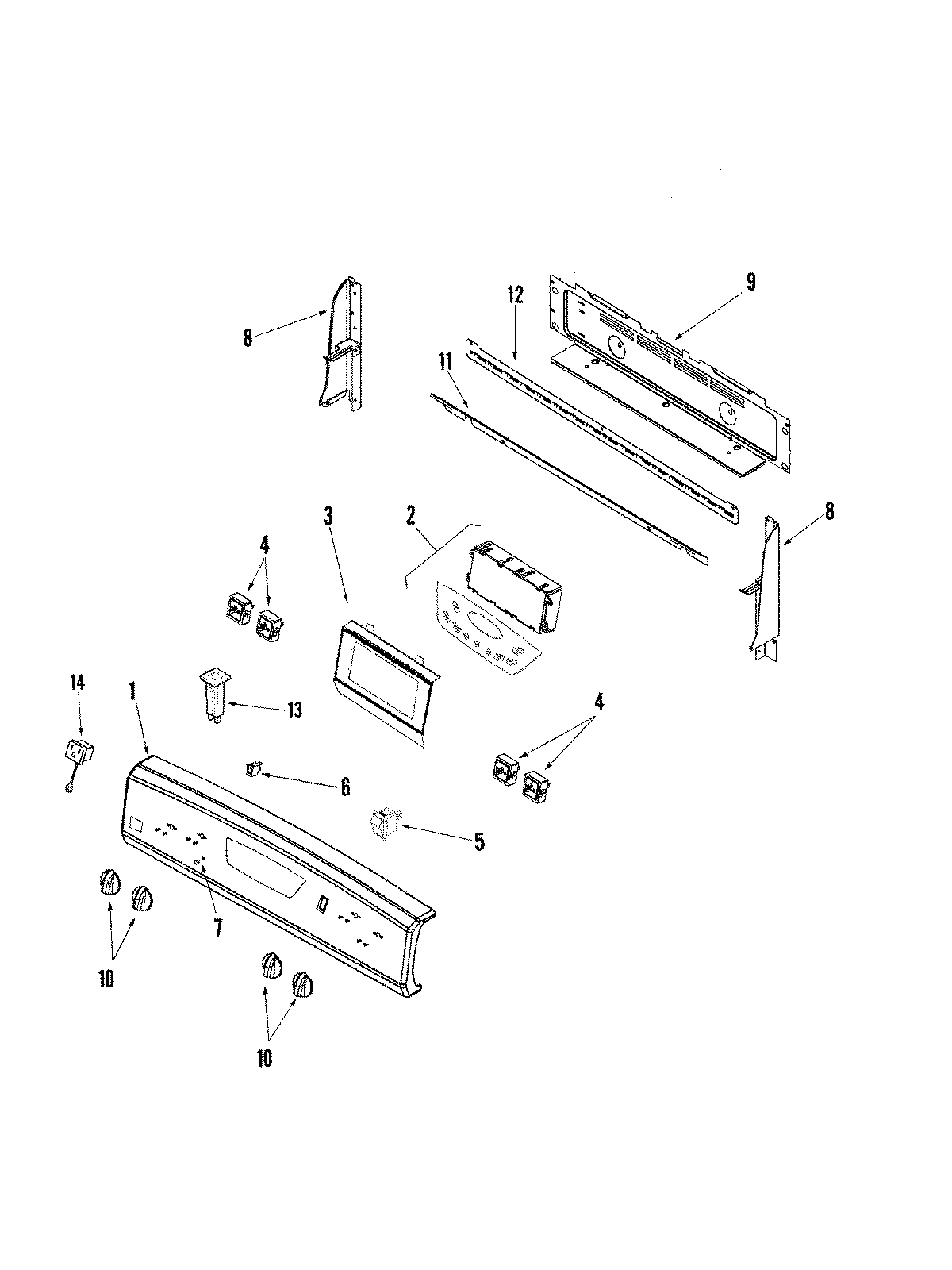

1

PANEL, CONTROL (BLK) WPL 74010988 Contact Us For Availability

1

TUBE, VENT WPL 74003469 Contact Us For Availability

1

HANDLE, DOOR (BLK) WPL 74008318 Contact Us For Availability

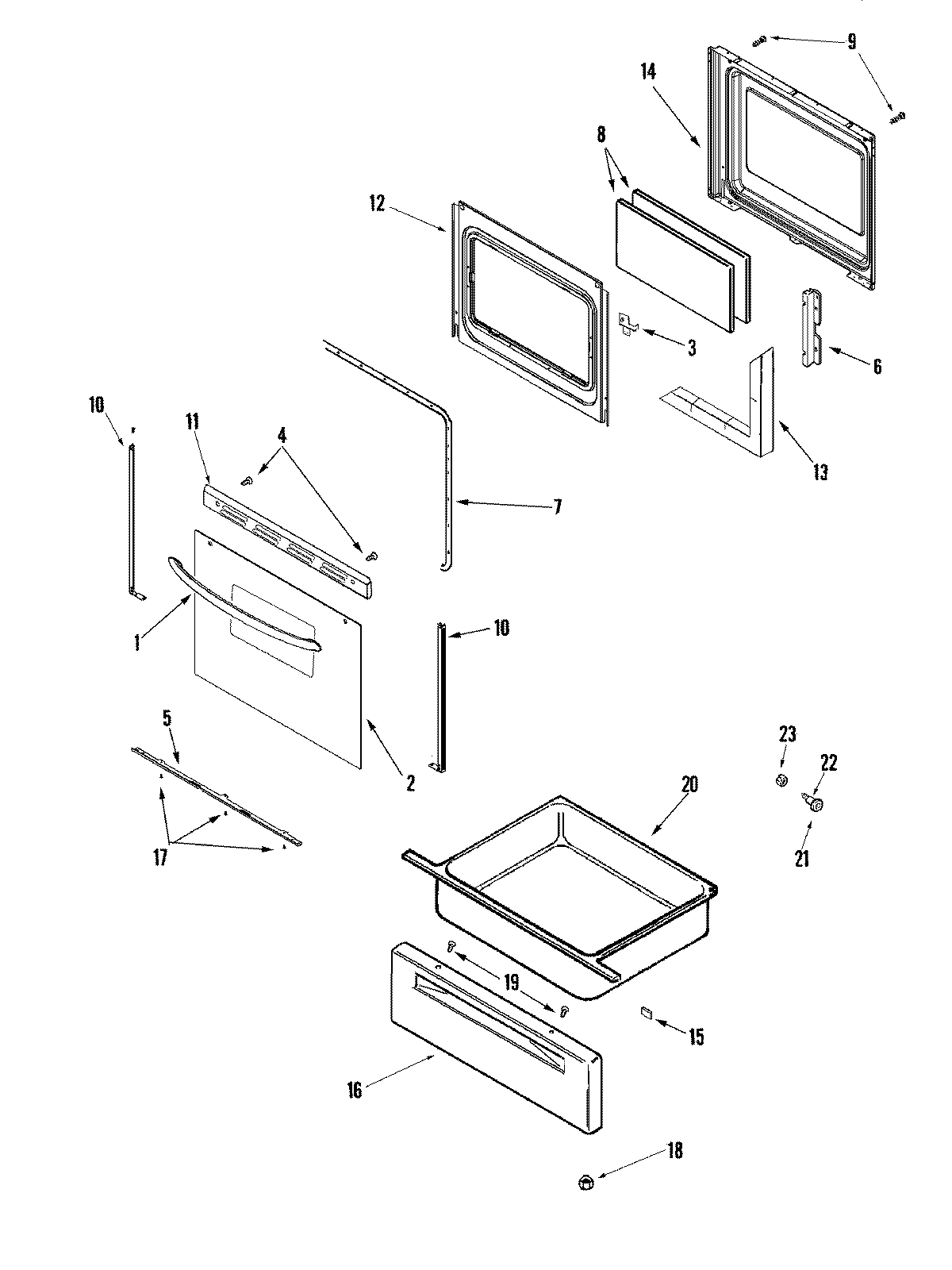

2

5701M760-60 Whirlpool Electronic Control Boar In Stock WPL 5701M760-60 $260.73

2

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $6.67

2

PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability

2

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

2

GLASS, DOOR (OUTER-BLK) WPL 74009711 Contact Us For Availability

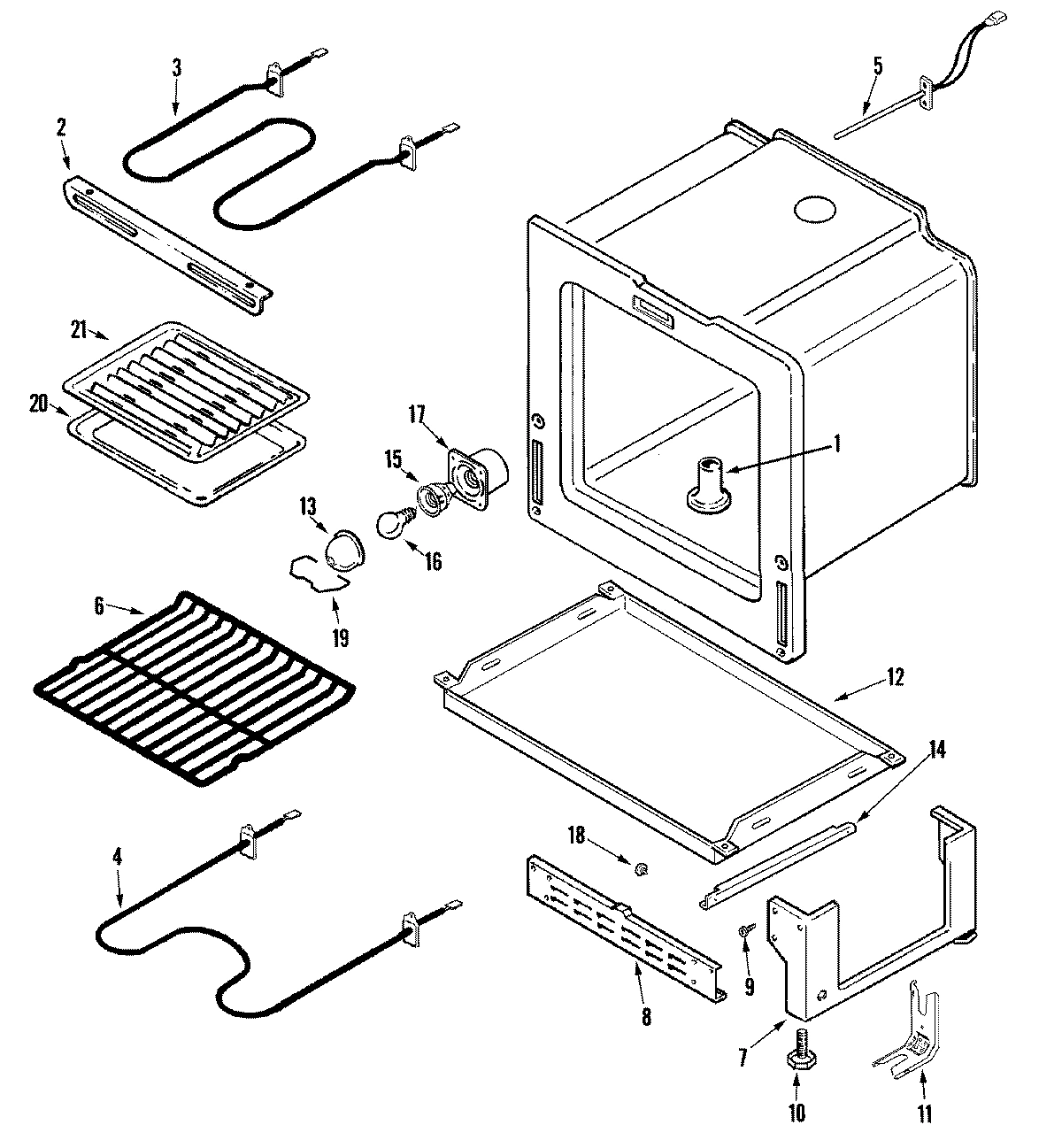

3

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $11.17

3

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $11.17

3

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $81.25

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $73.73

3

BOTTOM, BURNER BOX WPL 74007028 Contact Us For Availability

3

BRACKET, CLOCK WPL 74009052 Contact Us For Availability

4

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $2.60

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $24.38

4

WPW10345410 Whirlpool Surface Element Backorder WPL WPW10345410 $91.65

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

WASHER (1``) WPL 74001521 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $25.37

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

SWITCH, ROCKER (BLK) WPL 74008718 Contact Us For Availability

5

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

5

SUPPORT, GLASS (BLK) WPL 74009686 Contact Us For Availability

6

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $2.60

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $3.84

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $48.36

6

BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability

6

RETAINER, GLASS WPL 74001844 Contact Us For Availability

7

MANUAL, USE & CARE WPL 8113P42660 Contact Us For Availability

7

MANUAL, USE & CARE WPL 8113P58560 Contact Us For Availability

7

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

7

TOP, MAIN (BLK) WPL 74003582 Contact Us For Availability

7

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

8

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $32.66

8

8019P013-60 Whirlpool Clip Backorder WPL 8019P013-60 $7.18

8

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

8

COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability

8

SUPPORT, BACKGUARD (RT-BLK) WPL 74010201 Contact Us For Availability

8

SUPPORT, BACKGUARD (LT-BLK) WPL 74010202 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

PROP ROD WPL 74004084 Contact Us For Availability

8

GLASS, INNER WPL 74003320 Contact Us For Availability

9

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $7.05

9

COVER, ACCESS WPL 74010256 Contact Us For Availability

9

COVER, BACKGUARD WIRE WPL 74009335 Contact Us For Availability

9

COVER, REAR WIRE (UPR) WPL 74009943 Contact Us For Availability

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $9.27

74008731 Whirlpool Range Black Knob Backorder WPL 74008731 $33.29

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.89

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.33

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

SCREW WPL 7101P35660 Contact Us For Availability

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $90.30

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

BAFFLE, OVEN DOOR WPL 74009976 Contact Us For Availability

RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability

BAFFLE, OVEN DOOR WPL 74009528 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability

BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

INSULATION, DOOR WPL 74001842 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.93

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.75

RECEPTACLE, OUTLET (BLK) WPL 71003068 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

LINING, OVEN DOOR WPL 74004972 Contact Us For Availability

15

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.37

15

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

15

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.42

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $2.74

SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

PANEL, DRAWER (BLK) WPL 74009685 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.96

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

LATCH, DOOR LOCK WPL 74009710 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

19

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.60

19

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

DRAWER, STORAGE WPL 74008333 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.19

INSULATOR, SWITCH WPL 74003630 Contact Us For Availability

SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL WPL W10124350 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

22

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

22

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

23

COVER, DOOR LATCH WPL 74003479 Contact Us For Availability

23

NUT WPL 7103P08260 Contact Us For Availability

24

CORD, POWER WPL 7402P05060 Contact Us For Availability

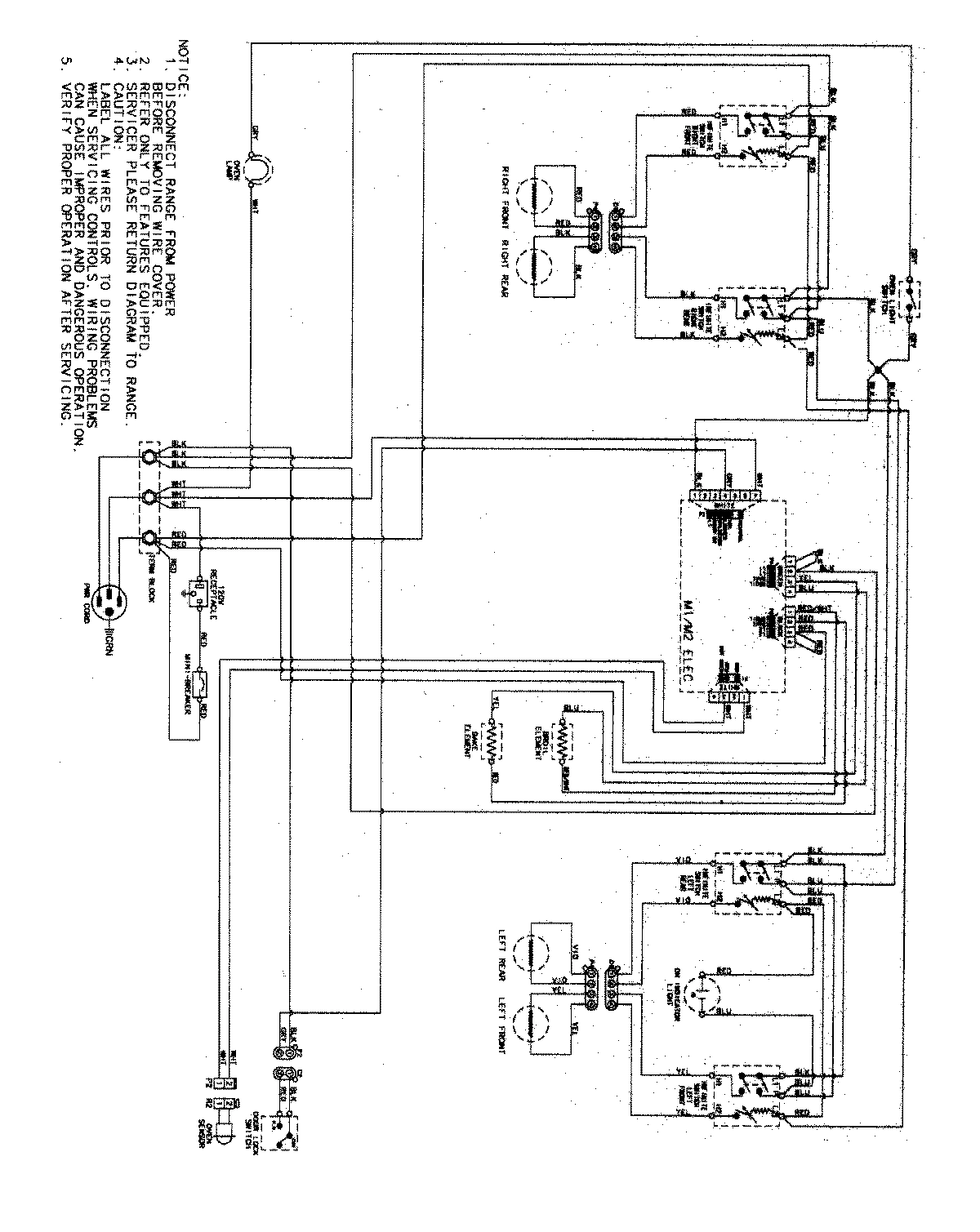

NI

WIRING INFORMATION WPL 15003611 Contact Us For Availability

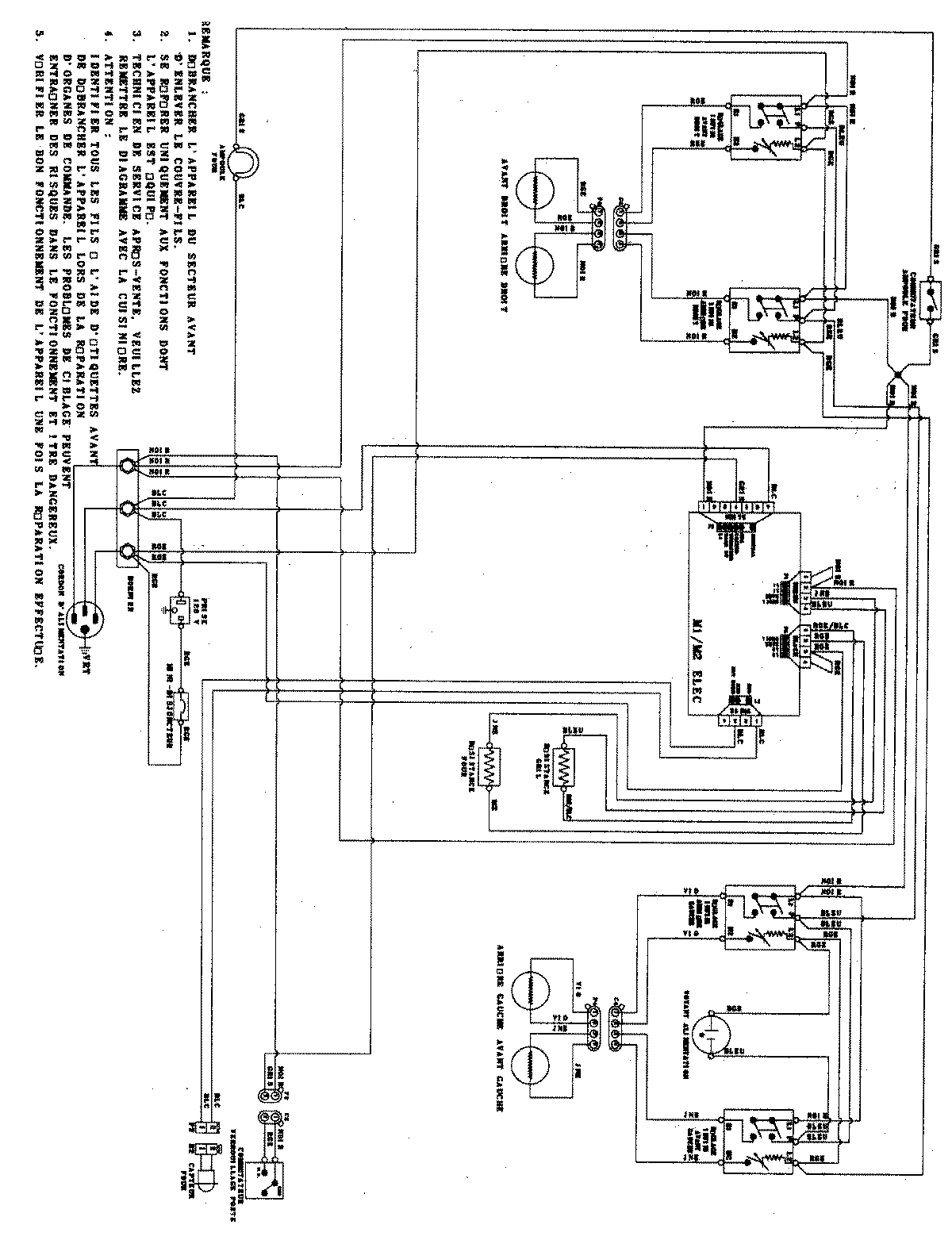

NI

WIRING INFORMATION (FRC) WPL 15003612 Contact Us For Availability

NI

GLASS, INNER WPL 74002002 Contact Us For Availability
