Model GE AEM633 General Electric Model AEM633 – Common Parts & Diagrams

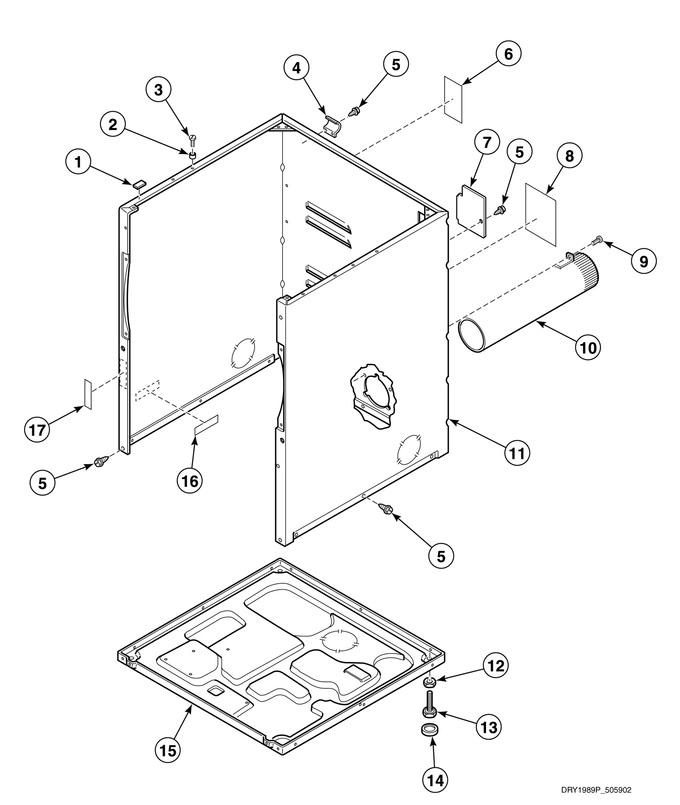

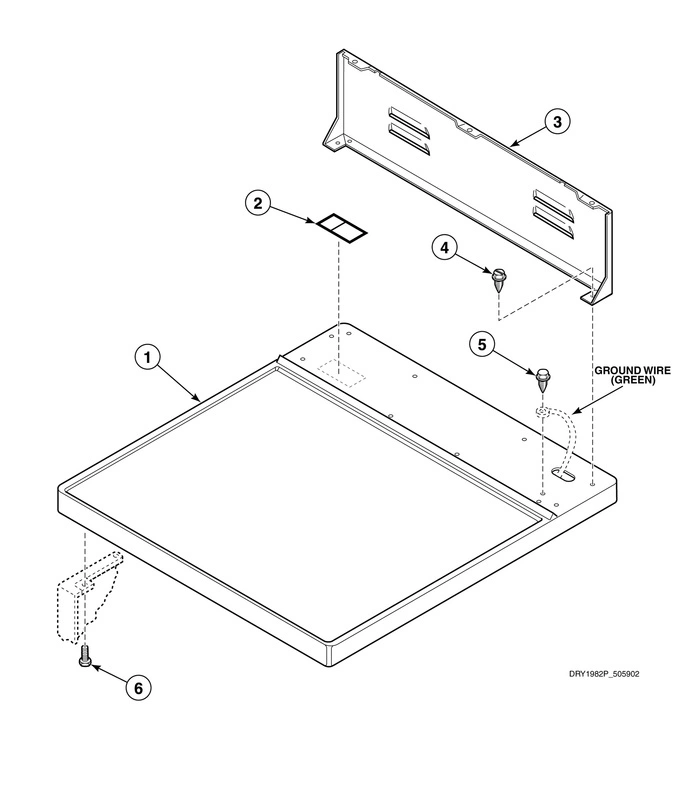

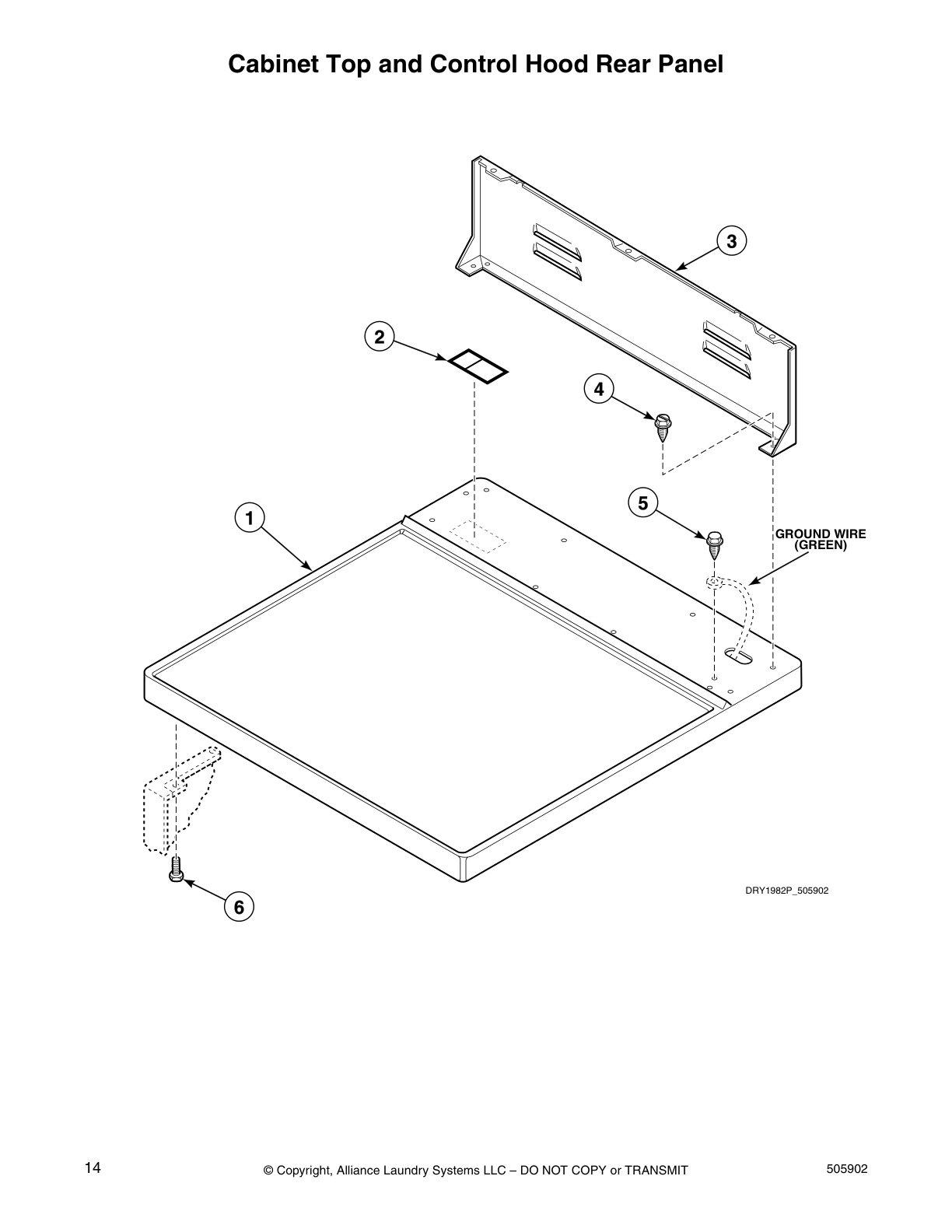

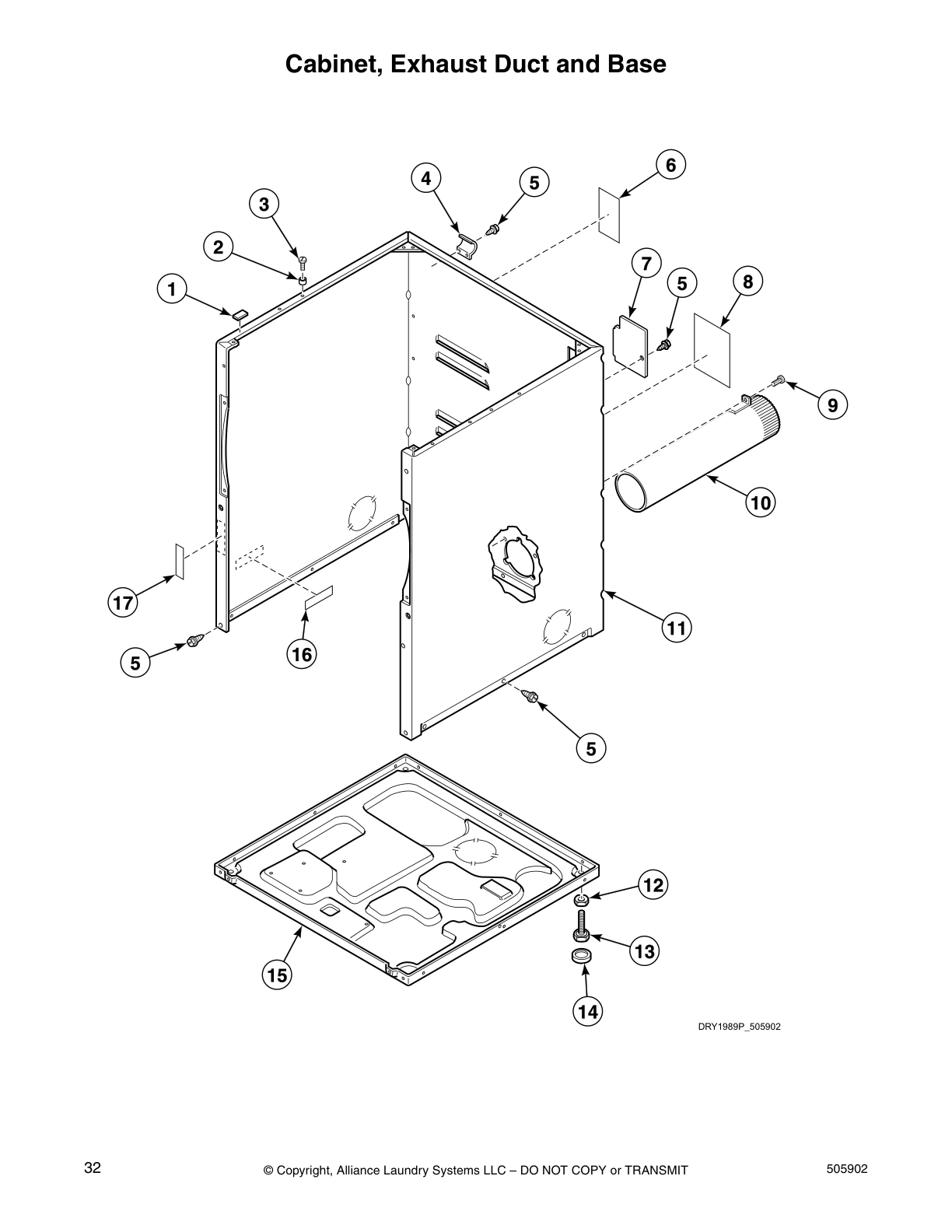

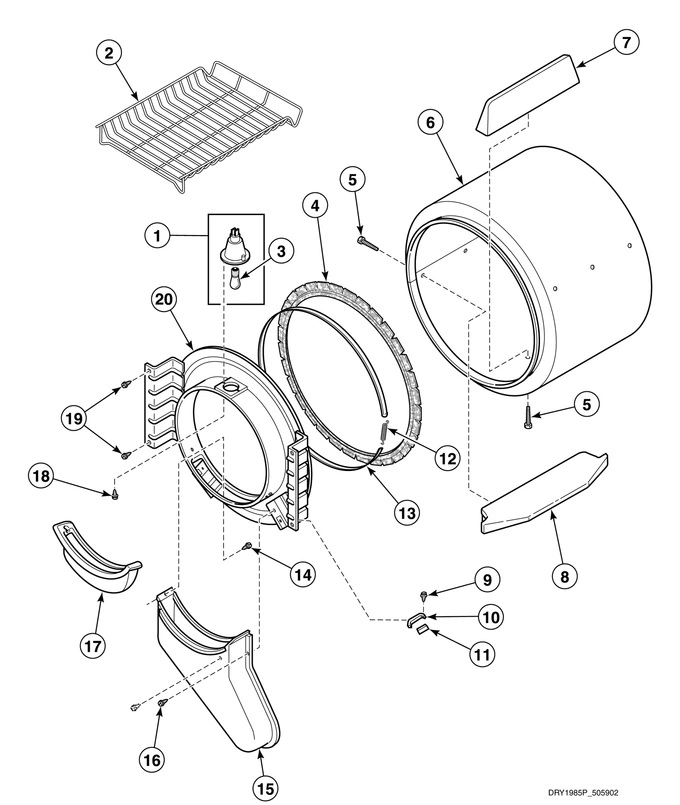

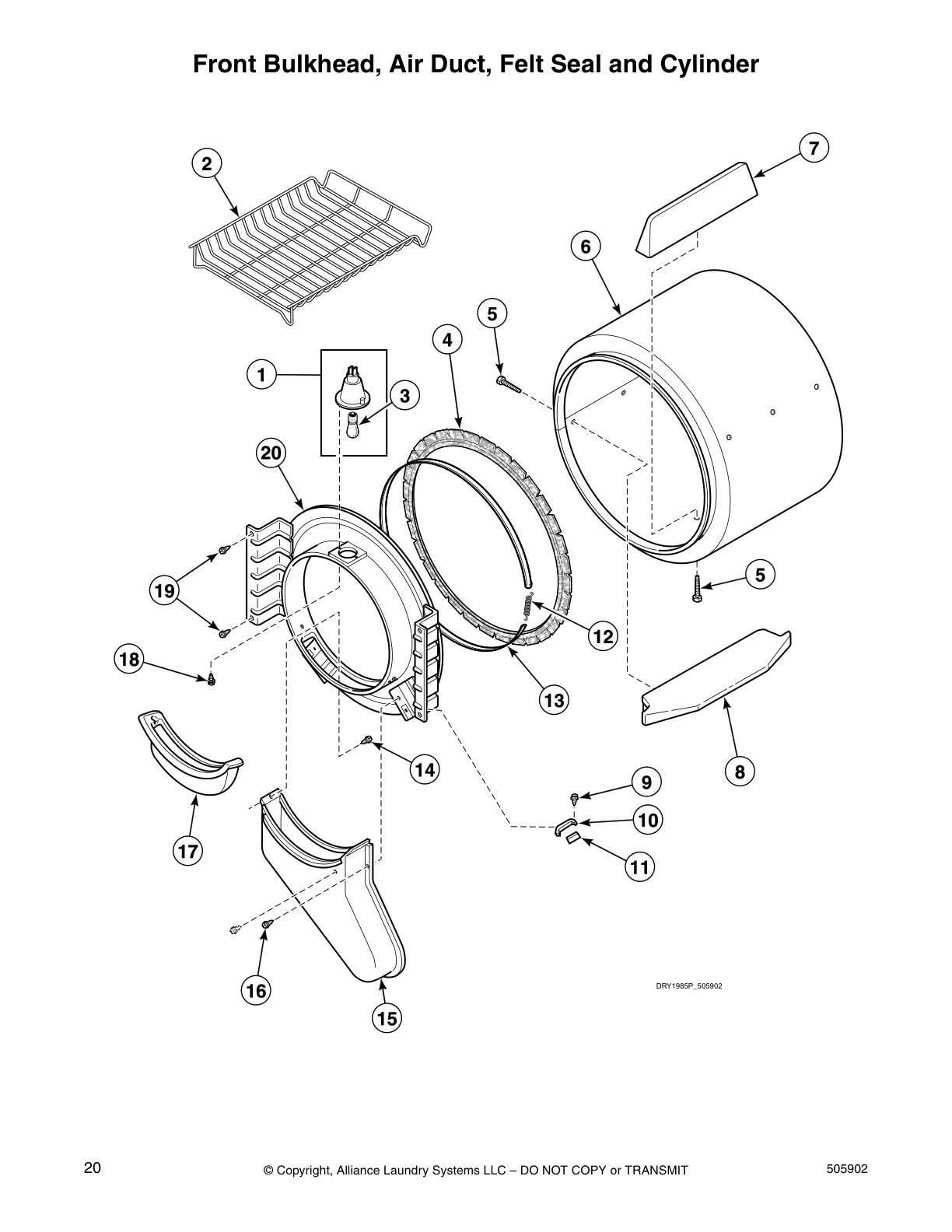

Front Bulkhead, Air Duct, Felt Seal and Cylinder

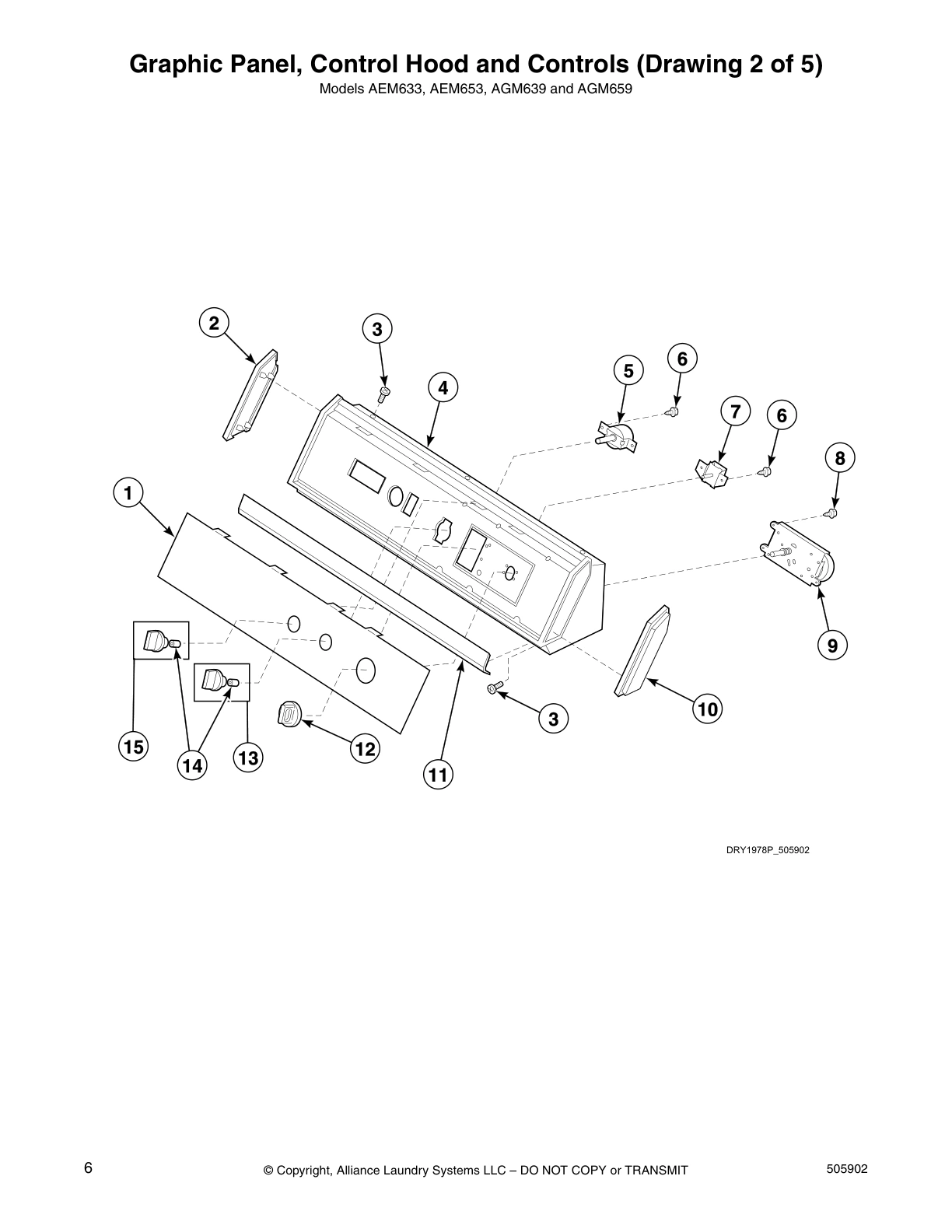

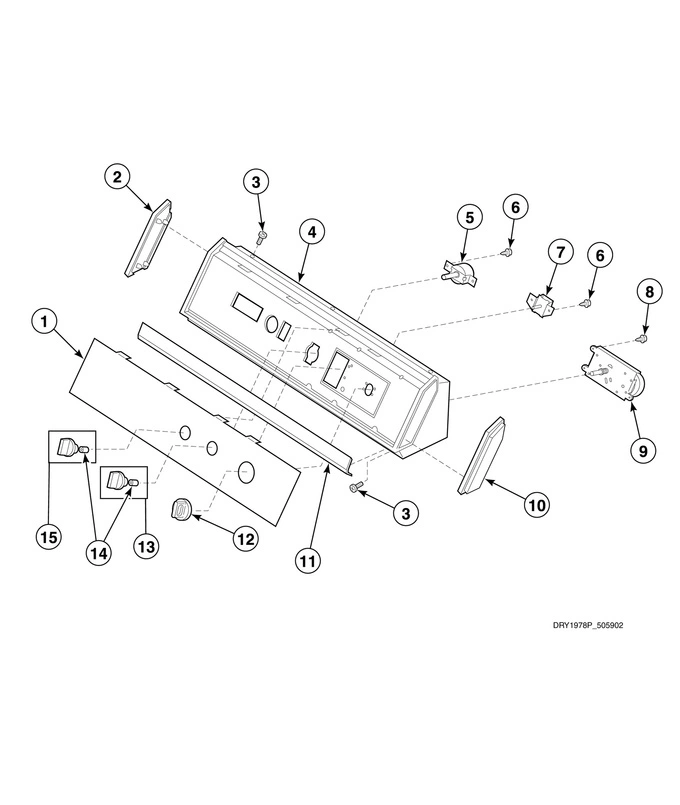

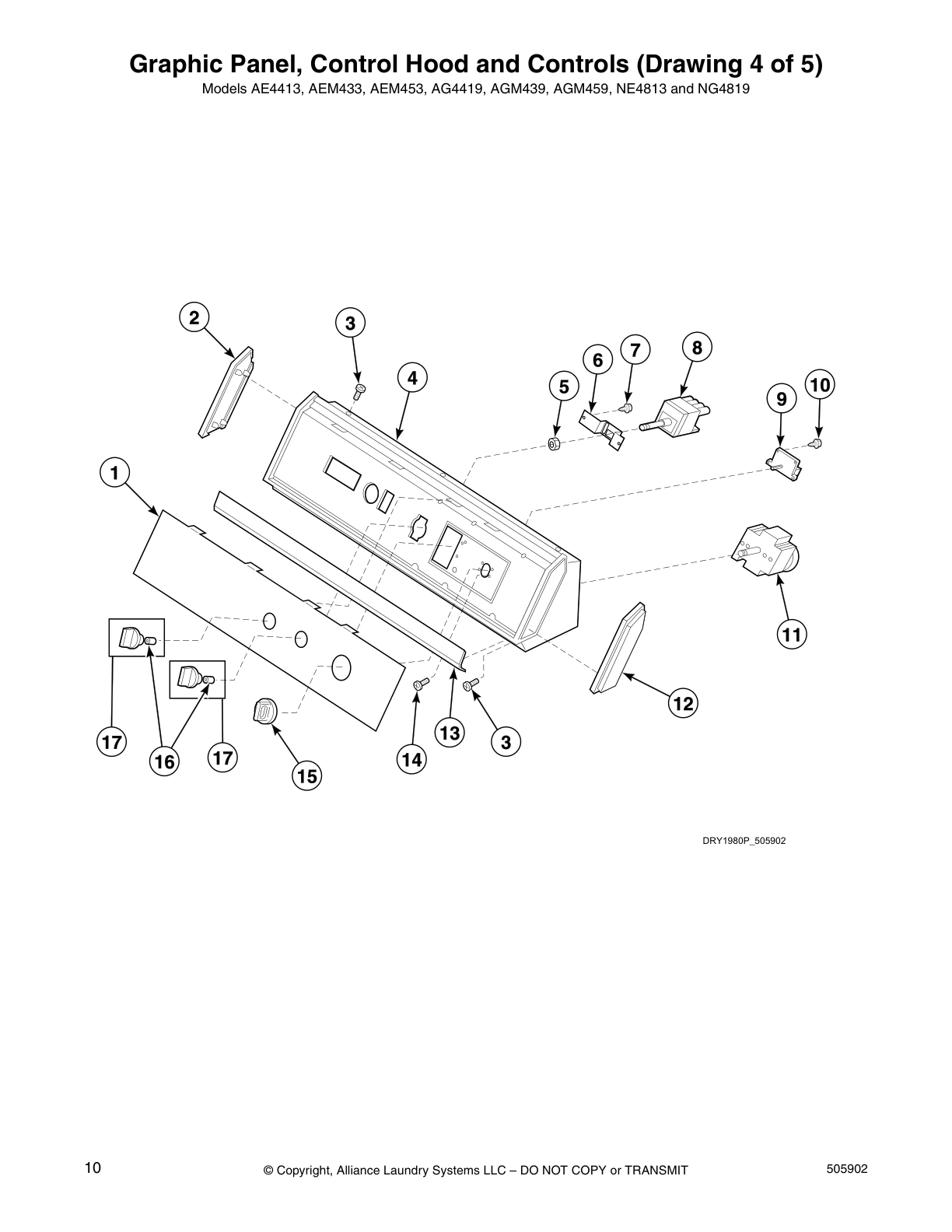

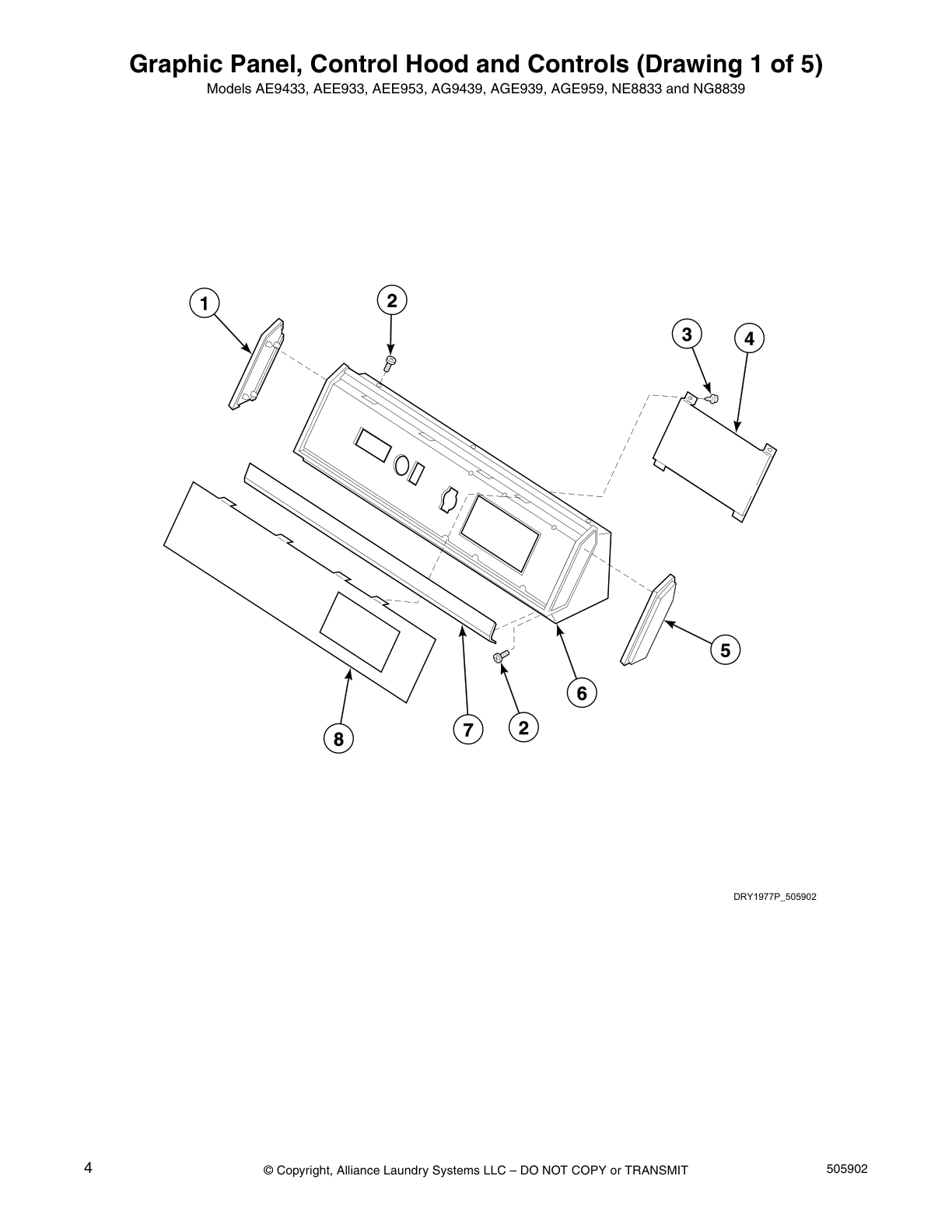

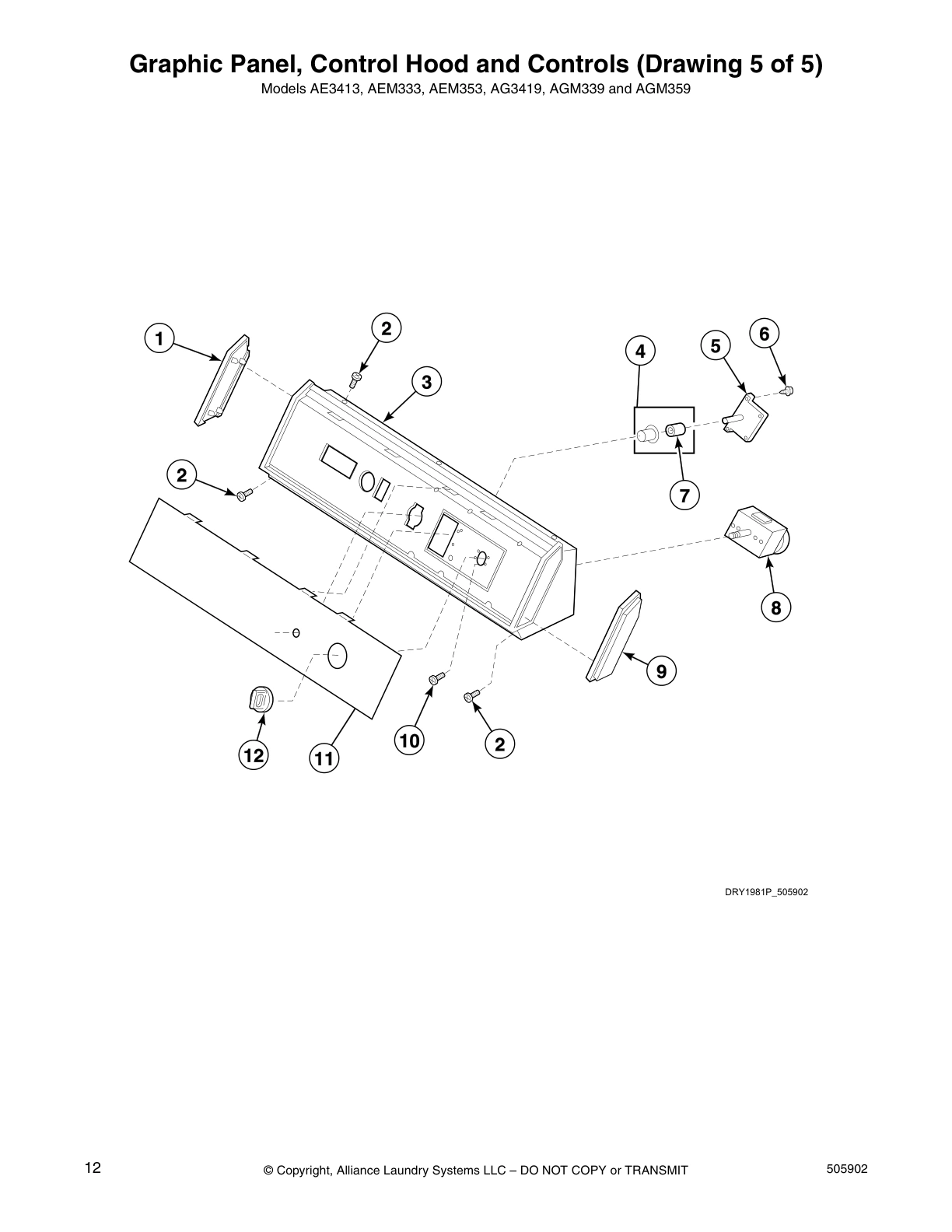

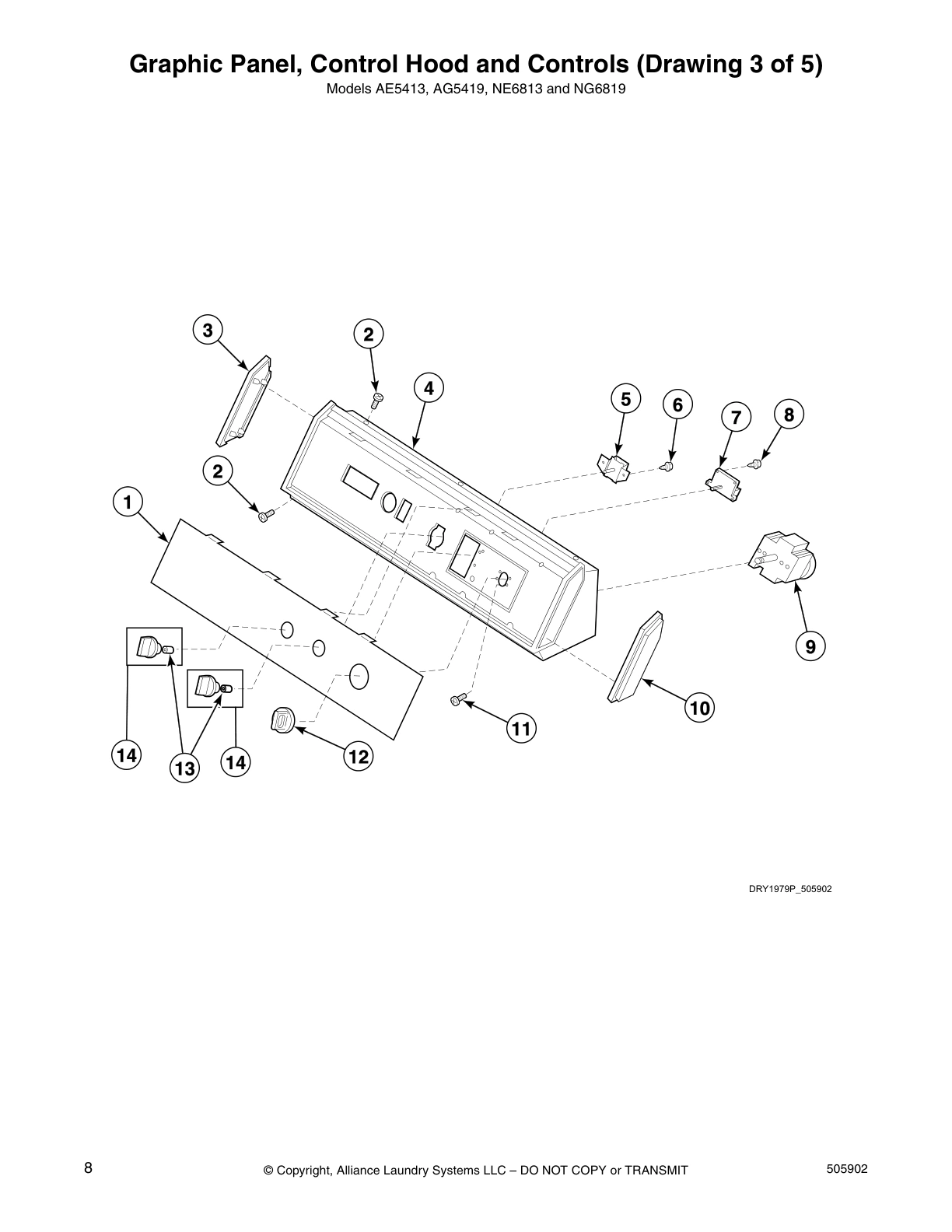

Graphic Panel, Control Hood and Controls (Drawing 2 of 5)

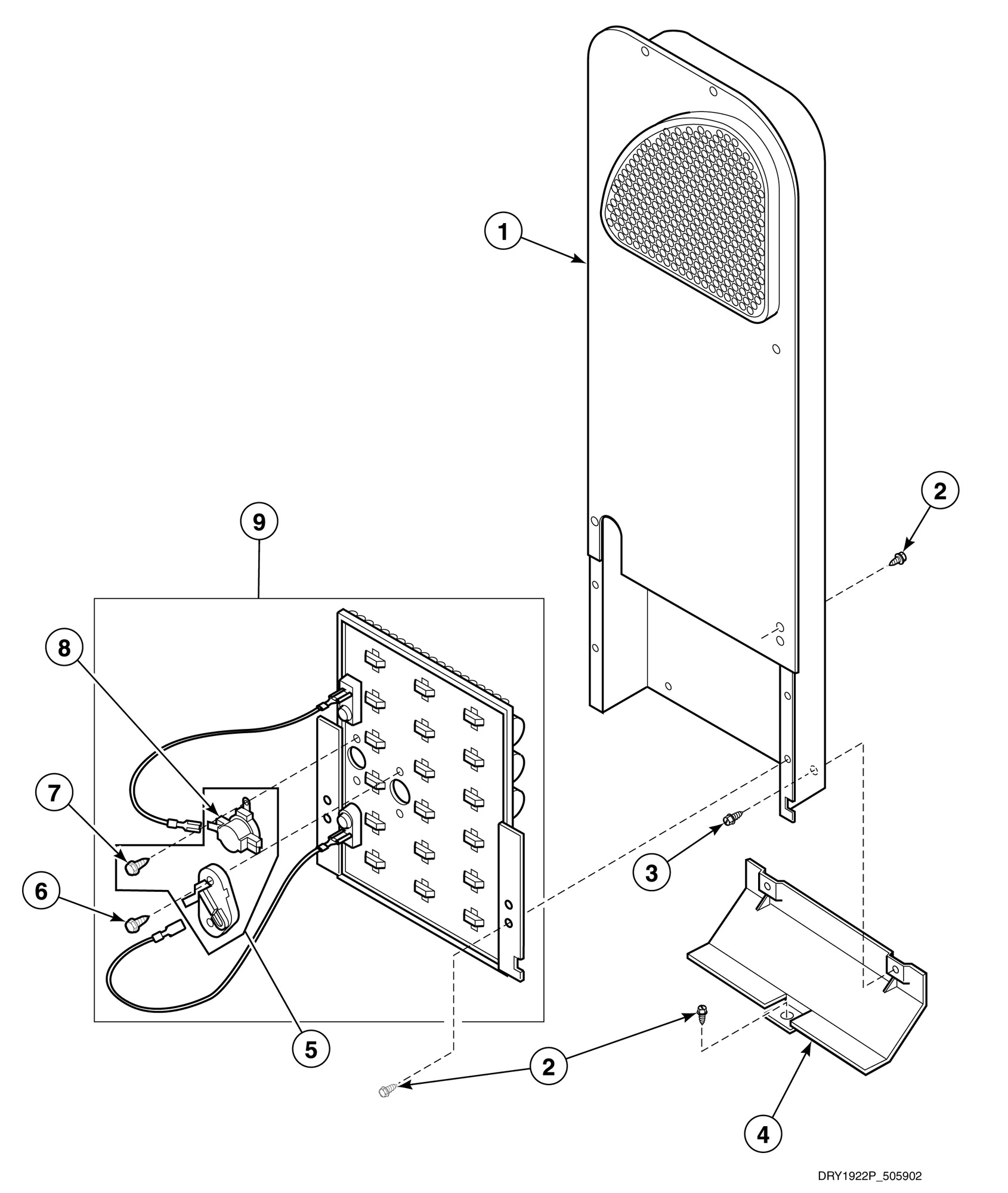

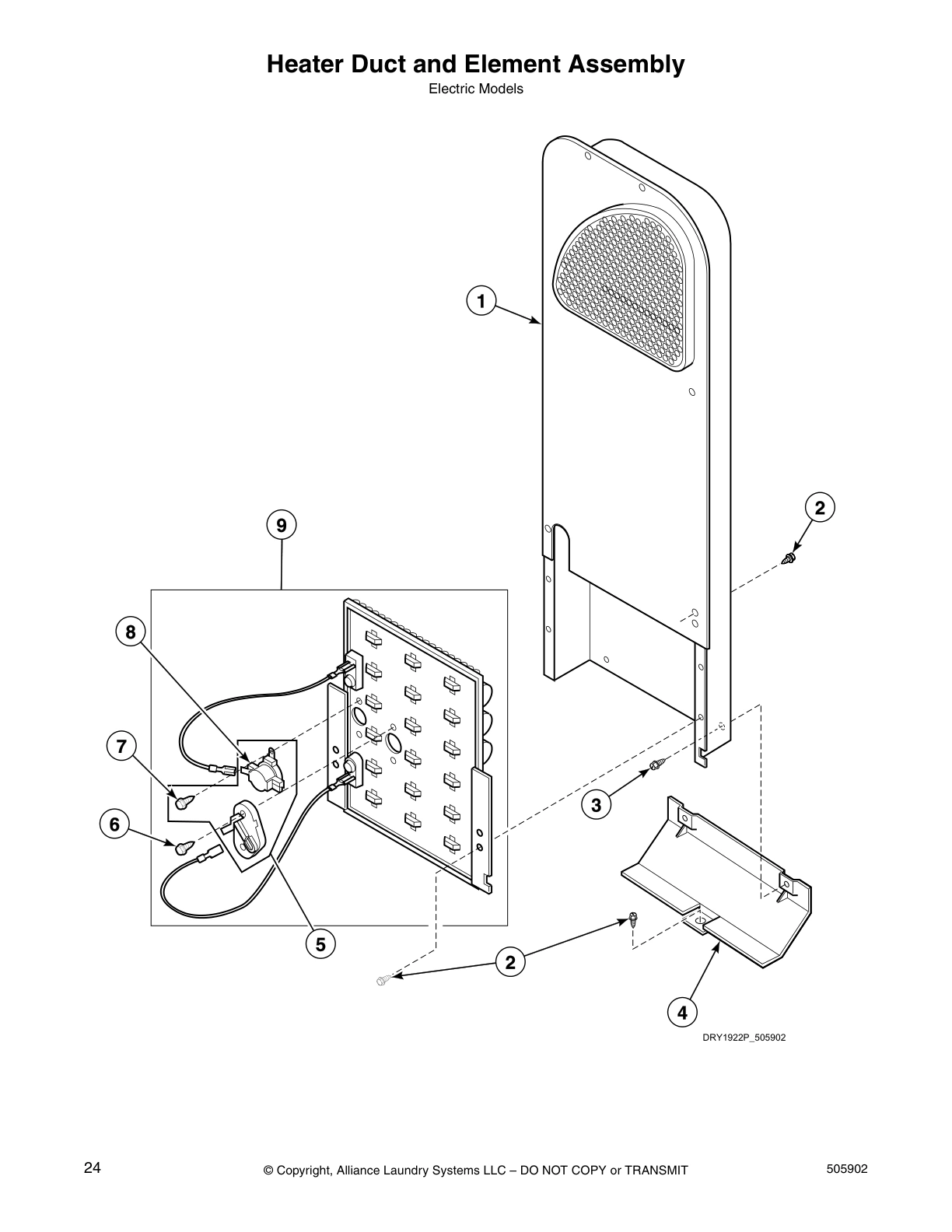

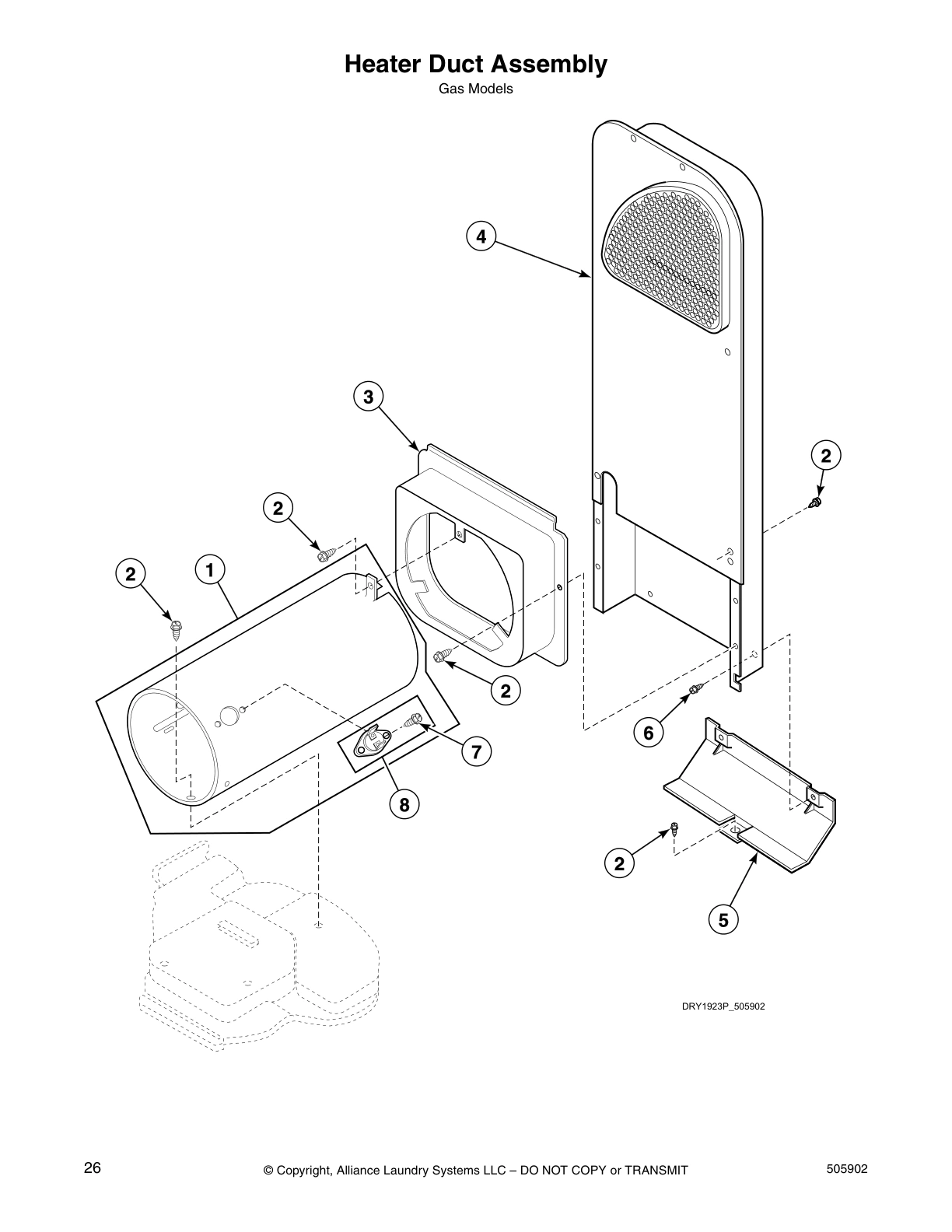

Heater Duct and Element Assembly

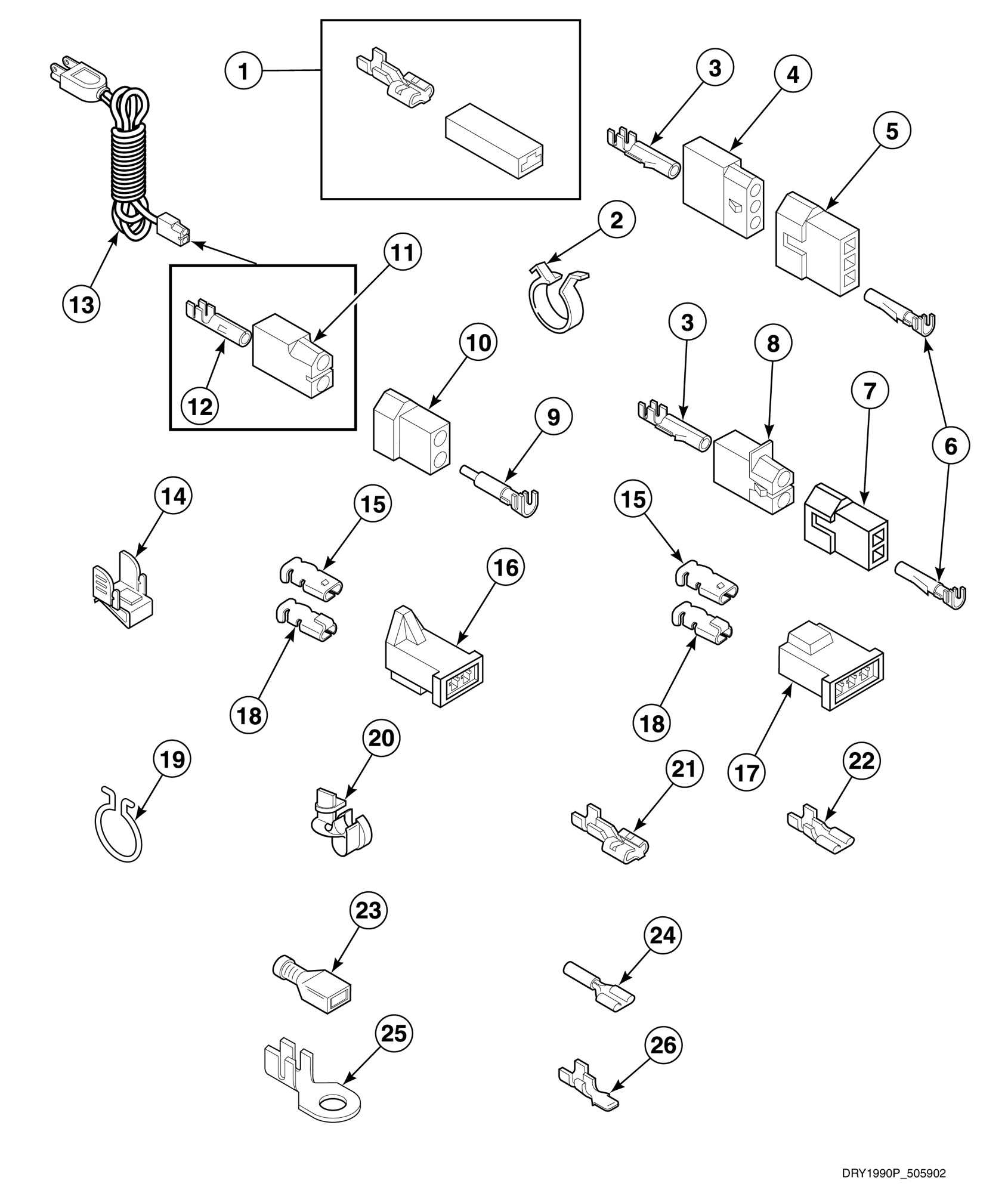

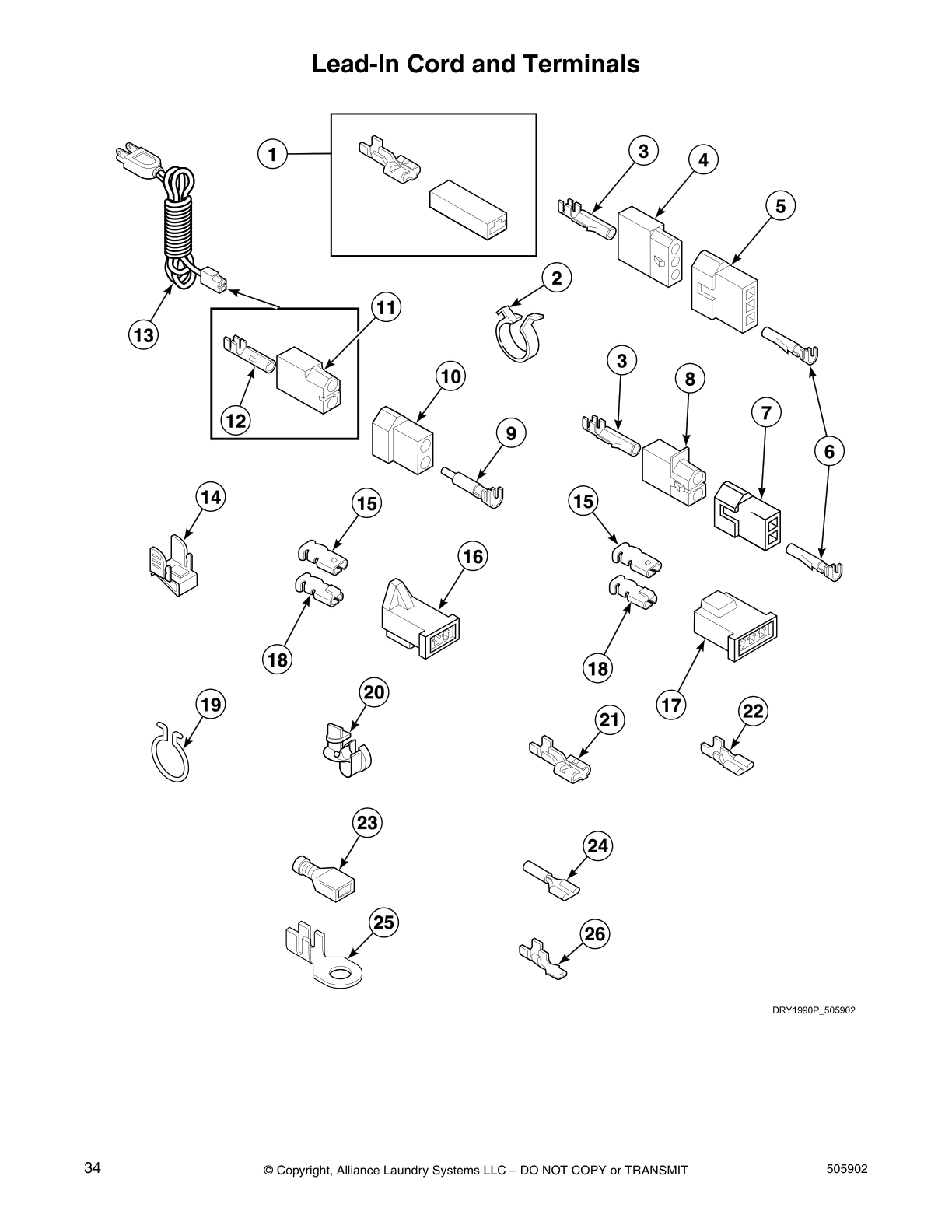

Lead-In Cord and Terminals

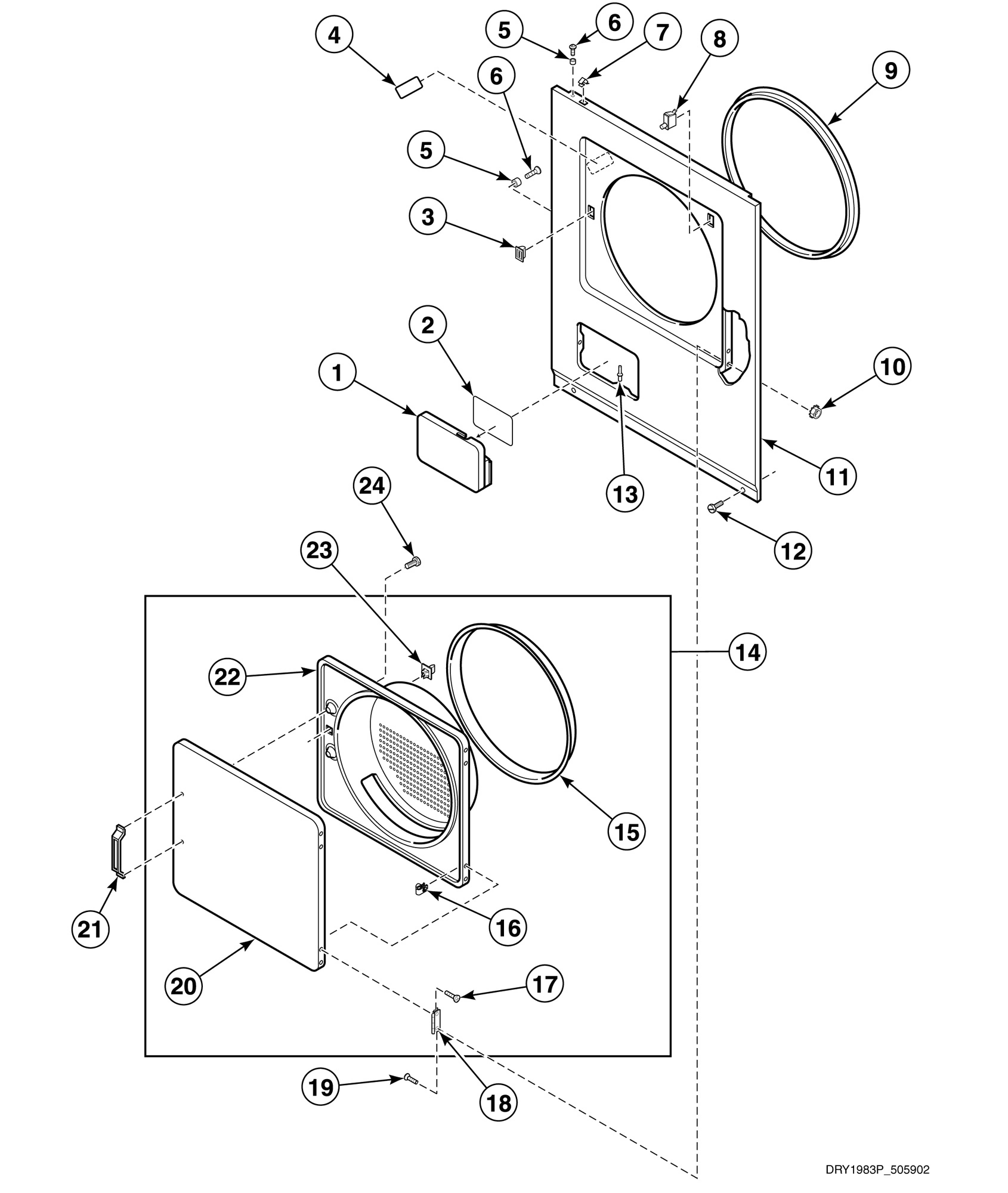

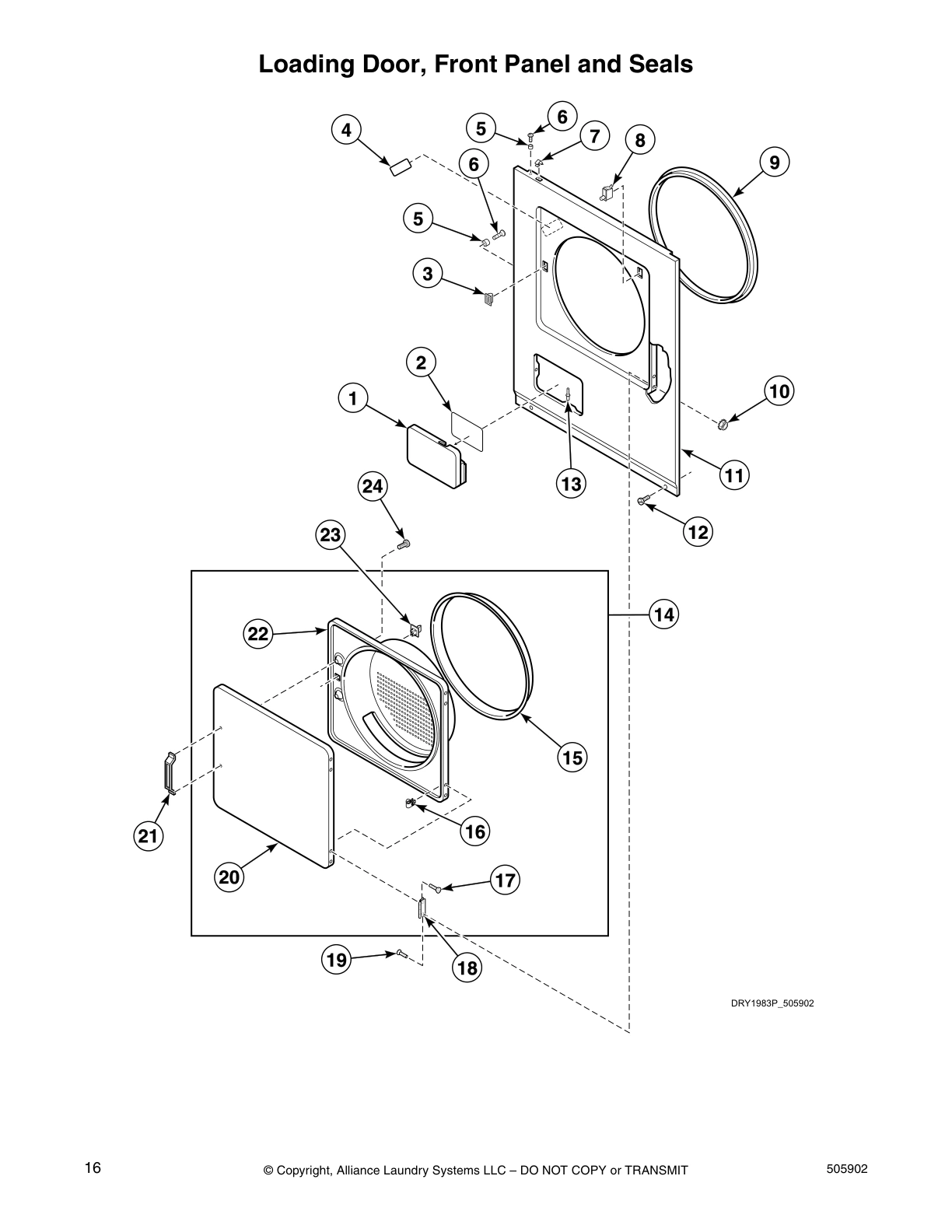

Loading Door, Front Panel and Seals

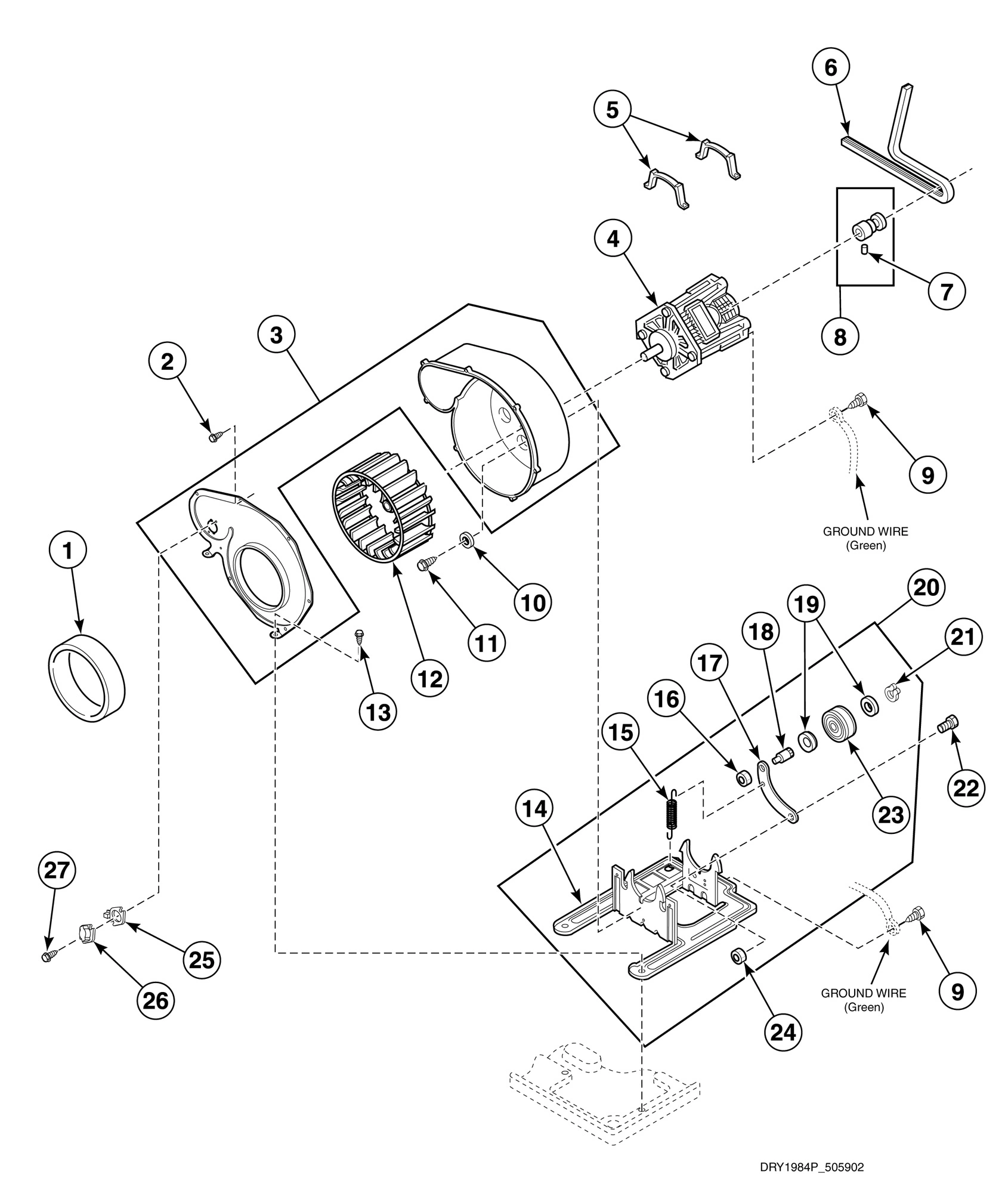

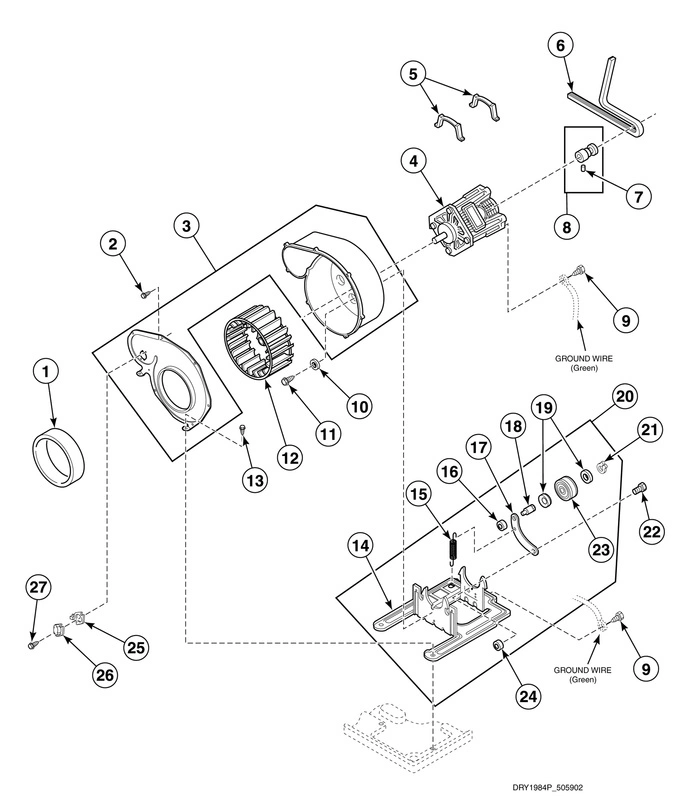

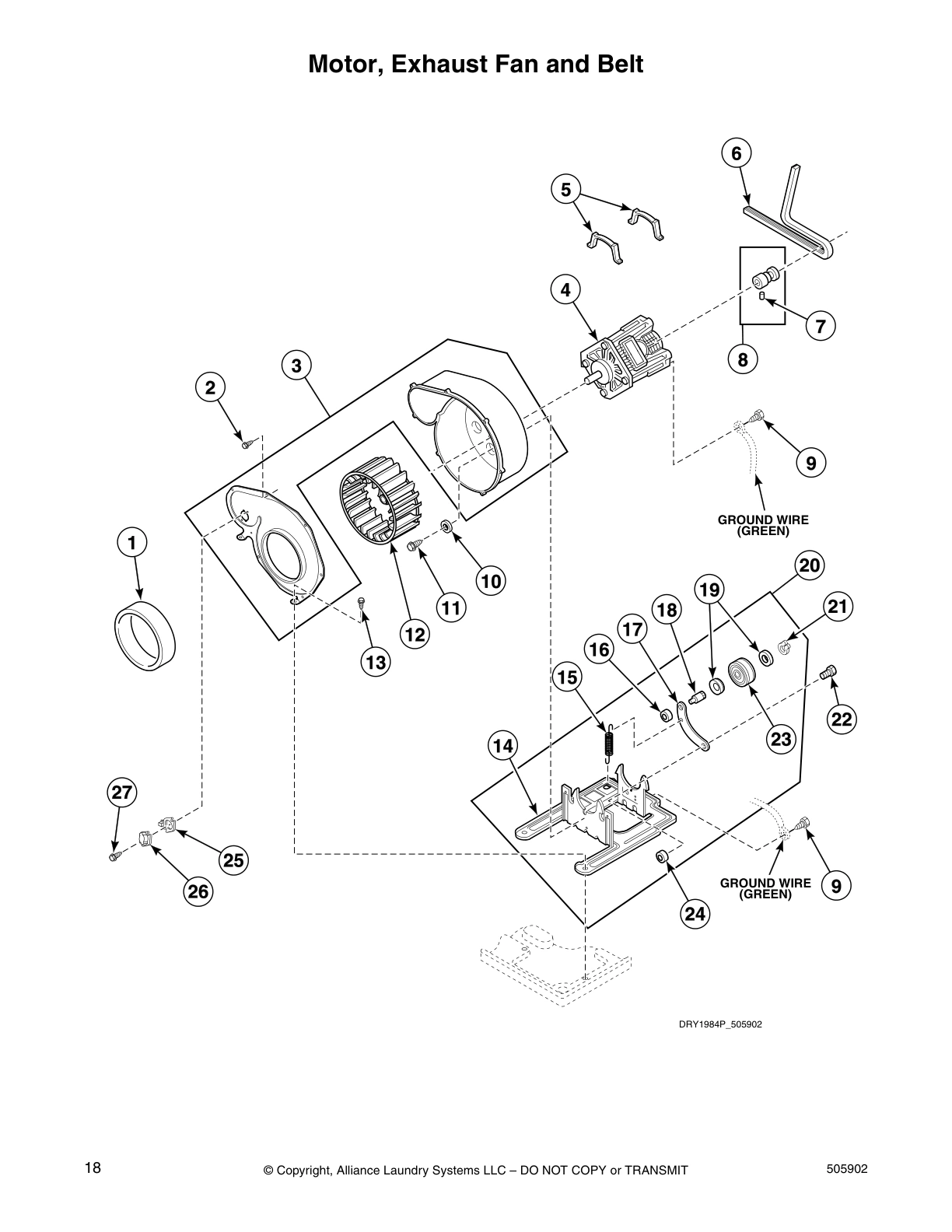

Motor, Exhaust Fan and Belt

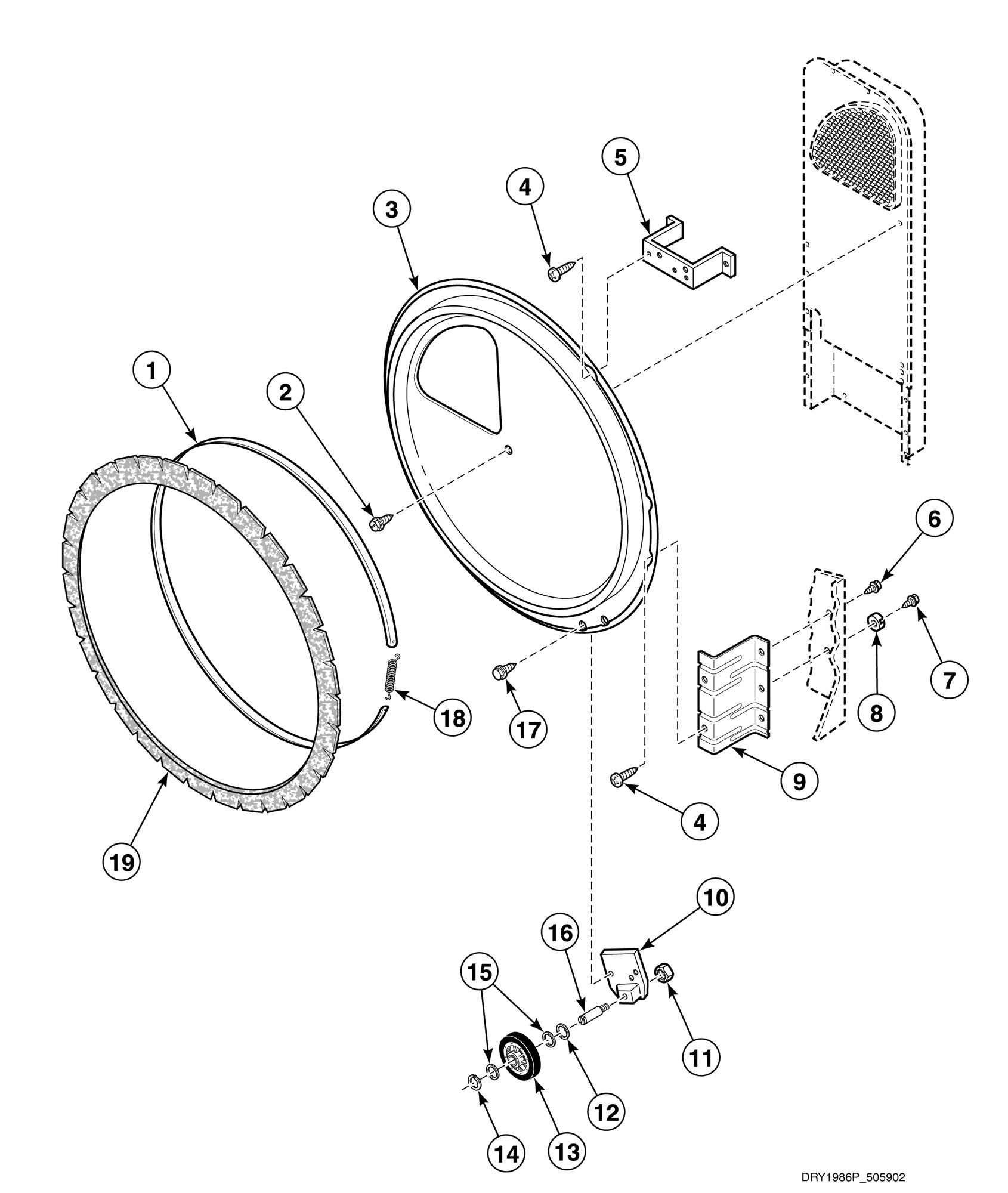

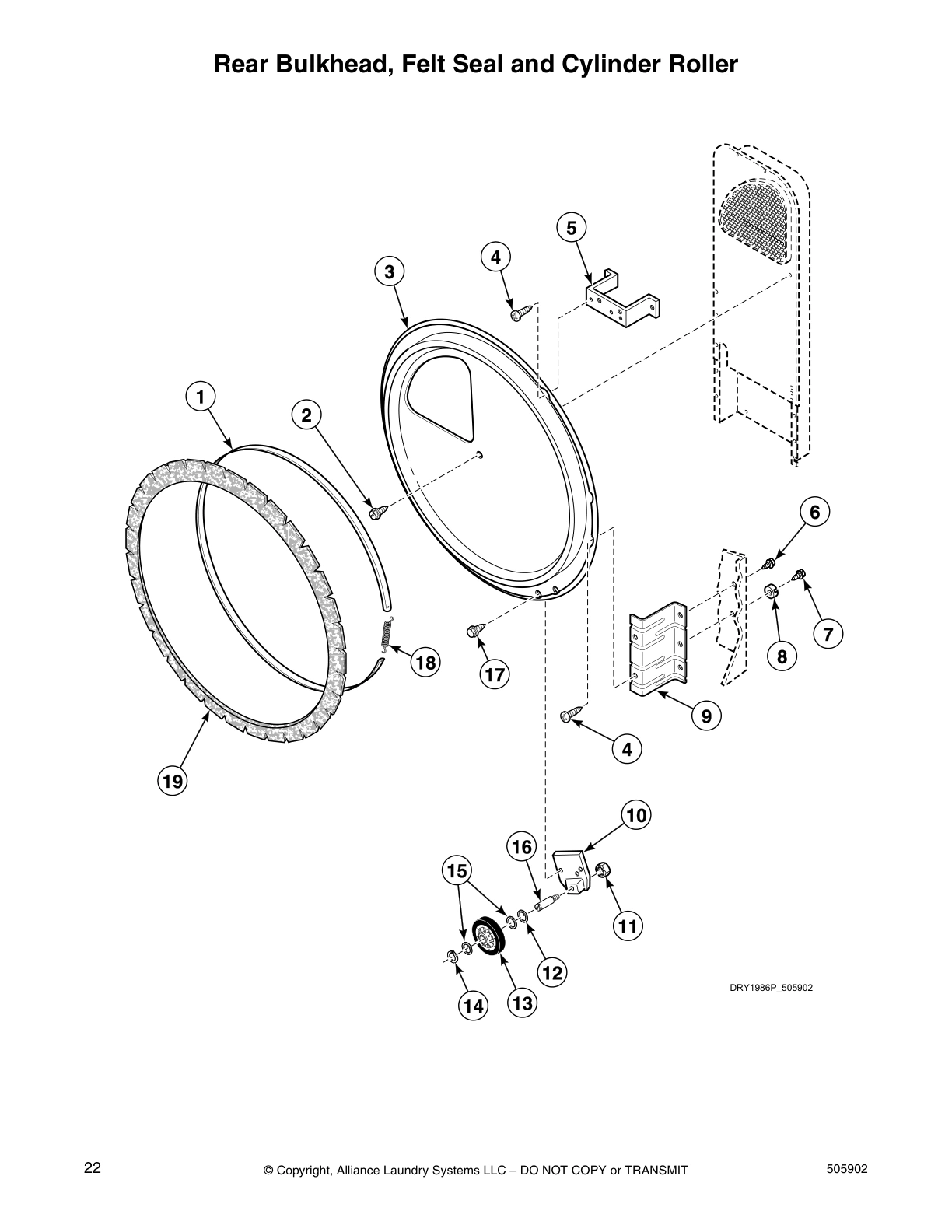

Rear Bulkhead, Felt Seal and Cylinder Roller

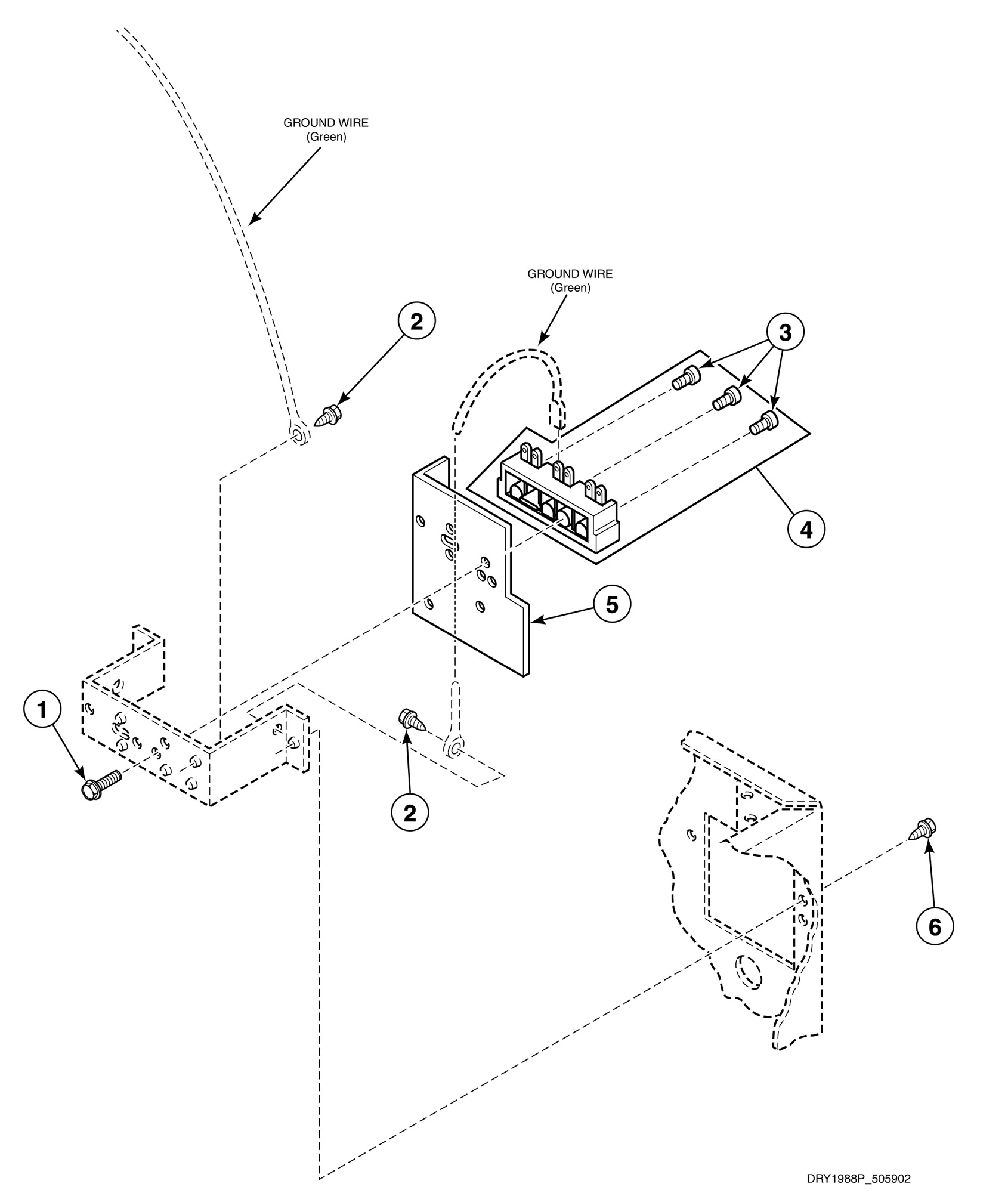

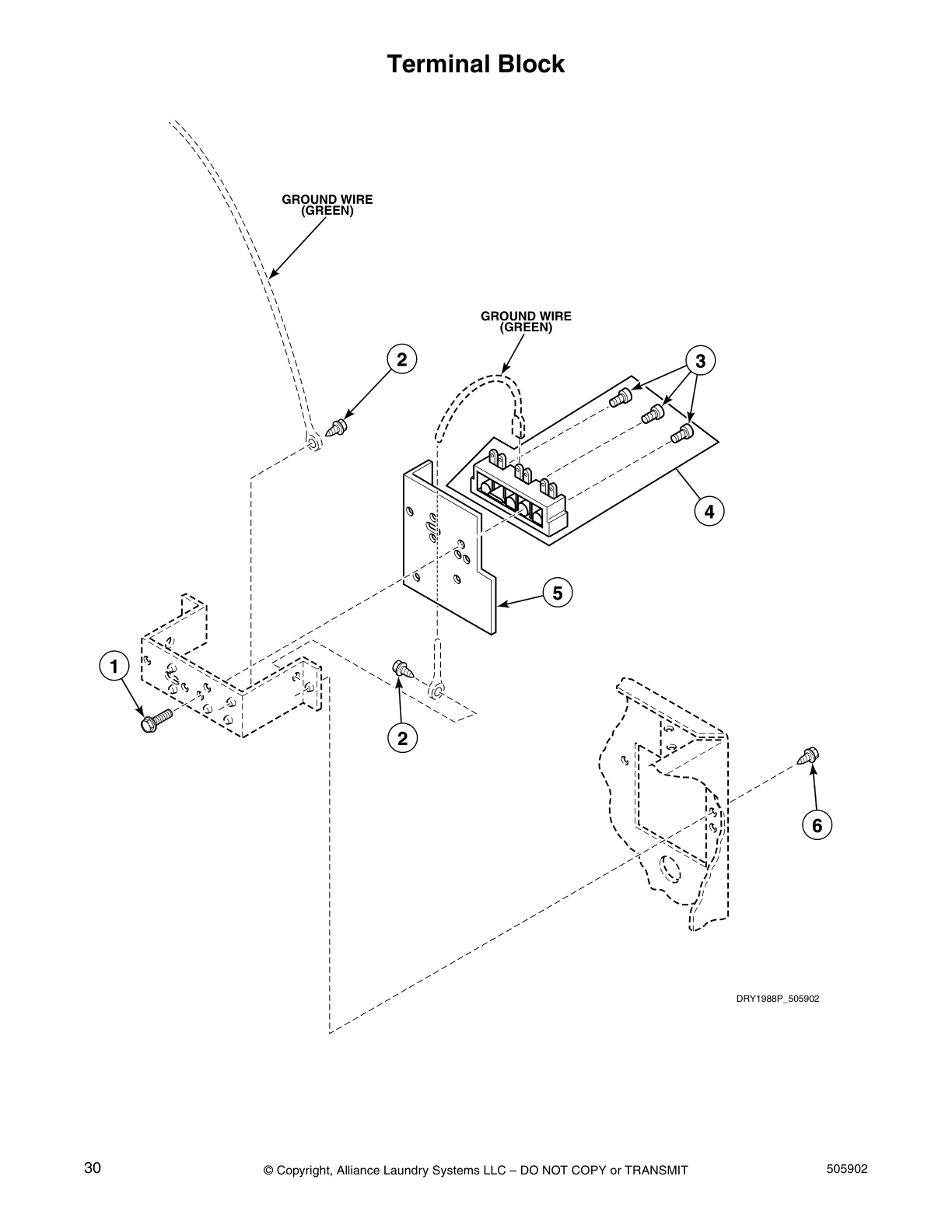

Terminal Block
Common parts from model GE AEM633 General Electric Model AEM633
1
Heater Duct and Screw Assembly GEN D510025P Contact Us For Availability
1
Ultra Pod Terminal (Comment: 1/4 inch, (1) 12 GEN 00360 Contact Us For Availability
1
Seal GEN 56065 Contact Us For Availability
1
Seal Strap GEN 56090 Contact Us For Availability
1
Screw GEN D501285 Contact Us For Availability
2
Screw GEN 23962 Contact Us For Availability
2
End Cap (Comment: Left) GEN 31249 Contact Us For Availability
2
Wire Clip GEN D504034 Contact Us For Availability
2
Gas Clearance Label GEN D511004 Contact Us For Availability
2
Screw GEN 33561 Contact Us For Availability
2
Screw GEN 20530 Contact Us For Availability
3
Drum Light Lamp GEN 60954 Contact Us For Availability
3
Screw GEN 31752 Contact Us For Availability
3
Female Pin Terminal GEN 00117 Contact Us For Availability
3
Door Catch Assembly GEN D510177 Contact Us For Availability
3
Blower Housing and Cover Kit GEN D511969WP Contact Us For Availability
3
Screw GEN 61199 Contact Us For Availability
4
Heat Duct Shield GEN 60952 Contact Us For Availability
4
3 Circuit Receptacle GEN 23039 Contact Us For Availability
4
Warning/Caution Label GEN D500281 Contact Us For Availability
4
Motor (Comment: Includes motor switch) GEN 58044 Contact Us For Availability
4
Screw GEN M400664 Contact Us For Availability
4
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Thermal Fuse Kit (Comment: Includes items 7 a GEN 490P3 Contact Us For Availability
5
Plug GEN 23040 Contact Us For Availability
5
Panel Locator GEN 56079 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Terminal Block Shield GEN 56087 Contact Us For Availability
6
Cylinder Assembly (Comment: Includes items 7 GEN 60645P Contact Us For Availability
6
Screw GEN 31260 Contact Us For Availability
6
Screw GEN D503661 Contact Us For Availability
6
Screw GEN 56693 Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Screw GEN 39733 Contact Us For Availability
6
Cylinder Belt GEN D511255 Contact Us For Availability
7
Cylinder Baffle (Comment: Short, 2 required, GEN 61399 Contact Us For Availability
7
Rotary Signal GEN D500823 Contact Us For Availability
7
2 Circuit Plug GEN 56448 Contact Us For Availability
7
Speed Clip GEN 28835 Contact Us For Availability
7
Screw GEN 62541 Contact Us For Availability
7
Screw (Comment: Green) GEN 52909 Contact Us For Availability
8
Cylinder Baffle (Comment: Extended, 1 require GEN 61027 Contact Us For Availability
8
Screw GEN D501086 Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
2 Circuit Receptacle GEN 56451 Contact Us For Availability
8
Switch GEN D512973 Contact Us For Availability
8
Washer GEN 51474 Contact Us For Availability
9
Timer GEN D502967 Contact Us For Availability
9
Screw GEN 23222 Contact Us For Availability
9
Heater Kit Assembly (Comment: Red, 240 Volt, GEN 61927 Contact Us For Availability
9
Heater Kit Assembly (Comment: White, 208 Volt GEN 61928 Contact Us For Availability
9
Male Pin Terminal GEN 00127 Contact Us For Availability
9
Front Panel Seal GEN 61380 Contact Us For Availability
10
Cylinder Roller Bracket GEN N/A Contact Us For Availability
10
End Cap (Comment: Right) GEN 31248 Contact Us For Availability
10
2 Circuit Plug GEN 56266 Contact Us For Availability
10
Nut GEN 51236 Contact Us For Availability
10
Washer GEN 20492 Contact Us For Availability
11
2 Circuit Receptacle GEN 56265 Contact Us For Availability
11
Front Panel Assembly (Comment: White) GEN 62420WP Contact Us For Availability
11
Nut GEN 56156 Contact Us For Availability
12
Timer Knob Assembly (Comment: White) GEN 62234 Contact Us For Availability
12
Female Pin Terminal GEN 00130 Contact Us For Availability
12
Blower Fan Assembly GEN D510139 Contact Us For Availability
12
Washer (Comment: Use with old style cylinder GEN 23886 Contact Us For Availability
13
NOT ON YOUR MODEL GEN - Contact Us For Availability
13
Support Barrel GEN 56534 Contact Us For Availability
13
Cylinder Roller (Comment: New style) GEN 62649 Contact Us For Availability
14
Grounding Clip GEN 00161 Contact Us For Availability
14
Motor Mount GEN D510060 Contact Us For Availability
14
Retaining Ring GEN 23748 Contact Us For Availability
15
Knob Assembly (Comment: White) GEN 33688 Contact Us For Availability
15
Female Spade Terminal (Comment: 1/8 inch) GEN 00189 Contact Us For Availability
15
Door Seal GEN 61379 Contact Us For Availability
15
Idler Spring GEN D510185 Contact Us For Availability
15
Washer GEN 52549 Contact Us For Availability
16
2 Circuit Connector GEN 58799 Contact Us For Availability
16
Nut GEN 23407 Contact Us For Availability
16
Shaft GEN 56461 Contact Us For Availability
17
Lint Filter GEN 61376P Contact Us For Availability
17
Screw GEN 51780 Contact Us For Availability
17
3 Circuit Connector GEN 58800 Contact Us For Availability
17
Screw GEN 52864 Contact Us For Availability
18
Female Piggyback Terminal GEN 00361 Contact Us For Availability
18
Hinge GEN 56045 Contact Us For Availability
18
Spring GEN 52310 Contact Us For Availability
19
Seal Assembly GEN 56088 Contact Us For Availability
19
Wire Clip GEN 51291 Contact Us For Availability
19
Screw GEN 22649 Contact Us For Availability
20
Strain Relief GEN 38384 Contact Us For Availability
20
Motor Mount and Idler Assembly (Comment: Incl GEN D511227 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00222 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
21
Door Pull GEN 61925 Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, (2 GEN 00209 Contact Us For Availability
23
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
23
Ultra Pod Terminal (Comment: 1/4 inch) GEN 00359 Contact Us For Availability
23
Door Strike GEN D510181 Contact Us For Availability
23
Idler Wheel and Bearing Assembly GEN D510142 Contact Us For Availability
24
Pre-Insulated Spade Terminal (Comment: 12 gau GEN 00215 Contact Us For Availability
24
Nut GEN 52566 Contact Us For Availability
25
Ring Termina GEN 00110 Contact Us For Availability
25
GEN 00111 GEN 00111 Contact Us For Availability
25
Thermostat Heater (Comment: Use with 61372 Th GEN 61401 Contact Us For Availability
26
GEN 00139 GEN 00139 Contact Us For Availability
26
Thermostat GEN 61372 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
× ![]()
