Model Whirlpool ADW350RAB DISHWASHER – Common Parts & Diagrams

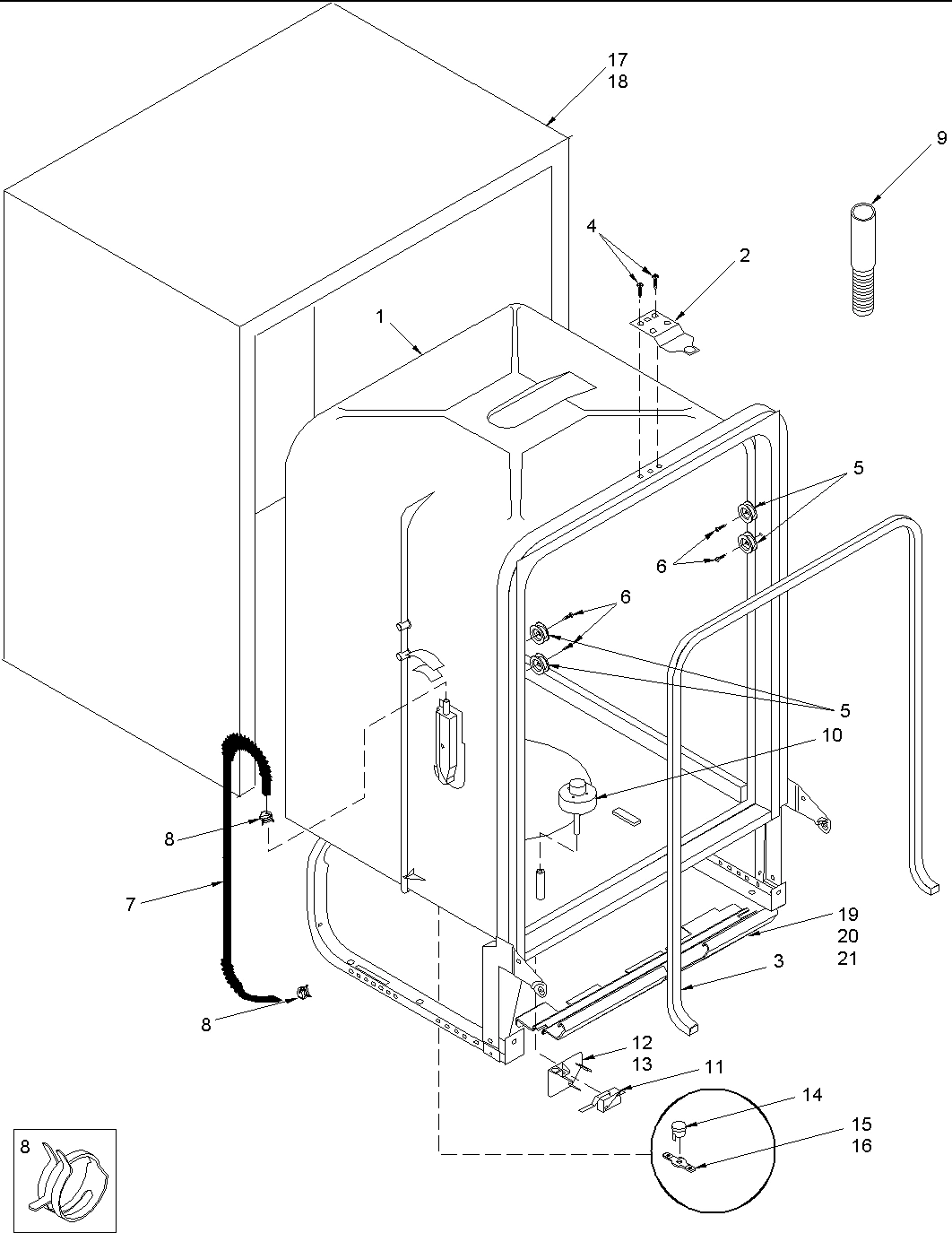

06 - Tub

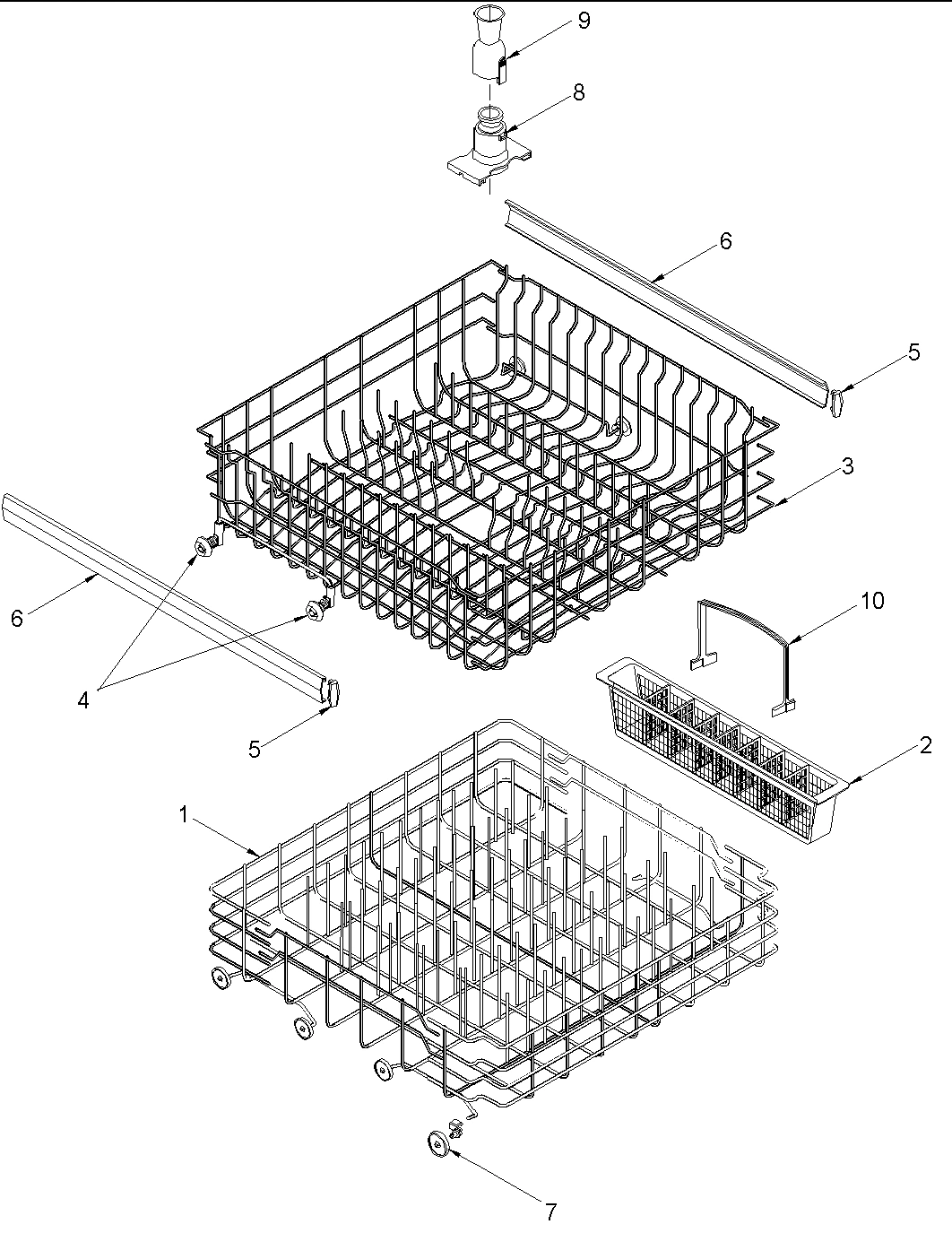

05 - Rack

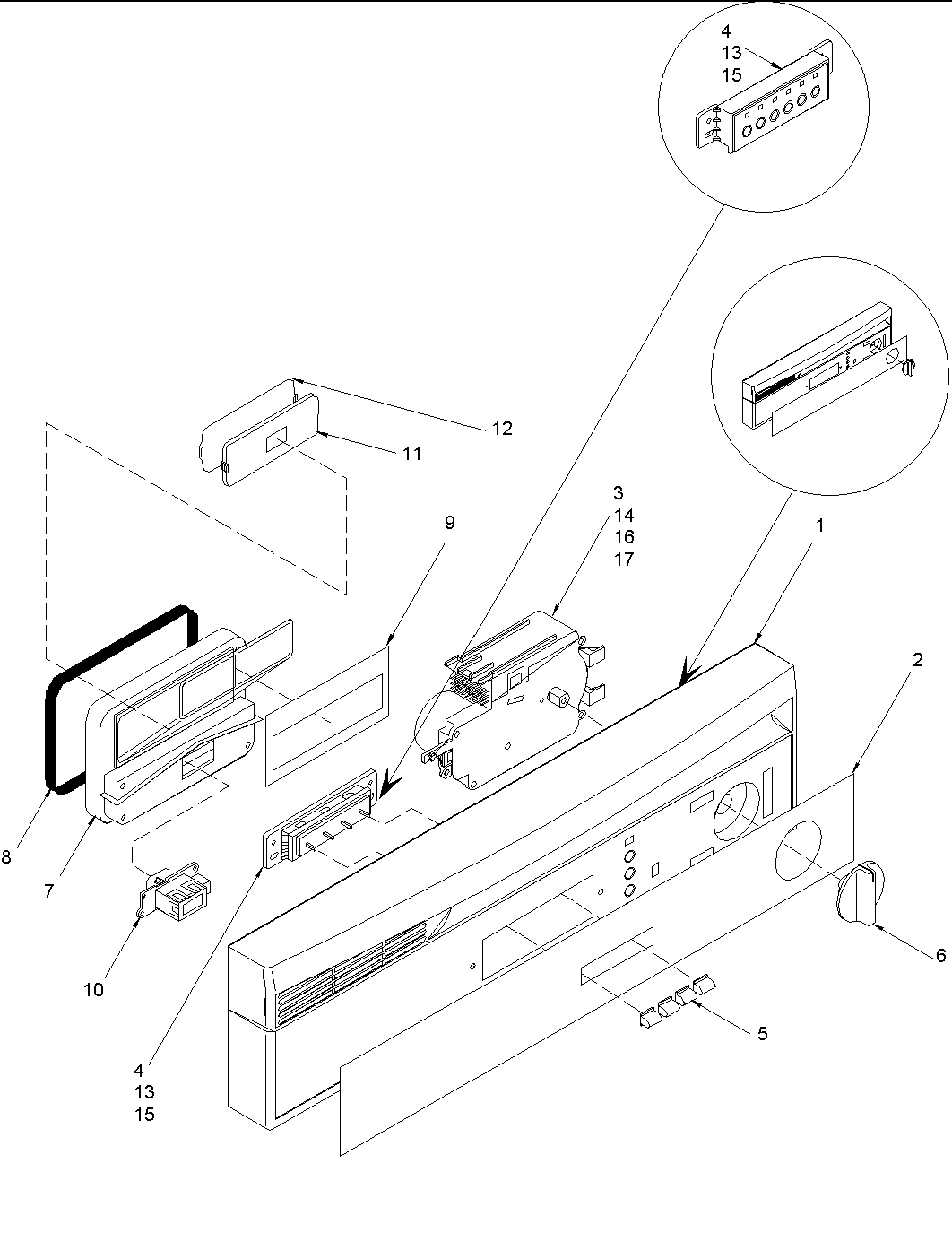

01 - Control Panel

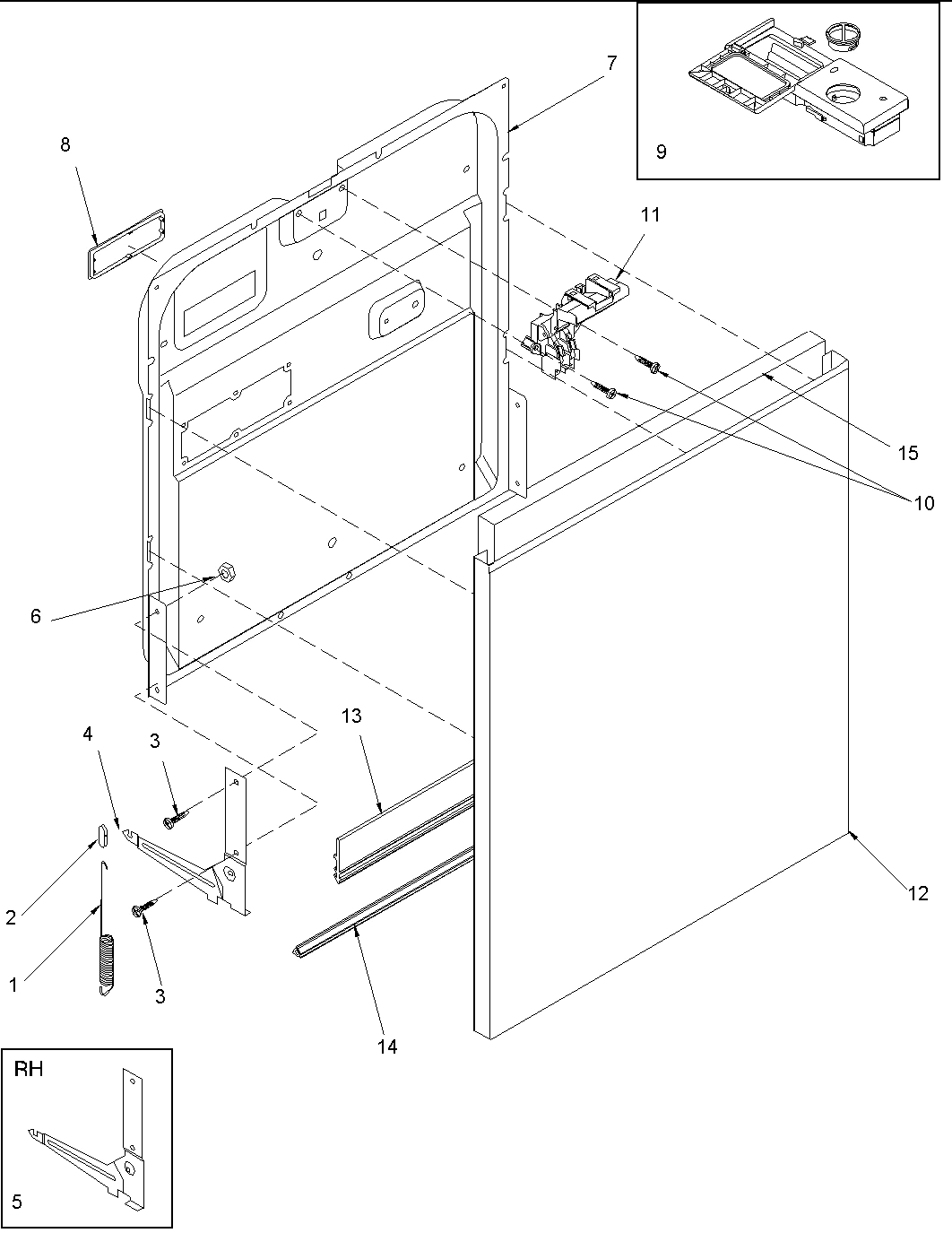

02 - Door

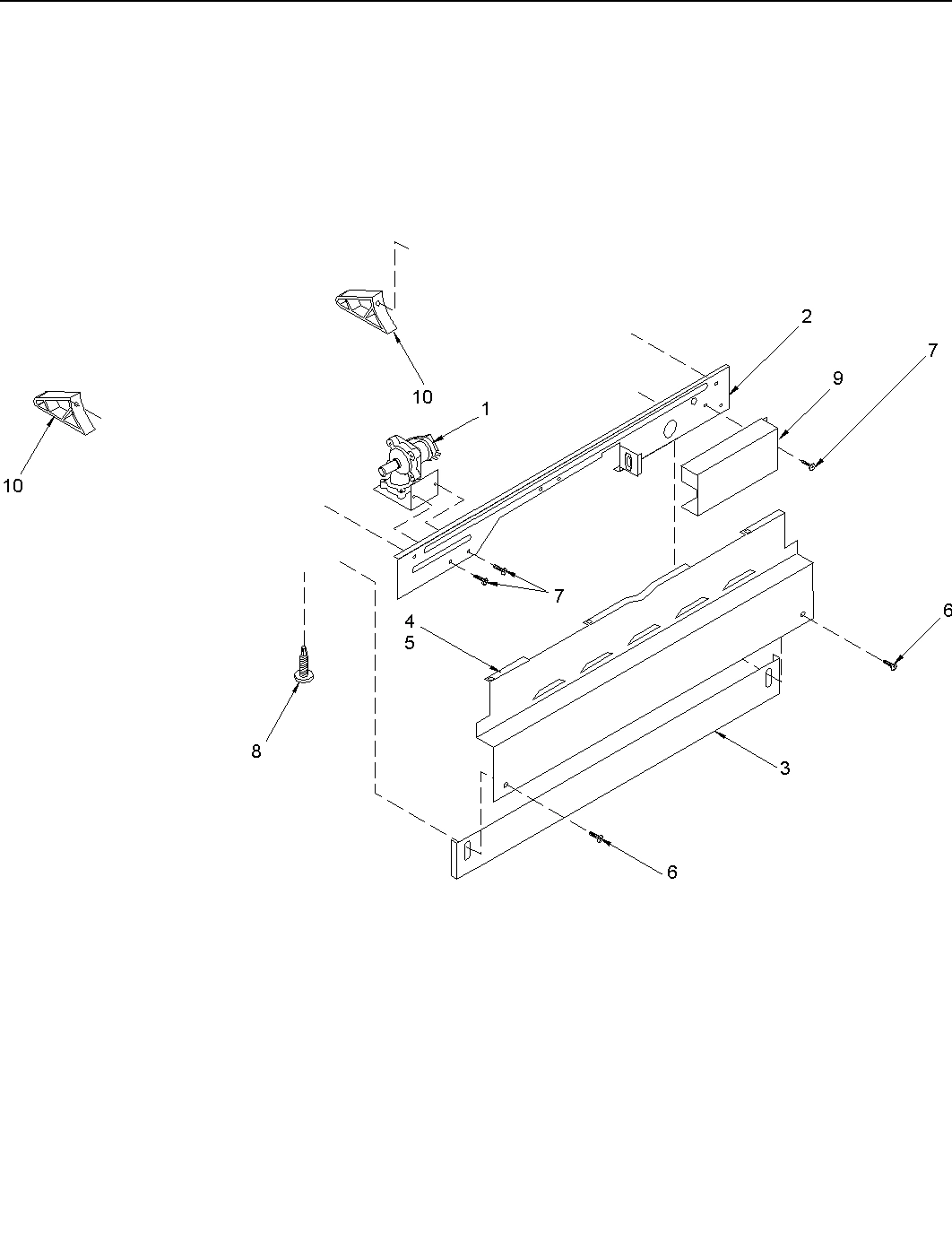

03 - Frame

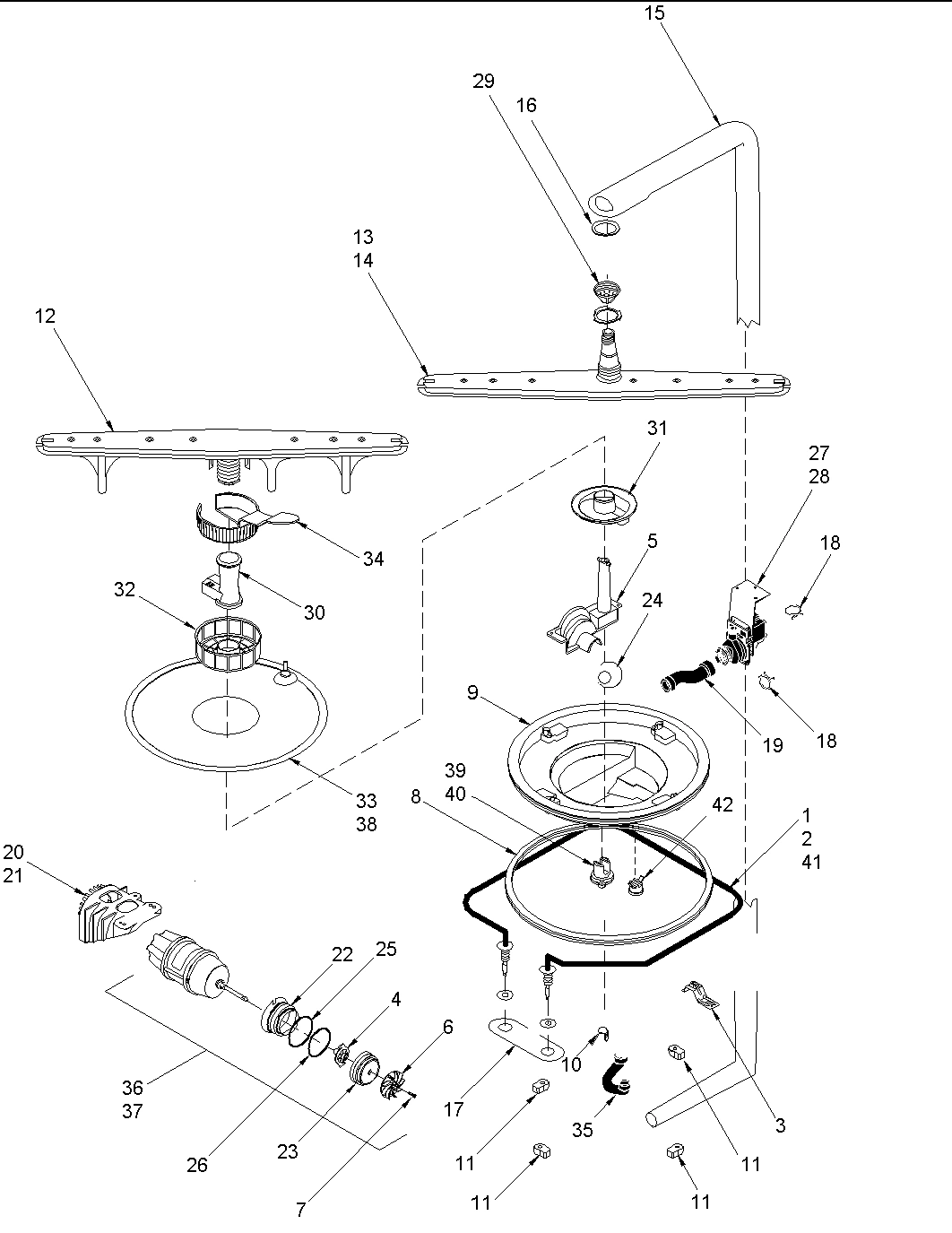

04 - Motor
Common parts from model Whirlpool ADW350RAB DISHWASHER
1
TUB ASSY W/FRAME PARTS WPL YNOTAVAIL Contact Us For Availability
1
ASSY, LOWER RACK WPL R9800203 Contact Us For Availability
1
PANEL,CONTROL(BLACK) WPL R0000419 Contact Us For Availability
1
SPRING WPL R0000454 Contact Us For Availability
1
HEATER WPL R9800148 Contact Us For Availability
2
STRIKE, DOOR WPL R9800084 Contact Us For Availability
2
BASKET, SILVERWARE WPL R9800080 Contact Us For Availability
2
INSERT,CONTROL PANEL(BLACK) WPL R0000420 Contact Us For Availability
2
SPRING, LINKAGE WPL R9800211 Contact Us For Availability
2
BRACE, FRONT WPL R9800074 Contact Us For Availability
2
NUT, HEATER WPL R9800066 Contact Us For Availability
3
GASKET, TUB WPL R9800085 Contact Us For Availability
3
ASSY,UPPER RACK WPL R0000483 Contact Us For Availability
3
TIMER WPL R9900155 Contact Us For Availability
3
SCREW, ARM ASSY WPL R9800063 Contact Us For Availability
3
TOEPLATE, ADJUSTABLE (BLK) WPL R9800209 Contact Us For Availability
3
BRACKET,HEATER (2) WPL R0000303 Contact Us For Availability
4
ASSY,UPPER RACK-WHEEL&BUSHING WPL R0000316 Contact Us For Availability
4
SWITCH, SELECTOR WPL R9800088 Contact Us For Availability
4
ASSY, L.H. ARM WPL R9800213 Contact Us For Availability
4
ASSY,KICKPLATE/BAFFLE(BLACK) WPL R0000311 Contact Us For Availability
4
MACERATOR WPL R9800136 Contact Us For Availability
5
ROLLER, TUB WPL R0000455 Contact Us For Availability
5
CAP, SLIDE WPL R9800231 Contact Us For Availability
5
PUSHBUTTON (BLACK) WPL R9800123 Contact Us For Availability
5
ASSY, R.H. HINGE ARM WPL R9800212 Contact Us For Availability
5
INSULATION, KICKPLATE WPL R9800149 Contact Us For Availability
5
COVER, VOLUTE WPL R9800133 Contact Us For Availability
6
SCREW, W/WASHER WPL R9800236 Contact Us For Availability
6
SLIDE, RACK WPL R9800120 Contact Us For Availability
6
KNOB, TIMER (BLACK) WPL 12411801 Contact Us For Availability
6
IMPELLER WPL R9800135 Contact Us For Availability
7
TUBING, WATER INLET WPL R9800129 Contact Us For Availability
7
ASSY, WHEEL & BRKT WPL R9800069 Contact Us For Availability
7
ASSY, VAPOR WELDMENT WPL R9800165 Contact Us For Availability
7
ASSY, INNER DOOR WPL R0000297 Contact Us For Availability
7
SCREW, SS IMPELLER WPL R9800164 Contact Us For Availability
8
BASE, FUNNEL WPL R9800189 Contact Us For Availability
8
SEAL, CHAMBER WPL R9800116 Contact Us For Availability
8
GRATE, LINER WPL R9800100 Contact Us For Availability
8
SCREW, LEVELING WPL R9800081 Contact Us For Availability
8
GASKET, SUMP WPL R9800142 Contact Us For Availability
9
HOSE, DRAIN WPL R9800096 Contact Us For Availability
9
FUNNEL WPL R9800155 Contact Us For Availability
9
GASKET, VENT WPL R9800188 Contact Us For Availability
9
COVER, J-BOX WPL R9800077 Contact Us For Availability
9
HOUSING, SUMP WPL R0000304 Contact Us For Availability
10
FLOAT WPL R9800078 Contact Us For Availability
10
ACTUATOR, WAX WPL R9800108 Contact Us For Availability
10
SCREW, LATCH WPL R9800065 Contact Us For Availability
10
GUARD, MOTOR WPL R9800110 Contact Us For Availability
10
VALVE, CHECK WPL R0000305 Contact Us For Availability
11
SWITCH, FLOAT WPL R9800095 Contact Us For Availability
11
VENT, VALVE WPL R9800109 Contact Us For Availability
11
ASSY,LATCH(BLACK) WPL R0000430 Contact Us For Availability
11
RETAINER, SUMP WPL R9800141 Contact Us For Availability
12
BRACKET, FLOAT SWITCH WPL R9800079 Contact Us For Availability
12
GASKET, VALVE WPL R0000294 Contact Us For Availability
12
DOOR(BLACK) WPL R0000432 Contact Us For Availability
12
ARM, LOWER SPRAY WPL R9800152 Contact Us For Availability
13
SCREW,BRKT MTG PH TRUSS HEAD WPL R0000456 Contact Us For Availability
13
SHIELD,SWITCH WPL R0000453 Contact Us For Availability
13
GSKET, DOOR BOTTOM WPL R9800181 Contact Us For Availability
13
ARM, CENTER SPRAY WPL R9800200 Contact Us For Availability
14
THERMOSTAT, RESET WPL R9800173 Contact Us For Availability
14
SUPPORT, HINGE WPL R9800082 Contact Us For Availability
14
NUT, SPRAY ARM WPL R9800156 Contact Us For Availability
15
RETAINER, THERMOSTAT WPL R9800132 Contact Us For Availability
15
SCREW, SWITCH MTG WPL R9800235 Contact Us For Availability
15
INSULATION, DOOR WPL R9800161 Contact Us For Availability
15
NOZZLE KIT WPL R9800154 Contact Us For Availability
16
SCREW, RETAINER THERMOSTAT WPL R9800182 Contact Us For Availability
16
GASKET,DELIVERY TUBE WPL R0000306 Contact Us For Availability
17
WASHER, INSULATING WPL R9800060 Contact Us For Availability
18
INSULATION, TUB WPL R9800126 Contact Us For Availability
18
CLAMP,SILVER PUMP WPL R0000458 Contact Us For Availability
19
HOSE CONNECTOR WPL R9800121 Contact Us For Availability
20
BRACKET, MOTOR WPL R0000307 Contact Us For Availability
21
SCREW, TRUSS WPL R9800233 Contact Us For Availability
22
MOUNT, FRONT MOTOR WPL R9800139 Contact Us For Availability
23
BARREL,FRONT WPL R9800137 Contact Us For Availability
24
CHECK, BALL WPL R9800140 Contact Us For Availability
25
O-RING, REAR WPL R9800143 Contact Us For Availability
26
O-RING, FRONT WPL R9800144 Contact Us For Availability
27
ASSY, DRAIN PUMP WPL R9800147 Contact Us For Availability
28
BRACKET, DRAIN MOTOR WPL R9800122 Contact Us For Availability
29
NOZZLE,3RD LEVEL-SPRAY ARM WPL R0000308 Contact Us For Availability
30
SUPPORT, SPRAY ARM WPL R9800175 Contact Us For Availability
31
BASE, SOIL DIRECTOR WPL R9800157 Contact Us For Availability
32
FILTER, STAINLESS STEEL WPL R9800158 Contact Us For Availability
33
FILTER, STAINLESS STEEL WPL R9800159 Contact Us For Availability
34
TRAP, GLASS WPL R9800160 Contact Us For Availability
35
HOSE, DRAIN SHUNT WPL R0000309 Contact Us For Availability
36
ASSY, MOTOR/PUMP WPL R9800174 Contact Us For Availability
37
SCREW,MOTOR MTG WPL R0000459 Contact Us For Availability
41
SHIELD, HEATER TERMINAL WPL R9800171 Contact Us For Availability
42
T`STAT, TEMP BOOST WPL R9800114 Contact Us For Availability
NI
SCREW, No.10-16 X 3/8`` HEX WPL R9800072 Contact Us For Availability
NI
SCREW, No.1 WPL R9800059 Contact Us For Availability
NI
SCREW WPL R9800227 Contact Us For Availability
NI
SCREW,No.7 PLAS .375 DISP ASSY WPL R0000452 Contact Us For Availability
NI
SCREW, No.8-10 X 3/8`` PHIL WPL R9800166 Contact Us For Availability
NI
HARNESS, WIRING WPL R9900153 Contact Us For Availability
NI
CLAMP-WIRE,DRIP LOOP WPL R0000300 Contact Us For Availability
NI
PIN, ARM WPL R9800083 Contact Us For Availability
NI
CLAMP, P NYLON WPL R0000460 Contact Us For Availability
NI
BARREL, REAR WPL R9800138 Contact Us For Availability
NI
COVER, FAN WPL R9800216 Contact Us For Availability
× ![]()
