Model Maytag ACR4503SES0 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

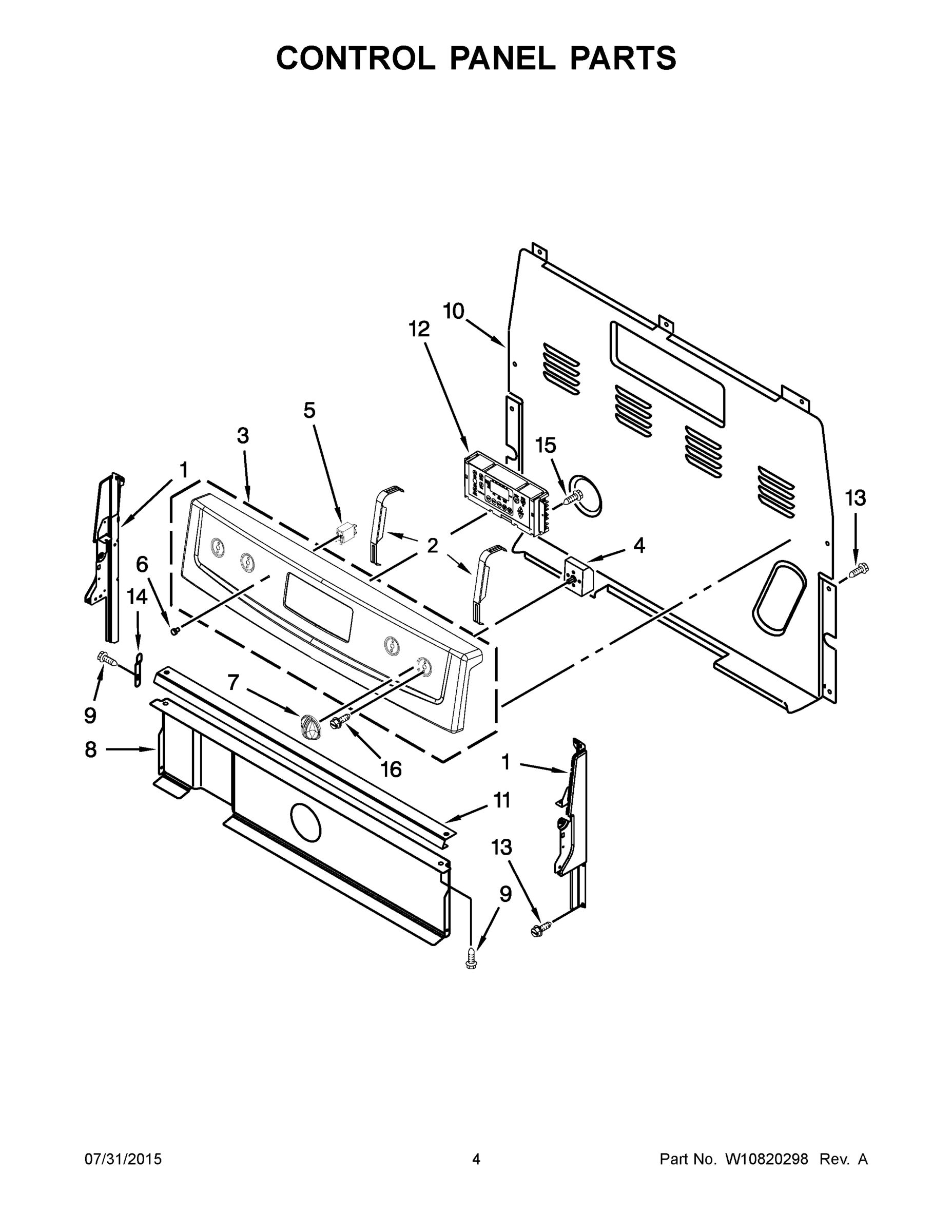

03 - CONTROL PANEL PARTS

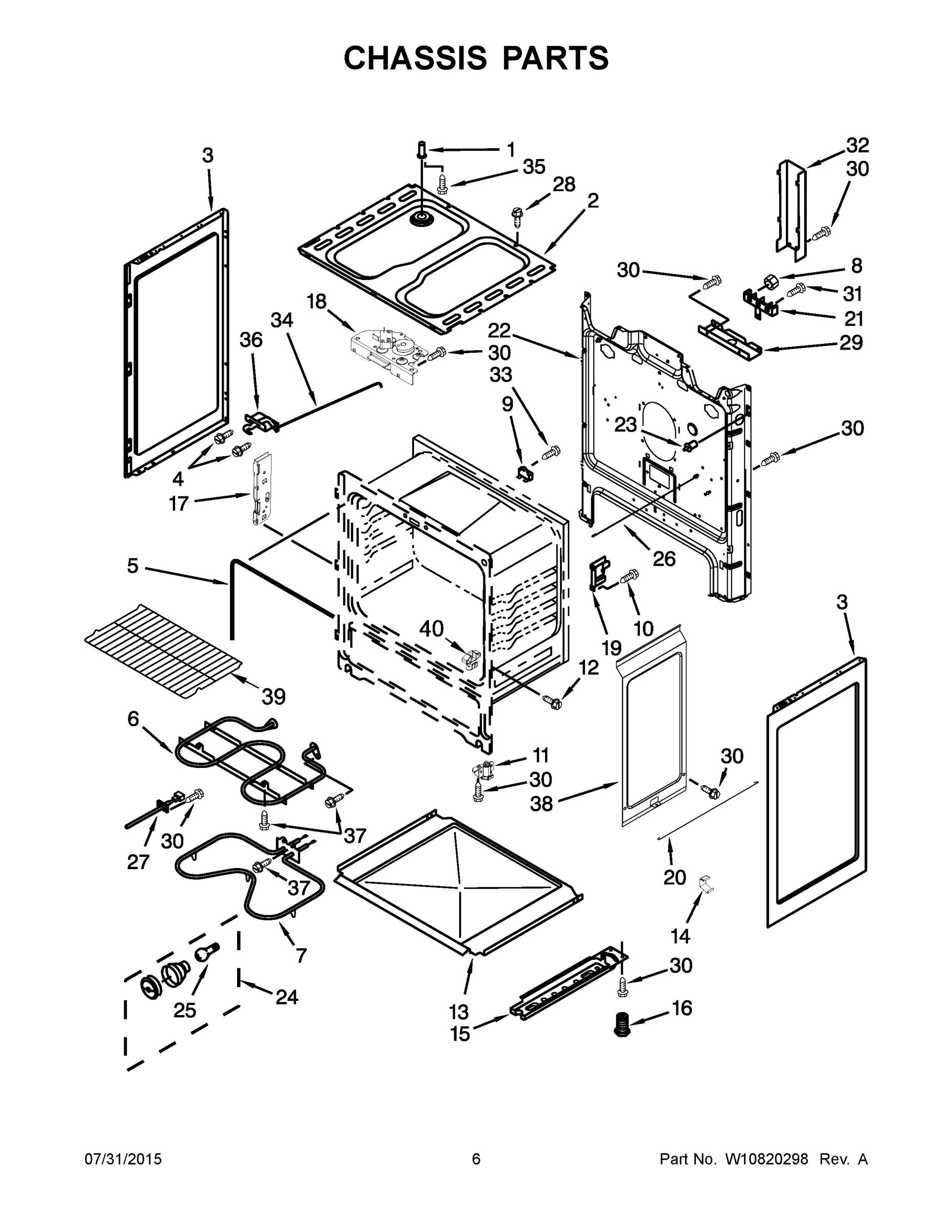

04 - CHASSIS PARTS

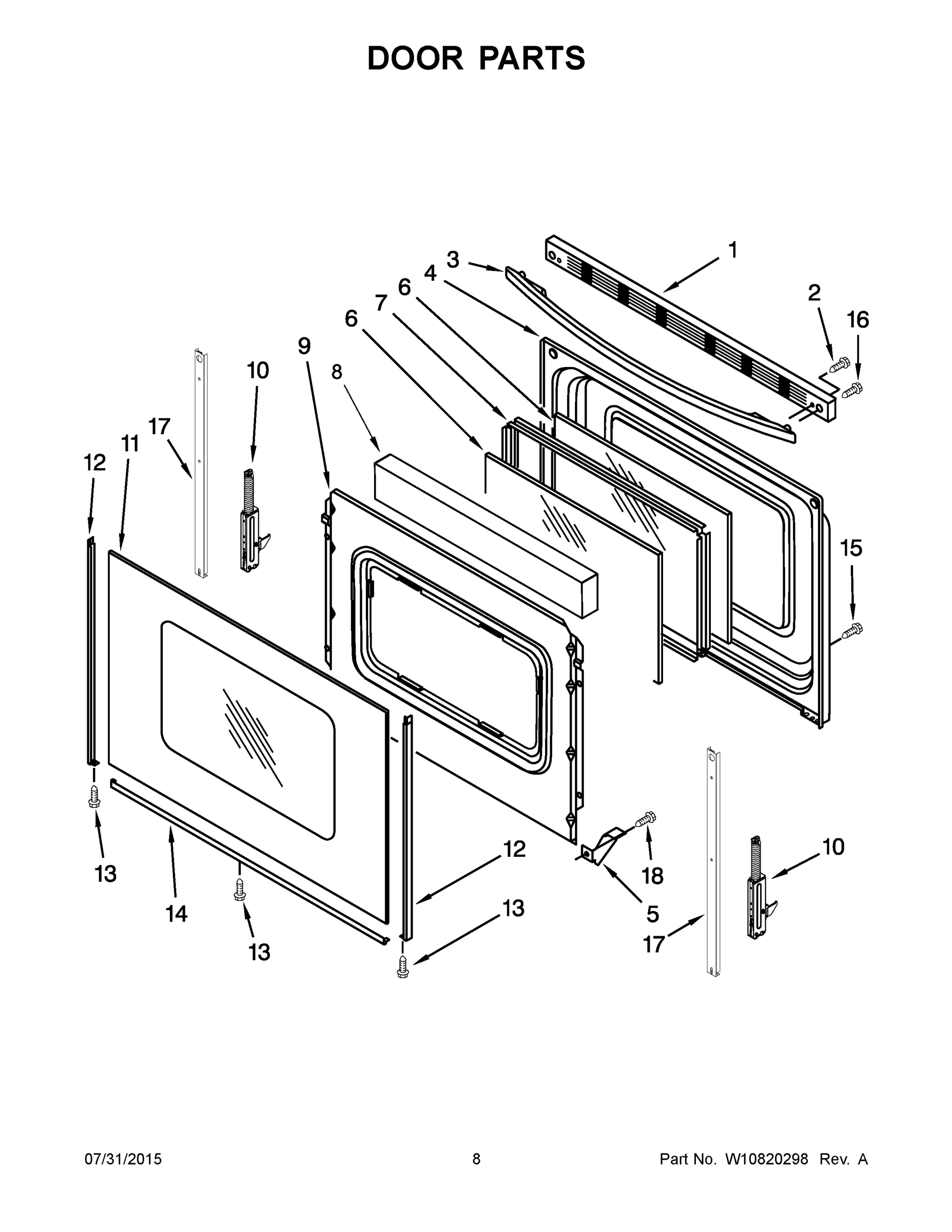

05 - DOOR PARTS

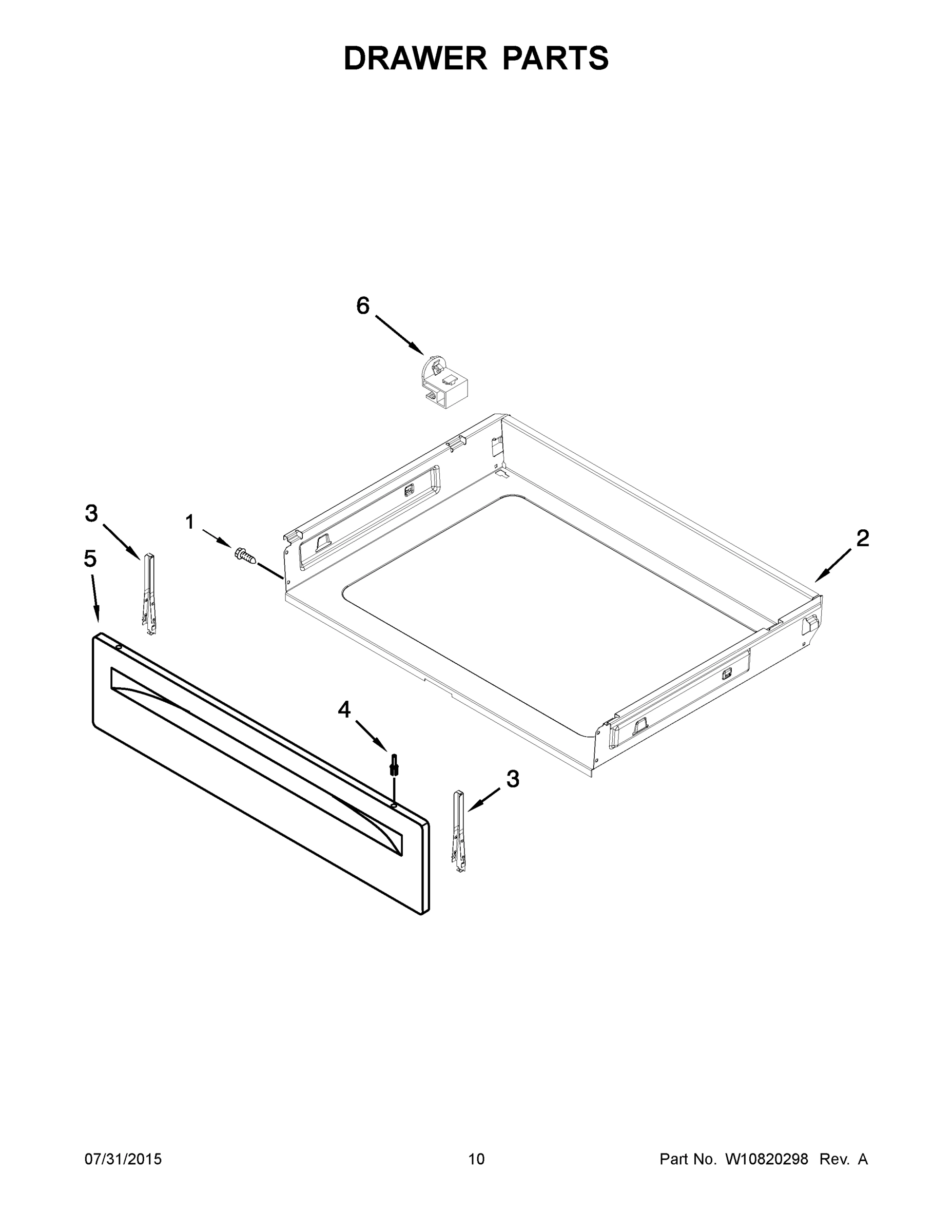

06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag ACR4503SES0 ELECTRIC RANGE
1
MAY W10572534 MAY W10572534 Contact Us For Availability
1
ENDCAP (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
1
MAY 3196165 MAY 3196165 Contact Us For Availability
1
VENT TUBE MAY 9755804 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1A
SHEET, TECH (ENGLISH) MAY W10361708 Contact Us For Availability
1A
ENDCAP (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
1A
MAY W10310922 MAY W10310922 Contact Us For Availability
1B
MAY W10403811 MAY W10403811 Contact Us For Availability
1B
ENDCAP (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1C
ENDCAP (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
2
BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR) MAY W10196406 Contact Us For Availability
2
MAY W10695491 MAY W10695491 Contact Us For Availability
2
MAY W10209613 MAY W10209613 Contact Us For Availability
2
SCREW MAY 3196164 Contact Us For Availability
2
MAY W10688022 MAY W10688022 Contact Us For Availability
2A
BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR) MAY W10196405 Contact Us For Availability
3
MAY 3186231 MAY 3186231 Contact Us For Availability
3
MAY W10572560 MAY W10572560 Contact Us For Availability
3
MAY W10575396 MAY W10575396 Contact Us For Availability
3
MAY W10323588 MAY W10323588 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462912 Contact Us For Availability
3A
MAY 3186233 MAY 3186233 Contact Us For Availability
3A
MAY W10572562 MAY W10572562 Contact Us For Availability
3A
MAY W10162245 MAY W10162245 Contact Us For Availability
3A
MAY W10323589 MAY W10323589 Contact Us For Availability
3B
MAY W10144883 MAY W10144883 Contact Us For Availability
4
MAY 3195060 MAY 3195060 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY 3148953 Contact Us For Availability
4
MAY 3196560 MAY 3196560 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) MAY 3148951 Contact Us For Availability
4A
MAY 3196813 MAY 3196813 Contact Us For Availability
5
MAY 8523265 MAY 8523265 Contact Us For Availability
5
MAY W10658354 MAY W10658354 Contact Us For Availability
5
MAY W10137382 MAY W10137382 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5A
MAY 8053341 MAY 8053341 Contact Us For Availability
5B
PANEL, DRAWER FRONT (STAINLESS) MAY W10330070 Contact Us For Availability
6
ROD, SUPPORT MAY 3195812 Contact Us For Availability
6
MAY 3196068 MAY 3196068 Contact Us For Availability
6
MAY 9757340 MAY 9757340 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
6
MAY W10674708 MAY W10674708 Contact Us For Availability
7
MAY 9760411 MAY 9760411 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY 9761962 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
7A
KNOB, INFINITE (BLACK) MAY 9761964 Contact Us For Availability
8
MAY 3196154 MAY 3196154 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY 3400029 MAY 3400029 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
9
ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT R MAY W10259870 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
9A
ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT R MAY W10259867 Contact Us For Availability
10
MAY W10306542 MAY W10306542 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY 3196169 MAY 3196169 Contact Us For Availability
10
HINGE, DOOR (ACTIVE (WITH SPRING)) MAY W10299224 Contact Us For Availability
10A
HINGE, DOOR (PASSIVE (WITHOUT SPRING)) MAY W10299227 Contact Us For Availability
11
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
11
MAY W10525121 MAY W10525121 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10118454 Contact Us For Availability
11A
GLASS, OUTER (BLACK) MAY W10118455 Contact Us For Availability
12
MAY W10626961 MAY W10626961 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
TRIM, SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
12A
MAY W10626962 MAY W10626962 Contact Us For Availability
12A
TRIM, SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
12B
TRIM, SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
12C
TRIM, SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
13
MAY 8054068 MAY 8054068 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3196200 MAY 3196200 Contact Us For Availability
14
TRIM, LOWER (WHITE) MAY 8523175 Contact Us For Availability
14A
TRIM, LOWER (BLACK) MAY 8523177 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16
MAY 3400882 MAY 3400882 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10200660 MAY W10200660 Contact Us For Availability
17
MAY W10289077 MAY W10289077 Contact Us For Availability
17
MAY W10544179 MAY W10544179 Contact Us For Availability
18
MAY W10107820 MAY W10107820 Contact Us For Availability
19
MAY W10404688 MAY W10404688 Contact Us For Availability
20
MAY W10465685 MAY W10465685 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY W10627802 MAY W10627802 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 9757239 MAY 9757239 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
29
MAY 3186034 MAY 3186034 Contact Us For Availability
30
MAY 3196178 MAY 3196178 Contact Us For Availability
31
MAY 3400016 MAY 3400016 Contact Us For Availability
32
MAY W10326122 MAY W10326122 Contact Us For Availability
33
MAY 3196172 MAY 3196172 Contact Us For Availability
34
MAY W10078380 MAY W10078380 Contact Us For Availability
35
MAY 3196567 MAY 3196567 Contact Us For Availability
36
MAY 9761013 MAY 9761013 Contact Us For Availability
37
SCREW MAY 3196174 Contact Us For Availability
38
MAY W10450380 MAY W10450380 Contact Us For Availability
39
MAY W10268578 MAY W10268578 Contact Us For Availability
40
MAY W10674705 MAY W10674705 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10084660 MAY W10084660 Contact Us For Availability
NI
MAY W10251772 MAY W10251772 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10279107 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
MAY 3184478 MAY 3184478 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
