Model Maytag ABR1927VES10 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

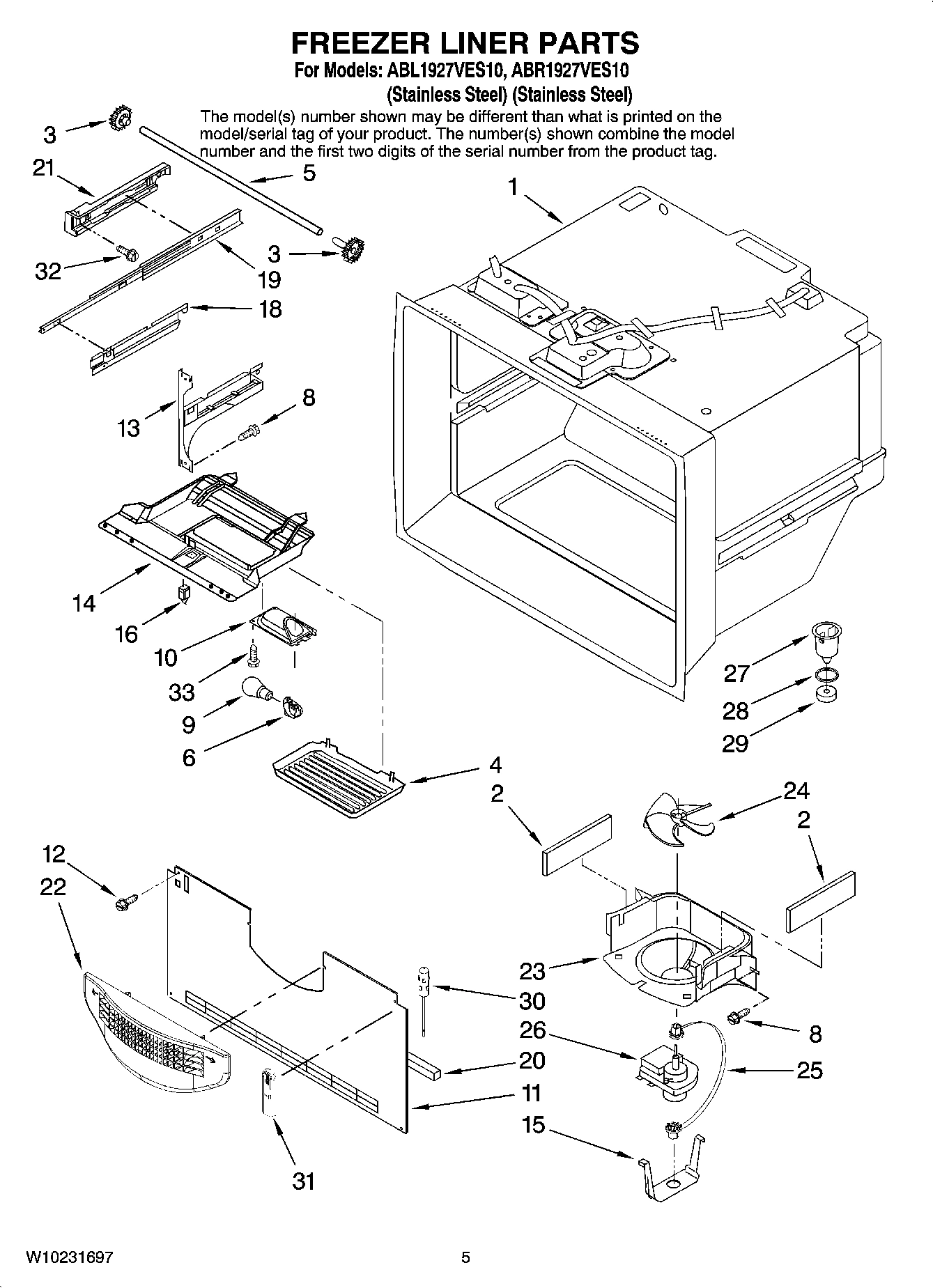

03 - FREEZER LINER PARTS

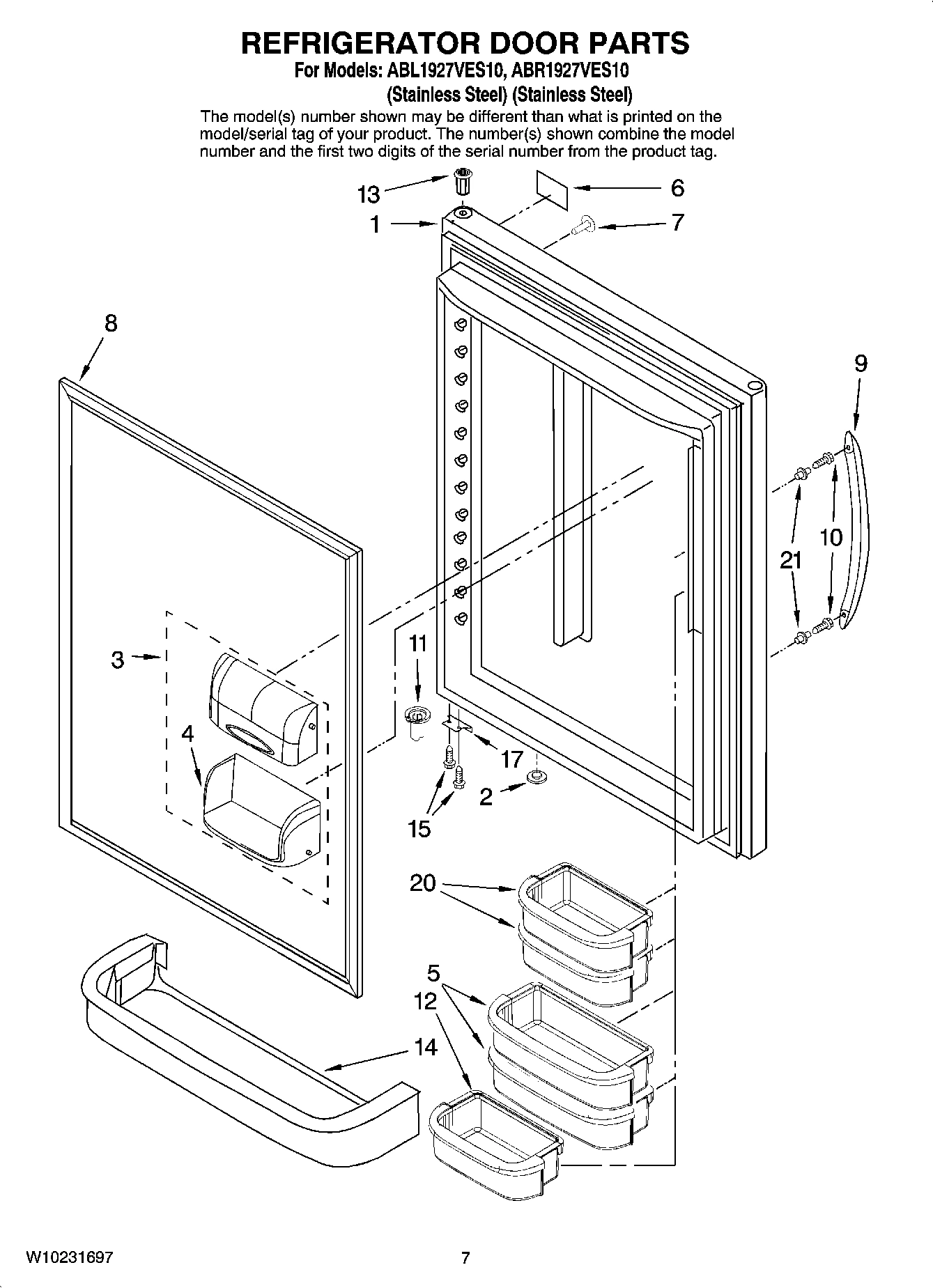

04 - REFRIGERATOR DOOR PARTS

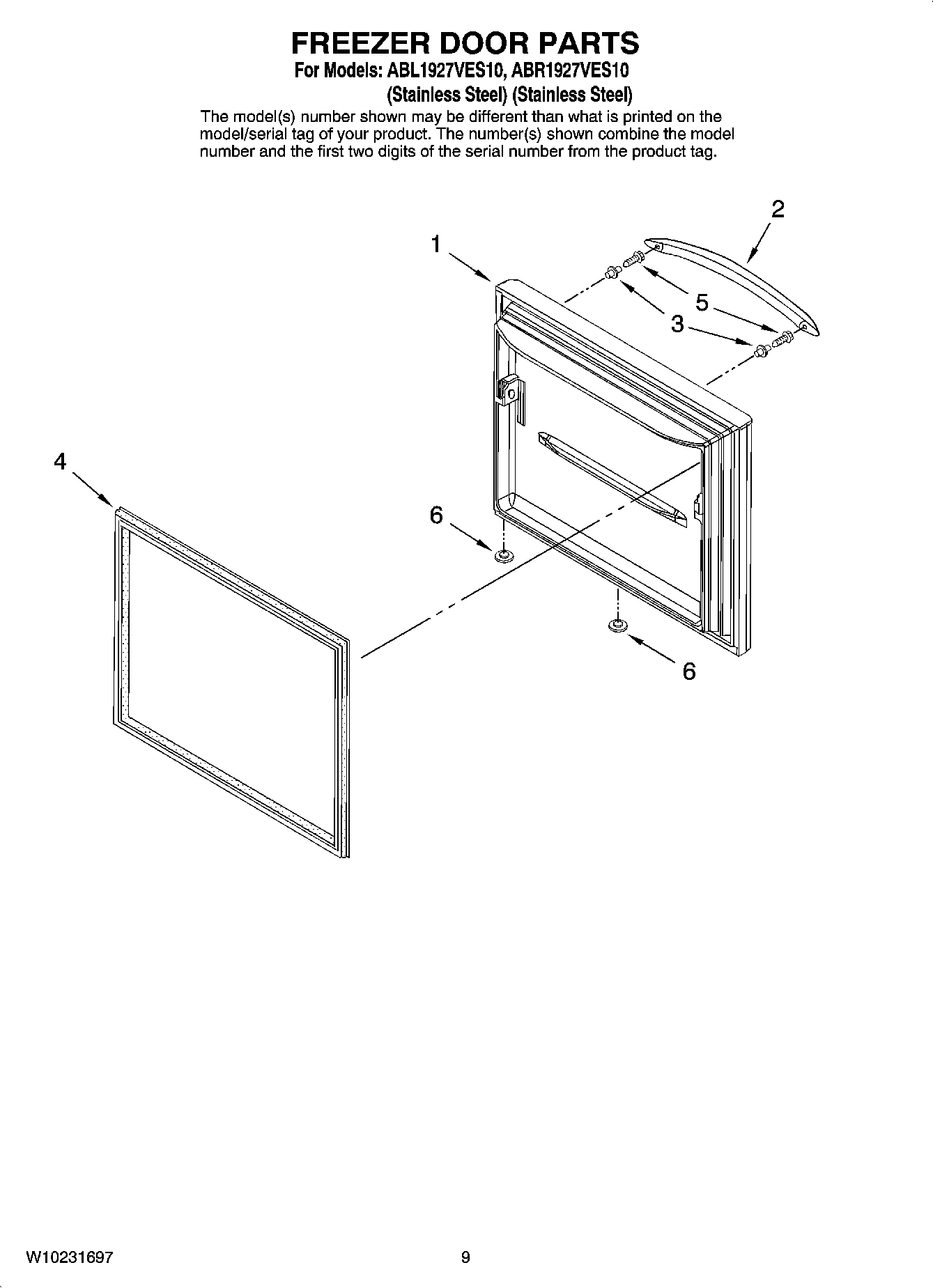

05 - FREEZER DOOR PARTS

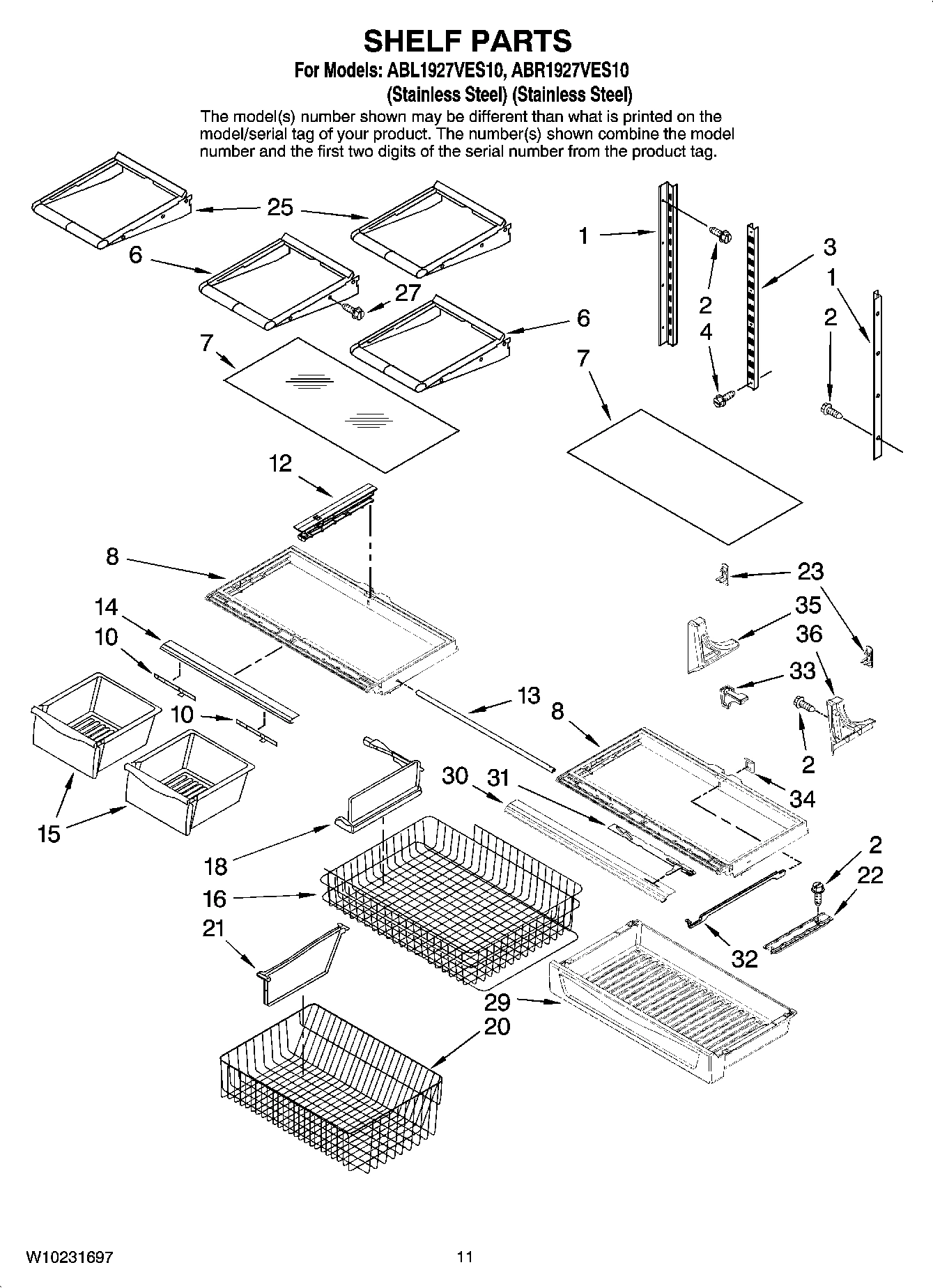

06 - SHELF PARTS

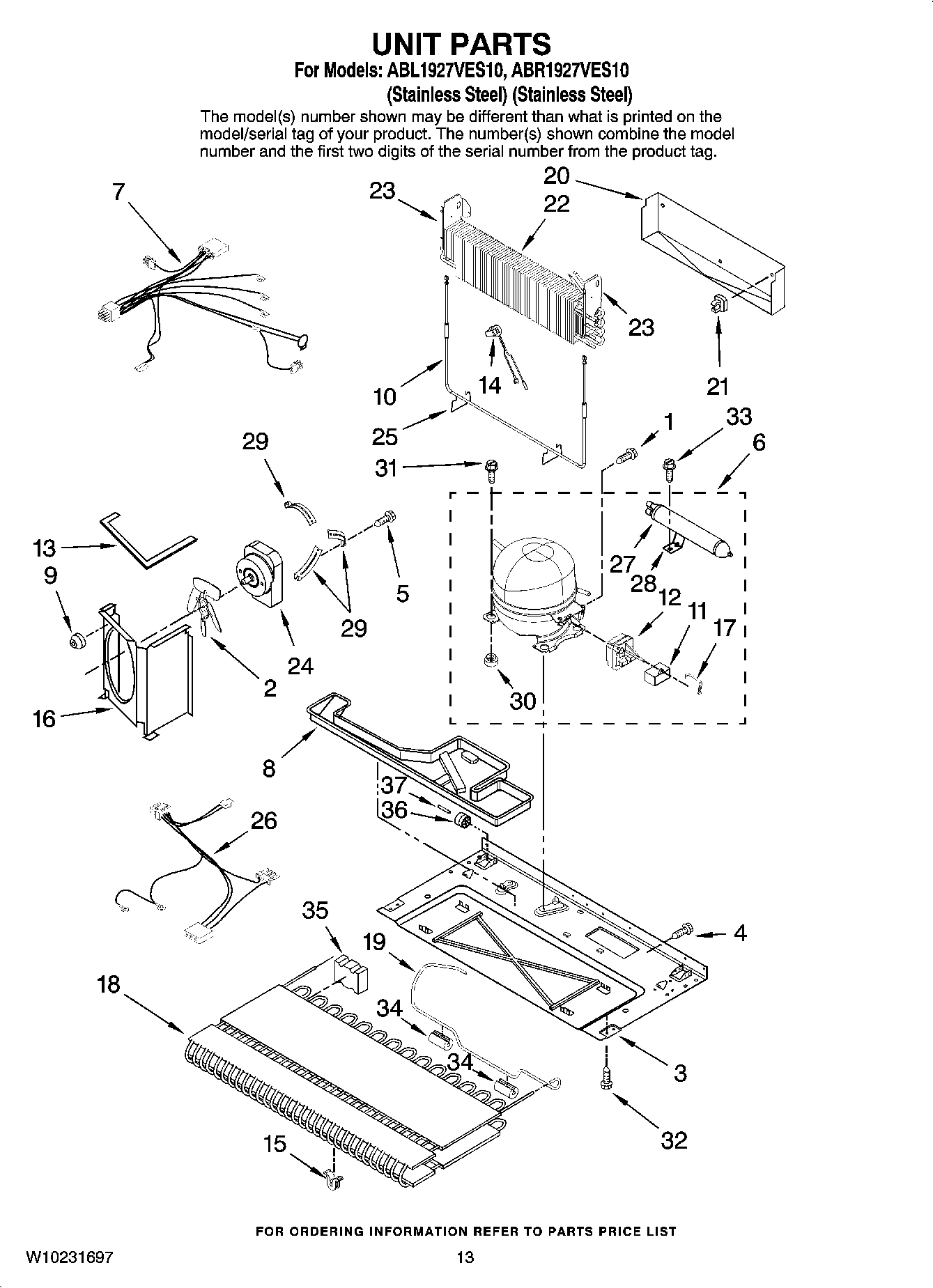

07 - UNIT PARTS

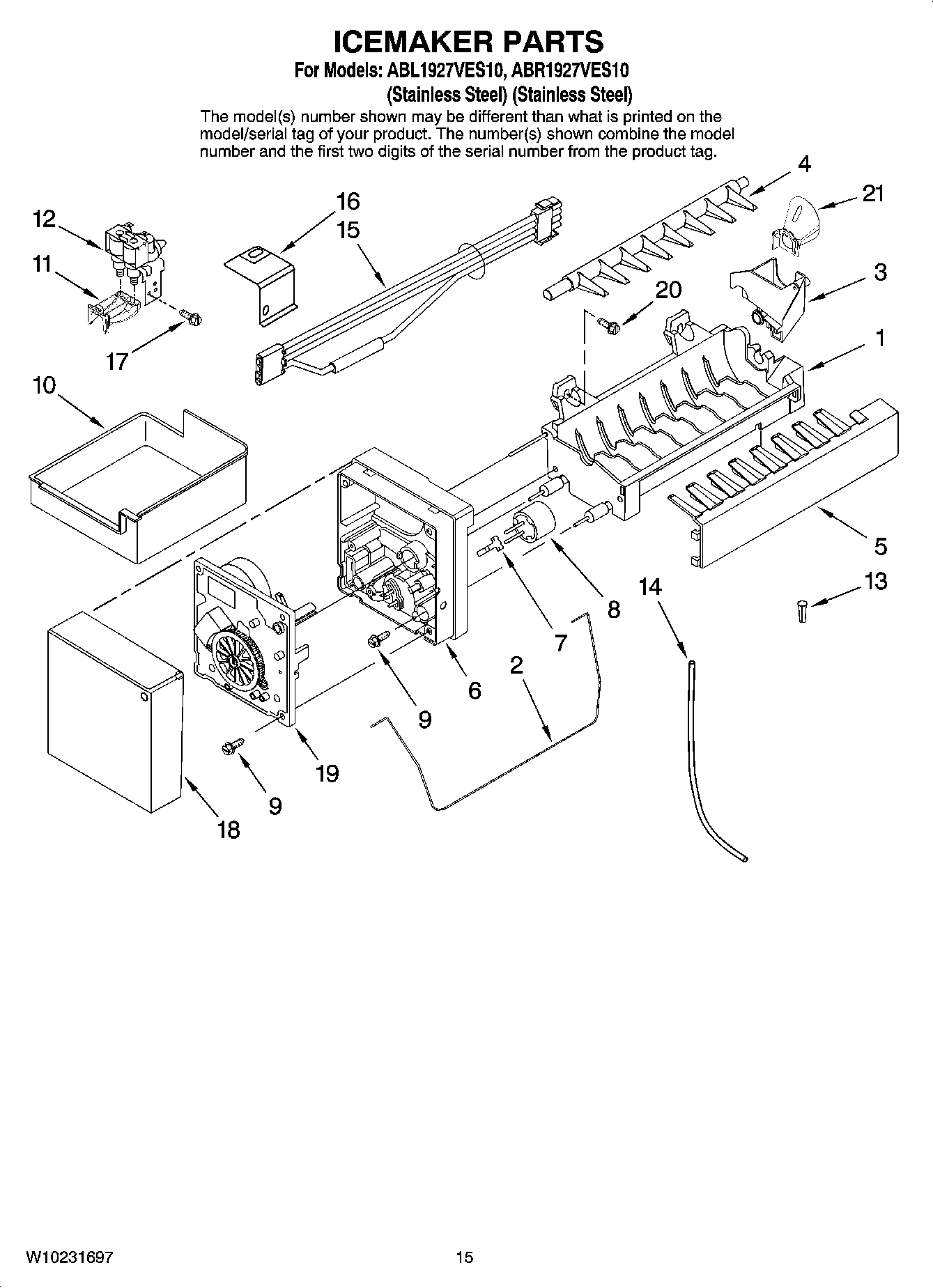

08 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ABR1927VES10 REFRIGERATOR
1
Refrigerator Door (w/Liner) (Right) MAY 13023846SQ Contact Us For Availability
1
Refrigerator Door (w/Liner) (Left) MAY 13023847SQ Contact Us For Availability
1
Freezer Door (w/ Insulation) (Stainless Steel MAY 13092208SQ Contact Us For Availability
1
MAY 67001302 MAY 67001302 Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
2
Handle (Stainless) MAY W10159105 Contact Us For Availability
2
MAY 67006400 MAY 67006400 Contact Us For Availability
2
MAY W10156818 MAY W10156818 Contact Us For Availability
3
MAY 12601104 MAY 12601104 Contact Us For Availability
3
Cup, Fill MAY 628356 Contact Us For Availability
4
Gasket, Door MAY W10164033 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
5
MAY 67006901 MAY 67006901 Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
6
Clip, Grille MAY 12627302 Contact Us For Availability
6
MAY 12463608 MAY 12463608 Contact Us For Availability
6
Compressor MAY W10130129 Contact Us For Availability
6
Support & Motor Assembly MAY 2195914 Contact Us For Availability
7
MAY W10119856 MAY W10119856 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
8
Screw MAY 67006473 Contact Us For Availability
8
Door Gasket, Magnetic (Black) MAY W10164031 Contact Us For Availability
8
MAY 67006937 MAY 67006937 Contact Us For Availability
8
Drain Pan MAY 67004713 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
MAY W10136873 MAY W10136873 Contact Us For Availability
9
Screw (2) MAY 681249 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
Slide, Humidity MAY 67005864 Contact Us For Availability
11
MAY 67005871 MAY 67005871 Contact Us For Availability
11
Capacitor MAY 67005562 Contact Us For Availability
12
MAY 67005822 MAY 67005822 Contact Us For Availability
12
MAY 67004276 MAY 67004276 Contact Us For Availability
12
Overload (Includes Relay) MAY W10174592 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
MAY 67001139 MAY 67001139 Contact Us For Availability
14
MAY 67003884 MAY 67003884 Contact Us For Availability
14
Thermostat MAY W10165425 Contact Us For Availability
14
Tubing, Plastic MAY B5705307 Contact Us For Availability
15
MAY 67006827 MAY 67006827 Contact Us For Availability
15
GROMMET MAY W10137529 Contact Us For Availability
15
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
16
MAY 67005653 MAY 67005653 Contact Us For Availability
16
MAY W10201224 MAY W10201224 Contact Us For Availability
16
Shroud, Condenser MAY 12575309 Contact Us For Availability
16
MAY 625910 MAY 625910 Contact Us For Availability
17
MAY W10131991 MAY W10131991 Contact Us For Availability
17
MAY 67006662 MAY 67006662 Contact Us For Availability
18
Bracket, Basket (Right) MAY W10187667 Contact Us For Availability
18
Bracket, Basket (Left) MAY W10187668 Contact Us For Availability
18
Divider, Upper Basket MAY W10171557 Contact Us For Availability
18
MAY W10135028 MAY W10135028 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
MAY W10183705 MAY W10183705 Contact Us For Availability
20
Gasket, Bottom MAY 67003731 Contact Us For Availability
20
Bucket, Small (2) MAY 67003774 Contact Us For Availability
20
MAY W10146449 MAY W10146449 Contact Us For Availability
20
MAY 67001133 MAY 67001133 Contact Us For Availability
21
MAY 10623002 MAY 10623002 Contact Us For Availability
21
Bracket, Slide (Left) MAY W10149390 Contact Us For Availability
21
Bracket, Slide (Right) MAY W10149391 Contact Us For Availability
21
Divider, Lower Basket MAY W10205416 Contact Us For Availability
21
MAY 67005603 MAY 67005603 Contact Us For Availability
22
Grille, Fan Shroud MAY W10175909 Contact Us For Availability
22
MAY 67003718 MAY 67003718 Contact Us For Availability
23
Shroud, Evaporator MAY W10167023 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
Shelf, Glide (2) MAY 67004281 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
Harness, MC (Includes Power Cord) MAY 13060302 Contact Us For Availability
27
Funnel MAY D7753903 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY 10547003 MAY 10547003 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 67005905 MAY 67005905 Contact Us For Availability
29
Bracket, Fan MAY 67004953 Contact Us For Availability
30
Trim, Pantry Front MAY 67002279 Contact Us For Availability
30
Grommet (3) MAY W10169124 Contact Us For Availability
31
Screw (2) MAY 67006432 Contact Us For Availability
32
Screw (6) MAY 67006406 Contact Us For Availability
32
MAY 67006573 MAY 67006573 Contact Us For Availability
33
MAY 67006530 MAY 67006530 Contact Us For Availability
33
SCREW MAY 67006737 Contact Us For Availability
34
MAY 67002005 MAY 67002005 Contact Us For Availability
35
MAY 67005491 MAY 67005491 Contact Us For Availability
NI
MAY 67006095 MAY 67006095 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 2217192 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
