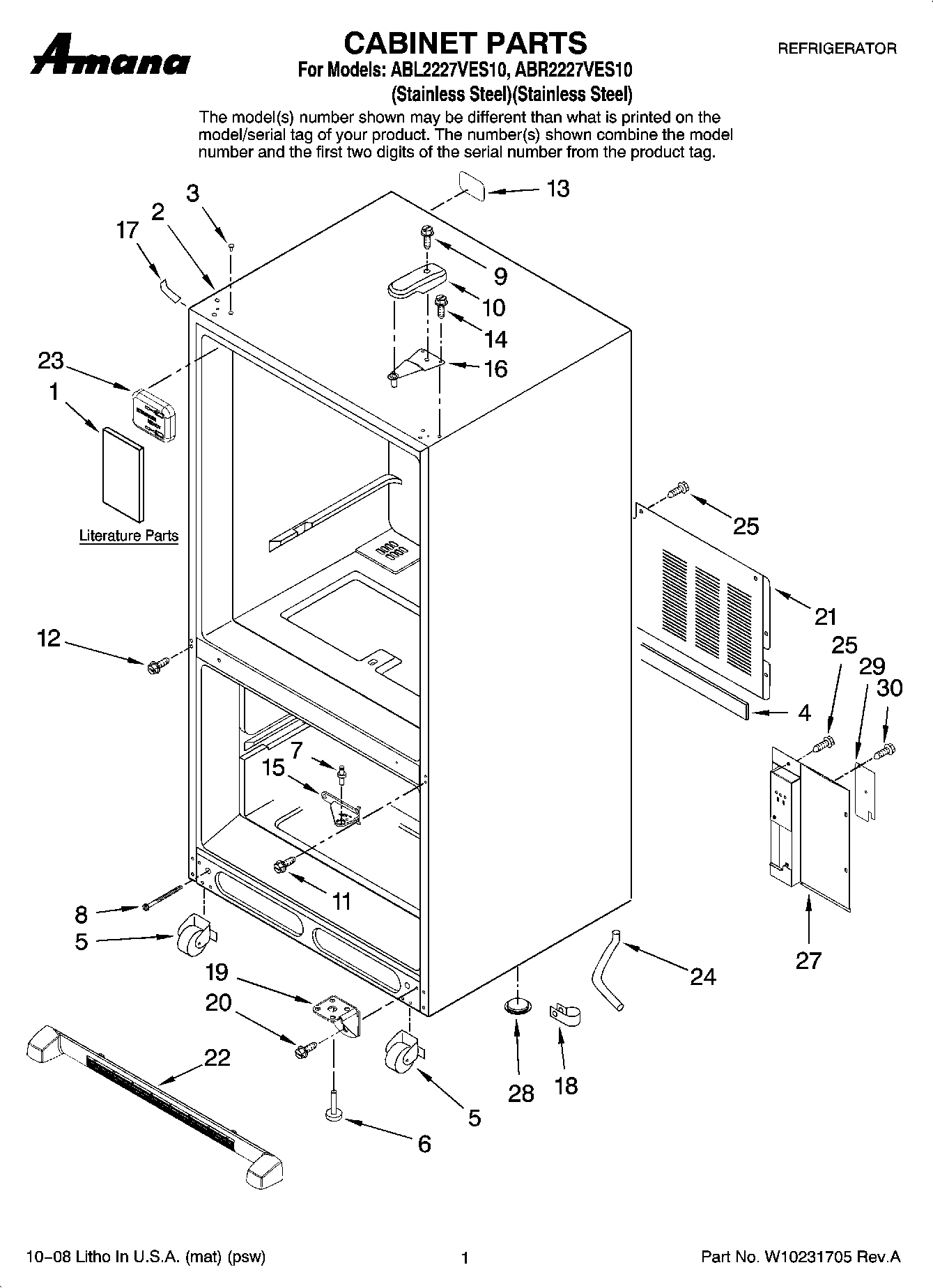

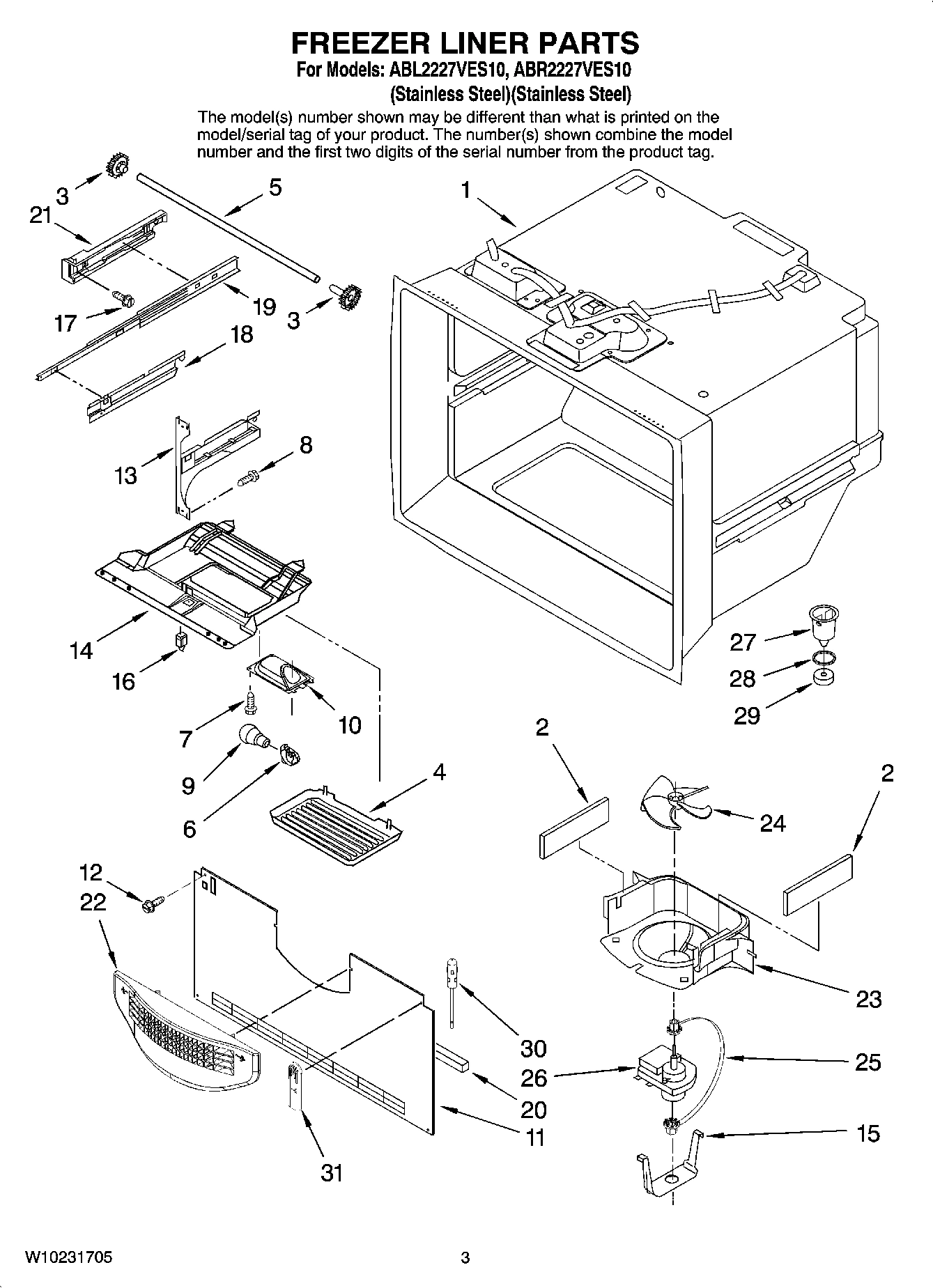

Model Maytag ABL2227VES10 REFRIGERATOR – Common Parts &amp; Diagrams

1

Freezer Door (w/ Insulation) (Stainless Steel MAY 13092237SQ Contact Us For Availability

1

MAY 13023862SQ MAY 13023862SQ Contact Us For Availability

1

MAY 13023863SQ MAY 13023863SQ Contact Us For Availability

1

MAY 67006433 MAY 67006433 Contact Us For Availability

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $33.86

2

SCREW MAY 67006901 Contact Us For Availability

2

MAY Y67003896 MAY Y67003896 Contact Us For Availability

2

MAY W10162928 MAY W10162928 Contact Us For Availability

2

Trim, Crisper MAY 67004420 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $55.71

3

Door Gasket, Magnetic (Black) MAY W10164037 Contact Us For Availability

3

MAY W10205986 MAY W10205986 Contact Us For Availability

3

MAY 12591404 MAY 12591404 Contact Us For Availability

3

MAY 67005864 MAY 67005864 Contact Us For Availability

3

Cup, Fill MAY 628356 Contact Us For Availability

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

Housing, Control MAY W10185244 Contact Us For Availability

4

Screw MAY 67006425 Contact Us For Availability

4

Basket, Upper MAY W10201223 Contact Us For Availability

4

MAY 627843 MAY 627843 Contact Us For Availability

5

WPW10371193 Whirlpool Refrigerator Door Bin In Stock WPL WPW10371193 $50.86

5

Board, Control MAY W10165748 Contact Us For Availability

5

MAY 67005491 MAY 67005491 Contact Us For Availability

5

MAY W10150038 MAY W10150038 Contact Us For Availability

5

MAY 2182124 MAY 2182124 Contact Us For Availability

6

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

6

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.82

6

MAY C3680310 MAY C3680310 Contact Us For Availability

6

MAY W10183706 MAY W10183706 Contact Us For Availability

6

Support & Motor Assembly MAY 2195914 Contact Us For Availability

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

Plug, Button (Black) MAY W10153326 Contact Us For Availability

7

MAY W10119856 MAY W10119856 Contact Us For Availability

7

MAY 2315522 MAY 2315522 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

Door Gasket, Magnetic (Black) MAY W10164035 Contact Us For Availability

8

Drain Pan MAY 67004713 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

9

MAY 61004743 MAY 61004743 Contact Us For Availability

9

MAY W10136873 MAY W10136873 Contact Us For Availability

9

Divider, Upper MAY W10171557 Contact Us For Availability

9

Screw (2) MAY 681249 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $86.21

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $78.46

MAY 67001035 MAY 67001035 Contact Us For Availability

Socket, Light (2) MAY Y12570701 Contact Us For Availability

MAY 12528501 MAY 12528501 Contact Us For Availability

Shelf, Sta (4) MAY 12463509 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.52

MAY 67001019 MAY 67001019 Contact Us For Availability

MAY W10136415 MAY W10136415 Contact Us For Availability

MAY 67006400 MAY 67006400 Contact Us For Availability

12

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $120.06

12

MAY 67006602 MAY 67006602 Contact Us For Availability

12

Overload (Includes Relay) MAY W10136414 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

MAY A3223101 MAY A3223101 Contact Us For Availability

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

MAY 67006604 MAY 67006604 Contact Us For Availability

Thermostat MAY W10165425 Contact Us For Availability

MAY W10171570 MAY W10171570 Contact Us For Availability

Tubing, Plastic MAY B5705307 Contact Us For Availability

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

Control, Damper MAY W10127429 Contact Us For Availability

GROMMET MAY W10137529 Contact Us For Availability

MAY 67002656 MAY 67002656 Contact Us For Availability

HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability

MAY 67005906 MAY 67005906 Contact Us For Availability

Bucket, Short MAY 67004451 Contact Us For Availability

MAY 67006573 MAY 67006573 Contact Us For Availability

MAY 625910 MAY 625910 Contact Us For Availability

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $44.45

Screw MAY 67006406 Contact Us For Availability

Plug Button MAY M0310731 Contact Us For Availability

MAY W10169124 MAY W10169124 Contact Us For Availability

MAY 67006662 MAY 67006662 Contact Us For Availability

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $80.04

Bracket, Basket (Right) MAY W10187667 Contact Us For Availability

Bracket, Basket (Left) MAY W10187668 Contact Us For Availability

MAY W10135027 MAY W10135027 Contact Us For Availability

19

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $127.63

19

SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability

19

Screw MAY 67006432 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $29.57

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

Gasket, Bottom MAY 67003731 Contact Us For Availability

MAY 67001080 MAY 67001080 Contact Us For Availability

Bracket, Slide (Left) MAY W10149390 Contact Us For Availability

Bracket, Slide (Right) MAY W10149391 Contact Us For Availability

SCREW MAY 67006737 Contact Us For Availability

MAY 67001317 MAY 67001317 Contact Us For Availability

MAY 67005603 MAY 67005603 Contact Us For Availability

22

WPW10328329 Whirlpool Crisper Pan Backorder WPL WPW10328329 $87.50

22

Grille, Fan Shroud MAY W10175909 Contact Us For Availability

22

MAY 67003719 MAY 67003719 Contact Us For Availability

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

Shroud, Evaporator MAY W10167023 Contact Us For Availability

MAY 67001083 MAY 67001083 Contact Us For Availability

MAY 67001084 MAY 67001084 Contact Us For Availability

24

MAY 2169142 MAY 2169142 Contact Us For Availability

24

MAY 67004432 MAY 67004432 Contact Us For Availability

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

25

MAY W10121318 MAY W10121318 Contact Us For Availability

26

MAY W10128551 MAY W10128551 Contact Us For Availability

26

Harness, MC (Includes Power Cord) MAY 13060302 Contact Us For Availability

27

Funnel MAY D7753903 Contact Us For Availability

27

MAY W10143759 MAY W10143759 Contact Us For Availability

27

Divider, Lower MAY W10205416 Contact Us For Availability

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $49.54

MAY M0500703 MAY M0500703 Contact Us For Availability

Compressor MAY W10130129 Contact Us For Availability

29

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $9.81

29

Gasket MAY B8381501 Contact Us For Availability

29

MAY 2264017 MAY 2264017 Contact Us For Availability

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $23.46

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

31

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

31

MAY 12575309 MAY 12575309 Contact Us For Availability

32

MAY 67004953 MAY 67004953 Contact Us For Availability

32

Gasket MAY 67002005 Contact Us For Availability

33

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $4.52

33

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

34

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $8.60

34

MAY 10547003 MAY 10547003 Contact Us For Availability

35

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

36

Clip, Evap MAY 10623002 Contact Us For Availability

37

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

100

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $193.51

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $50.00

MAY 67006095 MAY 67006095 Contact Us For Availability

MAY 876764 MAY 876764 Contact Us For Availability

VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability

Valve, Access (5/16``) MAY 978026 Contact Us For Availability

VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability

Valve, Access (1/2``) MAY 978028 Contact Us For Availability

Valve, Access (5/8``) MAY 978029 Contact Us For Availability

Valve, Access (3/4``) MAY 978030 Contact Us For Availability

MAY 1117510 MAY 1117510 Contact Us For Availability

SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability

Cleaner, Stainless Steel MAY 2217192 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability

MAY 479502 MAY 479502 Contact Us For Availability

MAY 503695 MAY 503695 Contact Us For Availability

MAY 505587 MAY 505587 Contact Us For Availability

MAY 542638 MAY 542638 Contact Us For Availability

MAY 542639 MAY 542639 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability

MAY 833938 MAY 833938 Contact Us For Availability
