Model Whirlpool A17CT WASHER – Common Parts & Diagrams

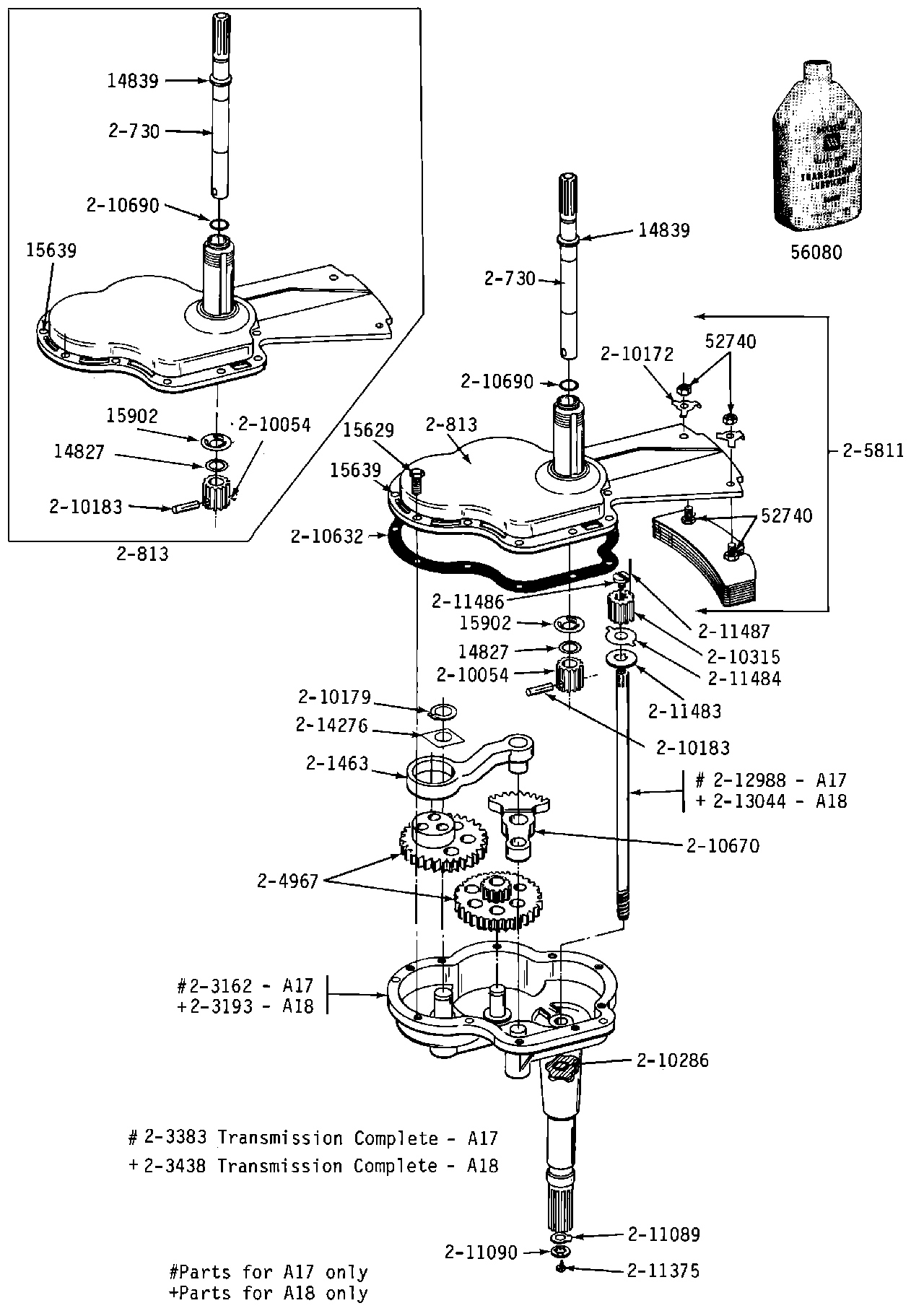

06 - TRANSMISSION

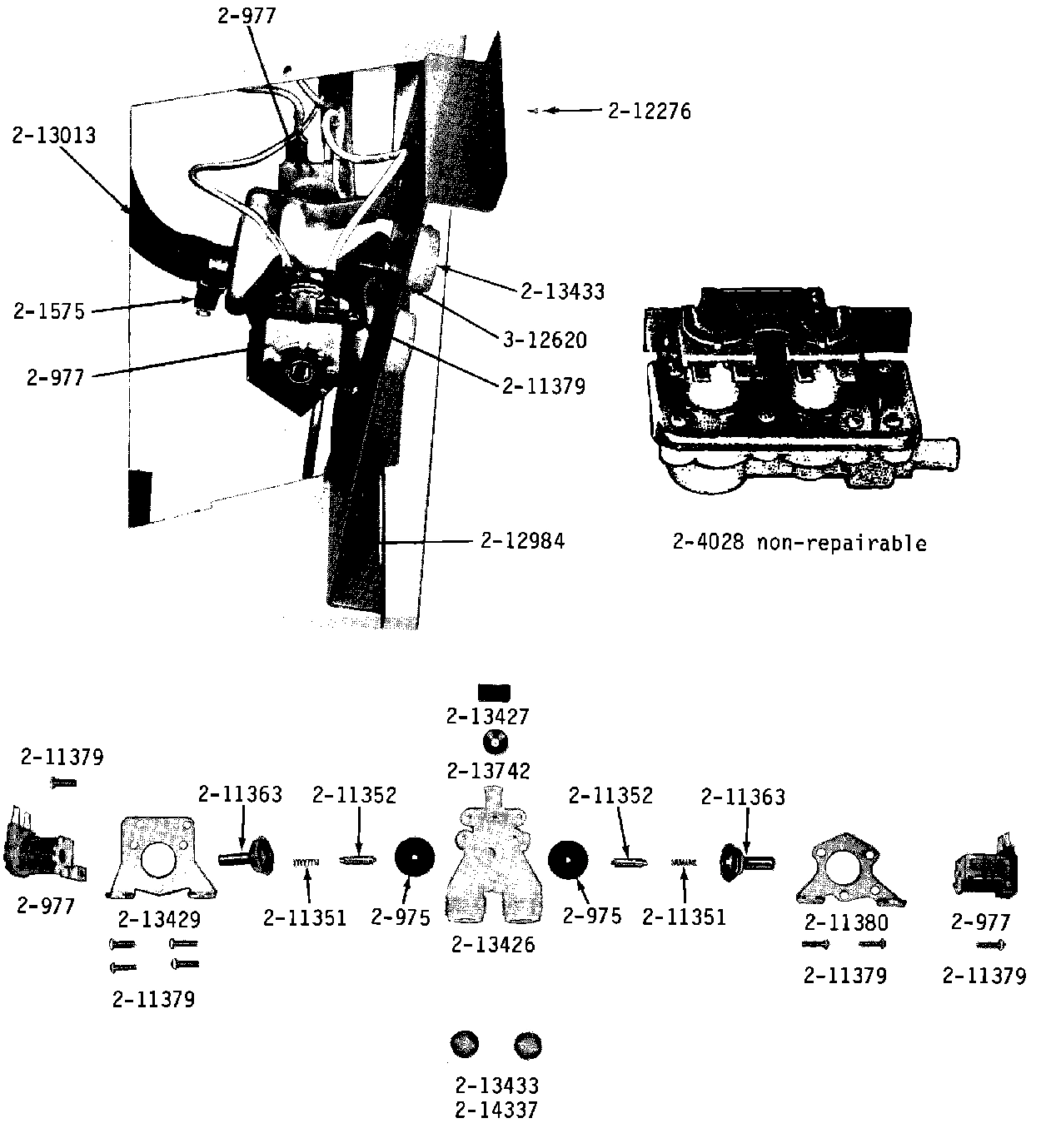

09 - WATER VALVE

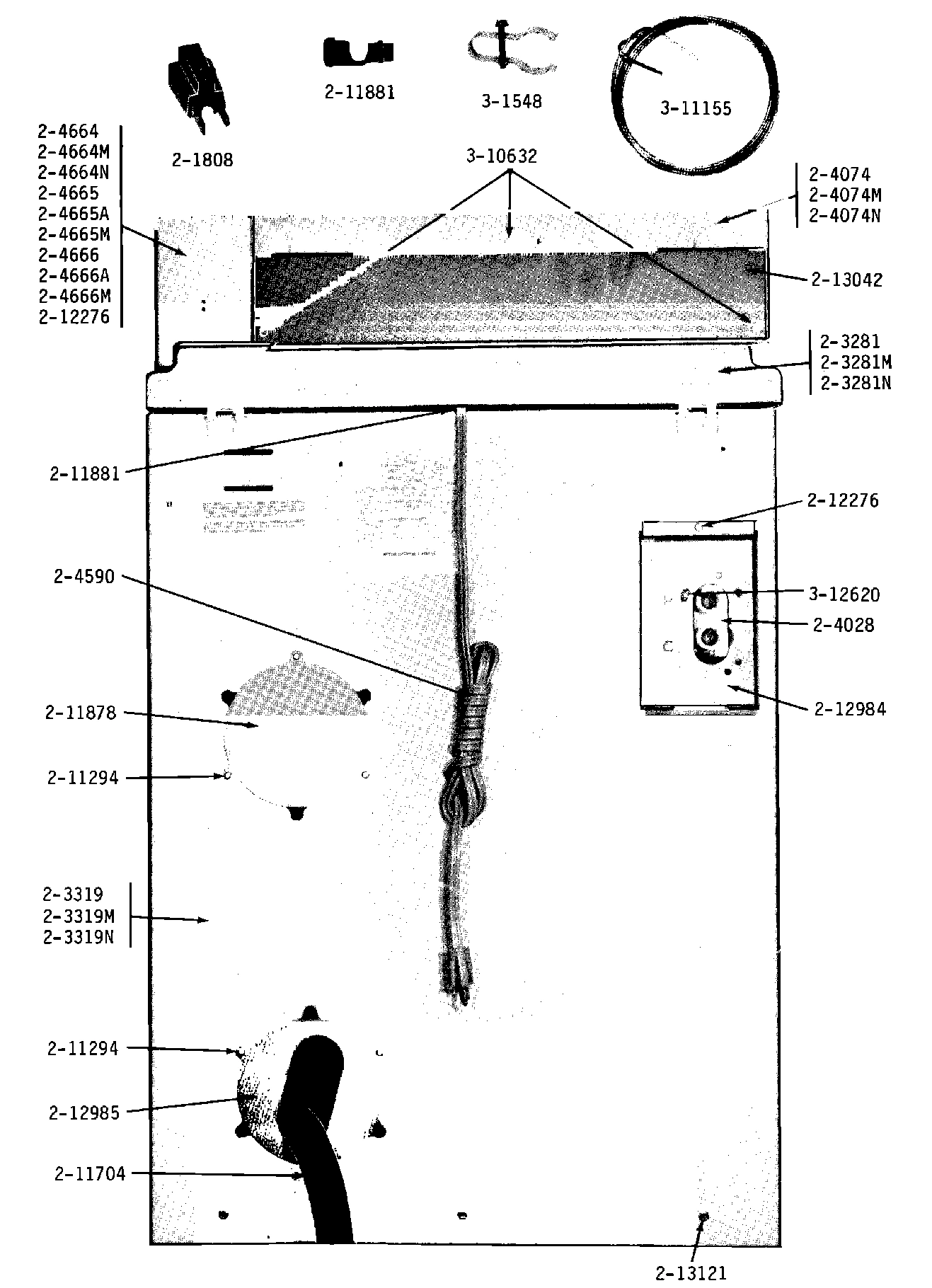

02 - REAR VIEW

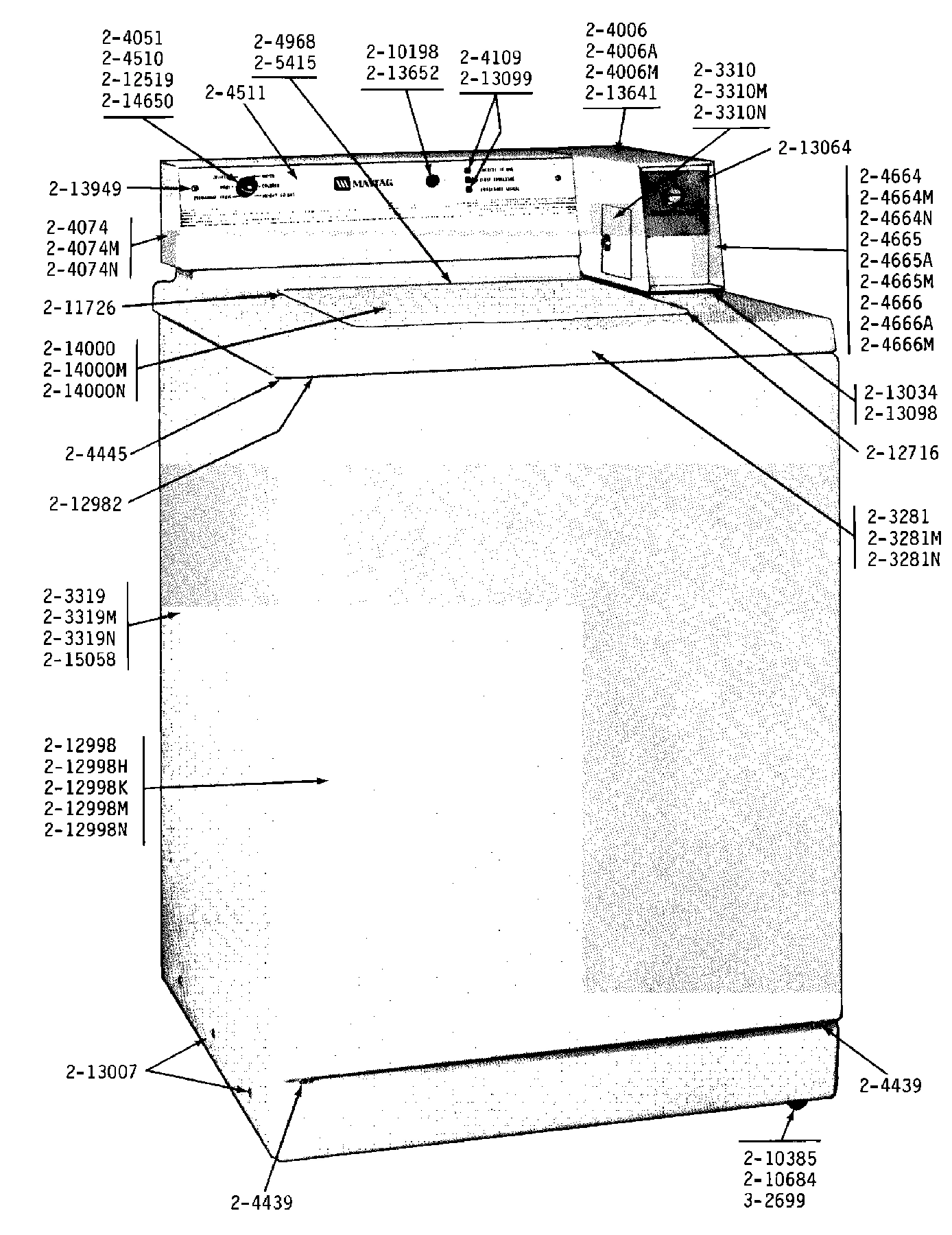

01 - FRONT VIEW

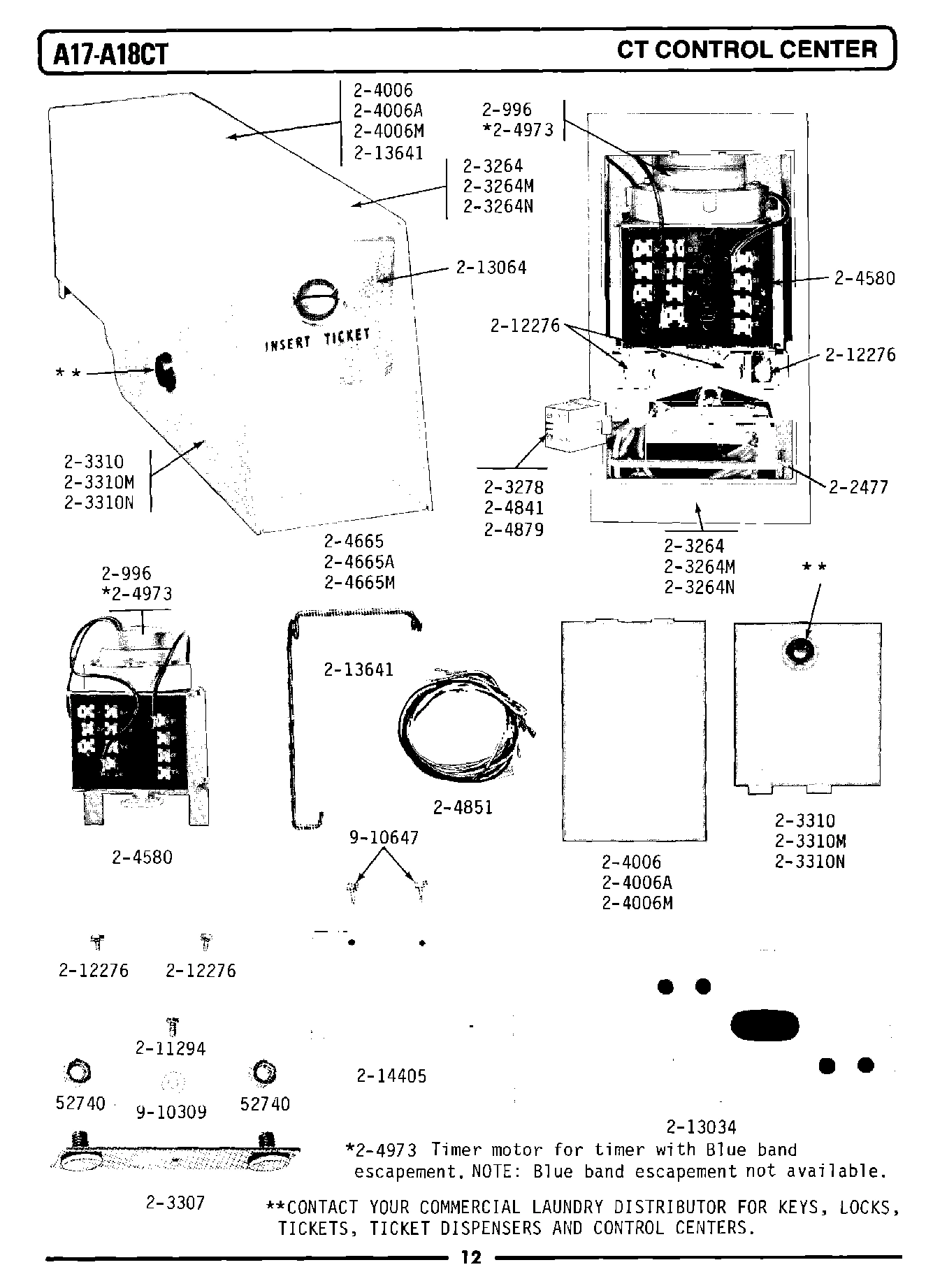

03 - CT CONTROL CENTER

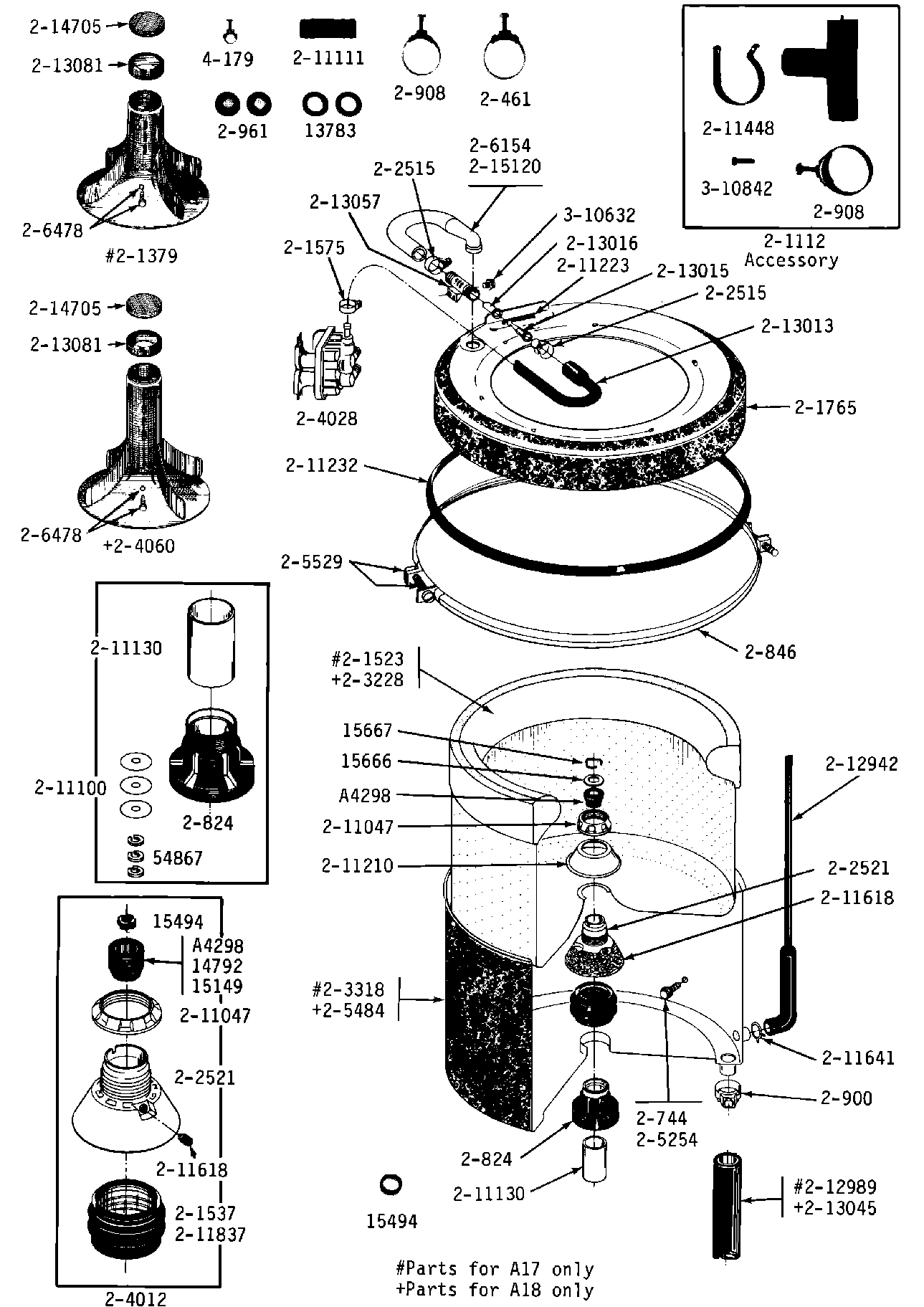

05 - TUB, AGITATOR, MTG. STEM, HOSES & CLAMPS

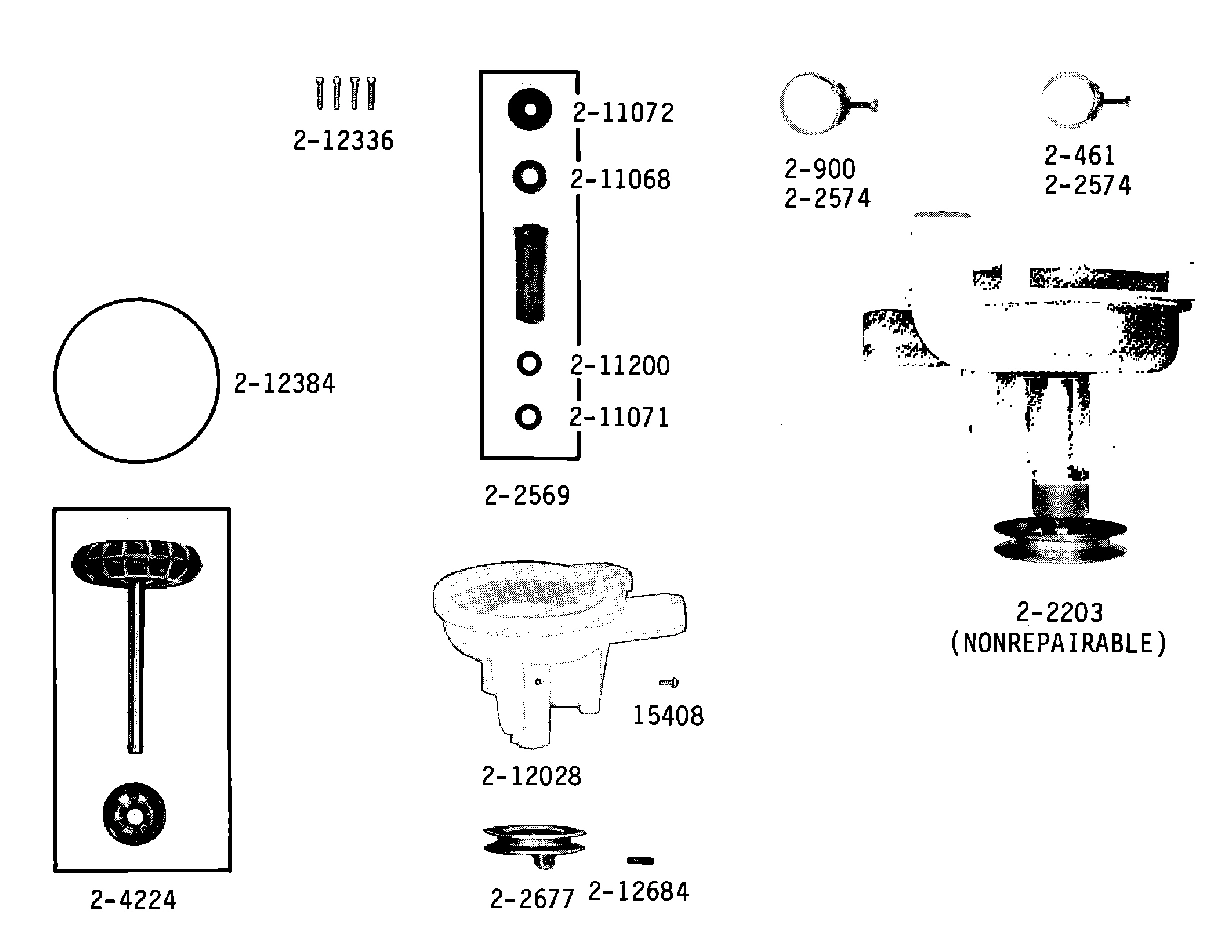

10 - `POLY` PUMP

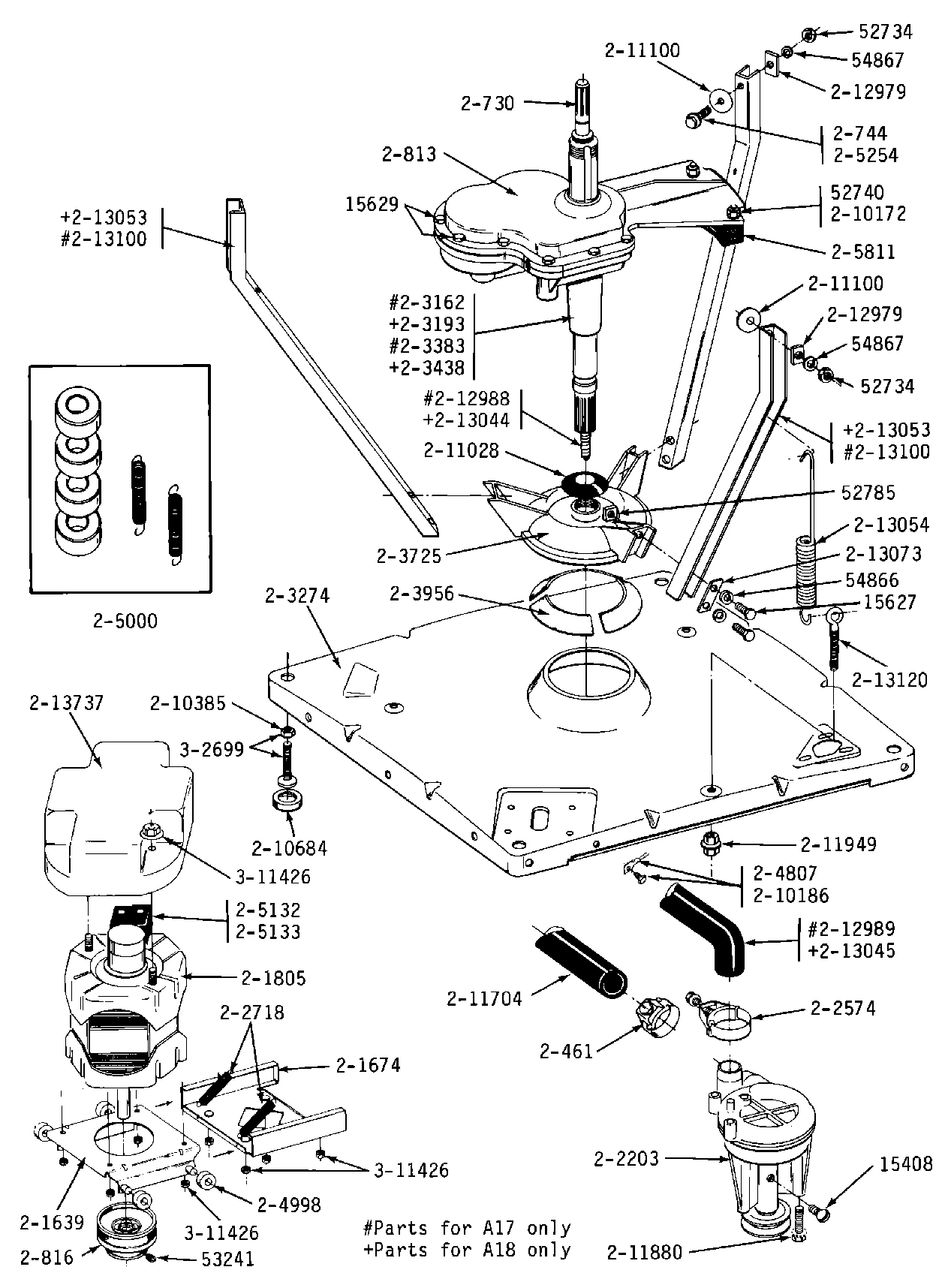

07 - BASE, PUMP, MOTOR & COMPONENTS

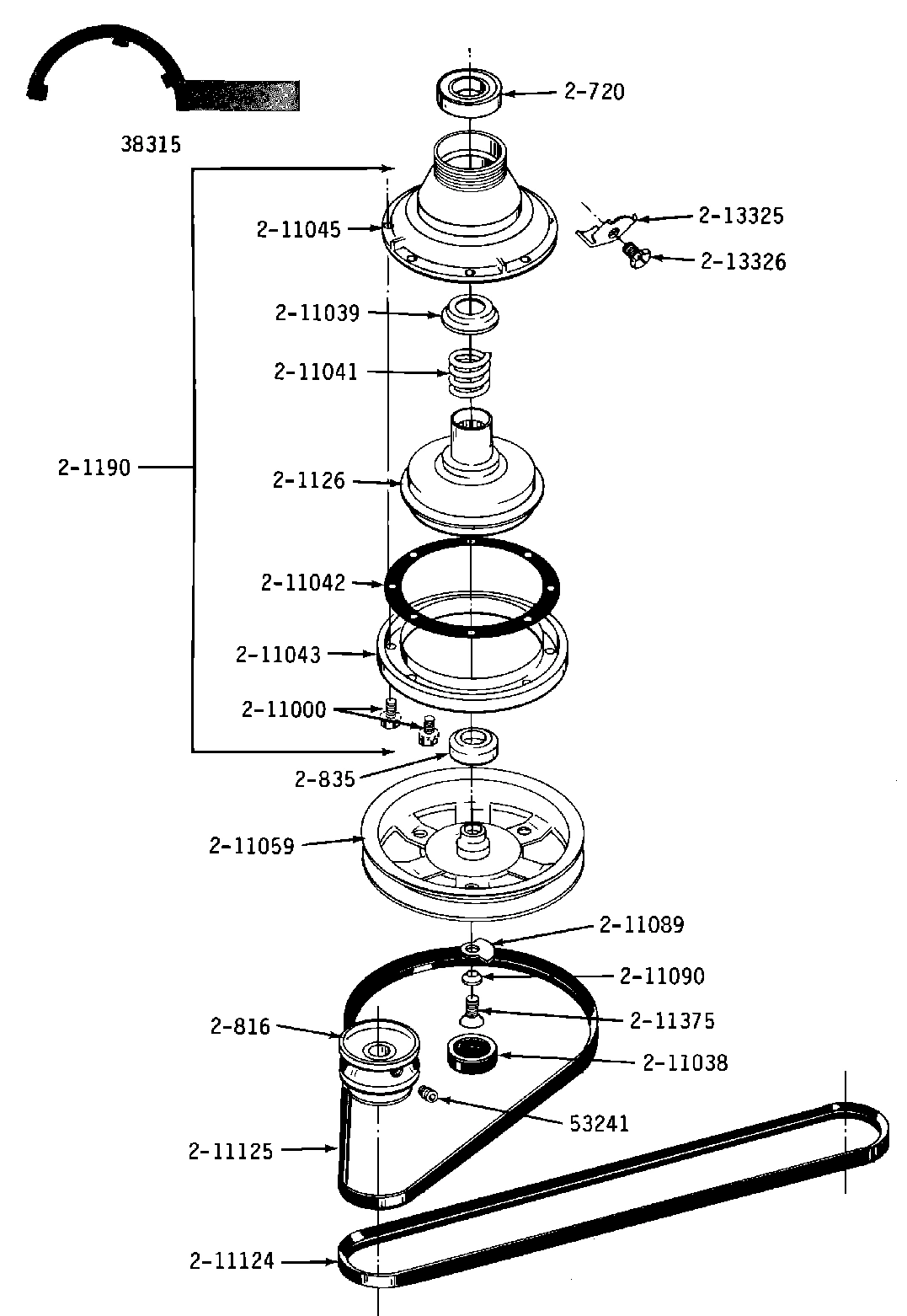

08 - CLUTCH, BRAKE & BELTS

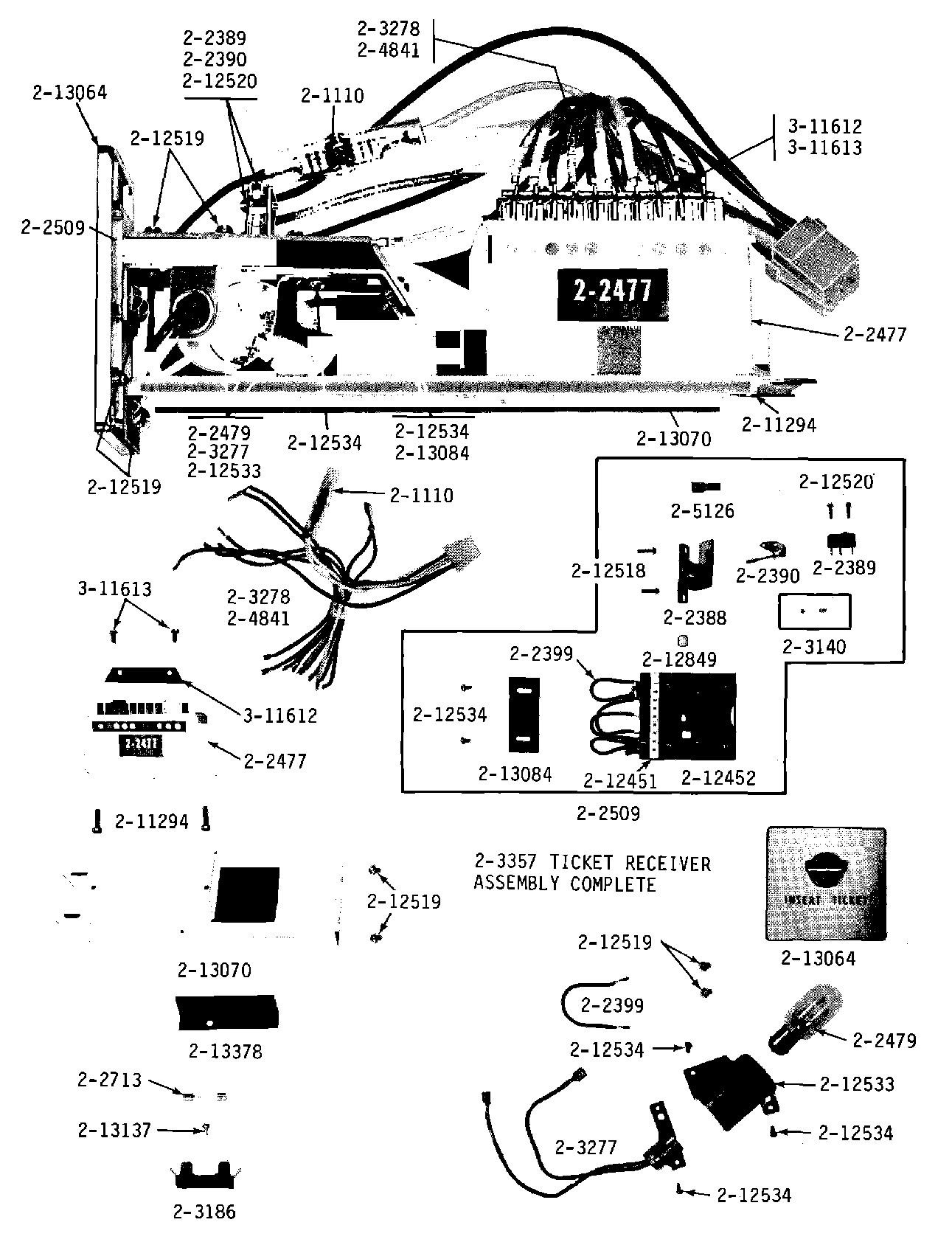

04 - CT CONTROL CENTER COMPONENTS

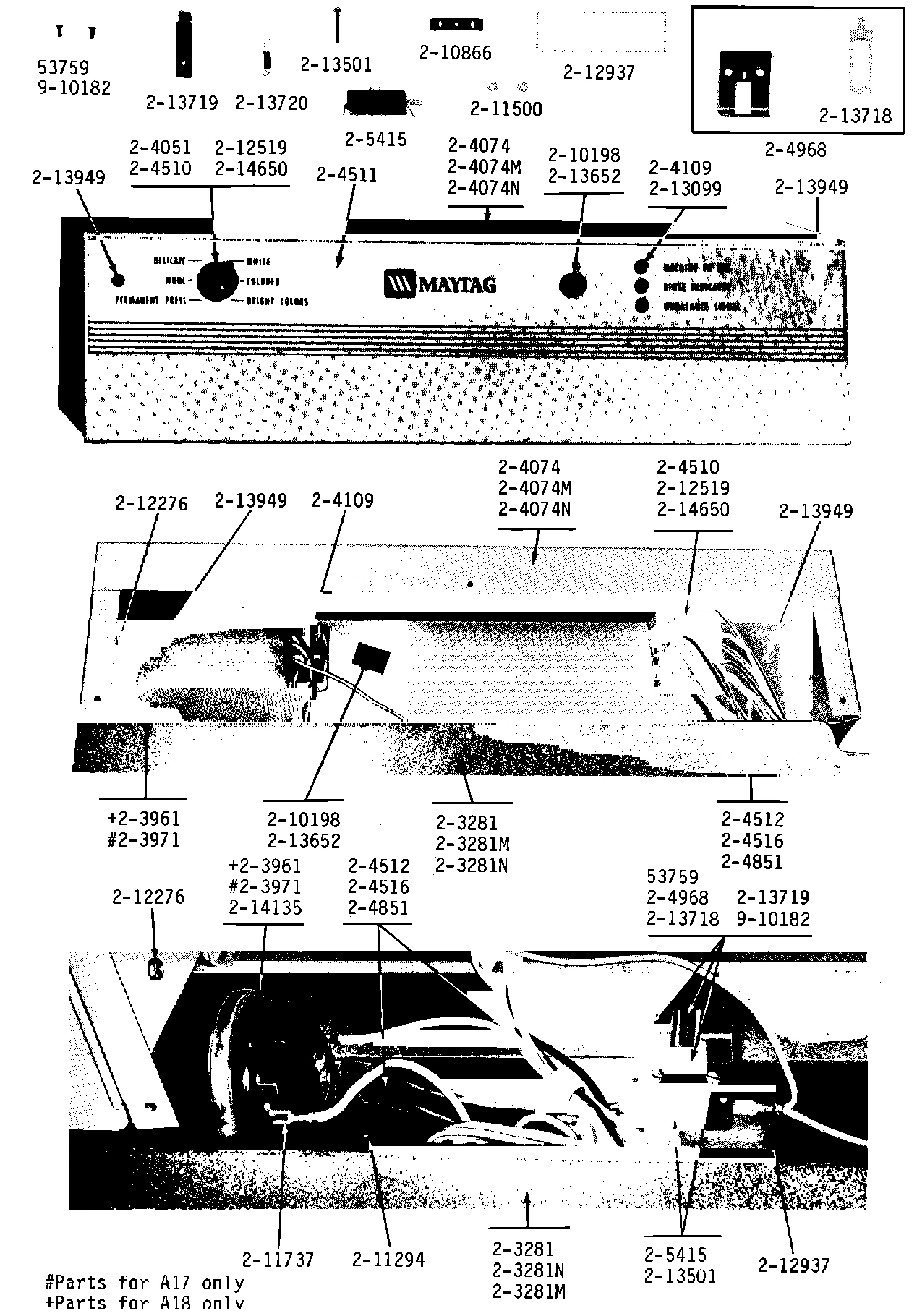

11 - CONTROL PANELS
Common parts from model Whirlpool A17CT WASHER
001
DIAPHRAGM WPL 200975 Contact Us For Availability
001
CONVERTER WPL Y201808 Contact Us For Availability
001
TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability
001
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
002
SOLENOID FOR WATER VALVE WPL 200977 Contact Us For Availability
002
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
002
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
002
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
003
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
003
BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability
003
BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability
003
PRESSURE SWITCH WPL 203971 Contact Us For Availability
004
KNOB WPL 204051 Contact Us For Availability
004
BRASS WASHER-AGITATOR SEAL WPL Y015149 Contact Us For Availability
004
NUT WPL Y052734 Contact Us For Availability
004
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
004
LAMP FOR TICKET CONTROL WPL 202479 Contact Us For Availability
005
SPRING FOR PLUNGER WPL 211351 Contact Us For Availability
005
STOP RING-AGITATOR SHAFT WPL Y015494 Contact Us For Availability
005
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
005
TICKET CONTROL WPL 202509 Contact Us For Availability
006
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
006
POWER CORD WPL 204590 Contact Us For Availability
006
3 BULB SIGNAL LIGHT WPL 204109 Contact Us For Availability
006
NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability
006
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
007
SOLENOID GUIDE WPL 211363 Contact Us For Availability
007
FABRIC CONTROL SWITCH WPL 204510 Contact Us For Availability
007
RETAINING RING WPL Y015667 Contact Us For Availability
007
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
007
CONTACT BALL KIT WPL 203140 Contact Us For Availability
008
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
008
IMPELLER & SEAL ASSEMBLY WPL 204224 Contact Us For Availability
008
LOCK WASHER WPL Y054866 Contact Us For Availability
009
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
009
WASHER, LOCK WPL Y054867 Contact Us For Availability
009
HOSE 31/32`` PER FOOT BRANCH ST WPL Y059137 Contact Us For Availability
009
WICKING-TOP WPL 211068 Contact Us For Availability
010
CTN. 50 FT. 31/32 DRAIN HOS WPL Y059141 Contact Us For Availability
010
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
011
OIL & WATER SLINGER-TOP WPL 211072 Contact Us For Availability
012
WASHER WPL 211200 Contact Us For Availability
012
AGITATOR SHAFT WPL 200730 Contact Us For Availability
012
SPRING, BRAKE WPL 211041 Contact Us For Availability
012
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
013
GROMMET, CORD WPL 211881 Contact Us For Availability
013
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
013
SWITCH FOR TICKET CONTROL WPL 204882 Contact Us For Availability
014
FASTENER WPL 210198 Contact Us For Availability
014
TIMER MOTOR WPL 204973 Contact Us For Availability
014
INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability
014
DRUM, BRAKE WPL 211043 Contact Us For Availability
015
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
015
GASKET FOR POLY PUMP WPL 212384 Contact Us For Availability
015
HOUSING, BRAKE WPL 211045 Contact Us For Availability
015
TWIN SPEED NUT WPL 210866 Contact Us For Availability
016
PLATE, ACCESS (W/HOLE) WPL 212985 Contact Us For Availability
016
ROLLPIN FOR PUMP PULLEY WPL 212684 Contact Us For Availability
016
UPPER MOTOR MOUNT WPL 201639 Contact Us For Availability
017
INLET HOSE-COLD (4`LONG) WPL 200756 Contact Us For Availability
017
LOWER MOTOR MOUNT----NA WPL 201674 Contact Us For Availability
017
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
018
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
018
INLET HOSE, HOT 4 FT. WPL 200757 Contact Us For Availability
019
SEAL WPL 210286 Contact Us For Availability
019
ELECTRICAL INSTRUCTION LABE WPL 214518 Contact Us For Availability
019
PUMP AS PAK WPL 202203 Contact Us For Availability
019
CIRCUIT BOARD WPL 212452 Contact Us For Availability
020
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
020
PINION WPL 210315 Contact Us For Availability
020
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
021
GASKET WPL 210632 Contact Us For Availability
021
MOISTURE BARRIER WPL 212937 Contact Us For Availability
022
BACK PANEL WPL 213042 Contact Us For Availability
022
WASHER WPL 910309 Contact Us For Availability
022
SHIELD FOR HEAT LAMP WPL 212533 Contact Us For Availability
023
SEAL, RUBBER WPL 210690 Contact Us For Availability
023
SEMS SCREW, No.10-16 X 1/2`` WPL 312620 Contact Us For Availability
023
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
023
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
023
BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability
023
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
024
FRONT PANEL-WHITE WPL 212998 Contact Us For Availability
024
TRANS & CENTER ASSM. REG TU WPL 203383 Contact Us For Availability
024
SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability
025
LID BUMPER WPL NLA Contact Us For Availability
025
AGITATOR - BLACK WPL 201379 Contact Us For Availability
025
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
026
INLET HOSE, HOT 8 FT. WPL 201486 Contact Us For Availability
026
PIN RECEPTACLE FOR PLUG WPL 213074 Contact Us For Availability
026
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
027
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
027
UNBALANCE LEVER WPL 213719 Contact Us For Availability
028
LUG WASHER WPL 211484 Contact Us For Availability
028
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
029
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
029
SEAL AND SPRING WPL 201537 Contact Us For Availability
030
SWITCH, MOTOR START WPL 205132 Contact Us For Availability
030
FASTENER CLIP WPL 214135 Contact Us For Availability
031
SCREW FOR 2-4051 KNOB WPL 214650 Contact Us For Availability
031
TUB COVER WPL 201765 Contact Us For Availability
031
SWITCH LEVER WPL 214218 Contact Us For Availability
032
SCREW WPL Y310632 Contact Us For Availability
032
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
033
LID-WHITE WPL 214000 Contact Us For Availability
033
ROLLER FOR CAM WPL 214275 Contact Us For Availability
034
MOUNTING STEM WPL 202521 Contact Us For Availability
035
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
036
OUTER TUB WPL 203318 Contact Us For Availability
036
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
037
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
037
COVER FOR CIRCUIT BOARD WPL 311612 Contact Us For Availability
038
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
038
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
039
WASHER, CUSHION WPL 211100 Contact Us For Availability
040
DRAIN HOSE WPL 211704 Contact Us For Availability
041
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
042
INJECTOR TUBE WITH SEAL WPL 206154 Contact Us For Availability
043
SCREW & WASHER FOR AGITATOR WPL 206478 Contact Us For Availability
043
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
044
CENTER SHAFT WPL 212988 Contact Us For Availability
046
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
047
LINER, TUB BEARING WPL 211130 Contact Us For Availability
047
WASHER, DOUBLE WPL 213073 Contact Us For Availability
048
WASHER,CLAMPING WPL 211210 Contact Us For Availability
048
BRACE, TUB WPL 213100 Contact Us For Availability
049
WPL 211223 WPL 211223 Contact Us For Availability
050
MOTOR SHIELD - POLY WPL 213737 Contact Us For Availability
051
WPL 211448 WPL 211448 Contact Us For Availability
062
WPL 213081 WPL 213081 Contact Us For Availability
063
WPL 214705 WPL 214705 Contact Us For Availability
067
WPL Y310842 WPL Y310842 Contact Us For Availability
× ![]()
