Model Whirlpool 9ET16NKXDG03 REFRIGERATOR – Common Parts & Diagrams
03 - LINER
04 - UNIT

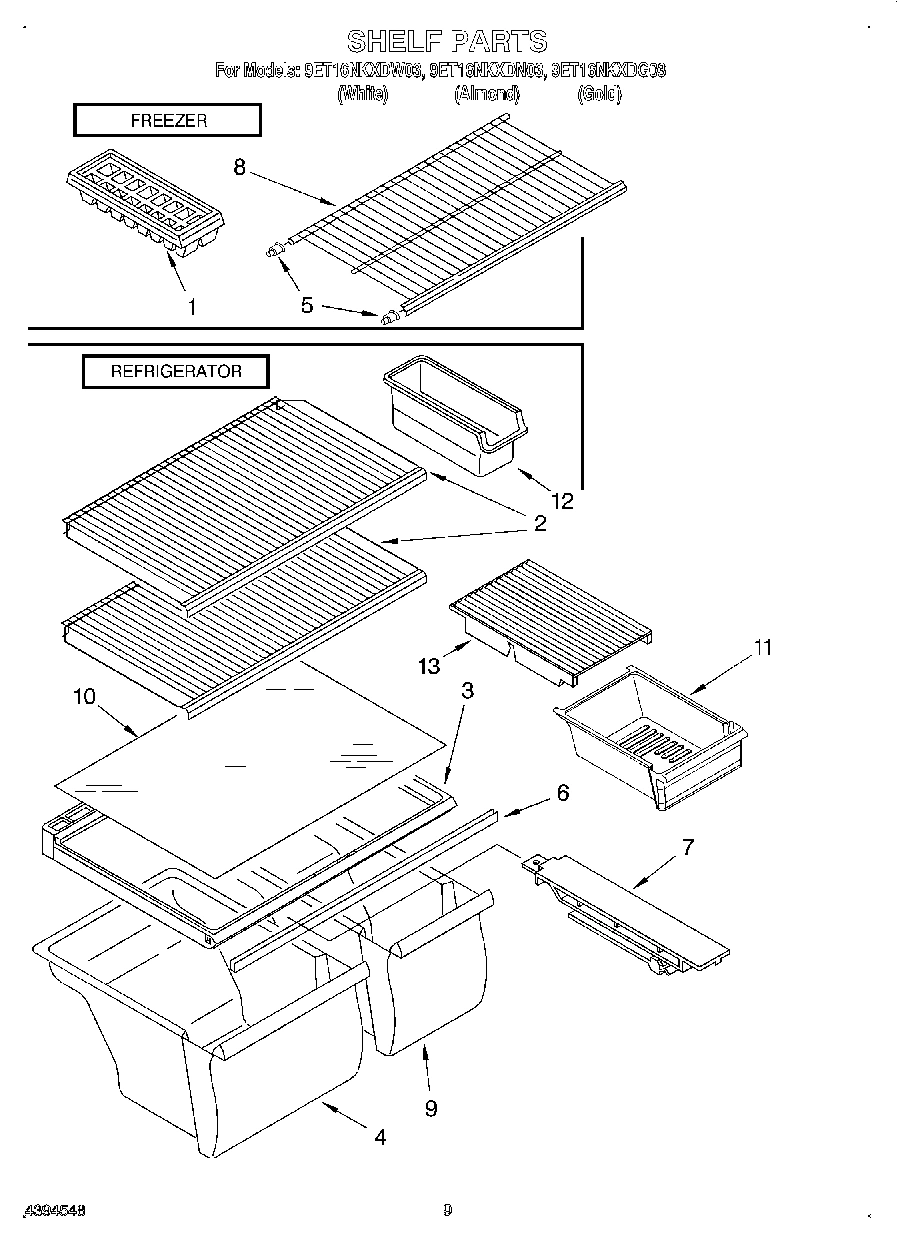

05 - SHELF, LIT/OPTIONAL

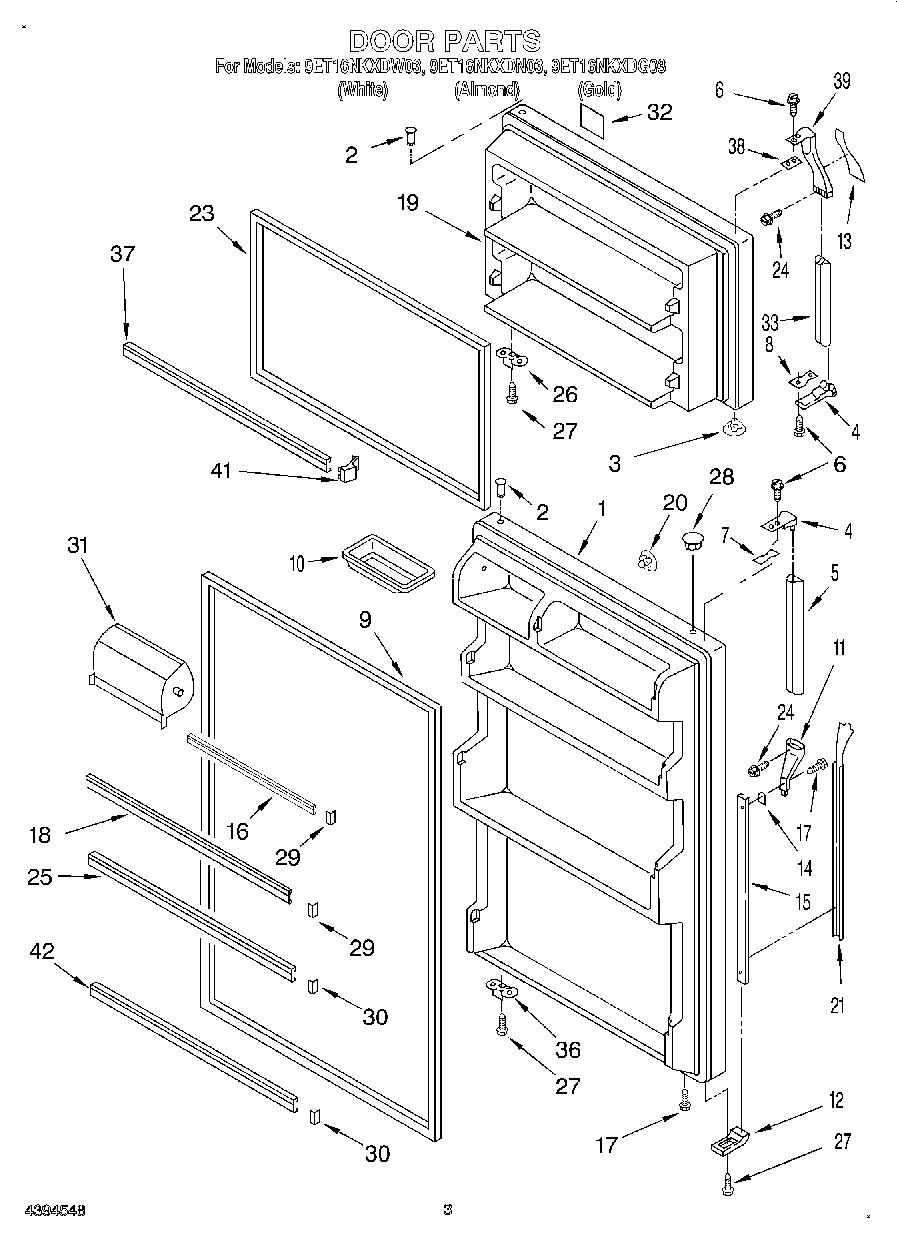

02 - DOOR

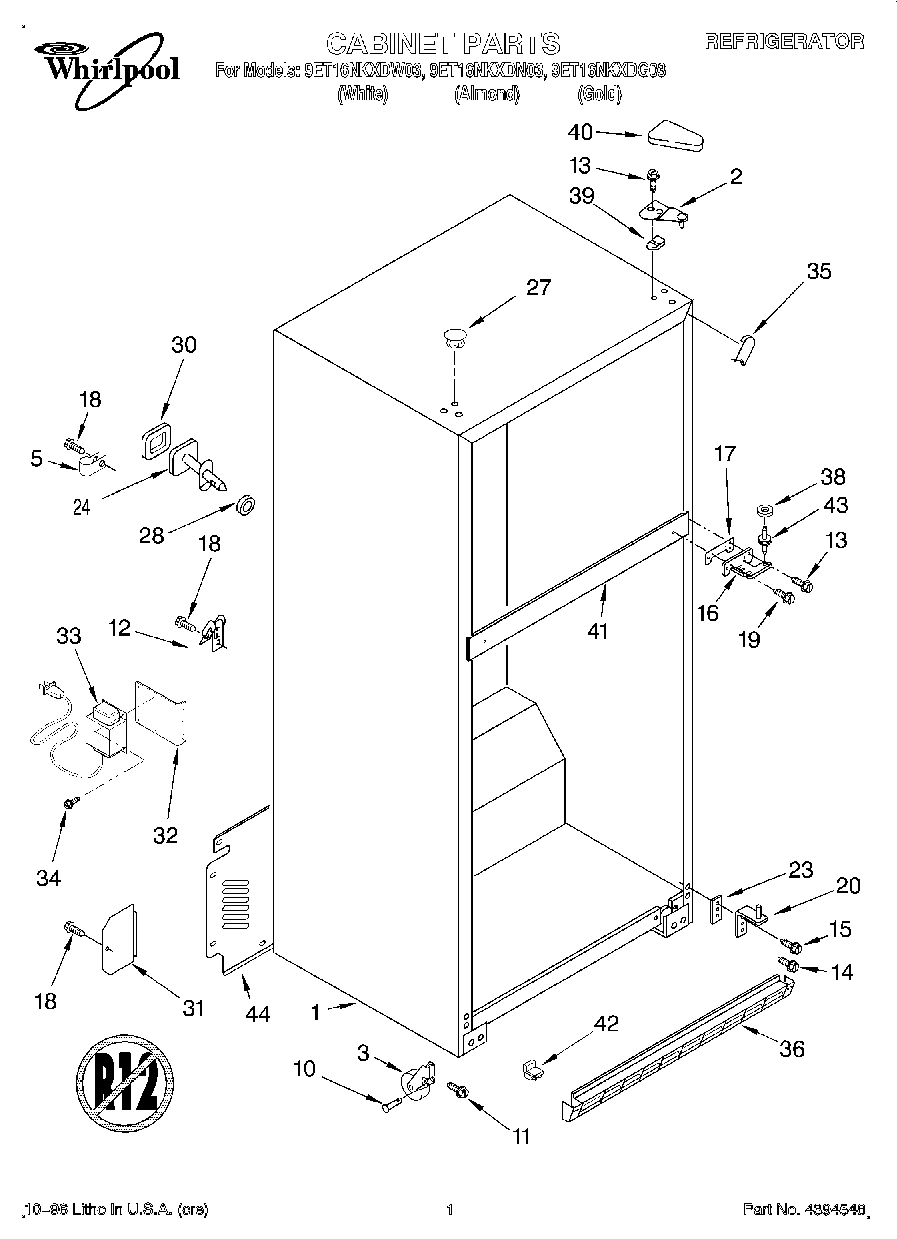

01 - CABINET
Common parts from model Whirlpool 9ET16NKXDG03 REFRIGERATOR
WPL LIT2169460 WPL LIT2169460 Contact Us For Availability
WPL LIT2175466 WPL LIT2175466 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Gold) WPL 2166866 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2171270 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI143999A Contact Us For Availability
2
Shelf (2) WPL 2182443 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
4
End Cap, Handle (2) WPL 944157 Contact Us For Availability
5
Handle, Center (Black) WPL 1120781 Contact Us For Availability
5
Handle, Center (White) WPL 2150150 Contact Us For Availability
5
Handle Center (Almond) WPL 943068 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
8
Shim WPL 935074 Contact Us For Availability
10
Butter, Tray WPL 1125936 Contact Us For Availability
11
Handle End, Center WPL 1109189 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Endcap WPL 1105804 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
Door Reversal Instructions WPL 2172516 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
13
Insert, Handle (White) WPL 1108828 Contact Us For Availability
13
Insert, Handle (Black) WPL 1114390 Contact Us For Availability
14
Shim WPL 935075 Contact Us For Availability
14
Screw WPL 489436 Contact Us For Availability
15
Retainer WPL 2159417 Contact Us For Availability
15
Screw WPL 489459 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.8) (White) WPL 2159446 Contact Us For Availability
19
Freezer Door (Includes No.8) (Almond) WPL 2159447 Contact Us For Availability
19
Freezer Door (Includes No.8) (Gold) WPL 2166782 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hole Plug (Gold) WPL 1122694 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (Black) WPL 2159416 Contact Us For Availability
21
Insert, Handle (White) WPL 2166438 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
23
Door Gasket, Magnetic (Service) (Chocolate) WPL 2159050 Contact Us For Availability
23
Door Gasket, Magnetic (Service) (Mist Beige) WPL 2159056 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Screw WPL 489022 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI144000A Contact Us For Availability
25
Trim, Door Shelf WPL 2171140 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Hole Plug (6) (Gold) WPL 2151654 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI144001A Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI144002A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Nameplate (Almond And G WPL 2165147 Contact Us For Availability
32
WPL 2165148 WPL 2165148 Contact Us For Availability
32
Bracket WPL 2195006 Contact Us For Availability
33
WPL 2159415 WPL 2159415 Contact Us For Availability
33
WPL 2166437 WPL 2166437 Contact Us For Availability
33
WPL 2166786 WPL 2166786 Contact Us For Availability
33
Transformer WPL 2195290 Contact Us For Availability
34
Screw (4) WPL 487347 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Gold) WPL 2166188 Contact Us For Availability
36
WPL 944035 WPL 944035 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
36
Grille (Black) WPL 2182431 Contact Us For Availability
38
WPL 943187 WPL 943187 Contact Us For Availability
39
WPL 944163 WPL 944163 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI144003A Contact Us For Availability
42
Wire Assy. Unit WPL 2184587 Contact Us For Availability
42
WPL 2184570 WPL 2184570 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
