Model Whirlpool 9ED20TKXDW00 REFRIGERATOR – Common Parts & Diagrams
05 - FREEZER DOOR
07 - UNIT

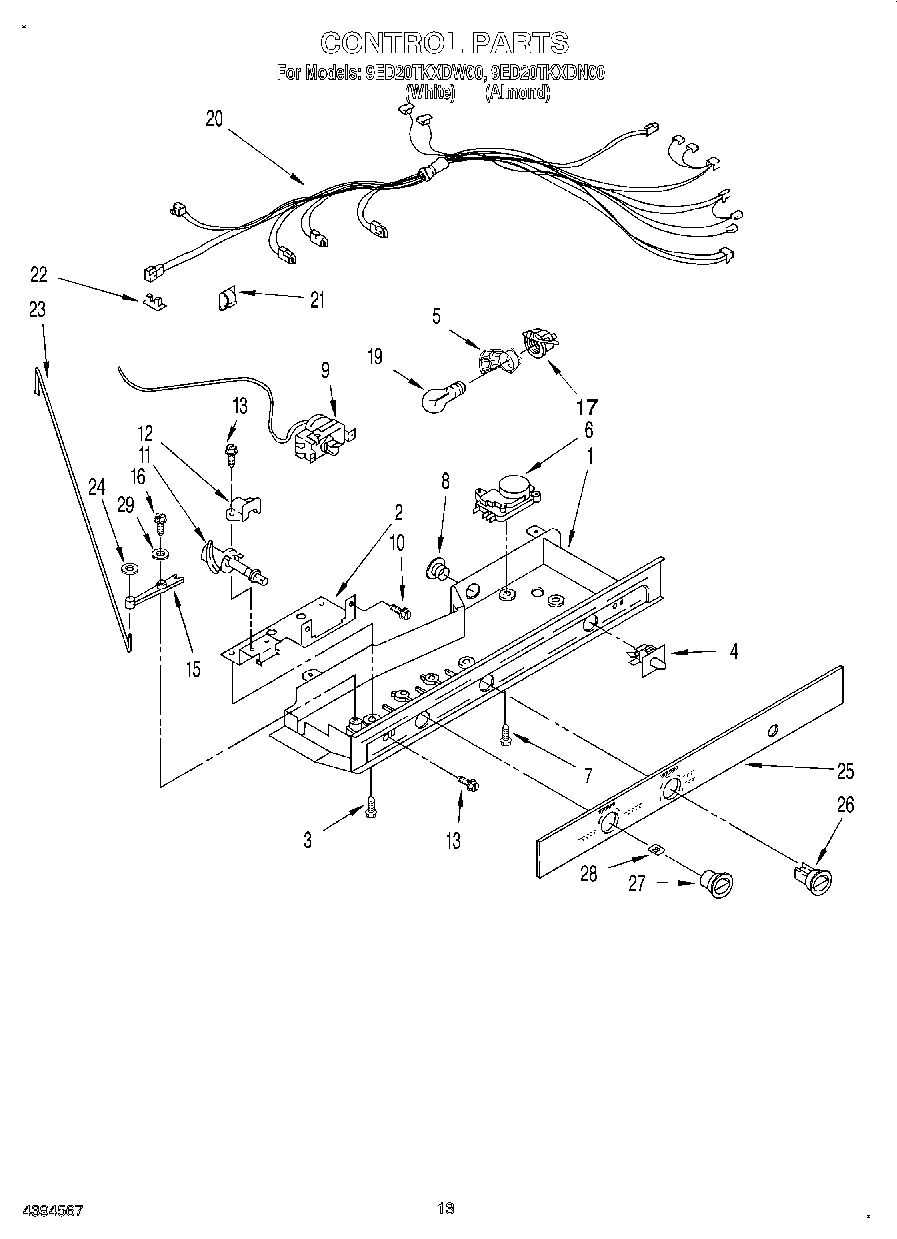

08 - CONTROL, LIT/OPTIONAL
01 - CABINET
03 - FREEZER LINER

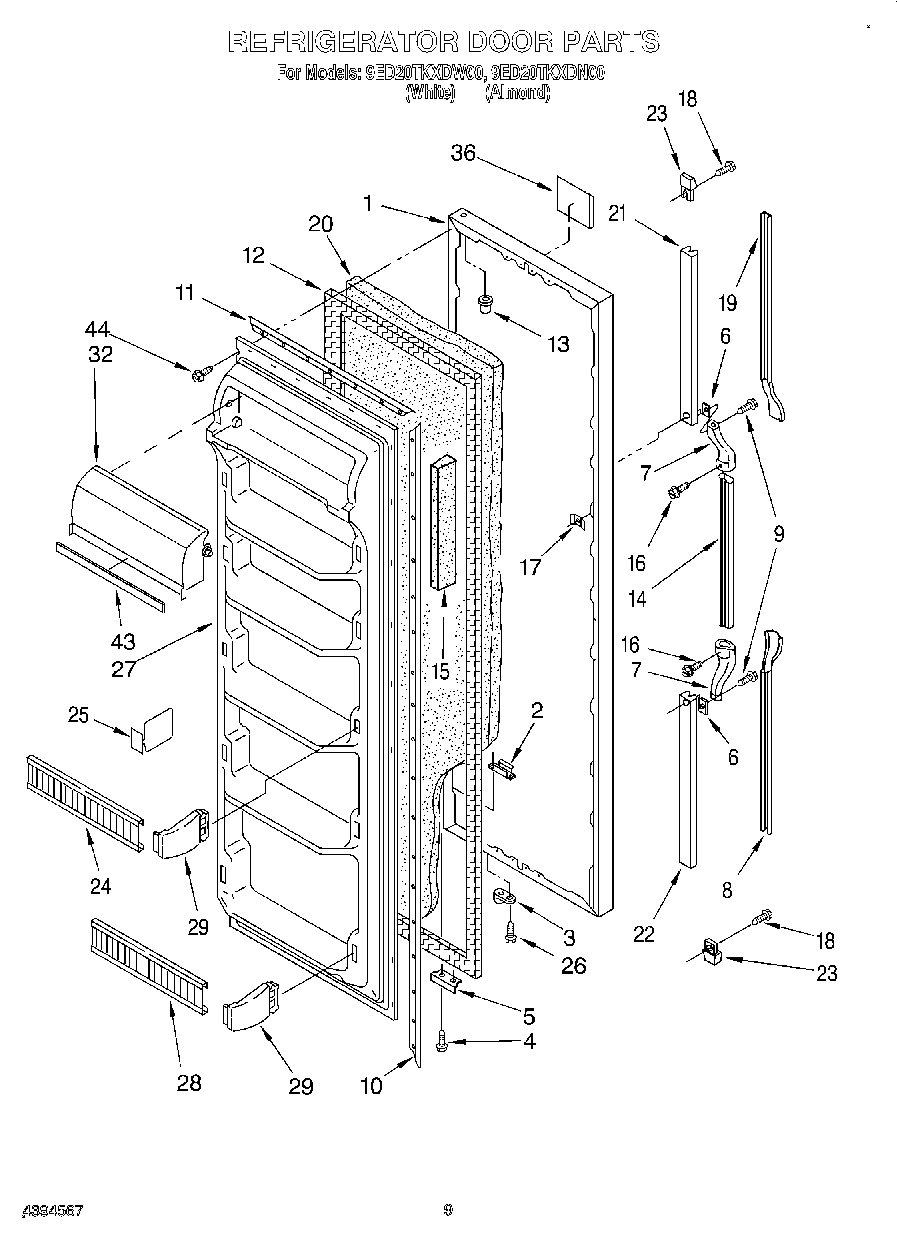

06 - REFRIGERATOR DOOR

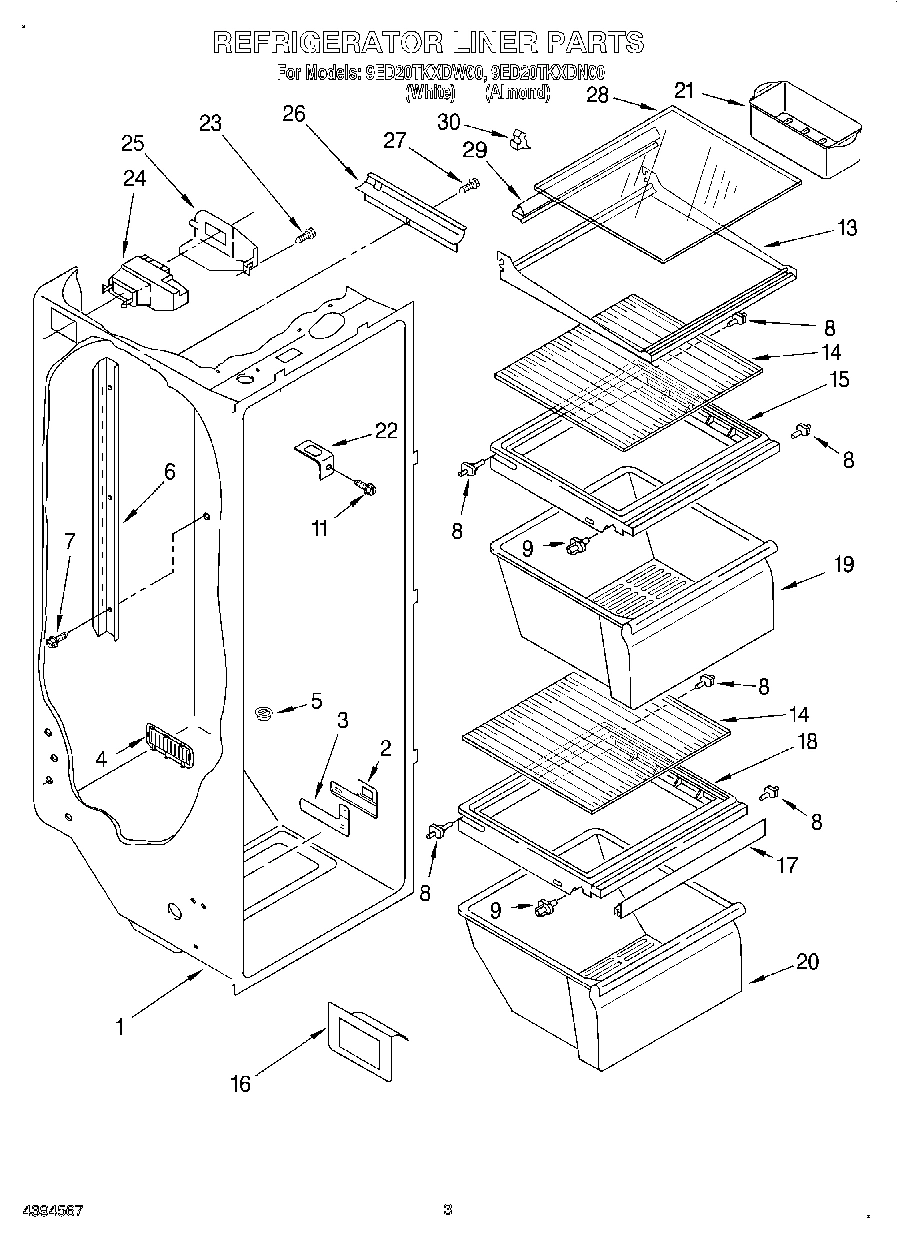

02 - REFRIGERATOR LINER
04 - AIR FLOW
Common parts from model Whirlpool 9ED20TKXDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI19798A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19800A8 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362040 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362041 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19799A9 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Bracket, Door Stop WPL 2155332 Contact Us For Availability
6
Shim WPL 935075 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
7
End Cap (2) WPL 1119359 Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
8
Insert, Bottom (White) WPL 1119361 Contact Us For Availability
8
Insert, Bottom (Almond) WPL 1119363 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Transformer WPL 2195326 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Screw (4) WPL 487347 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Shim, Hinge (2) WPL 2171868 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
14
Handle, Center (White) WPL 1124713 Contact Us For Availability
14
Handle, Center (Almond) WPL 943079 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2171707 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
16
Screw WPL 489022 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
17
Extension, Cover WPL 2179561 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Bracket WPL 2195006 Contact Us For Availability
19
Insert, Top (White) WPL 1119367 Contact Us For Availability
19
Insert, Top (Almond) WPL 1119369 Contact Us For Availability
20
Cover, Wiring WPL 2155401 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Insert Retainer (Top) WPL 1119366 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
End Cap (2) WPL 2156220 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2170586 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 2182110 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2170587 Contact Us For Availability
28
Glass, Shelf WPL 2175955 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPO WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Reflector WPL 2170621 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
36
Nameplate (White) WPL 2175383 Contact Us For Availability
36
Nameplate (Almond) WPL 2175384 Contact Us For Availability
43
Trim, Door Compartment WPL 2162896 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
