Model GE 911.95959590 30" Electric Freestanding Range (Kenmore 91195959590) – Common Parts & Diagrams
OVEN DOOR
DOOR LOCK

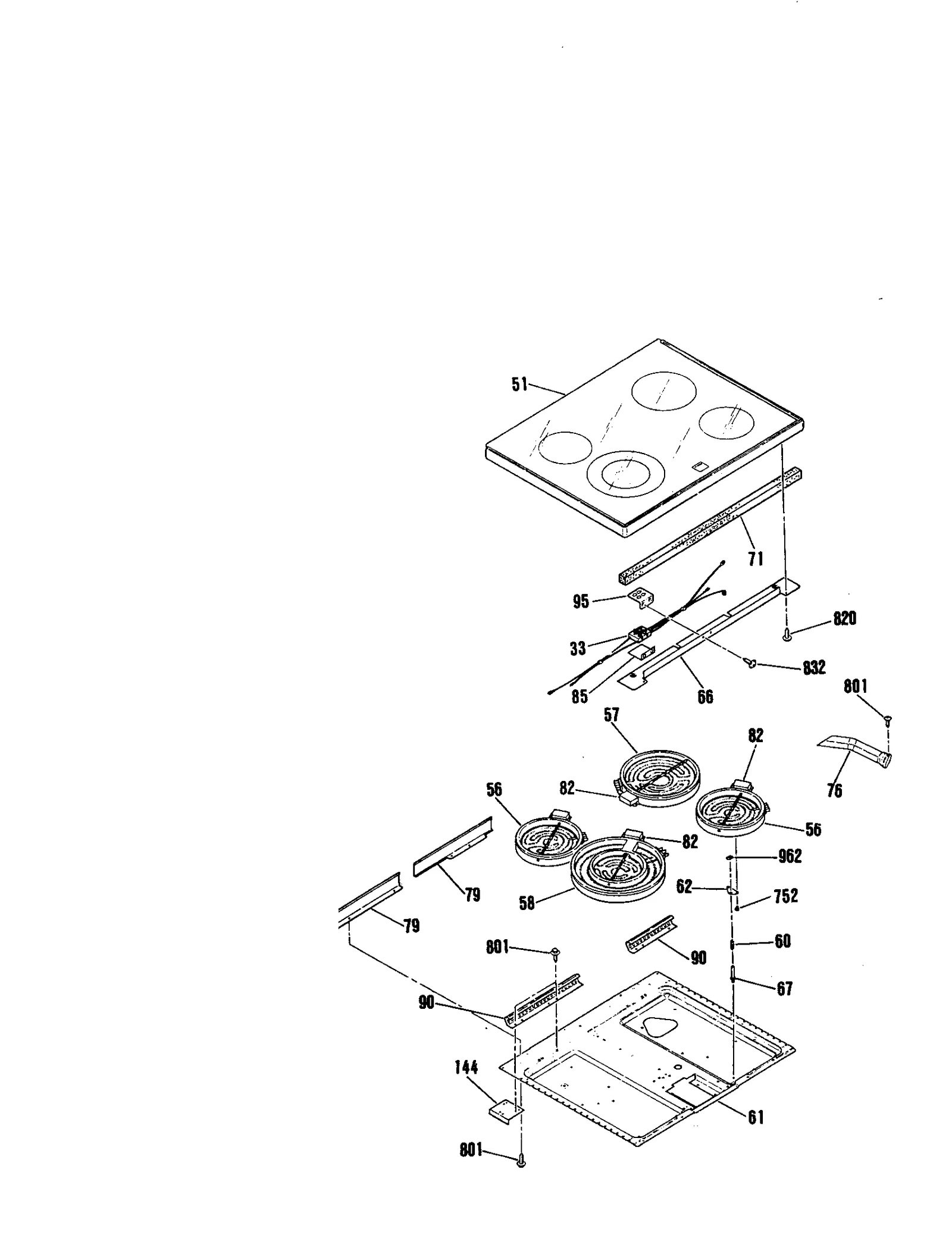

MAIN TOP

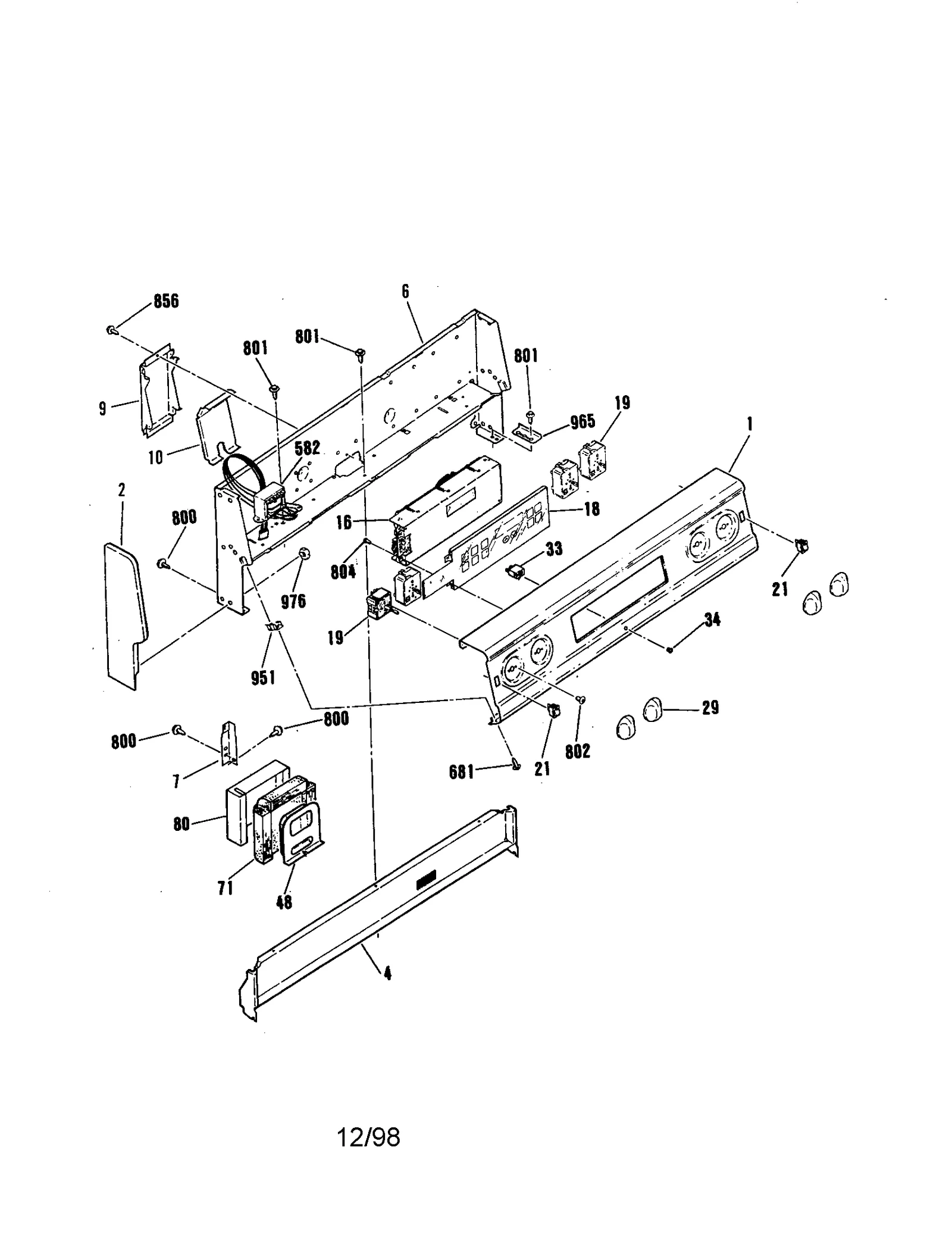

BACKGUARD

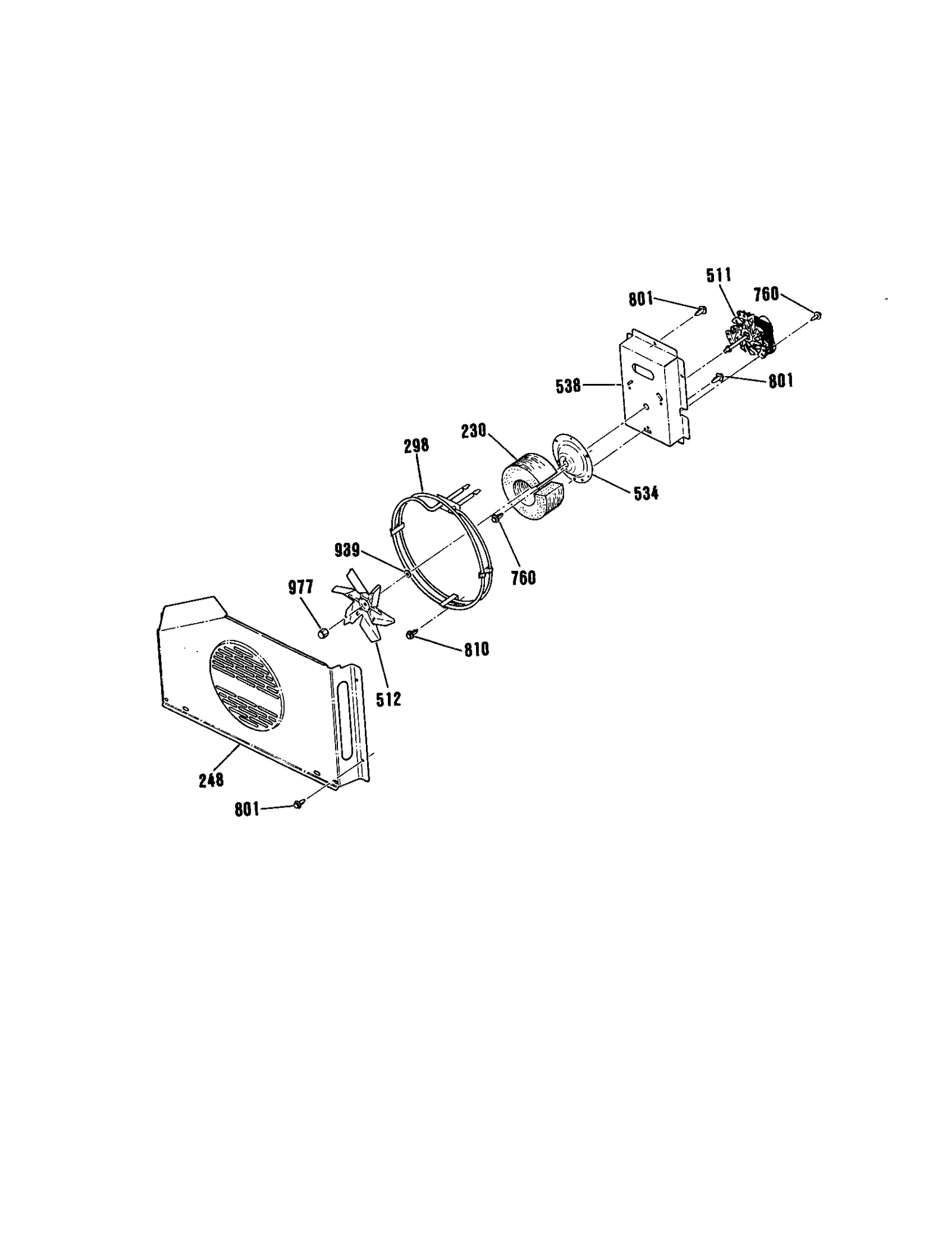

FAN

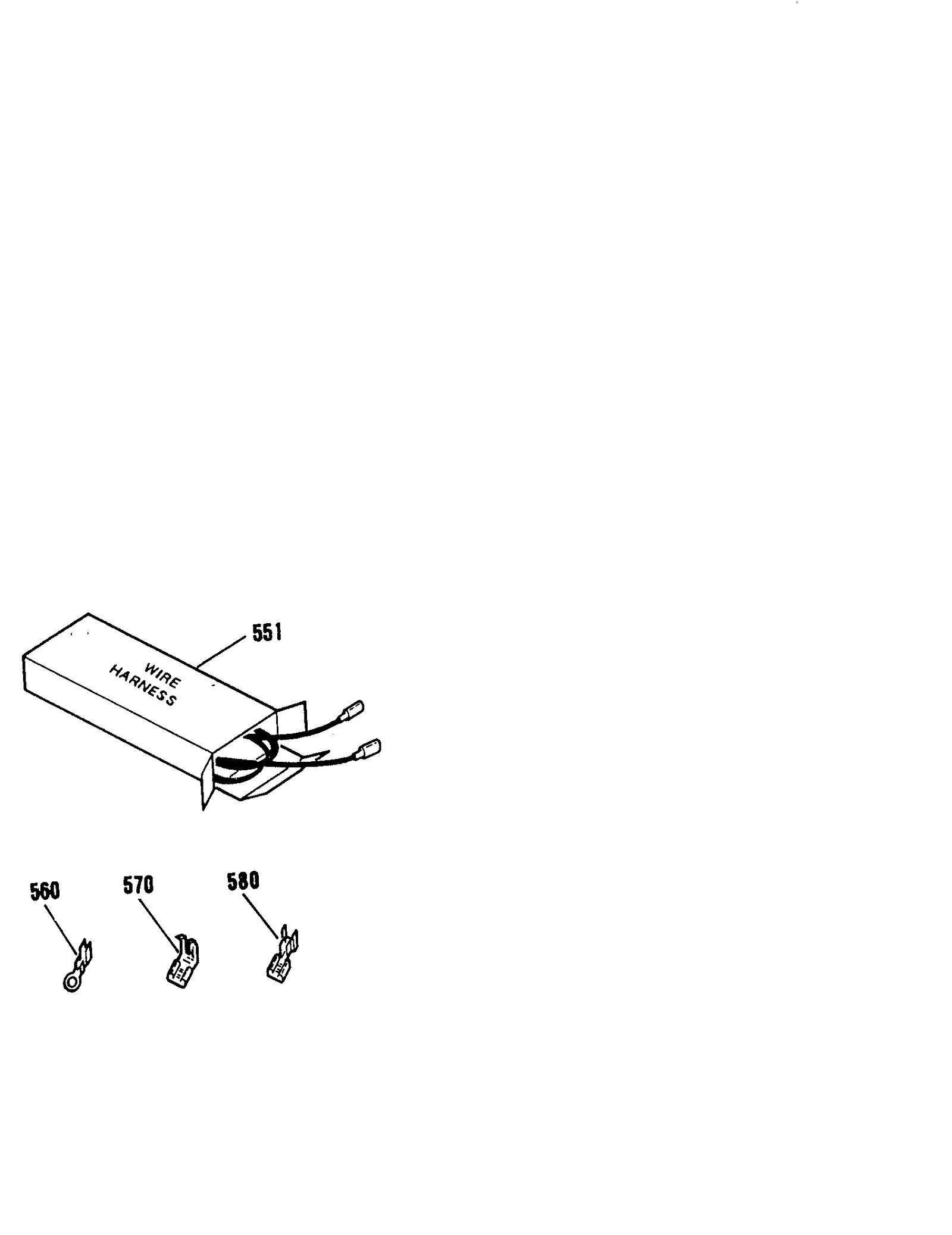

WIRE HARNESS AND COMPONENTS
All Parts

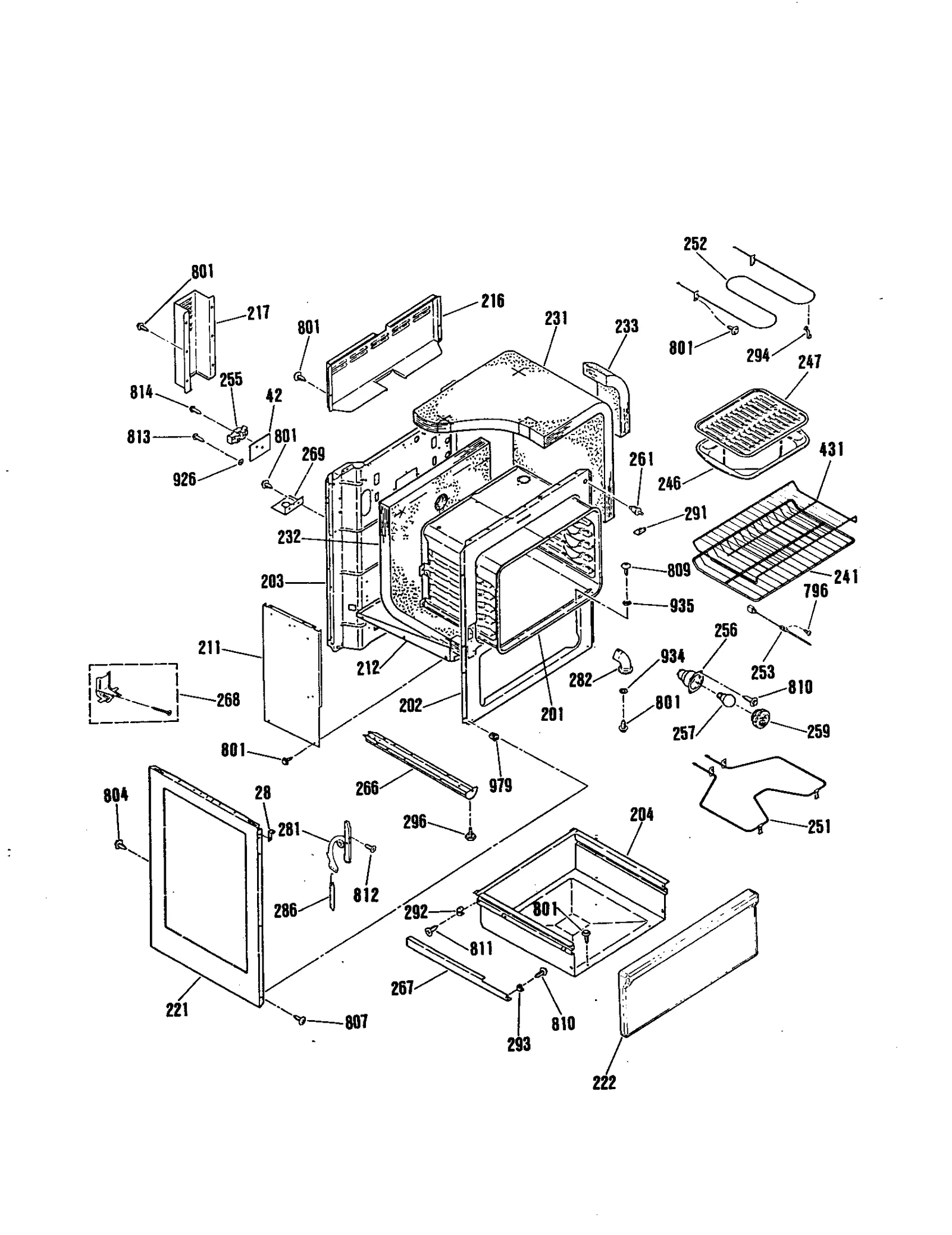

BODY
Common parts from model GE 911.95959590 30" Electric Freestanding Range (Kenmore 91195959590)
1
Control Panel GEN WB36K5546 Contact Us For Availability
1A
Range Control Panel GEN WB36K5547 Contact Us For Availability
1B
Control Panel GEN WB36K5548 Contact Us For Availability
2
Oven End Cap GEN WB36K5382 Contact Us For Availability
2A
Oven End Cap GEN WB36K5383 Contact Us For Availability
2B
End Cap GEN WB36K5389 Contact Us For Availability
2C
End Cap GEN WB36K5390 Contact Us For Availability
2D
Oven End Cap GEN WB36K5385 Contact Us For Availability
2E
End Cap GEN WB36K5386 Contact Us For Availability
4
Backguard Panel GEN WB37K5031 Contact Us For Availability
4A
Backguard Panel GEN WB37K5033 Contact Us For Availability
4B
Backguard Panel Foot GEN WB37K5032 Contact Us For Availability
6
Backguard Body GEN WB37K5039 Contact Us For Availability
7
Backguard Support GEN WB06X0128 Contact Us For Availability
7A
Backguard Support GEN WB06X0127 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
16
Oven Control Clock GEN WB27K5220 Contact Us For Availability
18
Keypad GEN WB27K5221 Contact Us For Availability
18A
Keypad GEN WB27K5228 Contact Us For Availability
18B
Keypad GEN WB27K5229 Contact Us For Availability
19
Ele Ctl 2000 GEN WB23M0023 Contact Us For Availability
19B
Range Surface Element Control Switch GEN WB23K5041 Contact Us For Availability
21
Hi/lo Bur Sw GEN WB24K5068 Contact Us For Availability
21A
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
21B
Rocker Switch GEN WB24K5088 Contact Us For Availability
21C
Range Surface Element Rocker Switch GEN WB24K5107 Contact Us For Availability
21D
Range Dual Surface Element Selector Switch GEN WB24K5067 Contact Us For Availability
28
Main Top Bracket GEN WB02K5268 Contact Us For Availability
29
Inf Knob Wh GEN WB03K5099 Contact Us For Availability
29A
Inf Knob Ad GEN WB03K5190 Contact Us For Availability
29B
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
33
Indicator Light GEN WB25K5020 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
48
Vent Box GEN WB38K5049 Contact Us For Availability
51
Glass Cooktop GEN WB61K5015 Contact Us For Availability
51A
Glass Cooktop GEN WB62K5138 Contact Us For Availability
51B
Glass Cooktop GEN WB61K5016 Contact Us For Availability
56
Sur El 1400w GEN WB23K5039 Contact Us For Availability
57
Sur El 1900w GEN WB23K5040 Contact Us For Availability
58
Range Dual Radiant Surface Element GEN WB23K5045 Contact Us For Availability
60
Radiant Spring GEN WB09K5014 Contact Us For Availability
61
Burner Box GEN WB64K5068 Contact Us For Availability
62
RADIANT HEATER BRACKET GEN WB02K5318 Contact Us For Availability
66
Cover Plate GEN WB34K5199 Contact Us For Availability
71
Insulation Maintop Frame GEN WB35K5111 Contact Us For Availability
71
Vent Duct Insert GEN WB35K5052 Contact Us For Availability
76
Vent Tube Ex GEN WB38K5050 Contact Us For Availability
79
Burner Box Baffle GEN WB34M0046 Contact Us For Availability
79A
Burner Box Baffle GEN WB34M0045 Contact Us For Availability
80
Duct Insert Cover GEN WB38K5033 Contact Us For Availability
82
Range Surface Element Temperature Limiter GEN WB24K5070 Contact Us For Availability
82A
Range Surface Element Temperature Limiter GEN WB24K5071 Contact Us For Availability
82B
Ther Sw 2400 GEN WB24K5089 Contact Us For Availability
85
Hot Light Insert GEN WB35K5098 Contact Us For Availability
90
Support GEN WB02X9877 Contact Us For Availability
90A
Support GEN WB02X9876 Contact Us For Availability
95
Indicator Light Bracket GEN WB02K5317 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
136A
Ovdr Hndl Ad GEN WB15K5066 Contact Us For Availability
136B
Ovdr Hndl Bl GEN WB15K5067 Contact Us For Availability
140
Oven Drive Frame GEN WB56K5138 Contact Us For Availability
140A
Oven Door Frame GEN WB56K5132 Contact Us For Availability
140B
Oven Door Frame GEN WB56K5144 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14X0128 Contact Us For Availability
160
Bracket GEN WB02X9882 Contact Us For Availability
161
Micro-Switch GEN WB24K5095 Contact Us For Availability
171
Insulator GEN WB02X9880 Contact Us For Availability
176
Lever Switch GEN WB02X9881 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Wh GEN WB03K5152 Contact Us For Availability
192A
Lock Knob Ad GEN WB03K5191 Contact Us For Availability
192B
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
201
Oven Body GEN WB63K5184 Contact Us For Availability
202
Frame GEN WB63K5161 Contact Us For Availability
203
Main GEN WB63K5185 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34K5225 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body Side Wh GEN WB63X0351 Contact Us For Availability
221A
Body-side Ad GEN WB63X0352 Contact Us For Availability
221B
Panel-black GEN WB63X0357 Contact Us For Availability
221C
Body GEN WB63K5188 Contact Us For Availability
221D
Body GEN WB63K5193 Contact Us For Availability
221E
Body GEN WB63K5189 Contact Us For Availability
222
Front Panel GEN WB56K5059 Contact Us For Availability
222A
Frt Pnl Ad GEN WB56K5063 Contact Us For Availability
222B
Fr Panel GEN WB56K5060 Contact Us For Availability
230
Insulation Cup GEN WB35K5114 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Flat Oven Rack GEN WB48K5024 Contact Us For Availability
248
Conversion Fan Cover GEN WB63K5186 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Vent Tube GEN WB38M0001 Contact Us For Availability
286
Door Spring GEN WB09X0273 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
SLIDE BLOCK-REAR (LT. OR RT.) GEN WV02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
431
Off Oven Rack GEN WB48K5023 Contact Us For Availability
534
Oven Body Support GEN WB26K5062 Contact Us For Availability
538
Motor Mounting Bracket GEN WB02K5360 Contact Us For Availability
551
Mtop W Harn GEN WB18K5481 Contact Us For Availability
551A
Main Wiring Harness GEN WB18K5548 Contact Us For Availability
551B
Sensor Harness GEN WB18K5488 Contact Us For Availability
551C
Range Door Lock Wire Harness GEN WB18K5489 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
582
Transformer GEN WB20X5063 Contact Us For Availability
681A
Trim Screw GEN WB01K5176 Contact Us For Availability
752
Screw GEN WB00X6542 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
817
Screw GEN WB01X1346 Contact Us For Availability
871
Screw GEN WB01M0013 Contact Us For Availability
881A
Screw-almond GEN WB01K5158 Contact Us For Availability
881B
Screw Black GEN WB01K5160 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
939
Washer GEN WB01K5126 Contact Us For Availability
951
Clip Backsplash GEN WB02X9443 Contact Us For Availability
962
Clip GEN WB17M0004 Contact Us For Availability
965
Cleat GEN WB02X9000 Contact Us For Availability
976
Pal Nut GEN WB01X1251 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
NI
Owner's Manual GEN SR10260 Contact Us For Availability
NI
Installation Instructions GEN ST10207 Contact Us For Availability
NI
Repair Parts List GEN ST13538 Contact Us For Availability
NI
MINI MANUAL W/WIRE DIAGRAM GEN ST13539 Contact Us For Availability
× ![]()
