Model GE 911.95381891 30" Radiant Range (Kenmore 91195381891) – Common Parts & Diagrams
WIRING COMPONENTS
BODY

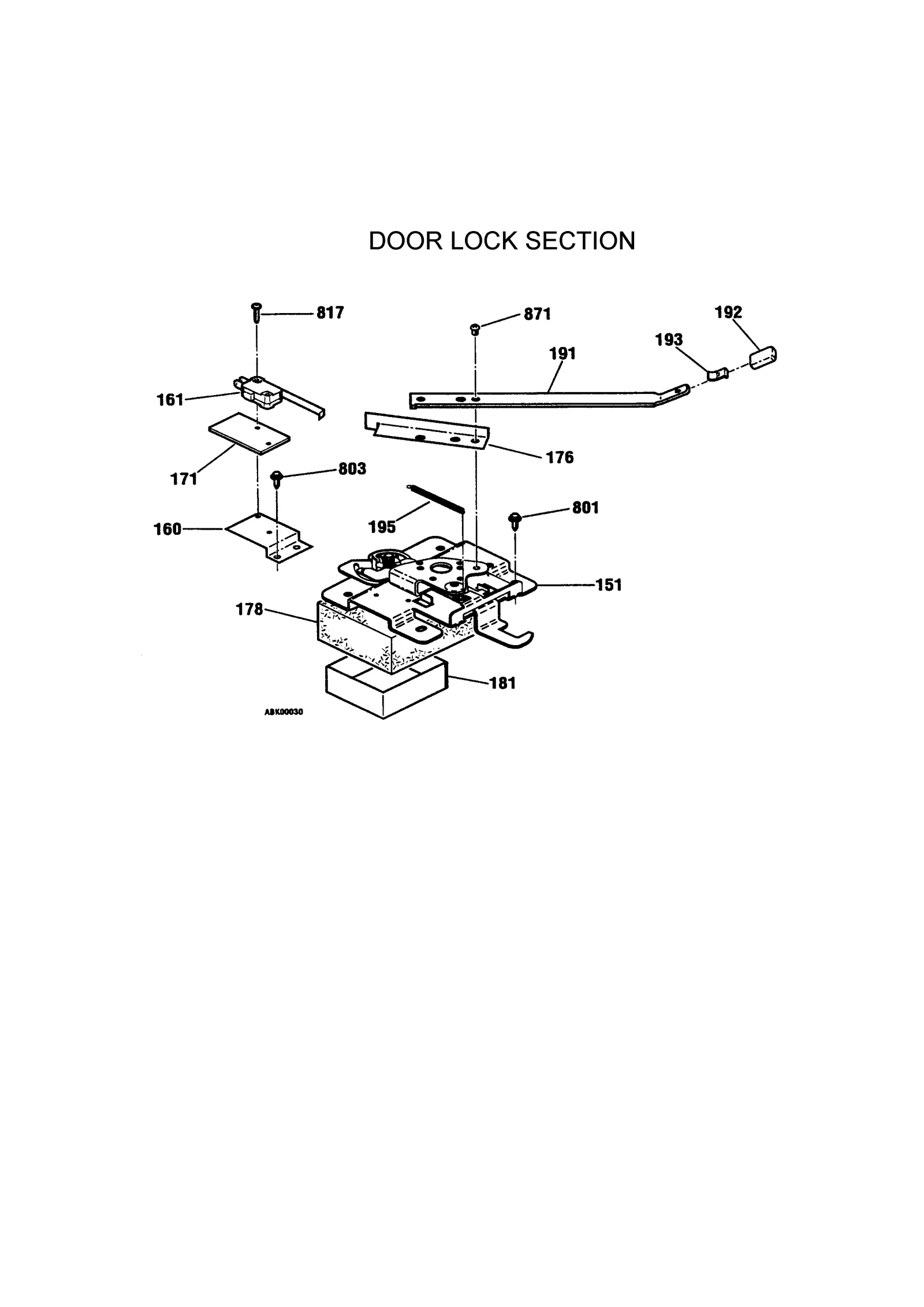

DOOR LOCK

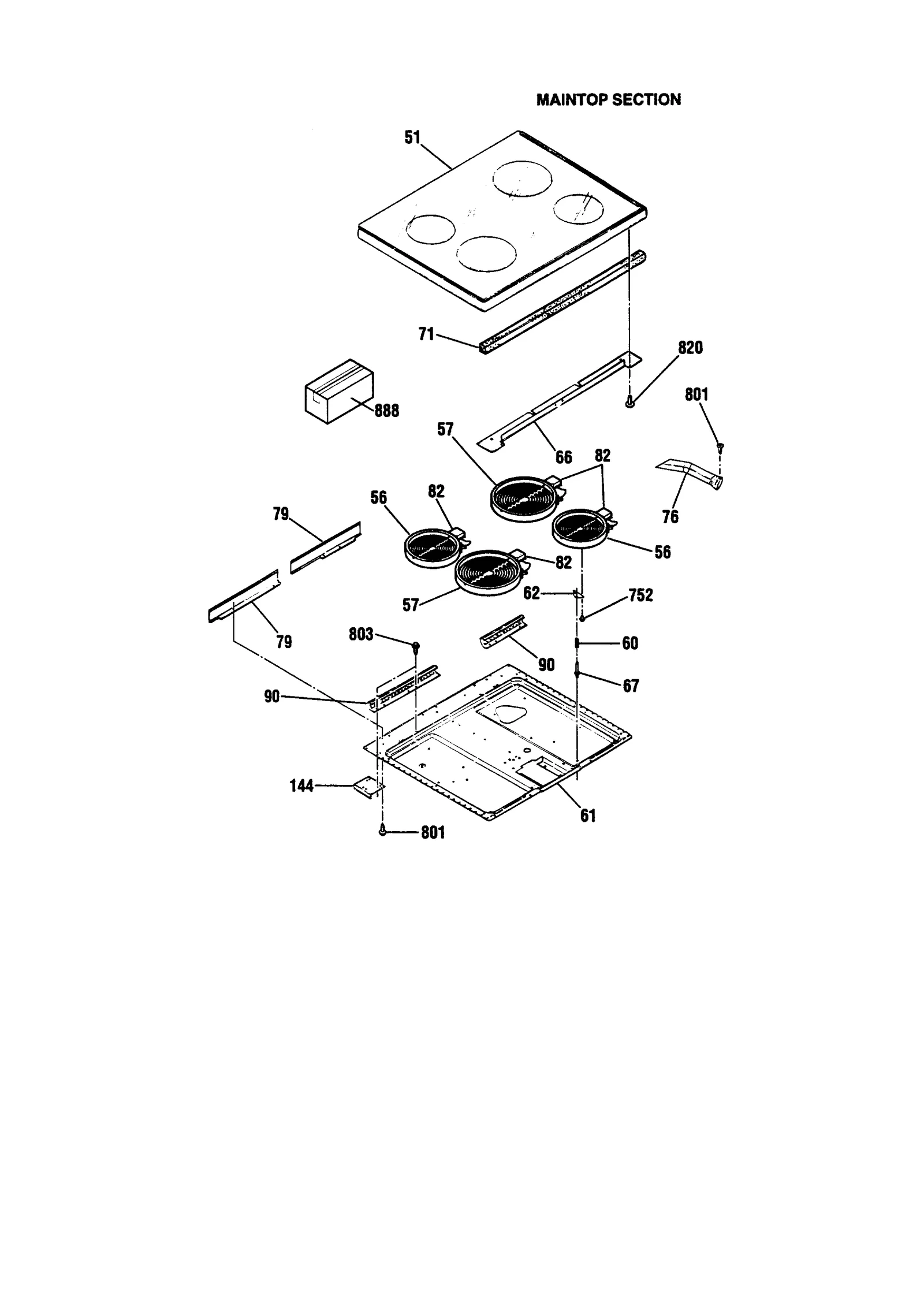

MAINTOP

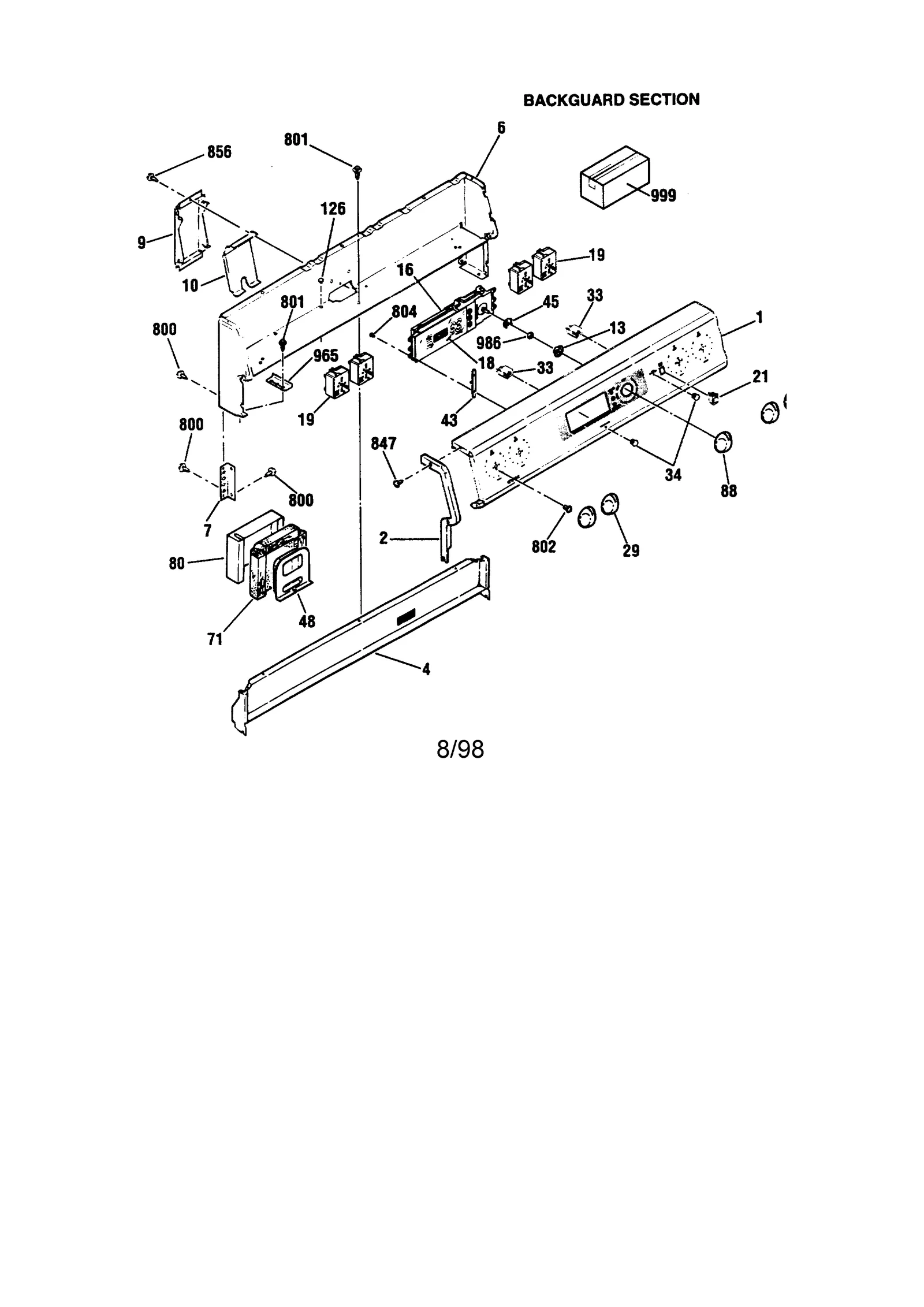

BACKGUARD

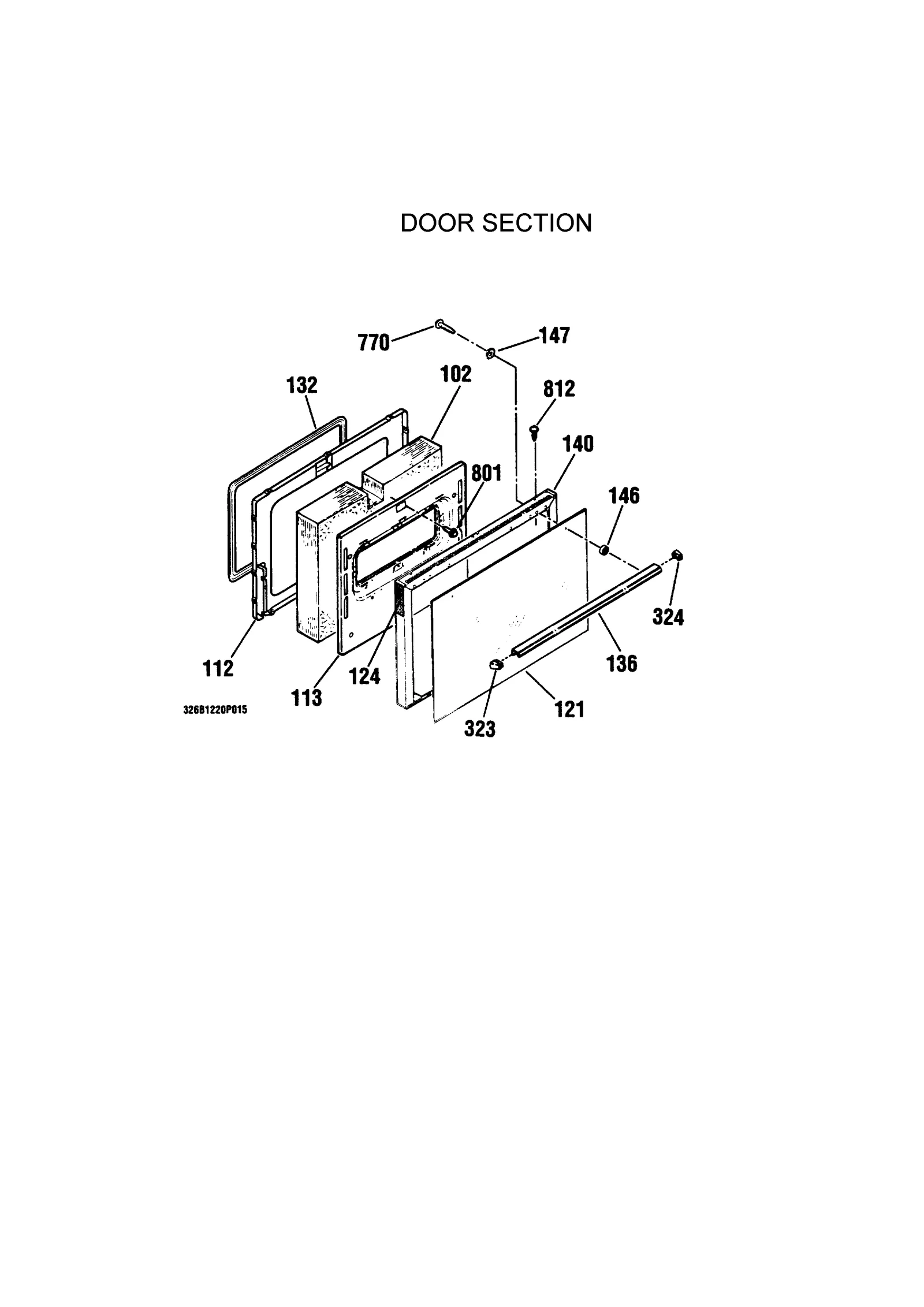

DOOR
Common parts from model GE 911.95381891 30" Radiant Range (Kenmore 91195381891)
1
Range Control Panel GEN WB36T10049 Contact Us For Availability
2
Endcap Lt Bl GEN WB36K5381 Contact Us For Availability
2A
Endcap Rt Bl GEN WB36K5380 Contact Us For Availability
4
Backguard Panel GEN WB37K5031 Contact Us For Availability
4A
Backguard Panel GEN WB37K5033 Contact Us For Availability
6
Backguard Body GEN WB37K5035 Contact Us For Availability
7
Backguard Support GEN WB06X0127 Contact Us For Availability
7A
Backguard Support GEN WB06X0128 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
13
Cam Dual GEN WB02T10008 Contact Us For Availability
16
Clock Control GEN WB24T10004 Contact Us For Availability
18
Clock Plate GEN WB24T10005 Contact Us For Availability
19
Ele Ctl 2000 GEN WB23M0023 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
43
Spacer GEN WB02K5325 Contact Us For Availability
45
Spring Deten GEN WB09X5121 Contact Us For Availability
48
Vent Box GEN WB38K5049 Contact Us For Availability
51
Glass Main Top GEN WB57T10012 Contact Us For Availability
60
Radiant Spring GEN WB09K5014 Contact Us For Availability
61
Burner Box GEN WB64K5068 Contact Us For Availability
62
RADIANT HEATER BRACKET GEN WB02K5318 Contact Us For Availability
66
Cover Plate GEN WB34K5199 Contact Us For Availability
71
Insulation Maintop Frame GEN WB35K5111 Contact Us For Availability
71
Vent Duct Insert GEN WB35K5052 Contact Us For Availability
76
Vent Tube Ex GEN WB38K5050 Contact Us For Availability
79
Burner Box Baffle GEN WB34M0046 Contact Us For Availability
79A
Burner Box Baffle GEN WB34M0045 Contact Us For Availability
80
Duct Insert Cover GEN WB38K5033 Contact Us For Availability
82
Thermal Switch GEN WB24K5114 Contact Us For Availability
82A
Therm Sw1900 GEN WB24K5103 Contact Us For Availability
88
Thermostat Knob GEN WB03K5183 Contact Us For Availability
90
Support GEN WB02X9877 Contact Us For Availability
90A
Support GEN WB02X9876 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
112
Lining Ovn D GEN WB55T10019 Contact Us For Availability
113
Oven Drive Insert GEN WB02M0036 Contact Us For Availability
121
Range Oven Door Outer Panel GEN WB57K5213 Contact Us For Availability
126
Button Plug GEN WB03K5189 Contact Us For Availability
140
Oven Door Frame GEN WB55K5054 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14K5011 Contact Us For Availability
160
Bracket GEN WB02X9882 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
171
Insulator GEN WB02X9880 Contact Us For Availability
176
Lever Switch GEN WB02X9881 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
202
Frame GEN WB63T10003 Contact Us For Availability
203
Main GEN WB63K5187 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
221A
Body GEN WB63K5193 Contact Us For Availability
222
Front Panel GEN WB56K5059 Contact Us For Availability
222A
Frt Pnl Ad GEN WB56K5063 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Insul Bk&btm GEN WB35T10003 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
257
BULB OVEN LI GEN BUY LOCAL Contact Us For Availability
259
Oven Bulb Lens GEN WB25T1002 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Vent Tube GEN WB38T10001 Contact Us For Availability
286
Door Spring GEN WB09X0264 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
323
Cap Handle L GEN WB07K0087 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
817
Screw GEN WB01X1346 Contact Us For Availability
871
Screw GEN WB01M0013 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
965
Cleat GEN WB02X9000 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
986
Nut GEN WB02X8268 Contact Us For Availability
999
Installation Instructions GEN 31-10249 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAGRAM GEN 31-13462 Contact Us For Availability
999B
Owner's Manual GEN SR10358 Contact Us For Availability
999C
Parts List GEN 31-13515 Contact Us For Availability
× ![]()
