GE 911.93411002 Electric Range (Kenmore 91193411002) Parts List

1

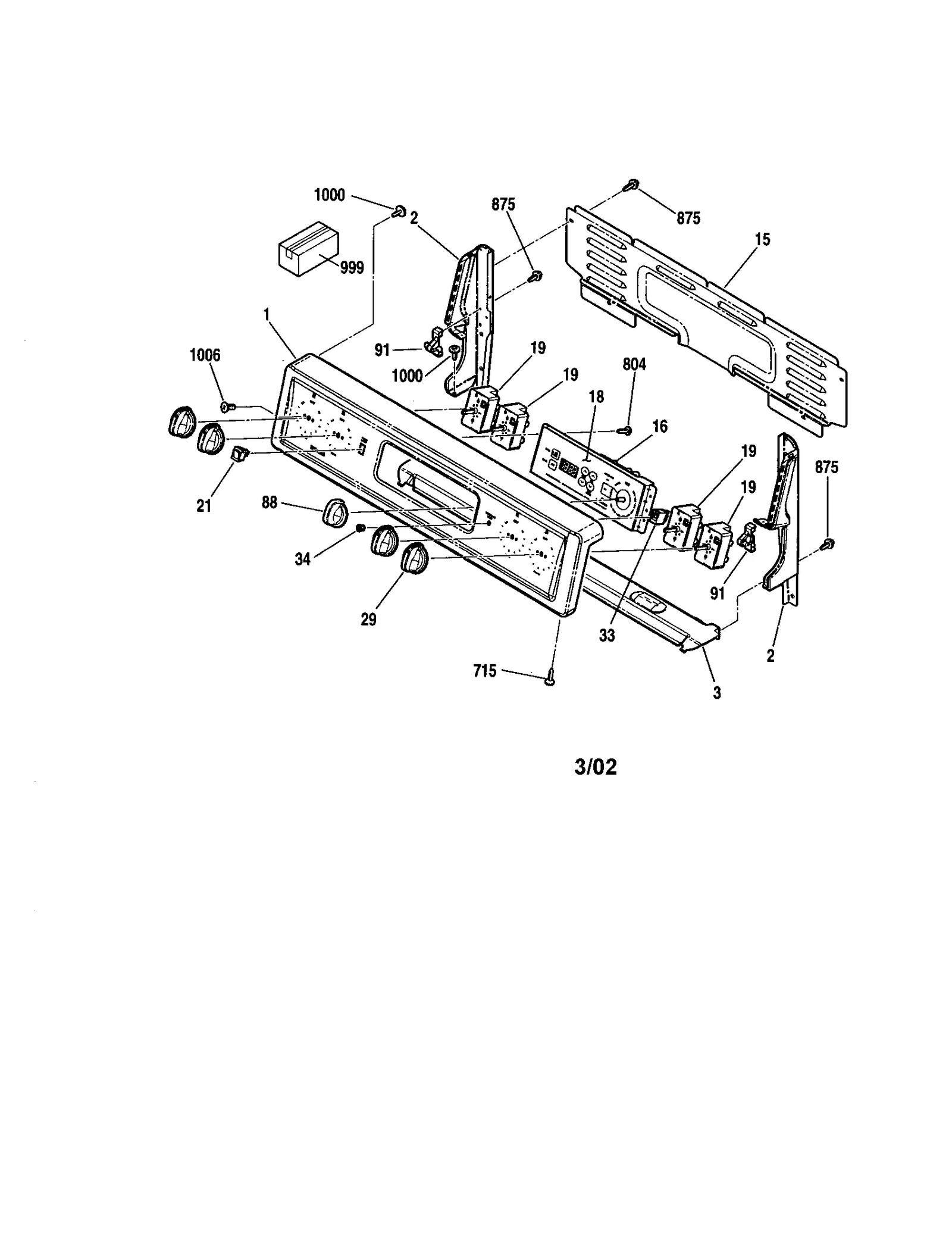

Control Panel GEN WB36T10218 Contact Us For Availability

View on Model

1A

Control Panel GEN WB36T10239 Contact Us For Availability

View on Model

1B

Range Control Panel GEN WB36T10238 Contact Us For Availability

View on Model

2

End Cap GEN WB36T10220 Contact Us For Availability

View on Model

2A

End Cap Rt B GEN WB36T10219 Contact Us For Availability

View on Model

2B

End Cap Rt/w GEN WB36T10232 Contact Us For Availability

View on Model

2C

End Cap Lt/w GEN WB36T10233 Contact Us For Availability

View on Model

2D

End Cap Rt/a GEN WB36T10235 Contact Us For Availability

View on Model

2E

End Cap Lt/a GEN WB36T10236 Contact Us For Availability

View on Model

3

Heat Shield GEN WB02T10022 Contact Us For Availability

View on Model

15

Control Cover GEN WB34T10020 Contact Us For Availability

View on Model

16

Range Oven Control Board GEN WB27T10231 Contact Us For Availability

View on Model

18

Clock Plate GEN WB27T10105 Contact Us For Availability

View on Model

19

WB24T10022 GE Oven Infinite Switch In Stock GEN WB24T10022 $97.94

View on Model

19A

WB24T10027 GE Oven Range Top Burner Infinite In Stock GEN WB24T10027 $93.01

View on Model

21

WB24T10042 GE Range Rocker Switch Backorder GEN WB24T10042 $16.22

View on Model

21A

Range Oven Light Rocker Switch GEN WB24T10044 Contact Us For Availability

View on Model

21B

WB24T10043 GE Range Rocker Switch Backorder GEN WB24T10043 $20.13

View on Model

29

Range Burner Control Knob GEN WB03T10024 Contact Us For Availability

View on Model

29A

Range Surface Burner Knob GEN WB03T10023 Contact Us For Availability

View on Model

29B

Range Control Knob GEN WB03T10022 Contact Us For Availability

View on Model

33

WB27T10626 GE Oven Indicator Light Pilot In Stock GEN WB27T10626 $5.30

View on Model

34

Jewel GEN WB25X5054 Contact Us For Availability

View on Model

51A

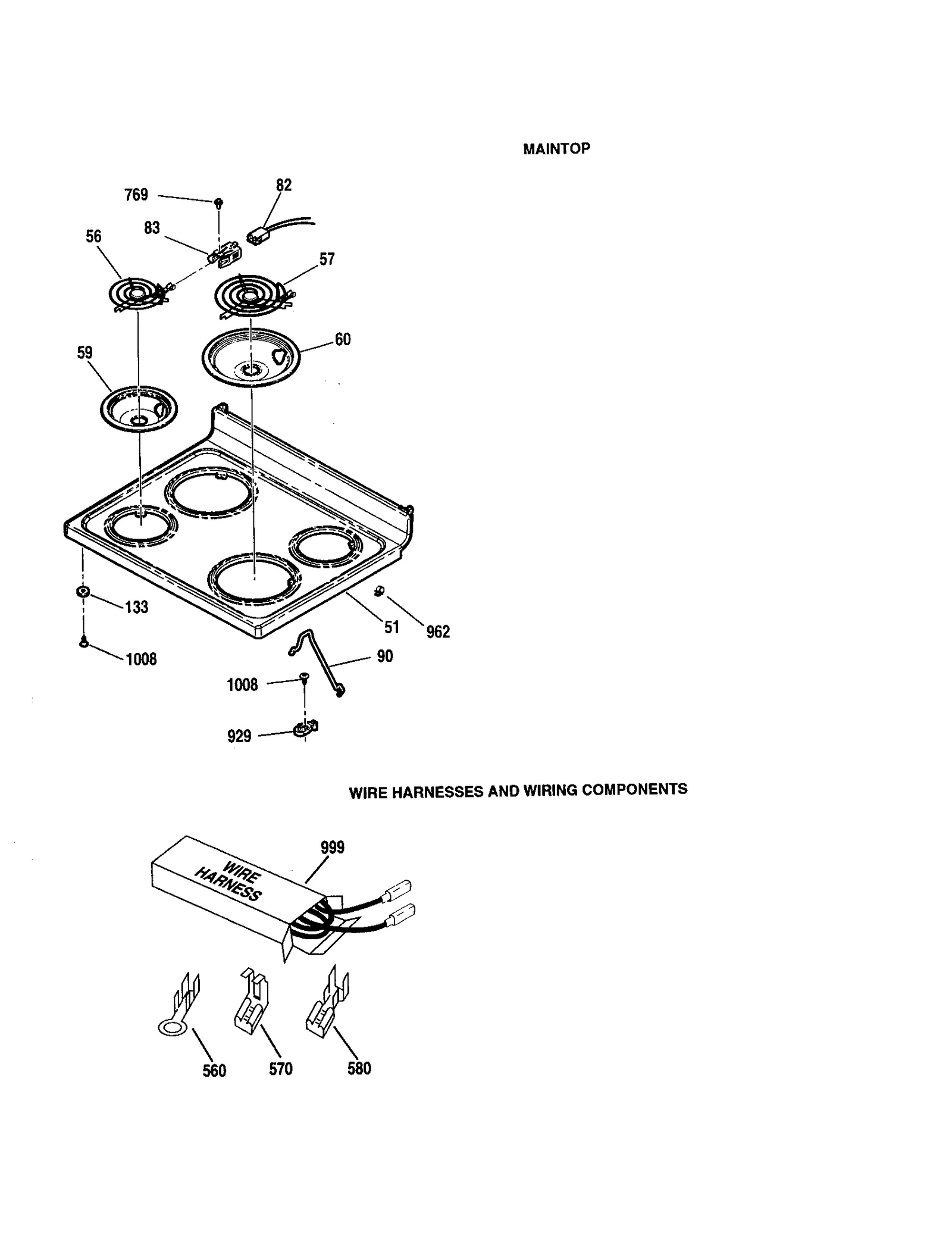

Range Main Top (Bisque) GEN WB62T10133 Contact Us For Availability

View on Model

51B

Range Main Top (White) GEN WB62T10008 Contact Us For Availability

View on Model

56

WB30K10002 GE Range Cooktop Surface Unit Burn In Stock GEN WB30K10002 $68.12

View on Model

57

WB30T10071 GE Range Surface Element In Stock GEN WB30T10071 $55.10

View on Model

59

WB31T10010 GE Oven 6" Chrome Burner Drip Bowl In Stock GEN WB31T10010 $8.24

View on Model

60

WB31T10011 GE Oven 8" Chrome Drip Bowl Burner In Stock GEN WB31T10011 $10.56

View on Model

88

Range Burner Control Knob GEN WB03T10059 Contact Us For Availability

View on Model

88A

Knob Cntl To GEN WB03T10061 Contact Us For Availability

View on Model

88B

Range Surface Burner Knob GEN WB03T10060 Contact Us For Availability

View on Model

90

WB02T10025 GE Range Support Bracket In Stock GEN WB02T10025 $6.90

View on Model

91

Main Top Hinge GEN WB10T10002 Contact Us For Availability

View on Model

92

Range Ground Strap GEN WB02T10067 Contact Us For Availability

View on Model

101

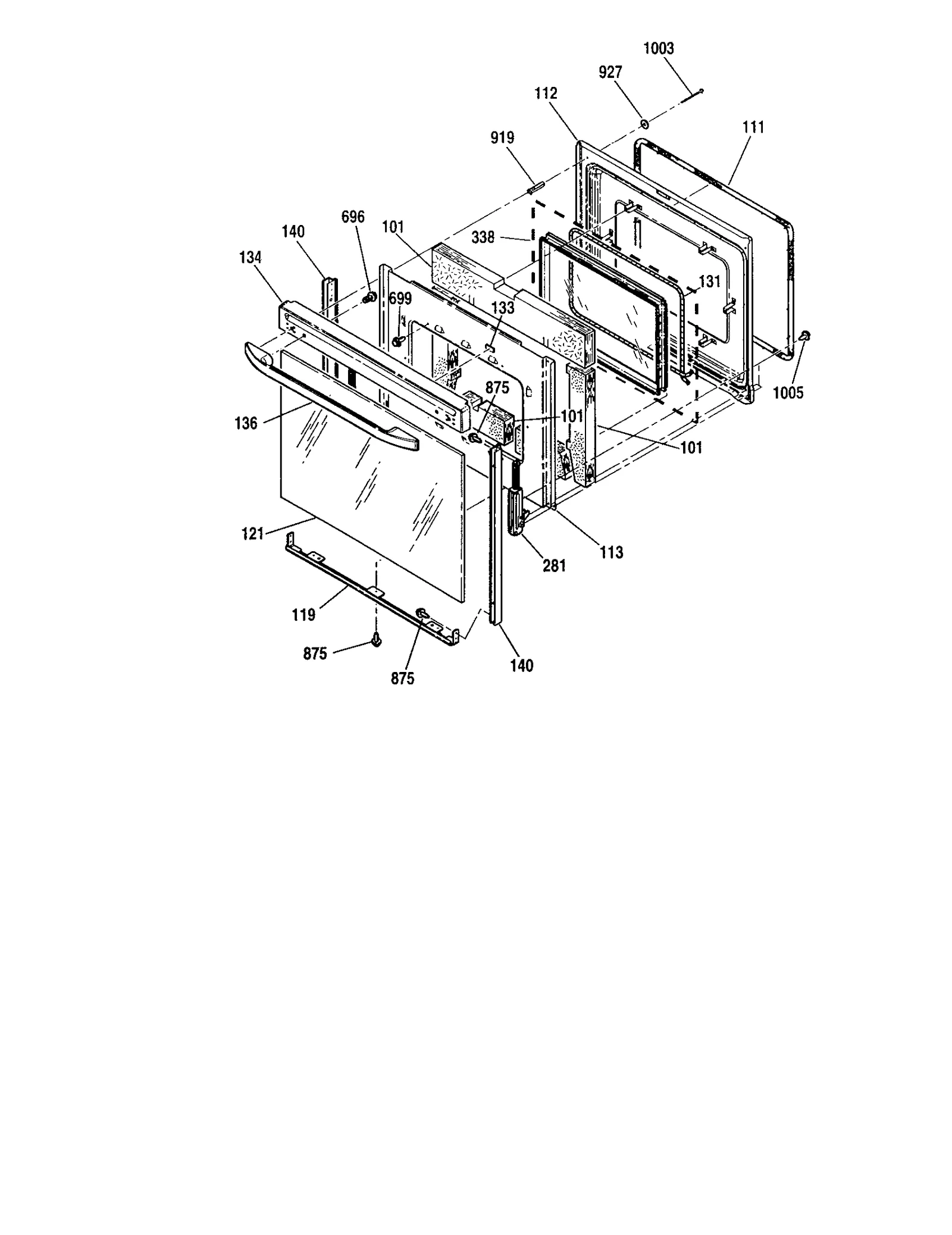

Range Oven Door Insulation GEN WB35T10019 Contact Us For Availability

View on Model

101A

Insulation GEN WB35T10018 Contact Us For Availability

View on Model

101B

WB35T10077 GE Oven Door Insulation Backorder GEN WB35T10077 $5.65

View on Model

111

WB04T10022 GE Range Door Gasket Seal In Stock GEN WB04T10022 $63.17

View on Model

112

Door Liner GEN WB55T10050 Contact Us For Availability

View on Model

113

Retainer Insert GEN WB56T10027 Contact Us For Availability

View on Model

119

WB07X42966 GE Range Bottom Trim Channel Backorder GEN WB07X42966 $16.18

View on Model

121

Range Oven Door Outer Panel (Black) GEN WB56T10030 Contact Us For Availability

View on Model

121A

WB56T10040 GE Range Glass Door (O/S1) Backorder GEN WB56T10040 $142.74

View on Model

121B

Door Outer Glass GEN WB56T10029 Contact Us For Availability

View on Model

131

Window Seal GEN WB04T10002 Contact Us For Availability

View on Model

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $5.65

View on Model

133

WB01T10026 GE Oven Door Pad Backorder GEN WB01T10026 $5.65

View on Model

133

WB02X29562 GE Range Top Bumper Backorder GEN WB02X29562 $5.67

View on Model

134

Door Trim (Black) GEN WB07T10094 Contact Us For Availability

View on Model

134A

Range Oven Door Vent (White) GEN WB07T10099 Contact Us For Availability

View on Model

134B

Door Trim GEN WB07T10100 Contact Us For Availability

View on Model

136

Handle GEN WB15K10018 Contact Us For Availability

View on Model

136A

Oven Door Handle GEN WB15T10019 Contact Us For Availability

View on Model

136B

Range Oven Door Handle GEN WB15T10035 Contact Us For Availability

View on Model

140

Door Frame GEN WB56T10096 Contact Us For Availability

View on Model

140A

WB56T10290 GE Range Door Side Frame (White) Backorder GEN WB56T10290 $15.27

View on Model

140B

Door Frame GEN WB56T10097 Contact Us For Availability

View on Model

191

Latch Handle GEN WB15T10037 Contact Us For Availability

View on Model

241

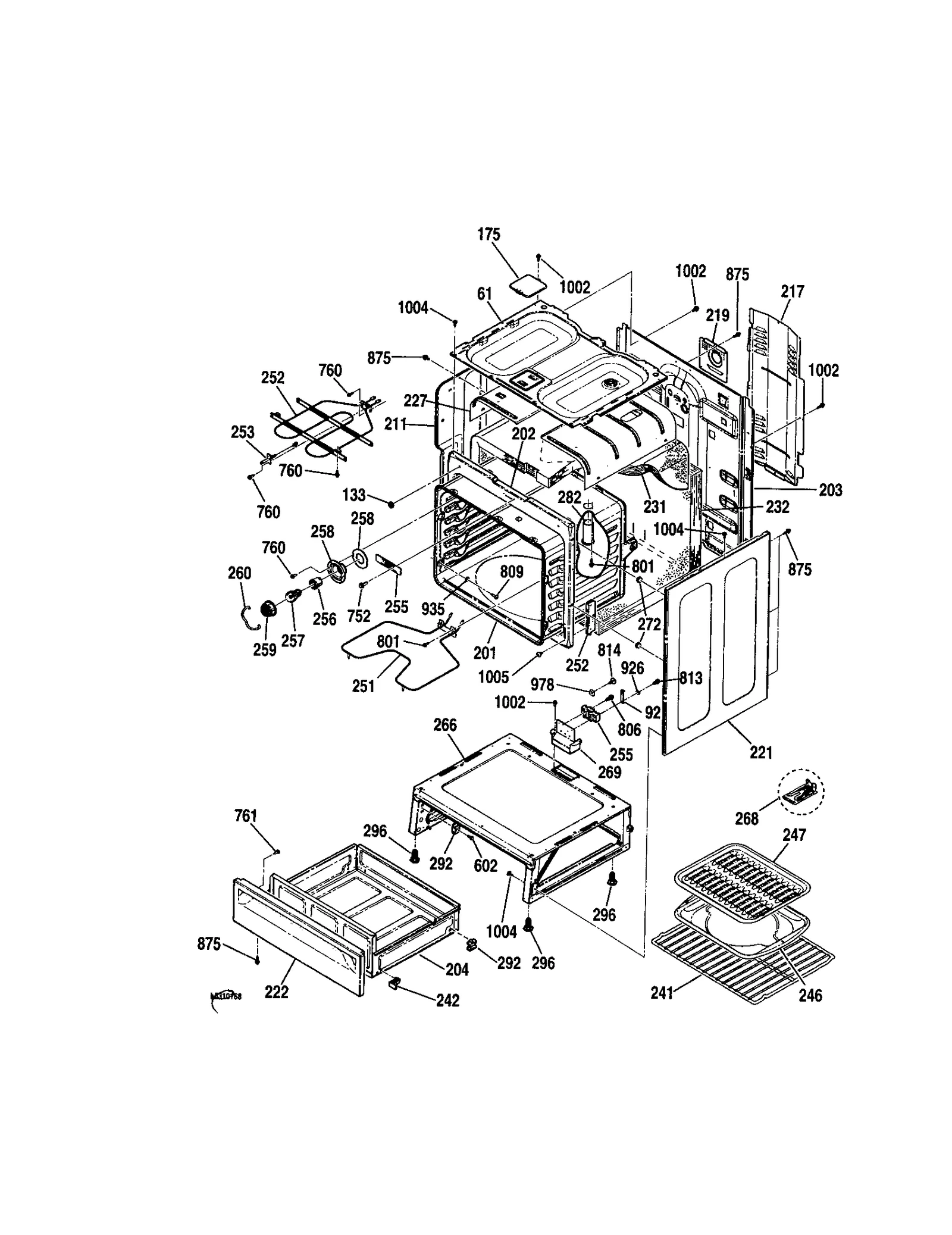

WB48T10011 GE Range Shelf Rack In Stock GEN WB48T10011 $48.77

View on Model

242

WB48T10068 GE Oven Wedge Drawer Backorder GEN WB48T10068 $18.40

View on Model

251

WB44T10010 GE Range Bake Element In Stock GEN WB44T10010 $69.00

View on Model

252

WB44T10009 GE Range Broil Element In Stock GEN WB44T10009 $73.64

View on Model

252A

Range Oven Door Hinge Receiver GEN WB10T10005 Contact Us For Availability

View on Model

253

WB21X22134 GE Oven Sensor Assembly In Stock GEN WB21X22134 $16.50

View on Model

255

Range Terminal Block GEN WB17T10003 Contact Us For Availability

View on Model

256

WB08T10026 GE Range Push-In Receptacle In Stock GEN WB08T10026 $5.88

View on Model

258

WB02T10027 GE Range Gasket Backorder GEN WB02T10027 $5.65

View on Model

258A

WB02T10037 GE Oven Light Cup Backorder GEN WB02T10037 $5.65

View on Model

272

WB02T10034 GE Oven Body Side Support Backorder GEN WB02T10034 $5.65

View on Model

281

WB10T10007 GE Range Hinge Assembly In Stock GEN WB10T10007 $65.26

View on Model

282

WB38X33649 GE Vent Tube Backorder GEN WB38X33649 $15.49

View on Model

292

WB48T10013 GE Oven Drawer Support In Stock GEN WB48T10013 $5.65

View on Model

292A

WB02X33180 GE Oven Drawer Glide In Stock GEN WB02X33180 $5.65

View on Model

296

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $9.84

View on Model

338

WB55T10067 GE Range Inner Door Glass Backorder GEN WB55T10067 $222.35

View on Model

696

Range Screw GEN WB01T10013 Contact Us For Availability

View on Model

697

Screw GEN WB01X1170 Contact Us For Availability

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.43

View on Model

715

WD2X432 GE Dishwasher Screw Backorder GEN WD2X432 $5.28

View on Model

806

WH02X10002 GE Screw Backorder GEN WH02X10002 $5.65

View on Model

847

WB1X1118 GE Oven Screw 6-32T Backorder GEN WB1X1118 $5.65

View on Model

871

Screw GEN WB01M0013 Contact Us For Availability

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.65

View on Model

875

WZ4X245D GE Screw Package Backorder GEN WZ4X245D $19.16

View on Model

919

Spacer GEN WB02T10035 Contact Us For Availability

View on Model

927

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $10.25

View on Model

999

Technical Instruction GEN 31-13657 Contact Us For Availability

View on Model

999A

Range Wire Harness GEN WB18T10052 Contact Us For Availability

View on Model

999A

Sear GEN SR10412 Contact Us For Availability

View on Model

999B

Owner's Manual GEN SR10439 Contact Us For Availability

View on Model

999C

Parts List GEN 31-13931 Contact Us For Availability

View on Model

999D

Installation Instructions GEN 31-10301 Contact Us For Availability

View on Model

999E

Installation Instructions GEN 31-10415 Contact Us For Availability

View on Model

1000

WB01T10016 GE Oven Screw 8-18 AB Hex Backorder GEN WB01T10016 $5.28

View on Model

1002

WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS Backorder GEN WB01T10017 $5.65

View on Model

1003

Scr 10-16 Pl GEN WB01T10018 Contact Us For Availability

View on Model

1004

Screw, #8-18 GEN WB01T10019 Contact Us For Availability

View on Model

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.65

View on Model

1006

WB01X23501 GE Oven Screw 8-32 Tapping Flat He Backorder GEN WB01X23501 $5.65

View on Model
