Model GE 911.63271891 30" Electric Range (Kenmore 91163271891) – Common Parts & Diagrams
BACKGUARD
WIRING COMPONENTS

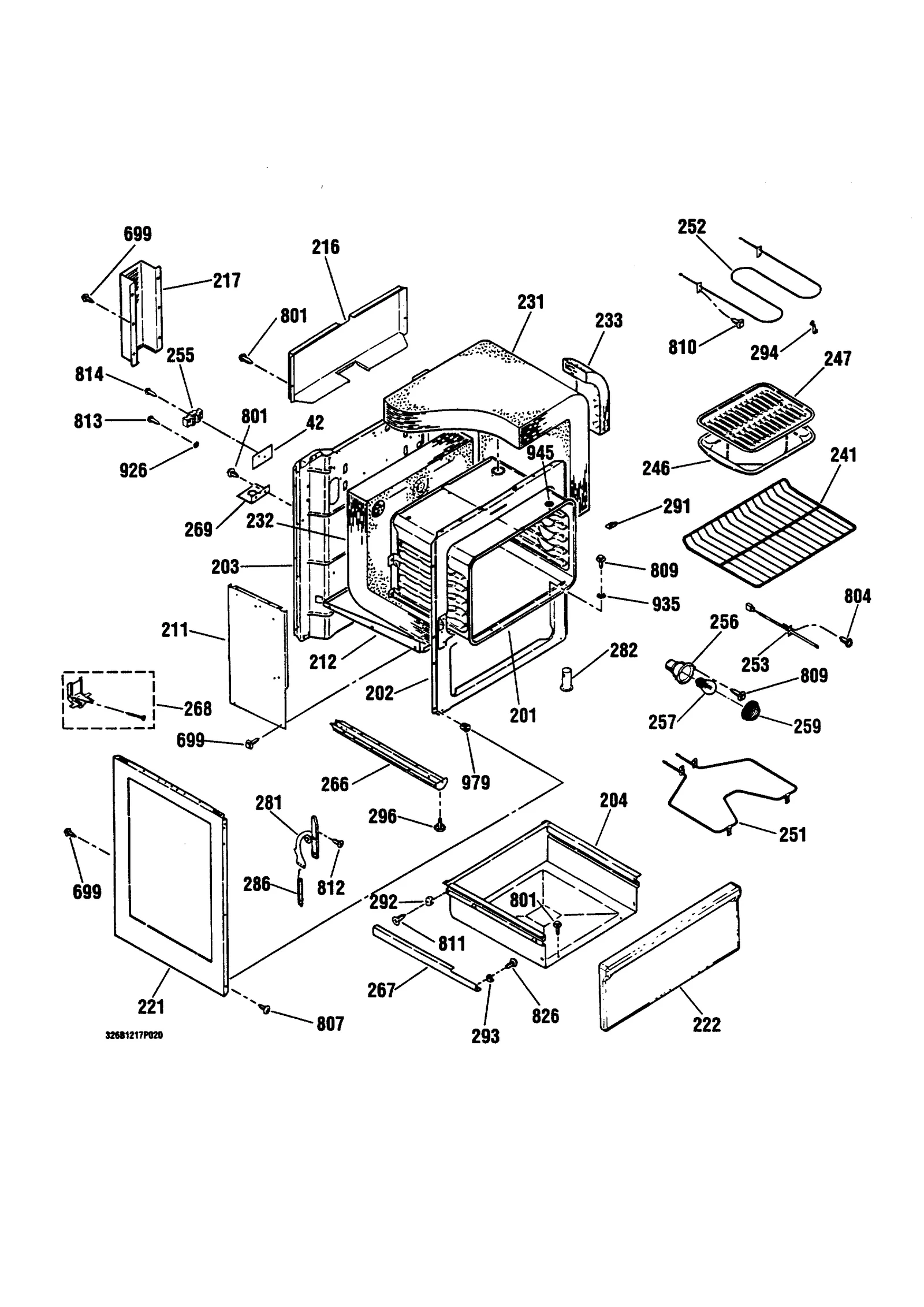

BODY

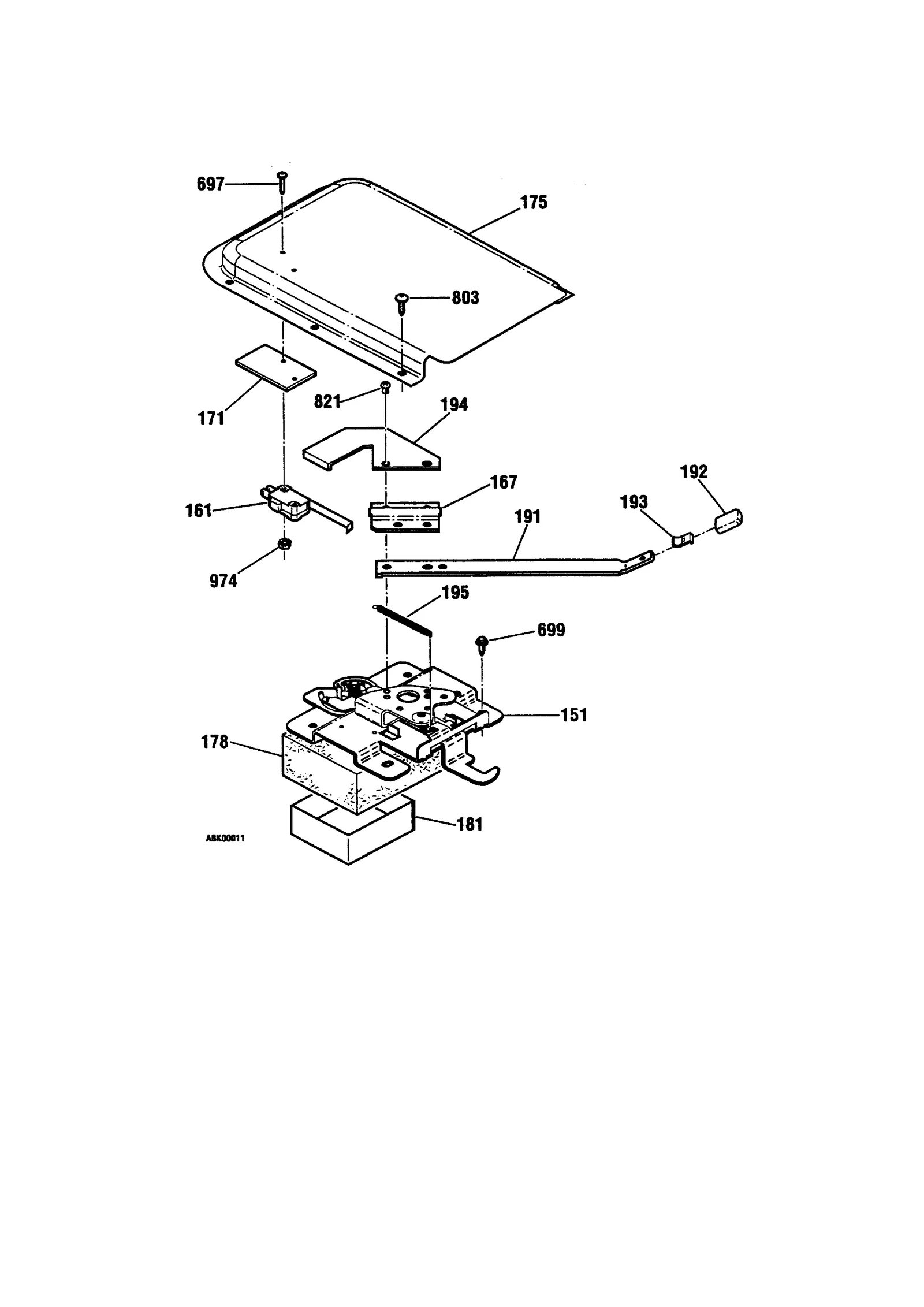

DOOR LOCK

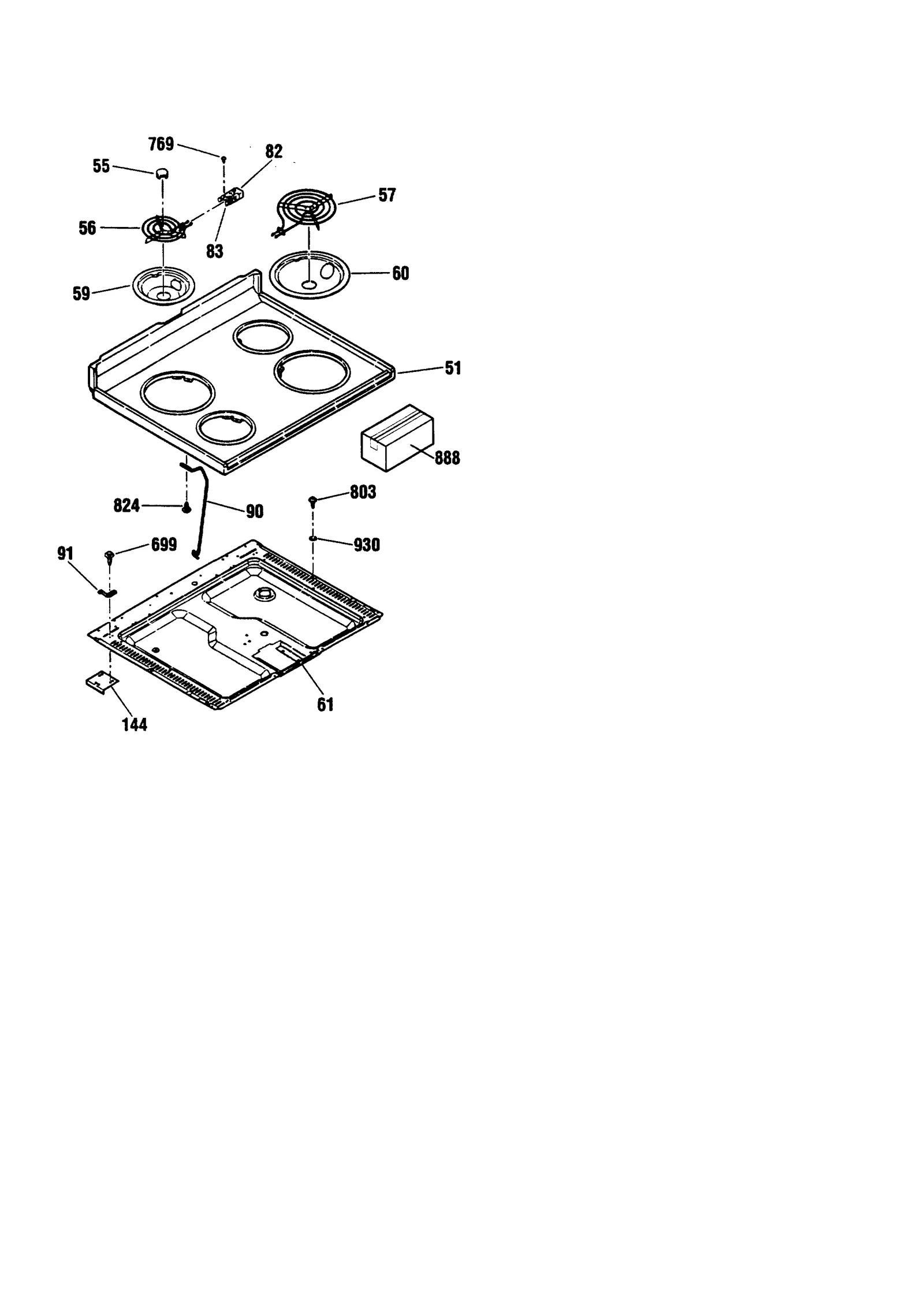

MAINTOP

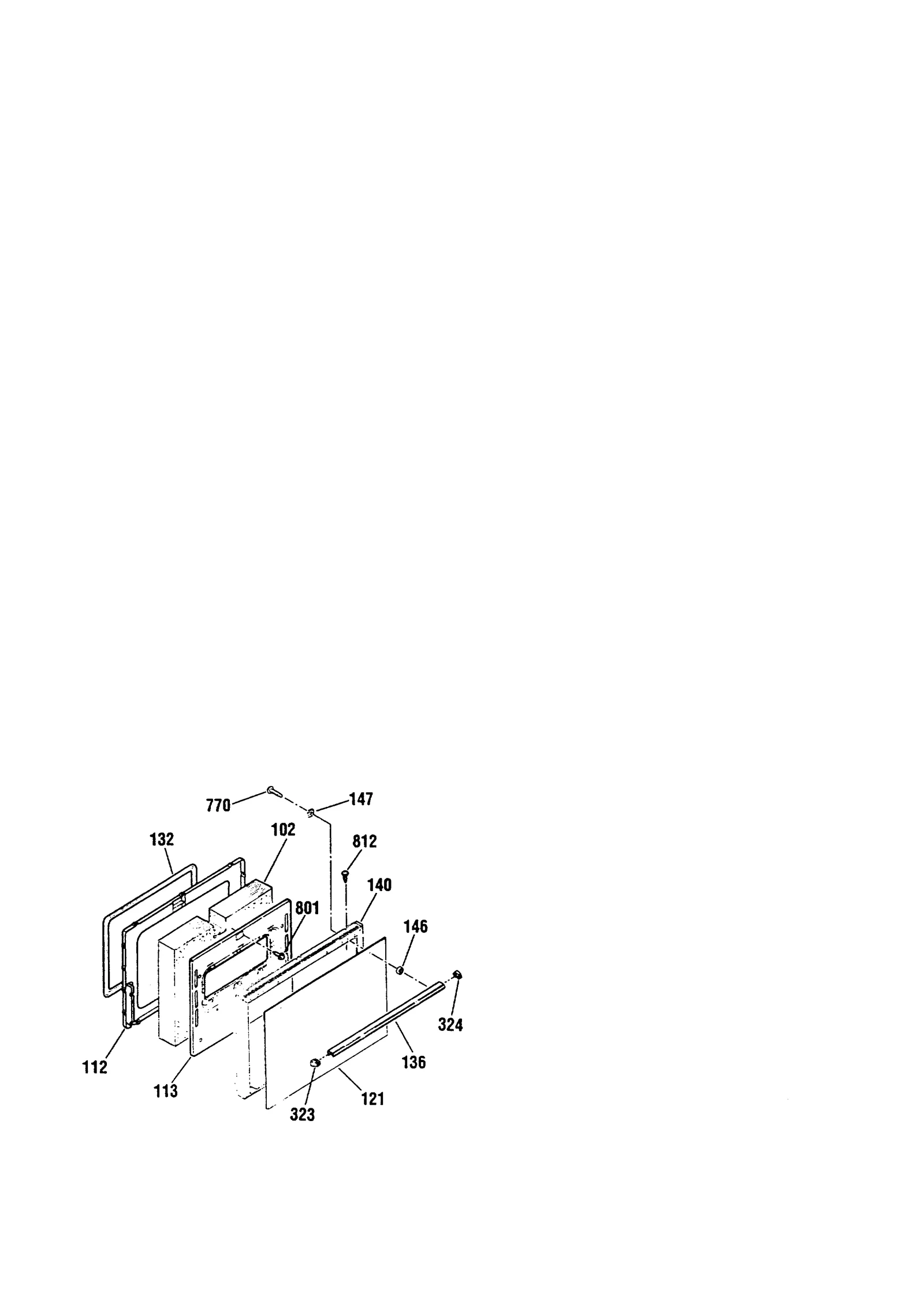

DOOR

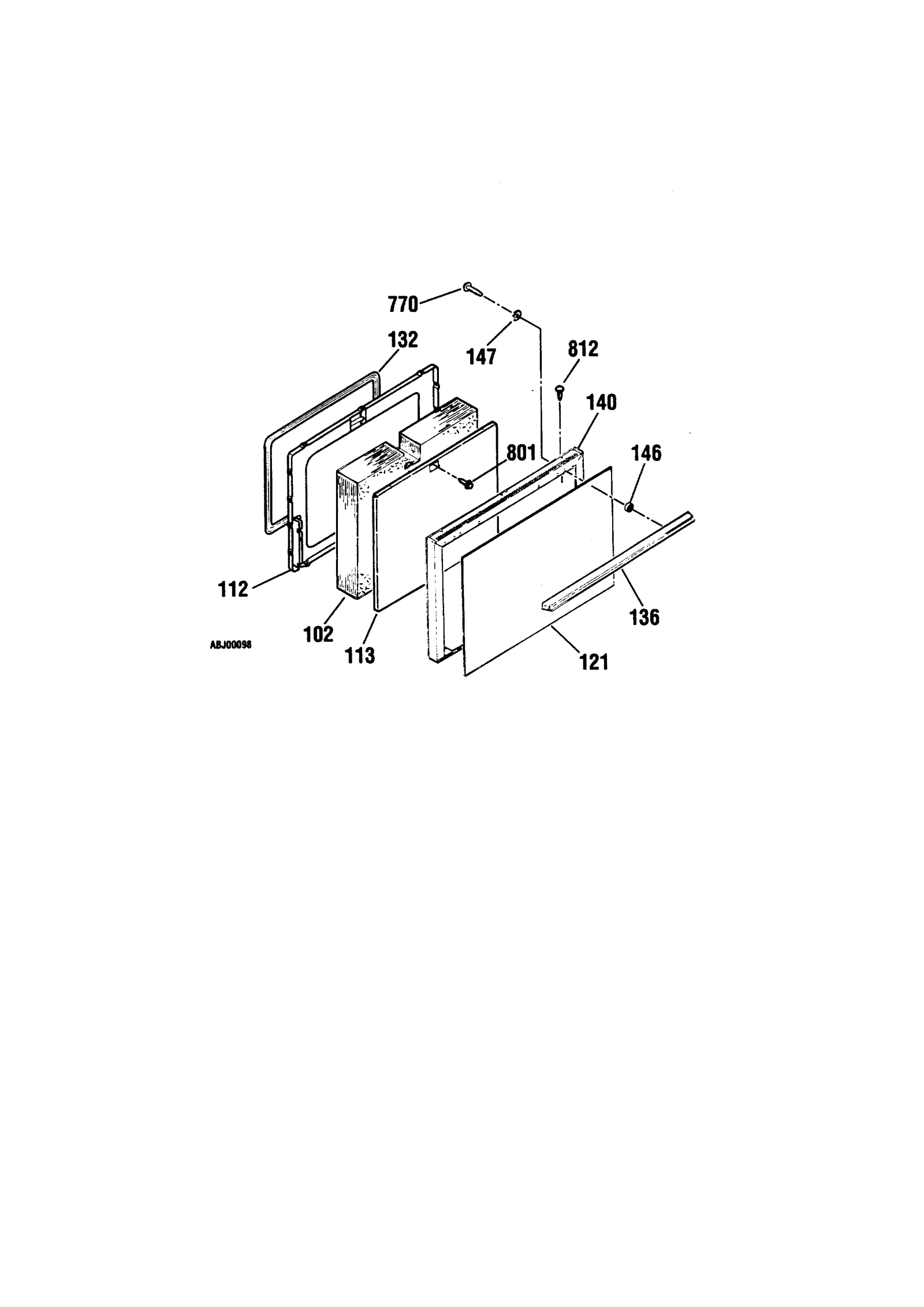

DOOR
Common parts from model GE 911.63271891 30" Electric Range (Kenmore 91163271891)
21A
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
29A
Inf Knob Wh GEN WB03K5099 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
43
Spacer GEN WB02K5325 Contact Us For Availability
45
Spring Deten GEN WB09X5121 Contact Us For Availability
51
Main Top Wh GEN WB62M0017 Contact Us For Availability
51A
Main Top Ad GEN WB62M0018 Contact Us For Availability
51B
Maintop Wh GEN WB62M0012 Contact Us For Availability
51C
Main Top Ad GEN WB62M0013 Contact Us For Availability
55
Medallion GEN WB32X0105 Contact Us For Availability
61
Burner Box GEN WB64T10003 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
88
Thermostat Knob GEN WB03K5183 Contact Us For Availability
88A
Thermostat Knob GEN WB03K5192 Contact Us For Availability
90
Support Rod GEN WB02X9084 Contact Us For Availability
91
Hinge GEN WB14X0126 Contact Us For Availability
91A
Hinge GEN WB14X0127 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
112
Lining Ovn D GEN WB55T10019 Contact Us For Availability
113
Oven Drive Insert GEN WB02M0036 Contact Us For Availability
121
Range Oven Door Outer Panel GEN WB57K5213 Contact Us For Availability
121A
Door Glass Outer Oven GEN WB57K5214 Contact Us For Availability
126
Button Plug GEN WB03K5189 Contact Us For Availability
136A
Ovdr Hndl Wh GEN WB15K5058 Contact Us For Availability
140
Oven Door Frame GEN WB56K5144 Contact Us For Availability
140
Oven Door Frame GEN WB55K5054 Contact Us For Availability
140A
Oven Drive Frame (White) GEN WB56K5136 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
146A
Spacer GEN WB02X9640 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14K5011 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
167
Retainer GEN WB02X9433 Contact Us For Availability
171
Insulator Switch GEN WB35K5101 Contact Us For Availability
175
Lock Cover GEN WB02X9431 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
192A
Lock Knob Wh GEN WB03K5152 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
194
Lever Switch GEN WB02X9432 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
201
Oven Body GEN WB63T10002 Contact Us For Availability
202
Frame GEN WB63T10003 Contact Us For Availability
203
Main GEN WB63K5187 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
221A
Body GEN WB63K5193 Contact Us For Availability
222
Front Panel GEN WB56K5059 Contact Us For Availability
222A
Frt Pnl Ad GEN WB56K5063 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Insul Bk&btm GEN WB35T10003 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
257
BULB OVEN LI GEN BUY LOCAL Contact Us For Availability
259
Oven Bulb Lens GEN WB25T1002 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Range Oven Vent GEN WB38K5018 Contact Us For Availability
286
Door Spring GEN WB09X0264 Contact Us For Availability
286A
DOOR SPRING - 64271791 GEN WB02K5020 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
323
Cap Handle L GEN WB07K0087 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
697
Screw GEN WB01X1170 Contact Us For Availability
801
Glass Retainer GEN WB02M0001 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
821
Screw GEN WB01X1265 Contact Us For Availability
824
Screw GEN WB01X1291 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
847A
Screw (White) GEN WB01K5161 Contact Us For Availability
888
Range Drip Pan GEN WB31K5042 Contact Us For Availability
888A
Range Drip Pan GEN WB31K5043 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
930
Washer GEN WB01M0022 Contact Us For Availability
974
Hex Nut GEN WB01X1264 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
986
Nut GEN WB02X8268 Contact Us For Availability
999
MINI MANUAL W/WIRE DIAG. GEN 31-13493 Contact Us For Availability
999A
Sear GEN SR10353 Contact Us For Availability
999B
Parts List GEN 31-13522 Contact Us For Availability
999C
Installation Instructions GEN 31-10249 Contact Us For Availability
× ![]()
