Model GE 911.49054202 Wall Oven (Kenmore 91149054202) – Common Parts & Diagrams
CONTROL PANEL
UPPER BODY

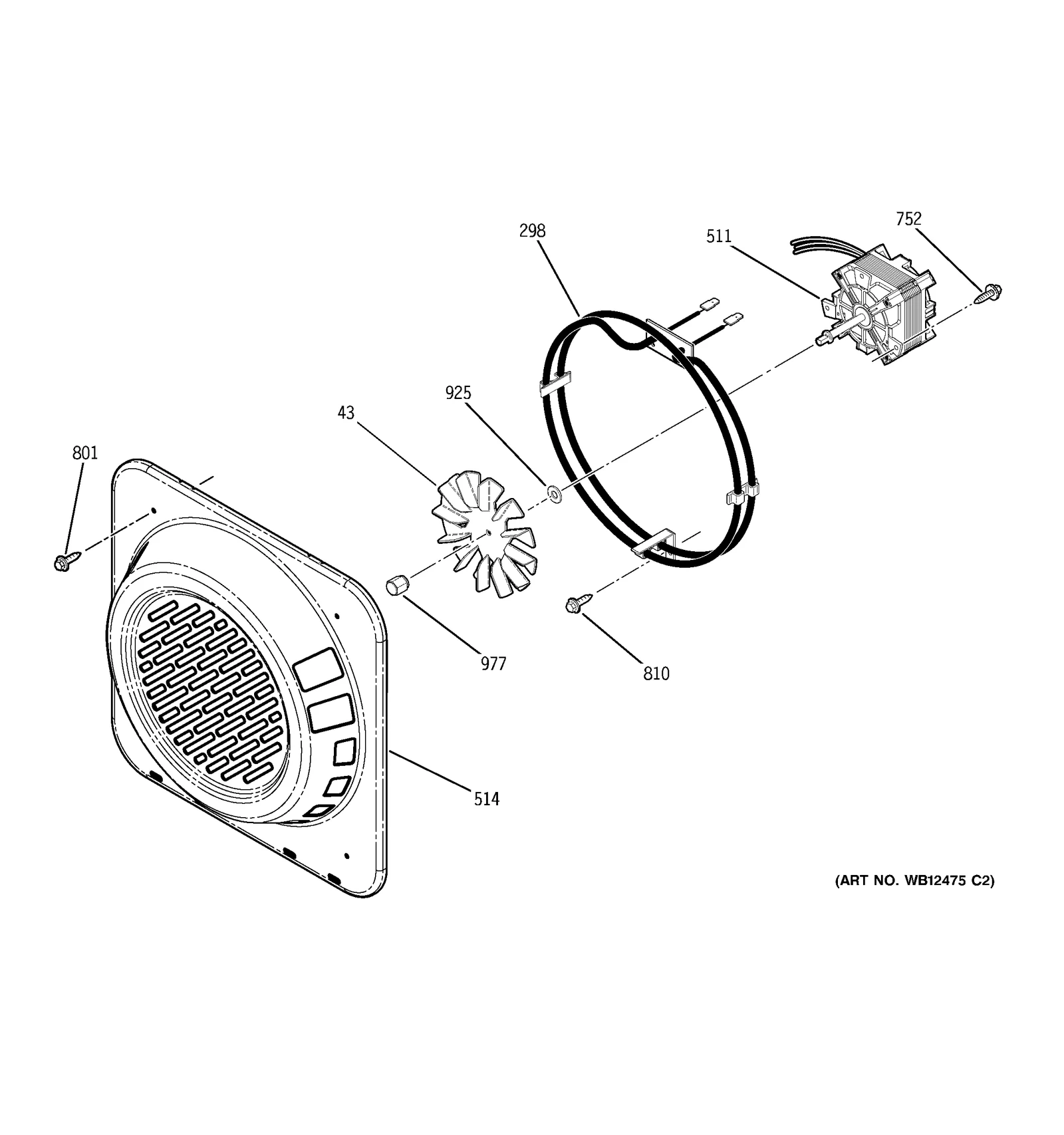

CONVECTION FAN

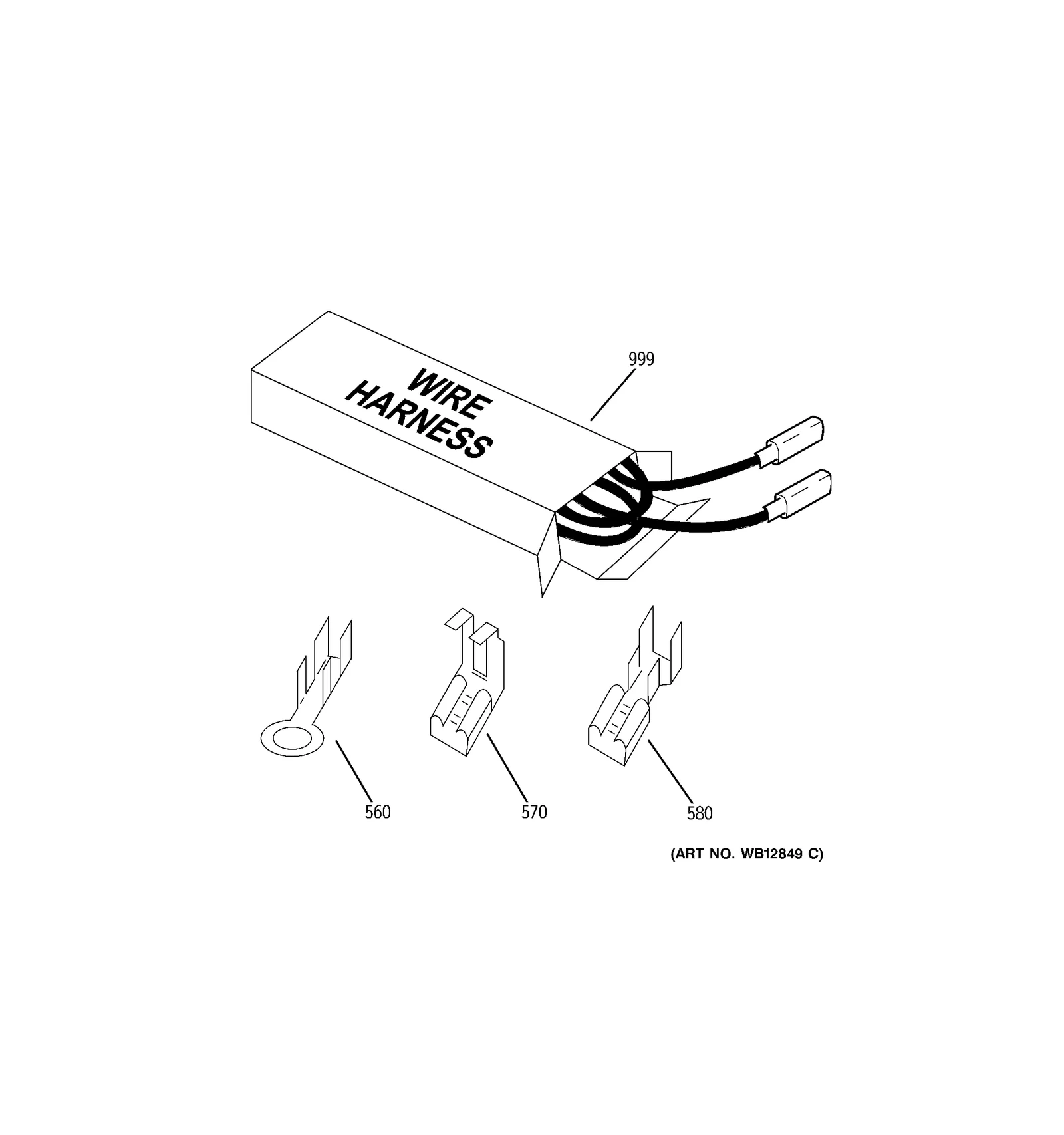

WIRE HARNESS & WIRING COMPONENTS

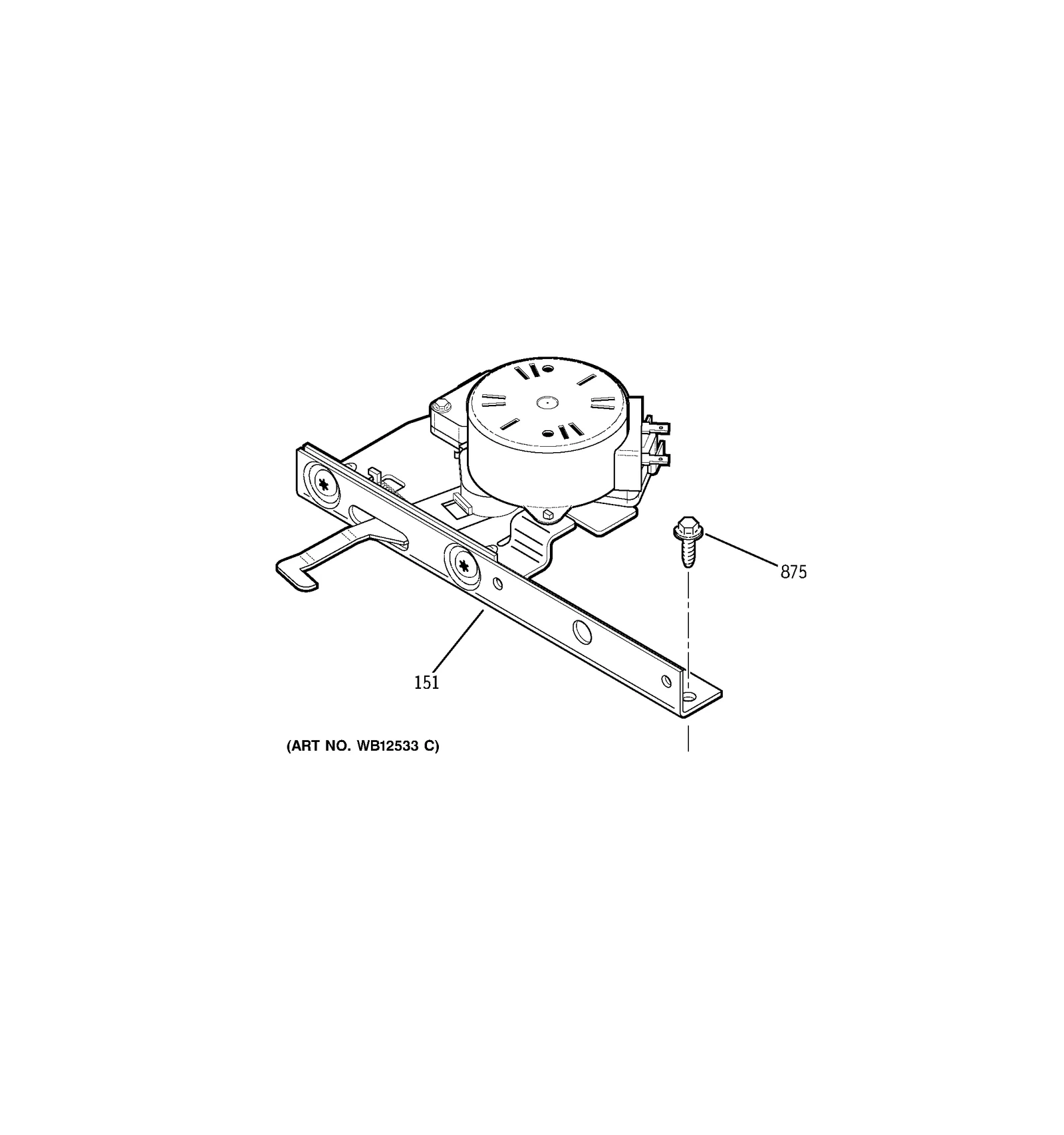

DOOR LOCK

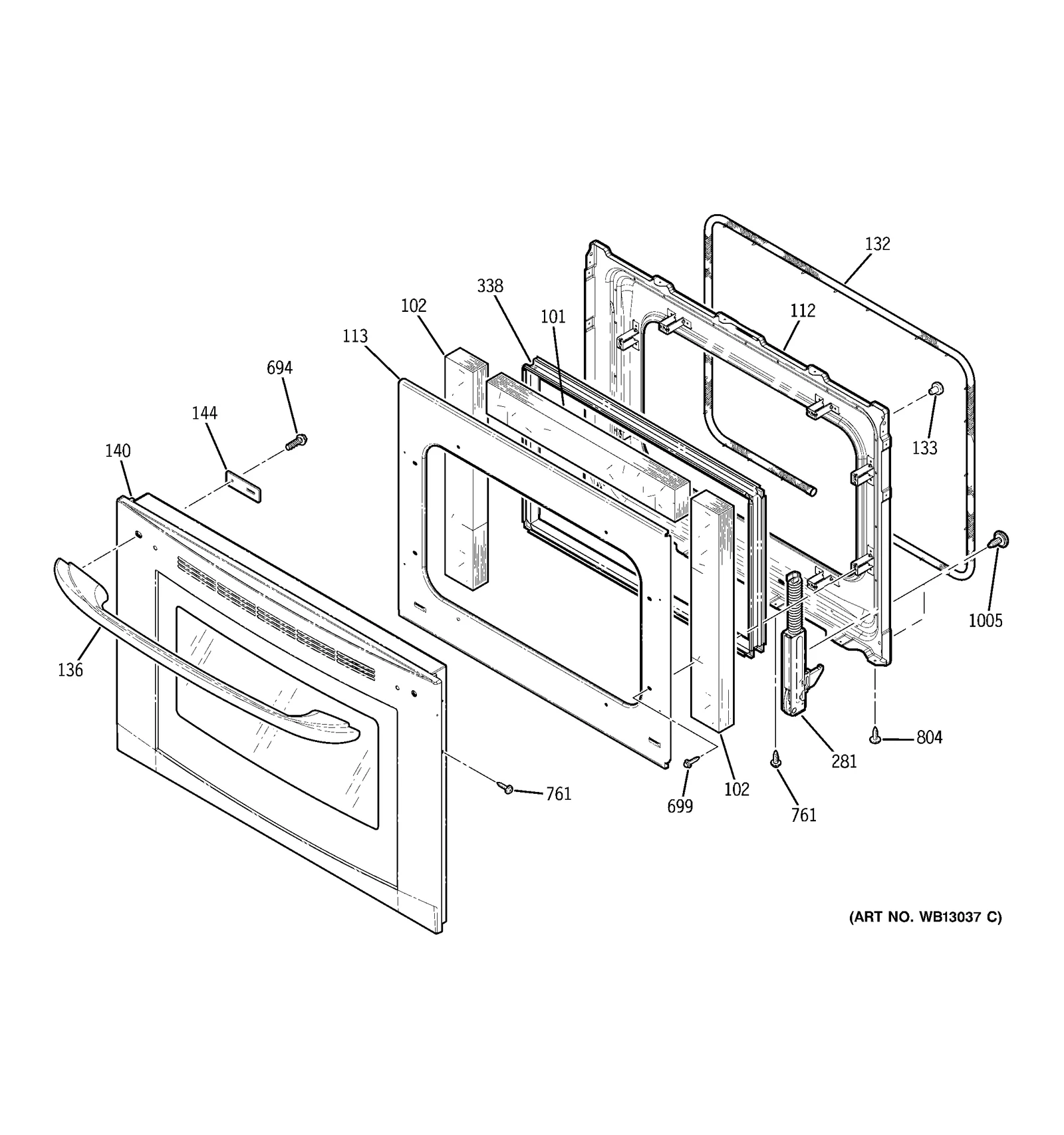

DOOR

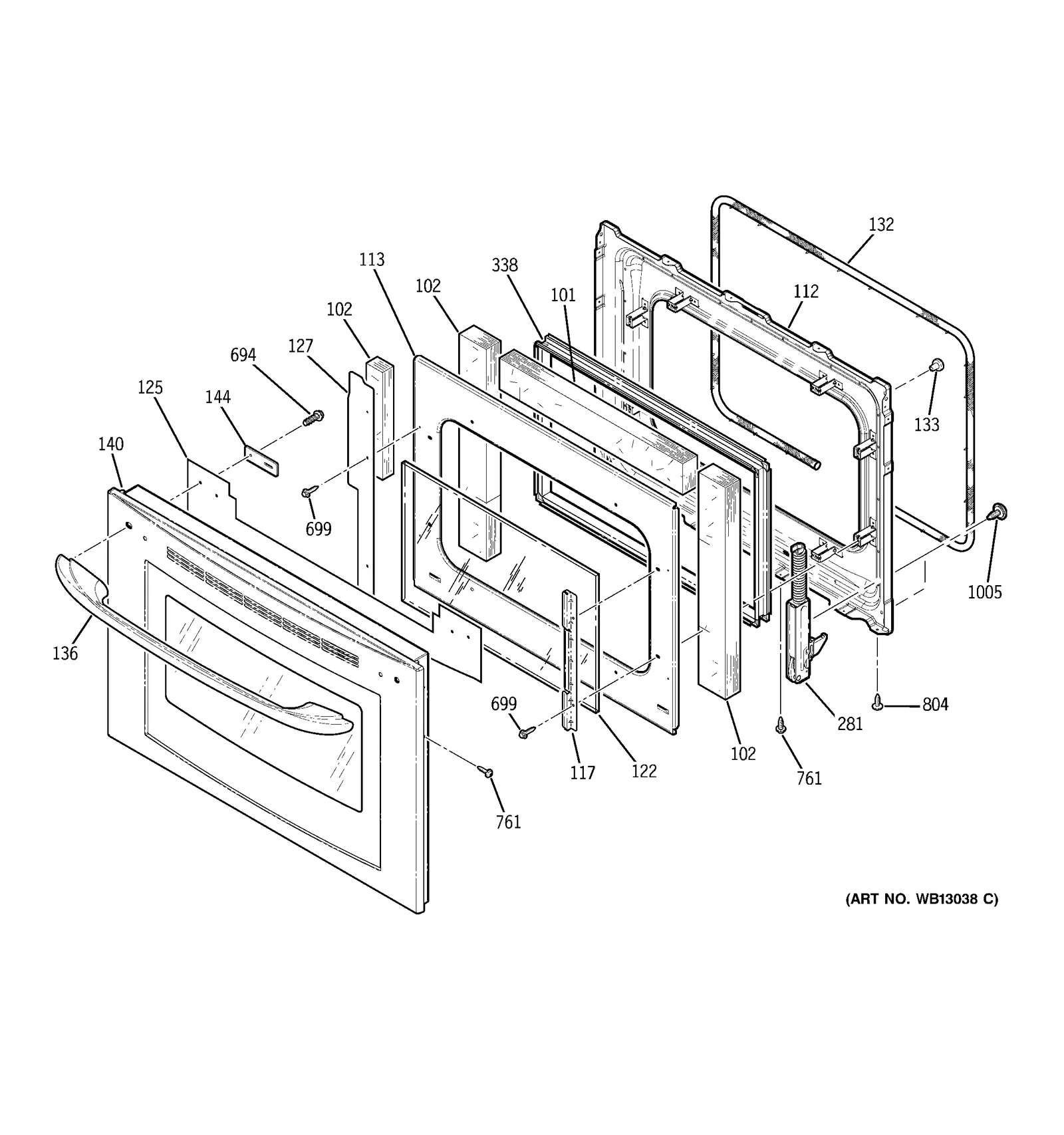

DOOR (MODEL 911.49053202)

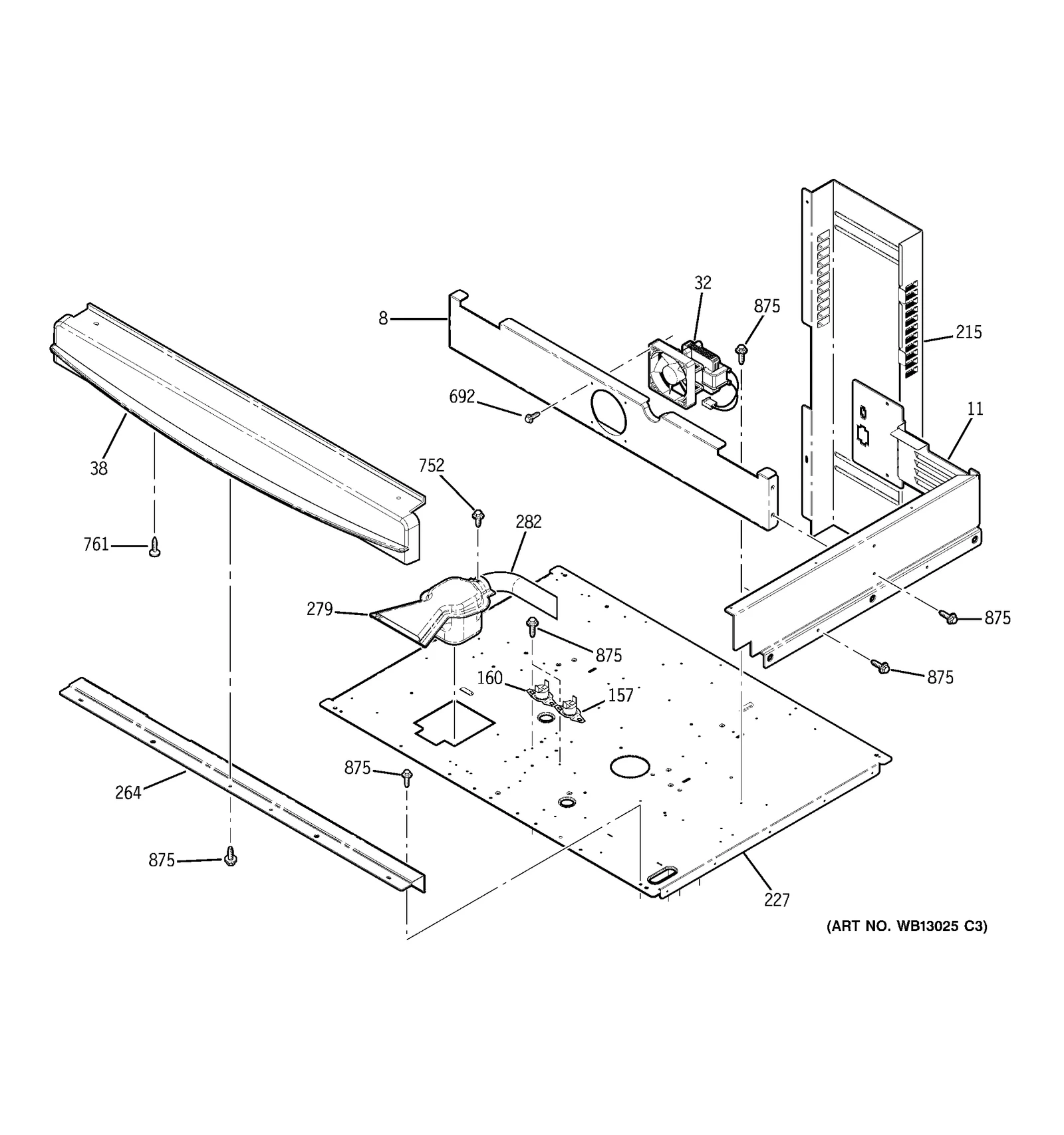

CENTER SPACER

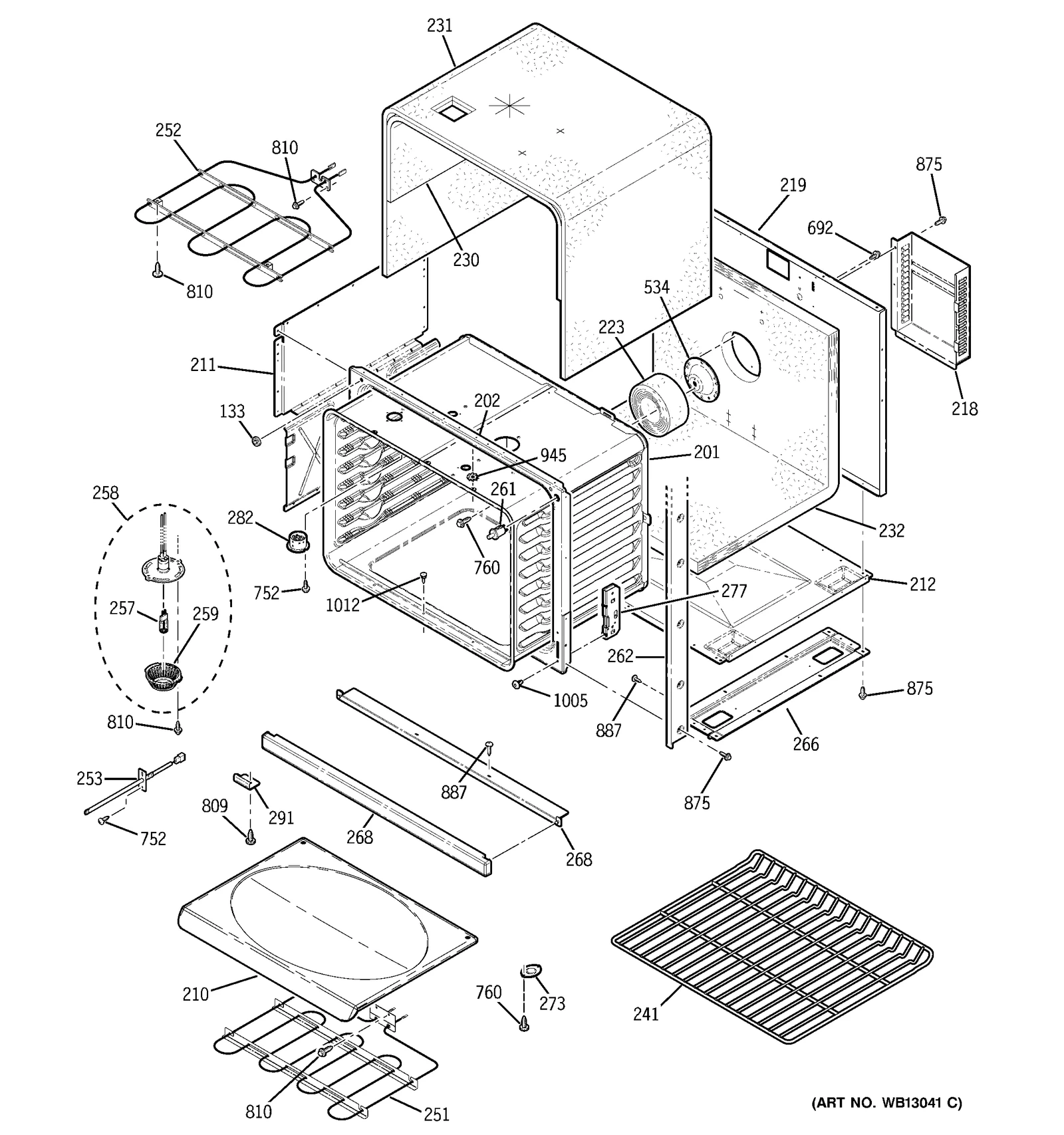

LOWER BODY
Common parts from model GE 911.49054202 Wall Oven (Kenmore 91149054202)
8
Fan Support GEN WB02K5355 Contact Us For Availability
11
Side Ext-rt GEN WB37K5037 Contact Us For Availability
11
Side Ext-lt GEN WB37K5038 Contact Us For Availability
16
Range Oven Relay Control Board GEN WB27T10438 Contact Us For Availability
32
Fan GEN WB26T10019 Contact Us For Availability
38
Filler Trim GEN WB07T10292 Contact Us For Availability
38
Filler Trim GEN WB07T10293 Contact Us For Availability
38
Filler Trim GEN WB07T10294 Contact Us For Availability
38
Filler Trim GEN WB07T10295 Contact Us For Availability
102
Oven Insulation GEN WB35T10086 Contact Us For Availability
112
Oven Door Liner GEN WB55T10106 Contact Us For Availability
113
Retainer Insert GEN WB56T10147 Contact Us For Availability
125
Reflector He GEN WB34T10092 Contact Us For Availability
136
Oven Handle GEN WB15T10073 Contact Us For Availability
136
Oven Handle GEN WB15T10074 Contact Us For Availability
136
Oven Handle GEN WB15T10075 Contact Us For Availability
136
Oven Handle GEN WB15T10076 Contact Us For Availability
140
Out Door/wht GEN WB56T10112 Contact Us For Availability
140
Outer Door Assembly GEN WB56T10113 Contact Us For Availability
140
Outer Door Assembly GEN WB56T10114 Contact Us For Availability
140
Door GEN WB56T10116 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Range Oven Door Lock Assembly GEN WB14T10013 Contact Us For Availability
160
Limit Bake Switch GEN WB24T10080 Contact Us For Availability
201
Oven Wrapper GEN WB63T10084 Contact Us For Availability
201
Oven Wrapper GEN WB63T10085 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Retainer GEN WB02T10143 Contact Us For Availability
215
Cover Wire M GEN WB34T10094 Contact Us For Availability
218
Cover Wire L GEN WB34T10056 Contact Us For Availability
230
Tub Insulation GEN WB35T10073 Contact Us For Availability
241
Oven Rack GEN WB28T10049 Contact Us For Availability
253
Sc Sensor GEN WB23T10017 Contact Us For Availability
258
Halogen Lamp GEN WB25T10028 Contact Us For Availability
259
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10296 Contact Us For Availability
262
Trim GEN WB07T10297 Contact Us For Availability
262
Trim GEN WB07T10276 Contact Us For Availability
262
Trim GEN WB07T10277 Contact Us For Availability
262
Trim GEN WB07T10280 Contact Us For Availability
262
Trim GEN WB07T10281 Contact Us For Availability
262
Trim GEN WB07T10284 Contact Us For Availability
262
Trim GEN WB07T10285 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10252 Contact Us For Availability
265
Door Stopper GEN WB08T10024 Contact Us For Availability
268
Wall Oven Trim (Black) GEN WB07T10401 Contact Us For Availability
268
Bottom Trim, 30-in GEN WB07T10399 Contact Us For Availability
268
Bottom Trim, 30-in GEN WB07T10400 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10422 Contact Us For Availability
268
Wall Oven Bottom Trim GEN WB07T10426 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10427 Contact Us For Availability
268
Bottom Trim, 30-in GEN WB07T10428 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10429 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
277
Hinge Receiver GEN WB10T10053 Contact Us For Availability
279
BOX VNT ASM GEN WB38T10020 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10047 Contact Us For Availability
281
Oven Door Hinge, Left GEN WB10T10048 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10049 Contact Us For Availability
281
Oven Door Hinge, Left GEN WB10T10050 Contact Us For Availability
282
Duct Vent Inlet GEN WB28T10074 Contact Us For Availability
282
Vent Inlet D GEN WB28T10083 Contact Us For Availability
291
Cover Enam W GEN WB02T10146 Contact Us For Availability
511
Range Convection Fan Motor GEN WB26T10013 Contact Us For Availability
514
Fan Cover GEN WB26T10012 Contact Us For Availability
578
Range Fan Motor Start Capacitor GEN WB26T10016 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
887
Screw St 8-1 GEN WB01T10032 Contact Us For Availability
887
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
999
Instruction Sheet GEN 31-10514 Contact Us For Availability
999
Installation Instructions GEN 31-10518 Contact Us For Availability
999
Installation Instructions GEN 31-10551 Contact Us For Availability
999
MANUAL MINI & WD ASM GEN 31-14013 Contact Us For Availability
999
LIST PARTS REPAIR GEN 31-14241 Contact Us For Availability
999
Owner's Manual GEN SR10499 Contact Us For Availability
999
Wire Harness GEN WB18T10257 Contact Us For Availability
999
Wire Harness GEN WB18T10260 Contact Us For Availability
999
Wire Harness GEN WB18T10261 Contact Us For Availability
× ![]()
