Model GE 911.47793201 27" Built-In Oven with Microwave (Kenmore 91147793201) – Common Parts & Diagrams
MICROWAVE CONTROL PANEL
DOOR - 911.47792201/94201/99201

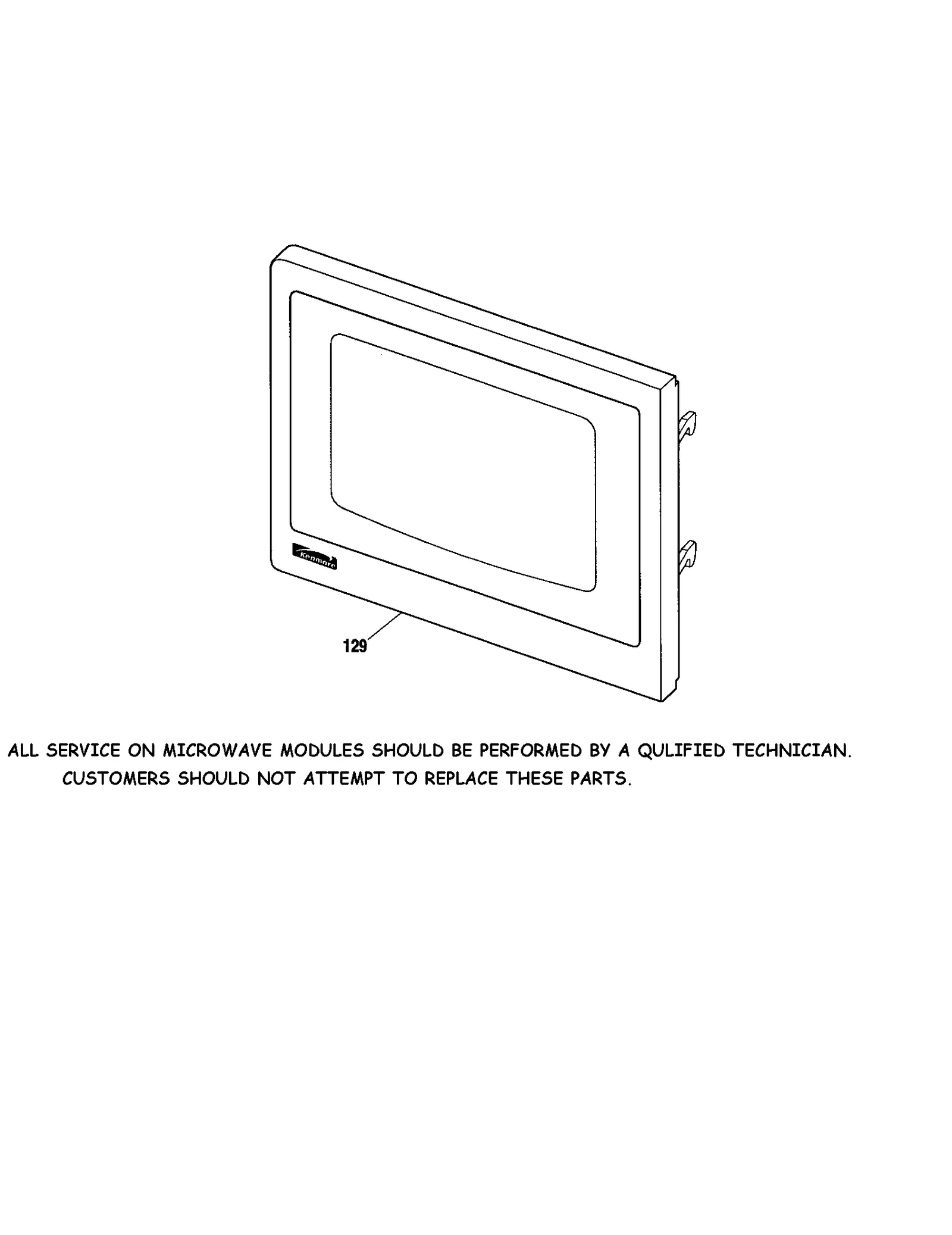

MICROWAVE DOOR

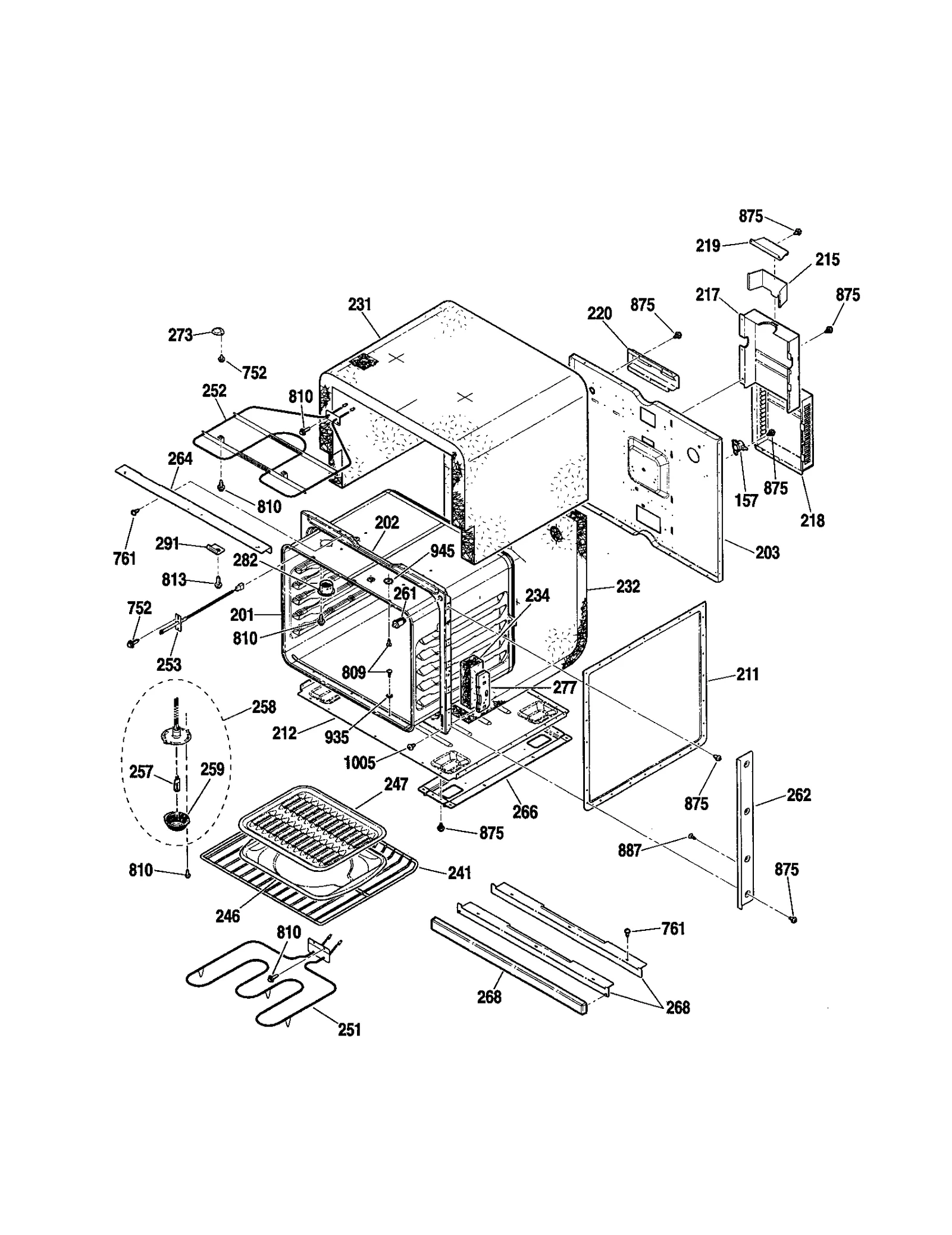

LOWER BODY

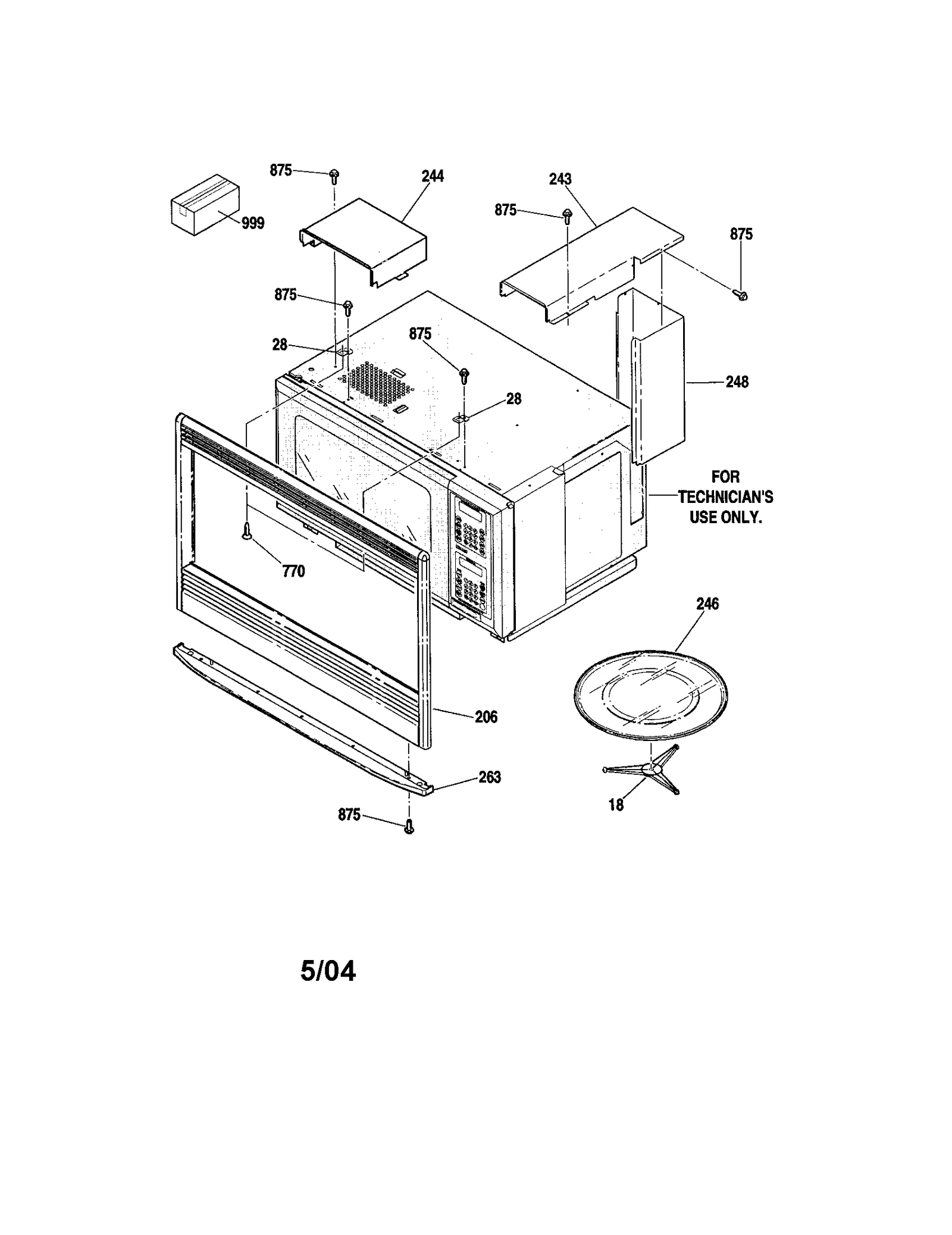

MICROWAVE ENCLOSURES

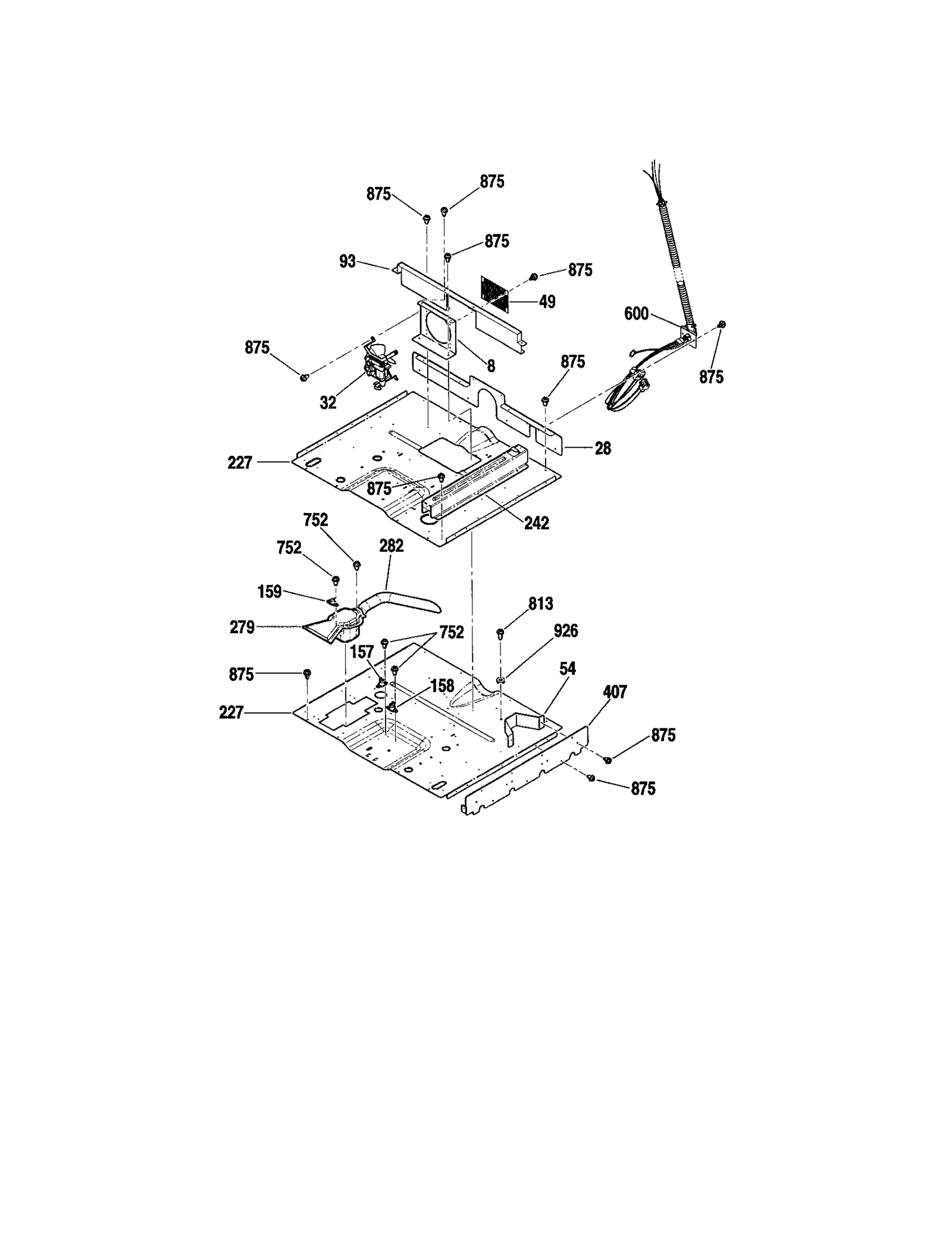

MICROWAVE PEDESTAL

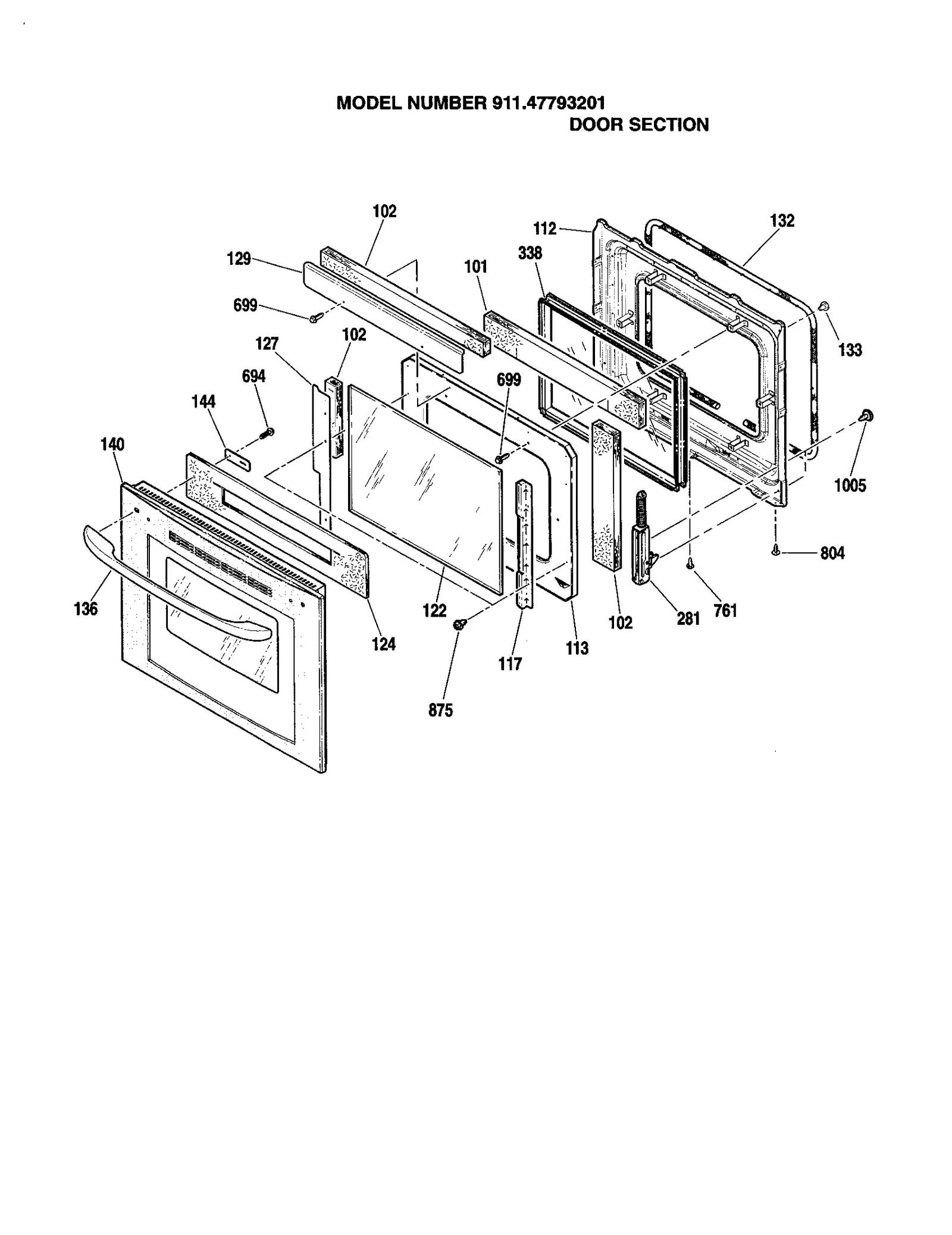

DOOR - 911.47793201

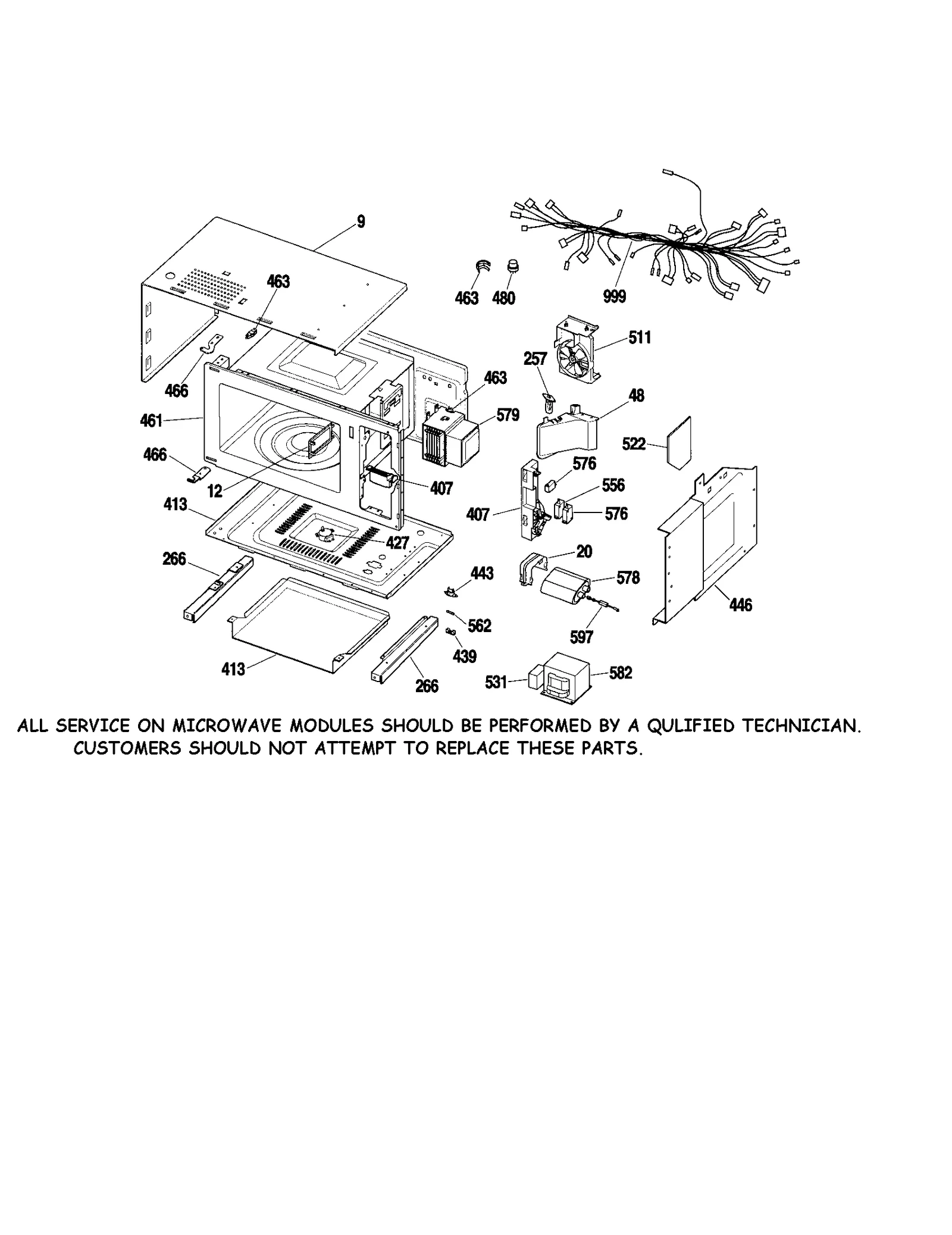

MICROWAVE BODY

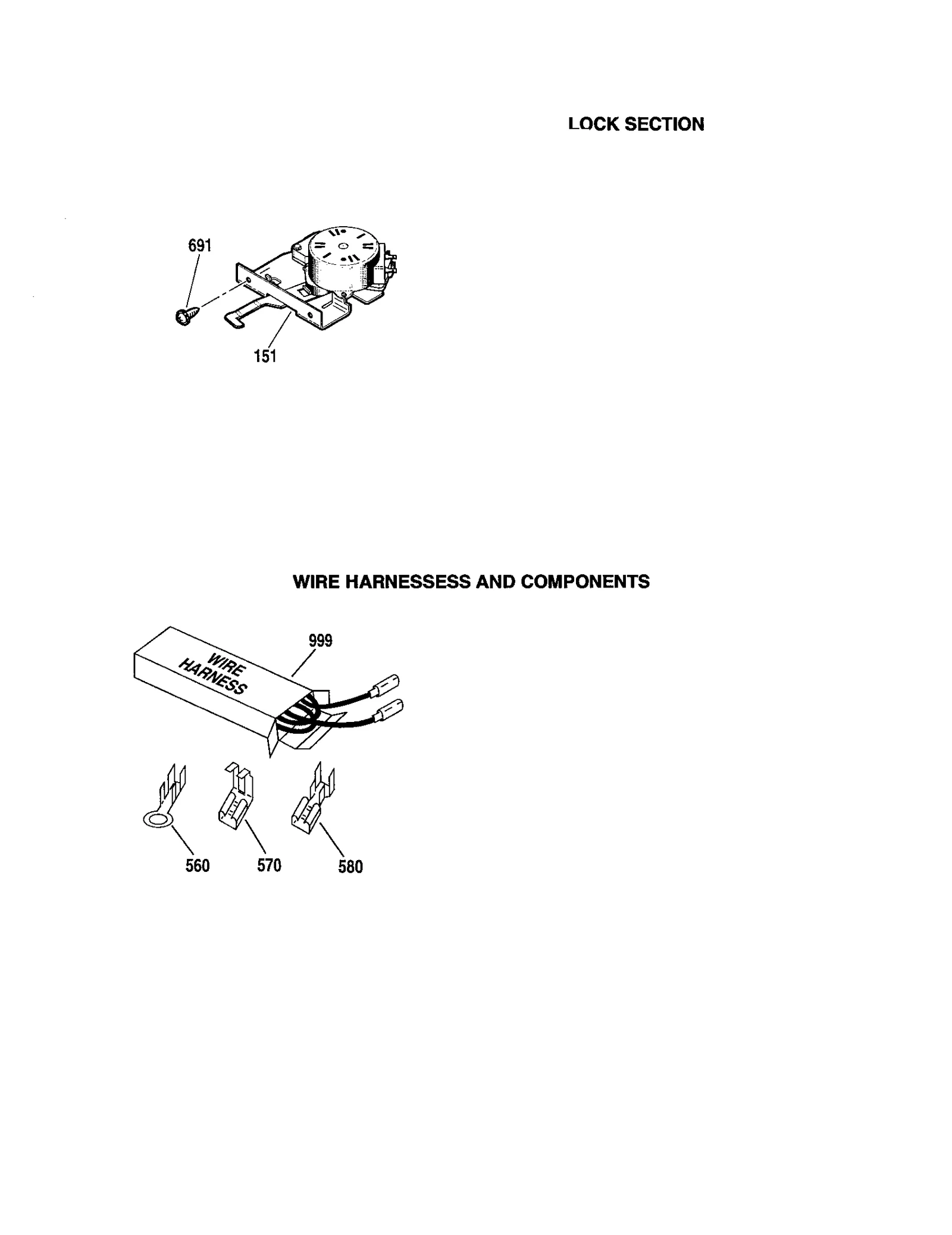

LOCK/WIRE HARNESS/COMPONENTS
Common parts from model GE 911.47793201 27" Built-In Oven with Microwave (Kenmore 91147793201)
1
Range Control Panel GEN WB36T10643 Contact Us For Availability
8
Fan Support GEN WB02T10120 Contact Us For Availability
9
Out Drive Frame GEN WB63T10039 Contact Us For Availability
12
"cover,wave G" GEN WB06X0538 Contact Us For Availability
20
Bracket GEN WB06X0537 Contact Us For Availability
28
Bracket Support GEN WB02T10033 Contact Us For Availability
28
Fan Support GEN WB02T10121 Contact Us For Availability
48
Air Cover GEN WB06X0535 Contact Us For Availability
49
Fan Screen GEN WB34T10050 Contact Us For Availability
54
Bracket Support GEN WB02T10124 Contact Us For Availability
93
Wire Cover GEN WB34T10051 Contact Us For Availability
101
Oven Door GEN WB35T10062 Contact Us For Availability
102
Oven Door GEN WB35T10061 Contact Us For Availability
102A
Oven Insulation GEN WB35T10086 Contact Us For Availability
102B
Oven Insulation GEN WB35T10083 Contact Us For Availability
112
Oven Door Liner GEN WB55T10088 Contact Us For Availability
122
Wall Oven Door Inner Glass GEN WB57T10195 Contact Us For Availability
124
Insulation GEN WB35T10084 Contact Us For Availability
126A
Push Button GEN WB03T10194 Contact Us For Availability
126B
Push Button GEN WB03T10190 Contact Us For Availability
127
Oven Retainer GEN WB02T10170 Contact Us For Availability
129
Extension Retainer GEN WB02T10178 Contact Us For Availability
136
Handle GEN WB15T10082 Contact Us For Availability
140
Door Asm (ot GEN WB57T10220 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Oven Latch GEN WB30T10084 Contact Us For Availability
157
Range Oven Temperature Limit Switch GEN WB24T10077 Contact Us For Availability
158
Wall Oven Microwave Thermal Cut-Off GEN WB24T10068 Contact Us For Availability
159
Limit Switch GEN WB24T10064 Contact Us For Availability
206
Trim Assembly (White) GEN WB07T10149 Contact Us For Availability
206A
Wall Oven Microwave Trim Kit (Black) GEN WB07T10148 Contact Us For Availability
206B
Trim Asm (bq GEN WB07T10334 Contact Us For Availability
206C
Trim Assembly (Stainless) GEN WB07T10330 Contact Us For Availability
227
Insulation Retainer GEN WB02T10123 Contact Us For Availability
227A
Retainer Insert GEN WB02T10159 Contact Us For Availability
242
Slide Rail GEN WB02T10119 Contact Us For Availability
243
Air Duct Top GEN WB34T10010 Contact Us For Availability
244
Air Duct-lt GEN WB38K5056 Contact Us For Availability
246
Glass Tray GEN WB49X0690 Contact Us For Availability
248
Duct Air Bac GEN WB34T10013 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
258
Wall Oven Halogen Light Assembly GEN WB25T10025 Contact Us For Availability
259
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
263
Trim I-brow GEN WB07T10097 Contact Us For Availability
263A
Trim I-brow GEN WB07T10105 Contact Us For Availability
263B
Trim I-brow GEN WB07T10333 Contact Us For Availability
266
Side Panel B GEN WB63X10052 Contact Us For Availability
266A
Bkt Slide-b: GEN WB63X10014 Contact Us For Availability
268A
Cabinet Trim, Lower GEN WB07T10376 Contact Us For Availability
268B
Trim GEN WB07T10378 Contact Us For Availability
268C
Cabinet Trim, Lower GEN WB07T10384 Contact Us For Availability
268D
Cabinet Trim, Lower GEN WB07T10385 Contact Us For Availability
268E
Cabinet Trim, Lower GEN WB07T10386 Contact Us For Availability
268F
Trim Btm 27 GEN WB07T10320 Contact Us For Availability
268G
Trim Btm 27 GEN WB07T10322 Contact Us For Availability
268H
Trim Btm 27 GEN WB07T10321 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
277
Hinge Receiver GEN WB10T10015 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10026 Contact Us For Availability
281A
Oven Door Hinge GEN WB10T10027 Contact Us For Availability
282
Duct Vent Inlet GEN WB28T10082 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
407
Microwave Chassis Support Bracket GEN WB02T10122 Contact Us For Availability
407A
Latch Hook GEN WB10X10016 Contact Us For Availability
413
Oven Base Plate GEN WB63X10011 Contact Us For Availability
413A
Base Bracket GEN WB63X10015 Contact Us For Availability
439
Fuse Holder GEN WB06X10463 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
446
Duct Assembly GEN WB34T10071 Contact Us For Availability
461
Cavity GEN WB63X10012 Contact Us For Availability
463A
Microwave Thermal Cut-Off GEN WB27X10166 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
466
Lower Hinge GEN WB10X10017 Contact Us For Availability
466A
Hinge GEN WB14X0211 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
522
Cushion GEN WB35X10001 Contact Us For Availability
531
Cushion High-Voltage Transformer GEN WB35X10002 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
582
Trans-h V GEN WB27T10464 Contact Us For Availability
600
Conduit Wire GEN WB18T10272 Contact Us For Availability
691
Screw GEN WB01K5163 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
770A
Screw, #8-18 GEN WB01T10068 Contact Us For Availability
770B
Scr 8-18ab F GEN WB01T10035 Contact Us For Availability
887B
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Wall Oven Wire Harness GEN WB18T10275 Contact Us For Availability
999
Installation Instructions GEN 31-10551 Contact Us For Availability
999
Wall Oven Wire Harness GEN WB18T10322 Contact Us For Availability
999A
MANUAL MINI & WD ASM GEN 31-14190 Contact Us For Availability
999A
Latch GEN WB18T10224 Contact Us For Availability
999B
WIRE HARNESS - M/W GEN WB18T10046 Contact Us For Availability
999B
Oven Wire Harness GEN WB18T10323 Contact Us For Availability
999C
Wall Oven Owner's Manual GEN SR10500 Contact Us For Availability
999D
Parts List GEN 31-14196 Contact Us For Availability
× ![]()
