Model GE 911.47792201 27" Built-In Oven with Microwave (Kenmore 91147792201) – Common Parts & Diagrams
MICROWAVE DOOR
MICROWAVE CONTROL PANEL

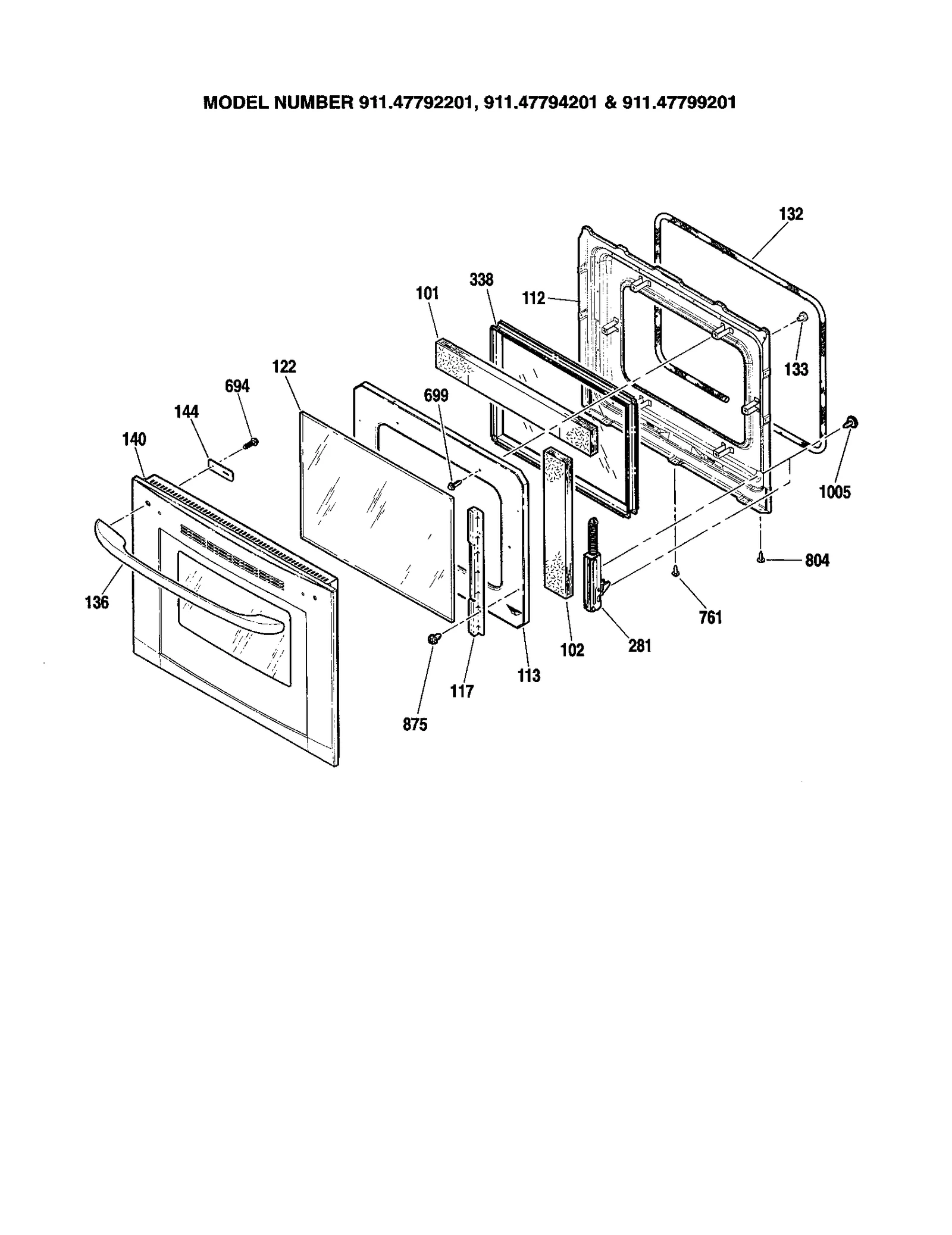

DOOR - 911.47792201/94201/99201

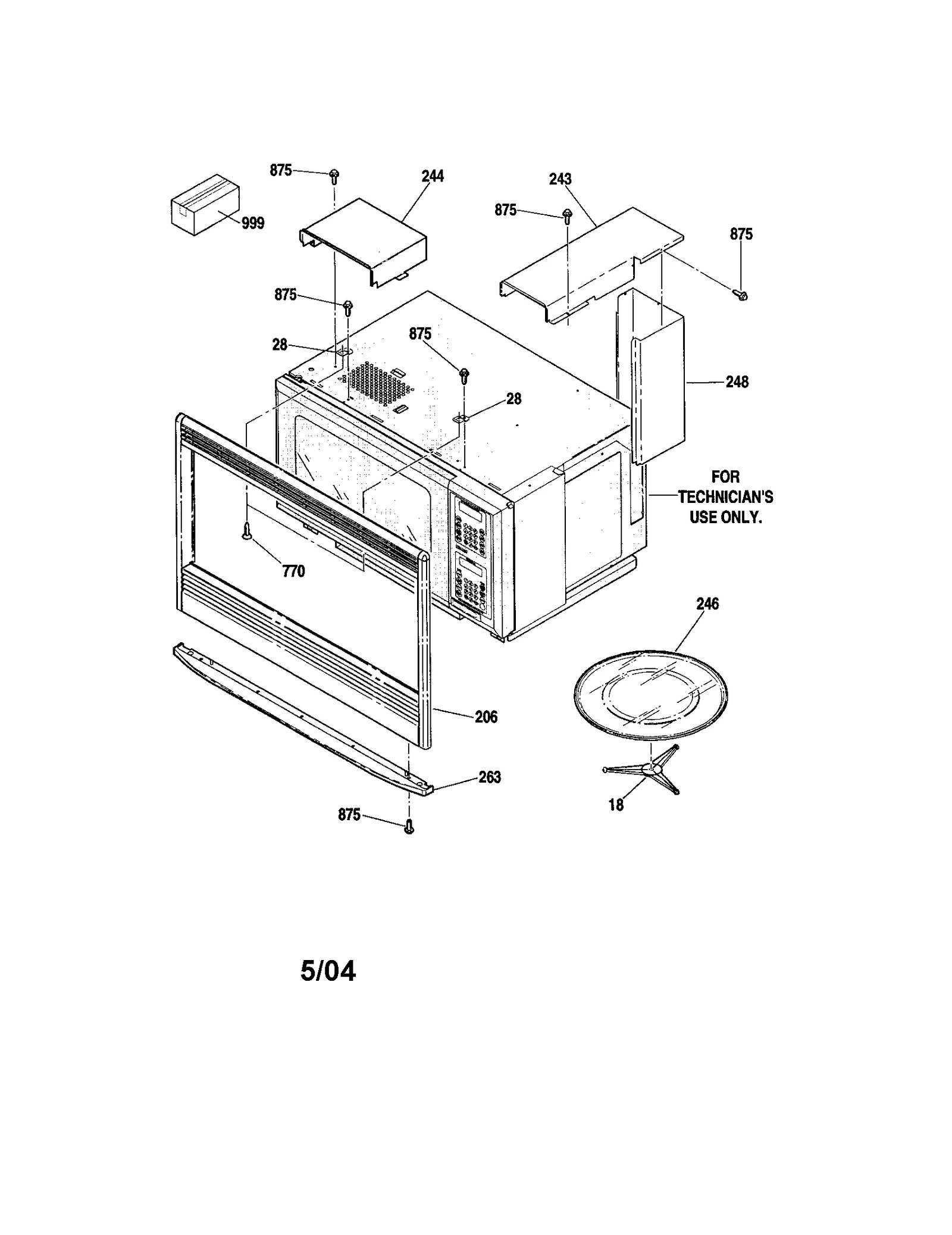

MICROWAVE ENCLOSURES

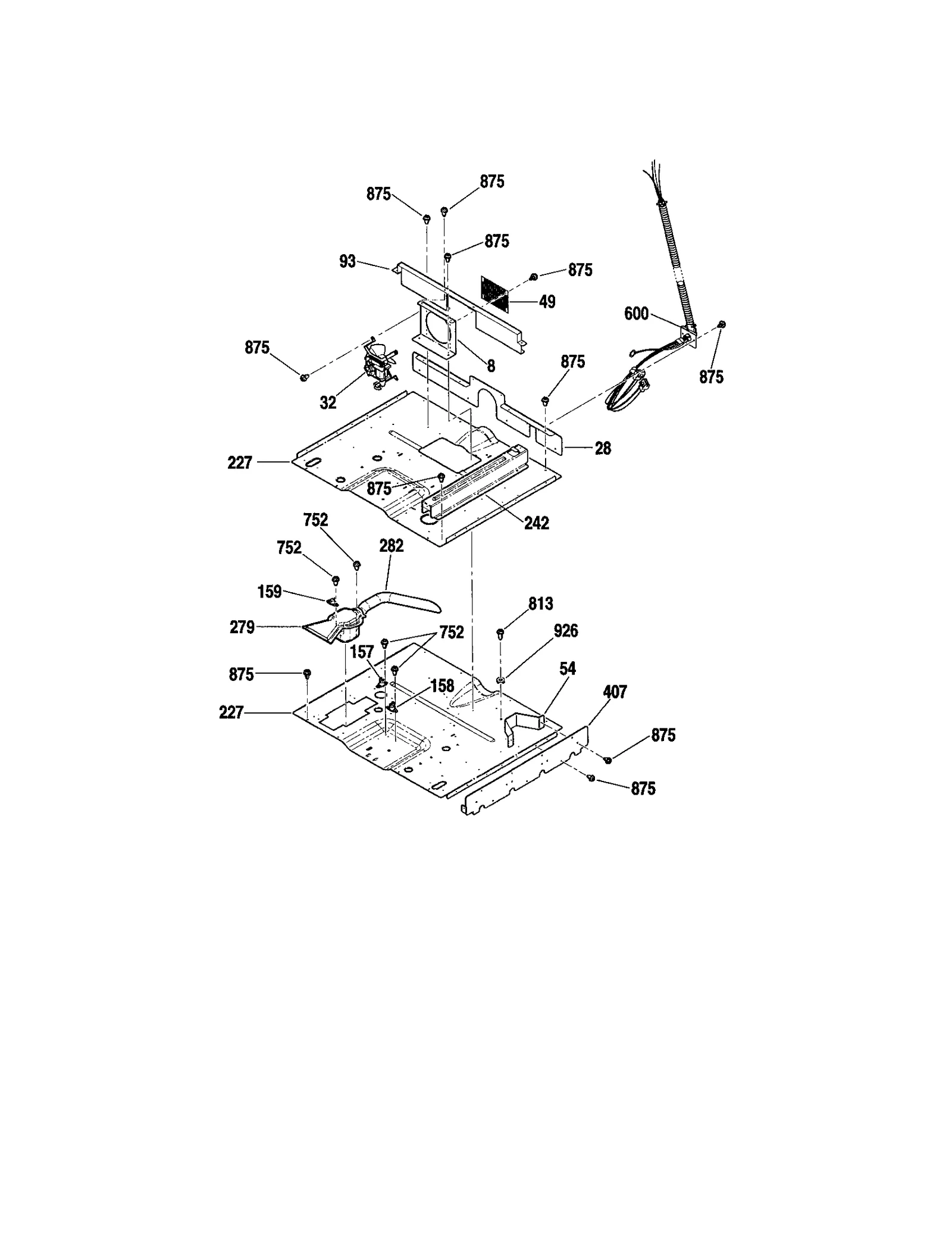

MICROWAVE PEDESTAL

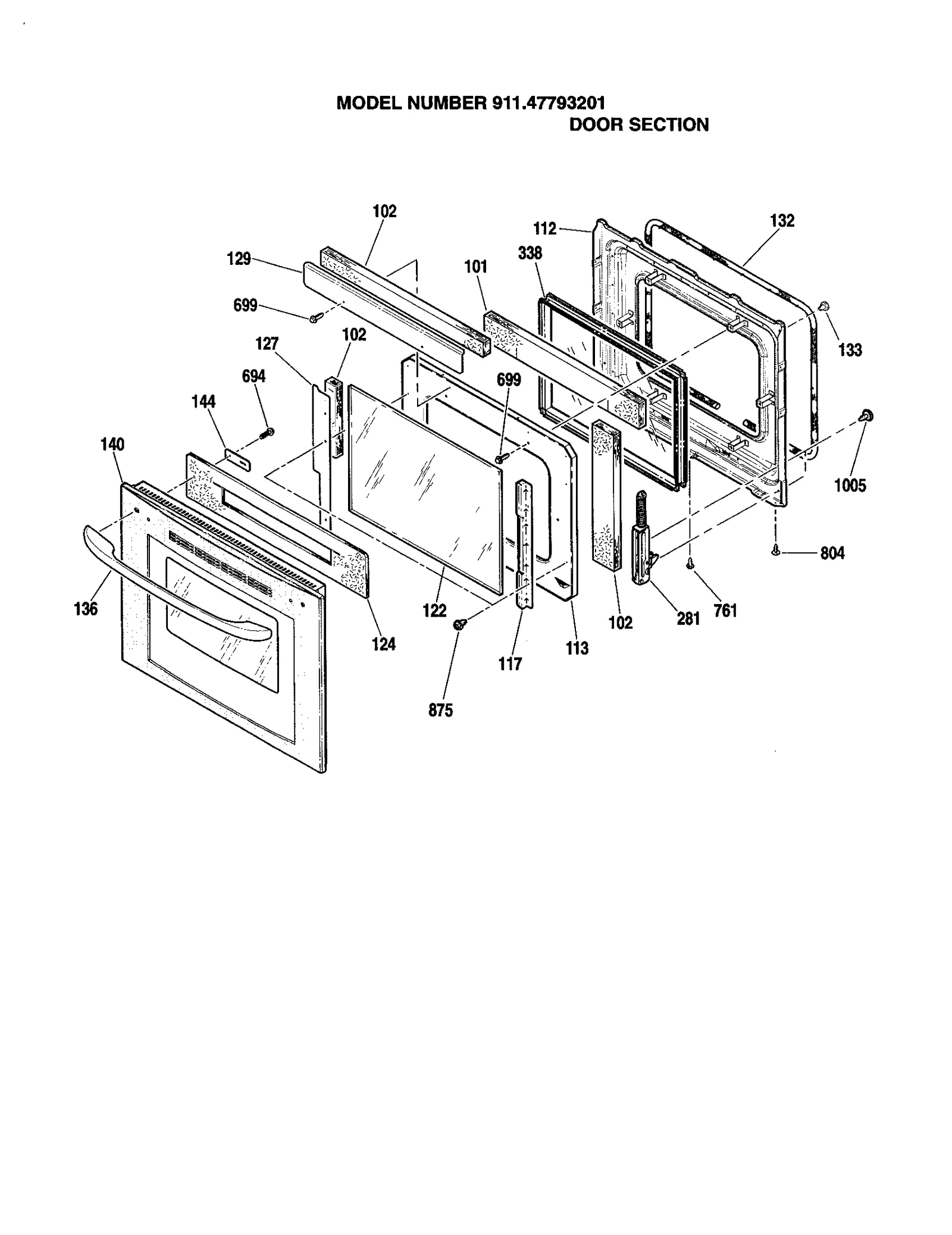

DOOR - 911.47793201

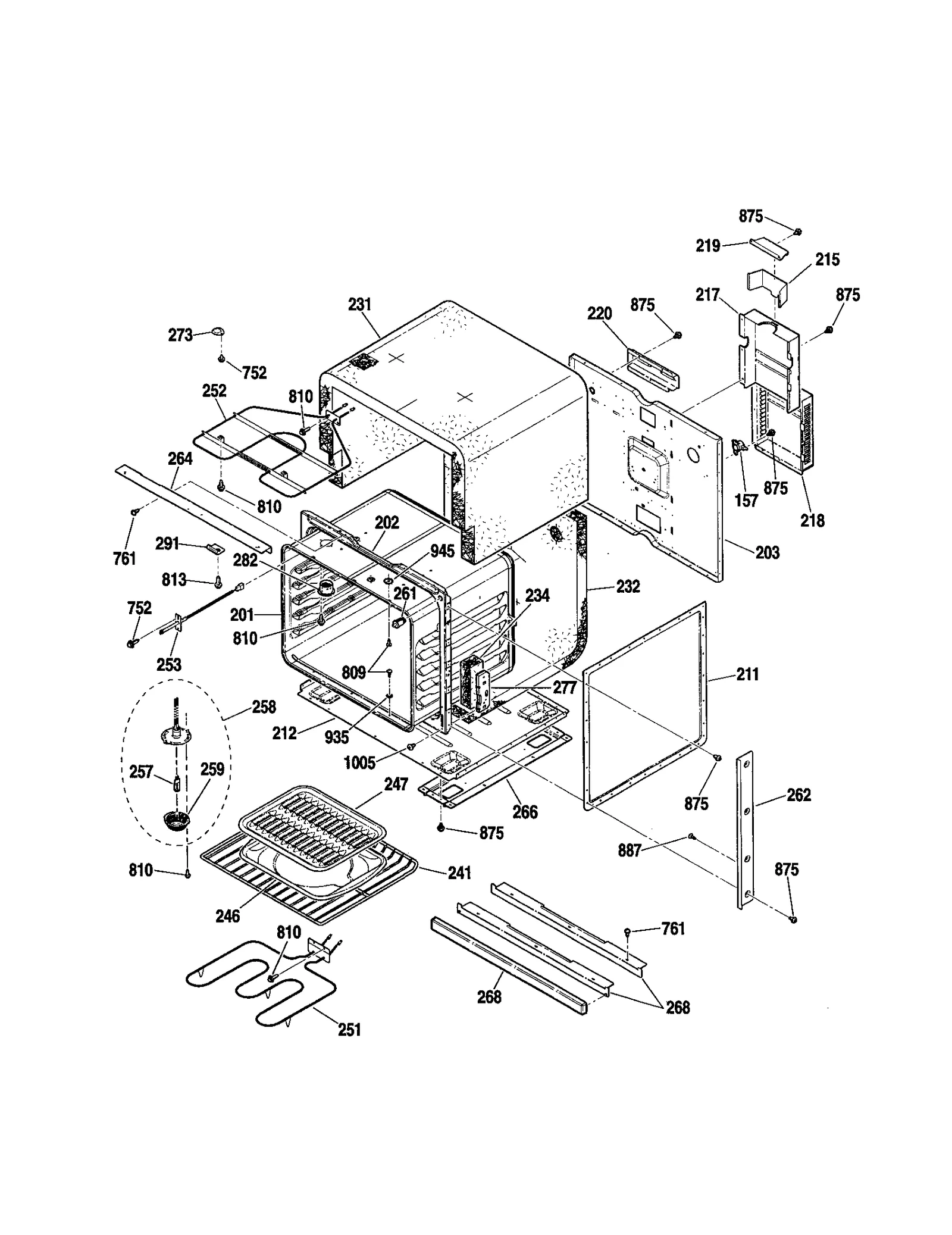

LOWER BODY

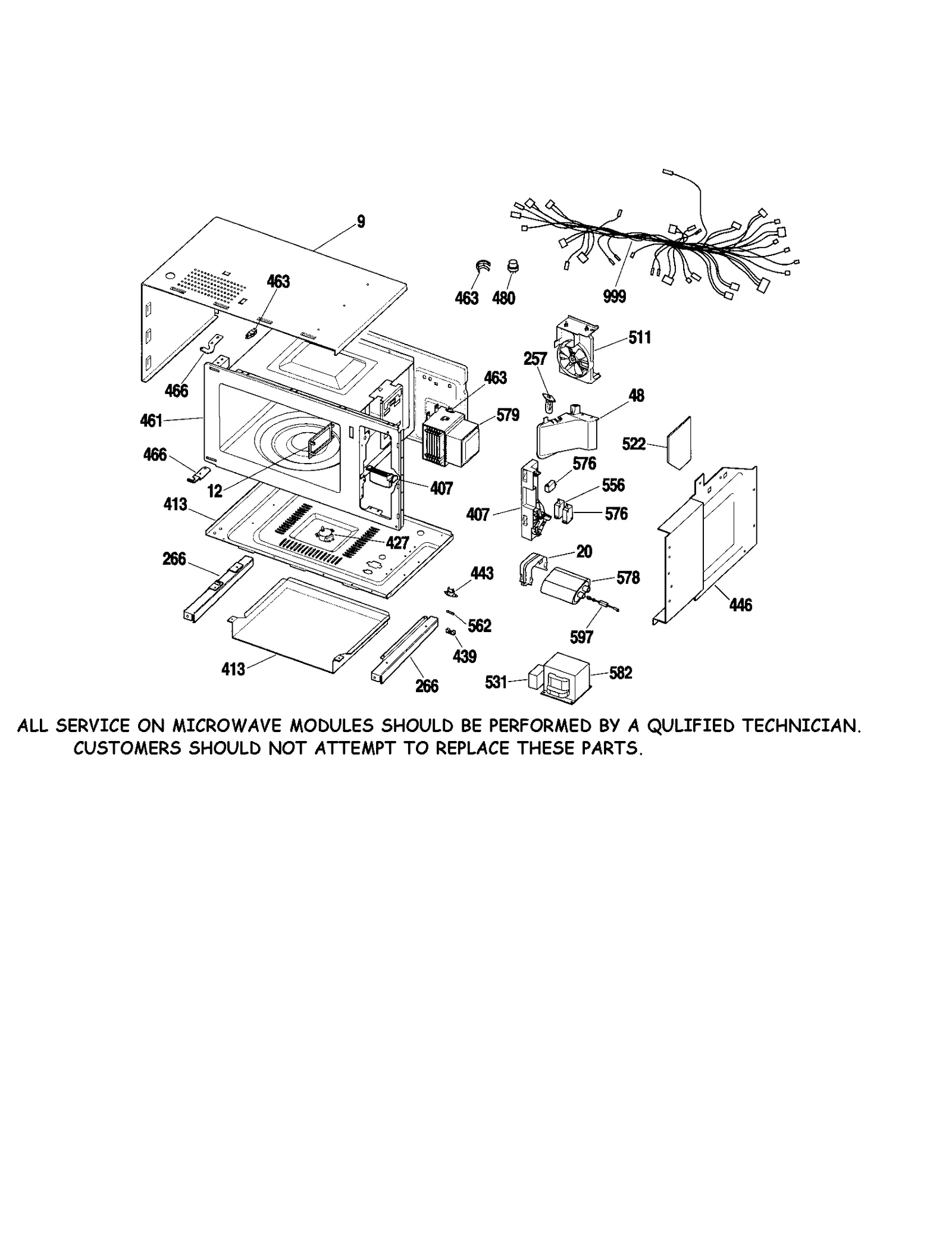

MICROWAVE BODY

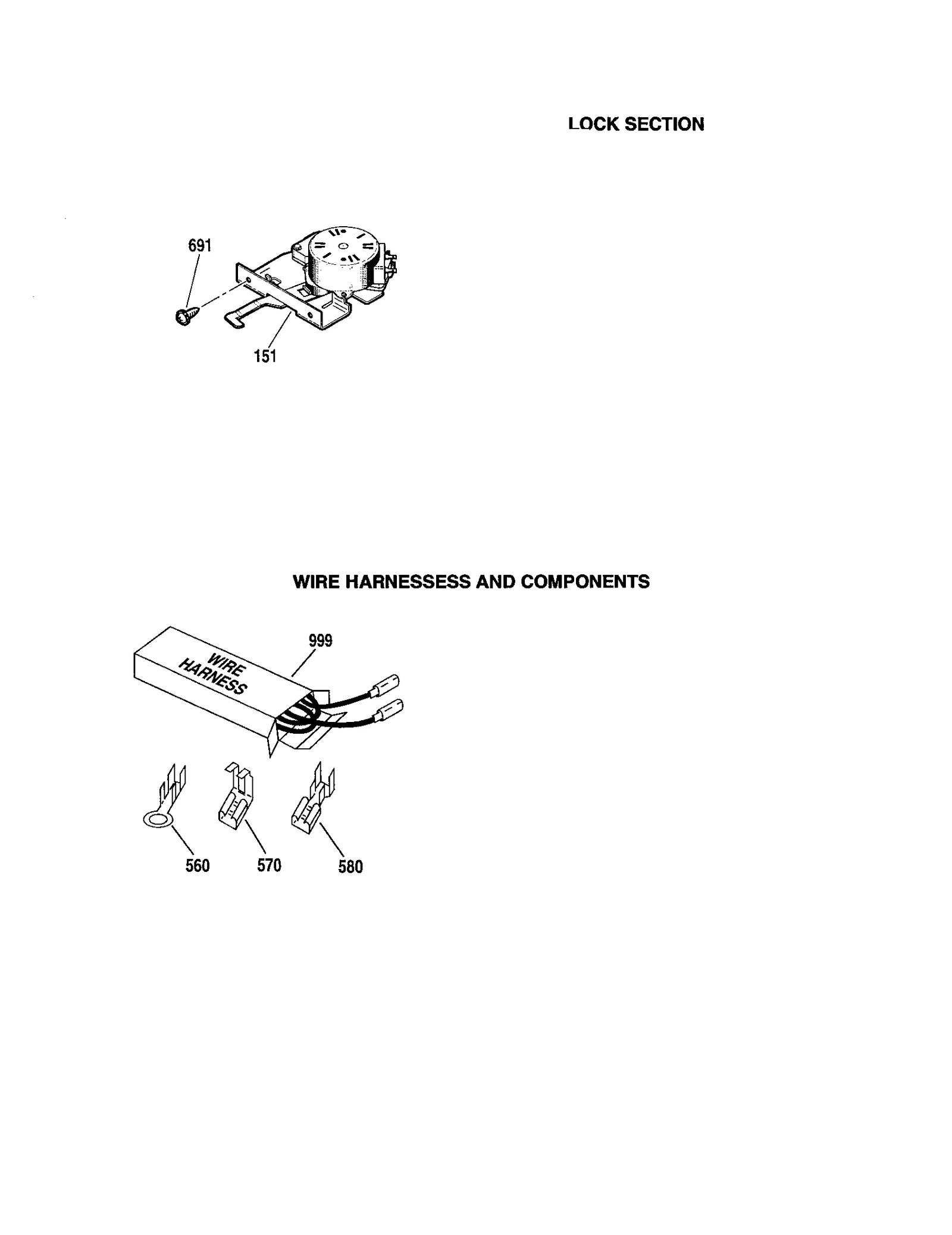

LOCK/WIRE HARNESS/COMPONENTS
Common parts from model GE 911.47792201 27" Built-In Oven with Microwave (Kenmore 91147792201)
1
Range Control Panel GEN WB36T10643 Contact Us For Availability
9
Out Drive Frame GEN WB63T10039 Contact Us For Availability
12
"cover,wave G" GEN WB06X0538 Contact Us For Availability
20
Bracket GEN WB06X0537 Contact Us For Availability
48
Air Cover GEN WB06X0535 Contact Us For Availability
101
Oven Door GEN WB35T10062 Contact Us For Availability
102
Oven Door GEN WB35T10061 Contact Us For Availability
102A
Oven Insulation GEN WB35T10086 Contact Us For Availability
102B
Oven Insulation GEN WB35T10083 Contact Us For Availability
112
Oven Door Liner GEN WB55T10088 Contact Us For Availability
122
Wall Oven Door Inner Glass GEN WB57T10195 Contact Us For Availability
124
Insulation GEN WB35T10084 Contact Us For Availability
126A
Push Button GEN WB03T10194 Contact Us For Availability
126B
Push Button GEN WB03T10190 Contact Us For Availability
127
Oven Retainer GEN WB02T10170 Contact Us For Availability
129
Extension Retainer GEN WB02T10178 Contact Us For Availability
136
Handle GEN WB15T10082 Contact Us For Availability
140
Door Asm (ot GEN WB57T10220 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Oven Latch GEN WB30T10084 Contact Us For Availability
157
Range Oven Temperature Limit Switch GEN WB24T10077 Contact Us For Availability
158
Wall Oven Microwave Thermal Cut-Off GEN WB24T10068 Contact Us For Availability
159
Limit Switch GEN WB24T10064 Contact Us For Availability
201
Oven Wrapper GEN WB63T10088 Contact Us For Availability
202
Frame GEN WB63T10072 Contact Us For Availability
203
Retainer Insert GEN WB63T10087 Contact Us For Availability
206A
Wall Oven Microwave Trim Kit (Black) GEN WB07T10148 Contact Us For Availability
211
Retainer Insert GEN WB63T10091 Contact Us For Availability
212
Retainer Insert GEN WB63T10082 Contact Us For Availability
215
Wire Cover M GEN WB34T10049 Contact Us For Availability
217
Cover Wire U GEN WB34T10065 Contact Us For Availability
218
Cover Wire L GEN WB34T10056 Contact Us For Availability
219
BOTTOM WIRE COVER GEN WB34T10042 Contact Us For Availability
220
Wall Oven Temperature Sensor Wire Harness Cov GEN WB34T10061 Contact Us For Availability
231
Insulation GEN WB35T10075 Contact Us For Availability
232
Insulation GEN WB35T10076 Contact Us For Availability
234
Insulation H GEN WB10T10016 Contact Us For Availability
241
Range Oven Rack GEN WB48T10025 Contact Us For Availability
242
Slide Rail GEN WB02T10119 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
258
Wall Oven Halogen Light Assembly GEN WB25T10025 Contact Us For Availability
259
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10326 Contact Us For Availability
262A
Trim GEN WB07T10327 Contact Us For Availability
262B
Trim GEN WB07T10328 Contact Us For Availability
262C
Trim GEN WB07T10329 Contact Us For Availability
262D
Trim GEN WB07T10331 Contact Us For Availability
262E
Trim GEN WB07T10332 Contact Us For Availability
264
Vent Trim GEN WB07T10307 Contact Us For Availability
266
Side Panel B GEN WB63X10052 Contact Us For Availability
266A
Bkt Slide-b: GEN WB63X10014 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10377 Contact Us For Availability
268A
Cabinet Trim, Lower GEN WB07T10376 Contact Us For Availability
268B
Trim GEN WB07T10378 Contact Us For Availability
268C
Cabinet Trim, Lower GEN WB07T10384 Contact Us For Availability
268D
Cabinet Trim, Lower GEN WB07T10385 Contact Us For Availability
268E
Cabinet Trim, Lower GEN WB07T10386 Contact Us For Availability
268F
Trim Btm 27 GEN WB07T10320 Contact Us For Availability
268G
Trim Btm 27 GEN WB07T10322 Contact Us For Availability
268H
Trim Btm 27 GEN WB07T10321 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
277
Hinge Receiver GEN WB10T10015 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10026 Contact Us For Availability
281A
Oven Door Hinge GEN WB10T10027 Contact Us For Availability
282
Duct Vent Inlet GEN WB28T10082 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
407
Microwave Chassis Support Bracket GEN WB02T10122 Contact Us For Availability
407A
Latch Hook GEN WB10X10016 Contact Us For Availability
413
Oven Base Plate GEN WB63X10011 Contact Us For Availability
413A
Base Bracket GEN WB63X10015 Contact Us For Availability
439
Fuse Holder GEN WB06X10463 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
446
Duct Assembly GEN WB34T10071 Contact Us For Availability
461
Cavity GEN WB63X10012 Contact Us For Availability
463A
Microwave Thermal Cut-Off GEN WB27X10166 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
466
Lower Hinge GEN WB10X10017 Contact Us For Availability
466A
Hinge GEN WB14X0211 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
522
Cushion GEN WB35X10001 Contact Us For Availability
531
Cushion High-Voltage Transformer GEN WB35X10002 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
582
Trans-h V GEN WB27T10464 Contact Us For Availability
600
Conduit Wire GEN WB18T10272 Contact Us For Availability
691
Screw GEN WB01K5163 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
887B
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Wall Oven Wire Harness GEN WB18T10275 Contact Us For Availability
999
Wall Oven Wire Harness GEN WB18T10322 Contact Us For Availability
999A
Latch GEN WB18T10224 Contact Us For Availability
999B
Oven Wire Harness GEN WB18T10323 Contact Us For Availability
× ![]()
