Model GE 911.46766690 30" Radiant Slide-In Range (Kenmore 91146766690) – Common Parts & Diagrams
CONTROL PANEL SECTION
BODY SECTION

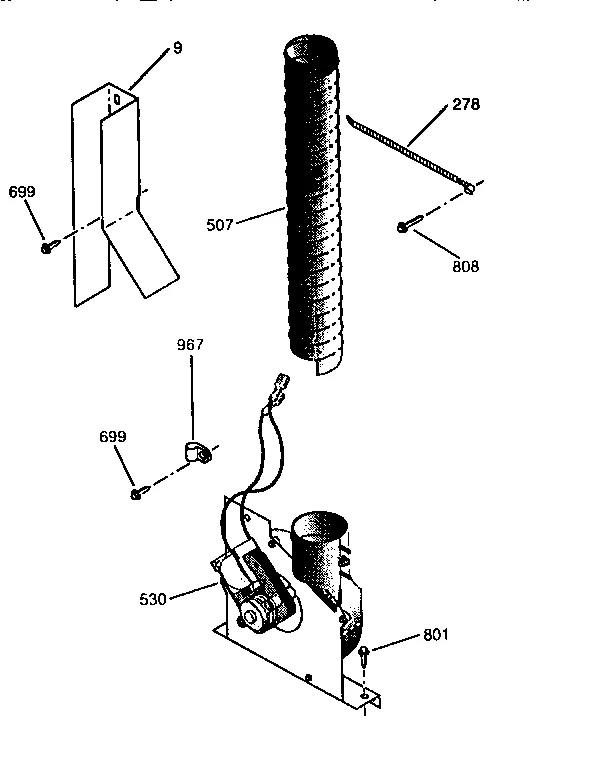

BLOWER SECTION

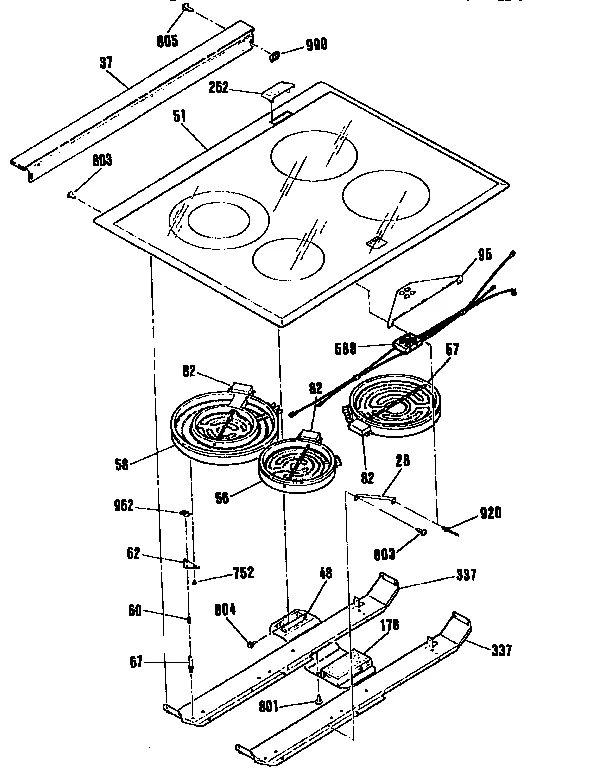

MAIN TOP SECTION

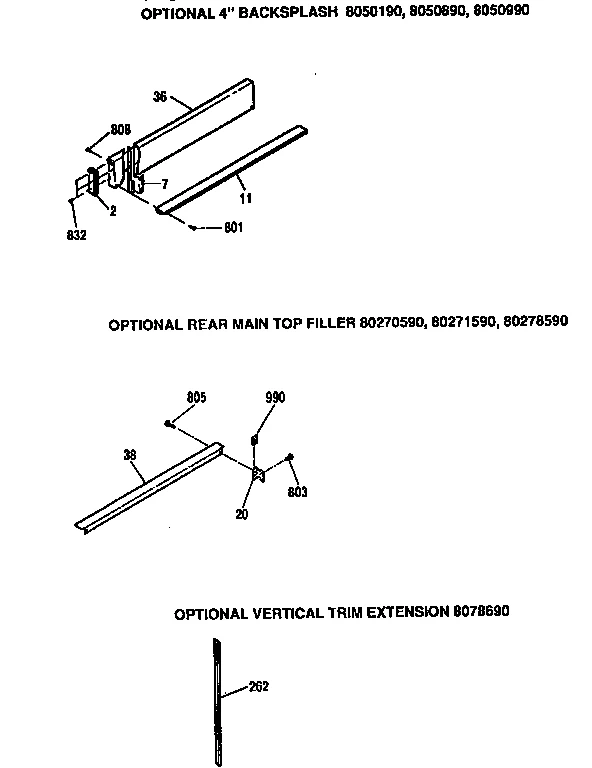

OPTIONAL KITS

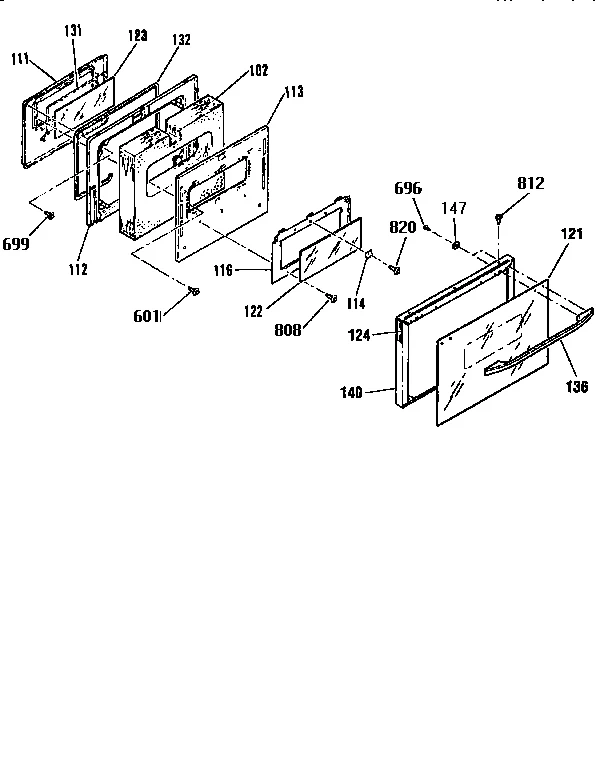

DOOR SECTION

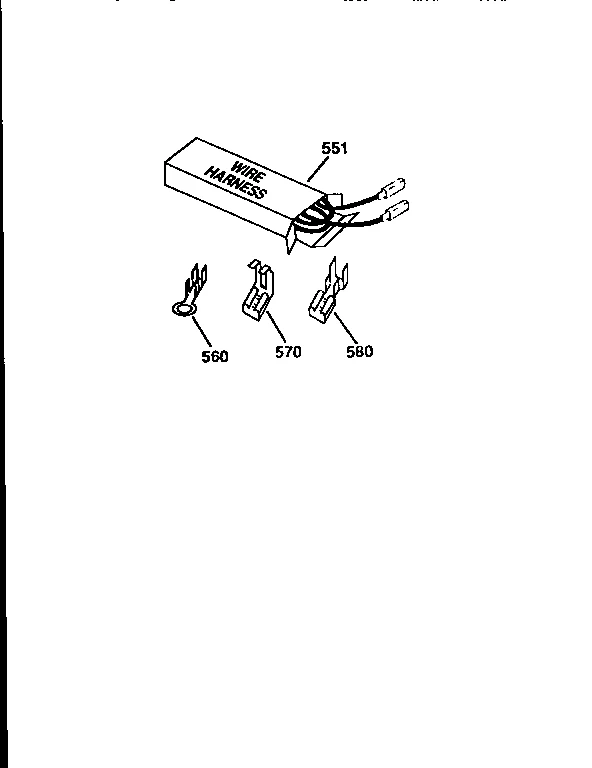

WIRE HARNESS
All Parts

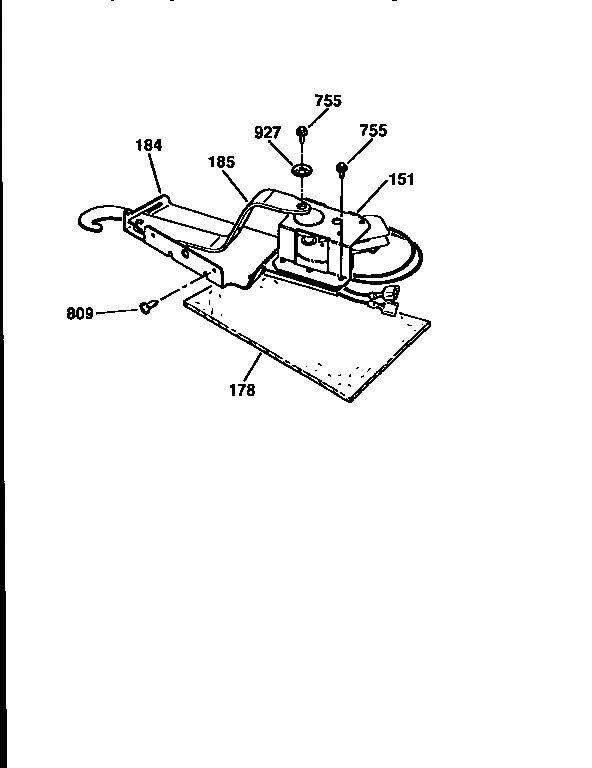

DOOR LOCK SECTION
Common parts from model GE 911.46766690 30" Radiant Slide-In Range (Kenmore 91146766690)
2
End Cap GEN WB36K5497 Contact Us For Availability
2A
End Cap GEN WB36K5498 Contact Us For Availability
2B
End Cap GEN WB36K5424 Contact Us For Availability
2E
Range Control Panel End Cap, Right GEN WB36K5379 Contact Us For Availability
7
Backguard Support GEN WB02K5152 Contact Us For Availability
7A
Backguard Support GEN WB02K5153 Contact Us For Availability
9
Raceway GEN WB34K5345 Contact Us For Availability
11
Range Top Trim Kit GEN WB36K5047 Contact Us For Availability
16A
Control Kit GEN WB27T10417 Contact Us For Availability
16B
Control Kit GEN WB27T10419 Contact Us For Availability
18A
Clock Plt-ad GEN WB27K5343 Contact Us For Availability
18B
Clock Plt-bl GEN WB27K5341 Contact Us For Availability
19
Control Element GEN WB24M0025 Contact Us For Availability
19B
Ele Ctl 2000 GEN WB23M0023 Contact Us For Availability
20
Bracket Clock GEN WB02M0075 Contact Us For Availability
20
Trim Bracket GEN WB02M0077 Contact Us For Availability
21A
Surface Rocker Switch GEN WB24K5064 Contact Us For Availability
21B
Rocker Switch GEN WB24K5081 Contact Us For Availability
21C
Rocker Switch GEN WB24K5082 Contact Us For Availability
21D
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
21E
Dual Ele Swi GEN WB24M0012 Contact Us For Availability
28
Main Rp Brkt GEN WB02K5280 Contact Us For Availability
29
Knob GEN WB03K5305 Contact Us For Availability
29A
Knob GEN WB03K5304 Contact Us For Availability
29B
Infinite Knob GEN WB03K5303 Contact Us For Availability
36
Backsplash GEN WB36K5123 Contact Us For Availability
36A
Bcksplash Ad GEN WB36K5305 Contact Us For Availability
36B
Range Backsplash (Black) GEN WB36K5145 Contact Us For Availability
37
Filler Backsplash GEN WB36K5581 Contact Us For Availability
37A
Filler Backsplash GEN WB36K5577 Contact Us For Availability
37B
Range Top Trim Kit GEN WB36K5579 Contact Us For Availability
38
Mt Filler GEN WB07K5409 Contact Us For Availability
38A
Mt Filler GEN WB07K5410 Contact Us For Availability
38B
Mt Filler GEN WB07K5411 Contact Us For Availability
38C
Mt Filler GEN WB07K5412 Contact Us For Availability
38D
Mt Filler GEN WB07K5413 Contact Us For Availability
38E
Mt Filler GEN WB07K5414 Contact Us For Availability
38F
Flr Trim -bk GEN WB07K5406 Contact Us For Availability
38G
FILLER MAIN TOP REAR BLACK-1 1/2" GEN WB075407 Contact Us For Availability
38H
Flr Trim -bk GEN WB07K5408 Contact Us For Availability
42
Disc Shield GEN WB34K5128 Contact Us For Availability
44
Grommet Strap GEN WB02K5225 Contact Us For Availability
46
Extension Wire Cover GEN WB34K5111 Contact Us For Availability
48
Vent GEN WB38K5031 Contact Us For Availability
51
Glass Main GEN WB61K5029 Contact Us For Availability
51A
Glass Main Top GEN WB61K5021 Contact Us For Availability
51B
Range Main Top GEN WB61K5028 Contact Us For Availability
56
Sur El 1400w GEN WB23K5039 Contact Us For Availability
57
Sur El 1900w GEN WB23K5040 Contact Us For Availability
58
Range Dual Radiant Surface Element GEN WB23K5045 Contact Us For Availability
60
Radiant Spring GEN WB09K5014 Contact Us For Availability
61
Burner Box GEN WB64K5045 Contact Us For Availability
62
Radiant Heater Bracket GEN WB02M0083 Contact Us For Availability
71
Insul Bk/bot GEN WB35K5075 Contact Us For Availability
77
Vent Seal GEN WB32M0016 Contact Us For Availability
82A
Range Surface Element Temperature Limiter GEN WB24K5071 Contact Us For Availability
82B
Range Surface Element Temperature Limiter GEN WB24K5070 Contact Us For Availability
95
Indicator Light Bracket GEN WB02K5324 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Range Oven Door Outer Panel (White) GEN WB57K5304 Contact Us For Availability
121A
Door Glass GEN WB57K5308 Contact Us For Availability
121B
Range Oven Door Outer Panel (Black) GEN WB57K5307 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
124
Drive Frame Insulation (White) GEN WB35K5104 Contact Us For Availability
124A
Drive Frame Insert GEN WB35K5109 Contact Us For Availability
124B
Drive Frame Insulation GEN WB35K5103 Contact Us For Availability
136
Oven Handle GEN WB15K5113 Contact Us For Availability
136A
Oven Door Handle GEN WB15K5115 Contact Us For Availability
136B
Door Handle GEN WB15K5114 Contact Us For Availability
140
Oven Door Frame GEN WB55K5053 Contact Us For Availability
140A
Oven Door Frame GEN WB55K5064 Contact Us For Availability
140B
Oven Door Frame GEN WB55K5054 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
159
Fan Limit Switch GEN WB24M0015 Contact Us For Availability
178
Flue/sup Ins GEN WB35M0015 Contact Us For Availability
178
Lock Motor Insert GEN WB35M0023 Contact Us For Availability
187
In Moist Bar GEN WB34M0036 Contact Us For Availability
201
Oven Body GEN WB63K5109 Contact Us For Availability
202
Frame GEN WB63M0057 Contact Us For Availability
203
Main GEN WB63M0056 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0004 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Shield GEN WB34M0041 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
218
Wire Cover GEN WB34K5133 Contact Us For Availability
219
Wire Shield GEN WB34K5221 Contact Us For Availability
220
Flue Shield GEN WB34K5235 Contact Us For Availability
221
Body GEN WB63K5192 Contact Us For Availability
221A
Body GEN WB63K5195 Contact Us For Availability
222
L Ft Pnl Wh GEN WB56K5017 Contact Us For Availability
222A
L Ft Pnl Ad GEN WB56K5018 Contact Us For Availability
222B
Lwr Frt Pnl GEN WB56K5022 Contact Us For Availability
226
Dr Hndl Wht GEN WB15K5082 Contact Us For Availability
226A
Drwr Hndl Ad GEN WB15K5083 Contact Us For Availability
226B
Handle (Black) GEN WB15X0273 Contact Us For Availability
228
Insulation GEN WB35K5122 Contact Us For Availability
229
Insulation GEN WB35K5123 Contact Us For Availability
230
Bdy Side Ins GEN WB35M0014 Contact Us For Availability
231
Insulation GEN WB02X9676 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB35M0024 Contact Us For Availability
234
Ov Sd Ft Ins GEN WB35M0017 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
262
Vert Sd Trim GEN WB07K5302 Contact Us For Availability
262
Vent Trim GEN WB07M0018 Contact Us For Availability
262
Ver Trim Ext GEN WB07K5024 Contact Us For Availability
262A
Vert Sd Trim GEN WB07K5301 Contact Us For Availability
262A
Vent Trim GEN WB07K5054 Contact Us For Availability
262B
Vert Sd Trim GEN WB07K5334 Contact Us For Availability
262C
Vert Sd Trim GEN WB07K5333 Contact Us For Availability
262D
Sd Trim Rt GEN WB07K5298 Contact Us For Availability
262E
Sd Trim Lt GEN WB07K5297 Contact Us For Availability
266
Base GEN WB02K5334 Contact Us For Availability
267
Main Top Support GEN WB02M0080 Contact Us For Availability
267A
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
271
Cover Plate GEN WB02X9749 Contact Us For Availability
273
Wire Lit Cvr GEN WB34M0027 Contact Us For Availability
278
Hose Clamp GEN WB02K5102 Contact Us For Availability
282
Vent Tube GEN WB38M0014 Contact Us For Availability
286
Oven Drive Spring GEN WB09X0244 Contact Us For Availability
290
Body Sd Fill GEN WB63M0021 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Range Level Screw GEN WB01M0018 Contact Us For Availability
337
Heater Support GEN WB02K5374 Contact Us For Availability
507
Flex Hose GEN WB26M0017 Contact Us For Availability
530
Range Blower GEN WB26K5070 Contact Us For Availability
551
Mtop W Harn GEN WB18K5496 Contact Us For Availability
551A
Wire Harness GEN WB18K5623 Contact Us For Availability
551B
Inf W Harn R GEN WB18K5318 Contact Us For Availability
551C
Inf W Harn L GEN WB18K5319 Contact Us For Availability
551D
Lck Mtr Harn GEN WB18K5363 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
588
Indicator Light GEN WB25K5019 Contact Us For Availability
691A
Trim Screw GEN WB01K5176 Contact Us For Availability
767
Screw GEN WB01K5136 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
807A
Screw-almond GEN WB01K5168 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812A
Screw-almond GEN WB01K5158 Contact Us For Availability
812B
Screw Black GEN WB01K5160 Contact Us For Availability
815
Screw (White) GEN WB01K5179 Contact Us For Availability
815A
Screw-almond GEN WB01K5184 Contact Us For Availability
815B
Screw-black GEN WB01K5190 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
831
Screw-6-32 GEN WB01X1132 Contact Us For Availability
871
Screw GEN WB01K5122 Contact Us For Availability
920
Pop Rivet GEN WB01K5147 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
936
Snap Bushing GEN WB02M0021 Contact Us For Availability
962
Clip GEN WB17M0004 Contact Us For Availability
967
Clip GEN WB02X9894 Contact Us For Availability
968
Dart Button GEN WB02X9393 Contact Us For Availability
971
Speed Nut GEN WB01M0025 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
990
Speed Nut GEN WB01X1432 Contact Us For Availability
NI
Parts List GEN 31-13279 Contact Us For Availability
NI
MINI MANUAL WITH WIRE DIAGRAM GEN 31-13280 Contact Us For Availability
NI
Installation Instructions GEN SR10011 Contact Us For Availability
NI
Installation Filler GEN SR10054 Contact Us For Availability
NI
Installation GEN SR10056 Contact Us For Availability
NI
Backguard Kit GEN SR10099 Contact Us For Availability
NI
User's Manual GEN SR10318 Contact Us For Availability
× ![]()
Login and Registration Form
