Model GE 911.46565791 30" Electric Slide-In Range (Kenmore 91146565791) – Common Parts & Diagrams
REAR TOP FILLER 80270590,80271590,80278590
WIRING COMPONENTS

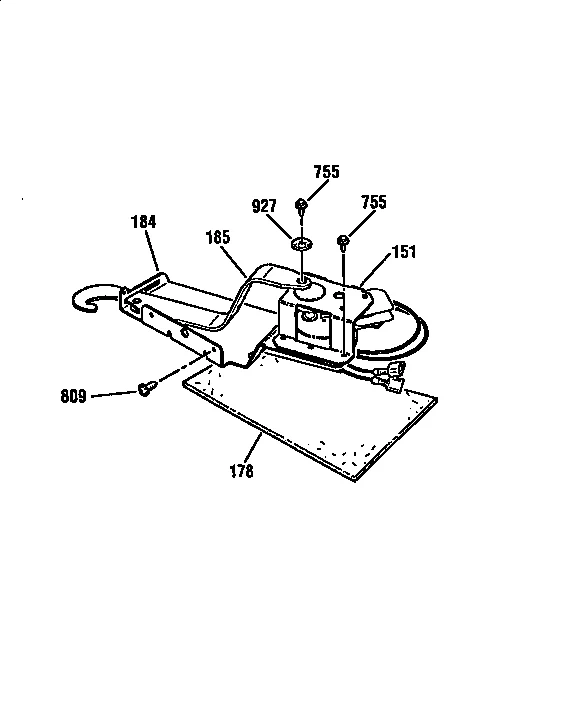

DOOR LOCK SECTION

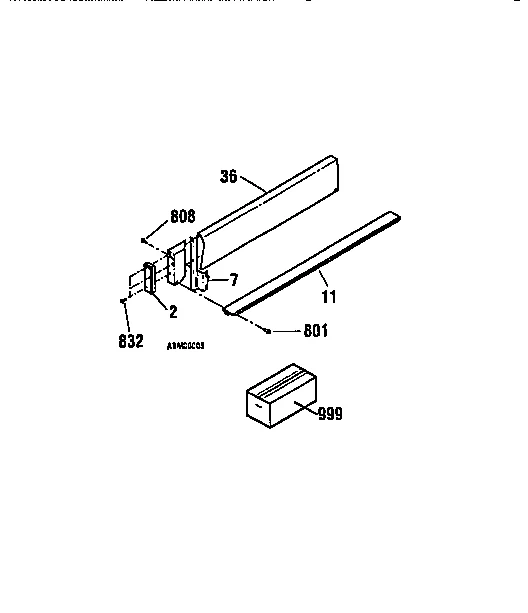

BACKSPLASH 8050190,8050890,8050990

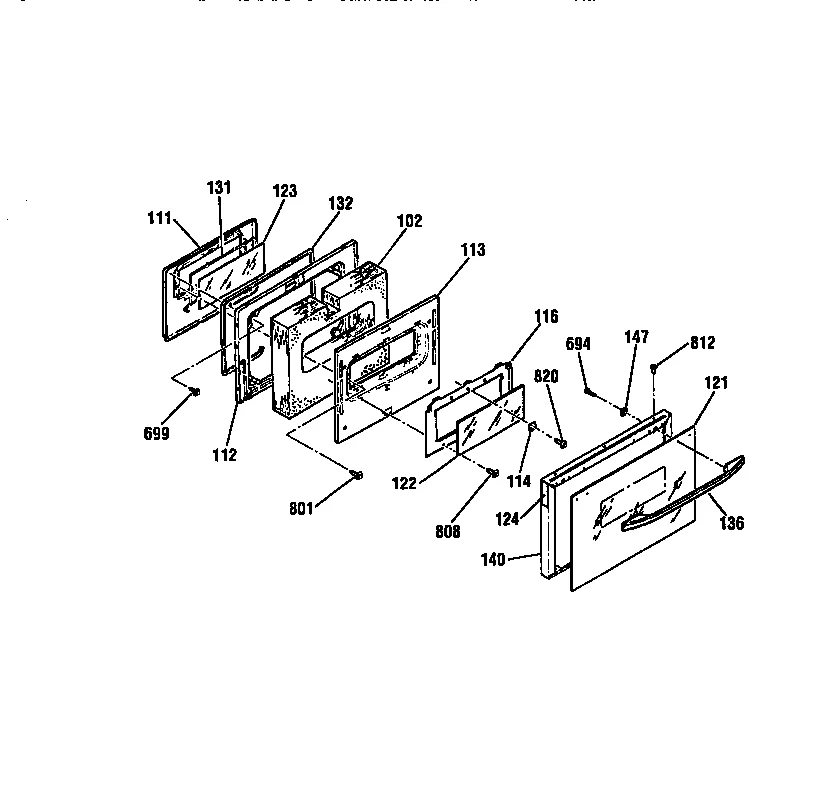

DOOR SECTION
VERTICAL TRIM EXTENSION 8078690

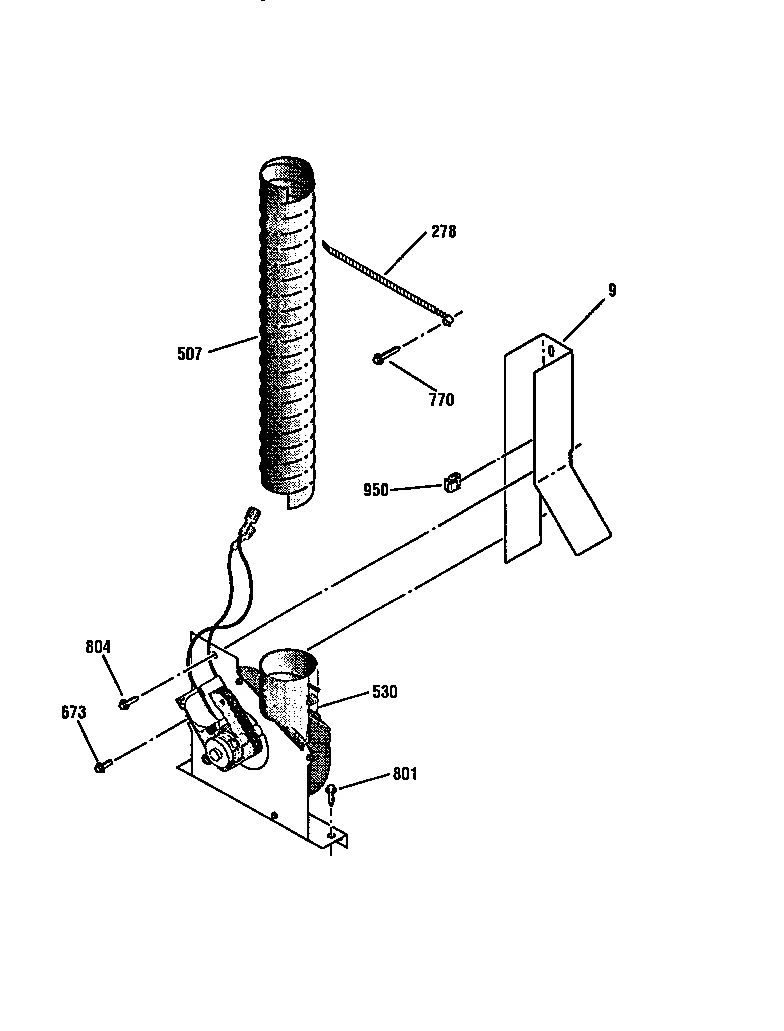

BLOWER SECTION

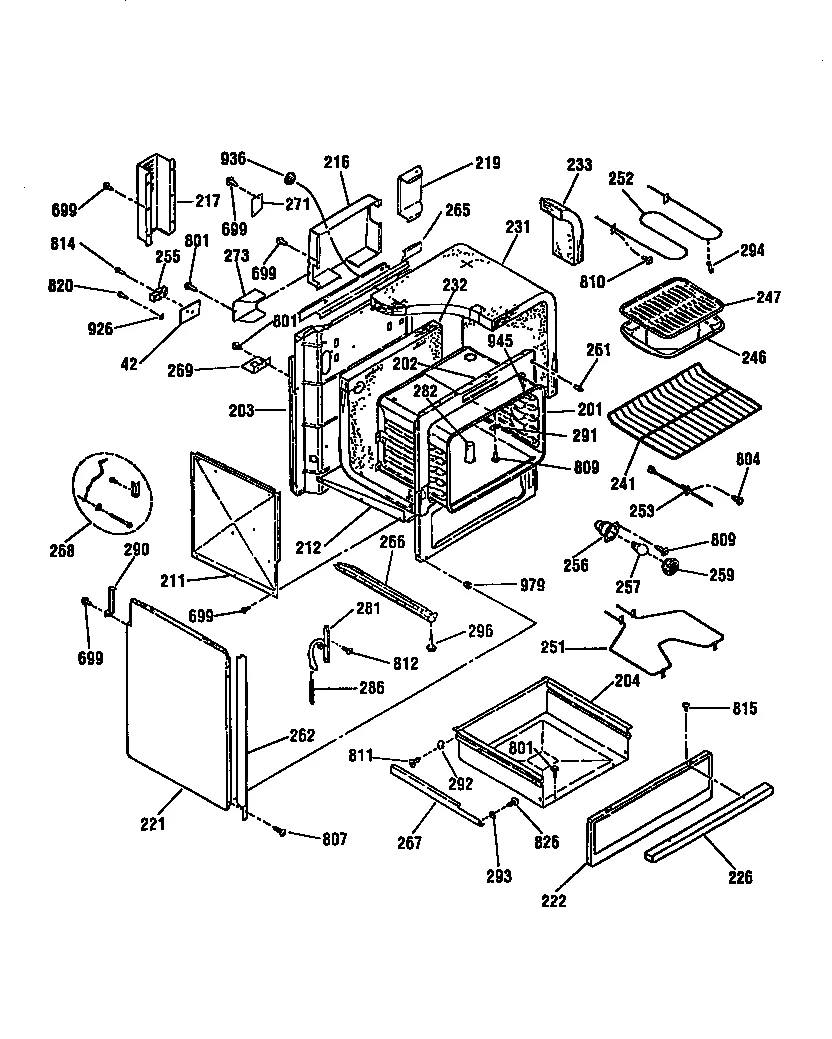

BODY SECTION

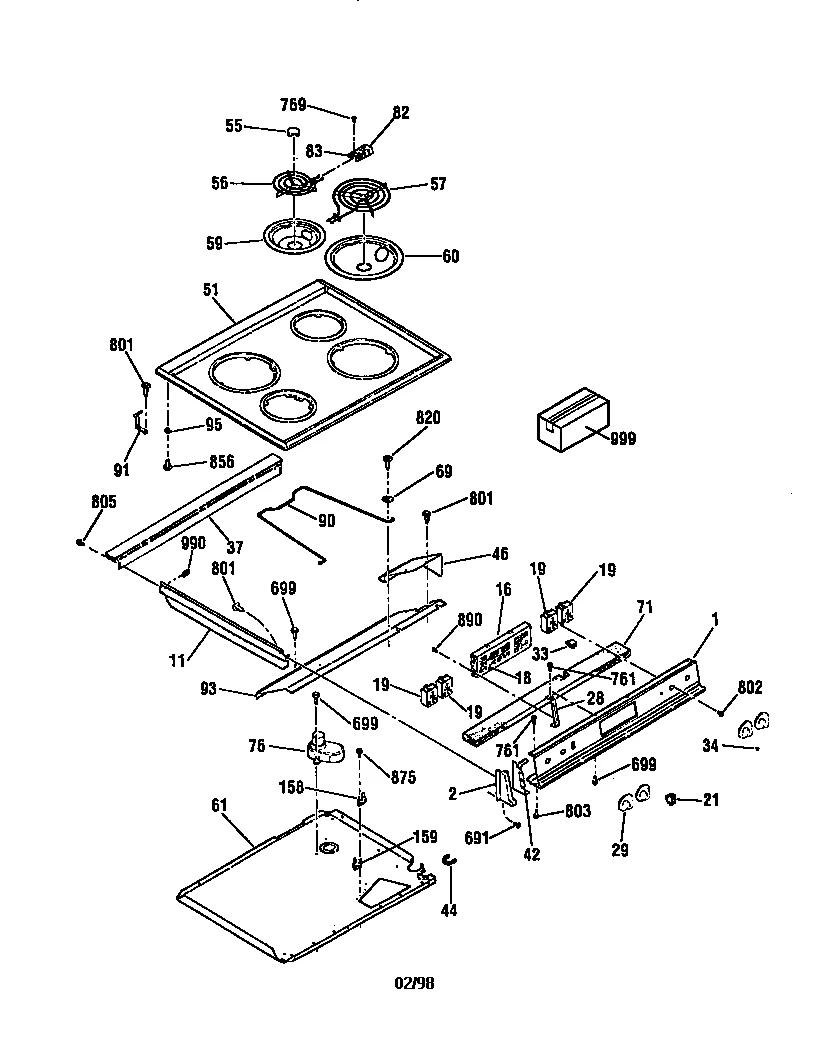

TOP SECTION
Common parts from model GE 911.46565791 30" Electric Slide-In Range (Kenmore 91146565791)
1
Control Panel GEN WB36K5659 Contact Us For Availability
1A
Control Panel GEN WB36K5660 Contact Us For Availability
1B
Range Control Panel GEN WB36K5661 Contact Us For Availability
2
End Cap GEN WB36K5497 Contact Us For Availability
2
End Cap GEN WB54K5410 Contact Us For Availability
2A
End Cap GEN WB36K5498 Contact Us For Availability
2A
End Cap GEN WB54K5411 Contact Us For Availability
2B
End Cap GEN WB36K5424 Contact Us For Availability
2B
End Cap GEN WB36K5439 Contact Us For Availability
2C
End Cap GEN WB36K5425 Contact Us For Availability
2C
End Cap GEN WB36K5440 Contact Us For Availability
2D
Range Control Panel End Cap, Right GEN WB36K5379 Contact Us For Availability
2E
End Cap GEN WB36K5378 Contact Us For Availability
7
Backguard Support GEN WB02K5152 Contact Us For Availability
7A
Backguard Support GEN WB02K5153 Contact Us For Availability
9
Wire Raceway GEN WB34K5245 Contact Us For Availability
11
Range Top Trim Kit GEN WB36K5047 Contact Us For Availability
11
Wire Cover GEN WB64K5038 Contact Us For Availability
16
Control Kit GEN WB27T10417 Contact Us For Availability
16A
Clock Control GEN WB27T10418 Contact Us For Availability
16B
Control Kit GEN WB27T10419 Contact Us For Availability
18
Clock Plate (White) GEN WB27K5342 Contact Us For Availability
18A
Clock Plt-ad GEN WB27K5343 Contact Us For Availability
18B
Clock Plt-bl GEN WB27K5341 Contact Us For Availability
21A
Rocker Switch GEN WB24K5081 Contact Us For Availability
21B
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
28
Bracket Clock GEN WB02K5333 Contact Us For Availability
29
Knob GEN WB03K5305 Contact Us For Availability
29A
Knob GEN WB03K5304 Contact Us For Availability
29B
Infinite Knob GEN WB03K5303 Contact Us For Availability
36
Backsplash GEN WB36K5123 Contact Us For Availability
36A
Bcksplash Ad GEN WB36K5305 Contact Us For Availability
36B
Range Backsplash (Black) GEN WB36K5145 Contact Us For Availability
37
Range Top Trim Kit GEN WB36K5579 Contact Us For Availability
37A
Filler Backsplash GEN WB36K5581 Contact Us For Availability
37B
Filler Backsplash GEN WB36K5577 Contact Us For Availability
42
Disc Shield GEN WB34K5128 Contact Us For Availability
42
Barrier GEN WB34K5250 Contact Us For Availability
42A
Barrier GEN WB34K5251 Contact Us For Availability
44
Gromet Strp GEN WB02X9725 Contact Us For Availability
46
Extension Wire Cover GEN WB34K5111 Contact Us For Availability
51
Main GEN WB62K5145 Contact Us For Availability
51A
Main GEN WB62K5146 Contact Us For Availability
51B
Main GEN WB62K5144 Contact Us For Availability
55
Medallion GEN WB32K5049 Contact Us For Availability
56
Range Coil Surface Element, 6-in GEN WB30K5034 Contact Us For Availability
57
Range Coil Surface Element, 8-in GEN WB30K5035 Contact Us For Availability
60A
8" Pan-blk GEN WB31K5041 Contact Us For Availability
61
Burner Box B GEN WB64T10007 Contact Us For Availability
71
Control Panel Insert GEN WB35K5034 Contact Us For Availability
76
Vent Tube GEN WB38K5027 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
90
Mt Supp Rod GEN WB02M0084 Contact Us For Availability
91
Hinge GEN WB14X0110 Contact Us For Availability
91A
Hinge GEN WB14X0109 Contact Us For Availability
93
Wire Cover GEN WB34K5107 Contact Us For Availability
95
Hinge Bracket GEN WB10X0255 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Door Plug GEN WB55T10005 Contact Us For Availability
112
Door Lining GEN WB55T10003 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Range Oven Door Outer Panel (White) GEN WB57K5304 Contact Us For Availability
121A
Door Glass GEN WB57K5308 Contact Us For Availability
121B
Range Oven Door Outer Panel (Black) GEN WB57K5307 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
124
Drive Frame Insulation (White) GEN WB35K5104 Contact Us For Availability
124A
Drive Frame Insert GEN WB35K5109 Contact Us For Availability
124B
Control Panel GEN WB36K5103 Contact Us For Availability
136
Oven Handle GEN WB15K5113 Contact Us For Availability
136A
Oven Door Handle GEN WB15K5115 Contact Us For Availability
136B
Door Handle GEN WB15K5114 Contact Us For Availability
140
Oven Door Frame GEN WB55K5053 Contact Us For Availability
140A
Oven Door Frame GEN WB56K5166 Contact Us For Availability
140B
Oven Door Frame GEN WB55K5054 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
158
Range Control Panel Cooling Fan Thermal Switc GEN WB24K5086 Contact Us For Availability
159
Fan Limit Switch GEN WB24M0015 Contact Us For Availability
178
Lock Motor Insert GEN WB35M0023 Contact Us For Availability
201
Oven Body GEN WB63T10002 Contact Us For Availability
202
Frame GEN WB63T10028 Contact Us For Availability
203
Main GEN WB63M0056 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Shield GEN WB34M0041 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
219
Wire Shield GEN WB34K5221 Contact Us For Availability
221
Body GEN WB63K5195 Contact Us For Availability
221A
Body GEN WB63K5192 Contact Us For Availability
222
L Ft Pnl Wh GEN WB56K5017 Contact Us For Availability
222A
L Ft Pnl Ad GEN WB56K5018 Contact Us For Availability
222B
Lwr Frt Pnl GEN WB56K5022 Contact Us For Availability
226
Dr Hndl Wht GEN WB15K5082 Contact Us For Availability
226A
Drwr Hndl Ad GEN WB15K5083 Contact Us For Availability
226B
Lwr Pnl Hand GEN WB15M0008 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB35M0024 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
262
Ver Trim Ext GEN WB07K5024 Contact Us For Availability
262
Vert Sd Trim GEN WB07K5301 Contact Us For Availability
262A
Vert Sd Trim GEN WB07K5302 Contact Us For Availability
262B
Vert Sd Trim GEN WB07K5333 Contact Us For Availability
262C
Vert Sd Trim GEN WB07K5334 Contact Us For Availability
262D
Sd Trim Lt GEN WB07K5297 Contact Us For Availability
262E
Sd Trim Rt GEN WB07K5298 Contact Us For Availability
265
Wire Shield GEN WB35K5141 Contact Us For Availability
266
Base GEN WB02K5334 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
271
Cover Plate GEN WB02X9749 Contact Us For Availability
273
Wire Lit Cvr GEN WB34M0027 Contact Us For Availability
278
Hose Clamp GEN WB02K5102 Contact Us For Availability
282
Vent Tube GEN WB38K5017 Contact Us For Availability
286
Oven Drive Spring GEN WB09X0244 Contact Us For Availability
290
Body Sd Fill GEN WB63M0021 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Range Level Screw GEN WB01M0018 Contact Us For Availability
507
Flex Hose GEN WB26M0017 Contact Us For Availability
530
Range Blower GEN WB26K5070 Contact Us For Availability
691A
Trim Screw GEN WB01K5176 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
807A
Screw-almond GEN WB01K5168 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812A
Screw-almond GEN WB01K5158 Contact Us For Availability
812B
Screw Black GEN WB01K5160 Contact Us For Availability
815
Screw (White) GEN WB01K5179 Contact Us For Availability
815A
Screw-almond GEN WB01K5184 Contact Us For Availability
815B
Screw-black GEN WB01K5212 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
936
Snap Bushing GEN WB02M0021 Contact Us For Availability
950
Cable Clip GEN WB01K5135 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
990
Speed Nut GEN WB01X1432 Contact Us For Availability
999
Backguard Kit GEN SR10099 Contact Us For Availability
999
Installation Instructions GEN SR10011 Contact Us For Availability
999
Installation GEN SR10056 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAG. GEN 31-13285 Contact Us For Availability
999B
OPTIONAL CANNING ELEMENT GEN WB30K5037 Contact Us For Availability
999C
Owner's Manual GEN SR10349 Contact Us For Availability
999D
Parts List GEN 31-13499 Contact Us For Availability
× ![]()
