Model GE 911.46556590 30" Electric Slide-In Range (Kenmore 91146556590) – Common Parts & Diagrams

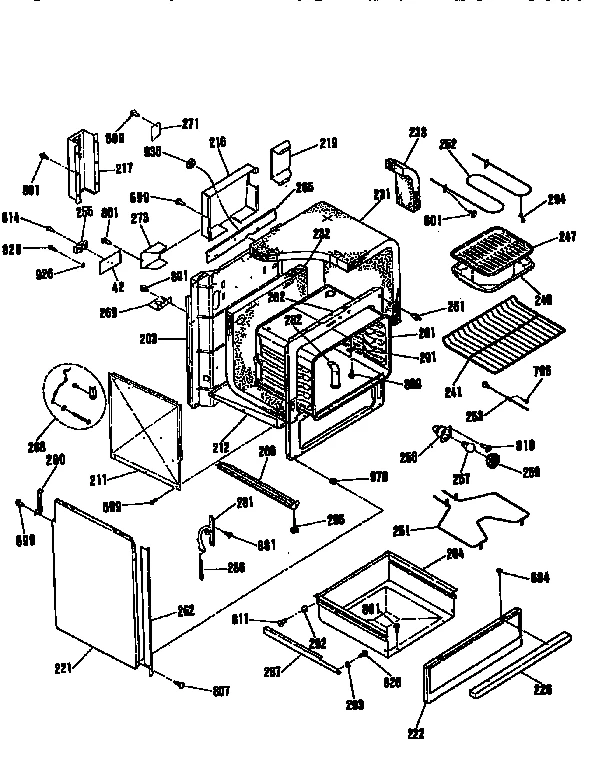

BODY SECTION
VERTICAL TRIM EXTENSION 8078690
REAR MAIN TOP FILLER
DOOR LOCK SECTION
OPTIONAL 4" BACKSPLASH
All Parts
WIRE HARNESSES AND COMPONENTS
OVEN DOOR SECTION
MAIN TOP SECTION
BLOWER SECTION
Common parts from model GE 911.46556590 30" Electric Slide-In Range (Kenmore 91146556590)
1
Control Panel GEN WB36K5583 Contact Us For Availability
1A
Control Panel GEN WB36K5409 Contact Us For Availability
1B
Ctrl Pnl Wht GEN WB36K5412 Contact Us For Availability
2
End Cap GEN WB36K5497 Contact Us For Availability
2
End Cap GEN WB36K5440 Contact Us For Availability
2A
End Cap GEN WB36K5498 Contact Us For Availability
2A
End Cap GEN WB36K5439 Contact Us For Availability
2B
Range Control Panel End Cap, Right GEN WB36K5379 Contact Us For Availability
2C
End Cap GEN WB36K5378 Contact Us For Availability
2D
End Cap GEN WB54K5411 Contact Us For Availability
2E
End Cap GEN WB54K5410 Contact Us For Availability
7
Backguard Support GEN WB02K5152 Contact Us For Availability
7A
Backguard Support GEN WB02K5153 Contact Us For Availability
9
Raceway GEN WB34K5056 Contact Us For Availability
11
Range Top Trim Kit GEN WB36K5047 Contact Us For Availability
11
Wire Cover GEN WB64K5038 Contact Us For Availability
16
Oven Control GEN WB27K5140 Contact Us For Availability
18
Clock Plate GEN WB27K5157 Contact Us For Availability
18A
Range Oven Control Faceplate GEN WB27K5166 Contact Us For Availability
18B
Clock Plate GEN WB27K5167 Contact Us For Availability
21
Rocker Switch GEN WB24K5081 Contact Us For Availability
21A
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
28
Bracket Clock GEN WB02K5333 Contact Us For Availability
29
Inf Knob-ad GEN WB03K5262 Contact Us For Availability
29A
Inf Knob Blk GEN WB03K5197 Contact Us For Availability
29B
Inf Knob Wht GEN WB03K5199 Contact Us For Availability
36
Range Backsplash (Black) GEN WB36K5145 Contact Us For Availability
36A
Backsplash (White) GEN WB36K5045 Contact Us For Availability
37
Filler Backsplash GEN WB36K5581 Contact Us For Availability
37A
Filler Backsplash GEN WB36K5577 Contact Us For Availability
37B
Range Top Trim Kit GEN WB36K5579 Contact Us For Availability
38
Filter Trim Maintop GEN WB07K5032 Contact Us For Availability
38A
Filter Trim Maintop GEN WB07K5033 Contact Us For Availability
38B
Filler Trim GEN WB07X1586 Contact Us For Availability
44
Grommet GEN WB02K5096 Contact Us For Availability
44A
Gromet Strp GEN WB02X9725 Contact Us For Availability
46
Extension Wire Cover GEN WB34K5111 Contact Us For Availability
51
Cooktop Main Top (Black) GEN WB62K5140 Contact Us For Availability
51A
Main Top Ad GEN WB62K5081 Contact Us For Availability
51B
Main Top Wht GEN WB62K5080 Contact Us For Availability
55
Medallion GEN WB32K5049 Contact Us For Availability
56
Range Coil Surface Element, 6-in GEN WB30K5034 Contact Us For Availability
57
Range Coil Surface Element, 8-in GEN WB30K5035 Contact Us For Availability
59A
Range Drip Pan, 6-in (Black) GEN WB32K5041 Contact Us For Availability
60A
Range Drip Pan, 8-in GEN WB32K5042 Contact Us For Availability
61
Burner Box GEN WB64K5044 Contact Us For Availability
71
Control Panel Insert GEN WB35K5034 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
90
Mt Supp Rod GEN WB02M0084 Contact Us For Availability
91
Hinge GEN WB14X0109 Contact Us For Availability
91A
Hinge GEN WB14X0110 Contact Us For Availability
93
Wire Cover GEN WB34K5107 Contact Us For Availability
95
Hinge Bracket GEN WB10X0255 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Ov Dr Gls Ad GEN WB57K5287 Contact Us For Availability
121A
Oven Door Glass GEN WB57K5215 Contact Us For Availability
121B
Door Glass Outer Oven GEN WB57K5216 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
133
Felt Washer GEN WB01X1159 Contact Us For Availability
136
Oven Door Handle GEN WB15K5104 Contact Us For Availability
136A
Dr Hndl Blk GEN WB15K5074 Contact Us For Availability
136B
Dr Hndl Wht GEN WB15K5073 Contact Us For Availability
140
Oven Door Frame GEN WB56K5132 Contact Us For Availability
140A
Oven Door Frame GEN WB56K5144 Contact Us For Availability
140B
Oven Drive Frame GEN WB56K5138 Contact Us For Availability
146
Oven Door Spacer GEN WB02K5302 Contact Us For Availability
146A
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
146B
Spacer GEN WB02X9640 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
157
Limit Switch GEN WB24K5029 Contact Us For Availability
158
Fan Limit Switch GEN WB24M0015 Contact Us For Availability
159
Range Control Panel Cooling Fan Thermal Switc GEN WB24K5086 Contact Us For Availability
178
Lock Motor Insert GEN WB35M0023 Contact Us For Availability
184
DOOR LOCK PLATE GEN WB34K5179 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
226A
Lwr Pnl Hand GEN WB15M0008 Contact Us For Availability
226B
Dr Hndl Wht GEN WB15K5082 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Insert GEN WB35K5029 Contact Us For Availability
233
Insulation GEN WB35M0024 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
262
Vert Sd Trim GEN WB07K5333 Contact Us For Availability
262
Ver Trim Ext GEN WB07K5024 Contact Us For Availability
262A
Vert Sd Trim GEN WB07K5334 Contact Us For Availability
262B
Sd Trim Lt GEN WB07K5297 Contact Us For Availability
262C
Sd Trim Rt GEN WB07K5298 Contact Us For Availability
262D
Vert Sd Trim GEN WB07K5301 Contact Us For Availability
262E
Vert Sd Trim GEN WB07K5302 Contact Us For Availability
265
Wire Shield GEN WB34K5141 Contact Us For Availability
266
Base GEN WB02K5334 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
271
Cover Plate GEN WB02X9749 Contact Us For Availability
273
Wire Lit Cvr GEN WB34M0027 Contact Us For Availability
282
Vent Tube GEN WB38K5019 Contact Us For Availability
286
Oven Drive Spring GEN WB09X0244 Contact Us For Availability
290
Body Sd Fill GEN WB63M0021 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Range Level Screw GEN WB01M0018 Contact Us For Availability
507
Flex Hose GEN WB26M0017 Contact Us For Availability
511
Blower Motor GEN WB26K5044 Contact Us For Availability
512
Fan Blade GEN WB26M0013 Contact Us For Availability
513
Range Blower Housing GEN WB26K5056 Contact Us For Availability
514
Blower Plate GEN WB26K5043 Contact Us For Availability
551
Range Wire Harness GEN WB18K5371 Contact Us For Availability
551A
Main Wiring Harness GEN WB18K5436 Contact Us For Availability
551B
Lck Mtr Harn GEN WB18K5363 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
684
Screw-almond GEN WB01K5184 Contact Us For Availability
684A
Screw-black GEN WB01K5190 Contact Us For Availability
684B
Screw (White) GEN WB01K5179 Contact Us For Availability
691A
Trim Screw GEN WB01K5176 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
807
Screw-almond GEN WB01K5168 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
874
Screw GEN WB01X1162 Contact Us For Availability
881
Screw-almond GEN WB01K5158 Contact Us For Availability
881A
Screw Black GEN WB01K5160 Contact Us For Availability
892
Set Screw GEN WB01K5056 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
936
Snap Bushing GEN WB02M0021 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
990
Speed Nut GEN WB01X1432 Contact Us For Availability
996
Hex Nut GEN WB01M0041 Contact Us For Availability
999
Range Canning Surface Element GEN WB30K5019 Contact Us For Availability
NI
Installation Instructions GEN SR10011 Contact Us For Availability
NI
Installation Filler GEN SR10054 Contact Us For Availability
NI
Installation GEN SR10056 Contact Us For Availability
NI
Backguard Kit GEN SR10099 Contact Us For Availability
NI
CANNING ELEMENT INST. GEN SR10106 Contact Us For Availability
NI
Range Owner's Manual GEN SR10223 Contact Us For Availability
NI
Technical Sheet GEN SR13491 Contact Us For Availability
NI
Range Parts GEN SR13558 Contact Us For Availability
× ![]()
