Model GE 911.46244896 Electric Range (Kenmore 91146244896) – Common Parts & Diagrams
WIRE HARNESSES/WIRING COMPONENTS
OPTIONAL REAR MAINTOP FILLER

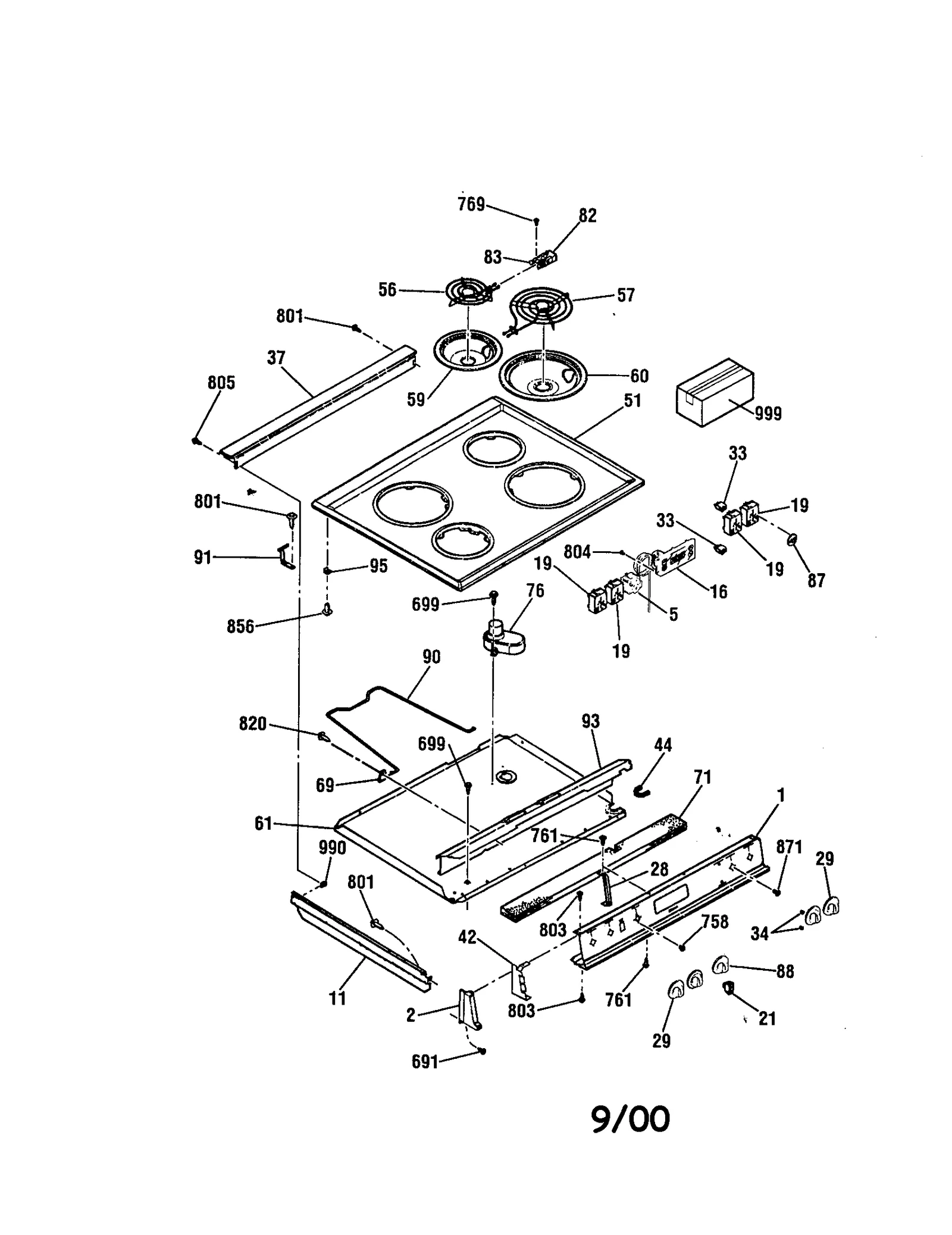

MAINTOP

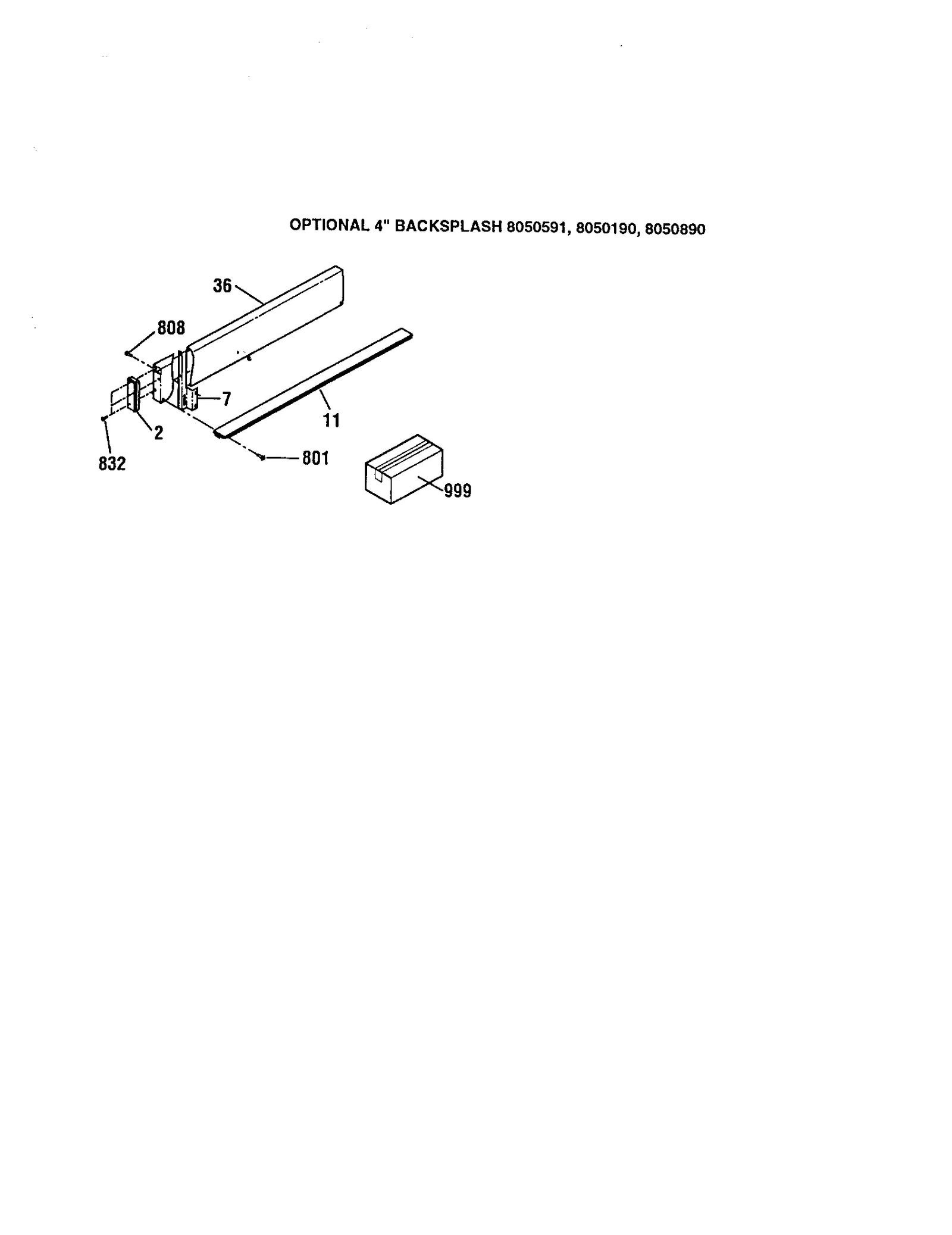

OPTIONAL 4" BACKSPLASH

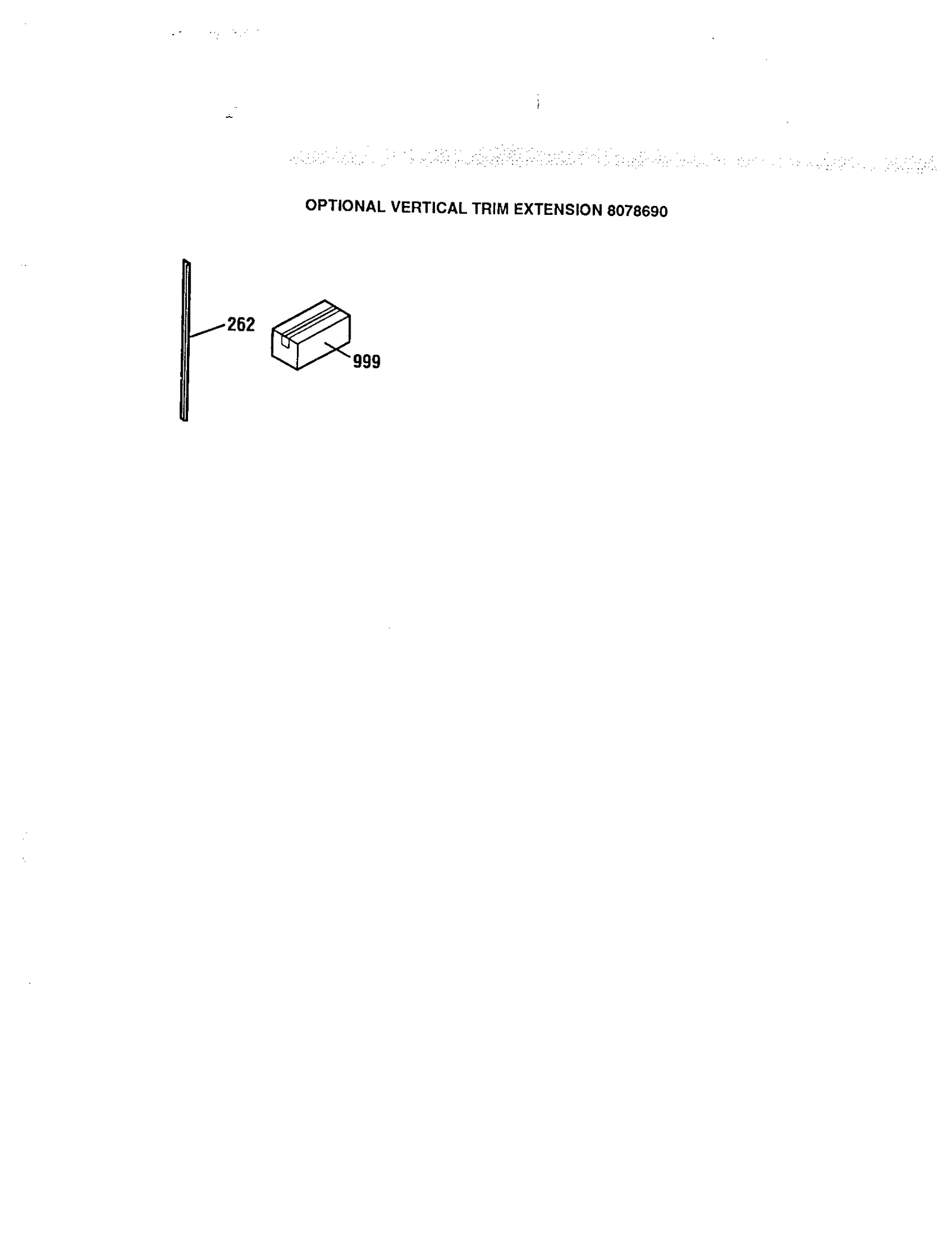

OPTIONAL VERTICAL TRIM

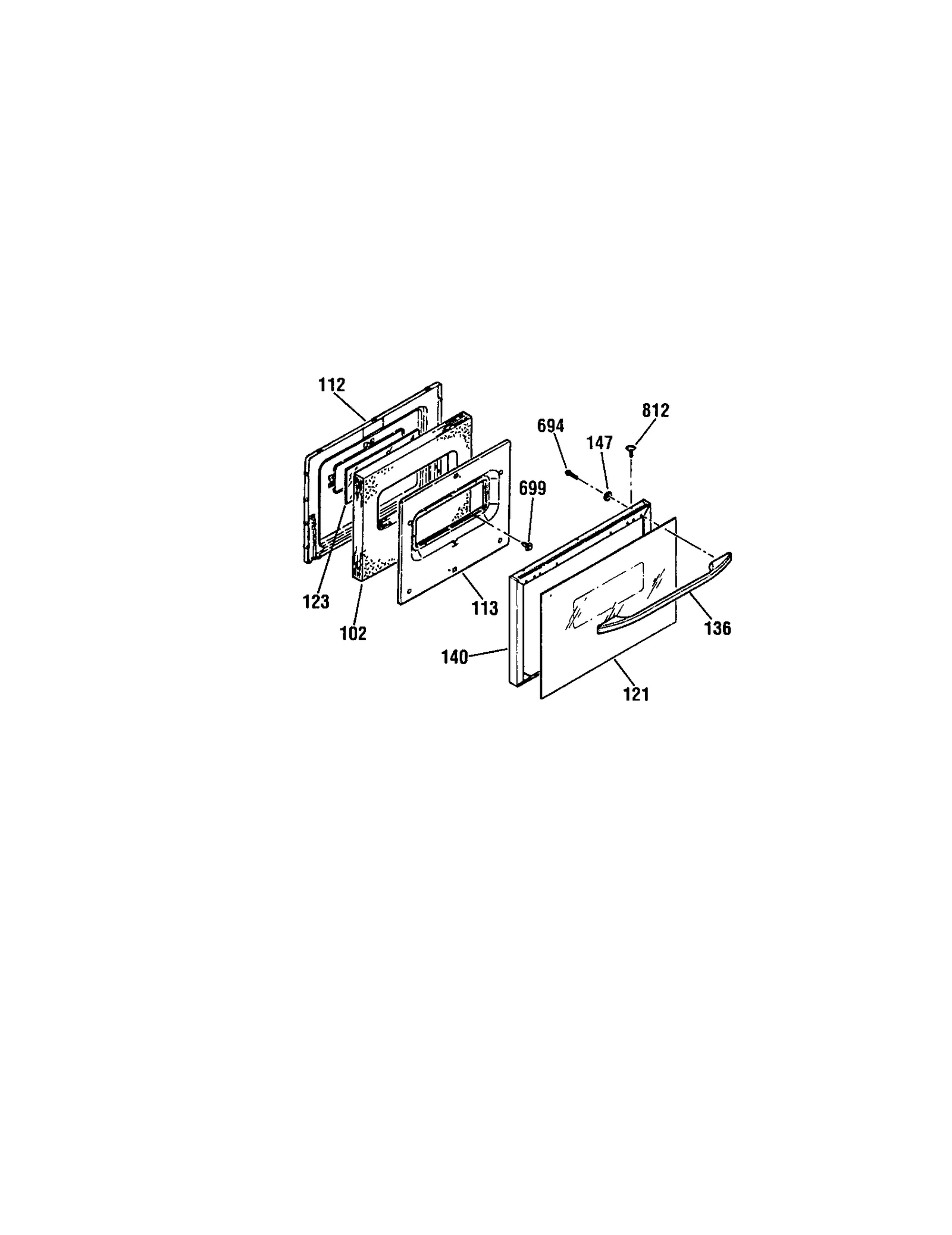

DOOR

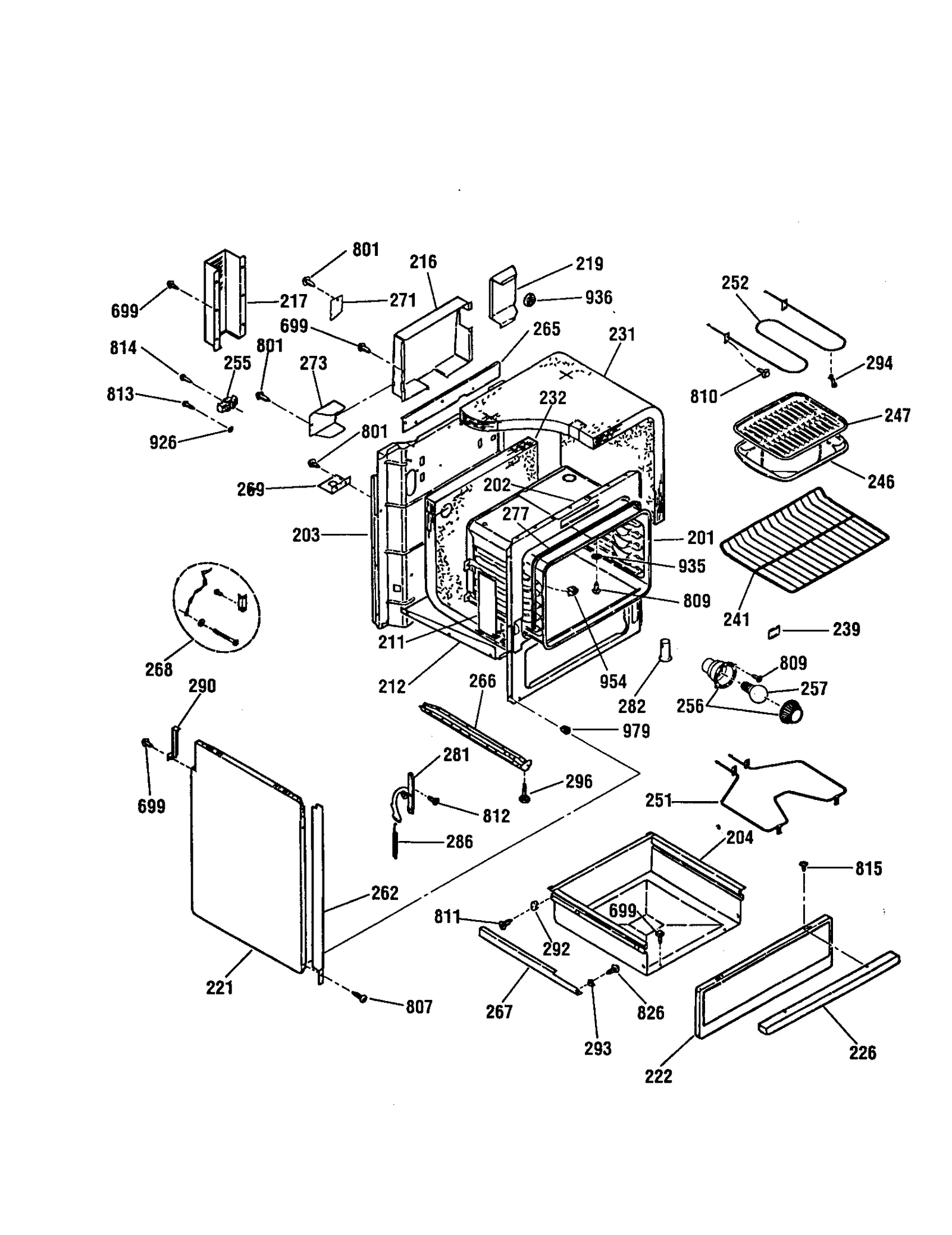

BODY
Common parts from model GE 911.46244896 Electric Range (Kenmore 91146244896)
1
Wall Oven Control Panel GEN WB36T10124 Contact Us For Availability
2
End Cap GEN WB36K5378 Contact Us For Availability
2
End Cap GEN WB36K5497 Contact Us For Availability
2A
Range Control Panel End Cap, Right GEN WB36K5379 Contact Us For Availability
2A
End Cap GEN WB36K5498 Contact Us For Availability
7
Backguard Support GEN WB02K5152 Contact Us For Availability
7A
Backguard Support GEN WB02K5153 Contact Us For Availability
11
Wire Cover GEN WB64K5038 Contact Us For Availability
11
Range Top Trim Kit GEN WB36K5047 Contact Us For Availability
16
Oven Control Clock GEN WB27T10044 Contact Us For Availability
21
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
28
Bracket Clock GEN WB02K5333 Contact Us For Availability
29
Infinite Knob GEN WB03K5303 Contact Us For Availability
36
Backsplash (White) GEN WB36K5045 Contact Us For Availability
36A
Wht Bcksplsh GEN WB37T10004 Contact Us For Availability
36B
Range Backsplash GEN WB36T10343 Contact Us For Availability
37
Range Top Trim Kit GEN WB36K5579 Contact Us For Availability
37A
Filler Backsplash GEN WB36K5581 Contact Us For Availability
38E
Mt Filler GEN WB07K5411 Contact Us For Availability
38F
Flr Trim -bk GEN WB07K5406 Contact Us For Availability
38G
Flr Trim -bk GEN WB07K5407 Contact Us For Availability
38H
Flr Trim -bk GEN WB07K5408 Contact Us For Availability
42
Barrier GEN WB34K5250 Contact Us For Availability
42A
Barrier GEN WB34K5251 Contact Us For Availability
44
Gromet Strp GEN WB02X9725 Contact Us For Availability
51
Main GEN WB62K5145 Contact Us For Availability
51A
Main GEN WB62K5146 Contact Us For Availability
61
Burner Box B GEN WB64T10006 Contact Us For Availability
71
Control Panel Insert GEN WB35K5034 Contact Us For Availability
76
Vent Tube GEN WB38K5027 Contact Us For Availability
83
Range Surface Element Receptacle Support GEN WB01T10014 Contact Us For Availability
88
Thermostat Knob GEN WB03K5293 Contact Us For Availability
90
Mt Supp Rod GEN WB02M0084 Contact Us For Availability
91
Hinge GEN WB14X0110 Contact Us For Availability
91A
Hinge GEN WB14X0109 Contact Us For Availability
93
Wire Cover GEN WB34K5106 Contact Us For Availability
95
Hinge Bracket GEN WB10X0255 Contact Us For Availability
102
Insulation GEN WB02X9123 Contact Us For Availability
112
Ov Dr Lng GEN WB55T10002 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
121
Range Oven Door Outer Panel (Black) GEN WB57T10110 Contact Us For Availability
123
Ov Dr In Gl GEN WB57K5038 Contact Us For Availability
136
Oven Door Handle GEN WB15T10032 Contact Us For Availability
140
Oven Door Frame GEN WB56K5144 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
201
Oven Body GEN WB63T10002 Contact Us For Availability
202
Frame GEN WB63T10027 Contact Us For Availability
203
Main GEN WB63M0056 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02X9030 Contact Us For Availability
212
Retainer Insert GEN WB02T10077 Contact Us For Availability
216
Wire Shield GEN WB34M0041 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
219
Wire Shield GEN WB34K5221 Contact Us For Availability
221
Body GEN WB63K5195 Contact Us For Availability
221A
Body GEN WB63K5192 Contact Us For Availability
222
Lwr Frt Pnl GEN WB56K5022 Contact Us For Availability
226
Handle (Black) GEN WB15X0273 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Range Oven Light Assembly GEN WB08T10001 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Ver Trim Ext GEN WB07K5024 Contact Us For Availability
262
Sd Trim Lt GEN WB07K5297 Contact Us For Availability
262A
Sd Trim Rt GEN WB07K5298 Contact Us For Availability
265
Wire Shield GEN WB34K5141 Contact Us For Availability
266
Base GEN WB02K5334 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
271
Cover Plate GEN WB02X9749 Contact Us For Availability
273
Wire Lit Cvr GEN WB34M0027 Contact Us For Availability
277
Range Oven Door Seal GEN WB32K5051 Contact Us For Availability
282
Vent Tube GEN WB38K5016 Contact Us For Availability
286
Oven Drive Spring GEN WB09X0267 Contact Us For Availability
290
Body Sd Fill GEN WB63M0021 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Range Level Screw GEN WB01M0018 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
815
Screw-black GEN WB01K5212 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
871
Screw GEN WB01K5122 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
936
Snap Bushing GEN WB02M0021 Contact Us For Availability
954
Clip GEN WB02X9105 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
990
Speed Nut GEN WB01X1432 Contact Us For Availability
999
INSTALL INSTR (SR10054) GEN 31-10026 Contact Us For Availability
999
Installation GEN SR10056 Contact Us For Availability
999
Backguard Kit GEN SR10099 Contact Us For Availability
999
Installation Instructions GEN SR10011 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAGRAM GEN 31-13717 Contact Us For Availability
999B
Owner's Manual GEN SR10364 Contact Us For Availability
999C
Parts List GEN 31-13776 Contact Us For Availability
× ![]()
