Model GE 911.45461690 30" Electric Drop-In Range (Kenmore 91145461690) – Common Parts & Diagrams

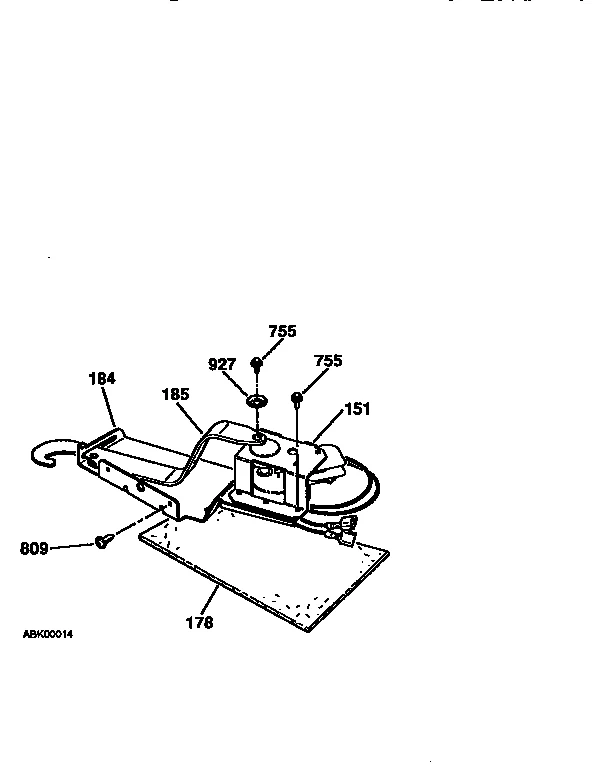

DOOR LOCK SECTION

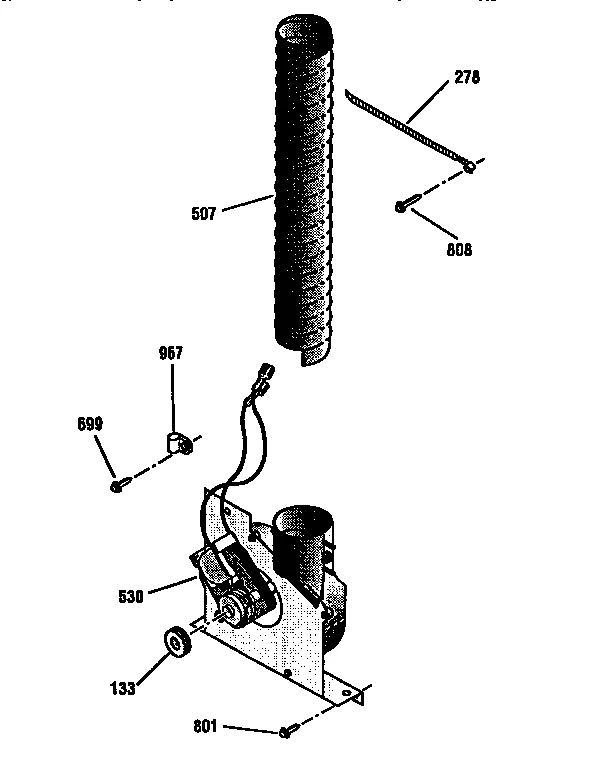

BLOWER SECTION
BACKGUARD SECTION
DOOR SECTION 45565690&45569690
DOOR SECTION 45461609
All Parts
MAIN TOP SECTION
WIRE HARNESSES AND COMPONENTS
BODY SECTION
Common parts from model GE 911.45461690 30" Electric Drop-In Range (Kenmore 91145461690)
2B
End Cap GEN WB36K5402 Contact Us For Availability
6
Fill Control Cover GEN WB34K5152 Contact Us For Availability
7
Duct Fan GEN WB26K5038 Contact Us For Availability
11
Burner Box GEN WB07K5181 Contact Us For Availability
15
Cover GEN WB02X9563 Contact Us For Availability
16
Clock Control GEN WB27T10418 Contact Us For Availability
16A
Control Kit GEN WB27T10417 Contact Us For Availability
18
Clock Plate (White) GEN WB27K5342 Contact Us For Availability
18A
Clock Plt-bl GEN WB27K5341 Contact Us For Availability
20
Mounting Bracket GEN WB37K5019 Contact Us For Availability
20
Bracket GEN WB02K5239 Contact Us For Availability
20A
Mounting Bracket GEN WB37K5018 Contact Us For Availability
21A
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
29
Knob GEN WB03K5305 Contact Us For Availability
29A
Infinite Knob GEN WB03K5303 Contact Us For Availability
49
Heat Seal GEN WB32K5018 Contact Us For Availability
51
MAIN TOP, BLACK, 45569690 GEN WB662K5112 Contact Us For Availability
51A
Main Top Wh GEN WB62K5051 Contact Us For Availability
51B
Main Top Ad GEN WB62K5052 Contact Us For Availability
55
Medallion GEN WB32K5049 Contact Us For Availability
56
Range Coil Surface Element, 6-in GEN WB30K5034 Contact Us For Availability
57
Range Coil Surface Element, 8-in GEN WB30K5035 Contact Us For Availability
59A
Range Drip Pan, 6-in (Black) GEN WB32K5041 Contact Us For Availability
60A
Range Drip Pan, 8-in GEN WB32K5042 Contact Us For Availability
61
Burner Box GEN WB64K5042 Contact Us For Availability
71
Insulation GEN WB02X9888 Contact Us For Availability
71A
Insulation Control Cover GEN WB06X0006 Contact Us For Availability
75
Top-bb GEN WB63X0421 Contact Us For Availability
77
Vent Seal GEN WB02X9895 Contact Us For Availability
80
Shield GEN WB02X9570 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
90
Mt Supp Rod GEN WB02M0084 Contact Us For Availability
91
Cooktop Hinge GEN WB14X0136 Contact Us For Availability
93
Wire Cover GEN WB02X9569 Contact Us For Availability
95
Hinge Bracket GEN WB02X9568 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Range Oven Door Outer Panel (White) GEN WB57K5304 Contact Us For Availability
121
Oven Door Glass GEN WB57K5215 Contact Us For Availability
121A
Range Oven Door Outer Panel (Black) GEN WB57K5307 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
124
Drive Frame Insulation (White) GEN WB35K5104 Contact Us For Availability
124
Drive Frame Insulation GEN WB35K5103 Contact Us For Availability
125
Sd Trim Insu GEN WB35K5100 Contact Us For Availability
125A
Wire Shield GEN WB34K5099 Contact Us For Availability
126
Button Plug GEN WB02X1125 Contact Us For Availability
136
Oven Handle GEN WB15K5113 Contact Us For Availability
136
Dr Hndl Blk GEN WB15K5074 Contact Us For Availability
136A
Door Handle GEN WB15K5114 Contact Us For Availability
140
Oven Door Frame GEN WB55K5053 Contact Us For Availability
140
Oven Door Frame GEN WB55K5054 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
158
Range Control Panel Cooling Fan Thermal Switc GEN WB24K5086 Contact Us For Availability
159
Fan Limit Switch GEN WB24M0015 Contact Us For Availability
201
Oven Body GEN WB63K5109 Contact Us For Availability
202
Frame Foot GEN WB63K5121 Contact Us For Availability
203
Main Bk Asm GEN WB63K5142 Contact Us For Availability
208
Main GEN WB63K5139 Contact Us For Availability
211
Ins Ret Sd L GEN WB02K5195 Contact Us For Availability
211A
Ins Ret Sd R GEN WB02K5196 Contact Us For Availability
212
Insul Ret Lo GEN WB02K5122 Contact Us For Availability
219
Wire Cover GEN WB34K5134 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
255
Junction Blk GEN WB17X0215 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
262
Sd Trim Rt GEN WB07K5296 Contact Us For Availability
262A
Sd Trim Lt GEN WB07K5295 Contact Us For Availability
262B
Sd Trim Lt GEN WB07K5292 Contact Us For Availability
262C
Sd Trim Rt GEN WB07K5291 Contact Us For Availability
268
Trim GEN WB07K5294 Contact Us For Availability
268A
Trim GEN WB07K5293 Contact Us For Availability
281
Range Oven Door Hinge, Left GEN WB10K5018 Contact Us For Availability
281A
Hinge Assembly GEN WB10K5017 Contact Us For Availability
282
Vent Tube GEN WB38K5044 Contact Us For Availability
286
Oven Drive Spring GEN WB09M0001 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
300
Spacer GEN WB02X9896 Contact Us For Availability
300
Bridge Spacer GEN WB02M0086 Contact Us For Availability
551
Mtop W Harn GEN WB18K5378 Contact Us For Availability
551A
Main Wire Harness GEN WB18K5625 Contact Us For Availability
551B
Lk Mtr Harn GEN WB18K5369 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
250 Push On GEN STD374250 Contact Us For Availability
600
Conduit Wiring Harness GEN WB18K5368 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
803
Screw GEN WB01K5163 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
835
Screw-10-32 GEN WB01X1123 Contact Us For Availability
855
Screw GEN WB01X1295 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
947
Cable Clip GEN WB01K5043 Contact Us For Availability
987
Speed Nut GEN WB01X1311 Contact Us For Availability
993
Spacer GEN WB02X9575 Contact Us For Availability
NI
Repair Parts List GEN 31-13281 Contact Us For Availability
NI
MINI MANUAL WITH WIRE DIAGRAM GEN 31-13284 Contact Us For Availability
NI
Installation Instructions GEN SR10183 Contact Us For Availability
NI
User's Manual GEN SR10319 Contact Us For Availability
× ![]()
