Model GE 911.41775790 Electric Built-In Oven (Kenmore 91141775790) – Common Parts & Diagrams

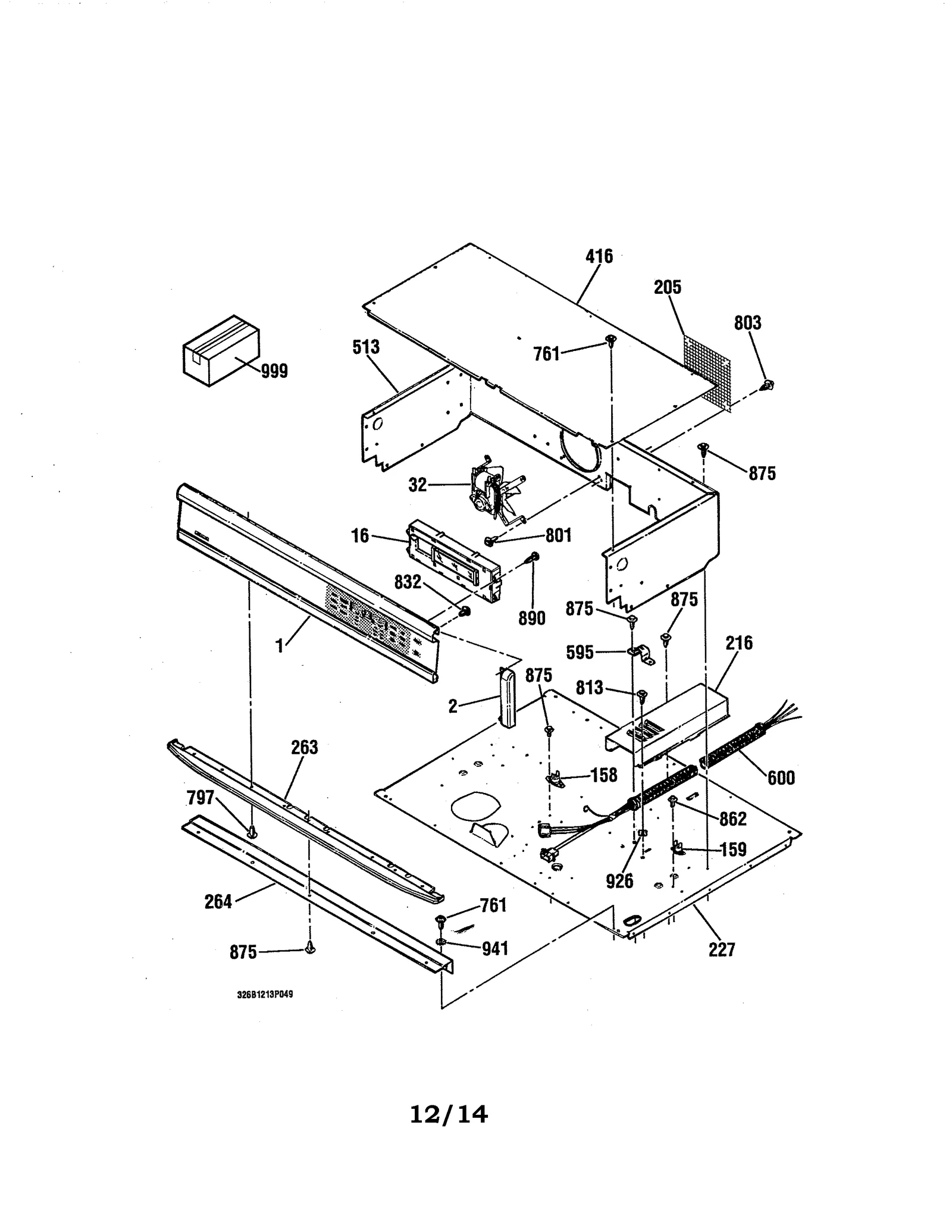

CONTROL

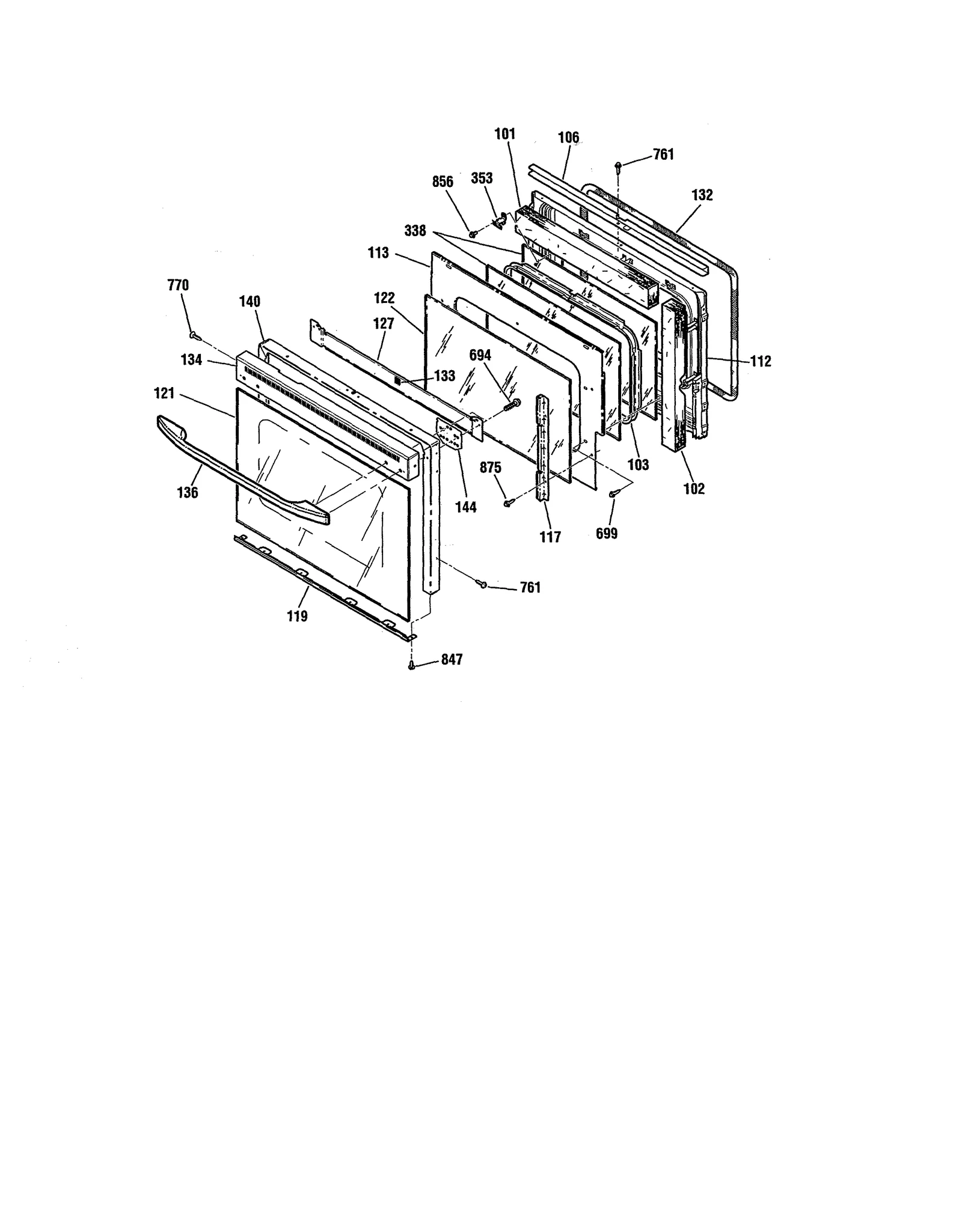

DOOR
DOOR LOCK
WIRING COMPONENTS
BODY
Common parts from model GE 911.41775790 Electric Built-In Oven (Kenmore 91141775790)
103
Window Spacer GEN WB02K5321 Contact Us For Availability
112
Lining GEN WB55T10012 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
119
Ovdr Bttm Tr GEN WB07K5357 Contact Us For Availability
119A
Ovdr Bttm Tr GEN WB07K5360 Contact Us For Availability
121
Range Outer Door Glass GEN WB57K5303 Contact Us For Availability
121A
Oven Door Outer Glass GEN WB57K5281 Contact Us For Availability
127
Drive Vent Shield GEN WB34K5197 Contact Us For Availability
132
Wall Oven Door Seal GEN WB32K5039 Contact Us For Availability
133
Felt Pad GEN WB01K5115 Contact Us For Availability
134
Tr Dr Vnt Wh GEN WB07K5432 Contact Us For Availability
134A
Trm Ov Dr Vt GEN WB07K5434 Contact Us For Availability
136
Dr Hndl Wht GEN WB15K5111 Contact Us For Availability
136A
Dr Hndl Blk GEN WB15K5112 Contact Us For Availability
140A
Oven Door Frame GEN WB55K5066 Contact Us For Availability
158
Limit Switch GEN WB24K5127 Contact Us For Availability
159
Wall Oven Cooling Fan Limit Switch GEN WB24K5126 Contact Us For Availability
184
Drive Lock Plate GEN WB34K5200 Contact Us For Availability
185
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
201
Oven Liner GEN WB63T10023 Contact Us For Availability
202
Frame GEN WB63T10015 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
Bk Insul Ret GEN WB02K5307 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Retainer GEN WB02K5387 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
241
Oven Rack GEN WB48K5022 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25K5025 Contact Us For Availability
262
Vert Sd Trm GEN WB07K5354 Contact Us For Availability
262A
Vert Sd Trm GEN WB07K5353 Contact Us For Availability
262B
Vert Sd Trm GEN WB07K5362 Contact Us For Availability
262C
Vert Sd Trm GEN WB07K5363 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263A
I-brow Trim GEN WB07K5435 Contact Us For Availability
264
Vent Trim GEN WB07K5308 Contact Us For Availability
268
Trim GEN WB07K5355 Contact Us For Availability
268A
Btm Trim-blk GEN WB07K5361 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
278
Shield W/ins GEN WB34K5252 Contact Us For Availability
279
Vent Box GEN WB38K5028 Contact Us For Availability
281
Hinge Assembly GEN WB14K5014 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
511
Fan Motor GEN WB44K5069 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
514
Fan Cover GEN WB26T10002 Contact Us For Availability
534
Oven Body Support GEN WB02T10002 Contact Us For Availability
537
Fan Cover GEN WB26T10001 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Condenser Wire GEN WB18K5473 Contact Us For Availability
602
Screw-12-pk GEN WH02X0941 Contact Us For Availability
761A
Screw (White) GEN WB01K5185 Contact Us For Availability
770A
Screw GEN WB01K5067 Contact Us For Availability
847A
Screw (White) GEN WB01K5161 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
875
SCREW 8-18 X 3/8" GEN WH02X0903 Contact Us For Availability
913
Shldr Rivet GEN WB01K5187 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
937
Washer GEN WB01X1140 Contact Us For Availability
939
Washer GEN WB01K5198 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
999
Installation GEN SR10259 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAG. GEN 31-13521 Contact Us For Availability
999B
Literature GEN SR10361 Contact Us For Availability
999C
Repair Parts List GEN 31-13520 Contact Us For Availability
× ![]()
