Model GE 911.41479690 30" Electric Wall Oven with Microwave (Kenmore 91141479690) – Common Parts & Diagrams
MICROWAVE DOOR SECTION
MICROWAVE BODY

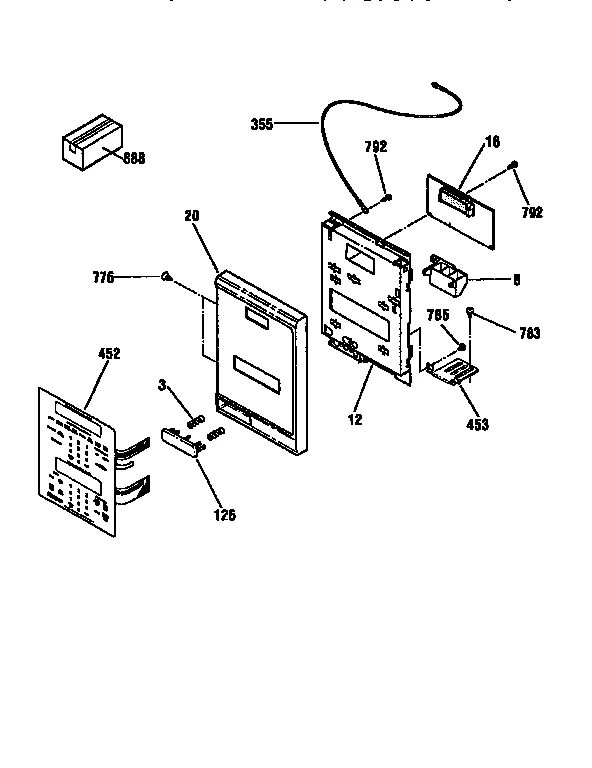

CONTROL PANEL SECTION

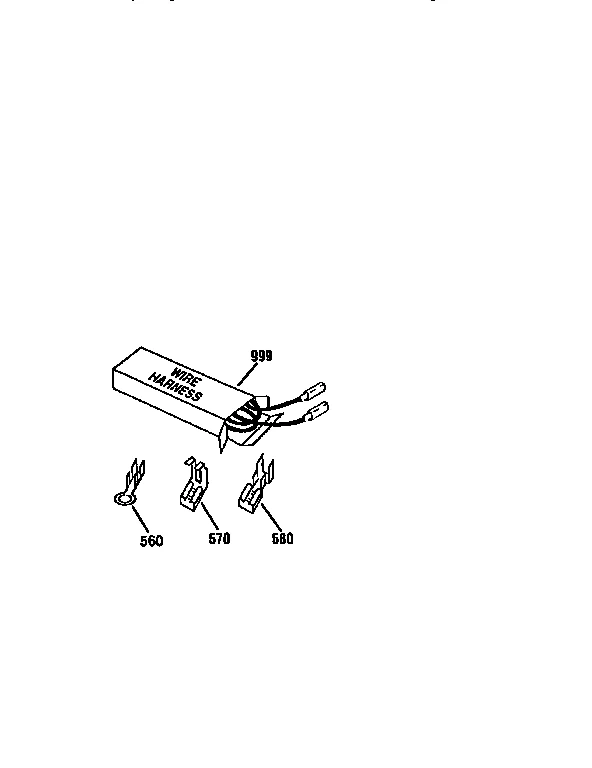

WIRE HARNESSES AND COMPONENTS

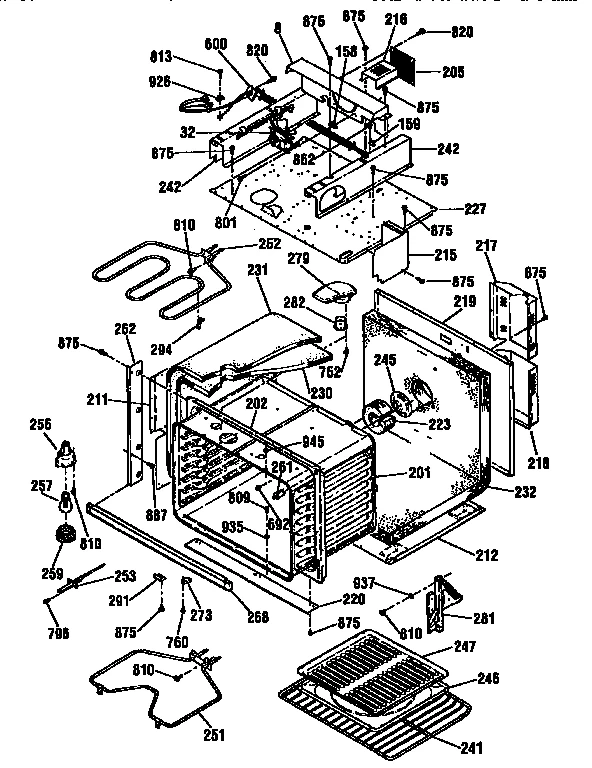

BODY SECTION

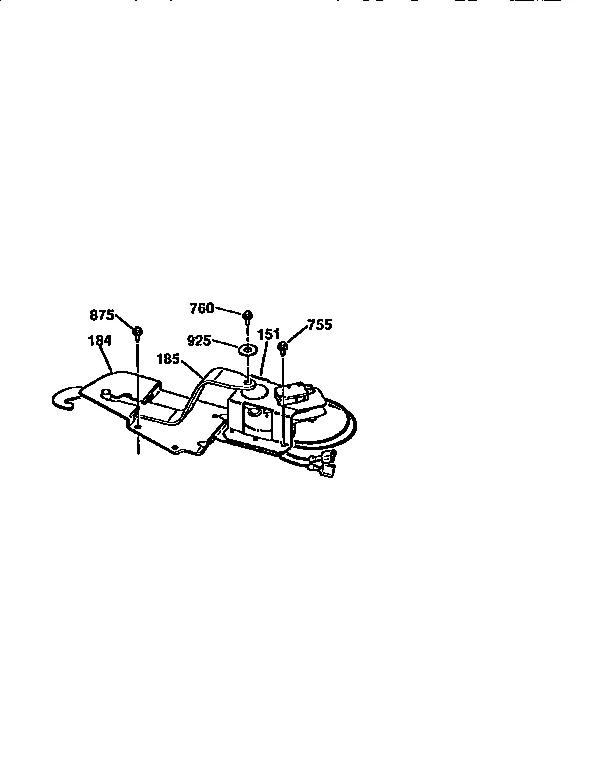

DOOR LOCK SECTION

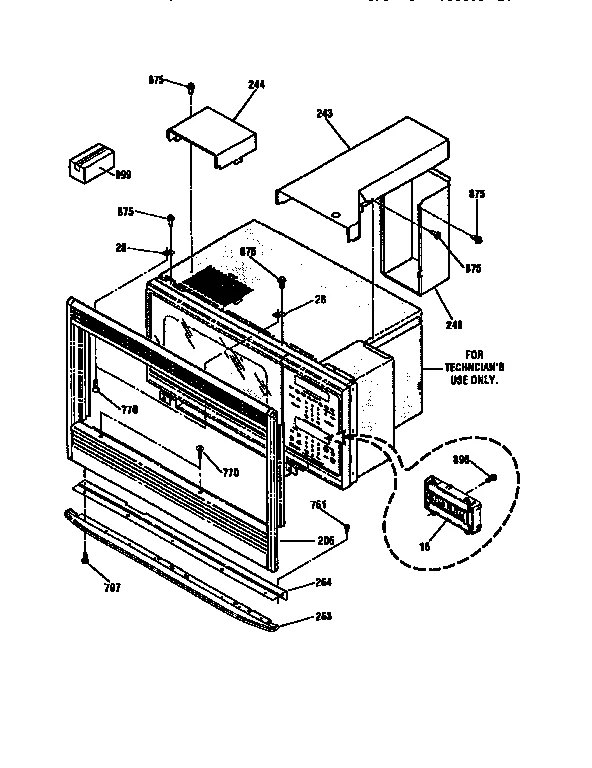

M/W ENCLOSURE SECTION

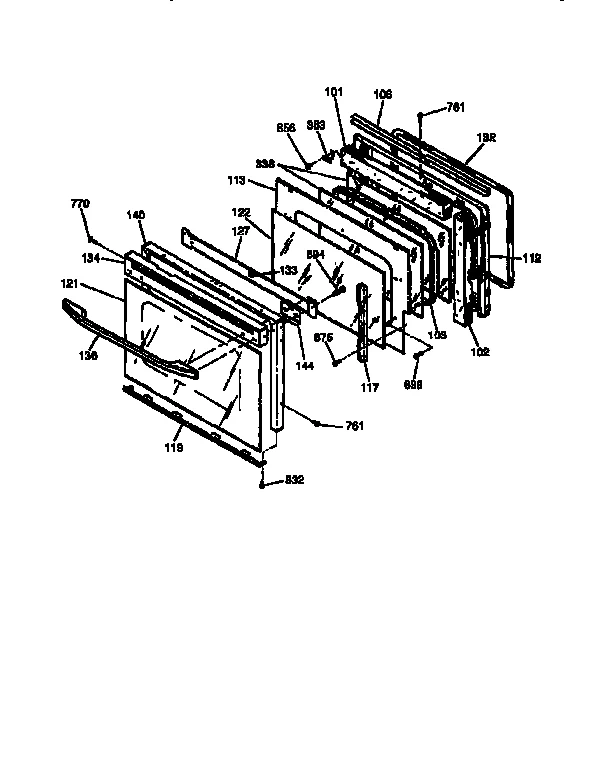

DOOR SECTION
Common parts from model GE 911.41479690 30" Electric Wall Oven with Microwave (Kenmore 91141479690)
3
M/w Spring GEN WB09K5024 Contact Us For Availability
7
M/w Base GEN WB63K5205 Contact Us For Availability
8
M/w Door Lvr GEN WB06K5063 Contact Us For Availability
8
Fan Support GEN WB02K5386 Contact Us For Availability
9
M/w Panel GEN WB63K5203 Contact Us For Availability
11
Microwave Body GEN WB63K5202 Contact Us For Availability
12
M/w Cover Pl GEN WB02K5398 Contact Us For Availability
12
M/w Back Plt GEN WB06K5049 Contact Us For Availability
13
Microwave Shaft GEN WB26K5064 Contact Us For Availability
14
M/w Washer GEN WB01K5205 Contact Us For Availability
15
M/w Roller GEN WB26K5066 Contact Us For Availability
16
Microwave PCB GEN WB27K5309 Contact Us For Availability
16
Oven Control Clock GEN WB27K5311 Contact Us For Availability
18
M/w Rllr Rng GEN WB26K5065 Contact Us For Availability
19
M/w Hinge GEN WB10K5020 Contact Us For Availability
20
Door Hook A GEN WB10K5023 Contact Us For Availability
20
Escutcheon Base GEN WB02K5412 Contact Us For Availability
20A
M/w Esct Bse GEN WB06K5048 Contact Us For Availability
21
Hook Spacer GEN WB02K5416 Contact Us For Availability
22
Hook Spacer GEN WB02K5417 Contact Us For Availability
23
Microwave Fan Motor GEN WB26K5073 Contact Us For Availability
24
Fan Blade GEN WB24K5400 Contact Us For Availability
27
Cover Sensor GEN WB02K5414 Contact Us For Availability
28
Cover Sensor GEN WB02K5415 Contact Us For Availability
28
Bracket Support GEN WB02K5388 Contact Us For Availability
28A
M/w Orifice GEN WB02K5401 Contact Us For Availability
30
M/w Lame GEN WB08K5048 Contact Us For Availability
32
M/w Piezo Sn GEN WB20K5045 Contact Us For Availability
33
Latch Switch GEN WB24X5214 Contact Us For Availability
34
Switch GEN WB24K5138 Contact Us For Availability
35
M/w Thermal GEN WB24K5140 Contact Us For Availability
36
Lamp Holder GEN WB08K5049 Contact Us For Availability
37
Switch GEN WB24K5139 Contact Us For Availability
39
Diode GEN WB08K5050 Contact Us For Availability
42
Microwave Tray Motor GEN WB26K5067 Contact Us For Availability
44
M/w Cover-up GEN WB02K5404 Contact Us For Availability
45
M/w Cover-lo GEN WB02K5405 Contact Us For Availability
48
Air Guide C GEN WB02K5418 Contact Us For Availability
49
Microwave Magnetron GEN WB27K5310 Contact Us For Availability
89
Cushion GEN WB06K5053 Contact Us For Availability
90
Cushion GEN WB05K5054 Contact Us For Availability
91
M/w Base Plt GEN WB02K5397 Contact Us For Availability
92
M/w Rail-lt GEN WB63K5207 Contact Us For Availability
93
M/w Rail-rt GEN WB63K5206 Contact Us For Availability
94
M/w Exht Cvr GEN WB38K5059 Contact Us For Availability
95
M/w Fuse Hld GEN WB02K5399 Contact Us For Availability
97
M/w Panel GEN WB63K5204 Contact Us For Availability
99
M/w Sensor GEN WB02K5396 Contact Us For Availability
101
Cushion GEN WB06K5055 Contact Us For Availability
102
Cushion GEN WB06K5056 Contact Us For Availability
103
Cushion GEN WB06K5057 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
104
Cushion GEN WB06K5058 Contact Us For Availability
105
Cushion GEN WB06K5059 Contact Us For Availability
106
Cushion GEN WB06K5060 Contact Us For Availability
106
Drive Trim Shield GEN WB07K5300 Contact Us For Availability
110
Cushion GEN WB06K5061 Contact Us For Availability
112
Ovdr Lining GEN WB55K5035 Contact Us For Availability
113
Insulator Fuse GEN WB35K5070 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
114
M/w Grd Cap GEN WB06K5062 Contact Us For Availability
115
Cushion GEN WB06K5052 Contact Us For Availability
116
M/w Cover St GEN WB34K5261 Contact Us For Availability
119
Vent Trim GEN WB07K5367 Contact Us For Availability
119A
Ovdr Bttm Tr GEN WB07K5360 Contact Us For Availability
121
Range Outer Door Glass GEN WB57K5303 Contact Us For Availability
121A
Oven Door Outer Glass GEN WB57K5281 Contact Us For Availability
126
Door Button GEN WB03K5309 Contact Us For Availability
126A
M/w Open Btn GEN WB03K5306 Contact Us For Availability
127
Drive Vent Shield GEN WB34K5197 Contact Us For Availability
132
Wall Oven Door Seal GEN WB32K5039 Contact Us For Availability
133
Felt Pad GEN WB01K5115 Contact Us For Availability
134
Tr Dr Vnt Wh GEN WB07K5432 Contact Us For Availability
134A
Trm Ov Dr Vt GEN WB07K5434 Contact Us For Availability
136
Dr Hndl Wht GEN WB15K5111 Contact Us For Availability
136A
Dr Hndl Blk GEN WB15K5112 Contact Us For Availability
140
FRAME W/REFLECTOR ASSEMBLY WHITE GEN WB56K5065 Contact Us For Availability
140A
M/w Dr Frame GEN WB56K5164 Contact Us For Availability
140A
Door Frame GEN WB56K5066 Contact Us For Availability
151
Lock Motor GEN WB26K5036 Contact Us For Availability
158
Limit Switch GEN WB24K5127 Contact Us For Availability
159
Limit Switch GEN WB24K5135 Contact Us For Availability
184
Drive Lock Plate GEN WB34K5200 Contact Us For Availability
185
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
201
Oven Cavity GEN WB63K5171 Contact Us For Availability
202
Frame GEN WB63K5172 Contact Us For Availability
205
Screw Fan Housing GEN WB06K5041 Contact Us For Availability
206
Trim Asm-wht GEN WB07K5420 Contact Us For Availability
206A
M/w Trm Asm GEN WB07K5492 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
215
Wire Cover GEN WB34K5233 Contact Us For Availability
216
Wire Cover GEN WB34K5234 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
Bk Insul Ret GEN WB02K5307 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Retainer GEN WB02K5387 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
242
Slide Rail-r GEN WB02K5384 Contact Us For Availability
242A
Slide Rail-l GEN WB02K5385 Contact Us For Availability
243
Air Duct-rt GEN WB38K5055 Contact Us For Availability
244
Air Duct-lt GEN WB38K5056 Contact Us For Availability
245
Oven Cavity Support GEN WB02K5304 Contact Us For Availability
246
Broiler Pan GEN WB48K5021 Contact Us For Availability
247
Range Oven Rack GEN WB48K5020 Contact Us For Availability
248
Back Duct GEN WB38K5057 Contact Us For Availability
253
Sensor GEN WB02K5048 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25K5025 Contact Us For Availability
262
Vert Trim-rt GEN WB07K5501 Contact Us For Availability
262A
Vert Trim-lt GEN WB07K5502 Contact Us For Availability
262B
Vert Trim-rt GEN WB07K5503 Contact Us For Availability
262C
Vert Trim-lt GEN WB07K5504 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263A
I-brow Trim GEN WB07K5435 Contact Us For Availability
264
Vent Trim GEN WB07K5308 Contact Us For Availability
268
Trim GEN WB07K5355 Contact Us For Availability
268A
Btm Trim-blk GEN WB07K5361 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Vent Box GEN WB38K5028 Contact Us For Availability
281
Hinge Assembly GEN WB14K5014 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
300
M/w Gls Tray GEN WB57K5313 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
353
Window Clip GEN WB02X6320 Contact Us For Availability
355
Support GEN WB02K5411 Contact Us For Availability
452
M/w Escutchn GEN WB06K5066 Contact Us For Availability
452A
M/w Escutchn GEN WB06K5067 Contact Us For Availability
453
Hinge GEN WB02X7729 Contact Us For Availability
489
M/w Door Key GEN WB10K5022 Contact Us For Availability
496
M/w Spring GEN WB09K5023 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
578
M/w Capacitr GEN WB08K5055 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
583
M/w Transfmr GEN WB20K5047 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5628 Contact Us For Availability
700
M/w Screw GEN WB01K5218 Contact Us For Availability
701
M/w Screw GEN WB01K5219 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Screw GEN WB01K5067 Contact Us For Availability
776
Screw GEN WB01K5092 Contact Us For Availability
776A
Screw GEN WB01K5091 Contact Us For Availability
777
Screw-4x40 GEN WB01X1051 Contact Us For Availability
778
M/w Screw GEN WB01K5217 Contact Us For Availability
779
Screw GEN WB01X1275 Contact Us For Availability
779A
Screw GEN WB01X5779 Contact Us For Availability
783
Screw GEN WB01K5097 Contact Us For Availability
784
Screw GEN WB01K5098 Contact Us For Availability
785
Screw GEN WB01K5099 Contact Us For Availability
788
Screw GEN WB01K5101 Contact Us For Availability
792
Screw GEN WB01K5104 Contact Us For Availability
832A
Screw (Black) GEN WB01X1317 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
888
Wall Oven Wire Harness GEN WB18K5654 Contact Us For Availability
888A
Lead Wire GEN WB18K5655 Contact Us For Availability
888B
Lead Wire GEN WB18K5656 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
937
Washer GEN WB01X1140 Contact Us For Availability
999
Harness Motor GEN WB18K5217 Contact Us For Availability
999
Owner's Manual GEN 31-13275 Contact Us For Availability
999A
Main Harness GEN WB18K5627 Contact Us For Availability
999A
Owner's Manual GEN 31-13253 Contact Us For Availability
999B
Control Harness GEN WB18K5629 Contact Us For Availability
999B
User's Manual GEN SR10316 Contact Us For Availability
999C
M/w Harness GEN WB18K5630 Contact Us For Availability
999C
Repair Parts List GEN 31-13419 Contact Us For Availability
999D
Installation Instructions GEN 31-10198 Contact Us For Availability
× ![]()
