Model GE 911.41169690 Electric Built-In Oven (Kenmore 91141169690) – Common Parts & Diagrams
LOWER BODY SECTION
WIRE HARNESSES AND COMPONENTS

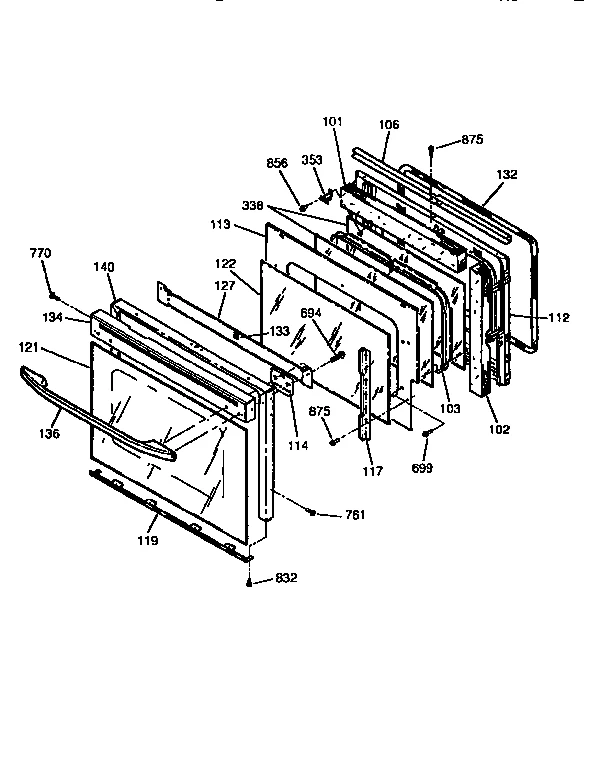

DOOR SECTION
All Parts

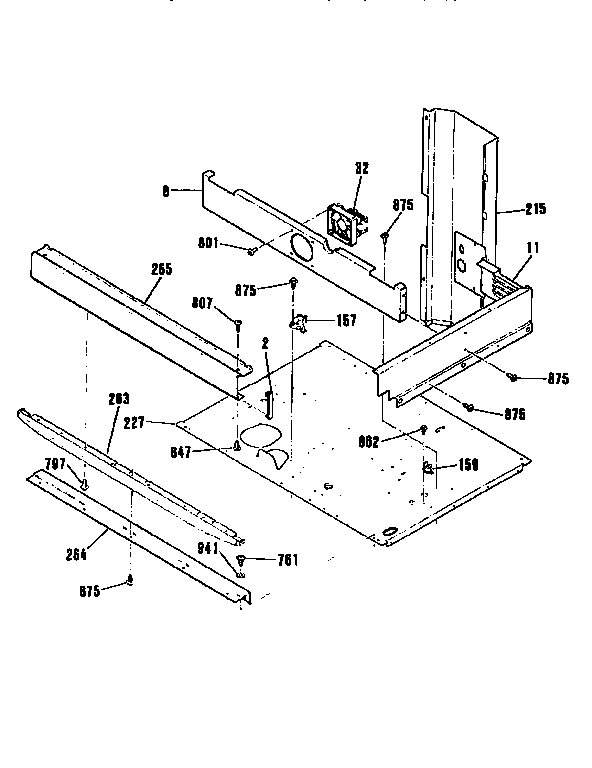

CENTER SPACE SECTION

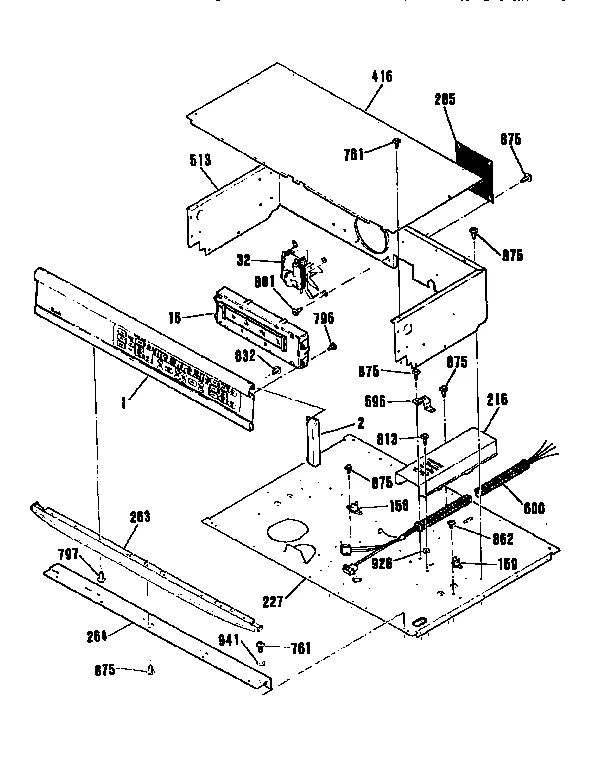

CONTROL SECTION

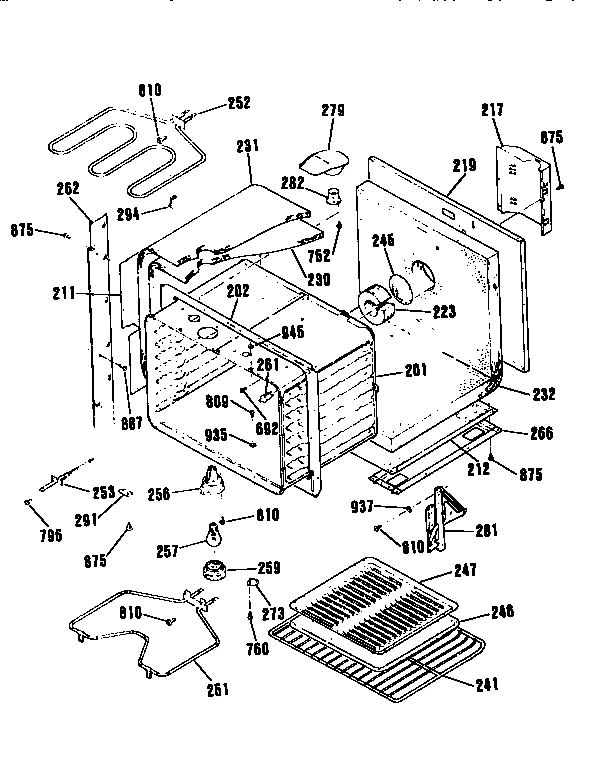

UPPER BODY SECTION

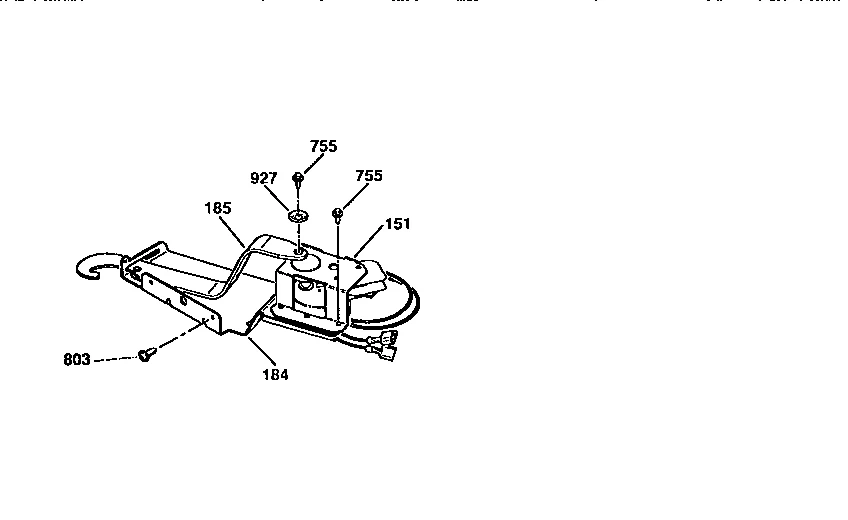

DOOR LOCK
Common parts from model GE 911.41169690 Electric Built-In Oven (Kenmore 91141169690)
1
Control Panel GEN WB36K5647 Contact Us For Availability
1A
Control Panel GEN WB36K5616 Contact Us For Availability
2
Trim End Cap GEN WB36K5569 Contact Us For Availability
2
Oven End Cap GEN WB36K5517 Contact Us For Availability
2A
Trim End Cap GEN WB36K5568 Contact Us For Availability
2A
End Cap GEN WB36K5516 Contact Us For Availability
2B
Oven End Cap GEN WB36K5520 Contact Us For Availability
2C
End Cap GEN WB36K5519 Contact Us For Availability
2C
End Cap GEN WB36K5386 Contact Us For Availability
8
Fan Support GEN WB02K5355 Contact Us For Availability
11
Side Ext-rt GEN WB37K5037 Contact Us For Availability
11A
Side Ext-lt GEN WB37K5038 Contact Us For Availability
16
Range Oven Control Board GEN WB27T10292 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Drive Trim Shield GEN WB07K5300 Contact Us For Availability
112
Ovdr Lining GEN WB55K5035 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
114
Glass Retainer GEN WB02K5392 Contact Us For Availability
119
Ovdr Bttm Tr GEN WB07K5357 Contact Us For Availability
119A
Ovdr Bttm Tr GEN WB07K5360 Contact Us For Availability
121
Range Outer Door Glass GEN WB57K5303 Contact Us For Availability
121A
Oven Door Outer Glass GEN WB57K5281 Contact Us For Availability
127
Drive Vent Shield GEN WB34K5197 Contact Us For Availability
132
Wall Oven Door Seal GEN WB32K5039 Contact Us For Availability
133
Felt Pad GEN WB01K5115 Contact Us For Availability
134
Tr Dr Vnt Wh GEN WB07K5432 Contact Us For Availability
134A
Trm Ov Dr Vt GEN WB07K5434 Contact Us For Availability
136
Dr Hndl Wht GEN WB15K5111 Contact Us For Availability
136A
Dr Hndl Blk GEN WB15K5112 Contact Us For Availability
140A
Oven Door Frame GEN WB55K5066 Contact Us For Availability
157
Limit Switch GEN WB24K5125 Contact Us For Availability
158
Limit Switch GEN WB24K5127 Contact Us For Availability
159
Wall Oven Cooling Fan Limit Switch GEN WB24K5126 Contact Us For Availability
184
Drive Lock Plate GEN WB34K5200 Contact Us For Availability
185
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
201
Oven Cavity GEN WB63K5171 Contact Us For Availability
202
Frame GEN WB63K5172 Contact Us For Availability
205
Screw Fan Housing GEN WB06K5041 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
215
Wire Cover GEN WB34K5224 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
219
Bk Insul Ret GEN WB02K5307 Contact Us For Availability
227
Retainer GEN WB02K5387 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
245
Oven Cavity Support GEN WB02K5304 Contact Us For Availability
246
Broiler Pan GEN WB48K5021 Contact Us For Availability
247
Range Oven Rack GEN WB48K5020 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25K5025 Contact Us For Availability
262
Vert Sd Trim GEN WB07K5381 Contact Us For Availability
262A
Vert Sd Trim GEN WB07K5380 Contact Us For Availability
262B
Vert Sd Trim GEN WB07K5385 Contact Us For Availability
262C
Vert Sd Trim GEN WB07K5382 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263A
I-brow Trim GEN WB07K5435 Contact Us For Availability
264
Vent Trim GEN WB07K5308 Contact Us For Availability
265
Trim White GEN WB07K5436 Contact Us For Availability
265A
Trim GEN WB07K5437 Contact Us For Availability
266
Insert Retainer GEN WB02K5366 Contact Us For Availability
268
Trim GEN WB07K5355 Contact Us For Availability
268A
Btm Trim-blk GEN WB07K5361 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Vent Box GEN WB38K5028 Contact Us For Availability
281
Hinge Assembly GEN WB14K5014 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
551
Wire Harness GEN WB18K5626 Contact Us For Availability
551A
Main Wiring Harness GEN WB18K5552 Contact Us For Availability
551B
Lck Mtr Harn GEN WB18K5491 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5540 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Screw GEN WB01K5067 Contact Us For Availability
796
Spacer GEN WB02K5116 Contact Us For Availability
832A
Screw (Black) GEN WB01X1317 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
913
Shldr Rivet GEN WB01K5187 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
941
Washer GEN WB01X1140 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
NI
Installation GEN SR10259 Contact Us For Availability
NI
Oven Owner's Manual GEN SR10311 Contact Us For Availability
NI
Wiring Diagram GEN SR13633 Contact Us For Availability
NI
Oven Parts GEN SR13640 Contact Us For Availability
× ![]()
