Model GE 911.41069791 Electric Oven (Kenmore 91141069791) – Common Parts & Diagrams
DOOR
WIRING COMPONENTS
BODY

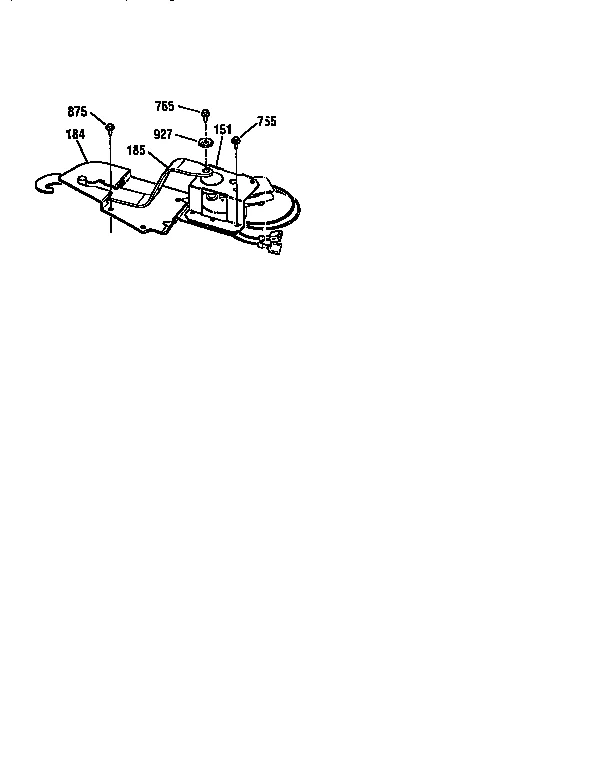

DOOR LOCK

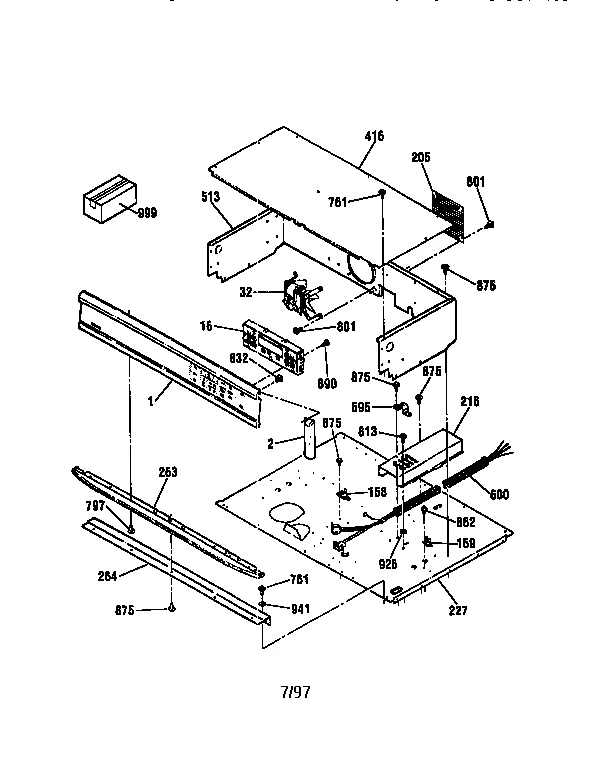

CONTROL
Common parts from model GE 911.41069791 Electric Oven (Kenmore 91141069791)
1
Control Panel GEN WB36T10020 Contact Us For Availability
1A
Oven Control Panel GEN WB36T10019 Contact Us For Availability
1B
Panel-ctrl-w GEN WB36T10061 Contact Us For Availability
2
Oven End Cap GEN WB36K5517 Contact Us For Availability
2A
End Cap GEN WB36K5516 Contact Us For Availability
2B
End Cap GEN WB36K5519 Contact Us For Availability
2C
Oven End Cap GEN WB36K5520 Contact Us For Availability
2D
END CAP ALMOND-RIGHT GEN WB07T10030 Contact Us For Availability
2E
END CAP ALMOND-LEFT GEN WB07T10029 Contact Us For Availability
16
Oven Control GEN WB27K5273 Contact Us For Availability
21
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
121B
OUTER GLASS ALMOND GEN WB57T10017 Contact Us For Availability
127
Drive Vent Shield GEN WB34K5197 Contact Us For Availability
132
Wall Oven Door Seal GEN WB32K5039 Contact Us For Availability
133
Felt Pad GEN WB01K5115 Contact Us For Availability
134
Tr Dr Vnt Wh GEN WB07K5432 Contact Us For Availability
134A
Trm Ov Dr Vt GEN WB07K5434 Contact Us For Availability
134B
Vent Trim GEN WB07T10025 Contact Us For Availability
136
Dr Hndl Wht GEN WB15K5111 Contact Us For Availability
136A
Dr Hndl Blk GEN WB15K5112 Contact Us For Availability
136B
HANDLE ALMOND GEN WB15T10005 Contact Us For Availability
140A
FRAME W/REFLECTOR ASSEMBLY WHITE GEN WB56K5065 Contact Us For Availability
140B
FRAME ALMOND GEN WB55T10016 Contact Us For Availability
158
Limit Switch GEN WB24K5127 Contact Us For Availability
159
Wall Oven Cooling Fan Limit Switch GEN WB24K5126 Contact Us For Availability
184
Drive Lock Plate GEN WB34K5200 Contact Us For Availability
185
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
201
Oven Body GEN WB63T10014 Contact Us For Availability
202
Frame GEN WB63T10015 Contact Us For Availability
205
Screw Fan Housing GEN WB06K5041 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
Bk Insul Ret GEN WB02K5307 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Retainer GEN WB02K5387 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
246
Broiler Pan GEN WB48T10004 Contact Us For Availability
247
Broiler Pan GEN WB48T10003 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25K5025 Contact Us For Availability
262
Vert Sd Trm GEN WB07K5354 Contact Us For Availability
262A
Vert Sd Trm GEN WB07K5353 Contact Us For Availability
262B
SIDE TRIM, BLACK-RIGHT GEN WB07K363 Contact Us For Availability
262C
Vert Sd Trm GEN WB07K5362 Contact Us For Availability
262D
SIDE TRIM CHROME RIGHT GEN WB07T10028 Contact Us For Availability
262E
SIDE TRIM CHROME LEFT GEN WB07T10027 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263A
I-brow Trim GEN WB07K5435 Contact Us For Availability
263B
I-BROW TRIM ALMOND GEN WB07T10032 Contact Us For Availability
264
Vent Trim GEN WB07K5308 Contact Us For Availability
268
Trim GEN WB07K5355 Contact Us For Availability
268A
Btm Trim-blk GEN WB07K5361 Contact Us For Availability
268B
LOWER FRONT FRAME TRIM GEN WB07T10031 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Vent Box GEN WB38K5028 Contact Us For Availability
281
Hinge Assembly GEN WB14K5014 Contact Us For Availability
282
Oven Door Arm GEN WB14K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
534
Oven Body Support GEN WB02T10002 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Condenser Wire GEN WB18K5473 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
SCREW 8-18 X 1/2" WHITE GEN WB01K5059 Contact Us For Availability
761A
Screw (White) GEN WB01K5185 Contact Us For Availability
761B
SCERW 8-18 X 1/2", ALMOND GEN WB01X5211 Contact Us For Availability
761B
Trim Screw GEN WB01K5211 Contact Us For Availability
770
Screw GEN WB01K5067 Contact Us For Availability
770B
Screw, #8-18 GEN WB01X5902 Contact Us For Availability
847
Screw (White) GEN WB01K5161 Contact Us For Availability
847A
Screw (Black) GEN WB01X1317 Contact Us For Availability
847B
Trim Screw GEN WB1K5188 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
913
Shldr Rivet GEN WB01K5187 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
937
Washer GEN WB01X1140 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
999
Installation GEN SR10259 Contact Us For Availability
999A
Wiring Diagram GEN SR13632 Contact Us For Availability
999B
Oven Owner's Manual GEN SR10343 Contact Us For Availability
999C
Parts List GEN 31-13483 Contact Us For Availability
× ![]()
