Model GE 911.41059591 Wall Oven (Kenmore 91141059591) – Common Parts & Diagrams

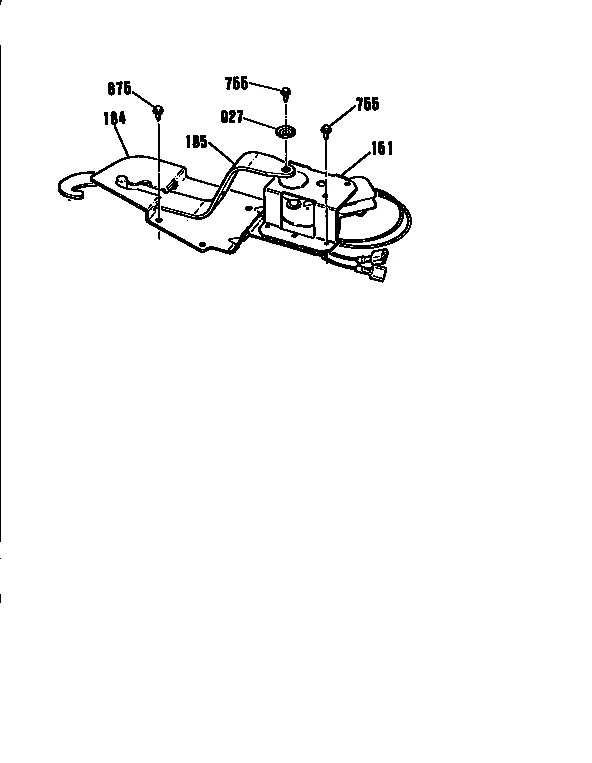

DOOR LOCK SECTION

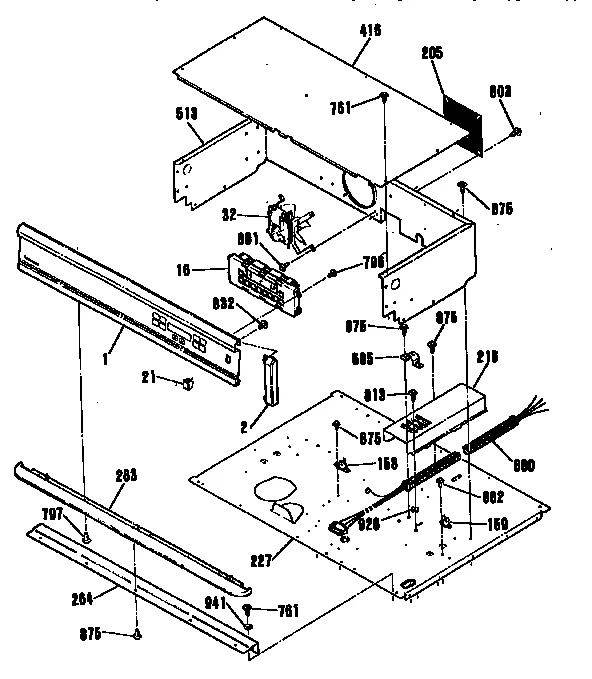

CONTROL PANEL
BODY SECTION
All Parts
DOOR SECTION
WIRE HARNESS
Common parts from model GE 911.41059591 Wall Oven (Kenmore 91141059591)
2C
End Cap GEN WB36K5519 Contact Us For Availability
16
Oven Control Clock GEN WB27K5195 Contact Us For Availability
21
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Drive Trim Shield GEN WB07K5300 Contact Us For Availability
112
Ovdr Lining GEN WB55K5035 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
119
Ovdr Bttm Tr GEN WB07K5357 Contact Us For Availability
119A
Ovdr Bttm Tr GEN WB07K5360 Contact Us For Availability
121
Oven Door Glass GEN WB57K5280 Contact Us For Availability
121A
Oven Door Outer Glass GEN WB57K5281 Contact Us For Availability
127
Drive Vent Shield GEN WB34K5197 Contact Us For Availability
132
Wall Oven Door Seal GEN WB32K5039 Contact Us For Availability
134
Drive Vent Trim GEN WB07K5356 Contact Us For Availability
134A
Drive Vent Trim GEN WB07K5359 Contact Us For Availability
135
Glass Clamp GEN WB02K5353 Contact Us For Availability
136A
Ovdr Hndl Bl GEN WB15K5067 Contact Us For Availability
140A
Door Frame GEN WB56K5066 Contact Us For Availability
158
Limit Switch GEN WB24K5127 Contact Us For Availability
159
Wall Oven Cooling Fan Limit Switch GEN WB24K5126 Contact Us For Availability
185
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
201
Oven Cavity GEN WB63K5171 Contact Us For Availability
202
Frame GEN WB63K5172 Contact Us For Availability
205
Screw Fan Housing GEN WB06K5041 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
Bk Insul Ret GEN WB02K5307 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Insert Retainer GEN WB02K5366 Contact Us For Availability
230
Insulation GEN WB35K5094 Contact Us For Availability
231
Insulation GEN WB35K5095 Contact Us For Availability
245
Oven Cavity Support GEN WB02K5304 Contact Us For Availability
246
Broiler Pan GEN WB48K5021 Contact Us For Availability
247
Range Oven Rack GEN WB48K5020 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25K5025 Contact Us For Availability
262
Vert Sd Trm GEN WB07K5354 Contact Us For Availability
262A
Vert Sd Trm GEN WB07K5353 Contact Us For Availability
262B
Vert Sd Trm GEN WB07K5363 Contact Us For Availability
262C
Vert Sd Trm GEN WB07K5362 Contact Us For Availability
263
I-brow Trim GEN WB07K5364 Contact Us For Availability
263A
I-brow Trim GEN WB07K5281 Contact Us For Availability
264
Vent Trim GEN WB07K5308 Contact Us For Availability
268
Trim GEN WB07K5355 Contact Us For Availability
268A
Btm Trim-blk GEN WB07K5361 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Vent Box GEN WB38K5051 Contact Us For Availability
281
Hinge Assembly GEN WB14K5014 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
551
Lck Mtr Harn GEN WB18K5491 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Condenser Wire GEN WB18K5473 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
752
Screw GEN WB00X6542 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Screw GEN WB01K5067 Contact Us For Availability
803
Screw (Black) GEN WB01X1176 Contact Us For Availability
832
Rivet GEN WB01X1318 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
913
Shldr Rivet GEN WB01K5187 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
941
Washer GEN WB01X1140 Contact Us For Availability
NI
Wall Oven Owner's Manual GEN SR10258 Contact Us For Availability
NI
Installation GEN SR10259 Contact Us For Availability
NI
Repair Parts List GEN SR13556 Contact Us For Availability
NI
Wiring Diagram GEN SR13557 Contact Us For Availability
× ![]()
