Model Whirlpool 8ET20ZKXDW02 REFRIGERATOR – Common Parts & Diagrams
03 - LINER
04 - UNIT
01 - CABINET

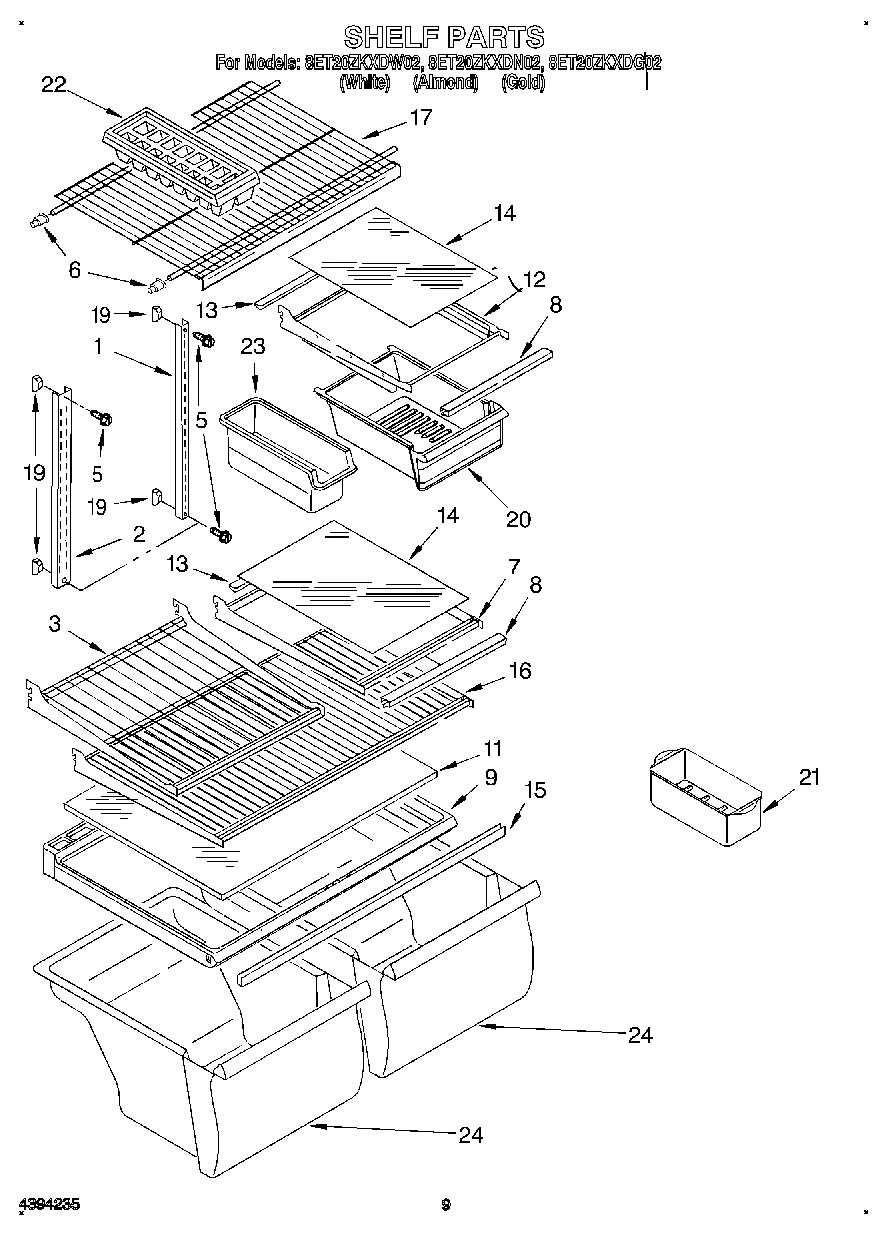

05 - SHELF, LIT/OPTIONAL

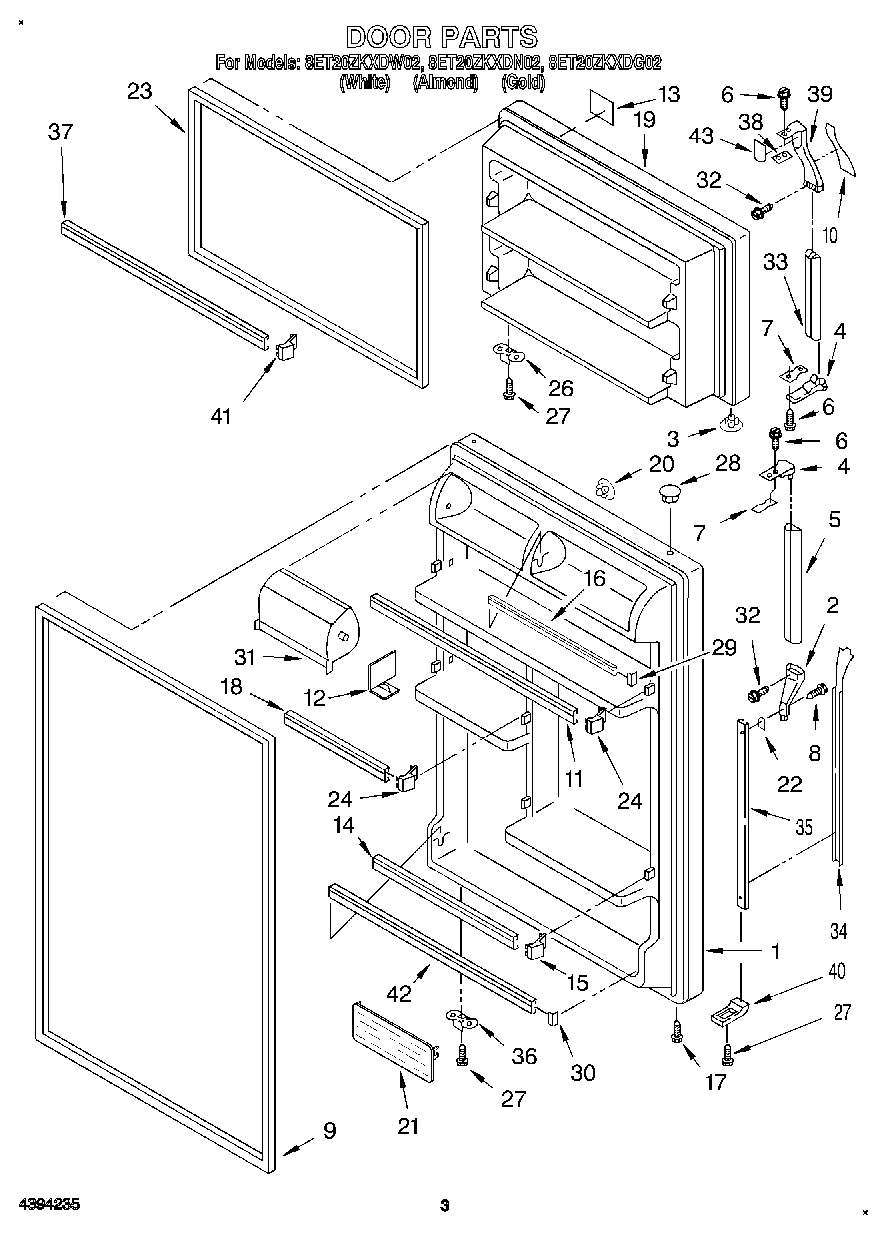

02 - DOOR
Common parts from model Whirlpool 8ET20ZKXDW02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI143894A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Refrigerator Door (Includes No.9) (White) WPL 2159276 Contact Us For Availability
1
Refrigerator Door (Includes No.9) (Almond) WPL 2159277 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (Gold) WPL 2170453 Contact Us For Availability
2
End Cap WPL 1109189 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Shelf, Half Cantilever WPL 2179835 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
End Cap, Handle (2) WPL 944157 Contact Us For Availability
5
Handle, Center (Black) WPL 1120781 Contact Us For Availability
5
Handle, Center (White) WPL 2150150 Contact Us For Availability
5
Handle Center (Gold) WPL 943068 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Shelf, Cantilever WPL 2163860 Contact Us For Availability
8
Trim, Shelf Front WPL 2176263 Contact Us For Availability
10
Insert (White) WPL 1108828 Contact Us For Availability
10
Insert (Almond) WPL 1108830 Contact Us For Availability
10
Insert (Black) WPL 1114390 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Trim, Door Shelf WPL 2171147 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176306 Contact Us For Availability
12
Divider, Door Shelf WPL 2160050 Contact Us For Availability
13
Trim, Shelf Rear WPL 2163883 Contact Us For Availability
13
Nameplate (Gold And Almond Models) WPL 2165147 Contact Us For Availability
13
Nameplate (White Model) WPL 2165148 Contact Us For Availability
14
Glass, Shelf WPL 2166218 Contact Us For Availability
14
Trim-Door Shelf WPL 2171041 Contact Us For Availability
15
Plug-Trim WPL 2156001 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2179836 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
18
Trim, Door WPL 2171149 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.23) (White) WPL 2159273 Contact Us For Availability
19
Freezer Door (Includes No.23) (Almond) WPL 2159274 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Gold) WPL 2170454 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Pan, Meat WPL 2190687 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hole Plug (Gold) WPL 1122694 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Shim WPL 935075 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
Door Reversal Instructions WPL 2172516 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Hole Plug (6) (Gold) WPL 2151654 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
32
Screw WPL 489022 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2170424 Contact Us For Availability
33
Handle, F.C. (Black) WPL 2173619 Contact Us For Availability
33
Handle, F.C. (White) WPL 2173622 Contact Us For Availability
34
Insert, Handle (Black) WPL 2159416 Contact Us For Availability
34
Insert, Handle (White) WPL 2166438 Contact Us For Availability
34
Inser WPL 2166784 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Gold) WPL 2166188 Contact Us For Availability
35
WPL 2159417 WPL 2159417 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Grille (Black) WPL 2182434 Contact Us For Availability
36
WPL 2159368 WPL 2159368 Contact Us For Availability
38
WPL 943187 WPL 943187 Contact Us For Availability
39
WPL 944163 WPL 944163 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
WPL 1105804 WPL 1105804 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI143895A Contact Us For Availability
42
Wire Assy. Unit WPL 2184586 Contact Us For Availability
42
Corner Filler, (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
WPL 2171148 WPL 2171148 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
43
WPL 935074 WPL 935074 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
