Model Whirlpool 8ET20ZKXDN03 REFRIGERATOR – Common Parts & Diagrams

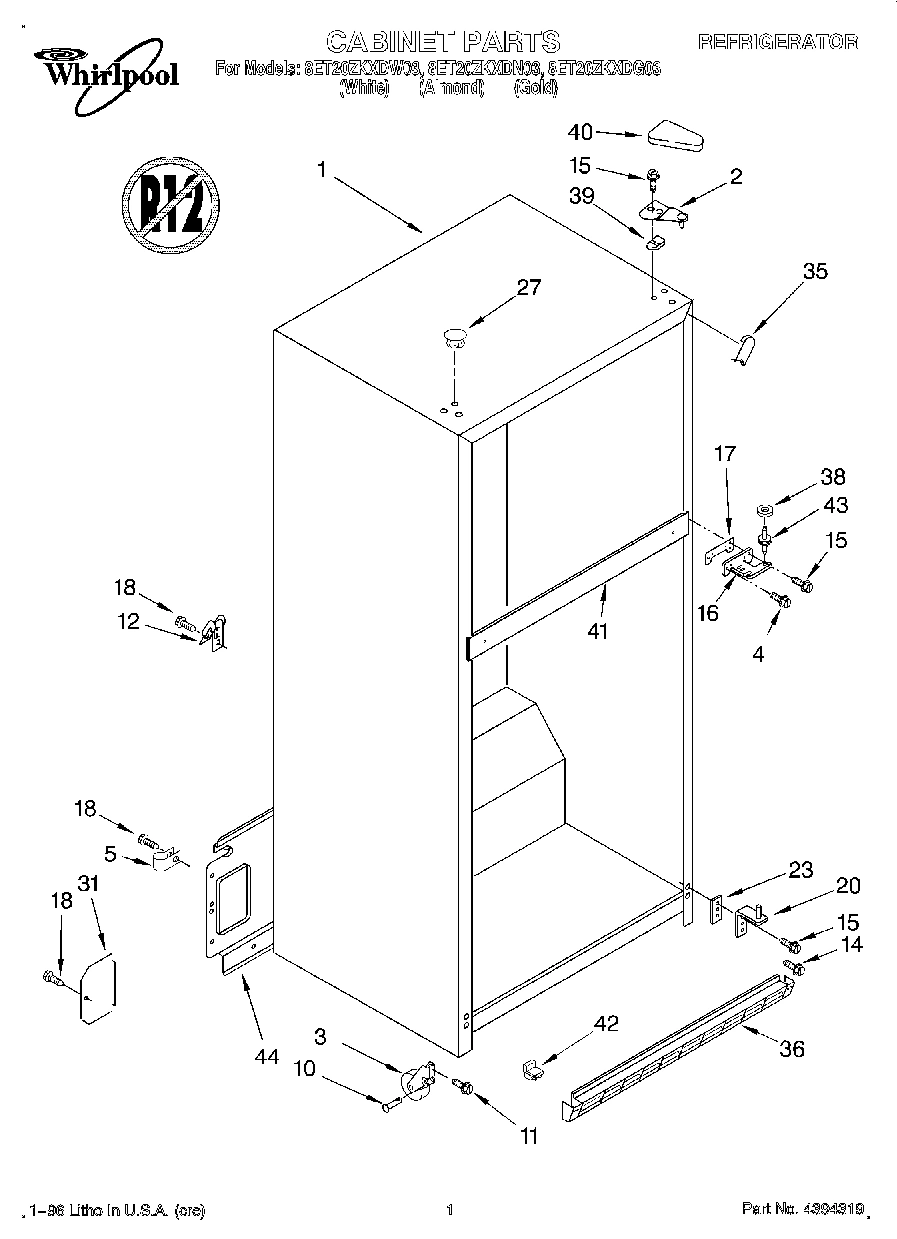

01 - CABINET

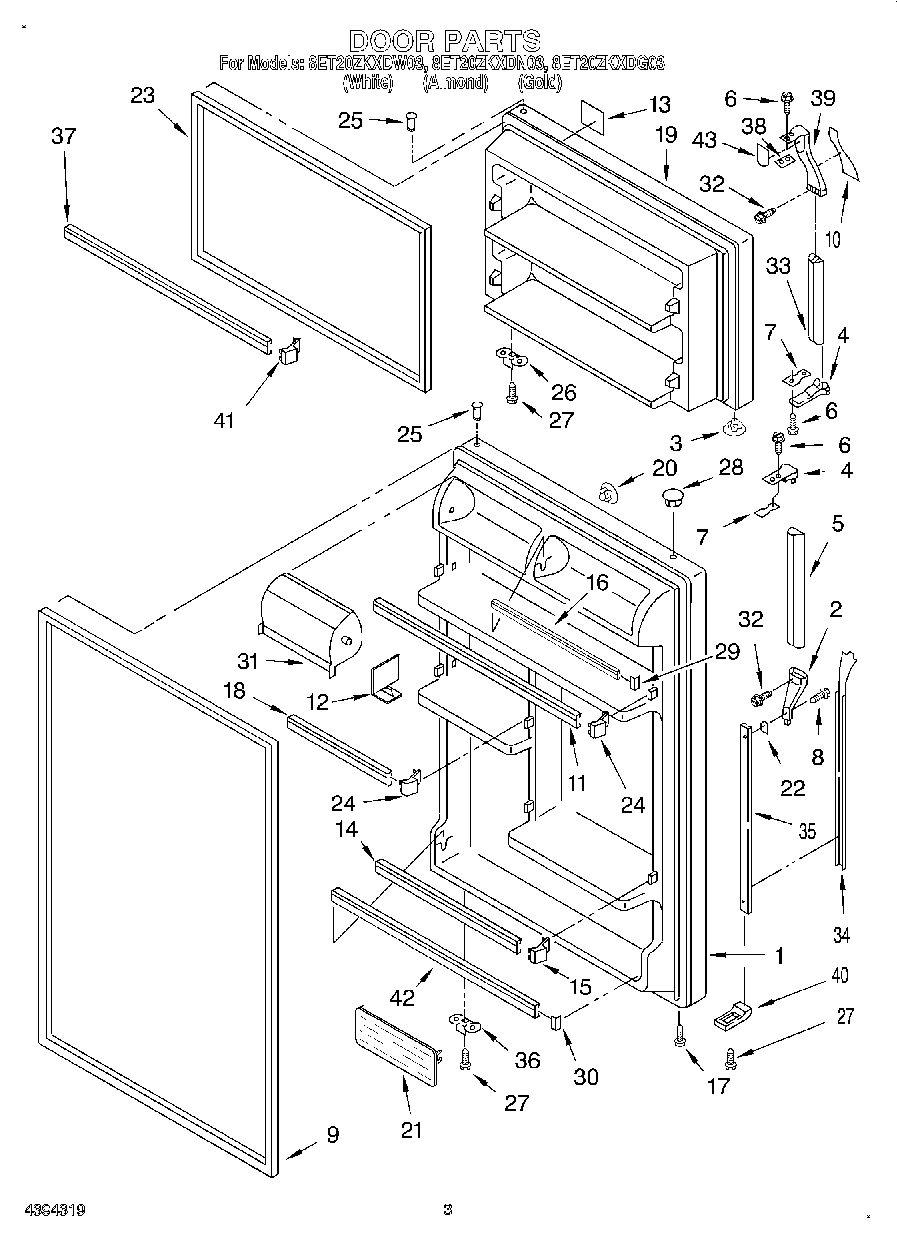

02 - DOOR
04 - UNIT
03 - LINER
05 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool 8ET20ZKXDN03 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182403 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143884A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
2
End Cap WPL 1109189 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
3
Shelf, Half Cantilever WPL 2179835 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Shelf, Cantilever WPL 2163860 Contact Us For Availability
8
Trim, Shelf Front WPL 2176263 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176306 Contact Us For Availability
13
Trim, Shelf Rear WPL 2163883 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Glass, Shelf WPL 2166218 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
16
Cover, Evaporator WPL 2183155 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2179836 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shelf, Freezer WPL 2184566 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.23) (Gold) WPL 2184403 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hole Plug (Gold) WPL 1122694 Contact Us For Availability
20
Protector WPL 2183183 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
20
Pan, Meat WPL 2190687 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI143885A Contact Us For Availability
22
Shim WPL 935075 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
Door Reversal Instructions WPL 2172516 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
25
Freezer Floor WPL 2163825 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Post, Damper WPL 2179859 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
32
Screw WPL 489022 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2170424 Contact Us For Availability
33
Handle, F.C. (Black) WPL 2173619 Contact Us For Availability
33
Handle, F.C. (White) WPL 2173622 Contact Us For Availability
34
Insert, Handle (Black) WPL 2159416 Contact Us For Availability
34
Insert, Handle (White WPL 2166438 Contact Us For Availability
34
WPL 2166784 WPL 2166784 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
WPL 2159417 WPL 2159417 Contact Us For Availability
36
WPL 944035 WPL 944035 Contact Us For Availability
37
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
38
WPL 943187 WPL 943187 Contact Us For Availability
38
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
39
WPL 944163 WPL 944163 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
WPL 1105804 WPL 1105804 Contact Us For Availability
42
WPL 2171148 WPL 2171148 Contact Us For Availability
42
Wire Assy. Unit WPL 2184584 Contact Us For Availability
43
WPL 935074 WPL 935074 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2184550 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
