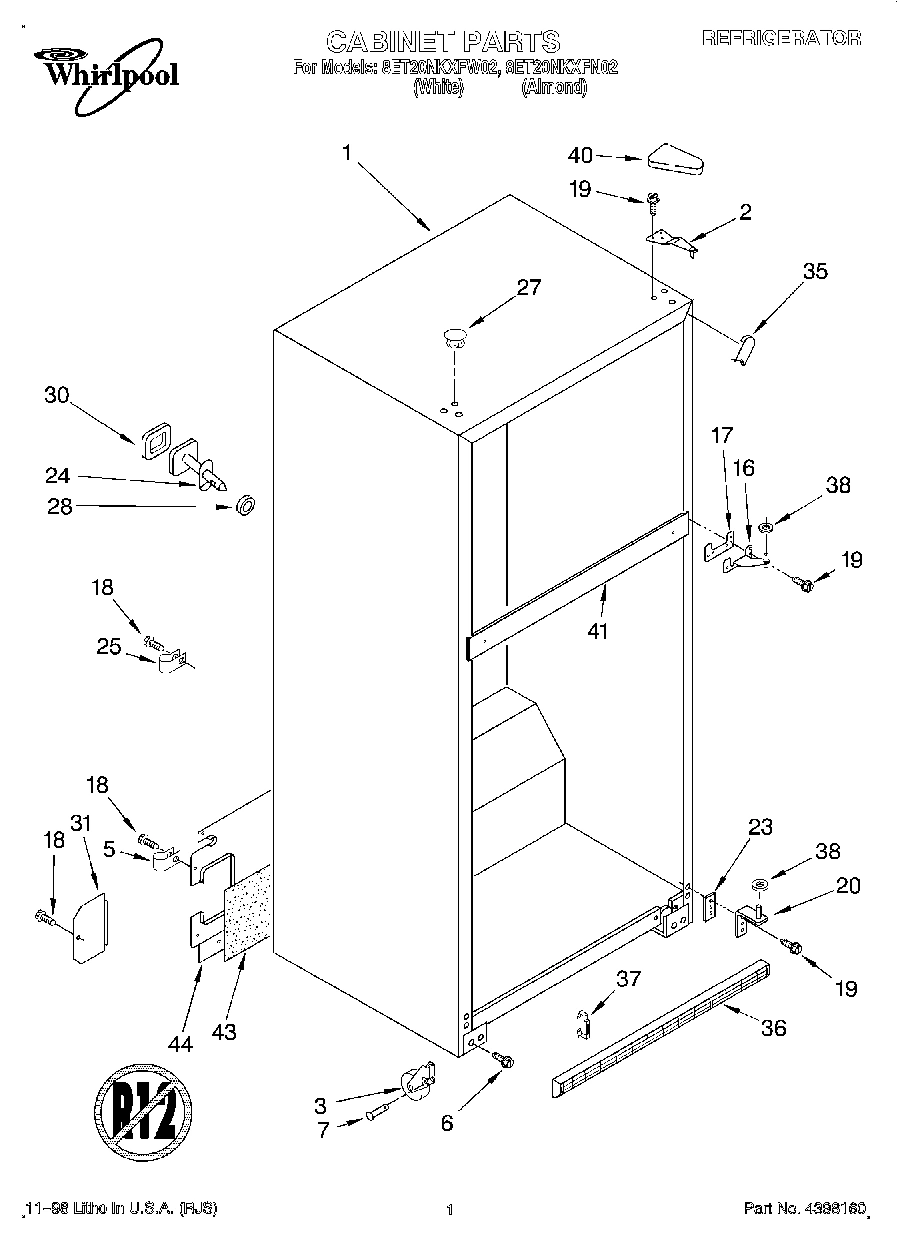

Model Whirlpool 8ET20NKXFN02 REFRIGERATOR – Common Parts &amp; Diagrams

Torx Key WPL 1117510 Contact Us For Availability

Use & Care Guide WPL LIT2195465 Contact Us For Availability

Service & Wiring Sheet WPL LIT2195481 Contact Us For Availability

Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability

Do-It-Yourself Manual, Icemaker WPL LIT677971 Contact Us For Availability

1

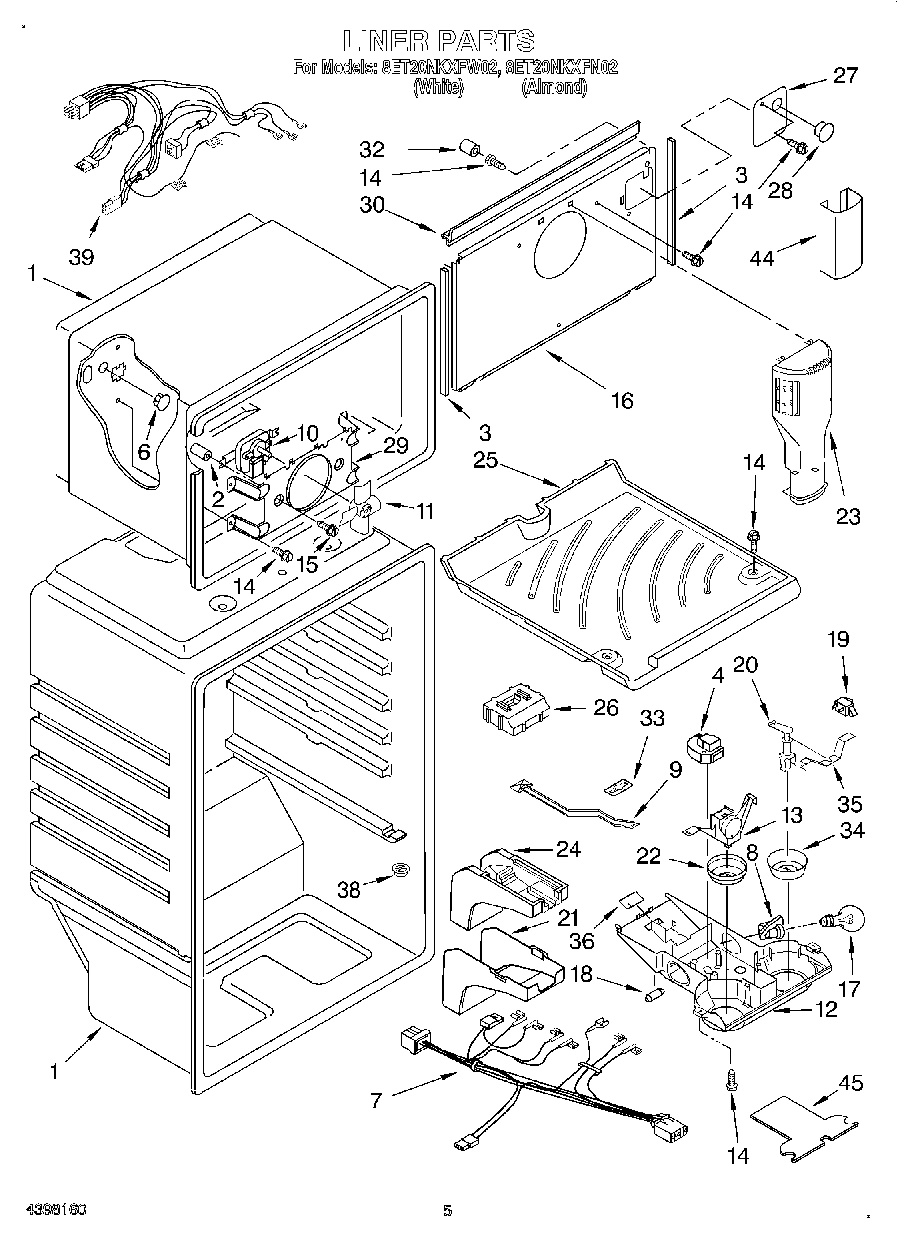

Liner (Not A Serviceable Part) WPL ARI19034A5 Contact Us For Availability

1

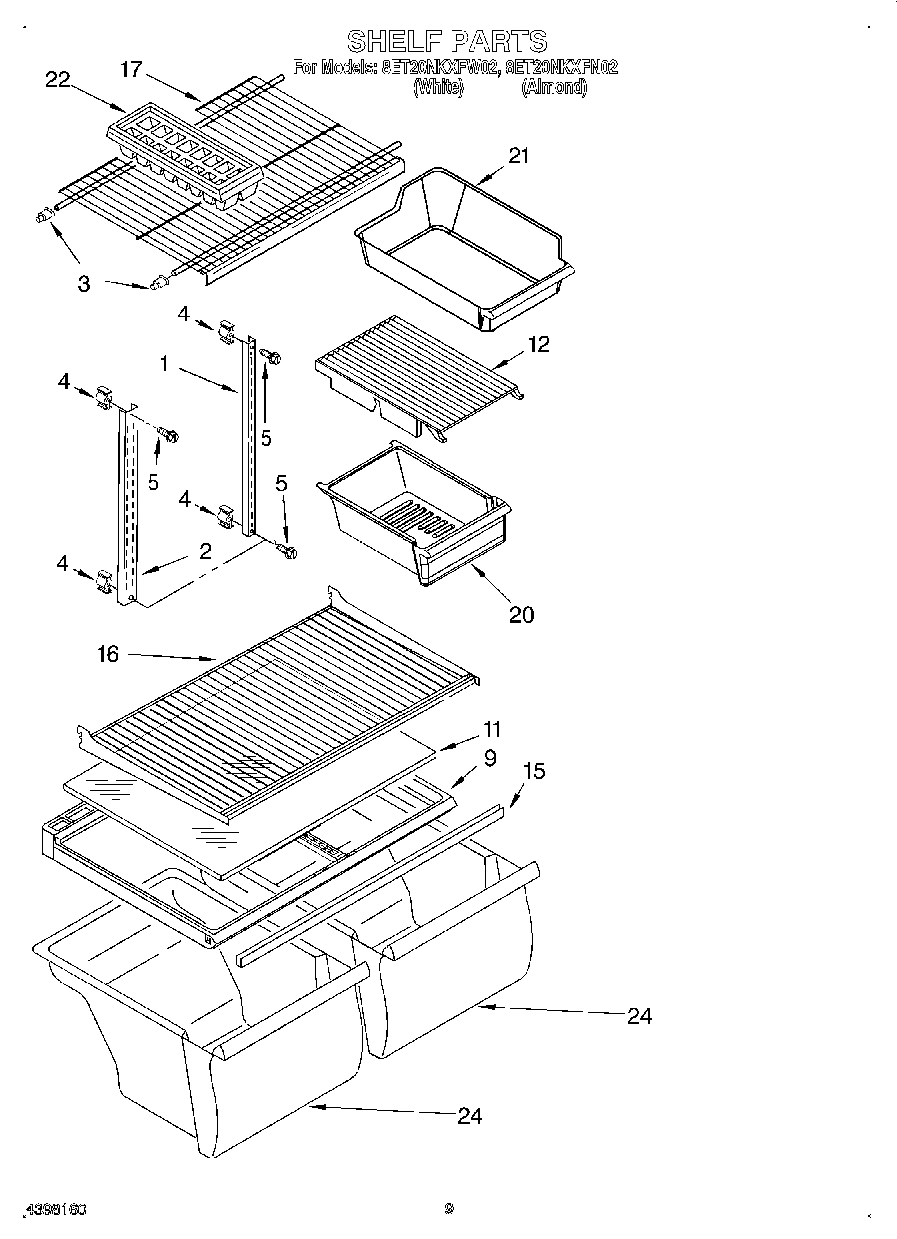

Shelf, Ladder (2) WPL 2163756 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI19029A5 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Grommet (2) WPL 531933 Contact Us For Availability

2

Shelf, Ladder Center WPL 2163826 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

4

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

4

Timer, Defrost WPL 2193084 Contact Us For Availability

5

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Screw WPL 2174650 Contact Us For Availability

7

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

7

Wire Assy. Control Box WPL 2200632 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

9

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

9

WP2314549 Whirlpool Refrigerator Cover In Stock WPL WP2314549 $103.84

9

Damper, Air WPL 2179858 Contact Us For Availability

10

Fan Motor WPL 2183833 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $120.79

12

Cover, Meat Pan WPL 2163848 Contact Us For Availability

12

Control Box WPL 2200820 Contact Us For Availability

13

Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability

14

WP2195943 Whirlpool Shelf Retainer Bar Backorder WPL WP2195943 $26.72

14

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

Screw WPL 489412 Contact Us For Availability

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

Shelf, Full Cantilever (2) WPL 2195398 Contact Us For Availability

Cover-Evaporator WPL 2189823 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

Shelf, Freezer WPL 2184667 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

Weight, Thermal WPL 2200831 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

19

Clip, Heater WPL 2182338 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Post, Damper WPL 2179859 Contact Us For Availability

Pan, Meat WPL 2200920 Contact Us For Availability

21

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

22

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

22

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

23

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

Fitting, Water Tube (Not Serviced) WPL ARI19030A5 Contact Us For Availability

25

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

25

Floor, Freezer WPL 2184617 Contact Us For Availability

26

Air Diffuser, Top WPL 2189984 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

Installation Kit WPL 482801 Contact Us For Availability

Seal, Front (Not Serviced) WPL ARI19031A8 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

29

Bracket, Fan Motor WPL 2200641 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

Seal, Rear (Not Serviced) WPL ARI19032A6 Contact Us For Availability

31

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

31

Cover, Water Valve WPL 2166251 Contact Us For Availability

32

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

33

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

34

Knob, Damper WPL 2176297 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

35

Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

36

Grille (Includes Clips) (White) WPL 2201006 Contact Us For Availability

36

Grille (Includes Clips) (Almond) WPL 2201007 Contact Us For Availability

37

TRIM, DOOR (2) WPL 2195947 Contact Us For Availability

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI19033A3 Contact Us For Availability

43

Blade, Fan WPL 2190685 Contact Us For Availability

43

Insulation WPL 2200778 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Sleeve WPL 2179712 Contact Us For Availability

44

Cover, Unit WPL 2200508 Contact Us For Availability

45

Shield WPL 2190519 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

57

Screw WPL 489462 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tray, Evaporator WPL 2189433 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

FeaaturePak (Includes 12,20) Also See Dr. Pg. WPL 2182576 Contact Us For Availability
