Model Whirlpool 8ET18NKXDN04 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - LINER

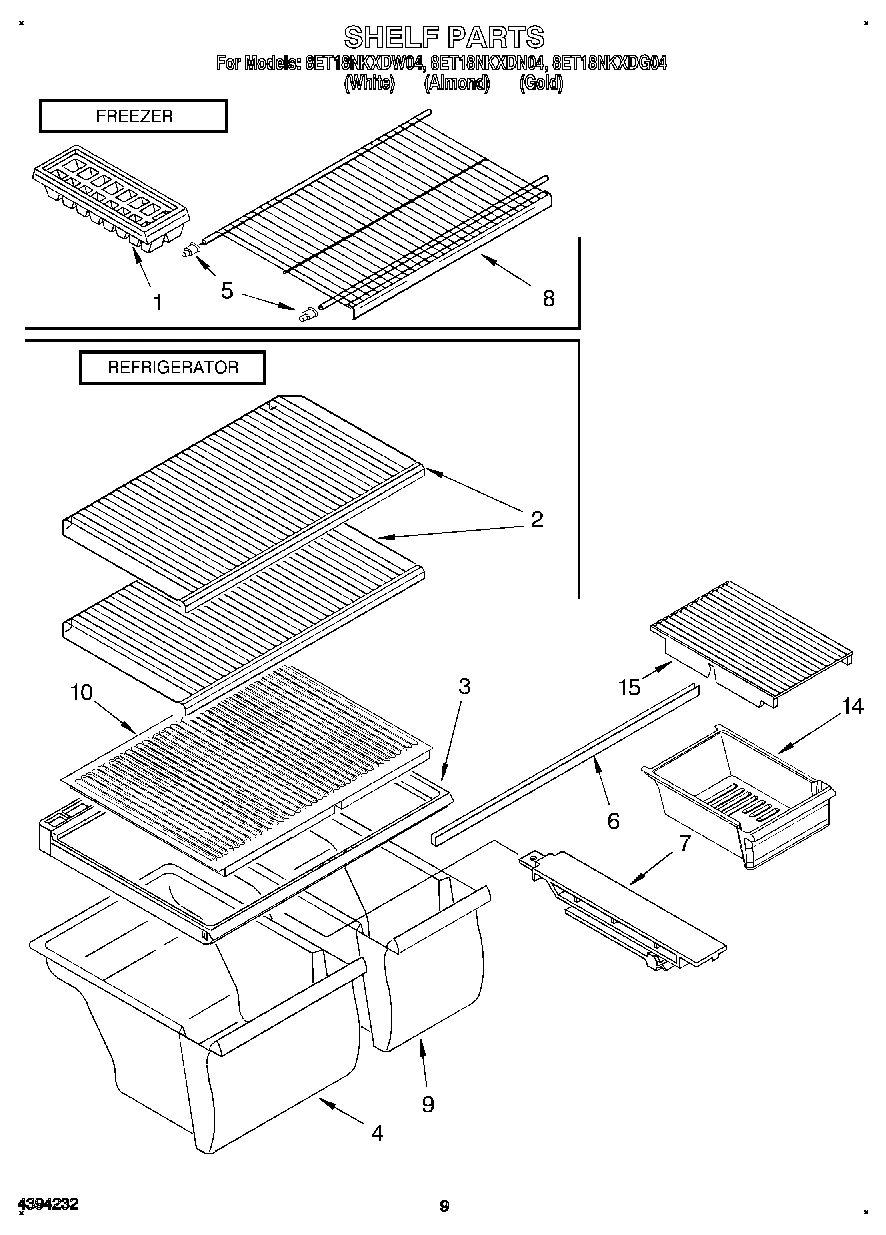

05 - SHELF, LIT/OPTIONAL
02 - DOOR

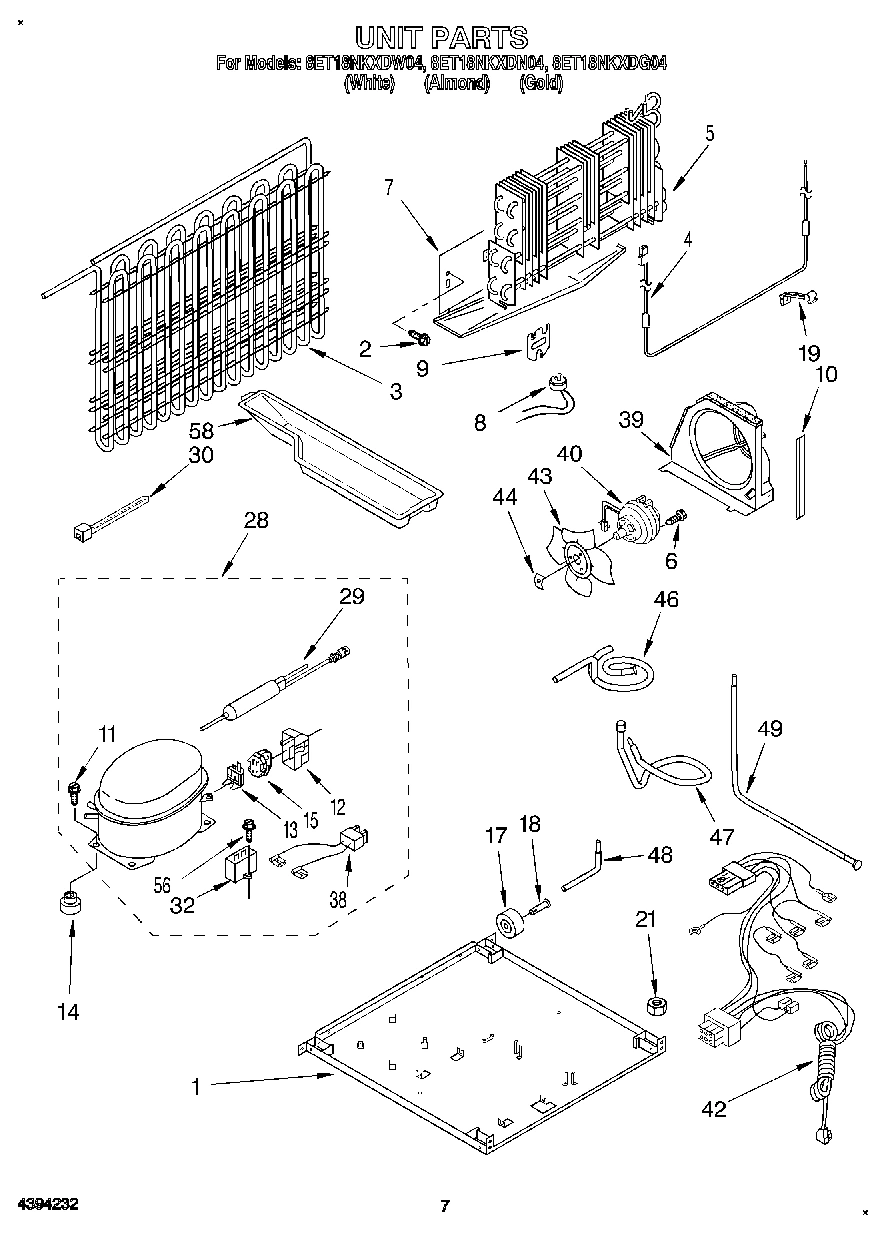

04 - UNIT
Common parts from model Whirlpool 8ET18NKXDN04 REFRIGERATOR
Torx Key WPL 1117510 Contact Us For Availability
Service and Wiring S WPL LIT2166777 Contact Us For Availability
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2171270 Contact Us For Availability
1
Refrigerator Door Panel (Gold) WPL 2175871 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
2
End Cap WPL 1109189 Contact Us For Availability
2
Shelf (2) WPL 2182443 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
End Cap, Handle (2) WPL 944157 Contact Us For Availability
5
Handle, Center (Black) WPL 1120781 Contact Us For Availability
5
Handle, Center (White) WPL 2150150 Contact Us For Availability
5
Handle Center (Almond) WPL 943068 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Shim WPL 935075 Contact Us For Availability
11
Screw WPL 489473 Contact Us For Availability
13
Nameplate (Almond And Gold Models) WPL 2165147 Contact Us For Availability
13
Nameplate (White Model) WPL 2165148 Contact Us For Availability
14
Screw WPL 489022 Contact Us For Availability
15
Spacer, Door Handle WPL 943188 Contact Us For Availability
15
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
15
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
15
Cover, Meat Pan WPL 2163848 Contact Us For Availability
15
Door Reversal Instructions WPL 2172516 Contact Us For Availability
15
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
15
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
15
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
15
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
15
Relay (See Overload) WPL ARI143659A Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2159270 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159271 Contact Us For Availability
19
Freezer Door Panel (Gold) WPL 2175872 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hole Plug (Gold) WPL 1122694 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (Black) WPL 2159416 Contact Us For Availability
21
Insert, Handle (White) WPL 2166438 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI143660A Contact Us For Availability
22
Retainer, Insert WPL 2159417 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
25
Trim, Door Shelf WPL 2171140 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
32
Shim, Endcap WPL 935074 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2170424 Contact Us For Availability
33
Handle, F.C. (Black) WPL 2173619 Contact Us For Availability
33
Handle, F.C. (White) WPL 2173622 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
34
Insert, Handle (White) WPL 1108828 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
34
Insert, Handle (Black) WPL 1114390 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
WPL 2159368 WPL 2159368 Contact Us For Availability
38
WPL 943187 WPL 943187 Contact Us For Availability
38
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
39
WPL 944163 WPL 944163 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
42
WPL 2184570 WPL 2184570 Contact Us For Availability
42
Wire Assy. Unit WPL 2184584 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2184550 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
