Model Whirlpool 7MGVW9959KL2 AUTOMATIC WASHER – Common Parts & Diagrams

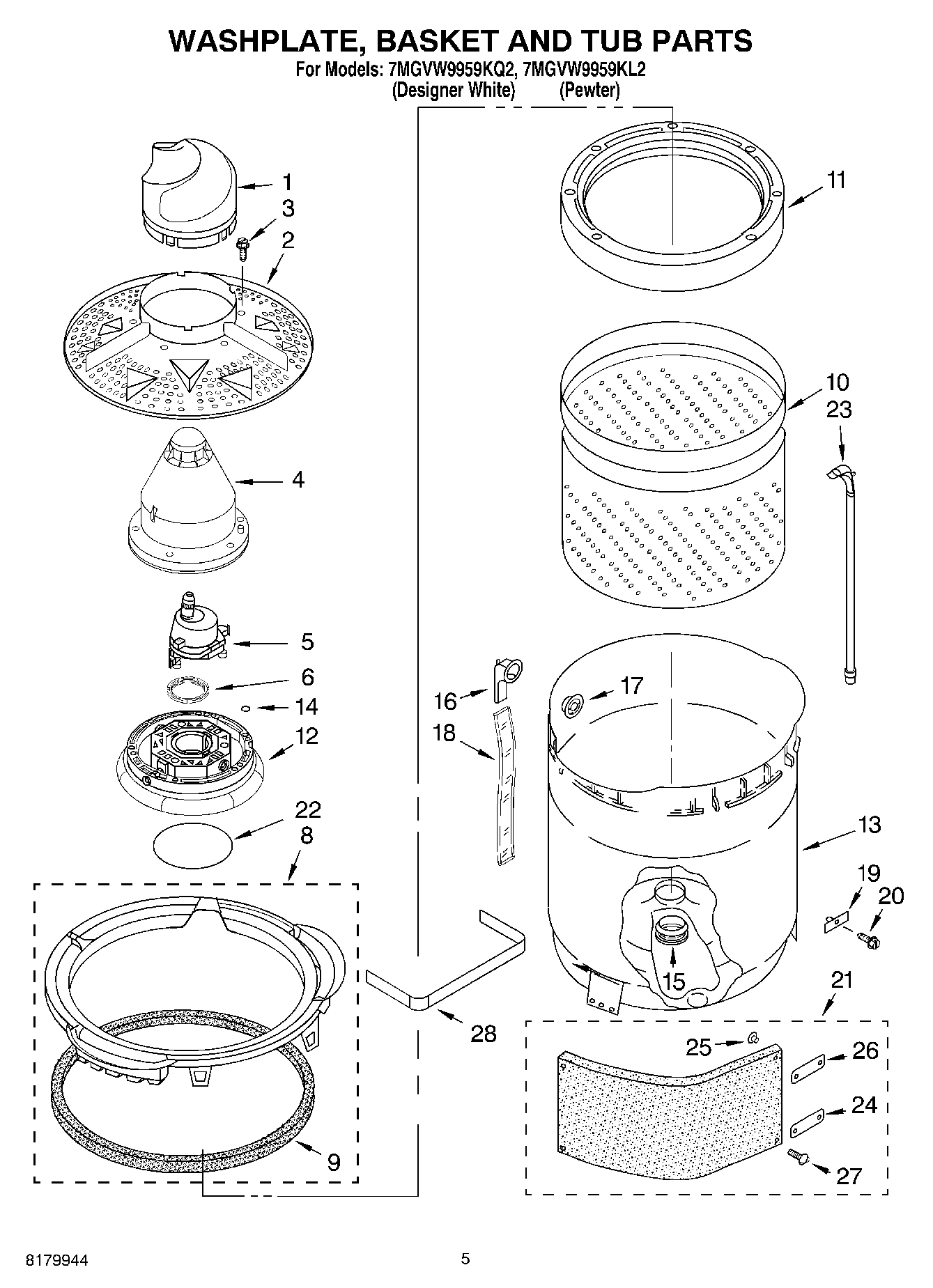

03 - WASHPLATE, BASKET AND TUB PARTS

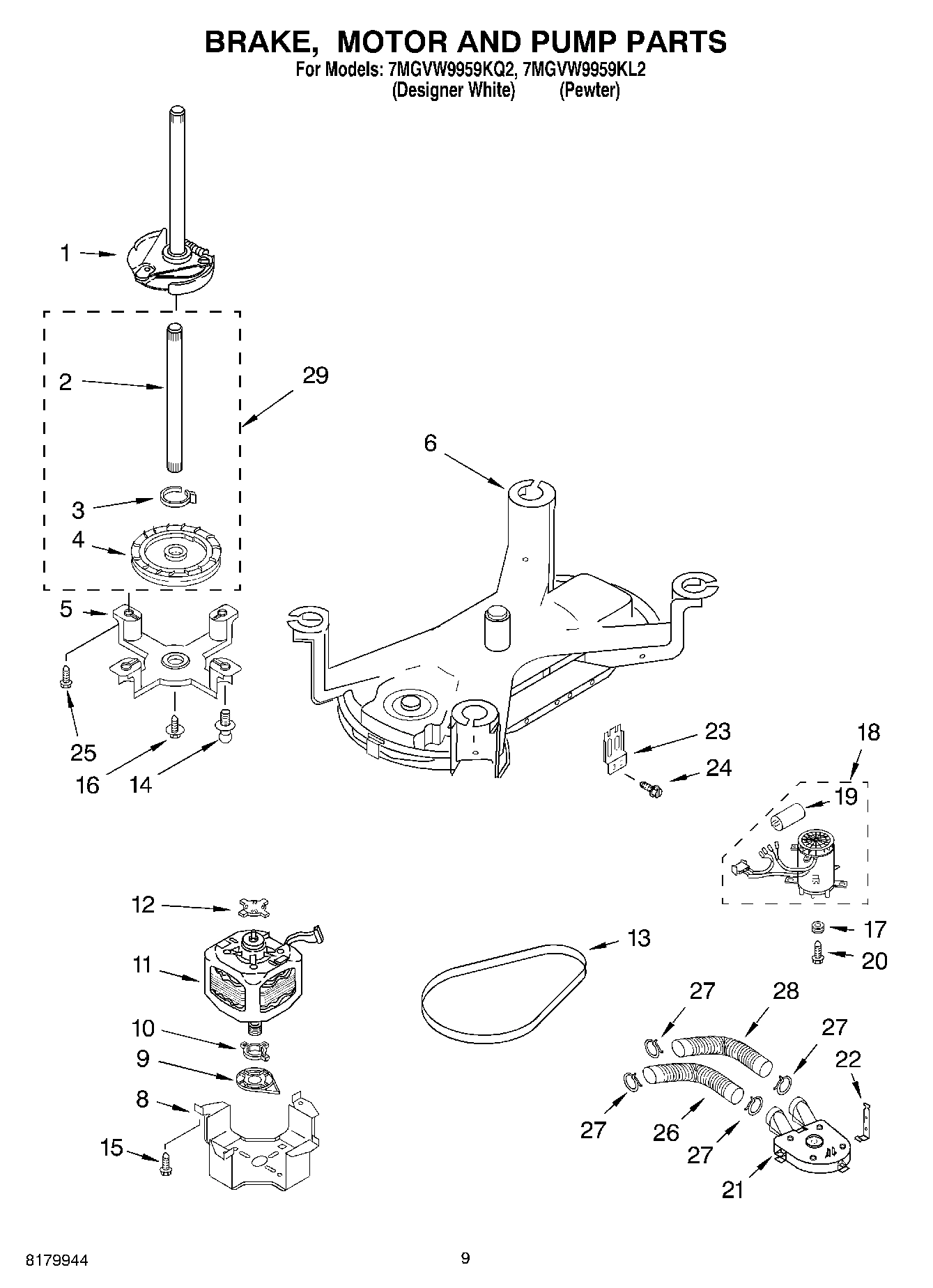

05 - BRAKE, MOTOR AND PUMP PARTS
02 - CABINET AND FRAME PARTS
01 - TOP AND LID PARTS
07 - BRAKE AND DRIVE TUBE PARTS
04 - CONTROL PANEL PARTS
06 - SUSPENSION PARTS
08 - MISCELLANEOUS PARTS OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool 7MGVW9959KL2 AUTOMATIC WASHER
1
Tube Assembly (Complete) WPL 8271972 Contact Us For Availability
1
Cabinet (White) WPL 8054490 Contact Us For Availability
1
Cabinet (Pewter) WPL 8522247 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8530145 Contact Us For Availability
1
Literature Parts (Use & Care Guide (Mexico)) WPL LIT8532078 Contact Us For Availability
1
Literature Parts (Video - Use & Care) WPL LIT8532087 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8532097 Contact Us For Availability
1
Literature Parts (Energy Guide (Mexico)) WPL LIT8539730 Contact Us For Availability
1
Damper Asm (4) WPL 9723241 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 8529946 Contact Us For Availability
2
Panel, Front (White) WPL 8318240 Contact Us For Availability
2
Panel, Front (Pewter) WPL 8522246 Contact Us For Availability
2
Top (White) WPL 8318130 Contact Us For Availability
2
Top (Pewter) WPL 8318132 Contact Us For Availability
2
Ring, Thrust WPL 9724189 Contact Us For Availability
2
Ball, Suspension (Upper) WPL 8055179 Contact Us For Availability
3
Bracket, Top Lock WPL 8526005 Contact Us For Availability
3
Bushing, Harness WPL 8300010 Contact Us For Availability
3
Tube, Spin WPL 8318243 Contact Us For Availability
3
Socket, Suspension WPL 8054964 Contact Us For Availability
4
Brace, Cabinet (Front) WPL 8283274 Contact Us For Availability
4
Filter, Line WPL 8528338 Contact Us For Availability
4
Bracket, Control WPL 8299690 Contact Us For Availability
5
Control, Motor (Electronic) WPL 8541034 Contact Us For Availability
5
Shoe, Brake WPL 8271887 Contact Us For Availability
5
Stud, Ball (2) WPL 8312710 Contact Us For Availability
5
Foot WPL 8281198 Contact Us For Availability
5
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
5
PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter) WPL 4396175 Contact Us For Availability
5
LUBRICANT WPL ARI17691A7 Contact Us For Availability
5
SEALER WPL ARI17692A8 Contact Us For Availability
5
COUPLING WPL ARI17693A2 Contact Us For Availability
5
INSTALLATION KIT WPL ARI17694A3 Contact Us For Availability
6
Support, Tub WPL 8054942 Contact Us For Availability
6
Hinge, Top to Panel WPL 8519823 Contact Us For Availability
6
Cap, Brake Spring (2) WPL 8055260 Contact Us For Availability
6
Link, Leveling WPL 8271819 Contact Us For Availability
7
Valve, Water Inlet WPL 9724754 Contact Us For Availability
7
Pad, Front Panel WPL 8317308 Contact Us For Availability
7
Spring, Brake WPL 8271969 Contact Us For Availability
7
Cap, End (L.H.) (White) WPL 8532115 Contact Us For Availability
7
Cap, End (L.H.) (Pewter) WPL 8532116 Contact Us For Availability
7
Clip, Leveling (2) WPL 8054532 Contact Us For Availability
8
Foot, Rear (2) WPL 8054747 Contact Us For Availability
8
Screw, 10-32 x 1/2 WPL 3400085 Contact Us For Availability
8
Screw, Lid Switch WPL 3400611 Contact Us For Availability
8
Sleeve, Cam WPL 8055314 Contact Us For Availability
8
Switch, Pressure (Operating - Marked ``OPR``) WPL 8054766 Contact Us For Availability
9
Seal, Tub Ring WPL 8054355 Contact Us For Availability
9
Lid Spring (Includes 10) WPL 384463 Contact Us For Availability
9
Cam, Brake Release WPL 8055263 Contact Us For Availability
9
Panel, Console (Pearl) WPL 8532066 Contact Us For Availability
9
Panel, Console (Pewter) WPL 8532067 Contact Us For Availability
10
Panel, Back WPL 8518896 Contact Us For Availability
10
Plug, Button WPL 54690 Contact Us For Availability
10
Driver, Brake Cam WPL 8054992 Contact Us For Availability
10
Cap, End (R.H.) (White) WPL 8532113 Contact Us For Availability
10
Cap, End (R.H.) (Pewter) WPL 8532114 Contact Us For Availability
11
Switch, Lid WPL 8272124 Contact Us For Availability
11
Balance Ring WPL 9724323 Contact Us For Availability
11
Bearing, Thrust (Upper) WPL 8282568 Contact Us For Availability
11
Control, Machine (Electronic) WPL 661640 Contact Us For Availability
12
Pan, Bottom WPL 8283364 Contact Us For Availability
12
Screw WPL 1166054 Contact Us For Availability
12
Splash Shield Assembly WPL 8055191 Contact Us For Availability
13
Frame, Cabinet WPL 8054500 Contact Us For Availability
14
Clip, Pine Tree WPL 8282566 Contact Us For Availability
14
Switch, Motor (2) WPL 8300022 Contact Us For Availability
14
Harness, Wiring WPL 8529923 Contact Us For Availability
15
Hinge, Lid (Left) WPL 8055257 Contact Us For Availability
15
Spacer, Cabinet WPL 8283353 Contact Us For Availability
15
Panel, Rear (Console) WPL 8299987 Contact Us For Availability
16
Hinge, Lid (Right) WPL 8055256 Contact Us For Availability
17
Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability
17
Harness, Lower (Includes 30) WPL 8299814 Contact Us For Availability
18
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
18
Hose, Drain WPL 9724100 Contact Us For Availability
18
Clip, Pressure Hose WPL 8055297 Contact Us For Availability
19
Lid Assembly (Includes Items 13, 15, 21, 23 5 WPL ARI17690A8 Contact Us For Availability
20
Spacer WPL 8271831 Contact Us For Availability
21
Seal, Lid WPL 8054939 Contact Us For Availability
21
Lock, Top (Front) WPL 8318449 Contact Us For Availability
22
Retainer, Drain Hose (Storage) WPL 8532161 Contact Us For Availability
23
Tube, Water Recirculation WPL 8054989 Contact Us For Availability
23
Power Cord Assembly WPL 8541696 Contact Us For Availability
23
Lid, Inner WPL 8538441 Contact Us For Availability
24
Cover, Harness WPL 8283348 Contact Us For Availability
24
Clip, Two Stage WPL 8299698 Contact Us For Availability
25
Screw WPL 3400215 Contact Us For Availability
25
Strain Relief WPL 63848 Contact Us For Availability
26
Hose, Tub to Pump (Inner) WPL 8054944 Contact Us For Availability
27
Dispenser, Bleach & Fabric Softener WPL 8055022 Contact Us For Availability
28
Hose, Tub to Pump (Outer) WPL 8054988 Contact Us For Availability
28
Hose, Diverter to Venturi WPL 8054366 Contact Us For Availability
29
Cover, Dispenser WPL 8272009 Contact Us For Availability
29
Pulley Assembly- Drive (Complete) WPL 8055089 Contact Us For Availability
29
U-Bend, Drain Hose WPL 8528318 Contact Us For Availability
30
Clip, Harness (3) WPL 8310651 Contact Us For Availability
30
Dispenser, Detergent WPL 8055010 Contact Us For Availability
31
Gusset, Harness WPL 8528279 Contact Us For Availability
31
Venturi WPL 8055168 Contact Us For Availability
32
Nozzle Assembly (Bleach) WPL 8300021 Contact Us For Availability
33
Clip, Drain Hose WPL 9724675 Contact Us For Availability
34
Hose, Detergent WPL 8530273 Contact Us For Availability
36
Retainer, Drain Hose WPL 8318208 Contact Us For Availability
36
Hose, Venturi to Bleach WPL 8538442 Contact Us For Availability
37
Hose, Fabric Softener WPL 8054365 Contact Us For Availability
38
Screw, 8-18 x 1.187 WPL 3400811 Contact Us For Availability
39
Restraint WPL 8271943 Contact Us For Availability
40
Hose, Fresh Rinse WPL 8316761 Contact Us For Availability
41
Hose, Tub to Venturi WPL 8316762 Contact Us For Availability
44
Shield, Splash WPL 8529937 Contact Us For Availability
46
Shi WPL 8519201 Contact Us For Availability
47
WPL 8299697 WPL 8299697 Contact Us For Availability
49
WPL 8527686 WPL 8527686 Contact Us For Availability
49
WPL 8527687 WPL 8527687 Contact Us For Availability
51
WPL 8316751 WPL 8316751 Contact Us For Availability
52
WPL 8520850 WPL 8520850 Contact Us For Availability
52
WPL 8520851 WPL 8520851 Contact Us For Availability
53
WPL 8519764 WPL 8519764 Contact Us For Availability
54
WPL 8532031 WPL 8532031 Contact Us For Availability
55
WPL 8530271 WPL 8530271 Contact Us For Availability
× ![]()
