Model Electrolux 790.97475790 Electric Range (Kenmore 79097475790) – Common Parts & Diagrams
DOOR

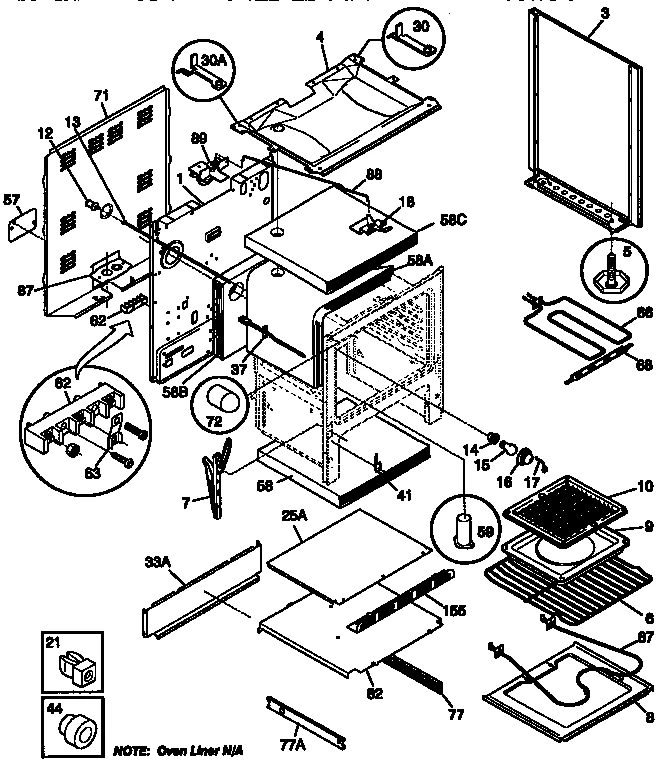

BODY

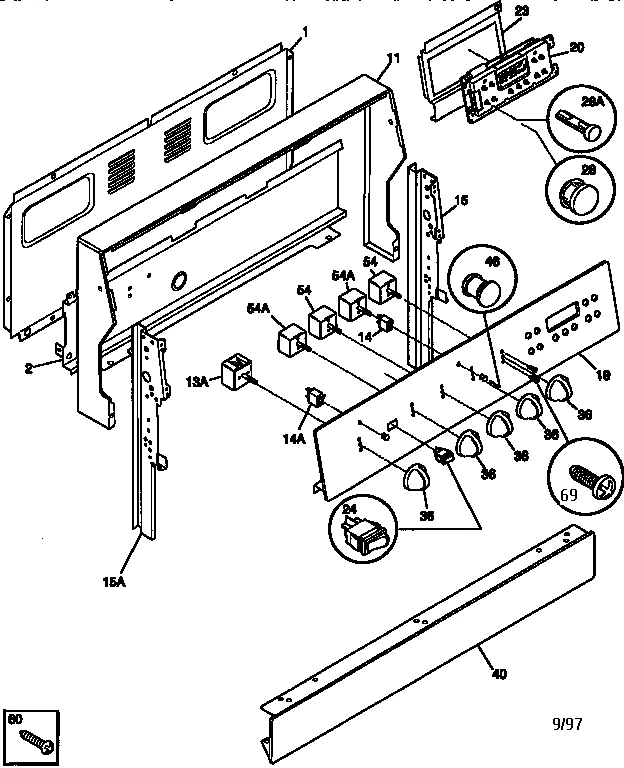

BACKGUARD

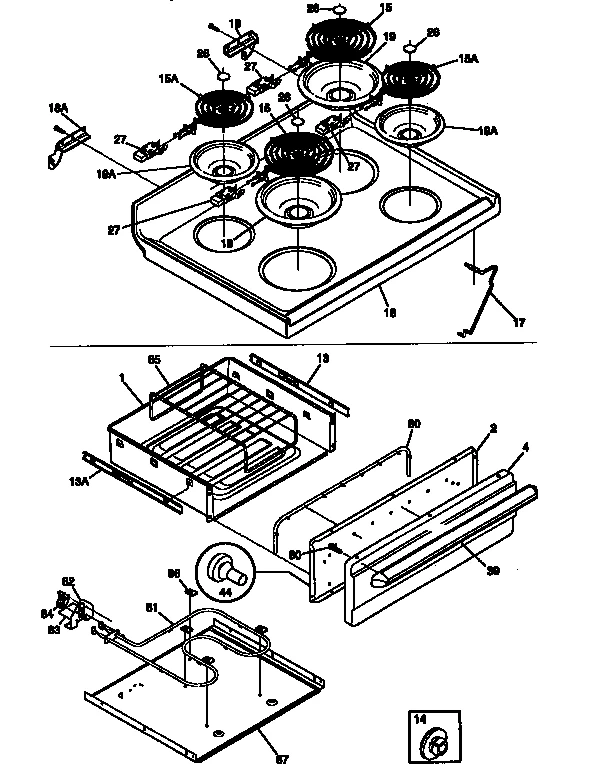

TOP/DRAWER
BODY
All Parts
Common parts from model Electrolux 790.97475790 Electric Range (Kenmore 79097475790)
1
Warming Drawer WCI 316094601 Contact Us For Availability
1
Main WCI 316080801 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
3
Body Panel WCI 316081028 Contact Us For Availability
3A
Body Panel WCI 316081029 Contact Us For Availability
4
Wt Drwr Panl WCI 316056205 Contact Us For Availability
4
Burner Box WCI 5303271756 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
5C
Nut WCI 5303288460 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Broiler Pan WCI 316073800 Contact Us For Availability
10
Range Oven Door Handle Screw WCI 5303280308 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Drawer Channel WCI 316096500 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
13A
Drawer Channel WCI 316096501 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
18
Hinge Asy Rh WCI 5303273062 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
18A
Hinge Asy Lh WCI 5303273063 Contact Us For Availability
19
Pan-white 8" WCI 316048411 Contact Us For Availability
19A
Pan-white 6" WCI 316048408 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
28
Push Button WCI 316015103 Contact Us For Availability
28
Medallion WCI 3017801 Contact Us For Availability
28A
Range Timer Knob Shaft WCI 316080600 Contact Us For Availability
30
Hinge WCI 5303283574 Contact Us For Availability
30A
Hinge WCI 5303283575 Contact Us For Availability
33A
Rear Shield WCI 316095301 Contact Us For Availability
39
Drawer Handle WCI 316026103 Contact Us For Availability
39A
Washer Handle WCI 316008400 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
52
Oven Shield WCI 316081301 Contact Us For Availability
57
Access Cover WCI 316081101 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
59
Oven Ve Tube WCI 316073600 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
80
Door Seal WCI 316093000 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Screw WCI 5303288574 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
NI
Owner's Manual WCI 316000922 Contact Us For Availability
NI
Wiring Harness WCI 316001194 Contact Us For Availability
NI
Wiring WCI 316001725 Contact Us For Availability
NI
Wiring Diagram WCI 316002094 Contact Us For Availability
NI
Warming Plate WCI 316065300 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Screw, #8-32 x 1-in WCI 5303212671 Contact Us For Availability
NI
Parts List WCI 5995297172 Contact Us For Availability
× ![]()
