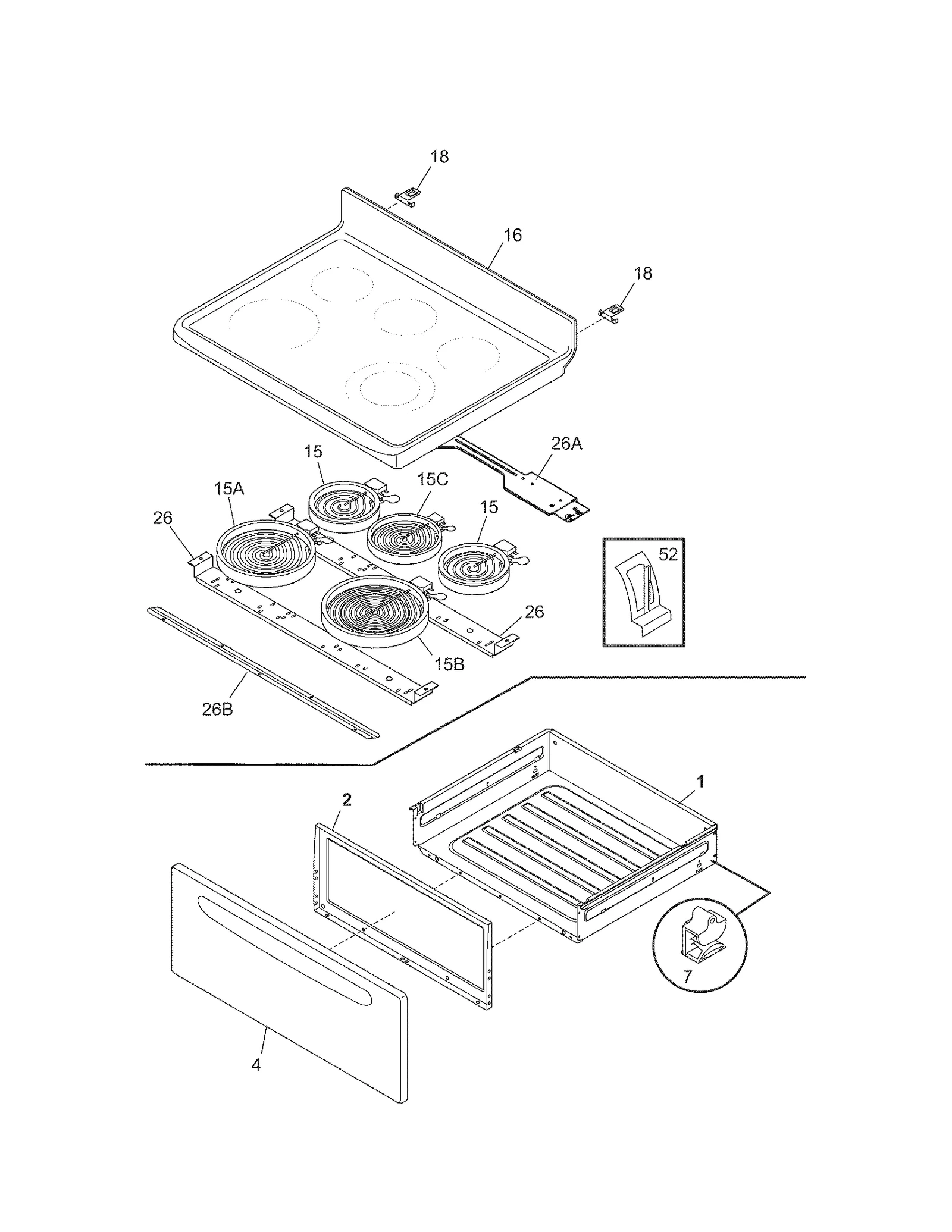

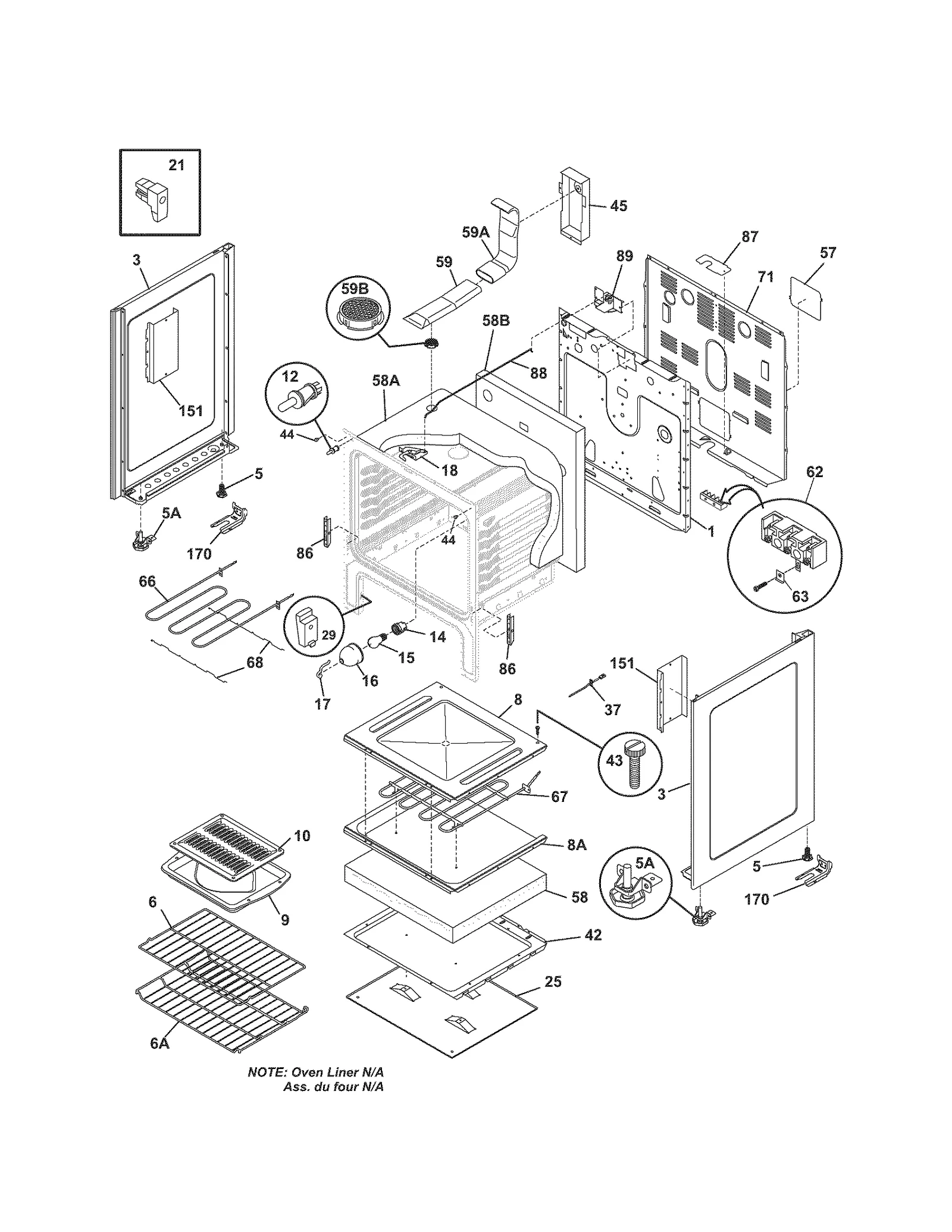

Model Electrolux 790.94354700 Electric Range (Kenmore 79094354700) – Common Parts &amp; Diagrams

1

316408706 Frigidaire Oven Drawer Assembly In Stock WCI 316408706 $63.79

2

5304527989 Frigidaire Liner Backorder WCI 5304527989 $17.30

3

5303935318 Frigidaire Range Trim Kit Backorder WCI 5303935318 $53.77

3

5303935377 Frigidaire Door Trim Kit In Stock WCI 5303935377 $37.35

3

Range Oven Door Trim Kit (Bisque) WCI 5303935244 Contact Us For Availability

4

Range Broil Drawer Outer Panel WCI 316403502 Contact Us For Availability

4

Range Storage Drawer Front Panel WCI 316403501 Contact Us For Availability

4

Range Oven Door Outer Panel (White) WCI 316427007 Contact Us For Availability

5

316272900 Frigidaire Oven Leg Levelling Plast In Stock WCI 316272900 $8.65

5A

5304509869 Frigidaire Oven Leveling Leg Assem In Stock WCI 5304509869 $3.63

6

Frigidaire Range Oven Rack WCI 316404500 Contact Us For Availability

6A

Range Oven Rack WCI 316425700 Contact Us For Availability

7

316407402 Frigidaire Range Drawer Glide In Stock WCI 316407402 $5.91

8

Frigidaire Range Oven Bottom Panel WCI 316400601 No Longer Available

8

316502500 Frigidaire Oven Range Door Inner Gl Backorder WCI 316502500 $68.94

9

Range Broil Pan WCI 316081900 Contact Us For Availability

10

316433300 Frigidaire Oven Range Door Handle M In Stock WCI 316433300 $9.10

10

Range Broil Pan Insert WCI 316082000 Contact Us For Availability

10B

316008401 Frigidaire Washer P-1 Backorder WCI 316008401 $7.27

12

316405000 Frigidaire Oven Seal In Stock WCI 316405000 $92.28

12

316445501 Frigidaire Oven Switch In Stock WCI 316445501 $57.26

14

316022500 Frigidaire Oven Warmer Drawer Zone In Stock WCI 316022500 $36.46

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.92

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.68

318178110 Frigidaire Oven Range 6" Surface El In Stock WCI 318178110 $80.43

Range Control Panel Support, Right WCI 316411405 Contact Us For Availability

Range Control Panel Support, Right WCI 316411403 Contact Us For Availability

15A

Range Control Panel Support, Left WCI 316411404 Contact Us For Availability

15A

Universal/Multiflex (Frigidaire) Range Contro WCI 316411402 Contact Us For Availability

15C

Range Warmer Zone Surface Element WCI 316498800 Contact Us For Availability

316456258 Frigidaire Range Maintop Backorder WCI 316456258 $399.02

316502601 Frigidaire Oven Glass Backorder WCI 316502601 $123.73

Range Main Top WCI 316456257 Contact Us For Availability

Range Main Top WCI 316456256 Contact Us For Availability

17

316087500 Frigidaire Oven Retainer Backorder WCI 316087500 $36.46

18

316405800 Frigidaire Assembly Latch Backorder WCI 316405800 $29.16

18

Range Oven Door Hinge Support Bracket WCI 316436600 Contact Us For Availability

20A

316419137 Frigidaire Oven Overlay In Stock WCI 316419137 $17.58

20A

316419141 Frigidaire Oven Overlay In Stock WCI 316419141 $33.68

21

316408000 Frigidaire Oven Clip Assembly Backorder WCI 316408000 $10.92

23

Range Oven Door Hinge WCI 316530600 Contact Us For Availability

24

316259800 Frigidaire Rocker Switch Backorder WCI 316259800 $21.74

24

5304527841 Frigidaire Oven Rocker Switch (Bla In Stock WCI 5304527841 $6.84

24

5304527842 Frigidaire Rocker Switch In Stock WCI 5304527842 $6.84

25

316406200 Frigidaire Oven Shield Assembly Backorder WCI 316406200 $52.86

26A

316498200 Frigidaire Oven Bracket Backorder WCI 316498200 $31.42

27

Range Simmer Select Switch and Bezel (Black) WCI 5303935218 Contact Us For Availability

27

Range Simmer Select Switch and Bezel (White) WCI 5303935217 Contact Us For Availability

27

Range Simmer Select Switch and Bezel WCI 5303935219 Contact Us For Availability

28

Range Simmer Select Switch Button (Black) WCI 316219301 Contact Us For Availability

29

807047102 Frigidaire Oven Front Drawer Glide In Stock WCI 807047102 $7.38

31

316442400 Frigidaire Range Knob In Stock WCI 316442400 $48.77

31

316442401 Frigidaire Range Knob In Stock WCI 316442401 $45.12

31

Range Surface Burner Knob WCI 316442402 Contact Us For Availability

31A

Range Warming Drawer Knob (White) WCI 316442403 Contact Us For Availability

31A

Range Surface Burner Knob WCI 316442404 Contact Us For Availability

31B

Range Surface Burner Knob WCI 316442409 Contact Us For Availability

31B

Range Control Knob WCI 316442410 Contact Us For Availability

37

316490000 Frigidaire Oven Range Temperature S In Stock WCI 316490000 $40.03

39

316443601 Frigidaire Oven Handle In Stock WCI 316443601 $69.71

39

Range Oven Door Handle WCI 316443602 Contact Us For Availability

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $6.36

44

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.74

52

316461700 Frigidaire Oven Clip Assembly In Stock WCI 316461700 $7.70

54

316436000 Frigidaire Range Surface Element Sw In Stock WCI 316436000 $47.28

54A

316436001 Frigidaire Oven Range Infinite Burn In Stock WCI 316436001 $24.72

56

316234045 Frigidaire Oven Shield Backorder WCI 316234045 $40.08

58

316403802 Frigidaire Insulation Backorder WCI 316403802 $70.31

58B

316406500 Frigidaire Insulation Backorder WCI 316406500 $56.36

59A

316208304 Frigidaire Oven Tube Backorder WCI 316208304 $51.48

59B

316247300 Frigidaire Oven Catalyst Backorder WCI 316247300 $63.08

62

5304409888 Frigidaire Oven Terminal Block Ass In Stock WCI 5304409888 $16.37

63

316278800 Frigidaire Oven Plate Backorder WCI 316278800 $11.38

66

316203301 Frigidaire Oven Broil Element In Stock WCI 316203301 $99.47

67

316413800 Frigidaire Oven Range Bake Element In Stock WCI 316413800 $137.91

68

316404002 Frigidaire Support Assembly Backorder WCI 316404002 $5.25

71

Shield WCI 316422304 Contact Us For Availability

77

316247900 Frigidaire Oven Spacer Backorder WCI 316247900 $28.70

77A

316114100 Frigidaire Oven Spacer Backorder WCI 316114100 $39.17

87

316081200 Frigidaire Oven Bracket Backorder WCI 316081200 $48.77

88

316203500 Frigidaire Oven Rod Backorder WCI 316203500 $46.48

89

5304528973 Frigidaire Motor In Stock WCI 5304528973 $33.00

97

316429301 Frigidaire Oven Board In Stock WCI 316429301 $144.18

100

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $3.63

170

316112500 Frigidaire Oven Template Backorder WCI 316112500 $2.27

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $7.27

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $9.11

316089500 Frigidaire Oven Screw In Stock WCI 316089500 $8.65

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.29

316418900 Frigidaire Oven Screw Backorder WCI 316418900 $9.11

316418901 Frigidaire Oven Screw Backorder WCI 316418901 $9.11

5303285179 Frigidaire Oven Door Screw Backorder WCI 5303285179 $8.65

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.28

5308014215 Frigidaire Oven Screw In Stock WCI 5308014215 $1.36

Bisq Paint WCI 5304414035 Contact Us For Availability
