Model Whirlpool 6ET19PKXHW00 REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR DOOR
01 - CABINET, LITERATURE

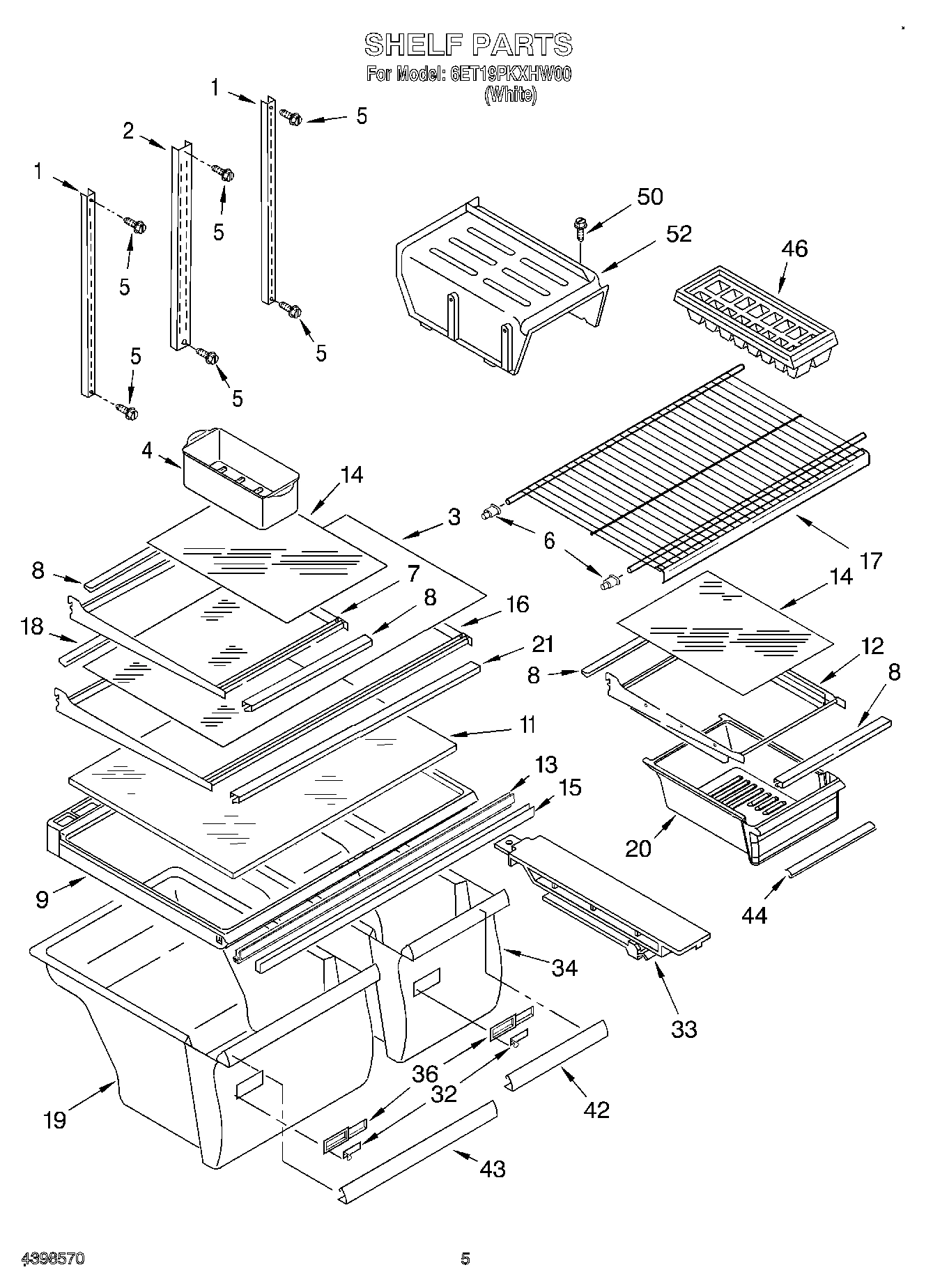

03 - SHELF

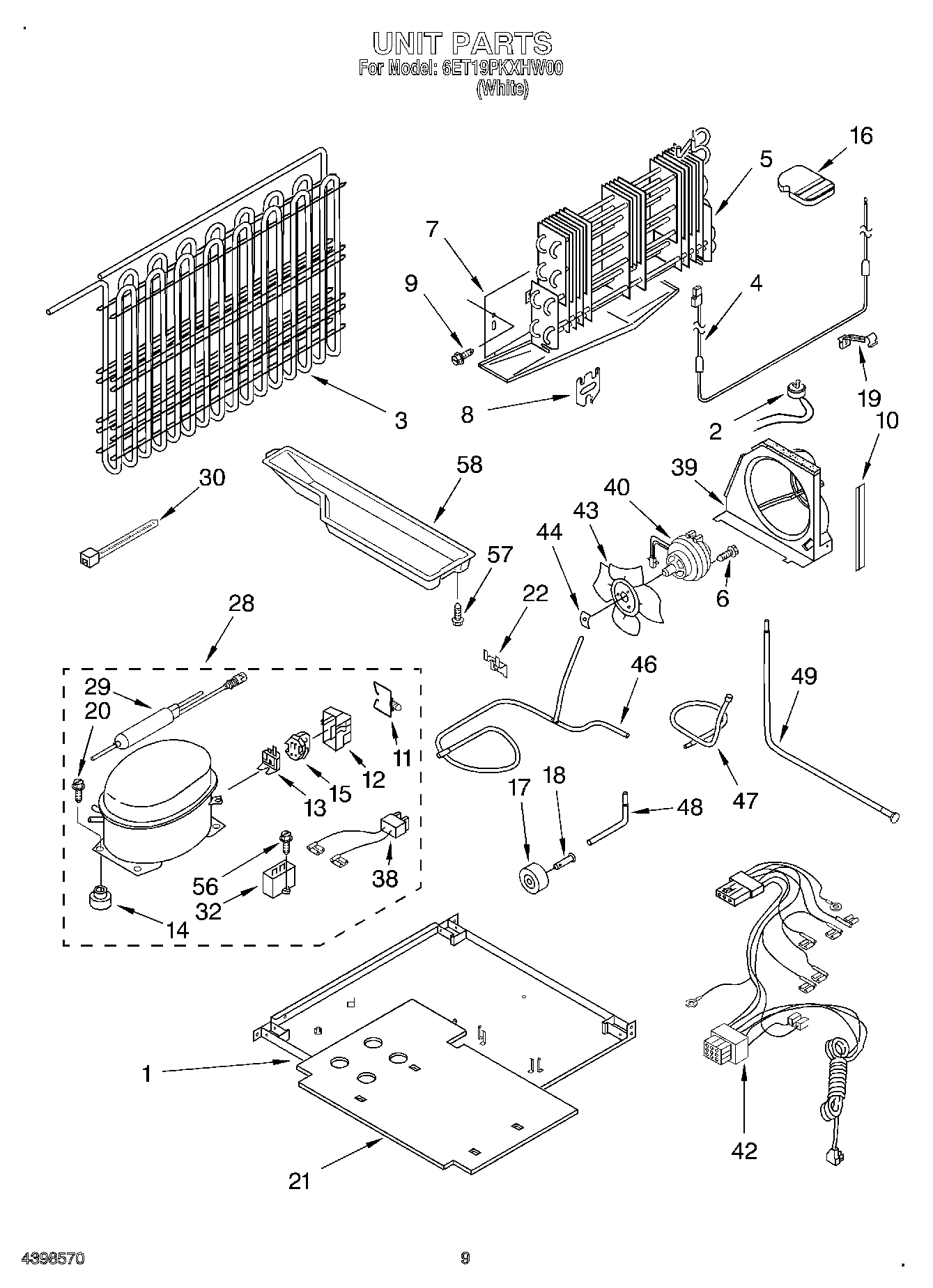

05 - UNIT

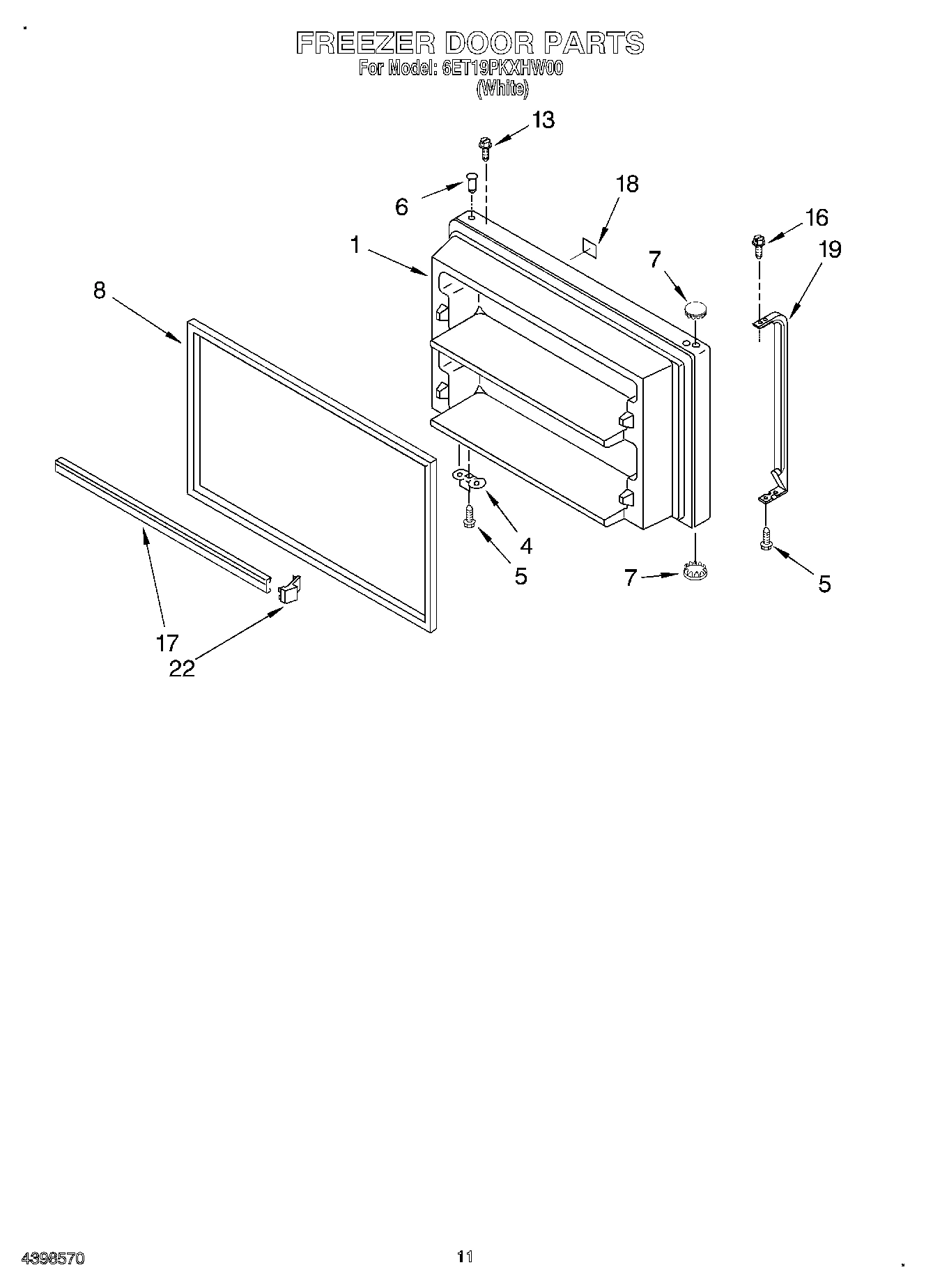

06 - FREEZER DOOR, OPTIONAL

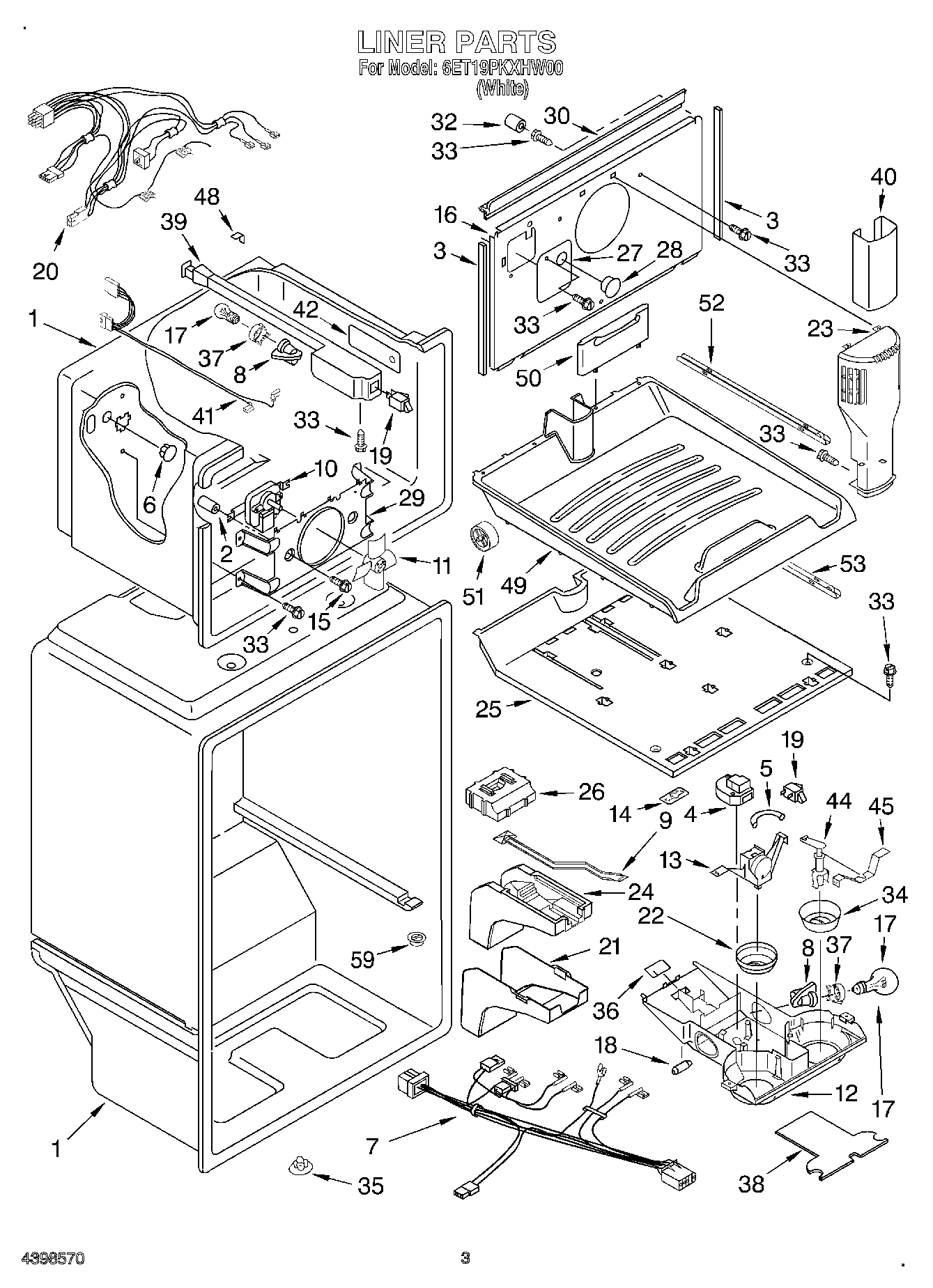

02 - LINER
Common parts from model Whirlpool 6ET19PKXHW00 REFRIGERATOR
1
Freezer Door (Includes No.6 & No.8) WPL 2183860 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI16038A7 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Glass, Full Shelf WPL 2177824 Contact Us For Availability
4
Timer, Defrost WPL 2193095 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183828 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Support Block WPL 2201184 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2201103 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195946 Contact Us For Availability
18
Nameplate WPL 2195063 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2204811 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2199112 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Torx Key WPL 1117510 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Freezer Floor WPL 2204746 Contact Us For Availability
26
Air Diffuser, Top WPL 2200793 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200511 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Hole Plug WPL 2166844 Contact Us For Availability
38
Shield WPL 2201082 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
40
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
41
Wire Harness, Freezer light WPL 2198891 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Insulation, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
CLIP, GRILLE WPL 2189356 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2189429 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
