Model Whirlpool 6ED22ZRXDW00 REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
04 - FREEZER LINER

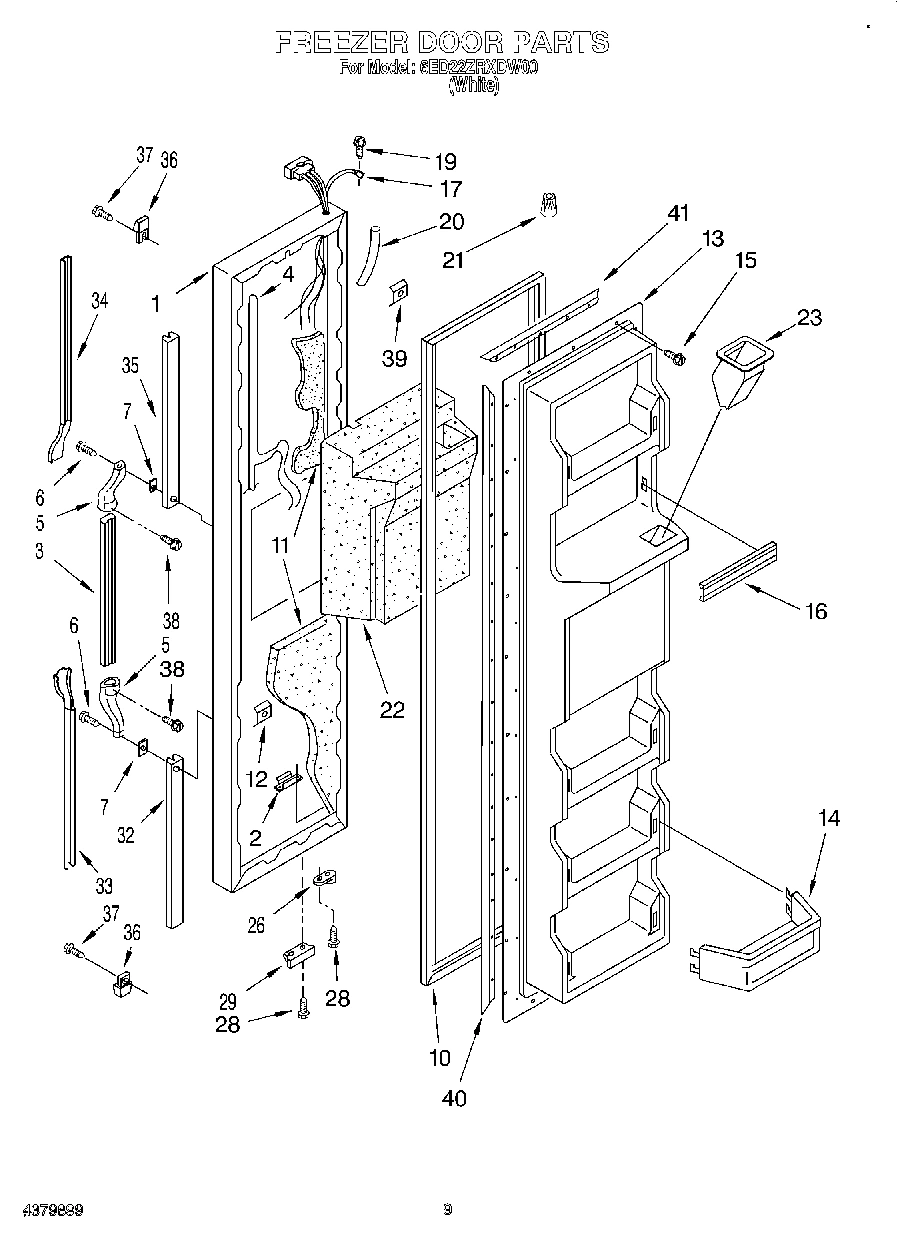

07 - FREEZER DOOR

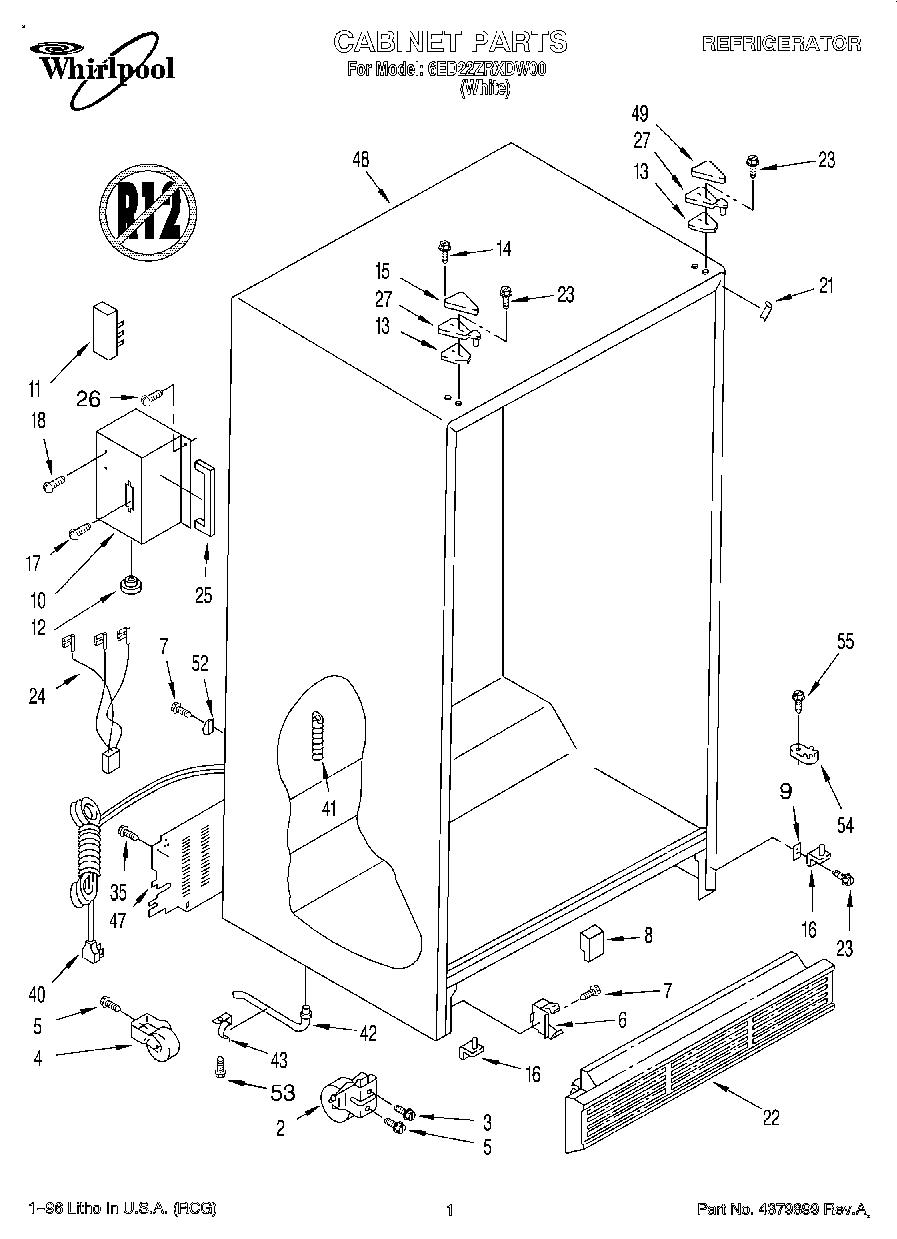

01 - CABINET

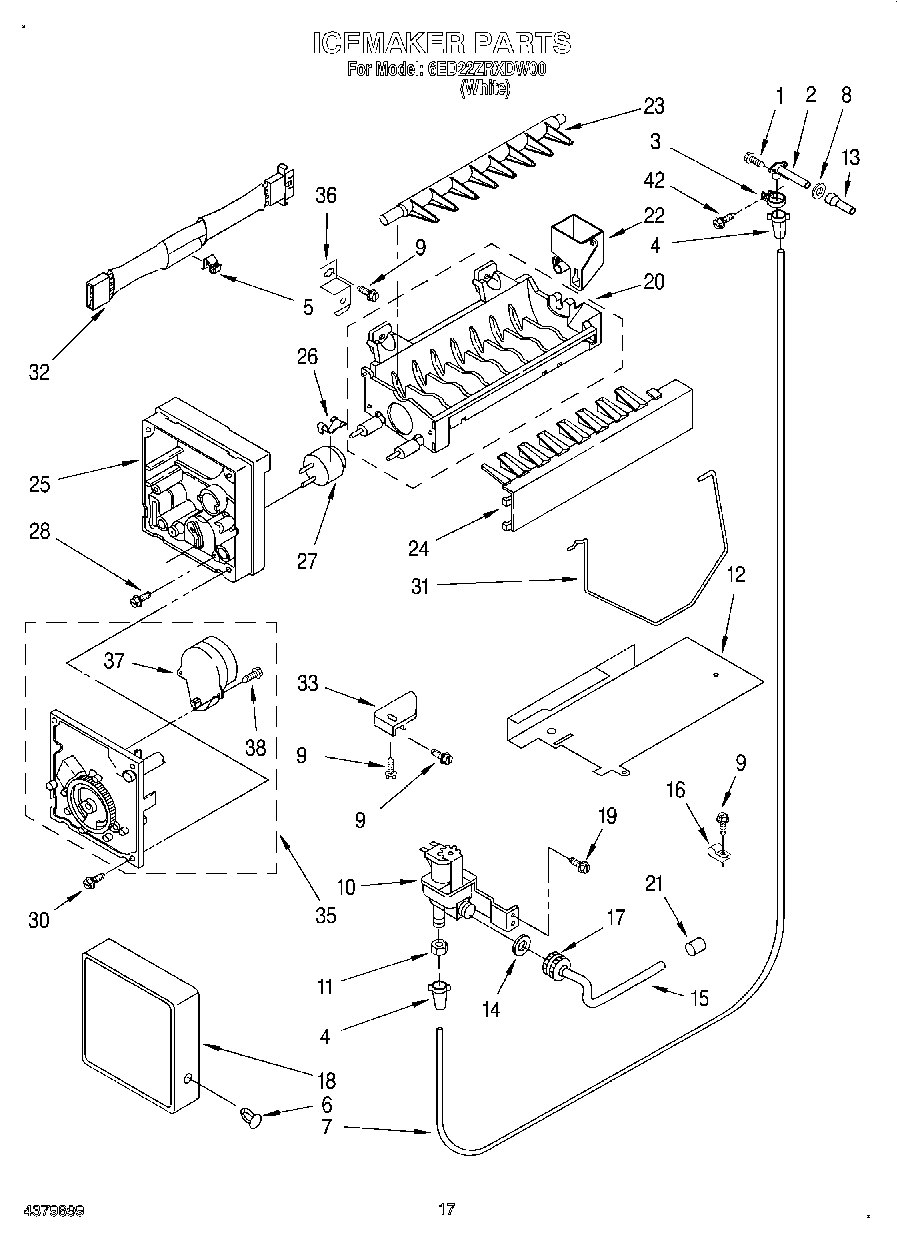

12 - ICEMAKER, LIT/OPTIONAL

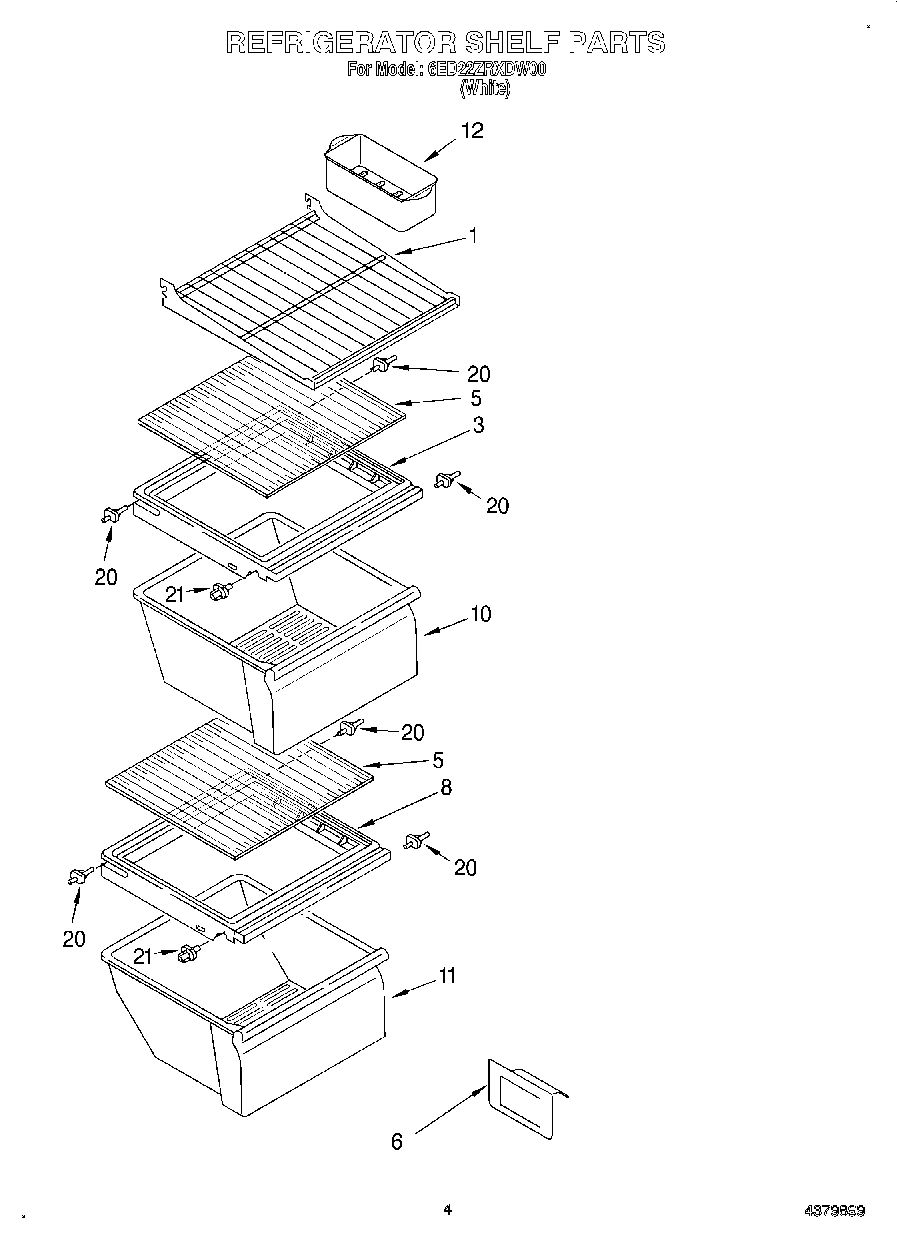

03 - REFRIGERATOR SHELF

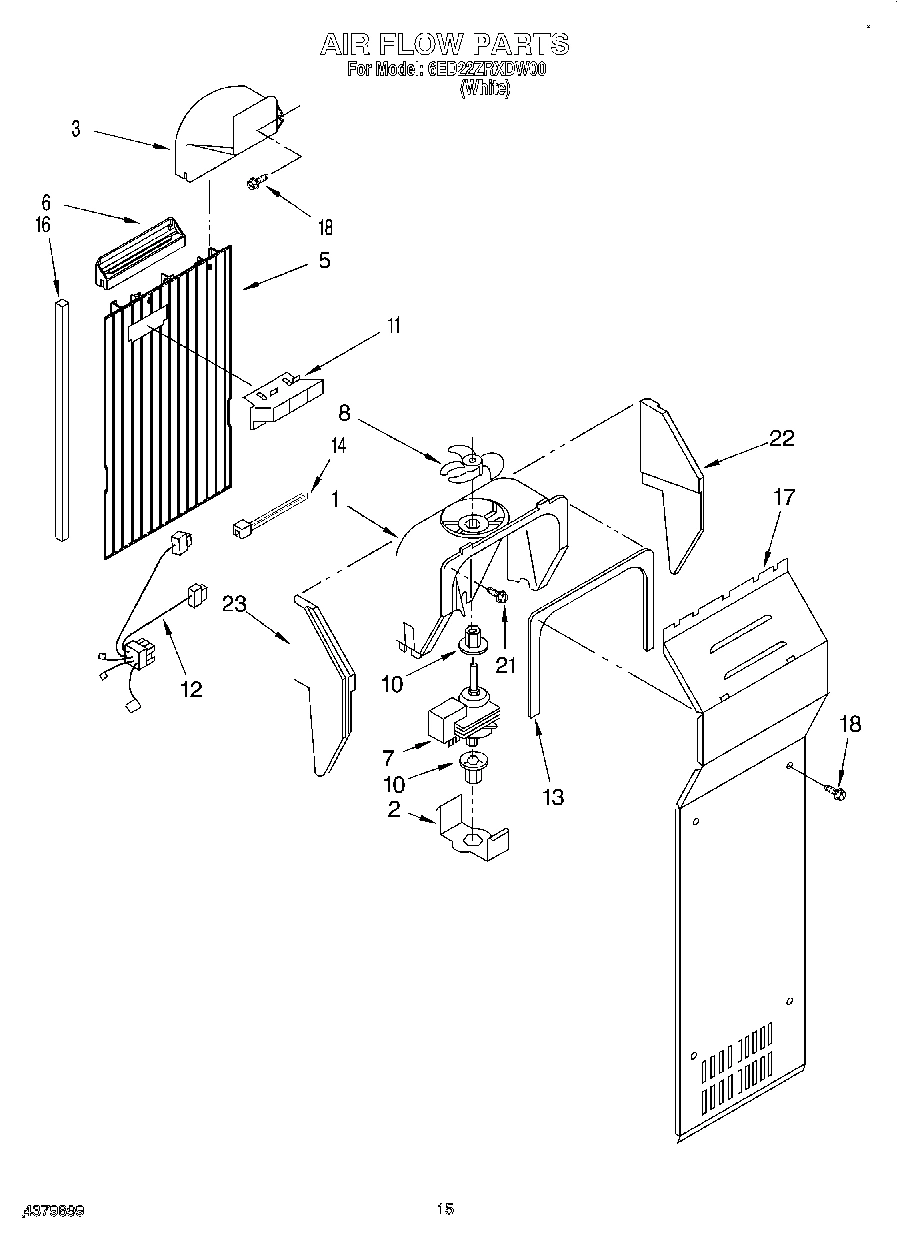

10 - AIR FLOW

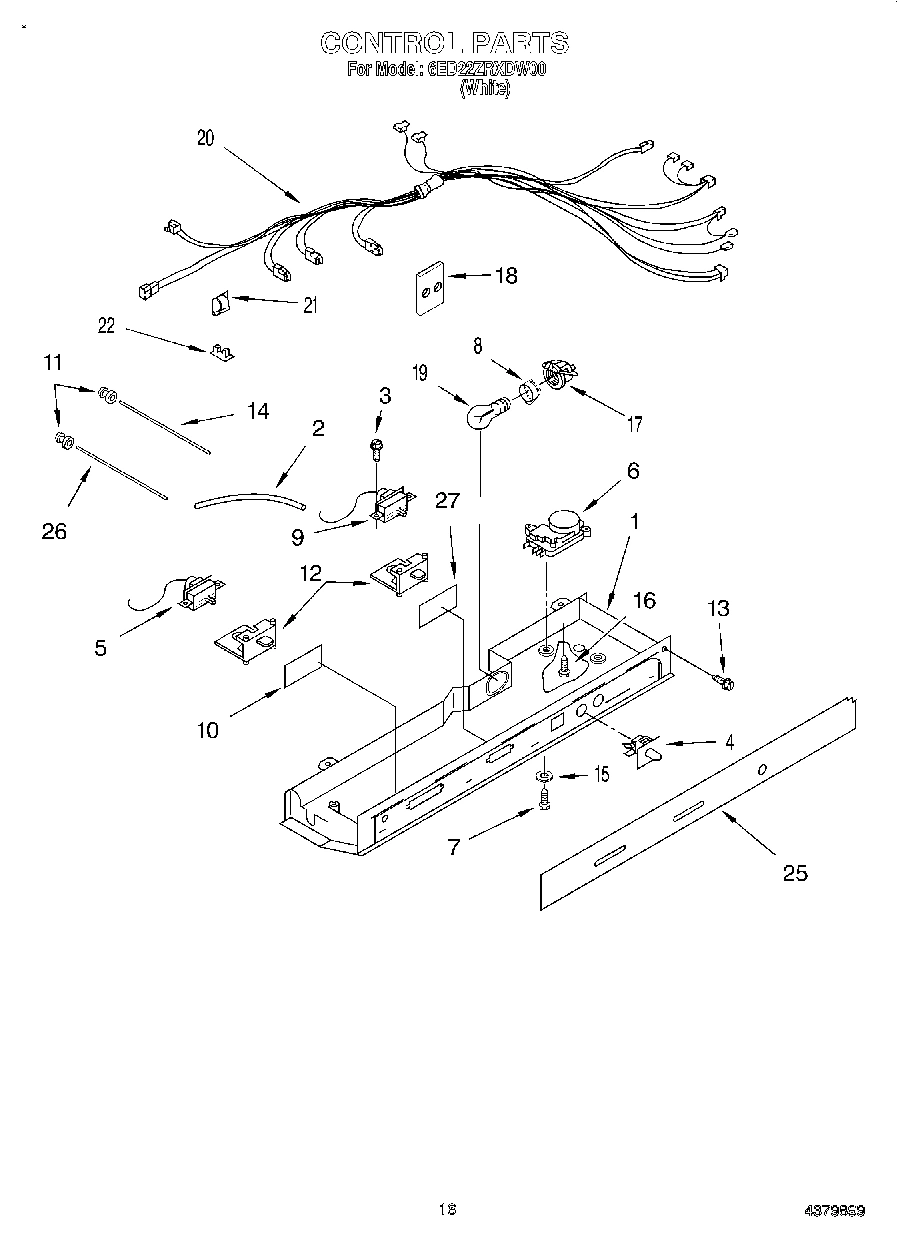

11 - CONTROL

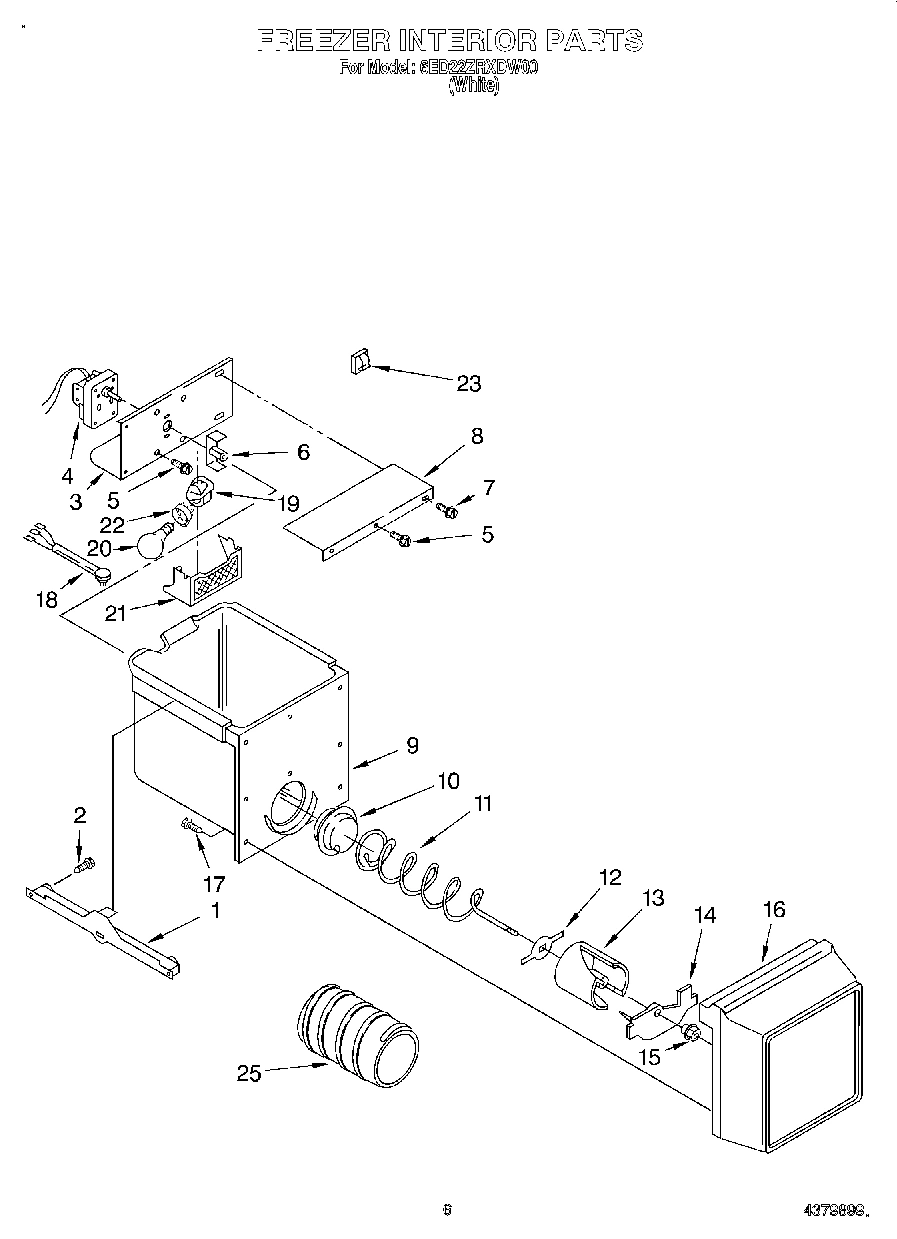

05 - FREEZER INTERIOR

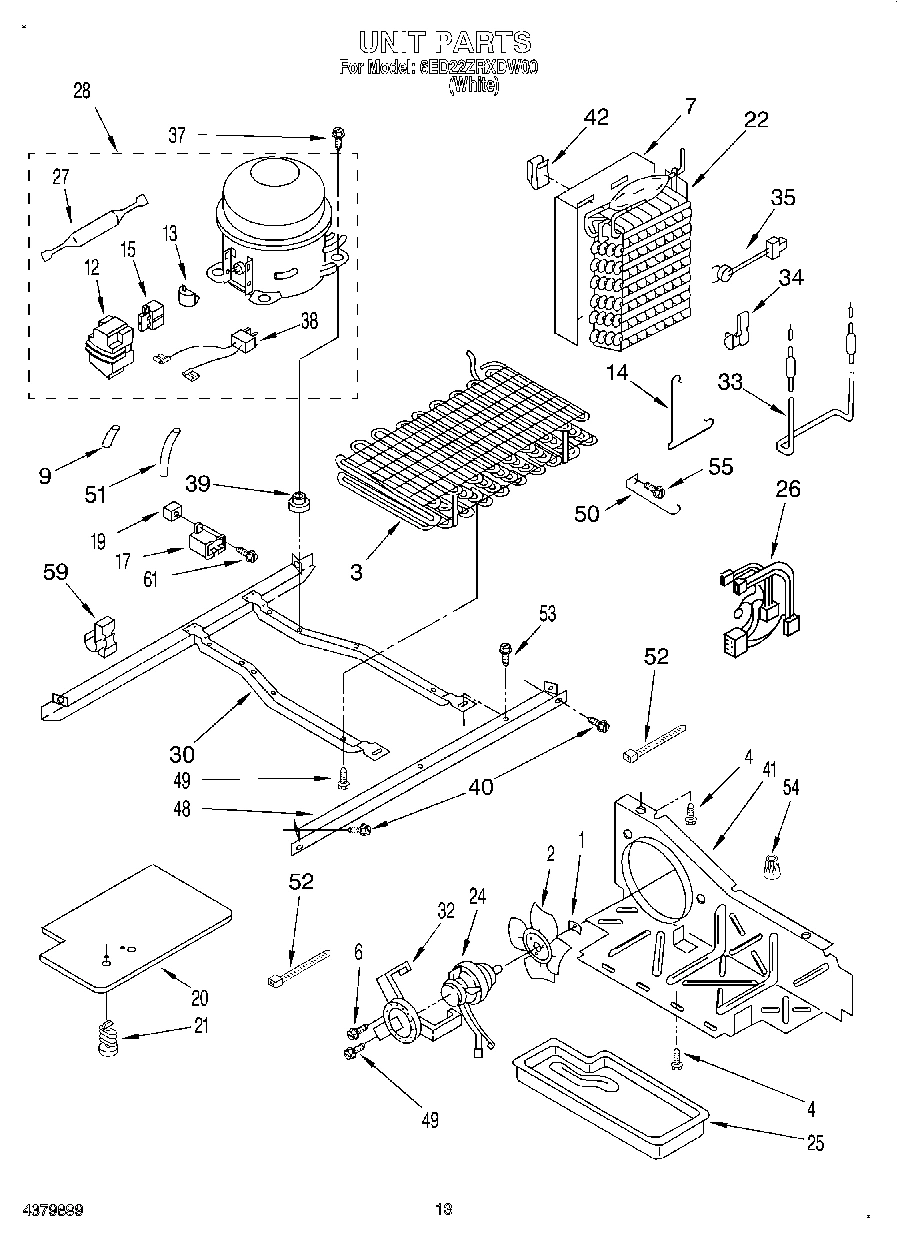

09 - UNIT

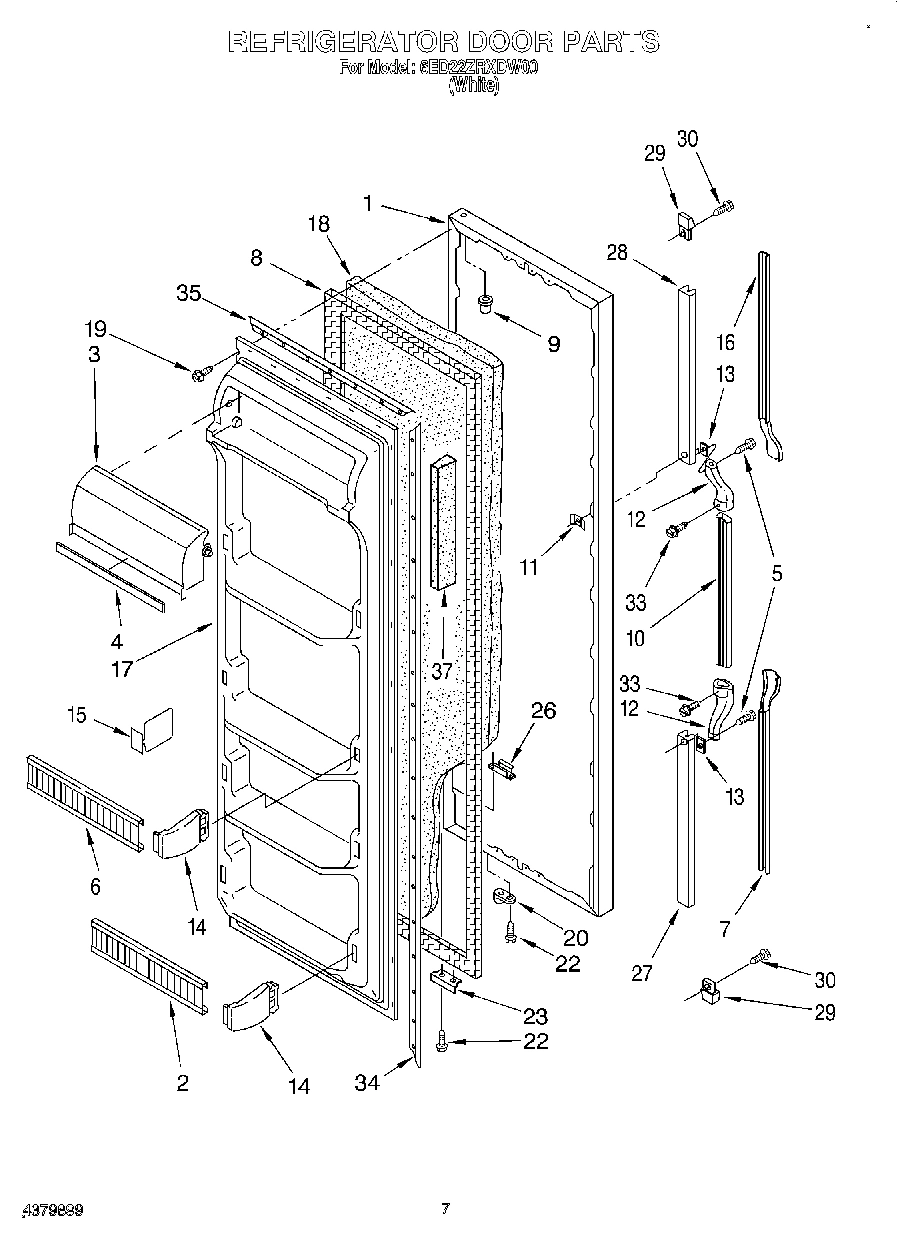

06 - REFRIGERATOR DOOR

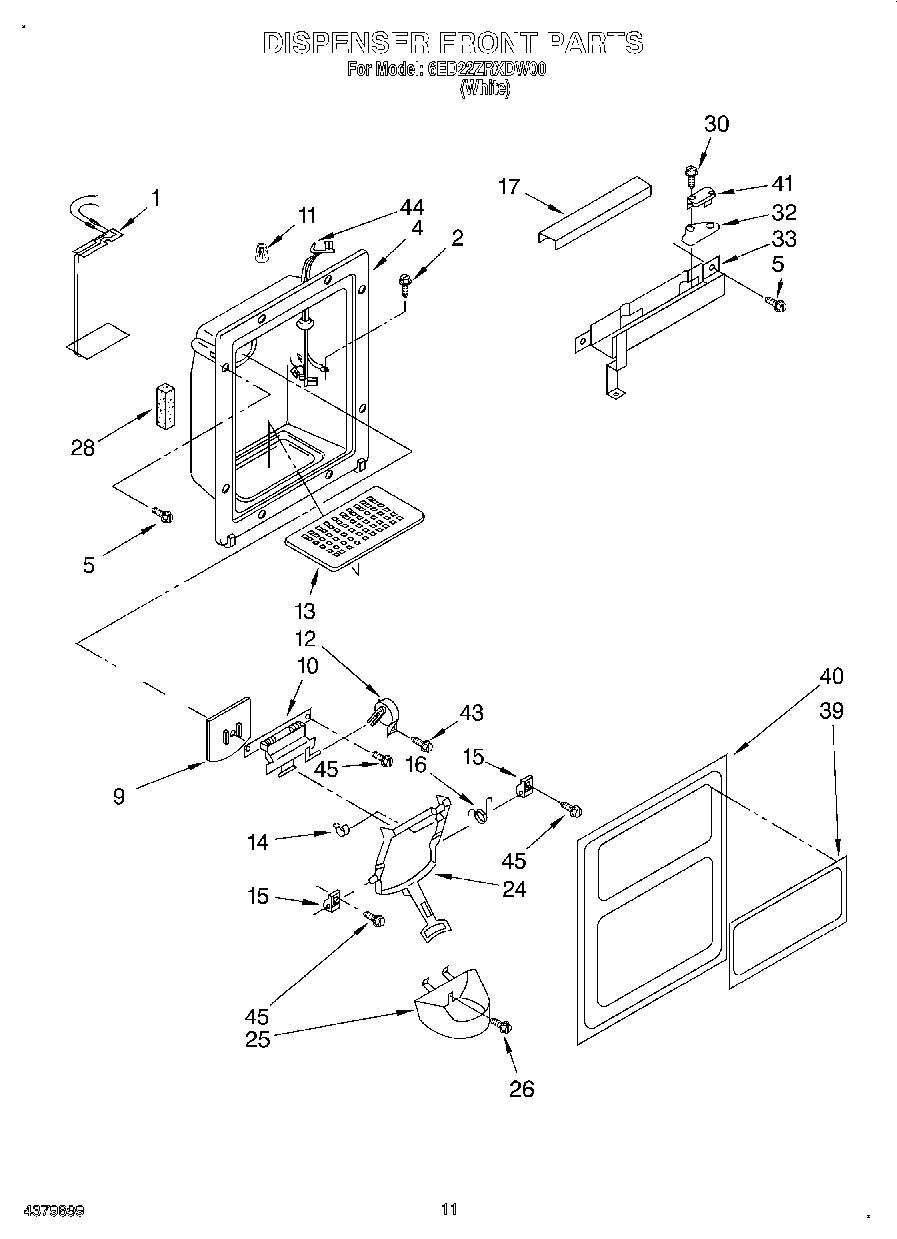

08 - DISPENSER FRONT
Common parts from model Whirlpool 6ED22ZRXDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2165619 WPL LIT2165619 Contact Us For Availability
WPL LIT2165621 WPL LIT2165621 Contact Us For Availability
WPL LIT2170416 WPL LIT2170416 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 2163620 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 18) WPL 4362040 Contact Us For Availability
1
Heater, Dispenser WPL 2170314 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Shelf Bin (2) WPL 2170587 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Door, Compartment WPL 2148289 Contact Us For Availability
4
Motor WPL 2167013 Contact Us For Availability
4
Trim, Compartment Door WPL 2162896 Contact Us For Availability
4
Housing, Dispenser WPL 2155813 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Shelf Bin (2) WPL 2170586 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Heat Shield WPL 2149293 Contact Us For Availability
7
Insert, Handle WPL 1119361 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
10
Valve, Solenoid WPL 2166614 Contact Us For Availability
10
Handle, Center WPL 1124713 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Grille, Overflow WPL 1126120 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Tube, Inlet WPL 627858 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Divider, Bin WPL 2160050 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
16
Insert, Handle WPL 1119367 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
17
Panel, Interior Door WPL 1124961 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Bracket, Door Stop WPL 2155332 Contact Us For Availability
24
Lever, Ice Dispenser WPL 2177144 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Harness, Intermediate WPL 2165296 Contact Us For Availability
26
Tap, Plate WPL 2155335 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
30
Screw WPL 489075 Contact Us For Availability
30
Screw, WPL 489155 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
32
Insulator, Switch WPL 984683 Contact Us For Availability
33
Screw WPL 489022 Contact Us For Availability
33
Bracket, Control WPL 1116811 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
35
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
39
Plaque, Front Cover WPL 2180425 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2180427 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
44
Wiring Assembly, Door WPL 1118374 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
