Model Whirlpool 6ED22DQXBW00 REFRIGERATOR – Common Parts & Diagrams

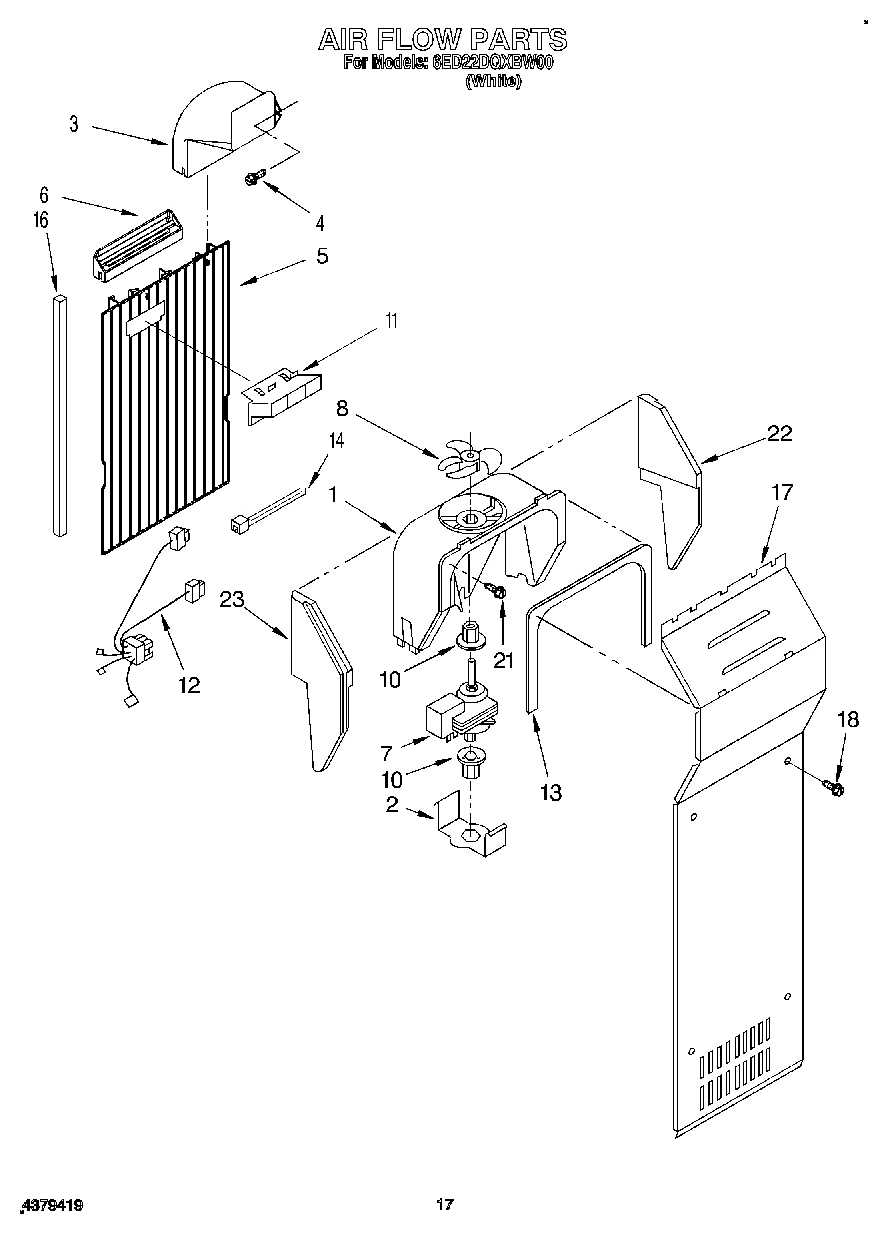

10 - AIR FLOW

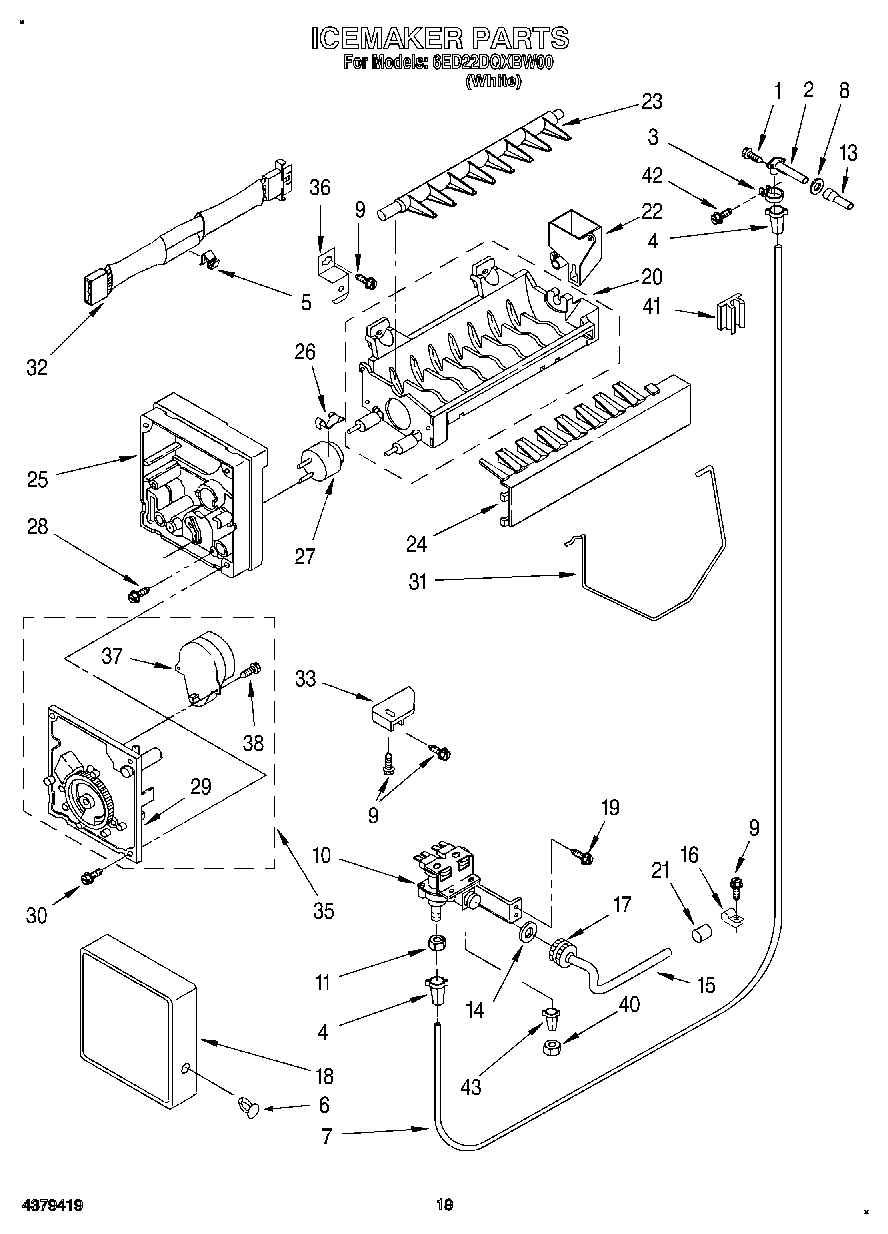

12 - ICEMAKER, LIT/OPTIONAL

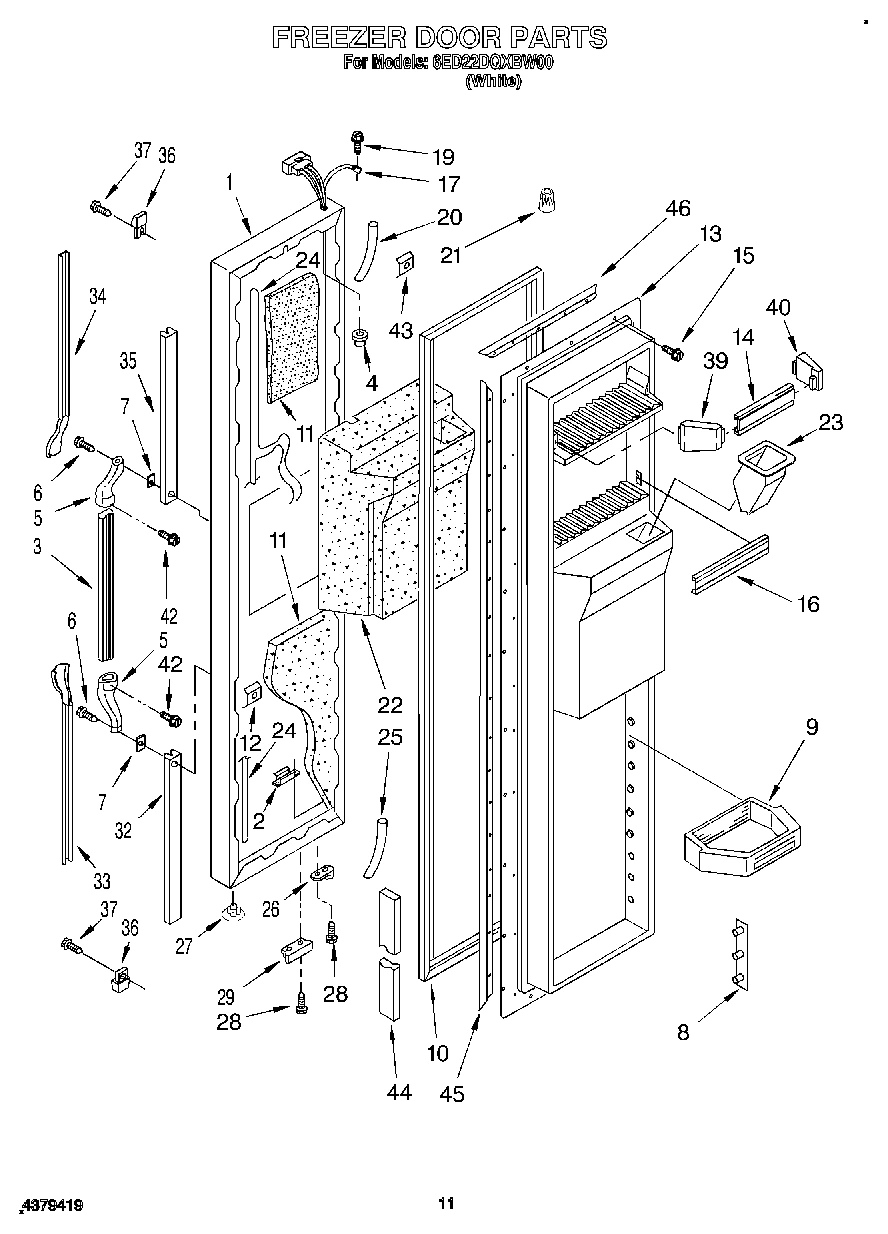

07 - FREEZER DOOR

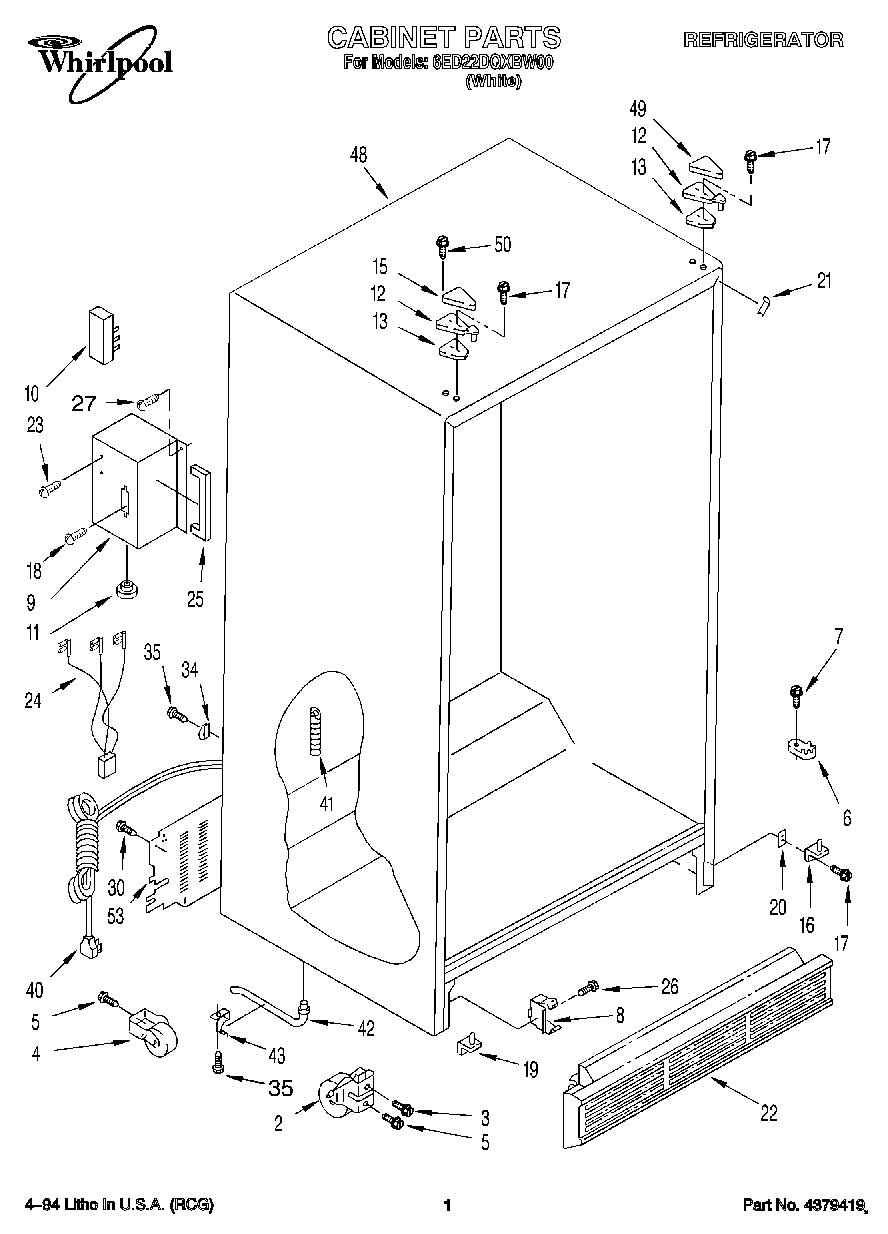

01 - CABINET

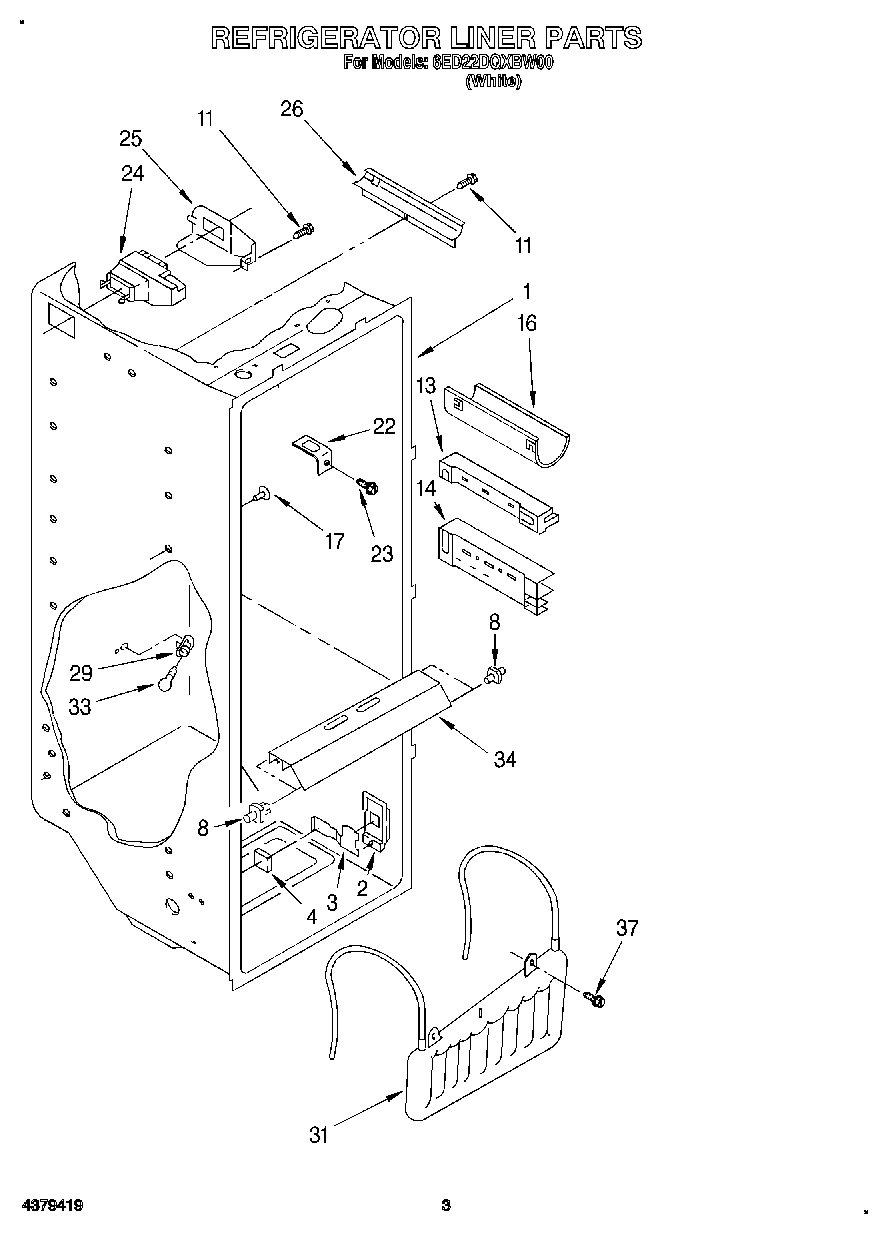

02 - REFRIGERATOR LINER

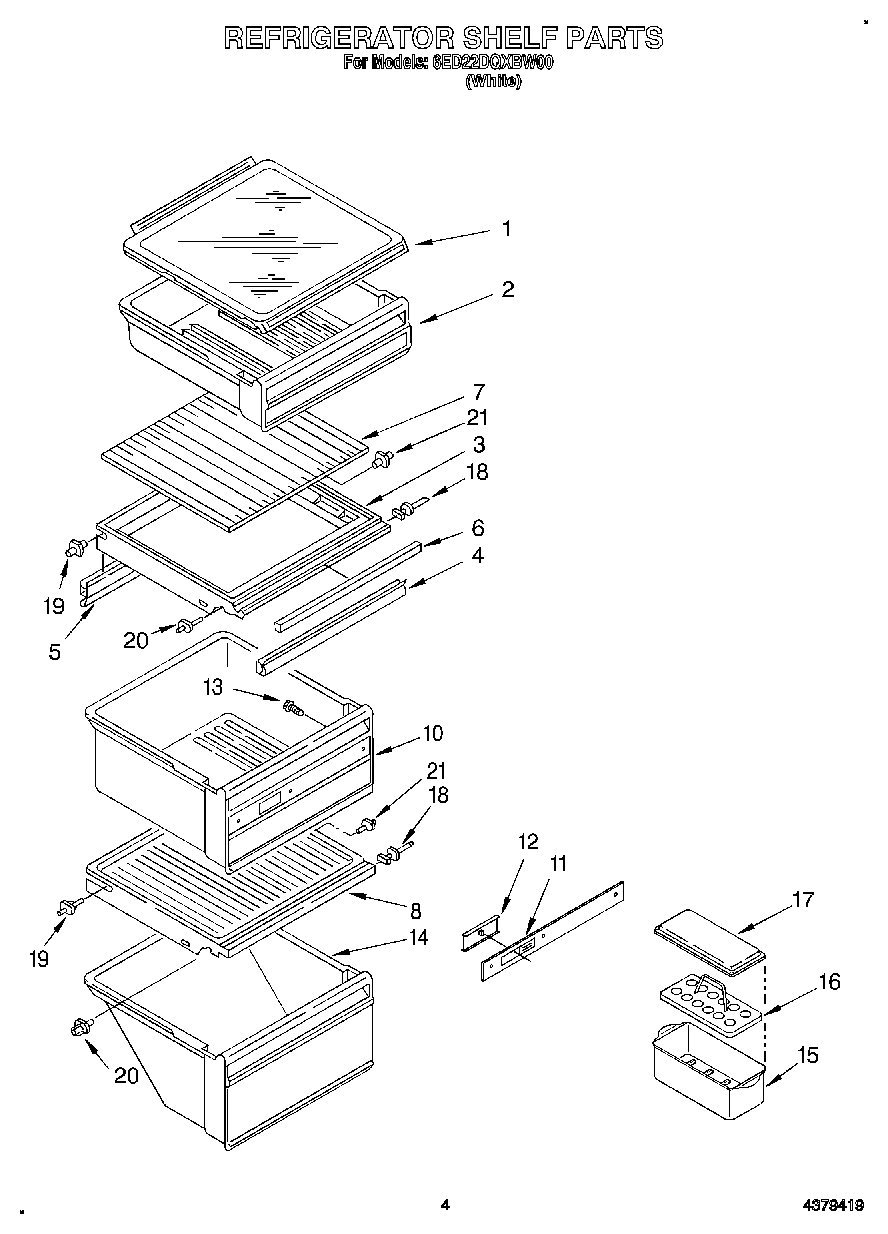

03 - REFRIGERATOR SHELF

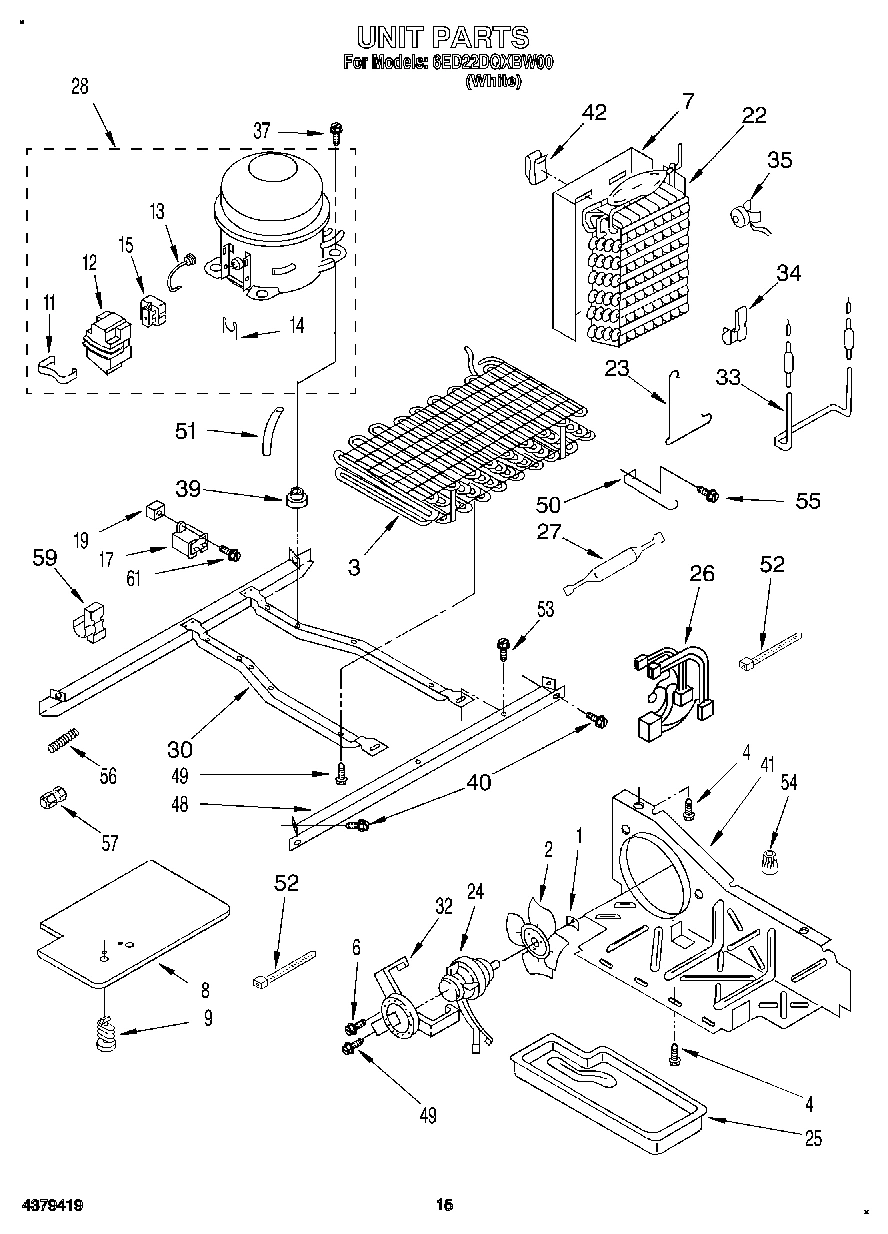

09 - UNIT

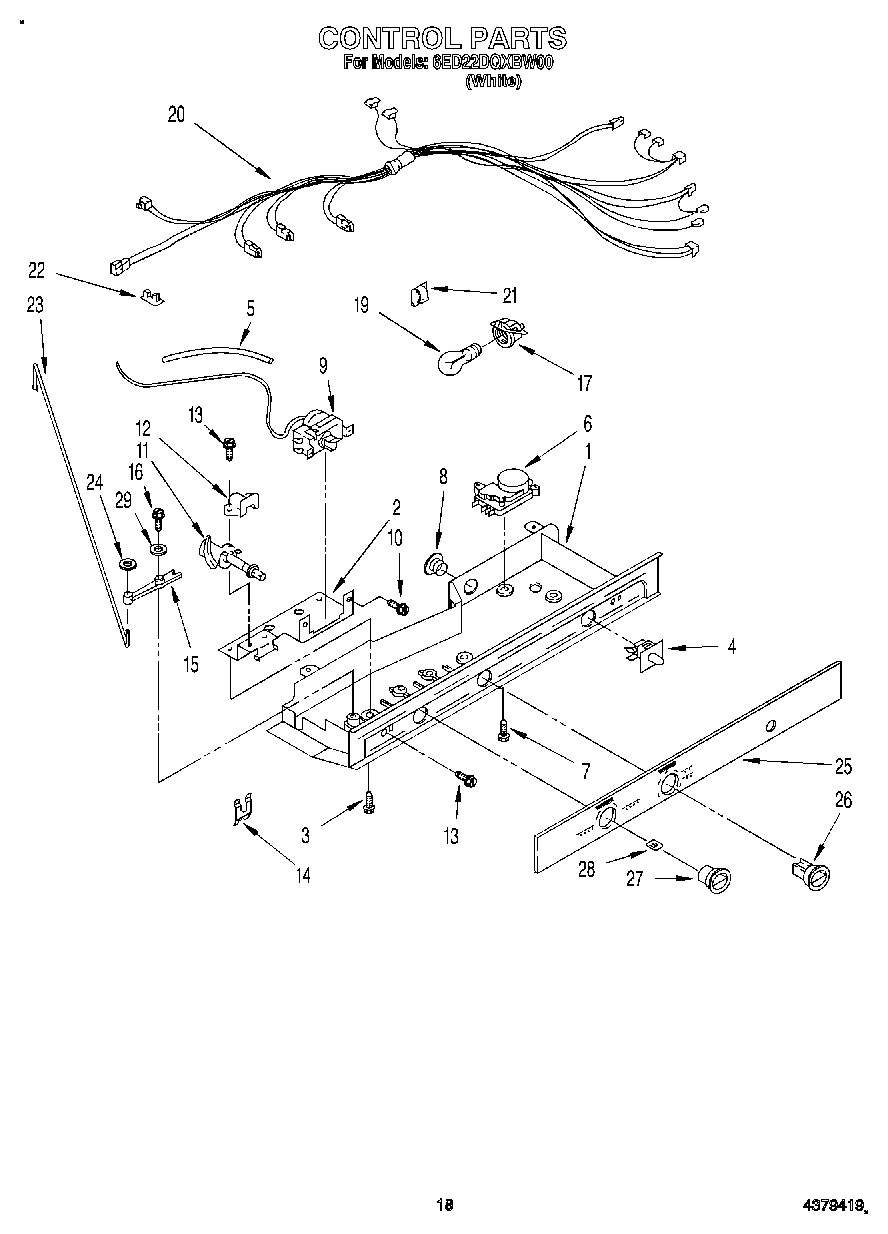

11 - CONTROL

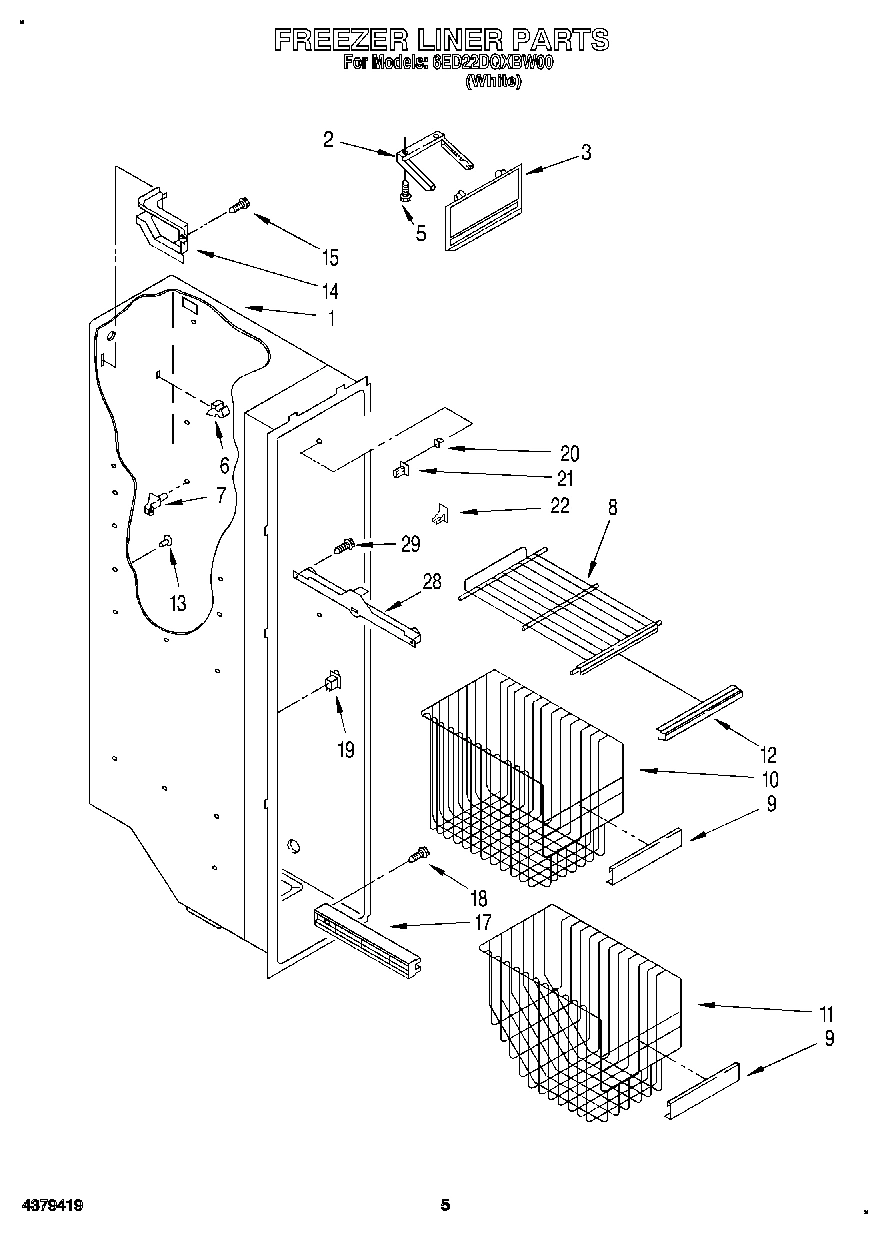

04 - FREEZER LINER

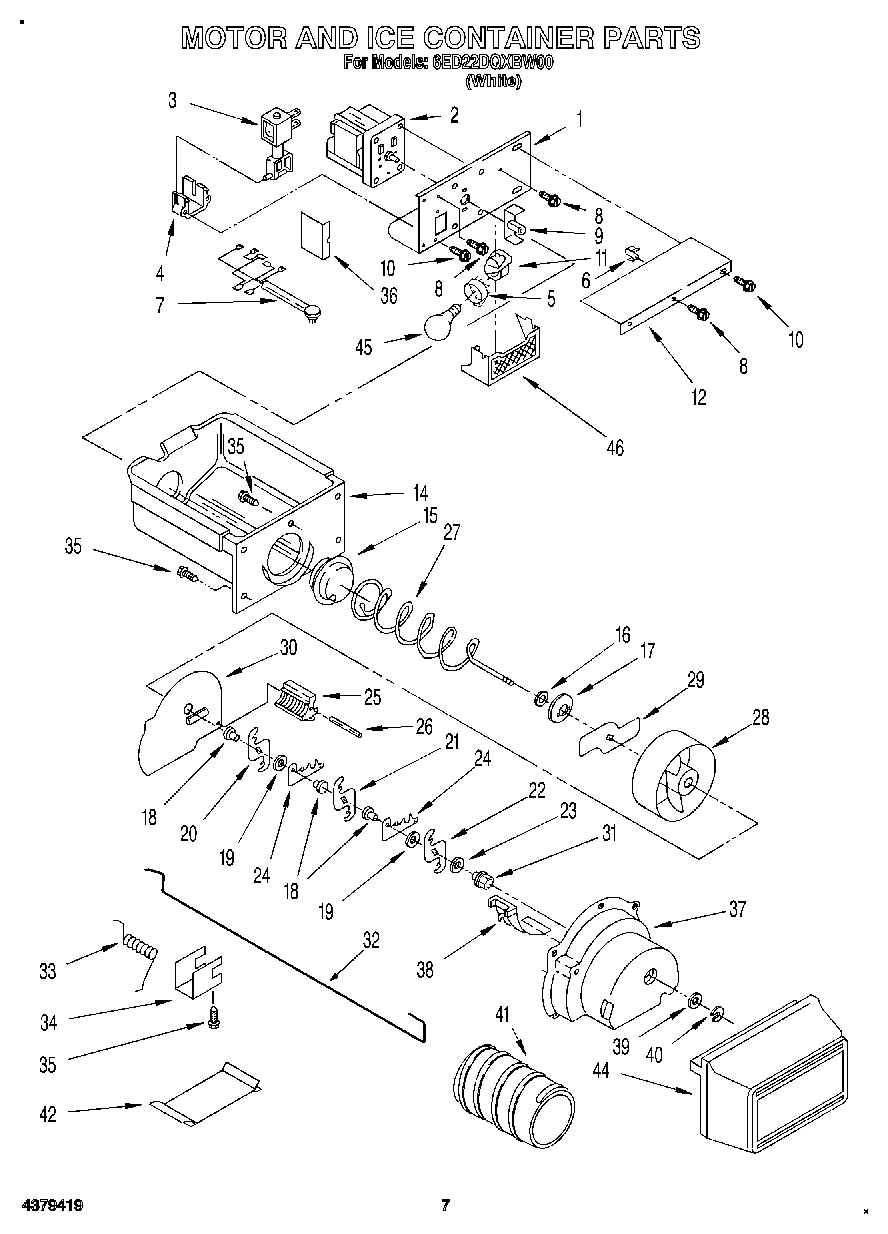

05 - MOTOR AND ICE CONTAINER

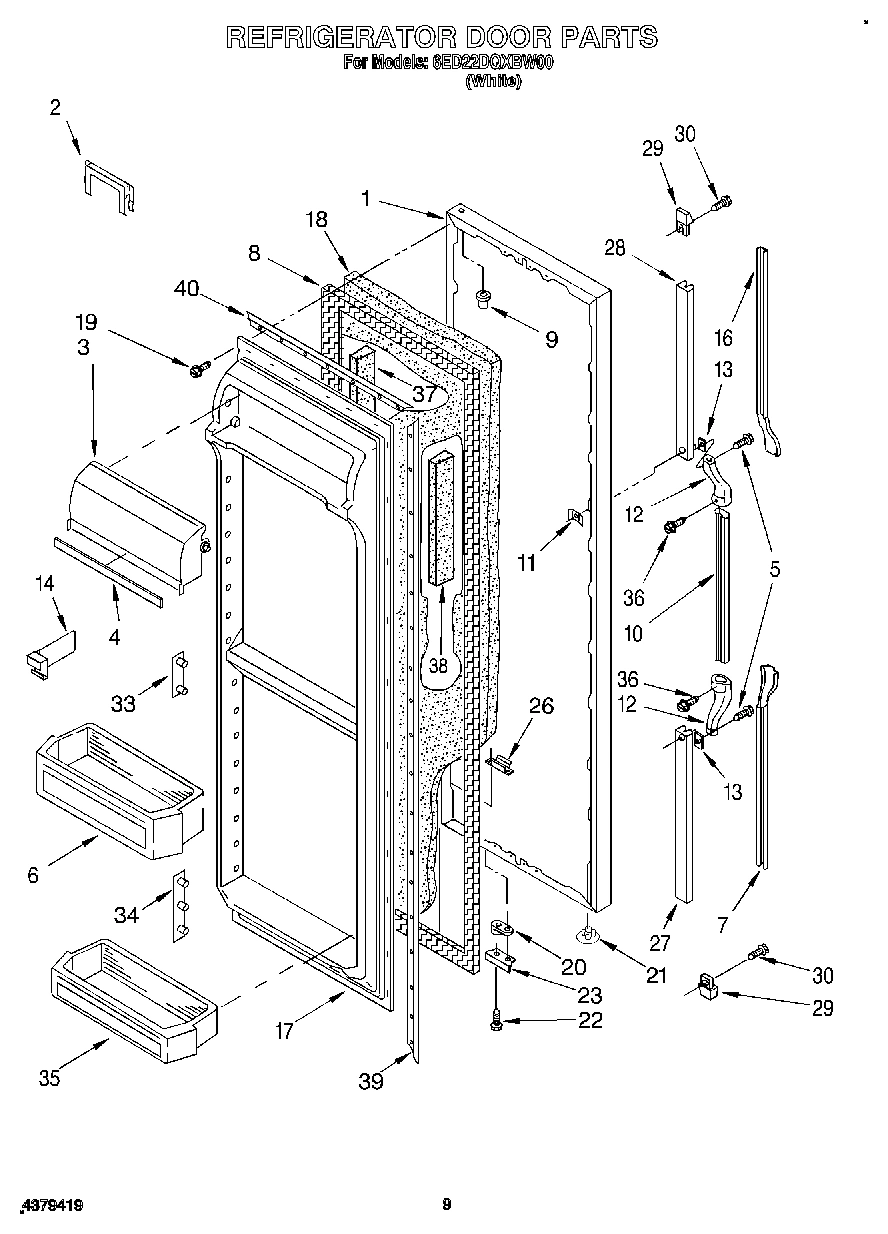

06 - REFRIGERATOR DOOR

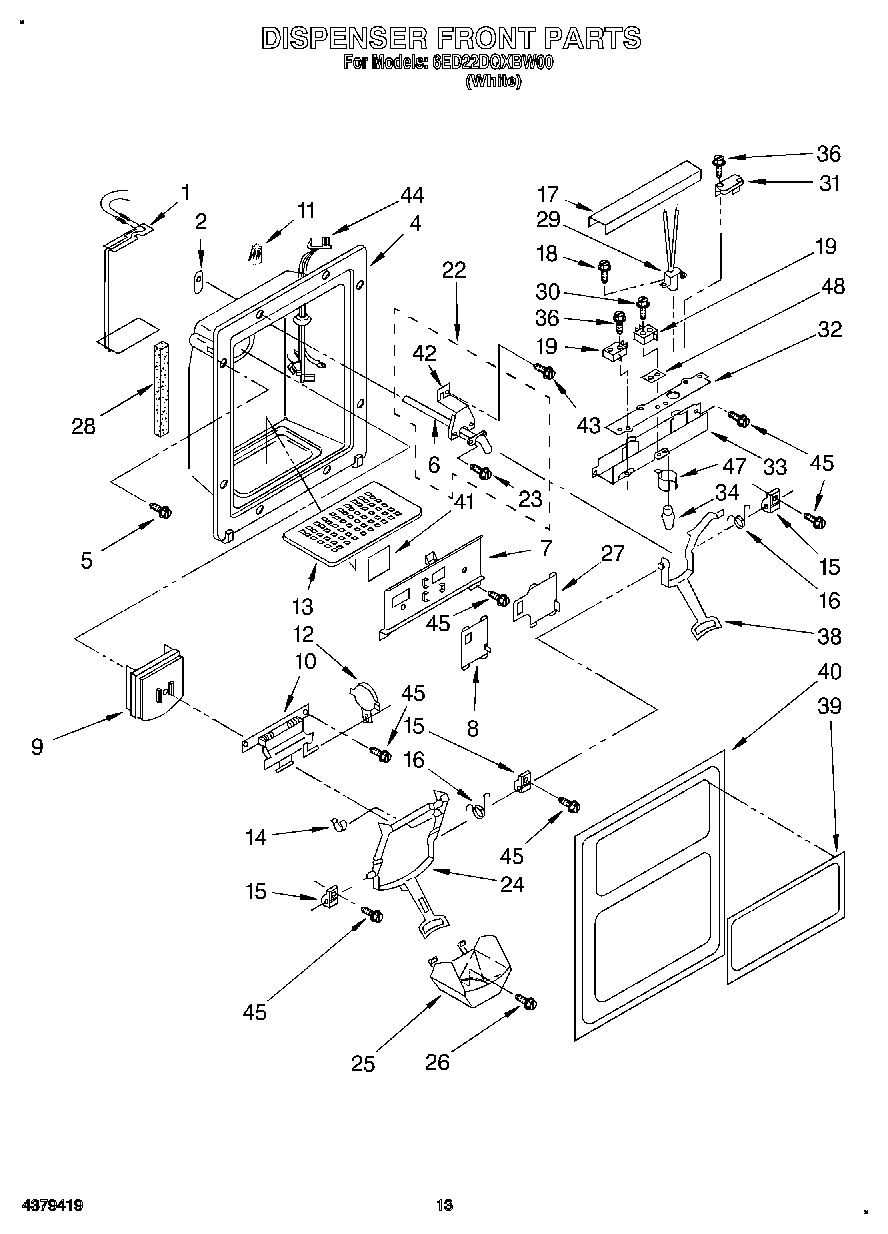

08 - DISPENSER FRONT
Common parts from model Whirlpool 6ED22DQXBW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15774A5 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162991 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15775A7 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 18) WPL 4362040 Contact Us For Availability
1
Heater, Dispenser WPL 2165241 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Snack Bin WPL 2170578 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Motor, Dispenser WPL 2165212 Contact Us For Availability
2
Retainer, Bottle WPL 2163566 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Door, Ice Compartment WPL 2162945 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Trim, Compartment Door WPL 2162896 Contact Us For Availability
4
Housing, Dispenser WPL 1124715 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
6
Trim, Crisper Cover WPL 2162845 Contact Us For Availability
6
Shelf Bin (2) WPL 2162889 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI15776A4 Contact Us For Availability
7
Glass, Crisper Cover WPL 2162983 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Insert, Handle WPL 1119361 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
8
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
8
Shelf WPL 2155640 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cover, Terminal Block WPL 2158579 Contact Us For Availability
9
Trim, Basket WPL 2162835 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
10
Pan, Crisper WPL 2162860 Contact Us For Availability
10
Basket, Tall WPL 2152087 Contact Us For Availability
10
Handle, Center WPL 1124713 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
11
Front, Crisper Pan WPL 2162854 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Basket, Slope WPL 2152089 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
12
Slide, Humidity Control WPL 2162849 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Trim, Shelf WPL 2162938 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Screw (3) WPL 489268 Contact Us For Availability
13
Overload WPL 2158785 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Grille, Overflow WPL 1126120 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Meat Pan WPL 2162932 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 2154720 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Insert, Handle WPL 1119367 Contact Us For Availability
17
Cover WPL 2164374 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
19
Shelf Stud WPL 1115290 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Hole Plug WPL 2151653 Contact Us For Availability
22
Grille WPL 2155477 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Screw WPL 489346 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Bracket, Door Stop WPL 2155332 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Fan, Motor WPL 2154976 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1124718 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Harness, Intermediate WPL 2165296 Contact Us For Availability
26
Tap, Plate WPL 2155335 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2154723 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw WPL 489075 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2162213 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
34
Pin Plate (8) WPL 1116986 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
35
Shelf Bin (2) WPL 2162888 Contact Us For Availability
36
Screw WPL 489022 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
38
Lever, Water Dispenser WPL 2159197 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
39
Plaque, Front Cover WPL 2162923 Contact Us For Availability
40
Service Cord WPL 1129331 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2162925 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171262 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Shroud, Bracket WPL 1129333 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI15773A1 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Screw WPL 489284 Contact Us For Availability
53
Cover, Unit WPL 2160521 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
56
Spring-Tube WPL 983659 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
