Whirlpool 5KSM192XDAVB5 SMALL APPLIANCE, STAND MIXER

1

WP110679 Whirlpool Screw Backorder WPL WP110679 $2.91

View on Model

1

USE & CARE GUIDE WPL W11556021 Contact Us For Availability

View on Model

1

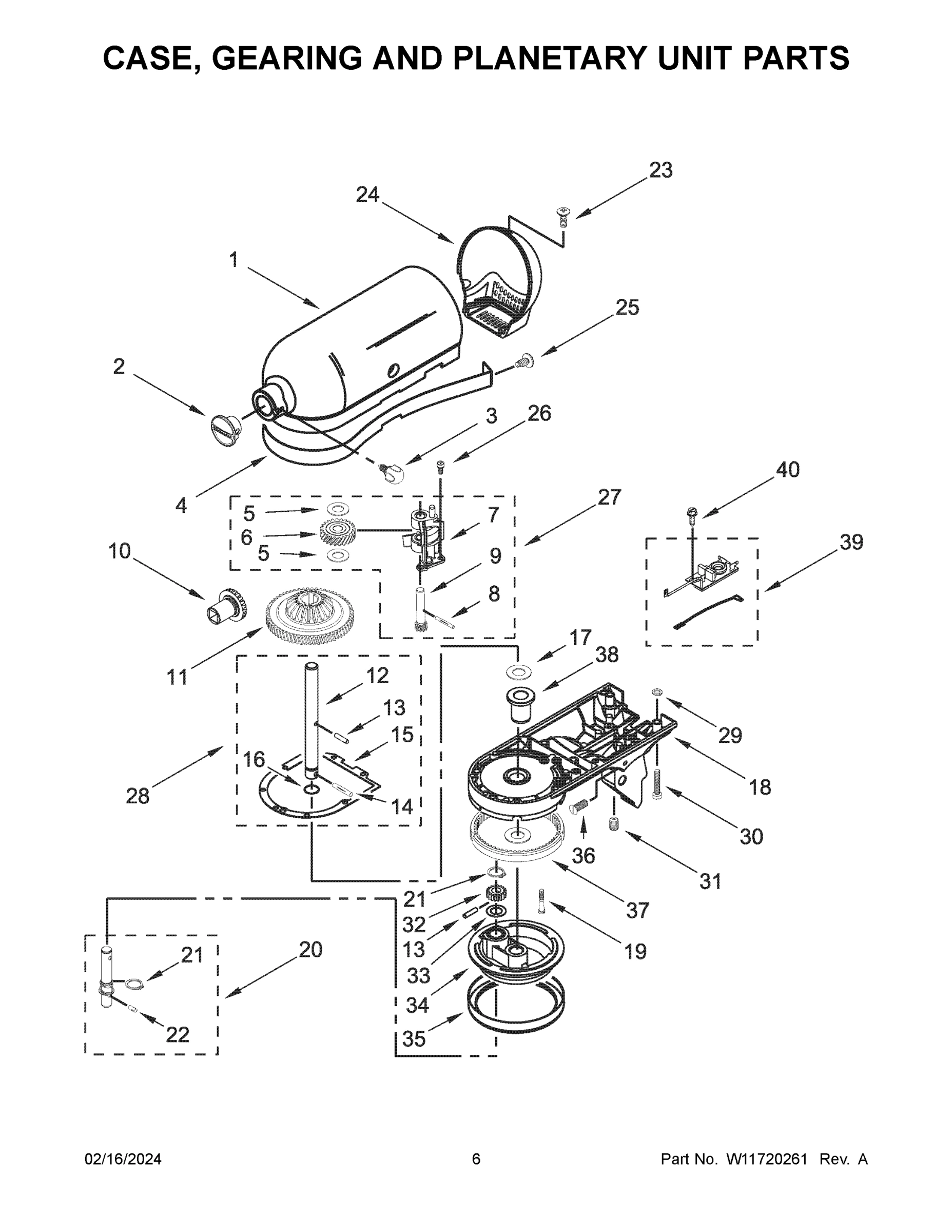

GEARCASE MOTOR HOUSING (REFER TO COLOR VARIAT WPL ARI33F21CE8839E6A9E729A46FBA298BEC9 Contact Us For Availability

View on Model

1P

MOTOR HOUSING (ONYX BLACK) WPL W11601672 Contact Us For Availability

View on Model

1Q

MOTOR HOUSING (PEBBLED PALM) WPL W11601753 Contact Us For Availability

View on Model

1R

MOTOR HOUSING (PISTACHIO) WPL W11603687 Contact Us For Availability

View on Model

1S

MOTOR HOUSING (WHITE) WPL W11601255 Contact Us For Availability

View on Model

2

W11048596 Whirlpool Hub Chrome Cap In Stock WPL W11048596 $5.82

View on Model

2

W11188450 Whirlpool Spring Backorder WPL W11188450 $2.91

View on Model

2

W11562449 Whirlpool Band Trim Backorder WPL W11562449 $37.37

View on Model

2

WP116241 Whirlpool Washer Backorder WPL WP116241 $2.91

View on Model

3

W10839419 Whirlpool Screw Backorder WPL W10839419 $4.58

View on Model

3

W11661858 Whirlpool Speed Lever Backorder WPL W11661858 $6.51

View on Model

3

W11672200 Whirlpool Mixer Beater Backorder WPL W11672200 $9.77

View on Model

3

END COVER (AGAVE) WPL W11579591 Contact Us For Availability

View on Model

3A

END COVER (ALMOND CREAM/CREME) WPL 24025316 Contact Us For Availability

View on Model

3B

END COVER (BLACK MATTE) WPL W10885707 Contact Us For Availability

View on Model

3C

END COVER (BLUE VELVET/MATTE VINTAGE BLUE) WPL W11209472 Contact Us For Availability

View on Model

3D

WPW10239110 Whirlpool Cover Backorder WPL WPW10239110 $19.34

View on Model

3E

9704805 Whirlpool Cover Assembly Backorder WPL 9704805 $32.65

View on Model

3F

W10350456 Whirlpool Cover Assembly Backorder WPL W10350456 $29.99

View on Model

3G

END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability

View on Model

3H

END COVER (FEATHER PINK) WPL W11431666 Contact Us For Availability

View on Model

3I

END COVER (HONEY) WPL W11485686 Contact Us For Availability

View on Model

3J

END COVER (KYOTO GLOW) WPL W11357462 Contact Us For Availability

View on Model

3K

END COVER (MAJESTIC YELLOW) WPL 24025321 Contact Us For Availability

View on Model

3L

END COVER (MATTE DRIED ROSE) WPL W11209501 Contact Us For Availability

View on Model

3M

W10678729 Whirlpool Cover Assembly Backorder WPL W10678729 $32.65

View on Model

3N

WPL W11113835 WPL W11113835 Contact Us For Availability

View on Model

3O

WPL W11444606 WPL W11444606 Contact Us For Availability

View on Model

3P

WPL 24025314 WPL 24025314 Contact Us For Availability

View on Model

3Q

WPL W11346216 WPL W11346216 Contact Us For Availability

View on Model

3R

9706841 Whirlpool Cover Backorder WPL 9706841 $29.99

View on Model

3S

WPL 2402531 WPL 2402531 Contact Us For Availability

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.91

View on Model

4

WPL W11579603 WPL W11579603 Contact Us For Availability

View on Model

4

BOWL, 5 QT. WPL W11259899 Contact Us For Availability

View on Model

4

BAND, TRIM (REFER TO COLOR VARIATION PARTS PA WPL ARIBCA4922FCDA0811E32A4250D3BAC8839 Contact Us For Availability

View on Model

4A

WPL 24028618 WPL 24028618 Contact Us For Availability

View on Model

4B

W11170306 Whirlpool Planetary Assembly Backorder WPL W11170306 $17.77

View on Model

4C

WPL W11209470 WPL W11209470 Contact Us For Availability

View on Model

4D

W10239112 Whirlpool Planetary Mixer Backorder WPL W10239112 $31.48

View on Model

4E

9704797 Whirlpool Planetary Mixing Backorder WPL 9704797 $31.00

View on Model

4F

W10350465 Whirlpool Planetary Mixer Backorder WPL W10350465 $31.00

View on Model

4G

WPL 24028623 WPL 24028623 Contact Us For Availability

View on Model

4H

WPL W11431675 WPL W11431675 Contact Us For Availability

View on Model

4I

WPL W11485717 WPL W11485717 Contact Us For Availability

View on Model

4J

WPL W11357469 WPL W11357469 Contact Us For Availability

View on Model

4K

WPL 24028622 WPL 24028622 Contact Us For Availability

View on Model

4L

WPL W11209496 WPL W11209496 Contact Us For Availability

View on Model

4M

WPL W10678731 WPL W10678731 Contact Us For Availability

View on Model

4N

W11113886 Whirlpool Planetary Mixer Backorder WPL W11113886 $33.47

View on Model

4O

WPL W11444675 WPL W11444675 Contact Us For Availability

View on Model

4P

WPL 24028616 WPL 24028616 Contact Us For Availability

View on Model

4Q

WPL W11346226 WPL W11346226 Contact Us For Availability

View on Model

4R

WPL 9706839 WPL 9706839 Contact Us For Availability

View on Model

4S

WPL 2402861 WPL 2402861 Contact Us For Availability

View on Model

5

W11557271 Whirlpool Link Speed Backorder WPL W11557271 $2.43

View on Model

5

WPW10323373 Whirlpool Washer Backorder WPL WPW10323373 $2.91

View on Model

5

WPL W11579600 WPL W11579600 Contact Us For Availability

View on Model

5

SCREW WPL 3400020 Contact Us For Availability

View on Model

5A

WPL 24035062 WPL 24035062 Contact Us For Availability

View on Model

5B

WPL W10885699 WPL W10885699 Contact Us For Availability

View on Model

5C

W11209465 Whirlpool Gearcase Backorder WPL W11209465 $47.47

View on Model

5D

W10245786 Whirlpool Gearcase Backorder WPL W10245786 $43.92

View on Model

5E

WPL 9707103 WPL 9707103 Contact Us For Availability

View on Model

5F

WPL W10350459 WPL W10350459 Contact Us For Availability

View on Model

5G

WPL 24035091 WPL 24035091 Contact Us For Availability

View on Model

5H

WPL W11431679 WPL W11431679 Contact Us For Availability

View on Model

5I

WPL W11485689 WPL W11485689 Contact Us For Availability

View on Model

5J

WPL W11357465 WPL W11357465 Contact Us For Availability

View on Model

5K

WPL 24035093 WPL 24035093 Contact Us For Availability

View on Model

5L

WPL W11209493 WPL W11209493 Contact Us For Availability

View on Model

5M

WPL W10678734 WPL W10678734 Contact Us For Availability

View on Model

5N

WPL W11113859 WPL W11113859 Contact Us For Availability

View on Model

5O

WPL W11444671 WPL W11444671 Contact Us For Availability

View on Model

5P

WPL 24035056 WPL 24035056 Contact Us For Availability

View on Model

5Q

WPL W11346221 WPL W11346221 Contact Us For Availability

View on Model

5R

9706832 Whirlpool Gearcase Backorder WPL 9706832 $43.85

View on Model

5S

WPL 2403504 WPL 2403504 Contact Us For Availability

View on Model

6

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $7.98

View on Model

6

WPW10191926 Whirlpool Cap Screw In Stock WPL WPW10191926 $10.41

View on Model

6

WPL W11579606 WPL W11579606 Contact Us For Availability

View on Model

6

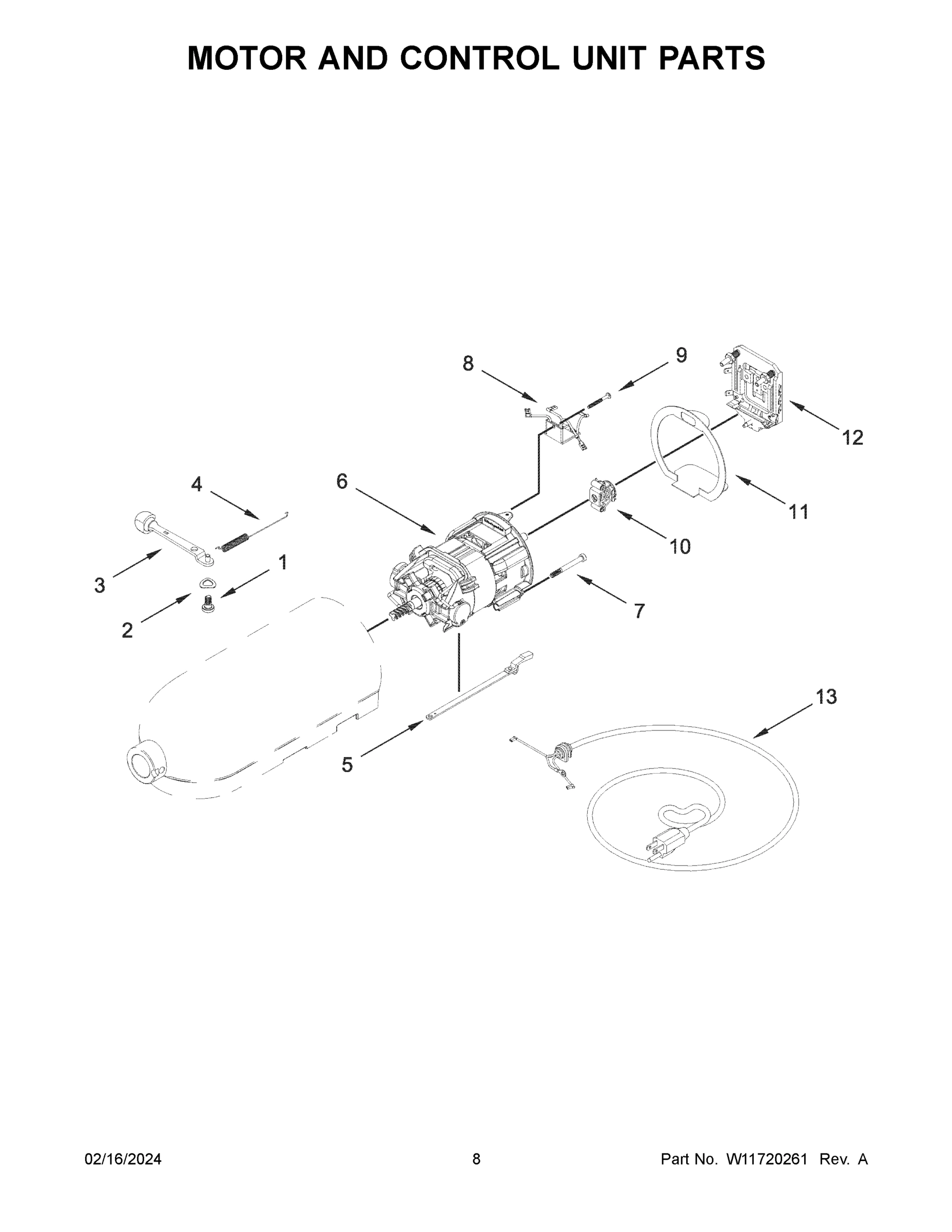

MOTOR ASSEMBLY WPL W11610691 Contact Us For Availability

View on Model

6A

WPL 9705577 WPL 9705577 Contact Us For Availability

View on Model

6B

WPL W11185575 WPL W11185575 Contact Us For Availability

View on Model

6C

WPL W11209463 WPL W11209463 Contact Us For Availability

View on Model

6D

WPL W10245720 WPL W10245720 Contact Us For Availability

View on Model

6E

WPL W10648651 WPL W10648651 Contact Us For Availability

View on Model

6F

WPL W10482478 WPL W10482478 Contact Us For Availability

View on Model

6G

WPL 3184280 WPL 3184280 Contact Us For Availability

View on Model

6H

WPL W11431673 WPL W11431673 Contact Us For Availability

View on Model

6I

WPL W11485777 WPL W11485777 Contact Us For Availability

View on Model

6J

W11357472 Whirlpool Pedestal Backorder WPL W11357472 $57.65

View on Model

6K

WPL 3184281 WPL 3184281 Contact Us For Availability

View on Model

6L

WPL W11209491 WPL W11209491 Contact Us For Availability

View on Model

6M

WPL W11176417 WPL W11176417 Contact Us For Availability

View on Model

6N

WPL W11259895 WPL W11259895 Contact Us For Availability

View on Model

6O

WPL W11521031 WPL W11521031 Contact Us For Availability

View on Model

6P

WPL 3184275 WPL 3184275 Contact Us For Availability

View on Model

6Q

WPL W11346220 WPL W11346220 Contact Us For Availability

View on Model

6R

WPL 9709637 WPL 9709637 Contact Us For Availability

View on Model

6S

WP3184273 Whirlpool Pedestal Backorder WPL WP3184273 $71.53

View on Model

7

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.47

View on Model

7

WP9709707 Whirlpool Foot In Stock WPL WP9709707 $2.91

View on Model

7

SCREW, MOTOR MOUNTING WPL W11573199 Contact Us For Availability

View on Model

8

W11204851 Whirlpool Phase Board Backorder WPL W11204851 $18.68

View on Model

8

WP9704329 Whirlpool Wire Whip In Stock WPL WP9704329 $17.95

View on Model

8

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $2.91

View on Model

9

W11084238 Whirlpool Screw Assembly Backorder WPL W11084238 $2.91

View on Model

9

HOOK, DOUGH (SILENT SILVER) WPL W11555367 Contact Us For Availability

View on Model

9

GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability

View on Model

10

W11246352 Whirlpool Latch Mechanism In Stock WPL W11246352 $2.43

View on Model

10

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $8.86

View on Model

11

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $25.20

View on Model

11

W11416057 Whirlpool Latch Lever Backorder WPL W11416057 $9.00

View on Model

11

SEAL, END WPL 2407751 Contact Us For Availability

View on Model

12

WP240026 Whirlpool Control Shaft Backorder WPL WP240026 $5.44

View on Model

12

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $10.94

View on Model

13

PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability

View on Model

13

CORD, POWER (BLACK) WPL W11667282 Contact Us For Availability

View on Model

14

WP3184264 Whirlpool Headlock Assembly Backorder WPL WP3184264 $5.05

View on Model

14

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.91

View on Model

15

W10802060 Whirlpool Screw Backorder WPL W10802060 $2.91

View on Model

15

GASKET, TRANSMISSION WPL 240684 Contact Us For Availability

View on Model

16

W11232016 Whirlpool Latch Link Backorder WPL W11232016 $2.43

View on Model

16

O RING WPL 6750055 Contact Us For Availability

View on Model

17

W11676543 Whirlpool Latch Lever Backorder WPL W11676543 $6.51

View on Model

17

WPW10323378 Whirlpool Washer Backorder WPL WPW10323378 $6.06

View on Model

18

WP16910 Whirlpool Dowel Pin In Stock WPL WP16910 $2.80

View on Model

18

LOWER GEAR CASE (REFER TO COLOR VARIATION PAR WPL ARIEEF1A622BEAEFB23DF6AAD74FAA5F1B3 Contact Us For Availability

View on Model

19

W11170598 Whirlpool Screw Backorder WPL W11170598 $2.91

View on Model

19

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL ARIF75EE2D15D3C0612D837BA31F9C56284 Contact Us For Availability

View on Model

20

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

21

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model

22

W11664709 Whirlpool Groove Pin Backorder WPL W11664709 $4.43

View on Model

23

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

24

COVER, END (REFER TO COLOR VARIATION PARTS PA WPL ARIA42AF3C648852D218FE775E70963B46D Contact Us For Availability

View on Model

25

W10853069 Whirlpool Screw Backorder WPL W10853069 $2.91

View on Model

26

W11097298 Whirlpool Dishwasher Screw Backorder WPL W11097298 $2.91

View on Model

27

WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability

View on Model

28

4160474 Whirlpool Control Shaft Backorder WPL 4160474 $18.94

View on Model

29

WP8533914 Whirlpool Lock Backorder WPL WP8533914 $2.91

View on Model

30

W11173547 Whirlpool Screw Backorder WPL W11173547 $2.91

View on Model

31

WP3400203 Whirlpool Screw Backorder WPL WP3400203 $2.91

View on Model

32

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

33

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $2.80

View on Model

34

PLANETARY (REFER TO COLOR VARIATION PARTS PAG WPL ARIE1E6A119255DCE4ACEB73D1DA4BBAB1D Contact Us For Availability

View on Model

35

RING, PLANETARY DRIP (POLISHED) WPL 2402852 Contact Us For Availability

View on Model

36

W11028216 Whirlpool Screw Backorder WPL W11028216 $2.91

View on Model

37

W11340106 Whirlpool Gear Assembly Backorder WPL W11340106 $11.95

View on Model

38

WP16897 Whirlpool Bearing In Stock WPL WP16897 $2.80

View on Model

39

4176340 Whirlpool Refrigerator Mixer Filter Backorder WPL 4176340 $22.31

View on Model

40

SCREW WPL 7101P11560 Contact Us For Availability

View on Model

All Categories

Brands

Model Whirlpool 5KSM192XDAVB5 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams

Common parts from model Whirlpool 5KSM192XDAVB5 SMALL APPLIANCE, STAND MIXER

Search result for :
